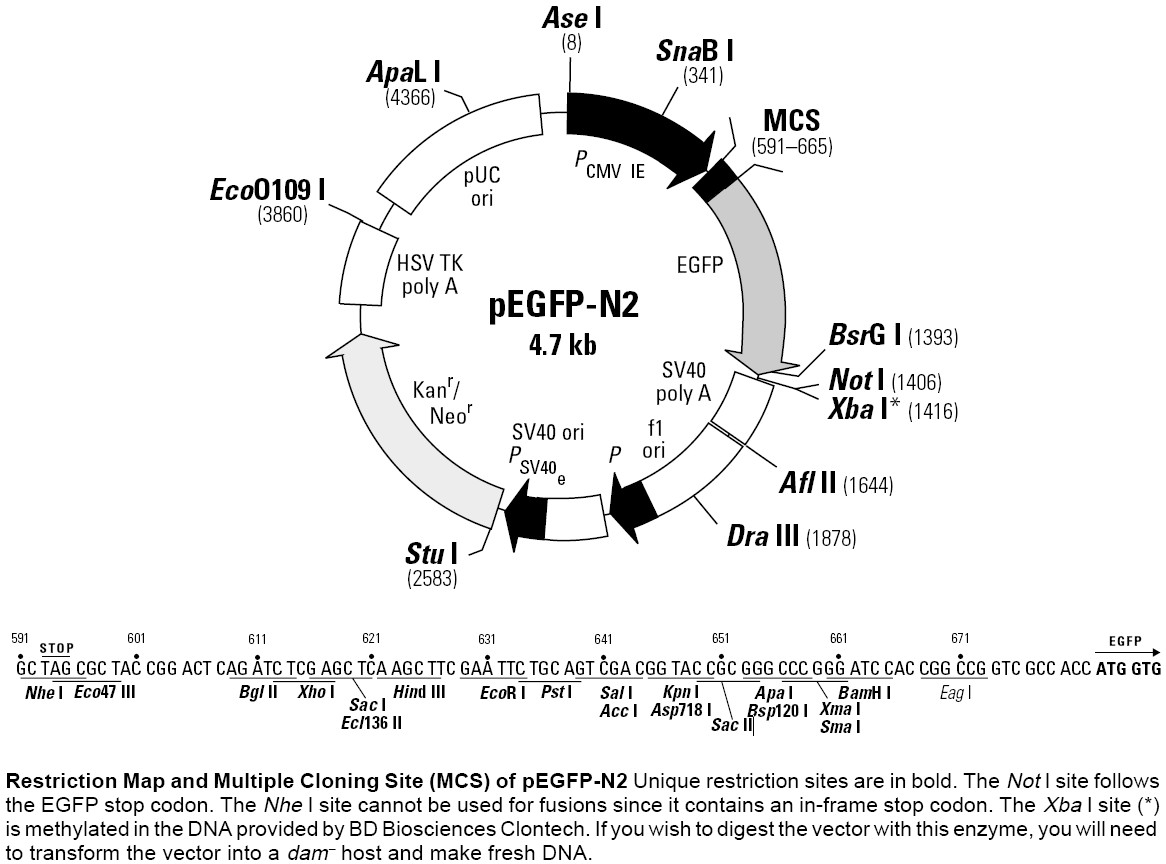

pEGFP-N2 pEGFP N2载体图谱质粒图谱、序列、价格、抗性、测序引物、大小等基本信息

出品公司:	Clontech
别名:	pEGFP-N2, pEGFP N2
质粒类型:	哺乳动物细胞表达载体
启动子:	CMV
表达水平:	高
克隆方法:	多克隆位点，限制性内切酶
载体大小:	4737bp
5' 测序引物:	CMV-F
5' 测序引物序列:	5'-CGCAAATGGGCGGTAGGCGTG-3'
3' 测序引物:	EGFP-N
3' 测序引物序列:	5'-CGTCGCCGTCCAGCTCGACCAG-3'
载体标签:	C-EGFP
载体抗性:	Kanamycin
筛选标记:	Neomycin
备注:	This plasmid has been discontinued by Clontech. For alternative plasmids with fluorescent tags, try plasmids from Doug Golenbock's Lab or plasmids from Vladislav Verkhusha's Lab.
产品目录号:	6081-1
稳定性:	稳表达 Stable
组成型:	组成型 Constitutive
病毒/非病毒:	非病毒

Feature Name	Start	End
CMV_immearly_promoter	10	562
CAG_enhancer	65	352
CMV_fwd_primer	519	539
CMV_promoter	520	589
EGFP	686	1399
EGFP_N_primer	749	728
Y66 (EGFP)	866	895
EGFP_C_primer	1336	1357
EBV_rev_primer	1616	1635
f1_origin	2091	1785
AmpR_promoter	2170	2198
pBABE_3_primer	2284	2264
SV40_enhancer	2485	2270
SV40_promoter	2282	2550
SV40_origin	2449	2526
SV40pro_F_primer	2511	2530
NeoR/KanR	2636	3424
TK_PA_terminator	3602	3871
pBR322_origin	4019	4638

ORF	Start	End
ORF frame 2	683	1402
ORF frame 2	2633	3427
ORF frame 3	3478	2942

Enzyme Name	Cut
AseI	7
NdeI	234
NheI	591
BglII	609
XhoI	613
SacI	620
HindIII	622
EcoRI	629
PstI	638
SalI	639
KpnI	649
SacII	652
ApaI	657
SmaI	658
XmaI	656
BamHI	660
NotI	1405
XbaI	1415
HpaI	1524
AflII	1643
StuI	2582
ClaI	2601
NarI	2761
MscI	2843
FspI	2863
ApaLI	4365

pEGFP-N2 encodes a red-shifted variant of wild-type GFP (1–3) which has been optimized forbrighter fluorescence and higher expression in mammalian cells. (Excitation maximum = 488 nm;emission maximum = 507 nm.) pEGFP-N2 encodes the GFPmut1 variant (4) which contains the double-amino-acid substitution of Phe-64 to Leu and Ser-65 to Thr. The coding sequence of the EGFP gene contains more than 190 silent base changes which correspond to human codon-usage preferences (5). Sequences flanking EGFP have been converted to a Kozak consensus translation initiation site (6) to further increase the translation efficiency in eukaryotic cells. The MCS in pEGFP-N2 is between the immediate early promoter of CMV (PCMV IE) and the EGFP coding sequences. Genes cloned into the MCS will be expressed as fusions to the N terminus of EGFP if they are in the same reading frame as EGFP and there are no intervening stop codons. SV40polyadenylation signals downstream of the EGFP gene direct proper processing of the 3' end of the EGFP mRNA. The vector backbone also contains an SV40 origin for replication in mammalian cells expressing the SV40 T-antigen. A neomycin resistance cassette (Neor), consisting of the SV40 early promoter, the neomycin/kanamycin resistance gene of Tn5, and polyadenylation signals from the Herpes simplex virus thymidine kinase (HSV TK) gene, allows stably transfected eukaryotic cells tobe selected using G418. A bacterial promoter upstream of this cassette expresses kanamycin resistance in E. coli. The pEGFP-N2 backbone also provides a pUC origin of replication for propagation in E. coli and an f1 origin for single-stranded DNA production.

Use:
Fusions to the N terminus of EGFP retain the fluorescent properties of the native protein allowing the localization of the fusion protein in vivo . The target gene should be cloned into pEGFP-N2 so that it is in frame with the EGFP coding sequences, with no intervening in-frame stop codons. The inserted gene should include the initiating ATG codon. There combinant EGFP vector can be transfected into mammalian cells using any standard transfection method. If required, stable transformants can be selected using G418 (7). pEGFP-N2 can also be used simply to express EGFP in a cell line of interest (e.g., as a transfection marker).

LOCUS       pEGFP-N2   4737 bp    DNA Circular SYN
DEFINITION pEGFP-N2
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank|
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..4737
                     /organism="pEGFP-N2"
                     /mol_type="other DNA"
     promoter        10..562
                     /label="CMV_immearly_promoter"
     misc_feature    65..352
                     /label="CAG_enhancer"
     misc_feature    519..539
                     /label="CMV_fwd_primer"
     promoter        520..589
                     /label="CMV_promoter"
     CDS             683..1402
                     /label="ORF frame 2"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYK*"
     gene            686..1399
                     /label="EGFP"
                     /gene="EGFP"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYK*"
     misc_feature    complement(728..749)
                     /label="EGFP_N_primer"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYK*"
     misc_feature    866..895
                     /label="Y66 (EGFP)"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYK*"
     misc_feature    1336..1357
                     /label="EGFP_C_primer"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYK*"
     misc_feature    1616..1635
                     /label="EBV_rev_primer"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYK*"
     rep_origin      complement(1785..2091)
                     /label="f1_origin"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYK*"
     promoter        2170..2198
                     /label="AmpR_promoter"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYK*"
     misc_feature    complement(2264..2284)
                     /label="pBABE_3_primer"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYK*"
     misc_feature    complement(2270..2485)
                     /label="SV40_enhancer"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYK*"
     promoter        2282..2550
                     /label="SV40_promoter"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYK*"
     rep_origin      2449..2526
                     /label="SV40_origin"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYK*"
     misc_feature    2511..2530
                     /label="SV40pro_F_primer"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYK*"
     CDS             2633..3427
                     /label="ORF frame 2"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     gene            2636..3424
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     CDS             complement(2942..3478)
                     /label="ORF frame 3"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     terminator      3602..3871
                     /label="TK_PA_terminator"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     rep_origin      4019..4638
                     /label="pBR322_origin"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
ORIGIN
    1 TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA TGGAGTTCCG
   61 CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC CCCGCCCATT
121 GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC ATTGACGTCA
181 ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT ATCATATGCC
241 AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT ATGCCCAGTA
301 CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA TCGCTATTAC
361 CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG ACTCACGGGG
421 ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC AAAATCAACG
481 GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG GTAGGCGTGT
541 ACGGTGGGAG GTCTATATAA GCAGAGCTGG TTTAGTGAAC CGTCAGATCC GCTAGCGCTA
601 CCGGACTCAG ATCTCGAGCT CAAGCTTCGA ATTCTGCAGT CGACGGTACC GCGGGCCCGG
661 GATCCACCGG CCGGTCGCCA CCATGGTGAG CAAGGGCGAG GAGCTGTTCA CCGGGGTGGT
721 GCCCATCCTG GTCGAGCTGG ACGGCGACGT AAACGGCCAC AAGTTCAGCG TGTCCGGCGA
781 GGGCGAGGGC GATGCCACCT ACGGCAAGCT GACCCTGAAG TTCATCTGCA CCACCGGCAA
841 GCTGCCCGTG CCCTGGCCCA CCCTCGTGAC CACCCTGACC TACGGCGTGC AGTGCTTCAG
901 CCGCTACCCC GACCACATGA AGCAGCACGA CTTCTTCAAG TCCGCCATGC CCGAAGGCTA
961 CGTCCAGGAG CGCACCATCT TCTTCAAGGA CGACGGCAAC TACAAGACCC GCGCCGAGGT
1021 GAAGTTCGAG GGCGACACCC TGGTGAACCG CATCGAGCTG AAGGGCATCG ACTTCAAGGA
1081 GGACGGCAAC ATCCTGGGGC ACAAGCTGGA GTACAACTAC AACAGCCACA ACGTCTATAT
1141 CATGGCCGAC AAGCAGAAGA ACGGCATCAA GGTGAACTTC AAGATCCGCC ACAACATCGA
1201 GGACGGCAGC GTGCAGCTCG CCGACCACTA CCAGCAGAAC ACCCCCATCG GCGACGGCCC
1261 CGTGCTGCTG CCCGACAACC ACTACCTGAG CACCCAGTCC GCCCTGAGCA AAGACCCCAA
1321 CGAGAAGCGC GATCACATGG TCCTGCTGGA GTTCGTGACC GCCGCCGGGA TCACTCTCGG
1381 CATGGACGAG CTGTACAAGT AAAGCGGCCG CGACTCTAGA TCATAATCAG CCATACCACA
1441 TTTGTAGAGG TTTTACTTGC TTTAAAAAAC CTCCCACACC TCCCCCTGAA CCTGAAACAT
1501 AAAATGAATG CAATTGTTGT TGTTAACTTG TTTATTGCAG CTTATAATGG TTACAAATAA
1561 AGCAATAGCA TCACAAATTT CACAAATAAA GCATTTTTTT CACTGCATTC TAGTTGTGGT
1621 TTGTCCAAAC TCATCAATGT ATCTTAAGGC GTAAATTGTA AGCGTTAATA TTTTGTTAAA
1681 ATTCGCGTTA AATTTTTGTT AAATCAGCTC ATTTTTTAAC CAATAGGCCG AAATCGGCAA
1741 AATCCCTTAT AAATCAAAAG AATAGACCGA GATAGGGTTG AGTGTTGTTC CAGTTTGGAA
1801 CAAGAGTCCA CTATTAAAGA ACGTGGACTC CAACGTCAAA GGGCGAAAAA CCGTCTATCA
1861 GGGCGATGGC CCACTACGTG AACCATCACC CTAATCAAGT TTTTTGGGGT CGAGGTGCCG
1921 TAAAGCACTA AATCGGAACC CTAAAGGGAG CCCCCGATTT AGAGCTTGAC GGGGAAAGCC
1981 GGCGAACGTG GCGAGAAAGG AAGGGAAGAA AGCGAAAGGA GCGGGCGCTA GGGCGCTGGC
2041 AAGTGTAGCG GTCACGCTGC GCGTAACCAC CACACCCGCC GCGCTTAATG CGCCGCTACA
2101 GGGCGCGTCA GGTGGCACTT TTCGGGGAAA TGTGCGCGGA ACCCCTATTT GTTTATTTTT
2161 CTAAATACAT TCAAATATGT ATCCGCTCAT GAGACAATAA CCCTGATAAA TGCTTCAATA
2221 ATATTGAAAA AGGAAGAGTC CTGAGGCGGA AAGAACCAGC TGTGGAATGT GTGTCAGTTA
2281 GGGTGTGGAA AGTCCCCAGG CTCCCCAGCA GGCAGAAGTA TGCAAAGCAT GCATCTCAAT
2341 TAGTCAGCAA CCAGGTGTGG AAAGTCCCCA GGCTCCCCAG CAGGCAGAAG TATGCAAAGC
2401 ATGCATCTCA ATTAGTCAGC AACCATAGTC CCGCCCCTAA CTCCGCCCAT CCCGCCCCTA
2461 ACTCCGCCCA GTTCCGCCCA TTCTCCGCCC CATGGCTGAC TAATTTTTTT TATTTATGCA
2521 GAGGCCGAGG CCGCCTCGGC CTCTGAGCTA TTCCAGAAGT AGTGAGGAGG CTTTTTTGGA
2581 GGCCTAGGCT TTTGCAAAGA TCGATCAAGA GACAGGATGA GGATCGTTTC GCATGATTGA
2641 ACAAGATGGA TTGCACGCAG GTTCTCCGGC CGCTTGGGTG GAGAGGCTAT TCGGCTATGA
2701 CTGGGCACAA CAGACAATCG GCTGCTCTGA TGCCGCCGTG TTCCGGCTGT CAGCGCAGGG
2761 GCGCCCGGTT CTTTTTGTCA AGACCGACCT GTCCGGTGCC CTGAATGAAC TGCAAGACGA
2821 GGCAGCGCGG CTATCGTGGC TGGCCACGAC GGGCGTTCCT TGCGCAGCTG TGCTCGACGT
2881 TGTCACTGAA GCGGGAAGGG ACTGGCTGCT ATTGGGCGAA GTGCCGGGGC AGGATCTCCT
2941 GTCATCTCAC CTTGCTCCTG CCGAGAAAGT ATCCATCATG GCTGATGCAA TGCGGCGGCT
3001 GCATACGCTT GATCCGGCTA CCTGCCCATT CGACCACCAA GCGAAACATC GCATCGAGCG
3061 AGCACGTACT CGGATGGAAG CCGGTCTTGT CGATCAGGAT GATCTGGACG AAGAGCATCA
3121 GGGGCTCGCG CCAGCCGAAC TGTTCGCCAG GCTCAAGGCG AGCATGCCCG ACGGCGAGGA
3181 TCTCGTCGTG ACCCATGGCG ATGCCTGCTT GCCGAATATC ATGGTGGAAA ATGGCCGCTT
3241 TTCTGGATTC ATCGACTGTG GCCGGCTGGG TGTGGCGGAC CGCTATCAGG ACATAGCGTT
3301 GGCTACCCGT GATATTGCTG AAGAGCTTGG CGGCGAATGG GCTGACCGCT TCCTCGTGCT
3361 TTACGGTATC GCCGCTCCCG ATTCGCAGCG CATCGCCTTC TATCGCCTTC TTGACGAGTT
3421 CTTCTGAGCG GGACTCTGGG GTTCGAAATG ACCGACCAAG CGACGCCCAA CCTGCCATCA
3481 CGAGATTTCG ATTCCACCGC CGCCTTCTAT GAAAGGTTGG GCTTCGGAAT CGTTTTCCGG
3541 GACGCCGGCT GGATGATCCT CCAGCGCGGG GATCTCATGC TGGAGTTCTT CGCCCACCCT
3601 AGGGGGAGGC TAACTGAAAC ACGGAAGGAG ACAATACCGG AAGGAACCCG CGCTATGACG
3661 GCAATAAAAA GACAGAATAA AACGCACGGT GTTGGGTCGT TTGTTCATAA ACGCGGGGTT
3721 CGGTCCCAGG GCTGGCACTC TGTCGATACC CCACCGAGAC CCCATTGGGG CCAATACGCC
3781 CGCGTTTCTT CCTTTTCCCC ACCCCACCCC CCAAGTTCGG GTGAAGGCCC AGGGCTCGCA
3841 GCCAACGTCG GGGCGGCAGG CCCTGCCATA GCCTCAGGTT ACTCATATAT ACTTTAGATT
3901 GATTTAAAAC TTCATTTTTA ATTTAAAAGG ATCTAGGTGA AGATCCTTTT TGATAATCTC
3961 ATGACCAAAA TCCCTTAACG TGAGTTTTCG TTCCACTGAG CGTCAGACCC CGTAGAAAAG
4021 ATCAAAGGAT CTTCTTGAGA TCCTTTTTTT CTGCGCGTAA TCTGCTGCTT GCAAACAAAA
4081 AAACCACCGC TACCAGCGGT GGTTTGTTTG CCGGATCAAG AGCTACCAAC TCTTTTTCCG
4141 AAGGTAACTG GCTTCAGCAG AGCGCAGATA CCAAATACTG TCCTTCTAGT GTAGCCGTAG
4201 TTAGGCCACC ACTTCAAGAA CTCTGTAGCA CCGCCTACAT ACCTCGCTCT GCTAATCCTG
4261 TTACCAGTGG CTGCTGCCAG TGGCGATAAG TCGTGTCTTA CCGGGTTGGA CTCAAGACGA
4321 TAGTTACCGG ATAAGGCGCA GCGGTCGGGC TGAACGGGGG GTTCGTGCAC ACAGCCCAGC
4381 TTGGAGCGAA CGACCTACAC CGAACTGAGA TACCTACAGC GTGAGCTATG AGAAAGCGCC
4441 ACGCTTCCCG AAGGGAGAAA GGCGGACAGG TATCCGGTAA GCGGCAGGGT CGGAACAGGA
4501 GAGCGCACGA GGGAGCTTCC AGGGGGAAAC GCCTGGTATC TTTATAGTCC TGTCGGGTTT
4561 CGCCACCTCT GACTTGAGCG TCGATTTTTG TGATGCTCGT CAGGGGGGCG GAGCCTATGG
4621 AAAAACGCCA GCAACGCGGC CTTTTTACGG TTCCTGGCCT TTTGCTGGCC TTTTGCTCAC
4681 ATGTTCTTTC CTGCGTTATC CCCTGATTCT GTGGATAACC GTATTACCGC CATGCAT

//

pB-gyrase_TA	pBT-5
pZeoSV2 (+)	pCambia1201
pAc5.1-V5-His A	pEF4/His B
pPH3	pPZP122
pCMV-3Tag-3a	IR2
pSilencer5.1-H1 Retro	pLVX-rHom-Sec1
pHIC-PI	pGL101
pCDF1-MCS2-EF1-Puro	pME12::Tn5-259
pcDNA3.1+/N-GST(TEV)	pFB-hrGFP
pAc5.1a	pTT5
pSinRep5	pGL4.39[luc2P/ATF6 RE/Hygro]
pTYB2	p3xFLAG-KV2.1
pCas	pE
pET-12c(+)	pBHR68
pcDNA3.1/His B	pFtsH_TA
pET-32 EK/LIC	pcDNA4/HisMax A
pUCDM	pCold-GST
pIB/V5-His	pJW342
pacAd5 9.2-100	pDP5rs
pCR4-35	pIAβ8
pHC79-2cos/tk	pMYs-IRES-GFP
pBad/Myc-His A	pEF1/His B
pCAMBIA3200	p53-Luc
phCMV1	VaD1
pLVX-Myc-MCS-Strep-IRES-Puro	pGL4.77[hRlucP/Hygro]
pG5luc	pFastBac Dual
pWW60-1	pFN31K Nluc-CMV-neo-Flexi
pAX01-ComK	pMKO.1-GFP
pMV261	pKLAC2
pSC101 and pKG2	pFA1
pTCK303	pDEST10
pKO11	pCB1535
pCMV5	pFastBac1
pYES2-EGFP	pMSCG19
PX391	pCas-Guide-EF1a-GFP
pSRE-Luc	DR2
pMMB33	pECFP-Nuc
pVW5JI	pYES2-kan
pSW510	pNIT-3
pQE-32	pET-28a-EGFP
pET302/NT-His	pGL4.83[hRlucP/Puro]
pXIS11	pBApo-CMV-Pur
pTALETF_v2 (NG)	pDR540
pIJ702-87del(78-86, 88-132)	pCTAP-Shuttle-A
pGFP22	pcDNA4/V5-His B
pGL4.25[luc2CP/minP]	pRS426
pTrcHis2 C	pLKO-DEST-EGFP
pcDNA3.1+P2A-eGFP	pLenti CMV/TO Neo empty (w215-1)
pMIB/V5-His A	pFastBac-GST-C
pOS1	pcDNA6.2/V5-PL-DEST

mTert-pBabe-puro	Stat3 Flag pRc/CMV
pMaster1	Tcf/Lef:H2B-GFP
pTK299	cytoplasmic EKAR (Cerulean-Venus)
mTagBFP2-TOMM20-N-10	pLV-puro-N-3HA-SREBP1-C-Flag
pSBbi-GN	pRJPaph-bjGFP
pAAV-EF1a-DIO-HTB	pJQ200mp18
MSP680	pBabe-puro-miR-10b sponge
pcDNA3.1 myc-NL-GW	pRK5-p18-HA
SIRT3 Flag	LentiGuide Cherry
pUCmini-iCAP-AAV.CAP-B22	EK0285 SFFV-mCherry-SG(s70587)SG-EGFP (F
pcDNA3/Flag-METTL3	xCas9(3.6)-BE3
pPBbsr2-4031NES	pET21a-BirA
pCas9	pmGFP
pSIN4-EF1a-LMO2-IRES-Puro	p415-GalL-Cas9-CYC1t
pLenti PGK Puro DEST (w529-2)	pHyo094 (eMutaT7)
pCAS9-TPC	Plasmid L5 attB::Pleft* mCherry
pMXs-hc-MYC	pCMVInt
pEGFP-NMHC II-C	pGL3-mArg1 promoter/enhancer -31/-3810
pHAGE NFkB-TA-LUC-UBC-GFP-W	BECLIN-HA WT
pCRISPR-aBEST	pCMV-2NLS-Cas9-6XMS2
pNI3	pPH37
pSELECT-HA-mFOXO1	pGM1202
pCMVR8.74	pc DNA FRT TO- APPSwed/Ind
MSP2135	pGIPZ-PD-L1-EGFP
pTNT-B18R-6His	pHIV-iRFP720-E2A-Luc
pCMV-HsPeg10rc3	hCas9_D10A
pHIV-Luc-ZsGreen	pAAV-EF1a-DIO-mCherry
pDA077	pCMVHA hEZH2
pNLF1W	pBAD18-Cm
pRN11	pminiTol2
pGL4-ERSE2-luc2P-Hygro	pY001 (pFnCpf1_full)
pEJS654 All-in-One AAV-sgRNA-hNmeCas9	pRK GFP Paxillin
pcDNA3.1-mCherry	Flag-TRIM24
pR26 GFP Dest	pBabe-hygro PyMT
pHAtC	DNMT3b KO Hyg
pC0061 PsmCas13 (B05) His6-TwinStrep-SUM	pEcgRNA
PG13-luc (wt p53 binding sites)	TrkC-GFP
pCI neo-hEST2	pGL3 2 kb prom. CD274
pCMV-ABE7.9	pmScarlet_Giantin_C1
FUGW-PercevalHR	pBECKP-km
pC0055-CMV-dPspCas13b-GS-ADAR2DD(E488Q/T	pUAS:Cas9T2AGFP;U6:sgRNA1;U6:sgRNA2
pCAG Cas9-2A-Citrine	pBS-hBAF60a
pFE-sfGFP	pET15b_Bst-LF
pHAGE2-TetOminiCMV-SKM	CaV1.2
pSLQ9926: pHR-PGK-SV40_NLS-dCasMINI-V4-V	pMSCV-FlagMLL-pl-ENL(5613)
pLentipuro3/TO/V5-GW/EGFP-Firefly Lucife	pF151 pcDNA3.1(+)SOD1WT
pYLCRISPR/Cas9pUbi-N	jk100 pSinEGdsp(p1:MAPPnL;p2:gfp:barcode
pHAGE2-TetOminiCMV-mCherry	pMDIAI
pBFC1207	pCMV-SynA
BCR/ABL P190 transgenic construct	sfGFP-Cx43K258stop

热点推荐

生物资源

细胞培养

微生物与植物培养

蛋白抗体与激酶

技术服务

课题设计与论文发表

pEGFP-N2

买家导航

pEGFP N2载体基本信息

pEGFP N2载体图谱质粒图谱和多克隆位点信息

pEGFP N2载体简介

pEGFP N2载体序列

pEGFP N2载体图谱质粒图谱pdf版和相关资料下载

pEGFP N2载体质粒应用举例

全部载体分类

相关载体

相关文章

相关问答
