pEGFP-C1

价格:1000元

联系方式:I47-825O-882O

买家导航

pEGFPC1载体基本信息

出品公司: Clontech
载体名称: pEGFP-C1, pEGFP C1, pEGFPC1
质粒类型: 哺乳动物细胞表达载体
启动子: CMV
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 4731bp
5' 测序引物及序列: pEGFP-C-5': 5'-CATGGTCCTGCTGGAGTTCGTG-3'
3' 测序引物及序列: pEGFP-C-3': 5'-TATGGCTGATTATGATCAGT-3' ;
pEGFP-C1-R: 5'-CTACAAATGTGGTATGGCTG-3'
载体标签: N-EGFP
载体抗性: 卡那
筛选标记: 新霉素(G418)
备注:
本载体已经被Clontech公司终止生产和销售。
产品目录号: 6084-1
稳定性: 稳表达
组成型: 组成型
病毒/非病毒: 非病毒

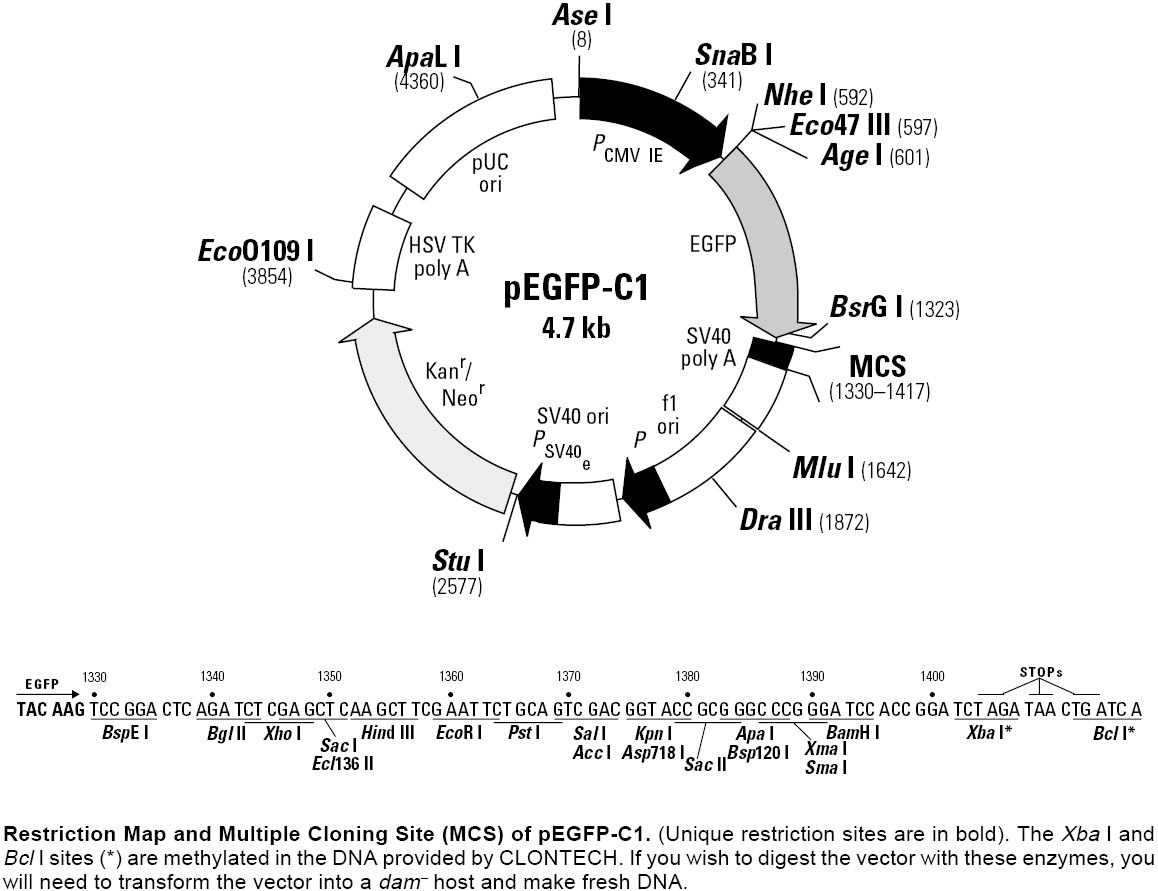

pEGFPC1载体质粒图谱和多克隆位点信息

pEGFP-C1载体图谱和多克隆位点

pEGFPC1载体简介

Description:
pEGFP-C1 encodes a red-shifted variant of wild-type GFP (1–3) which has been optimized for brighter fluorescence and higher expression in mammalian cells. (Excitation maximum = 488 nm;emission maximum = 507 nm.) pEGFP-C1 encodes the GFPmut1 variant (4) which contains the double-amino-acid substitution of Phe-64 to Leu and Ser-65 to Thr. The coding sequence of the EGFP gene contains more than 190 silent base changes which correspond to human codon-usage preferences (5). Sequences flanking EGFP have been converted to a Kozak consensus translation initiation site (6) to further increase the translation efficiency in eukaryotic cells. The MCS in pEGFPC1is between the EGFP coding sequences and the SV40 poly A. Genes cloned into the MCS will be expressed as fusions to the C-terminus of EGFP if they are in the same reading frame as EGFP and there are no intervening stop codons. SV40 polyadenylation signals downstream of the EGFP gene direct proper processing of the 3' end of the EGFP mRNA. The vector backbone also contains an SV40 origin for replication in mammalian cells expressing the SV40 T-antigen. A neomycin resistance cassette (Neor), consisting of the SV40 early promoter, the neomycin/kanamycin resistance gene of Tn5, and polyadenylation signals from the Herpes simplex virus thymidine kinase(HSV TK) gene, allows stably transfected eukaryotic cells to be selected using G418. A bacterial promoter upstream of this cassette expresses kanamycin resistance in E.coli. The pEGFP-C1backbone also provides a pUC origin of replication for propagation in E. coli and an f1 origin for single stranded DNA production.

Use:
Fusions to the C terminus of EGFP retain the fluorescent properties of the native protein allowing the localization of the fusion protein in vivo. The target gene should be cloned into pEGFP-C1 so that it is in frame with the EGFP coding sequences, with no intervening in-frame stop codons. The recombinant EGFP vector can be transfected into mammalian cells using any standard transfection method. If required, stable transformants can be selected usingG418 (7). pEGFP-C1 can also be used simply to express EGFP in a cell line of interest (e.g., as a transfection marker).

pEGFPC1载体序列

LOCUS       pEGFP-C1    4731 bp     DNA Circular    SYN
DEFINITION  pEGFP-C1
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank|
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..4731
                     /organism="pEGFP-C1"
                     /mol_type="other DNA"
     promoter        10..562
                     /label="CMV_immearly_promoter"
     misc_feature    65..352
                     /label="CAG_enhancer"
     misc_feature    519..539
                     /label="CMV_fwd_primer"
     promoter        520..589
                     /label="CMV_promoter"
     CDS             complement(598..1428)
                     /label="ORF frame 1"
     CDS             613..1410
                     /label="ORF frame 1"
     gene            616..1329
                     /label="EGFP"
                     /gene="EGFP"
     misc_feature    complement(658..679)
                     /label="EGFP_N_primer"
     misc_feature    796..825
                     /label="Y66 (EGFP)"
     misc_feature    1266..1287
                     /label="EGFP_C_primer"
     terminator      1412..1640
                     /label="SV40_PA_terminator"
     misc_feature    1610..1629
                     /label="EBV_rev_primer"
     rep_origin      complement(1779..2085)
                     /label="f1_origin"
     promoter        2164..2192
                     /label="AmpR_promoter"
     misc_feature    complement(2258..2278)
                     /label="pBABE_3_primer"
     misc_feature    complement(2264..2479)
                     /label="SV40_enhancer"
     promoter        2276..2544
                     /label="SV40_promoter"
     rep_origin      2443..2520
                     /label="SV40_origin"
     misc_feature    2505..2524
                     /label="SV40pro_F_primer"
     CDS             2627..3421
                     /label="ORF frame 2"
     gene            2630..3418
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"
     CDS             complement(2936..3472)
                     /label="ORF frame 3"
     terminator      3596..3865
                     /label="TK_PA_terminator"
     rep_origin      4013..4632
                     /label="pBR322_origin"
ORIGIN
    1 TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA TGGAGTTCCG
   61 CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC CCCGCCCATT
  121 GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC ATTGACGTCA
  181 ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT ATCATATGCC
  241 AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT ATGCCCAGTA
  301 CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA TCGCTATTAC
  361 CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG ACTCACGGGG
  421 ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC AAAATCAACG
  481 GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG GTAGGCGTGT
  541 ACGGTGGGAG GTCTATATAA GCAGAGCTGG TTTAGTGAAC CGTCAGATCC GCTAGCGCTA
  601 CCGGTCGCCA CCATGGTGAG CAAGGGCGAG GAGCTGTTCA CCGGGGTGGT GCCCATCCTG
  661 GTCGAGCTGG ACGGCGACGT AAACGGCCAC AAGTTCAGCG TGTCCGGCGA GGGCGAGGGC
  721 GATGCCACCT ACGGCAAGCT GACCCTGAAG TTCATCTGCA CCACCGGCAA GCTGCCCGTG
  781 CCCTGGCCCA CCCTCGTGAC CACCCTGACC TACGGCGTGC AGTGCTTCAG CCGCTACCCC
  841 GACCACATGA AGCAGCACGA CTTCTTCAAG TCCGCCATGC CCGAAGGCTA CGTCCAGGAG
  901 CGCACCATCT TCTTCAAGGA CGACGGCAAC TACAAGACCC GCGCCGAGGT GAAGTTCGAG
  961 GGCGACACCC TGGTGAACCG CATCGAGCTG AAGGGCATCG ACTTCAAGGA GGACGGCAAC
 1021 ATCCTGGGGC ACAAGCTGGA GTACAACTAC AACAGCCACA ACGTCTATAT CATGGCCGAC
 1081 AAGCAGAAGA ACGGCATCAA GGTGAACTTC AAGATCCGCC ACAACATCGA GGACGGCAGC
 1141 GTGCAGCTCG CCGACCACTA CCAGCAGAAC ACCCCCATCG GCGACGGCCC CGTGCTGCTG
 1201 CCCGACAACC ACTACCTGAG CACCCAGTCC GCCCTGAGCA AAGACCCCAA CGAGAAGCGC
 1261 GATCACATGG TCCTGCTGGA GTTCGTGACC GCCGCCGGGA TCACTCTCGG CATGGACGAG
 1321 CTGTACAAGT CCGGACTCAG ATCTCGAGCT CAAGCTTCGA ATTCTGCAGT CGACGGTACC
 1381 GCGGGCCCGG GATCCACCGG ATCTAGATAA CTGATCATAA TCAGCCATAC CACATTTGTA
 1441 GAGGTTTTAC TTGCTTTAAA AAACCTCCCA CACCTCCCCC TGAACCTGAA ACATAAAATG
 1501 AATGCAATTG TTGTTGTTAA CTTGTTTATT GCAGCTTATA ATGGTTACAA ATAAAGCAAT
 1561 AGCATCACAA ATTTCACAAA TAAAGCATTT TTTTCACTGC ATTCTAGTTG TGGTTTGTCC
 1621 AAACTCATCA ATGTATCTTA ACGCGTAAAT TGTAAGCGTT AATATTTTGT TAAAATTCGC
 1681 GTTAAATTTT TGTTAAATCA GCTCATTTTT TAACCAATAG GCCGAAATCG GCAAAATCCC
 1741 TTATAAATCA AAAGAATAGA CCGAGATAGG GTTGAGTGTT GTTCCAGTTT GGAACAAGAG
 1801 TCCACTATTA AAGAACGTGG ACTCCAACGT CAAAGGGCGA AAAACCGTCT ATCAGGGCGA
 1861 TGGCCCACTA CGTGAACCAT CACCCTAATC AAGTTTTTTG GGGTCGAGGT GCCGTAAAGC
 1921 ACTAAATCGG AACCCTAAAG GGAGCCCCCG ATTTAGAGCT TGACGGGGAA AGCCGGCGAA
 1981 CGTGGCGAGA AAGGAAGGGA AGAAAGCGAA AGGAGCGGGC GCTAGGGCGC TGGCAAGTGT
 2041 AGCGGTCACG CTGCGCGTAA CCACCACACC CGCCGCGCTT AATGCGCCGC TACAGGGCGC
 2101 GTCAGGTGGC ACTTTTCGGG GAAATGTGCG CGGAACCCCT ATTTGTTTAT TTTTCTAAAT
 2161 ACATTCAAAT ATGTATCCGC TCATGAGACA ATAACCCTGA TAAATGCTTC AATAATATTG
 2221 AAAAAGGAAG AGTCCTGAGG CGGAAAGAAC CAGCTGTGGA ATGTGTGTCA GTTAGGGTGT
 2281 GGAAAGTCCC CAGGCTCCCC AGCAGGCAGA AGTATGCAAA GCATGCATCT CAATTAGTCA
 2341 GCAACCAGGT GTGGAAAGTC CCCAGGCTCC CCAGCAGGCA GAAGTATGCA AAGCATGCAT
 2401 CTCAATTAGT CAGCAACCAT AGTCCCGCCC CTAACTCCGC CCATCCCGCC CCTAACTCCG
 2461 CCCAGTTCCG CCCATTCTCC GCCCCATGGC TGACTAATTT TTTTTATTTA TGCAGAGGCC
 2521 GAGGCCGCCT CGGCCTCTGA GCTATTCCAG AAGTAGTGAG GAGGCTTTTT TGGAGGCCTA
 2581 GGCTTTTGCA AAGATCGATC AAGAGACAGG ATGAGGATCG TTTCGCATGA TTGAACAAGA
 2641 TGGATTGCAC GCAGGTTCTC CGGCCGCTTG GGTGGAGAGG CTATTCGGCT ATGACTGGGC
 2701 ACAACAGACA ATCGGCTGCT CTGATGCCGC CGTGTTCCGG CTGTCAGCGC AGGGGCGCCC
 2761 GGTTCTTTTT GTCAAGACCG ACCTGTCCGG TGCCCTGAAT GAACTGCAAG ACGAGGCAGC
 2821 GCGGCTATCG TGGCTGGCCA CGACGGGCGT TCCTTGCGCA GCTGTGCTCG ACGTTGTCAC
 2881 TGAAGCGGGA AGGGACTGGC TGCTATTGGG CGAAGTGCCG GGGCAGGATC TCCTGTCATC
 2941 TCACCTTGCT CCTGCCGAGA AAGTATCCAT CATGGCTGAT GCAATGCGGC GGCTGCATAC
 3001 GCTTGATCCG GCTACCTGCC CATTCGACCA CCAAGCGAAA CATCGCATCG AGCGAGCACG
 3061 TACTCGGATG GAAGCCGGTC TTGTCGATCA GGATGATCTG GACGAAGAGC ATCAGGGGCT
 3121 CGCGCCAGCC GAACTGTTCG CCAGGCTCAA GGCGAGCATG CCCGACGGCG AGGATCTCGT
 3181 CGTGACCCAT GGCGATGCCT GCTTGCCGAA TATCATGGTG GAAAATGGCC GCTTTTCTGG
 3241 ATTCATCGAC TGTGGCCGGC TGGGTGTGGC GGACCGCTAT CAGGACATAG CGTTGGCTAC
 3301 CCGTGATATT GCTGAAGAGC TTGGCGGCGA ATGGGCTGAC CGCTTCCTCG TGCTTTACGG
 3361 TATCGCCGCT CCCGATTCGC AGCGCATCGC CTTCTATCGC CTTCTTGACG AGTTCTTCTG
 3421 AGCGGGACTC TGGGGTTCGA AATGACCGAC CAAGCGACGC CCAACCTGCC ATCACGAGAT
 3481 TTCGATTCCA CCGCCGCCTT CTATGAAAGG TTGGGCTTCG GAATCGTTTT CCGGGACGCC
 3541 GGCTGGATGA TCCTCCAGCG CGGGGATCTC ATGCTGGAGT TCTTCGCCCA CCCTAGGGGG
 3601 AGGCTAACTG AAACACGGAA GGAGACAATA CCGGAAGGAA CCCGCGCTAT GACGGCAATA
 3661 AAAAGACAGA ATAAAACGCA CGGTGTTGGG TCGTTTGTTC ATAAACGCGG GGTTCGGTCC
 3721 CAGGGCTGGC ACTCTGTCGA TACCCCACCG AGACCCCATT GGGGCCAATA CGCCCGCGTT
 3781 TCTTCCTTTT CCCCACCCCA CCCCCCAAGT TCGGGTGAAG GCCCAGGGCT CGCAGCCAAC
 3841 GTCGGGGCGG CAGGCCCTGC CATAGCCTCA GGTTACTCAT ATATACTTTA GATTGATTTA
 3901 AAACTTCATT TTTAATTTAA AAGGATCTAG GTGAAGATCC TTTTTGATAA TCTCATGACC
 3961 AAAATCCCTT AACGTGAGTT TTCGTTCCAC TGAGCGTCAG ACCCCGTAGA AAAGATCAAA
 4021 GGATCTTCTT GAGATCCTTT TTTTCTGCGC GTAATCTGCT GCTTGCAAAC AAAAAAACCA
 4081 CCGCTACCAG CGGTGGTTTG TTTGCCGGAT CAAGAGCTAC CAACTCTTTT TCCGAAGGTA
 4141 ACTGGCTTCA GCAGAGCGCA GATACCAAAT ACTGTCCTTC TAGTGTAGCC GTAGTTAGGC
 4201 CACCACTTCA AGAACTCTGT AGCACCGCCT ACATACCTCG CTCTGCTAAT CCTGTTACCA
 4261 GTGGCTGCTG CCAGTGGCGA TAAGTCGTGT CTTACCGGGT TGGACTCAAG ACGATAGTTA
 4321 CCGGATAAGG CGCAGCGGTC GGGCTGAACG GGGGGTTCGT GCACACAGCC CAGCTTGGAG
 4381 CGAACGACCT ACACCGAACT GAGATACCTA CAGCGTGAGC TATGAGAAAG CGCCACGCTT
 4441 CCCGAAGGGA GAAAGGCGGA CAGGTATCCG GTAAGCGGCA GGGTCGGAAC AGGAGAGCGC
 4501 ACGAGGGAGC TTCCAGGGGG AAACGCCTGG TATCTTTATA GTCCTGTCGG GTTTCGCCAC
 4561 CTCTGACTTG AGCGTCGATT TTTGTGATGC TCGTCAGGGG GGCGGAGCCT ATGGAAAAAC
 4621 GCCAGCAACG CGGCCTTTTT ACGGTTCCTG GCCTTTTGCT GGCCTTTTGC TCACATGTTC
 4681 TTTCCTGCGT TATCCCCTGA TTCTGTGGAT AACCGTATTA CCGCCATGCA T

//

pEGFPC1载体质粒图谱pdf版和相关资料下载

pEGFPC1载体应用举例
