pcDNA3.1/Zeo(+)

价格:1000元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Invitrogen
载体名称: pcDNA3.1/Zeo(+)
质粒类型: 哺乳动物细胞表达载体
启动子: CMV
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5015 bp
5' 测序引物:   pcDNA3.1-F:CTAGAGAACCCACTGCTTAC
3' 测序引物:   pcDNA3.1-R (BGH-R):TAGAAGGCACAGTCGAGG
载体标签: /
载体抗性: Ampicillin 氨苄
筛选标记: Zeocin 博来霉素
备注:
Differs from other pcDNA3.1 in drug resistance; +/- refers to orientation of f1 ori.
产品目录号: V86020
稳定性: 瞬表达 Transient
组成型: 组成型 Constitutive
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

/pcDNA3.1 zeo载体图谱

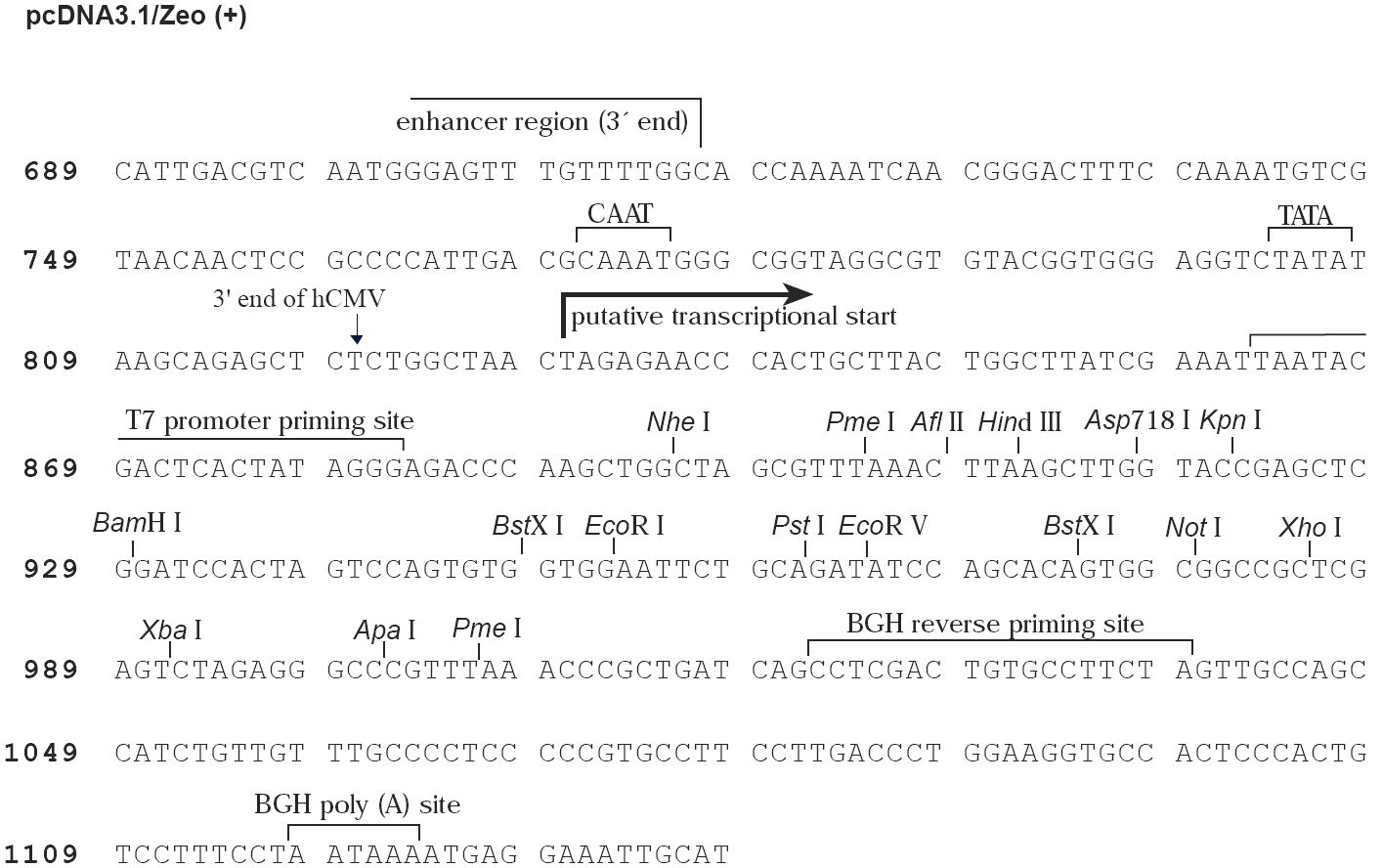

pcDNA3.1 zeo+ 多克隆位点

载体简介

载体序列

LOCUS       pcDNA3.1/Zeo(+)    5015 bp     DNA  circular   SYN
DEFINITION  pcDNA3.1/Zeo(+)
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..5015
                     /organism="pcDNA3.1/Zeo(+)"
                     /mol_type="other DNA"
     promoter        236..852
                     /label="CMV_immearly_promoter"
     misc_feature    315..602
                     /label="CAG_enhancer"
     misc_feature    769..789
                     /label="CMV_fwd_primer"
     promoter        863..881
                     /label="T7_promoter"
     misc_feature    complement(1022..1039)
                     /label="BGH_rev_primer"
     terminator      1025..1252
                     /label="bGH_PA_terminator"
     rep_origin      1315..1621
                     /label="f1_origin"
     misc_feature    complement(1735..1755)
                     /label="pBABE_3_primer"
     misc_feature    complement(1741..1957)
                     /label="SV40_enhancer"
     promoter        1753..2022
                     /label="SV40_promoter"
     rep_origin      1921..1998
                     /label="SV40_origin"
     misc_feature    1983..2002
                     /label="SV40pro_F_primer"
     promoter        2116..2183
                     /label="EM7_promoter"
     gene            2184..2555
                     /label="bleo"
                     /gene="bleo"
     misc_feature    2184..2558
                     /label="sh_ble"
     terminator      2691..2810
                     /label="SV40_PA_terminator"
     misc_feature    2779..2798
                     /label="EBV_rev_primer"
     promoter        complement(2854..2872)
                     /label="M13_reverse_primer"
     misc_feature    complement(2871..2893)
                     /label="M13_pUC_rev_primer"
     promoter        complement(2907..2936)
                     /label="lac_promoter"
     rep_origin      complement(3245..3864)
                     /label="pBR322_origin"
     gene            complement(4019..4879)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(4019..4879)
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(4921..4949)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 GACGGATCGG GAGATCTCCC GATCCCCTAT GGTCGACTCT CAGTACAATC TGCTCTGATG
   61 CCGCATAGTT AAGCCAGTAT CTGCTCCCTG CTTGTGTGTT GGAGGTCGCT GAGTAGTGCG
  121 CGAGCAAAAT TTAAGCTACA ACAAGGCAAG GCTTGACCGA CAATTGCATG AAGAATCTGC
  181 TTAGGGTTAG GCGTTTTGCG CTGCTTCGCG ATGTACGGGC CAGATATACG CGTTGACATT
  241 GATTATTGAC TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA
  301 TGGAGTTCCG CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC
  361 CCCGCCCATT GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC
  421 ATTGACGTCA ATGGGTGGAC TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT
  481 ATCATATGCC AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT
  541 ATGCCCAGTA CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA
  601 TCGCTATTAC CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG
  661 ACTCACGGGG ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC
  721 AAAATCAACG GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG
  781 GTAGGCGTGT ACGGTGGGAG GTCTATATAA GCAGAGCTCT CTGGCTAACT AGAGAACCCA
  841 CTGCTTACTG GCTTATCGAA ATTAATACGA CTCACTATAG GGAGACCCAA GCTGGCTAGC
  901 GTTTAAACTT AAGCTTGGTA CCGAGCTCGG ATCCACTAGT CCAGTGTGGT GGAATTCTGC
  961 AGATATCCAG CACAGTGGCG GCCGCTCGAG TCTAGAGGGC CCGTTTAAAC CCGCTGATCA
 1021 GCCTCGACTG TGCCTTCTAG TTGCCAGCCA TCTGTTGTTT GCCCCTCCCC CGTGCCTTCC
 1081 TTGACCCTGG AAGGTGCCAC TCCCACTGTC CTTTCCTAAT AAAATGAGGA AATTGCATCG
 1141 CATTGTCTGA GTAGGTGTCA TTCTATTCTG GGGGGTGGGG TGGGGCAGGA CAGCAAGGGG
 1201 GAGGATTGGG AAGACAATAG CAGGCATGCT GGGGATGCGG TGGGCTCTAT GGCTTCTGAG
 1261 GCGGAAAGAA CCAGCTGGGG CTCTAGGGGG TATCCCCACG CGCCCTGTAG CGGCGCATTA
 1321 AGCGCGGCGG GTGTGGTGGT TACGCGCAGC GTGACCGCTA CACTTGCCAG CGCCCTAGCG
 1381 CCCGCTCCTT TCGCTTTCTT CCCTTCCTTT CTCGCCACGT TCGCCGGCTT TCCCCGTCAA
 1441 GCTCTAAATC GGGGCATCCC TTTAGGGTTC CGATTTAGTG CTTTACGGCA CCTCGACCCC
 1501 AAAAAACTTG ATTAGGGTGA TGGTTCACGT AGTGGGCCAT CGCCCTGATA GACGGTTTTT
 1561 CGCCCTTTGA CGTTGGAGTC CACGTTCTTT AATAGTGGAC TCTTGTTCCA AACTGGAACA
 1621 ACACTCAACC CTATCTCGGT CTATTCTTTT GATTTATAAG GGATTTTGGG GATTTCGGCC
 1681 TATTGGTTAA AAAATGAGCT GATTTAACAA AAATTTAACG CGAATTAATT CTGTGGAATG
 1741 TGTGTCAGTT AGGGTGTGGA AAGTCCCCAG GCTCCCCAGG CAGGCAGAAG TATGCAAAGC
 1801 ATGCATCTCA ATTAGTCAGC AACCAGGTGT GGAAAGTCCC CAGGCTCCCC AGCAGGCAGA
 1861 AGTATGCAAA GCATGCATCT CAATTAGTCA GCAACCATAG TCCCGCCCCT AACTCCGCCC
 1921 ATCCCGCCCC TAACTCCGCC CAGTTCCGCC CATTCTCCGC CCCATGGCTG ACTAATTTTT
 1981 TTTATTTATG CAGAGGCCGA GGCCGCCTCT GCCTCTGAGC TATTCCAGAA GTAGTGAGGA
 2041 GGCTTTTTTG GAGGCCTAGG CTTTTGCAAA AAGCTCCCGG GAGCTTGTAT ATCCATTTTC
 2101 GGATCTGATC AGCACGTGTT GACAATTAAT CATCGGCATA GTATATCGGC ATAGTATAAT
 2161 ACGACAAGGT GAGGAACTAA ACCATGGCCA AGTTGACCAG TGCCGTTCCG GTGCTCACCG
 2221 CGCGCGACGT CGCCGGAGCG GTCGAGTTCT GGACCGACCG GCTCGGGTTC TCCCGGGACT
 2281 TCGTGGAGGA CGACTTCGCC GGTGTGGTCC GGGACGACGT GACCCTGTTC ATCAGCGCGG
 2341 TCCAGGACCA GGTGGTGCCG GACAACACCC TGGCCTGGGT GTGGGTGCGC GGCCTGGACG
 2401 AGCTGTACGC CGAGTGGTCG GAGGTCGTGT CCACGAACTT CCGGGACGCC TCCGGGCCGG
 2461 CCATGACCGA GATCGGCGAG CAGCCGTGGG GGCGGGAGTT CGCCCTGCGC GACCCGGCCG
 2521 GCAACTGCGT GCACTTCGTG GCCGAGGAGC AGGACTGACA CGTGCTACGA GATTTCGATT
 2581 CCACCGCCGC CTTCTATGAA AGGTTGGGCT TCGGAATCGT TTTCCGGGAC GCCGGCTGGA
 2641 TGATCCTCCA GCGCGGGGAT CTCATGCTGG AGTTCTTCGC CCACCCCAAC TTGTTTATTG
 2701 CAGCTTATAA TGGTTACAAA TAAAGCAATA GCATCACAAA TTTCACAAAT AAAGCATTTT
 2761 TTTCACTGCA TTCTAGTTGT GGTTTGTCCA AACTCATCAA TGTATCTTAT CATGTCTGTA
 2821 TACCGTCGAC CTCTAGCTAG AGCTTGGCGT AATCATGGTC ATAGCTGTTT CCTGTGTGAA
 2881 ATTGTTATCC GCTCACAATT CCACACAACA TACGAGCCGG AAGCATAAAG TGTAAAGCCT
 2941 GGGGTGCCTA ATGAGTGAGC TAACTCACAT TAATTGCGTT GCGCTCACTG CCCGCTTTCC
 3001 AGTCGGGAAA CCTGTCGTGC CAGCTGCATT AATGAATCGG CCAACGCGCG GGGAGAGGCG
 3061 GTTTGCGTAT TGGGCGCTCT TCCGCTTCCT CGCTCACTGA CTCGCTGCGC TCGGTCGTTC
 3121 GGCTGCGGCG AGCGGTATCA GCTCACTCAA AGGCGGTAAT ACGGTTATCC ACAGAATCAG
 3181 GGGATAACGC AGGAAAGAAC ATGTGAGCAA AAGGCCAGCA AAAGGCCAGG AACCGTAAAA
 3241 AGGCCGCGTT GCTGGCGTTT TTCCATAGGC TCCGCCCCCC TGACGAGCAT CACAAAAATC
 3301 GACGCTCAAG TCAGAGGTGG CGAAACCCGA CAGGACTATA AAGATACCAG GCGTTTCCCC
 3361 CTGGAAGCTC CCTCGTGCGC TCTCCTGTTC CGACCCTGCC GCTTACCGGA TACCTGTCCG
 3421 CCTTTCTCCC TTCGGGAAGC GTGGCGCTTT CTCAATGCTC ACGCTGTAGG TATCTCAGTT
 3481 CGGTGTAGGT CGTTCGCTCC AAGCTGGGCT GTGTGCACGA ACCCCCCGTT CAGCCCGACC
 3541 GCTGCGCCTT ATCCGGTAAC TATCGTCTTG AGTCCAACCC GGTAAGACAC GACTTATCGC
 3601 CACTGGCAGC AGCCACTGGT AACAGGATTA GCAGAGCGAG GTATGTAGGC GGTGCTACAG
 3661 AGTTCTTGAA GTGGTGGCCT AACTACGGCT ACACTAGAAG GACAGTATTT GGTATCTGCG
 3721 CTCTGCTGAA GCCAGTTACC TTCGGAAAAA GAGTTGGTAG CTCTTGATCC GGCAAACAAA
 3781 CCACCGCTGG TAGCGGTGGT TTTTTTGTTT GCAAGCAGCA GATTACGCGC AGAAAAAAAG
 3841 GATCTCAAGA AGATCCTTTG ATCTTTTCTA CGGGGTCTGA CGCTCAGTGG AACGAAAACT
 3901 CACGTTAAGG GATTTTGGTC ATGAGATTAT CAAAAAGGAT CTTCACCTAG ATCCTTTTAA
 3961 ATTAAAAATG AAGTTTTAAA TCAATCTAAA GTATATATGA GTAAACTTGG TCTGACAGTT
 4021 ACCAATGCTT AATCAGTGAG GCACCTATCT CAGCGATCTG TCTATTTCGT TCATCCATAG
 4081 TTGCCTGACT CCCCGTCGTG TAGATAACTA CGATACGGGA GGGCTTACCA TCTGGCCCCA
 4141 GTGCTGCAAT GATACCGCGA GACCCACGCT CACCGGCTCC AGATTTATCA GCAATAAACC
 4201 AGCCAGCCGG AAGGGCCGAG CGCAGAAGTG GTCCTGCAAC TTTATCCGCC TCCATCCAGT
 4261 CTATTAATTG TTGCCGGGAA GCTAGAGTAA GTAGTTCGCC AGTTAATAGT TTGCGCAACG
 4321 TTGTTGCCAT TGCTACAGGC ATCGTGGTGT CACGCTCGTC GTTTGGTATG GCTTCATTCA
 4381 GCTCCGGTTC CCAACGATCA AGGCGAGTTA CATGATCCCC CATGTTGTGC AAAAAAGCGG
 4441 TTAGCTCCTT CGGTCCTCCG ATCGTTGTCA GAAGTAAGTT GGCCGCAGTG TTATCACTCA
 4501 TGGTTATGGC AGCACTGCAT AATTCTCTTA CTGTCATGCC ATCCGTAAGA TGCTTTTCTG
 4561 TGACTGGTGA GTACTCAACC AAGTCATTCT GAGAATAGTG TATGCGGCGA CCGAGTTGCT
 4621 CTTGCCCGGC GTCAATACGG GATAATACCG CGCCACATAG CAGAACTTTA AAAGTGCTCA
 4681 TCATTGGAAA ACGTTCTTCG GGGCGAAAAC TCTCAAGGAT CTTACCGCTG TTGAGATCCA
 4741 GTTCGATGTA ACCCACTCGT GCACCCAACT GATCTTCAGC ATCTTTTACT TTCACCAGCG
 4801 TTTCTGGGTG AGCAAAAACA GGAAGGCAAA ATGCCGCAAA AAAGGGAATA AGGGCGACAC
 4861 GGAAATGTTG AATACTCATA CTCTTCCTTT TTCAATATTA TTGAAGCATT TATCAGGGTT
 4921 ATTGTCTCAT GAGCGGATAC ATATTTGAAT GTATTTAGAA AAATAAACAA ATAGGGGTTC
 4981 CGCGCACATT TCCCCGAAAA GTGCCACCTG ACGTC
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
