pcDNA3.1(+) CircRNA Mini

价格:1200元

联系方式:I47-825O-882O

买家导航

载体基本信息

质粒名称: pcDNA3.1(+) CircRNA Mini
出品公司: Addgene
目录编号: 60648
存储实验室: Jeremy Wilusz
用途: 表达质粒所需序列的环状RNAs

载体骨架基本信息
载体名称: pcDNA3.1(+)
载体出品公司: Life Technologies
载体抗性: 氨苄霉素
空载体大小: 5428 bp
完整质粒大小: 5607 bp
载体类型: 哺乳细胞表达
筛选标记: 新霉素(G418)
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: ZKSCAN1
物种来源: H. sapiens (human)
插入大小: 199 bp
启动子 CMV
克隆方法: 限制性内切酶
5' 克隆位点: EcoRI(未破坏)
3' 克隆位点: NotI (未破坏)
5' 测序引物 PCMV For
3' 测序引物 bGH PolyA Rev

文献引用方法
材料和方法部分: pcDNA3.1(+) CircRNA Mini Vector was a gift from Jeremy Wilusz (Addgene plasmid # 60648)
参考文献部分:
Short intronic repeat sequences facilitate circular RNA production. Liang D, Wilusz JE. Genes Dev. 2014 Oct 3. pii: gad.251926.114. 10.1101/gad.251926.114 PubMed 25281217

载体质粒图谱和多克隆位点信息

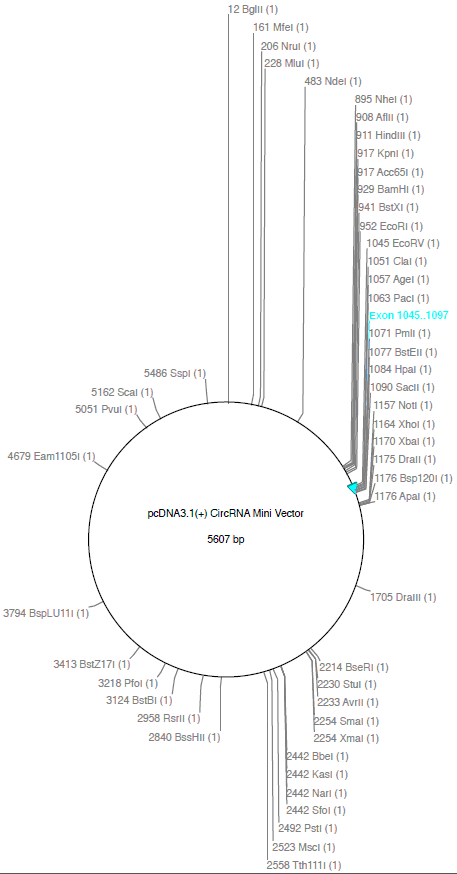

pcDNA3.1(+) CircRNA Mini载体图谱

载体简介

载体序列

LOCUS       pcDNA3.1(+) CircRNA Mini Vector	5607 bp 	DNA	SYN
DEFINITION  pcDNA3.1(+) CircRNA Mini Vector
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..5607
                     /organism="pcDNA3.1(+) CircRNA Mini Vector"
                     /mol_type="other DNA"
     promoter        236..852
                     /label="CMV_immearly_promoter"
     misc_feature    315..602
                     /label="CAG_enhancer"
     misc_feature    769..789
                     /label="CMV_fwd_primer"
     promoter        863..881
                     /label="T7_promoter"
     misc_feature    complement(1201..1218)
                     /label="BGH_rev_primer"
     terminator      1204..1431
                     /label="bGH_PA_terminator"
     rep_origin      1494..1800
                     /label="f1_origin"
     misc_feature    complement(1914..1934)
                     /label="pBABE_3_primer"
     misc_feature    complement(1920..2135)
                     /label="SV40_enhancer"
     promoter        1932..2200
                     /label="SV40_promoter"
     rep_origin      2099..2176
                     /label="SV40_origin"
     misc_feature    2161..2180
                     /label="SV40pro_F_primer"
     CDS             2315..3109
                     /label="ORF frame 2"
     gene            2318..3106
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"
     CDS             complement(2624..3160)
                     /label="ORF frame 3"
     terminator      3286..3405
                     /label="SV40_PA_terminator"
     misc_feature    3374..3393
                     /label="EBV_rev_primer"
     promoter        complement(3449..3467)
                     /label="M13_reverse_primer"
     misc_feature    complement(3466..3488)
                     /label="M13_pUC_rev_primer"
     promoter        complement(3502..3531)
                     /label="lac_promoter"
     gene            complement(4611..5471)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(4611..5471)
                     /label="ORF frame 2"
     promoter        complement(5513..5541)
                     /label="AmpR_promoter"
ORIGIN
    1 GACGGATCGG GAGATCTCCC GATCCCCTAT GGTGCACTCT CAGTACAATC TGCTCTGATG
   61 CCGCATAGTT AAGCCAGTAT CTGCTCCCTG CTTGTGTGTT GGAGGTCGCT GAGTAGTGCG
  121 CGAGCAAAAT TTAAGCTACA ACAAGGCAAG GCTTGACCGA CAATTGCATG AAGAATCTGC
  181 TTAGGGTTAG GCGTTTTGCG CTGCTTCGCG ATGTACGGGC CAGATATACG CGTTGACATT
  241 GATTATTGAC TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA
  301 TGGAGTTCCG CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC
  361 CCCGCCCATT GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC
  421 ATTGACGTCA ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT
  481 ATCATATGCC AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT
  541 ATGCCCAGTA CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA
  601 TCGCTATTAC CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG
  661 ACTCACGGGG ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC
  721 AAAATCAACG GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG
  781 GTAGGCGTGT ACGGTGGGAG GTCTATATAA GCAGAGCTCT CTGGCTAACT AGAGAACCCA
  841 CTGCTTACTG GCTTATCGAA ATTAATACGA CTCACTATAG GGAGACCCAA GCTGGCTAGC
  901 GTTTAAACTT AAGCTTGGTA CCGAGCTCGG ATCCACTAGT CCAGTGTGGT Ggaattcaaa
  961 gtgctgagat tacaggcgtg agccaccacc cccggccCAC TTTTTGTAAA GGTACGTACT
 1021 AATGACTTTT TTTTTATACT TCAGGATATC ATCGATACCG GTTTAATTAA CACGTGGGTA
 1081 ACCGTTAACC CGCGGAGGTA AGAAGCAAGG AAAAGAATTA ggctcggcac ggtagctcac
 1141 acctgtaatc ccagcagcgg ccgcTCGAGT CTAGAGGGCC CGTTTAAACC CGCTGATCAG
 1201 CCTCGACTGT GCCTTCTAGT TGCCAGCCAT CTGTTGTTTG CCCCTCCCCC GTGCCTTCCT
 1261 TGACCCTGGA AGGTGCCACT CCCACTGTCC TTTCCTAATA AAATGAGGAA ATTGCATCGC
 1321 ATTGTCTGAG TAGGTGTCAT TCTATTCTGG GGGGTGGGGT GGGGCAGGAC AGCAAGGGGG
 1381 AGGATTGGGA AGACAATAGC AGGCATGCTG GGGATGCGGT GGGCTCTATG GCTTCTGAGG
 1441 CGGAAAGAAC CAGCTGGGGC TCTAGGGGGT ATCCCCACGC GCCCTGTAGC GGCGCATTAA
 1501 GCGCGGCGGG TGTGGTGGTT ACGCGCAGCG TGACCGCTAC ACTTGCCAGC GCCCTAGCGC
 1561 CCGCTCCTTT CGCTTTCTTC CCTTCCTTTC TCGCCACGTT CGCCGGCTTT CCCCGTCAAG
 1621 CTCTAAATCG GGGGCTCCCT TTAGGGTTCC GATTTAGTGC TTTACGGCAC CTCGACCCCA
 1681 AAAAACTTGA TTAGGGTGAT GGTTCACGTA GTGGGCCATC GCCCTGATAG ACGGTTTTTC
 1741 GCCCTTTGAC GTTGGAGTCC ACGTTCTTTA ATAGTGGACT CTTGTTCCAA ACTGGAACAA
 1801 CACTCAACCC TATCTCGGTC TATTCTTTTG ATTTATAAGG GATTTTGCCG ATTTCGGCCT
 1861 ATTGGTTAAA AAATGAGCTG ATTTAACAAA AATTTAACGC GAATTAATTC TGTGGAATGT
 1921 GTGTCAGTTA GGGTGTGGAA AGTCCCCAGG CTCCCCAGCA GGCAGAAGTA TGCAAAGCAT
 1981 GCATCTCAAT TAGTCAGCAA CCAGGTGTGG AAAGTCCCCA GGCTCCCCAG CAGGCAGAAG
 2041 TATGCAAAGC ATGCATCTCA ATTAGTCAGC AACCATAGTC CCGCCCCTAA CTCCGCCCAT
 2101 CCCGCCCCTA ACTCCGCCCA GTTCCGCCCA TTCTCCGCCC CATGGCTGAC TAATTTTTTT
 2161 TATTTATGCA GAGGCCGAGG CCGCCTCTGC CTCTGAGCTA TTCCAGAAGT AGTGAGGAGG
 2221 CTTTTTTGGA GGCCTAGGCT TTTGCAAAAA GCTCCCGGGA GCTTGTATAT CCATTTTCGG
 2281 ATCTGATCAA GAGACAGGAT GAGGATCGTT TCGCATGATT GAACAAGATG GATTGCACGC
 2341 AGGTTCTCCG GCCGCTTGGG TGGAGAGGCT ATTCGGCTAT GACTGGGCAC AACAGACAAT
 2401 CGGCTGCTCT GATGCCGCCG TGTTCCGGCT GTCAGCGCAG GGGCGCCCGG TTCTTTTTGT
 2461 CAAGACCGAC CTGTCCGGTG CCCTGAATGA ACTGCAGGAC GAGGCAGCGC GGCTATCGTG
 2521 GCTGGCCACG ACGGGCGTTC CTTGCGCAGC TGTGCTCGAC GTTGTCACTG AAGCGGGAAG
 2581 GGACTGGCTG CTATTGGGCG AAGTGCCGGG GCAGGATCTC CTGTCATCTC ACCTTGCTCC
 2641 TGCCGAGAAA GTATCCATCA TGGCTGATGC AATGCGGCGG CTGCATACGC TTGATCCGGC
 2701 TACCTGCCCA TTCGACCACC AAGCGAAACA TCGCATCGAG CGAGCACGTA CTCGGATGGA
 2761 AGCCGGTCTT GTCGATCAGG ATGATCTGGA CGAAGAGCAT CAGGGGCTCG CGCCAGCCGA
 2821 ACTGTTCGCC AGGCTCAAGG CGCGCATGCC CGACGGCGAG GATCTCGTCG TGACCCATGG
 2881 CGATGCCTGC TTGCCGAATA TCATGGTGGA AAATGGCCGC TTTTCTGGAT TCATCGACTG
 2941 TGGCCGGCTG GGTGTGGCGG ACCGCTATCA GGACATAGCG TTGGCTACCC GTGATATTGC
 3001 TGAAGAGCTT GGCGGCGAAT GGGCTGACCG CTTCCTCGTG CTTTACGGTA TCGCCGCTCC
 3061 CGATTCGCAG CGCATCGCCT TCTATCGCCT TCTTGACGAG TTCTTCTGAG CGGGACTCTG
 3121 GGGTTCGAAA TGACCGACCA AGCGACGCCC AACCTGCCAT CACGAGATTT CGATTCCACC
 3181 GCCGCCTTCT ATGAAAGGTT GGGCTTCGGA ATCGTTTTCC GGGACGCCGG CTGGATGATC
 3241 CTCCAGCGCG GGGATCTCAT GCTGGAGTTC TTCGCCCACC CCAACTTGTT TATTGCAGCT
 3301 TATAATGGTT ACAAATAAAG CAATAGCATC ACAAATTTCA CAAATAAAGC ATTTTTTTCA
 3361 CTGCATTCTA GTTGTGGTTT GTCCAAACTC ATCAATGTAT CTTATCATGT CTGTATACCG
 3421 TCGACCTCTA GCTAGAGCTT GGCGTAATCA TGGTCATAGC TGTTTCCTGT GTGAAATTGT
 3481 TATCCGCTCA CAATTCCACA CAACATACGA GCCGGAAGCA TAAAGTGTAA AGCCTGGGGT
 3541 GCCTAATGAG TGAGCTAACT CACATTAATT GCGTTGCGCT CACTGCCCGC TTTCCAGTCG
 3601 GGAAACCTGT CGTGCCAGCT GCATTAATGA ATCGGCCAAC GCGCGGGGAG AGGCGGTTTG
 3661 CGTATTGGGC GCTCTTCCGC TTCCTCGCTC ACTGACTCGC TGCGCTCGGT CGTTCGGCTG
 3721 CGGCGAGCGG TATCAGCTCA CTCAAAGGCG GTAATACGGT TATCCACAGA ATCAGGGGAT
 3781 AACGCAGGAA AGAACATGTG AGCAAAAGGC CAGCAAAAGG CCAGGAACCG TAAAAAGGCC
 3841 GCGTTGCTGG CGTTTTTCCA TAGGCTCCGC CCCCCTGACG AGCATCACAA AAATCGACGC
 3901 TCAAGTCAGA GGTGGCGAAA CCCGACAGGA CTATAAAGAT ACCAGGCGTT TCCCCCTGGA
 3961 AGCTCCCTCG TGCGCTCTCC TGTTCCGACC CTGCCGCTTA CCGGATACCT GTCCGCCTTT
 4021 CTCCCTTCGG GAAGCGTGGC GCTTTCTCAT AGCTCACGCT GTAGGTATCT CAGTTCGGTG
 4081 TAGGTCGTTC GCTCCAAGCT GGGCTGTGTG CACGAACCCC CCGTTCAGCC CGACCGCTGC
 4141 GCCTTATCCG GTAACTATCG TCTTGAGTCC AACCCGGTAA GACACGACTT ATCGCCACTG
 4201 GCAGCAGCCA CTGGTAACAG GATTAGCAGA GCGAGGTATG TAGGCGGTGC TACAGAGTTC
 4261 TTGAAGTGGT GGCCTAACTA CGGCTACACT AGAAGAACAG TATTTGGTAT CTGCGCTCTG
 4321 CTGAAGCCAG TTACCTTCGG AAAAAGAGTT GGTAGCTCTT GATCCGGCAA ACAAACCACC
 4381 GCTGGTAGCG GTTTTTTTGT TTGCAAGCAG CAGATTACGC GCAGAAAAAA AGGATCTCAA
 4441 GAAGATCCTT TGATCTTTTC TACGGGGTCT GACGCTCAGT GGAACGAAAA CTCACGTTAA
 4501 GGGATTTTGG TCATGAGATT ATCAAAAAGG ATCTTCACCT AGATCCTTTT AAATTAAAAA
 4561 TGAAGTTTTA AATCAATCTA AAGTATATAT GAGTAAACTT GGTCTGACAG TTACCAATGC
 4621 TTAATCAGTG AGGCACCTAT CTCAGCGATC TGTCTATTTC GTTCATCCAT AGTTGCCTGA
 4681 CTCCCCGTCG TGTAGATAAC TACGATACGG GAGGGCTTAC CATCTGGCCC CAGTGCTGCA
 4741 ATGATACCGC GAGACCCACG CTCACCGGCT CCAGATTTAT CAGCAATAAA CCAGCCAGCC
 4801 GGAAGGGCCG AGCGCAGAAG TGGTCCTGCA ACTTTATCCG CCTCCATCCA GTCTATTAAT
 4861 TGTTGCCGGG AAGCTAGAGT AAGTAGTTCG CCAGTTAATA GTTTGCGCAA CGTTGTTGCC
 4921 ATTGCTACAG GCATCGTGGT GTCACGCTCG TCGTTTGGTA TGGCTTCATT CAGCTCCGGT
 4981 TCCCAACGAT CAAGGCGAGT TACATGATCC CCCATGTTGT GCAAAAAAGC GGTTAGCTCC
 5041 TTCGGTCCTC CGATCGTTGT CAGAAGTAAG TTGGCCGCAG TGTTATCACT CATGGTTATG
 5101 GCAGCACTGC ATAATTCTCT TACTGTCATG CCATCCGTAA GATGCTTTTC TGTGACTGGT
 5161 GAGTACTCAA CCAAGTCATT CTGAGAATAG TGTATGCGGC GACCGAGTTG CTCTTGCCCG
 5221 GCGTCAATAC GGGATAATAC CGCGCCACAT AGCAGAACTT TAAAAGTGCT CATCATTGGA
 5281 AAACGTTCTT CGGGGCGAAA ACTCTCAAGG ATCTTACCGC TGTTGAGATC CAGTTCGATG
 5341 TAACCCACTC GTGCACCCAA CTGATCTTCA GCATCTTTTA CTTTCACCAG CGTTTCTGGG
 5401 TGAGCAAAAA CAGGAAGGCA AAATGCCGCA AAAAAGGGAA TAAGGGCGAC ACGGAAATGT
 5461 TGAATACTCA TACTCTTCCT TTTTCAATAT TATTGAAGCA TTTATCAGGG TTATTGTCTC
 5521 ATGAGCGGAT ACATATTTGA ATGTATTTAG AAAAATAAAC AAATAGGGGT TCCGCGCACA
 5581 TTTCCCCGAA AAGTGCCACC TGACGTC
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
