pSV-Beta-Galactosidase

价格:1500元

联系方式:I47-825O-882O

买家导航

pSV-β-Gal载体基本信息

出品公司: Promega
载体名称: pSV-Beta-Gal
质粒类型: 哺乳细胞表达;Beta-Gal报告载体
高拷贝/低拷贝: 高拷贝
启动子: SV40
克隆方法: 多克隆位点,限制性内切酶
载体大小: 6820 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: lacZ
载体抗性: 氨苄青霉素
筛选标记: --
备注: 表达水平高
产品目录号: E1081
稳定性: 瞬表达
组成型: 组成型
病毒/非病毒: 非病毒

pSV-β-Gal载体质粒图谱和多克隆位点信息

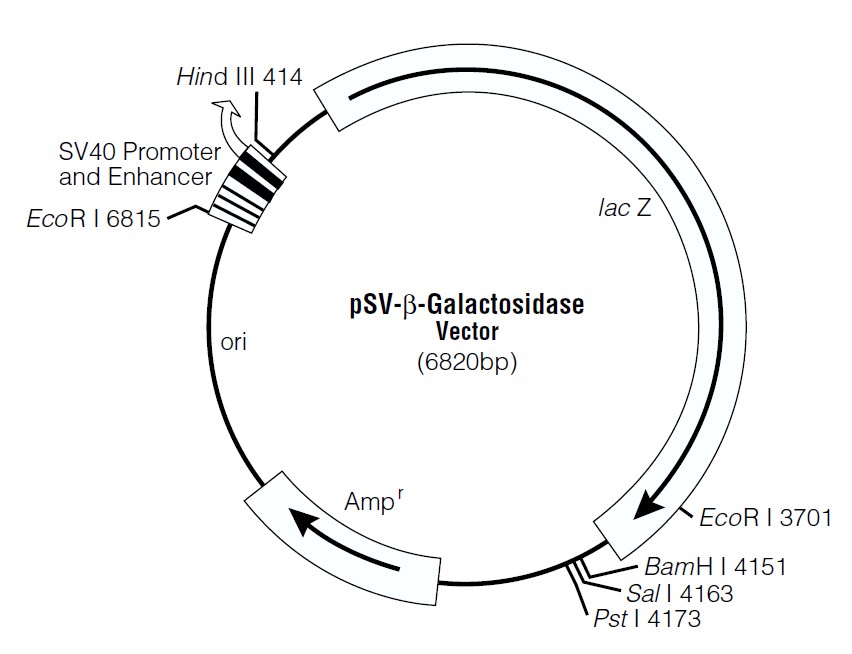

pSV-Beta-Gal载体图谱

pSV-β-Gal载体简介

pSV-β-Gal载体序列

LOCUS       pSV-beta-Galactosidase	6820 bp 	DNA  circular	SYN
DEFINITION  pSV-beta-Galactosidase
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..6820
                     /organism="pSV-beta-Galactosidase"
                     /mol_type="other DNA"
     misc_feature    complement(79..99)
                     /label="pBABE_3_primer"
     misc_feature    complement(85..541)
                     /label="SV40_enhancer"
     promoter        97..365
                     /label="SV40_promoter"
     rep_origin      264..341
                     /label="SV40_origin"
     misc_feature    326..345
                     /label="SV40pro_F_primer"
     CDS             500..3757
                     /label="ORF frame 2"
     gene            710..3754
                     /label="lacZ"
                     /gene="lacZ"
     misc_feature    complement(712..734)
                     /label="M13_pUC_fwd_primer"
     misc_feature    3809..4011
                     /label="lacY"
     CDS             3809..4438
                     /label="ORF frame 2"
     terminator      4024..4155
                     /label="SV40_PA_terminator"
     misc_feature    4112..4131
                     /label="EBV_rev_primer"
     promoter        complement(4189..4205)
                     /label="M13_forward20_primer"
     misc_feature    complement(4198..4220)
                     /label="M13_pUC_fwd_primer"
     misc_feature    4198..4341
                     /label="lacZ_a"
     misc_feature    4533..4555
                     /label="pGEX_3_primer"
     promoter        4714..4742
                     /label="AmpR_promoter"
     gene            4784..5644
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             4784..5644
                     /label="ORF frame 2"
     rep_origin      5799..6418
                     /label="pBR322_origin"
     promoter        6727..6756
                     /label="lac_promoter"
     misc_feature    6770..6792
                     /label="M13_pUC_rev_primer"
ORIGIN
    1 GCGCAGCACC ATGGCCTGAA ATAACCTCTG AAAGAGGAAC TTGGTTAGGT ACCTTCTGAG
   61 GCGGAAAGAA CCAGCTGTGG AATGTGTGTC AGTTAGGGTG TGGAAAGTCC CCAGGCTCCC
  121 CAGCAGGCAG AAGTATGCAA AGCATGCATC TCAATTAGTC AGCAACCAGG TGTGGAAAGT
  181 CCCCAGGCTC CCCAGCAGGC AGAAGTATGC AAAGCATGCA TCTCAATTAG TCAGCAACCA
  241 TAGTCCCGCC CCTAACTCCG CCCATCCCGC CCCTAACTCC GCCCAGTTCC GCCCATTCTC
  301 CGCCCCATGG CTGACTAATT TTTTTTATTT ATGCAGAGGC CGAGGCCGCC TCGGCCTCTG
  361 AGCTATTCCA GAAGTAGTGA GGAGGCTTTT TTGGAGGCCT AGGCTTTTGC AAAAAGCTTG
  421 GGATCTCTAT AATCTCGCGC AACCTATTTT CCCCTCGAAC ACTTTTTAAG CCGTAGATAA
  481 ACAGGCTGGG ACACTTCACA TGAGCGAAAA ATACATCGTC ACCTGGGACA TGTTGCAGAT
  541 CCATGCACGT AAACTCGCAA GCCGACTGAT GCCTTCTGAA CAATGGAAAG GCATTATTGC
  601 CGTAAGCCGT GGCGGTCTGG TACCGGTGGG TGAAGACCAG AAACAGCACC TCGAACTGAG
  661 CCGCGATATT GCCCAGCGTT TCAACGCGCT GTATGGCGAG ATCGATCCCG TCGTTTTACA
  721 ACGTCGTGAC TGGGAAAACC CTGGCGTTAC CCAACTTAAT CGCCTTGCAG CACATCCCCC
  781 TTTCGCCAGC TGGCGTAATA GCGAAGAGGC CCGCACCGAT CGCCCTTCCC AACAGTTGCG
  841 CAGCCTGAAT GGCGAATGGC GCTTTGCCTG GTTTCCGGCA CCAGAAGCGG TGCCGGAAAG
  901 CTGGCTGGAG TGCGATCTTC CTGAGGCCGA TACTGTCGTC GTCCCCTCAA ACTGGCAGAT
  961 GCACGGTTAC GATGCGCCCA TCTACACCAA CGTGACCTAT CCCATTACGG TCAATCCGCC
 1021 GTTTGTTCCC ACGGAGAATC CGACGGGTTG TTACTCGCTC ACATTTAATG TTGATGAAAG
 1081 CTGGCTACAG GAAGGCCAGA CGCGAATTAT TTTTGATGGC GTTAACTCGG CGTTTCATCT
 1141 GTGGTGCAAC GGGCGCTGGG TCGGTTACGG CCAGGACAGT CGTTTGCCGT CTGAATTTGA
 1201 CCTGAGCGCA TTTTTACGCG CCGGAGAAAA CCGCCTCGCG GTGATGGTGC TGCGCTGGAG
 1261 TGACGGCAGT TATCTGGAAG ATCAGGATAT GTGGCGGATG AGCGGCATTT TCCGTGACGT
 1321 CTCGTTGCTG CATAAACCGA CTACACAAAT CAGCGATTTC CATGTTGCCA CTCGCTTTAA
 1381 TGATGATTTC AGCCGCGCTG TACTGGAGGC TGAAGTTCAG ATGTGCGGCG AGTTGCGTGA
 1441 CTACCTACGG GTAACAGTTT CTTTATGGCA GGGTGAAACG CAGGTCGCCA GCGGCACCGC
 1501 GCCTTTCGGC GGTGAAATTA TCGATGAGCG TGGTGGTTAT GCCGATCGCG TCACACTACG
 1561 TCTGAACGTC GAAAACCCGA AACTGTGGAG CGCCGAAATC CCGAATCTCT ATCGTGCGGT
 1621 GGTTGAACTG CACACCGCCG ACGGCACGCT GATTGAAGCA GAAGCCTGCG ATGTCGGTTT
 1681 CCGCGAGGTG CGGATTGAAA ATGGTCTGCT GCTGCTGAAC GGCAAGCCGT TGCTGATTCG
 1741 AGGCGTTAAC CGTCACGAGC ATCATCCTCT GCATGGTCAG GTCATGGATG AGCAGACGAT
 1801 GGTGCAGGAT ATCCTGCTGA TGAAGCAGAA CAACTTTAAC GCCGTGCGCT GTTCGCATTA
 1861 TCCGAACCAT CCGCTGTGGT ACACGCTGTG CGACCGCTAC GGCCTGTATG TGGTGGATGA
 1921 AGCCAATATT GAAACCCACG GCATGGTGCC AATGAATCGT CTGACCGATG ATCCGCGCTG
 1981 GCTACCGGCG ATGAGCGAAC GCGTAACGCG AATGGTGCAG CGCGATCGTA ATCACCCGAG
 2041 TGTGATCATC TGGTCGCTGG GGAATGAATC AGGCCACGGC GCTAATCACG ACGCGCTGTA
 2101 TCGCTGGATC AAATCTGTCG ATCCTTCCCG CCCGGTGCAG TATGAAGGCG GCGGAGCCGA
 2161 CACCACGGCC ACCGATATTA TTTGCCCGAT GTACGCGCGC GTGGATGAAG ACCAGCCCTT
 2221 CCCGGCTGTG CCGAAATGGT CCATCAAAAA ATGGCTTTCG CTACCTGGAG AGACGCGCCC
 2281 GCTGATCCTT TGCGAATACG CCCACGCGAT GGGTAACAGT CTTGGCGGTT TCGCTAAATA
 2341 CTGGCAGGCG TTTCGTCAGT ATCCCCGTTT ACAGGGCGGC TTCGTCTGGG ACTGGGTGGA
 2401 TCAGTCGCTG ATTAAATATG ATGAAAACGG CAACCCGTGG TCGGCTTACG GCGGTGATTT
 2461 TGGCGATACG CCGAACGATC GCCAGTTCTG TATGAACGGT CTGGTCTTTG CCGACCGCAC
 2521 GCCGCATCCA GCGCTGACGG AAGCAAAACA CCAGCAGCAG TTTTTCCAGT TCCGTTTATC
 2581 CGGGCAAACC ATCGAAGTGA CCAGCGAATA CCTGTTCCGT CATAGCGATA ACGAGCTCCT
 2641 GCACTGGATG GTGGCGCTGG ATGGTAAGCC GCTGGCAAGC GGTGAAGTGC CTCTGGATGT
 2701 CGCTCCACAA GGTAAACAGT TGATTGAACT GCCTGAACTA CCGCAGCCGG AGAGCGCCGG
 2761 GCAACTCTGG CTCACAGTAC GCGTAGTGCA ACCGAACGCG ACCGCATGGT CAGAAGCCGG
 2821 GCACATCAGC GCCTGGCAGC AGTGGCGTCT GGCGGAAAAC CTCAGTGTGA CGCTCCCCGC
 2881 CGCGTCCCAC GCCATCCCGC ATCTGACCAC CAGCGAAATG GATTTTTGCA TCGAGCTGGG
 2941 TAATAAGCGT TGGCAATTTA ACCGCCAGTC AGGCTTTCTT TCACAGATGT GGATTGGCGA
 3001 TAAAAAACAA CTGCTGACGC CGCTGCGCGA TCAGTTCACC CGTGCACCGC TGGATAACGA
 3061 CATTGGCGTA AGTGAAGCGA CCCGCATTGA CCCTAACGCC TGGGTCGAAC GCTGGAAGGC
 3121 GGCGGGCCAT TACCAGGCCG AAGCAGCGTT GTTGCAGTGC ACGGCAGATA CACTTGCTGA
 3181 TGCGGTGCTG ATTACGACCG CTCACGCGTG GCAGCATCAG GGGAAAACCT TATTTATCAG
 3241 CCGGAAAACC TACCGGATTG ATGGTAGTGG TCAAATGGCG ATTACCGTTG ATGTTGAAGT
 3301 GGCGAGCGAT ACACCGCATC CGGCGCGGAT TGGCCTGAAC TGCCAGCTGG CGCAGGTAGC
 3361 AGAGCGGGTA AACTGGCTCG GATTAGGGCC GCAAGAAAAC TATCCCGACC GCCTTACTGC
 3421 CGCCTGTTTT GACCGCTGGG ATCTGCCATT GTCAGACATG TATACCCCGT ACGTCTTCCC
 3481 GAGCGAAAAC GGTCTGCGCT GCGGGACGCG CGAATTGAAT TATGGCCCAC ACCAGTGGCG
 3541 CGGCGACTTC CAGTTCAACA TCAGCCGCTA CAGTCAACAG CAACTGATGG AAACCAGCCA
 3601 TCGCCATCTG CTGCACGCGG AAGAAGGCAC ATGGCTGAAT ATCGACGGTT TCCATATGGG
 3661 GATTGGTGGC GACGACTCCT GGAGCCCGTC AGTATCGGCG GAATTCCAGC TGAGCGCCGG
 3721 TCGCTACCAT TACCAGTTGG TCTGGTGTCA AAAATAATAA TAACCGGGCA GGCCATGTCT
 3781 GCCCGTATTT CGCGTAAGGA AATCCATTAT GTACTATTTA AAAAACACAA ACTTTTGGAT
 3841 GTTCGGTTTA TTCTTTTTCT TTTACTTTTT TATCATGGGA GCCTACTTCC CGTTTTTCCC
 3901 GATTTGGCTA CATGACATCA ACCATATCAG CAAAAGTGAT ACGGGTATTA TTTTTGCCGC
 3961 TATTTCTCTG TTCTCGCTAT TATTCCAACC GCTGTTTGGT CTGCTTTCTG ACAAACTCGG
 4021 AACTTGTTTA TTGCAGCTTA TAATGGTTAC AAATAAAGCA ATAGCATCAC AAATTTCACA
 4081 AATAAAGCAT TTTTTTCACT GCATTCTAGT TGTGGTTTGT CCAAACTCAT CAATGTATCT
 4141 TATCATGTCT GGATCCTCTA GAGTCGACCT GCAGGCATGC AAGCTGGCAC TGGCCGTCGT
 4201 TTTACAACGT CGTGACTGGG AAAACCCTGG CGTTACCCAA CTTAATCGCC TTGCAGCACA
 4261 TCCCCCTTTC GCCAGCTGGC GTAATAGCGA AGAGGCCCGC ACCGATCGCC CTTCCCAACA
 4321 GTTGCGCAGC CTGAATGGCG AATGGCGCCT GATGCGGTAT TTTCTCCTTA CGCATCTGTG
 4381 CGGTATTTCA CACCGCATAT GGTGCACTCT CAGTACAATC TGCTCTGATG CCGCATAGTT
 4441 AAGCCAGCCC CGACACCCGC CAACACCCGC TGACGCGCCC TGACGGGCTT GTCTGCTCCC
 4501 GGCATCCGCT TACAGACAAG CTGTGACCGT CTCCGGGAGC TGCATGTGTC AGAGGTTTTC
 4561 ACCGTCATCA CCGAAACGCG CGAGACGAAA GGGCCTCGTG ATACGCCTAT TTTTATAGGT
 4621 TAATGTCATG ATAATAATGG TTTCTTAGAC GTCAGGTGGC ACTTTTCGGG GAAATGTGCG
 4681 CGGAACCCCT ATTTGTTTAT TTTTCTAAAT ACATTCAAAT ATGTATCCGC TCATGAGACA
 4741 ATAACCCTGA TAAATGCTTC AATAATATTG AAAAAGGAAG AGTATGAGTA TTCAACATTT
 4801 CCGTGTCGCC CTTATTCCCT TTTTTGCGGC ATTTTGCCTT CCTGTTTTTG CTCACCCAGA
 4861 AACGCTGGTG AAAGTAAAAG ATGCTGAAGA TCAGTTGGGT GCACGAGTGG GTTACATCGA
 4921 ACTGGATCTC AACAGCGGTA AGATCCTTGA GAGTTTTCGC CCCGAAGAAC GTTTTCCAAT
 4981 GATGAGCACT TTTAAAGTTC TGCTATGTGG CGCGGTATTA TCCCGTATTG ACGCCGGGCA
 5041 AGAGCAACTC GGTCGCCGCA TACACTATTC TCAGAATGAC TTGGTTGAGT ACTCACCAGT
 5101 CACAGAAAAG CATCTTACGG ATGGCATGAC AGTAAGAGAA TTATGCAGTG CTGCCATAAC
 5161 CATGAGTGAT AACACTGCGG CCAACTTACT TCTGACAACG ATCGGAGGAC CGAAGGAGCT
 5221 AACCGCTTTT TTGCACAACA TGGGGGATCA TGTAACTCGC CTTGATCGTT GGGAACCGGA
 5281 GCTGAATGAA GCCATACCAA ACGACGAGCG TGACACCACG ATGCCTGTAG CAATGGCAAC
 5341 AACGTTGCGC AAACTATTAA CTGGCGAACT ACTTACTCTA GCTTCCCGGC AACAATTAAT
 5401 AGACTGGATG GAGGCGGATA AAGTTGCAGG ACCACTTCTG CGCTCGGCCC TTCCGGCTGG
 5461 CTGGTTTATT GCTGATAAAT CTGGAGCCGG TGAGCGTGGG TCTCGCGGTA TCATTGCAGC
 5521 ACTGGGGCCA GATGGTAAGC CCTCCCGTAT CGTAGTTATC TACACGACGG GGAGTCAGGC
 5581 AACTATGGAT GAACGAAATA GACAGATCGC TGAGATAGGT GCCTCACTGA TTAAGCATTG
 5641 GTAACTGTCA GACCAAGTTT ACTCATATAT ACTTTAGATT GATTTAAAAC TTCATTTTTA
 5701 ATTTAAAAGG ATCTAGGTGA AGATCCTTTT TGATAATCTC ATGACCAAAA TCCCTTAACG
 5761 TGAGTTTTCG TTCCACTGAG CGTCAGACCC CGTAGAAAAG ATCAAAGGAT CTTCTTGAGA
 5821 TCCTTTTTTT CTGCGCGTAA TCTGCTGCTT GCAAACAAAA AAACCACCGC TACCAGCGGT
 5881 GGTTTGTTTG CCGGATCAAG AGCTACCAAC TCTTTTTCCG AAGGTAACTG GCTTCAGCAG
 5941 AGCGCAGATA CCAAATACTG TTCTTCTAGT GTAGCCGTAG TTAGGCCACC ACTTCAAGAA
 6001 CTCTGTAGCA CCGCCTACAT ACCTCGCTCT GCTAATCCTG TTACCAGTGG CTGCTGCCAG
 6061 TGGCGATAAG TCGTGTCTTA CCGGGTTGGA CTCAAGACGA TAGTTACCGG ATAAGGCGCA
 6121 GCGGTCGGGC TGAACGGGGG GTTCGTGCAC ACAGCCCAGC TTGGAGCGAA CGACCTACAC
 6181 CGAACTGAGA TACCTACAGC GTGAGCTATG AGAAAGCGCC ACGCTTCCCG AAGGGAGAAA
 6241 GGCGGACAGG TATCCGGTAA GCGGCAGGGT CGGAACAGGA GAGCGCACGA GGGAGCTTCC
 6301 AGGGGGAAAC GCCTGGTATC TTTATAGTCC TGTCGGGTTT CGCCACCTCT GACTTGAGCG
 6361 TCGATTTTTG TGATGCTCGT CAGGGGGGCG GAGCCTATGG AAAAACGCCA GCAACGCGGC
 6421 CTTTTTACGG TTCCTGGCCT TTTGCTGGCC TTTTGCTCAC ATGTTCTTTC CTGCGTTATC
 6481 CCCTGATTCT GTGGATAACC GTATTACCGC CTTTGAGTGA GCTGATACCG CTCGCCGCAG
 6541 CCGAACGACC GAGCGCAGCG AGTCAGTGAG CGAGGAAGCG GAAGAGCGCC CAATACGCAA
 6601 ACCGCCTCTC CCCGCGCGTT GGCCGATTCA TTAATGCAGC TGGCACGACA GGTTTCCCGA
 6661 CTGGAAAGCG GGCAGTGAGC GCAACGCAAT TAATGTGAGT TAGCTCACTC ATTAGGCACC
 6721 CCAGGCTTTA CACTTTATGC TTCCGGCTCG TATGTTGTGT GGAATTGTGA GCGGATAACA
 6781 ATTTCACACA GGAAACAGCT ATGACATGAT TACGAATTCG
//

pSV-β-Gal载体质粒图谱pdf版和相关资料下载

pSV-β-Gal载体应用举例
