载体基本信息

出品公司: Promega
载体名称: pGL3-Enhancer
质粒类型: 哺乳细胞表达;启动子增强子报告系统
高拷贝/低拷贝: --
启动子: --
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5064bp
5' 测序引物及序列: RVprimer3 Fwd: CTAGCAAAATAGGCTGTCCC
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素(Ampicillin)
筛选标记: --
备注: pGL3-Enhancer是荧光素酶报告系统载体,含有SV40增强子。
产品目录号: E1771
稳定性: --
组成型: --
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

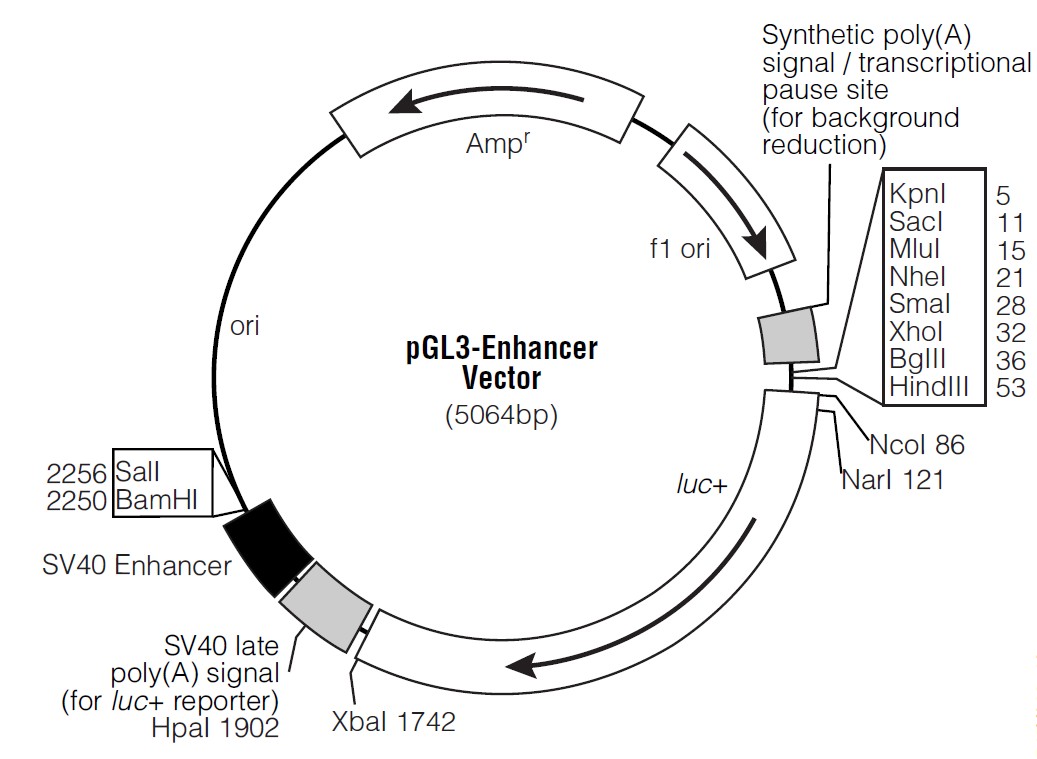

pGL3-Enhancer载体图谱

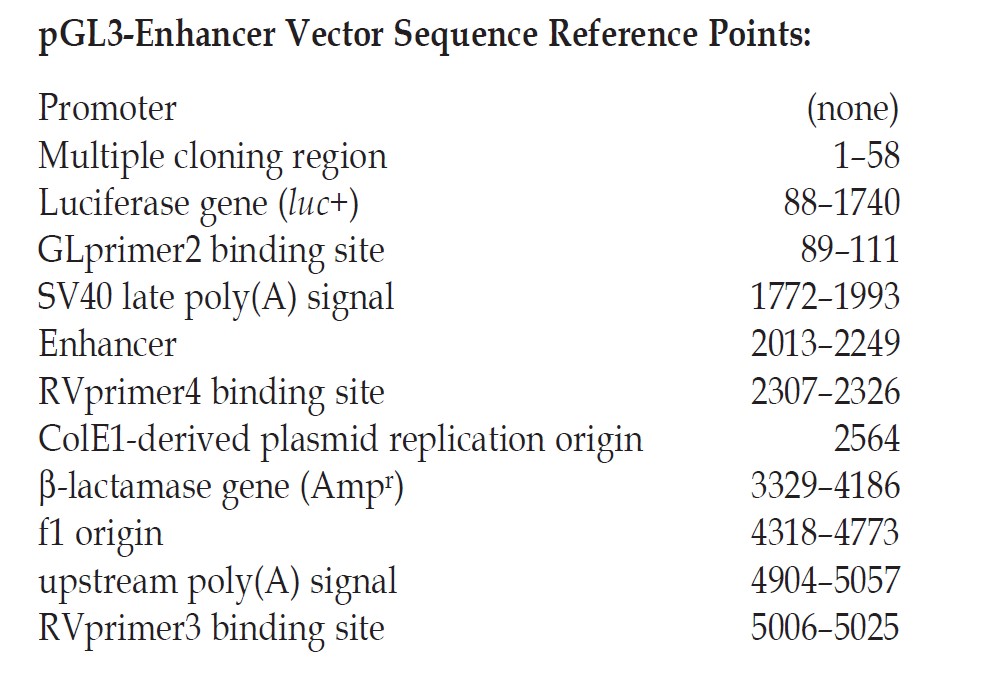

pGL3-Enhancer载体特征

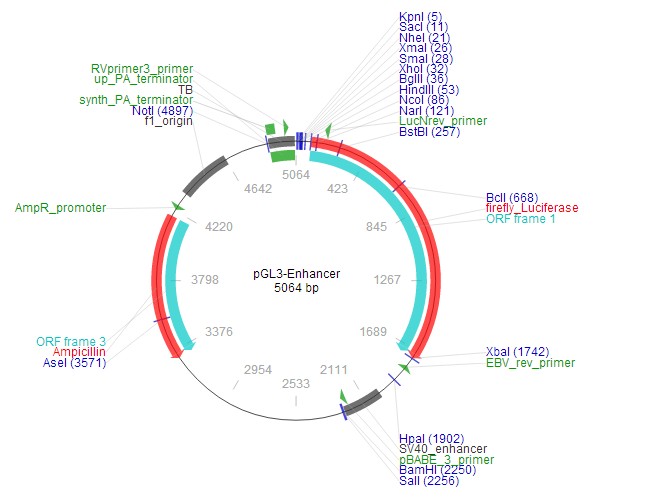

pGL3-Enhancer载体图谱2



载体简介

载体序列

LOCUS       pGL3-Enhancer	5064 bp 	DNA	SYN
DEFINITION  pGL3-Enhancer
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..5064
                     /organism="pGL3-Enhancer"
                     /mol_type="other DNA"
     gene            88..1740
                     /label="firefly_Luciferase"
                     /gene="firefly_Luciferase"
     CDS             88..1740
                     /label="ORF frame 1"

     misc_feature    complement(154..172)
                     /label="LucNrev_primer"

     misc_feature    complement(1792..1811)
                     /label="EBV_rev_primer"

     misc_feature    2017..2244
                     /label="SV40_enhancer"

     misc_feature    2224..2244
                     /label="pBABE_3_primer"

     gene            complement(3326..4186)
                     /label="Ampicillin"
                     /gene="Ampicillin"

     CDS             complement(3326..4186)
                     /label="ORF frame 3"

     promoter        complement(4228..4256)
                     /label="AmpR_promoter"

     rep_origin      4335..4641
                     /label="f1_origin"

     misc_feature    4904..5057
                     /label="TB"

     terminator      4904..4952
                     /label="synth_PA_terminator"

     terminator      4904..5057
                     /label="up_PA_terminator"

     misc_feature    5006..5025
                     /label="RVprimer3_primer"

ORIGIN
    1 GGTACCGAGC TCTTACGCGT GCTAGCCCGG GCTCGAGATC TGCGATCTAA GTAAGCTTGG
   61 CATTCCGGTA CTGTTGGTAA AGCCACCATG GAAGACGCCA AAAACATAAA GAAAGGCCCG
  121 GCGCCATTCT ATCCGCTGGA AGATGGAACC GCTGGAGAGC AACTGCATAA GGCTATGAAG
  181 AGATACGCCC TGGTTCCTGG AACAATTGCT TTTACAGATG CACATATCGA GGTGGACATC
  241 ACTTACGCTG AGTACTTCGA AATGTCCGTT CGGTTGGCAG AAGCTATGAA ACGATATGGG
  301 CTGAATACAA ATCACAGAAT CGTCGTATGC AGTGAAAACT CTCTTCAATT CTTTATGCCG
  361 GTGTTGGGCG CGTTATTTAT CGGAGTTGCA GTTGCGCCCG CGAACGACAT TTATAATGAA
  421 CGTGAATTGC TCAACAGTAT GGGCATTTCG CAGCCTACCG TGGTGTTCGT TTCCAAAAAG
  481 GGGTTGCAAA AAATTTTGAA CGTGCAAAAA AAGCTCCCAA TCATCCAAAA AATTATTATC
  541 ATGGATTCTA AAACGGATTA CCAGGGATTT CAGTCGATGT ACACGTTCGT CACATCTCAT
  601 CTACCTCCCG GTTTTAATGA ATACGATTTT GTGCCAGAGT CCTTCGATAG GGACAAGACA
  661 ATTGCACTGA TCATGAACTC CTCTGGATCT ACTGGTCTGC CTAAAGGTGT CGCTCTGCCT
  721 CATAGAACTG CCTGCGTGAG ATTCTCGCAT GCCAGAGATC CTATTTTTGG CAATCAAATC
  781 ATTCCGGATA CTGCGATTTT AAGTGTTGTT CCATTCCATC ACGGTTTTGG AATGTTTACT
  841 ACACTCGGAT ATTTGATATG TGGATTTCGA GTCGTCTTAA TGTATAGATT TGAAGAAGAG
  901 CTGTTTCTGA GGAGCCTTCA GGATTACAAG ATTCAAAGTG CGCTGCTGGT GCCAACCCTA
  961 TTCTCCTTCT TCGCCAAAAG CACTCTGATT GACAAATACG ATTTATCTAA TTTACACGAA
 1021 ATTGCTTCTG GTGGCGCTCC CCTCTCTAAG GAAGTCGGGG AAGCGGTTGC CAAGAGGTTC
 1081 CATCTGCCAG GTATCAGGCA AGGATATGGG CTCACTGAGA CTACATCAGC TATTCTGATT
 1141 ACACCCGAGG GGGATGATAA ACCGGGCGCG GTCGGTAAAG TTGTTCCATT TTTTGAAGCG
 1201 AAGGTTGTGG ATCTGGATAC CGGGAAAACG CTGGGCGTTA ATCAAAGAGG CGAACTGTGT
 1261 GTGAGAGGTC CTATGATTAT GTCCGGTTAT GTAAACAATC CGGAAGCGAC CAACGCCTTG
 1321 ATTGACAAGG ATGGATGGCT ACATTCTGGA GACATAGCTT ACTGGGACGA AGACGAACAC
 1381 TTCTTCATCG TTGACCGCCT GAAGTCTCTG ATTAAGTACA AAGGCTATCA GGTGGCTCCC
 1441 GCTGAATTGG AATCCATCTT GCTCCAACAC CCCAACATCT TCGACGCAGG TGTCGCAGGT
 1501 CTTCCCGACG ATGACGCCGG TGAACTTCCC GCCGCCGTTG TTGTTTTGGA GCACGGAAAG
 1561 ACGATGACGG AAAAAGAGAT CGTGGATTAC GTCGCCAGTC AAGTAACAAC CGCGAAAAAG
 1621 TTGCGCGGAG GAGTTGTGTT TGTGGACGAA GTACCGAAAG GTCTTACCGG AAAACTCGAC
 1681 GCAAGAAAAA TCAGAGAGAT CCTCATAAAG GCCAAGAAGG GCGGAAAGAT CGCCGTGTAA
 1741 TTCTAGAGTC GGGGCGGCCG GCCGCTTCGA GCAGACATGA TAAGATACAT TGATGAGTTT
 1801 GGACAAACCA CAACTAGAAT GCAGTGAAAA AAATGCTTTA TTTGTGAAAT TTGTGATGCT
 1861 ATTGCTTTAT TTGTAACCAT TATAAGCTGC AATAAACAAG TTAACAACAA CAATTGCATT
 1921 CATTTTATGT TTCAGGTTCA GGGGGAGGTG TGGGAGGTTT TTTAAAGCAA GTAAAACCTC
 1981 TACAAATGTG GTAAAATCGA TAAGGATCTG AACGATGGAG CGGAGAATGG GCGGAACTGG
 2041 GCGGAGTTAG GGGCGGGATG GGCGGAGTTA GGGGCGGGAC TATGGTTGCT GACTAATTGA
 2101 GATGCATGCT TTGCATACTT CTGCCTGCTG GGGAGCCTGG GGACTTTCCA CACCTGGTTG
 2161 CTGACTAATT GAGATGCATG CTTTGCATAC TTCTGCCTGC TGGGGAGCCT GGGGACTTTC
 2221 CACACCCTAA CTGACACACA TTCCACAGCG GATCCGTCGA CCGATGCCCT TGAGAGCCTT
 2281 CAACCCAGTC AGCTCCTTCC GGTGGGCGCG GGGCATGACT ATCGTCGCCG CACTTATGAC
 2341 TGTCTTCTTT ATCATGCAAC TCGTAGGACA GGTGCCGGCA GCGCTCTTCC GCTTCCTCGC
 2401 TCACTGACTC GCTGCGCTCG GTCGTTCGGC TGCGGCGAGC GGTATCAGCT CACTCAAAGG
 2461 CGGTAATACG GTTATCCACA GAATCAGGGG ATAACGCAGG AAAGAACATG TGAGCAAAAG
 2521 GCCAGCAAAA GGCCAGGAAC CGTAAAAAGG CCGCGTTGCT GGCGTTTTTC CATAGGCTCC
 2581 GCCCCCCTGA CGAGCATCAC AAAAATCGAC GCTCAAGTCA GAGGTGGCGA AACCCGACAG
 2641 GACTATAAAG ATACCAGGCG TTTCCCCCTG GAAGCTCCCT CGTGCGCTCT CCTGTTCCGA
 2701 CCCTGCCGCT TACCGGATAC CTGTCCGCCT TTCTCCCTTC GGGAAGCGTG GCGCTTTCTC
 2761 ATAGCTCACG CTGTAGGTAT CTCAGTTCGG TGTAGGTCGT TCGCTCCAAG CTGGGCTGTG
 2821 TGCACGAACC CCCCGTTCAG CCCGACCGCT GCGCCTTATC CGGTAACTAT CGTCTTGAGT
 2881 CCAACCCGGT AAGACACGAC TTATCGCCAC TGGCAGCAGC CACTGGTAAC AGGATTAGCA
 2941 GAGCGAGGTA TGTAGGCGGT GCTACAGAGT TCTTGAAGTG GTGGCCTAAC TACGGCTACA
 3001 CTAGAAGAAC AGTATTTGGT ATCTGCGCTC TGCTGAAGCC AGTTACCTTC GGAAAAAGAG
 3061 TTGGTAGCTC TTGATCCGGC AAACAAACCA CCGCTGGTAG CGGTGGTTTT TTTGTTTGCA
 3121 AGCAGCAGAT TACGCGCAGA AAAAAAGGAT CTCAAGAAGA TCCTTTGATC TTTTCTACGG
 3181 GGTCTGACGC TCAGTGGAAC GAAAACTCAC GTTAAGGGAT TTTGGTCATG AGATTATCAA
 3241 AAAGGATCTT CACCTAGATC CTTTTAAATT AAAAATGAAG TTTTAAATCA ATCTAAAGTA
 3301 TATATGAGTA AACTTGGTCT GACAGTTACC AATGCTTAAT CAGTGAGGCA CCTATCTCAG
 3361 CGATCTGTCT ATTTCGTTCA TCCATAGTTG CCTGACTCCC CGTCGTGTAG ATAACTACGA
 3421 TACGGGAGGG CTTACCATCT GGCCCCAGTG CTGCAATGAT ACCGCGAGAC CCACGCTCAC
 3481 CGGCTCCAGA TTTATCAGCA ATAAACCAGC CAGCCGGAAG GGCCGAGCGC AGAAGTGGTC
 3541 CTGCAACTTT ATCCGCCTCC ATCCAGTCTA TTAATTGTTG CCGGGAAGCT AGAGTAAGTA
 3601 GTTCGCCAGT TAATAGTTTG CGCAACGTTG TTGCCATTGC TACAGGCATC GTGGTGTCAC
 3661 GCTCGTCGTT TGGTATGGCT TCATTCAGCT CCGGTTCCCA ACGATCAAGG CGAGTTACAT
 3721 GATCCCCCAT GTTGTGCAAA AAAGCGGTTA GCTCCTTCGG TCCTCCGATC GTTGTCAGAA
 3781 GTAAGTTGGC CGCAGTGTTA TCACTCATGG TTATGGCAGC ACTGCATAAT TCTCTTACTG
 3841 TCATGCCATC CGTAAGATGC TTTTCTGTGA CTGGTGAGTA CTCAACCAAG TCATTCTGAG
 3901 AATAGTGTAT GCGGCGACCG AGTTGCTCTT GCCCGGCGTC AATACGGGAT AATACCGCGC
 3961 CACATAGCAG AACTTTAAAA GTGCTCATCA TTGGAAAACG TTCTTCGGGG CGAAAACTCT
 4021 CAAGGATCTT ACCGCTGTTG AGATCCAGTT CGATGTAACC CACTCGTGCA CCCAACTGAT
 4081 CTTCAGCATC TTTTACTTTC ACCAGCGTTT CTGGGTGAGC AAAAACAGGA AGGCAAAATG
 4141 CCGCAAAAAA GGGAATAAGG GCGACACGGA AATGTTGAAT ACTCATACTC TTCCTTTTTC
 4201 AATATTATTG AAGCATTTAT CAGGGTTATT GTCTCATGAG CGGATACATA TTTGAATGTA
 4261 TTTAGAAAAA TAAACAAATA GGGGTTCCGC GCACATTTCC CCGAAAAGTG CCACCTGACG
 4321 CGCCCTGTAG CGGCGCATTA AGCGCGGCGG GTGTGGTGGT TACGCGCAGC GTGACCGCTA
 4381 CACTTGCCAG CGCCCTAGCG CCCGCTCCTT TCGCTTTCTT CCCTTCCTTT CTCGCCACGT
 4441 TCGCCGGCTT TCCCCGTCAA GCTCTAAATC GGGGGCTCCC TTTAGGGTTC CGATTTAGTG
 4501 CTTTACGGCA CCTCGACCCC AAAAAACTTG ATTAGGGTGA TGGTTCACGT AGTGGGCCAT
 4561 CGCCCTGATA GACGGTTTTT CGCCCTTTGA CGTTGGAGTC CACGTTCTTT AATAGTGGAC
 4621 TCTTGTTCCA AACTGGAACA ACACTCAACC CTATCTCGGT CTATTCTTTT GATTTATAAG
 4681 GGATTTTGCC GATTTCGGCC TATTGGTTAA AAAATGAGCT GATTTAACAA AAATTTAACG
 4741 CGAATTTTAA CAAAATATTA ACGCTTACAA TTTGCCATTC GCCATTCAGG CTGCGCAACT
 4801 GTTGGGAAGG GCGATCGGTG CGGGCCTCTT CGCTATTACG CCAGCCCAAG CTACCATGAT
 4861 AAGTAAGTAA TATTAAGGTA CGGGAGGTAC TTGGAGCGGC CGCAATAAAA TATCTTTATT
 4921 TTCATTACAT CTGTGTGTTG GTTTTTTGTG TGAATCGATA GTACTAACAT ACGCTCTCCA
 4981 TCAAAACAAA ACGAAACAAA ACAAACTAGC AAAATAGGCT GTCCCCAGTG CAAGTGCAGG
 5041 TGCCAGAACA TTTCTCTATC GATA
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
