pCMV-SPORT4

价格:2000元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Invitrogen
载体名称: pCMV-SPORT4
质粒类型: 哺乳动物表达载体;Cre/loxP载体 ;cDNA克隆载体;体外转录载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: CMV
载体大小: 4387 bp
5' 测序引物及序列: CMV fwd 5’CGCAAATGGGCGGTAGGCGTG 3’
3' 测序引物及序列: SV40pA rev  5'GAAATTTGTGATGCTATTGC'
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: --
克隆菌株: DH5α
宿主细胞(系): 哺乳动物细胞
备注: --
产品目录号: --
稳定性: 瞬表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

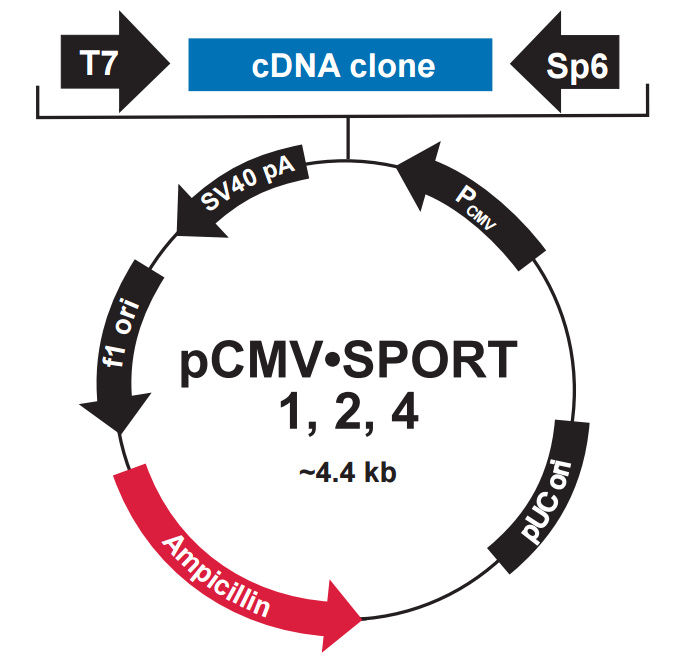

pCMV-SPORT4载体图谱

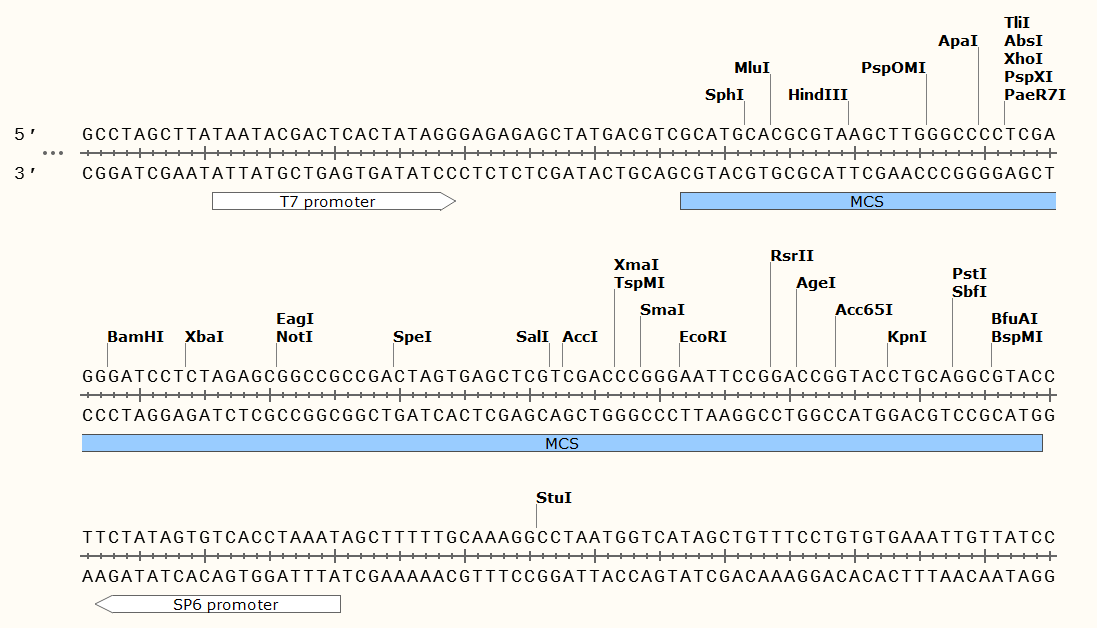

pCMV-SPORT4多克隆位点

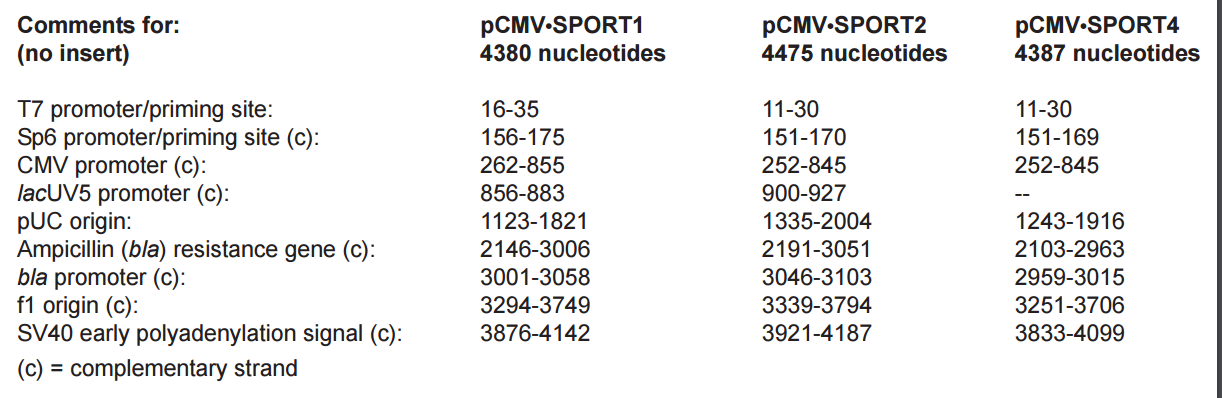

pCMV-SPORT4载体特征

载体简介

载体序列

LOCUS       pCMV-Sport4	4387 bp 	DNA	SYN
DEFINITION  pCMV Sport 4
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..4387
                     /organism="pCMV Sport 4"
                     /mol_type="other DNA"
     promoter        11..29
                     /label="T7_promoter"
     misc_feature    complement(153..170)
                     /label="Sp6_primer"
     misc_feature    complement(206..228)
                     /label="M13_pUC_rev_primer"
     promoter        complement(252..371)
                     /label="CMV2_promoter"
     promoter        complement(314..385)
                     /label="CMV_promoter"
     misc_feature    complement(314..338)
                     /label="LNCX_primer"
     misc_feature    complement(321..340)
                     /label="pCEP_fwd_primer"
     promoter        complement(337..841)
                     /label="CMV_immearly_promoter"
     misc_feature    complement(364..384)
                     /label="CMV_fwd_primer"
     misc_feature    complement(550..837)
                     /label="CAG_enhancer"
     promoter        987..1015
                     /label="AmpR_promoter"
     rep_origin      complement(1287..1906)
                     /label="pBR322_origin"
     misc_feature    1968..2001
                     /label="loxP"
     gene            complement(2103..2963)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(2103..2963)
                     /label="ORF frame 3"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      complement(3383..3689)
                     /label="f1_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     terminator      complement(3842..3961)
                     /label="SV40_PA_terminator"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    complement(3856..3875)
                     /label="EBV_rev_primer"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    complement(4249..4264)
                     /label="SV40_int"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    4356..4378
                     /label="M13_pUC_fwd_primer"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        4371..4387
                     /label="M13_forward20_primer"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 GCCTAGCTTA TAATACGACT CACTATAGGG AGAGAGCTAT GACGTCGCAT GCACGCGTAA
   61 GCTTGGGCCC CTCGAGGGAT CCTCTAGAGC GGCCGCCGAC TAGTGAGCTC GTCGACCCGG
  121 GAATTCCGGA CCGGTACCTG CAGGCGTACC TTCTATAGTG TCACCTAAAT AGCTTTTTGC
  181 AAAGGCCTAA TGGTCATAGC TGTTTCCTGT GTGAAATTGT TATCCGCTCC GCGGCCTAGG
  241 CTAGAGTCCG GAGGCTGGAT CGGTCCCGGT GTCTTCTATG GAGGTCAAAA CAGCGTGGAT
  301 GGCGTCTCCA GGCGATCTGA CGGTTCACTA AACGAGCTCT GCTTATATAG ACCTCCCACC
  361 GTACACGCCT ACCGCCCATT TGCGTCAATG GGGCGGAGTT GTTACGACAT TTTGGAAAGT
  421 CCCGTTGATT TTGGTGCCAA AACAAACTCC CATTGACGTC AATGGGGTGG AGACTTGGAA
  481 ATCCCCGTGA GTCAAACCGC TATCCACGCC CATTGATGTA CTGCCAAAAC CGCATCACCA
  541 TGGTAATAGC GATGACTAAT ACGTAGATGT ACTGCCAAGT AGGAAAGTCC CATAAGGTCA
  601 TGTACTGGGC ATAATGCCAG GCGGGCCATT TACCGTCATT GACGTCAATA GGGGGCGTAC
  661 TTGGCATATG ATACACTTGA TGTACTGCCA AGTGGGCAGT TTACCGTAAA TACTCCACCC
  721 ATTGACGTCA ATGGAAAGTC CCTATTGGCG TTACTATGGG AACATACGTC ATTATTGACG
  781 TCAATGGGCG GGGGTCGTTG GGCGGTCAGC CAGGCGGGCC ATTTACCGTA AGTTATGTAA
  841 CGACATGCAT CTAATGAGTG AAAGGGCCTC GTACTACGCC TATTTTTATA GGTTAATGTC
  901 ATGATAATAA TGGTTTCTTA GACGTCAGGT GGCACTTTTC GGGGAAATGT GCGCGGAACC
  961 CCTATTTGTT TATTTTTCTA AATACATTCA AATATGTATC CGCTCATGAG ACAATAACCC
 1021 TGATAAATGC TTCAATAATA TTGAAAAACG CGCGAATTGC AAGCTCTGCA TTAATGAATC
 1081 GGCCAACGCG CGGGGAGAGG CGGTTTGCGT ATTGGGCGCT CTTCCGCTTC CTCGCTCACT
 1141 GACTCGCTGC GCTCGGTCGT TCGGCTGCGG CGAGCGGTAT CAGCTCACTC AAAGGCGGTA
 1201 ATACGGTTAT CCACAGAATC AGGGGATAAC GCAGGAAAGA ACATGTGAGC AAAAGGCCAG
 1261 CAAAAGGCCA GGAACCGTAA AAAGGCCGCG TTGCTGGCGT TTTTCCATAG GCTCCGCCCC
 1321 CCTGACGAGC ATCACAAAAA TCGACGCTCA AGTCAGAGGT GGCGAAACCC GACAGGACTA
 1381 TAAAGATACC AGGCGTTTCC CCCTGGAAGC TCCCTCGTGC GCTCTCCTGT TCCGACCCTG
 1441 CCGCTTACCG GATACCTGTC CGCCTTTCTC CCTTCGGGAA GCGTGGCGCT TTCTCAATGC
 1501 TCACGCTGTA GGTATCTCAG TTCGGTGTAG GTCGTTCGCT CCAAGCTGGG CTGTGTGCAC
 1561 GAACCCCCCG TTCAGCCCGA CCGCTGCGCC TTATCCGGTA ACTATCGTCT TGAGTCCAAC
 1621 CCGGTAAGAC ACGACTTATC GCCACTGGCA GCAGCCACTG GTAACAGGAT TAGCAGAGCG
 1681 AGGTATGTAG GCGGTGCTAC AGAGTTCTTG AAGTGGTGGC CTAACTACGG CTACACTAGA
 1741 AGGACAGTAT TTGGTATCTG CGCTCTGCTG AAGCCAGTTA CCTTCGGAAA AAGAGTTGGT
 1801 AGCTCTTGAT CCGGCAAACA AACCACCGCT GGTAGCGGTG GTTTTTTTGT TTGCAAGCAG
 1861 CAGATTACGC GCAGAAAAAA AGGATCTCAA GAAGATCCTT TGATCTTTTC TACGGGGTCT
 1921 GACGCTCAGT GGAACGAAAA CTCACGTTAA GGGATTTTGG TCATGCCATA ACTTCGTATA
 1981 GCATACATTA TACGAAGTTA TGGCATGAGA TTATCAAAAA GGATCTTCAC CTAGATCCTT
 2041 TTAAATTAAA AATGAAGTTT TAAATCAATC TAAAGTATAT ATGAGTAAAC TTGGTCTGAC
 2101 AGTTACCAAT GCTTAATCAG TGAGGCACCT ATCTCAGCGA TCTGTCTATT TCGTTCATCC
 2161 ATAGTTGCCT GACTCCCCGT CGTGTAGATA ACTACGATAC GGGAGGGCTT ACCATCTGGC
 2221 CCCAGTGCTG CAATGATACC GCGAGACCCA CGCTCACCGG CTCCAGATTT ATCAGCAATA
 2281 AACCAGCCAG CCGGAAGGGC CGAGCGCAGA AGTGGTCCTG CAACTTTATC CGCCTCCATC
 2341 CAGTCTATTA ATTGTTGCCG GGAAGCTAGA GTAAGTAGTT CGCCAGTTAA TAGTTTGCGC
 2401 AACGTTGTTG CCATTGCTAC AGGCATCGTG GTGTCACGCT CGTCGTTTGG TATGGCTTCA
 2461 TTCAGCTCCG GTTCCCAACG ATCAAGGCGA GTTACATGAT CCCCCATGTT GTGCAAAAAA
 2521 GCGGTTAGCT CCTTCGGTCC TCCGATCGTT GTCAGAAGTA AGTTGGCCGC AGTGTTATCA
 2581 CTCATGGTTA TGGCAGCACT GCATAATTCT CTTACTGTCA TGCCATCCGT AAGATGCTTT
 2641 TCTGTGACTG GTGAGTACTC AACCAAGTCA TTCTGAGAAT AGTGTATGCG GCGACCGAGT
 2701 TGCTCTTGCC CGGCGTCAAT ACGGGATAAT ACCGCGCCAC ATAGCAGAAC TTTAAAAGTG
 2761 CTCATCATTG GAAAACGTTC TTCGGGGCGA AAACTCTCAA GGATCTTACC GCTGTTGAGA
 2821 TCCAGTTCGA TGTAACCCAC TCGTGCACCC AACTGATCTT CAGCATCTTT TACTTTCACC
 2881 AGCGTTTCTG GGTGAGCAAA AACAGGAAGG CAAAATGCCG CAAAAAAGGG AATAAGGGCG
 2941 ACACGGAAAT GTTGAATACT CATACTCTTC CTTTTTCAAT ATTATTGAAG CATTTATCAG
 3001 GGTTATTGTC TCATGCCAGG GGTGGGCACA CATATTTGAT ACCAGCGATC CCTACACAGC
 3061 ACATAATTCA ATGCGACTTC CCTCTATCGC ACATCTTAGA CCTTTATTCT CCCTCCAGCA
 3121 CACATCGAAG CTGCCGAGCA AGCCGTTCTC ACCAGTCCAA GACCTGGCAT GAGCGGATAC
 3181 ATATTTGAAT GTATTTAGAA AAATAAACAA ATAGGGGTTC CGCGCACATT TCCCCGAAAA
 3241 GTGCCACCTG AAATTGTAAA CGTTAATATT TTGTTAAAAT TCGCGTTAAA TTTTTGTTAA
 3301 ATCAGCTCAT TTTTTAACCA ATAGGCCGAA ATCGGCAAAA TCCCTTATAA ATCAAAAGAA
 3361 TAGACCGAGA TAGGGTTGAG TGTTGTTCCA GTTTGGAACA AGAGTCCACT ATTAAAGAAC
 3421 GTGGACTCCA ACGTCAAAGG GCGAAAAACC GTCTATCAGG GCGATGGCCC ACTACGTGAA
 3481 CCATCACCCT AATCAAGTTT TTTGGGGTCG AGGTGCCGTA AAGCACTAAA TCGGAACCCT
 3541 AAAGGGAGCC CCCGATTTAG AGCTTGACGG GGAAAGCCGG CGAACGTGGC GAGAAAGGAA
 3601 GGGAAGAAAG CGAAAGGAGC GGGCGCTAGG GCGCTGGCAA GTGTAGCGGT CACGCTGCGC
 3661 GTAACCACCA CACCCGCCGC GCTTAATGCG CCGCTACAGG GCGCGTCCCA TTCGCCATTC
 3721 AGGCTGCGCA ACTGTTGGGA AGGGCGATCG GTGCGGGCCT CTTCGCTATT ACGCCAGCCA
 3781 ATACGCAAAC CGCCTCTCCC CGCGCGTTGG CCGATTCATT AATGCAGGAT CGATCCAGAC
 3841 ATGATAAGAT ACATTGATGA GTTTGGACAA ACCACAACTA GAATGCAGTG AAAAAAATGC
 3901 TTTATTTGTG AAATTTGTGA TGCTATTGCT TTATTTGTAA CCATTATAAG CTGCAATAAA
 3961 CAAGTTAACA ACAACAATTG CATTCATTTT ATGTTTCAGG TTCAGGGGGA GGTGTGGGAG
 4021 GTTTTTTAAA GCAAGTAAAA CCTCTACAAA TGTGGTATGG CTGATTATGA TCATGAACAG
 4081 ACTGTGAGGA CTGAGGGGCC TGAAATGAGC CTTGGGACTG TGAATCTAAA ATACACAAAC
 4141 AATTAGAATC ACTAGCTCCT GTGTATAATA TTTTCATAAA TCATACTCAG TAAGCAAAAC
 4201 TCTCAAGCAG CAAGCATATG CAGCTAGTTT AACACATTAT ACACTTAAAA ATTTTATATT
 4261 TACCTTAGAG CTTTAAATCT CTGTAGGTAG TTTGTCCAAT TATGTCACAC CACAGAAGTA
 4321 AGGTTCCTTC ACAAAGATCC CAAGCTAGCA GTTTTCCCAG TCACGACGTT GTAAAACGAC
 4381 GGCCAGT
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
