pCMV-3Tag-4A

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Agilent
载体名称: pCMV-3Tag-4A
质粒类型: 哺乳动物细胞载体
高拷贝/低拷贝: --
克隆方法: --
启动子: --
载体大小: 4233 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: Myc
载体抗性: 卡那霉素
筛选标记: 新霉素
克隆菌株: --
宿主细胞(系): --
备注: 哺乳动物C末端3xMyc表位蛋白的表达载体
产品目录号: --
稳定性: --
组成型/诱导型: --
病毒/非病毒: --

载体质粒图谱和多克隆位点信息

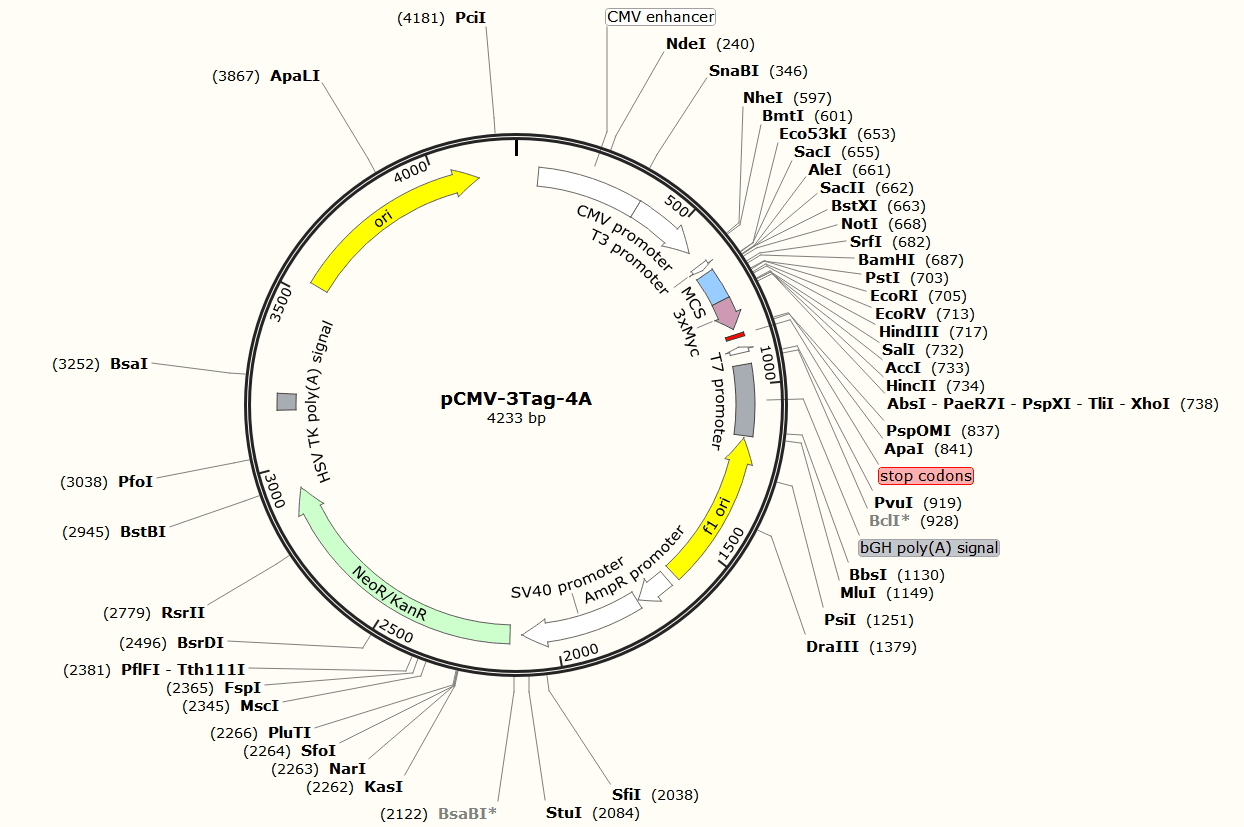

pCMV-3Tag-4A载体图谱

载体简介

载体序列

LOCUS       pCMV-3Tag-4A                4233 bp ds-DNA     circular SYN 28-NOV-2013
DEFINITION  Mammalian expression vector for tagging proteins with a C-terminal
            3xMyc epitope. For other reading frames, use pCMV-3Tag-4B or
            pCMV-3Tag-4C.
ACCESSION   .
VERSION     .
KEYWORDS    pCMV-3Tag-4A
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4233)
  AUTHORS   Agilent Technologies
  TITLE     Direct Submission
  JOURNAL   Exported Tuesday, February 4, 2020 from SnapGene Viewer 3.1.4
            http://www.snapgene.com
COMMENT     The cloned gene must include a Kozak sequence and start codon.
FEATURES             Location/Qualifiers
     source          1..4233
                     /organism="synthetic DNA construct"
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
     enhancer        66..370
                     /note="CMV enhancer"
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        371..574
                     /note="CMV promoter"
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        620..638
                     /note="T3 promoter"
                     /note="promoter for bacteriophage T3 RNA polymerase"
     misc_feature    651..743
                     /note="MCS"
                     /note="multiple cloning site"
     CDS             744..833
                     /codon_start=1
                     /product="3 tandem Myc epitope tags"
                     /note="3xMyc"
                     /translation="EQKLISEEDLEQKLISEEDLEQKLISEEDL"
     misc_feature    850..860
                     /note="stop codons"
                     /note="stop codons in all three reading frames"
     promoter        complement(888..906)
                     /note="T7 promoter"
                     /note="promoter for bacteriophage T7 RNA polymerase"
     polyA_signal    941..1148
                     /note="bGH poly(A) signal"
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      complement(1155..1610)
                     /direction=LEFT
                     /note="f1 ori"
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        1637..1739
                     /gene="bla"
                     /note="AmpR promoter"
     promoter        1743..2100
                     /note="SV40 promoter"
                     /note="SV40 enhancer and early promoter"
     CDS             2135..2929
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /note="NeoR/KanR"
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     misc_feature    3161..3208
                     /note="HSV TK poly(A) signal"
                     /note="herpesvirus thymidine kinase polyadenylation signal"
     rep_origin      3537..4125
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 atgcattagt tattaatagt aatcaattac ggggtcatta gttcatagcc catatatgga
       61 gttccgcgtt acataactta cggtaaatgg cccgcctggc tgaccgccca acgacccccg
      121 cccattgacg tcaataatga cgtatgttcc catagtaacg ccaataggga ctttccattg
      181 acgtcaatgg gtggagtatt tacggtaaac tgcccacttg gcagtacatc aagtgtatca
      241 tatgccaagt acgcccccta ttgacgtcaa tgacggtaaa tggcccgcct ggcattatgc
      301 ccagtacatg accttatggg actttcctac ttggcagtac atctacgtat tagtcatcgc
      361 tattaccatg gtgatgcggt tttggcagta catcaatggg cgtggatagc ggtttgactc
      421 acggggattt ccaagtctcc accccattga cgtcaatggg agtttgtttt ggcaccaaaa
      481 tcaacgggac tttccaaaat gtcgtaacaa ctccgcccca ttgacgcaaa tgggcggtag
      541 gcgtgtacgg tgggaggtct atataagcag agctggttta gtgaaccgtc agatccgcta
      601 gcgattacgc caagctcgaa attaaccctc actaaaggga acaaaagctg gagctccacc
      661 gcggtggcgg ccgctctagc ccgggcggat cccccgggct gcaggaattc gatatcaagc
      721 ttatcgatac cgtcgacctc gaggagcaga aactcatctc tgaagaagat ctggaacaaa
      781 agttgatttc agaagaagat ctggaacaga agctcatctc tgaggaagat ctgtaagggc
      841 ccggtacctt aattaattaa ggtaccaggt aagtgtaccc aattcgccct atagtgagtc
      901 gtattacaat tcactcgatc ggctcgctga tcagcctcga ctgtgccttc tagttgccag
      961 ccatctgttg tttgcccctc ccccgtgcct tccttgaccc tggaaggtgc cactcccact
     1021 gtcctttcct aataaaatga ggaaattgca tcgcattgtc tgagtaggtg tcattctatt
     1081 ctggggggtg gggtggggca ggacagcaag ggggaggatt gggaagacaa tagcaggcat
     1141 gctggggaac gcgtaaattg taagcgttaa tattttgtta aaattcgcgt taaatttttg
     1201 ttaaatcagc tcatttttta accaataggc cgaaatcggc aaaatccctt ataaatcaaa
     1261 agaatagacc gagatagggt tgagtgttgt tccagtttgg aacaagagtc cactattaaa
     1321 gaacgtggac tccaacgtca aagggcgaaa aaccgtctat cagggcgatg gcccactacg
     1381 tgaaccatca ccctaatcaa gttttttggg gtcgaggtgc cgtaaagcac taaatcggaa
     1441 ccctaaaggg agcccccgat ttagagcttg acggggaaag ccggcgaacg tggcgagaaa
     1501 ggaagggaag aaagcgaaag gagcgggcgc tagggcgctg gcaagtgtag cggtcacgct
     1561 gcgcgtaacc accacacccg ccgcgcttaa tgcgccgcta cagggcgcgt caggtggcac
     1621 ttttcgggga aatgtgcgcg gaacccctat ttgtttattt ttctaaatac attcaaatat
     1681 gtatccgctc atgagacaat aaccctgata aatgcttcaa taatattgaa aaaggaagaa
     1741 tcctgaggcg gaaagaacca gctgtggaat gtgtgtcagt tagggtgtgg aaagtcccca
     1801 ggctccccag caggcagaag tatgcaaagc atgcatctca attagtcagc aaccaggtgt
     1861 ggaaagtccc caggctcccc agcaggcaga agtatgcaaa gcatgcatct caattagtca
     1921 gcaaccatag tcccgcccct aactccgccc atcccgcccc taactccgcc cagttccgcc
     1981 cattctccgc cccatggctg actaattttt tttatttatg cagaggccga ggccgcctcg
     2041 gcctctgagc tattccagaa gtagtgagga ggcttttttg gaggcctagg cttttgcaaa
     2101 gatcgatcaa gagacaggat gaggatcgtt tcgcatgatt gaacaagatg gattgcacgc
     2161 aggttctccg gccgcttggg tggagaggct attcggctat gactgggcac aacagacaat
     2221 cggctgctct gatgccgccg tgttccggct gtcagcgcag gggcgcccgg ttctttttgt
     2281 caagaccgac ctgtccggtg ccctgaatga actgcaagac gaggcagcgc ggctatcgtg
     2341 gctggccacg acgggcgttc cttgcgcagc tgtgctcgac gttgtcactg aagcgggaag
     2401 ggactggctg ctattgggcg aagtgccggg gcaggatctc ctgtcatctc accttgctcc
     2461 tgccgagaaa gtatccatca tggctgatgc aatgcggcgg ctgcatacgc ttgatccggc
     2521 tacctgccca ttcgaccacc aagcgaaaca tcgcatcgag cgagcacgta ctcggatgga
     2581 agccggtctt gtcgatcagg atgatctgga cgaagaacat caggggctcg cgccagccga
     2641 actgttcgcc aggctcaagg cgagcatgcc cgacggcgag gatctcgtcg tgacccatgg
     2701 cgatgcctgc ttgccgaata tcatggtgga aaatggccgc ttttctggat tcatcgactg
     2761 tggccggctg ggtgtggcgg accgctatca ggacatagcg ttggctaccc gtgatattgc
     2821 tgaagaactt ggcggcgaat gggctgaccg cttcctcgtg ctttacggta tcgccgctcc
     2881 cgattcgcag cgcatcgcct tctatcgcct tcttgacgag ttcttctgag cgggactctg
     2941 gggttcgaaa tgaccgacca agcgacgccc aacctgccat cacgagattt cgattccacc
     3001 gccgccttct atgaaaggtt gggcttcgga atcgttttcc gggacgccgg ctggatgatc
     3061 ctccagcgcg gggatctcat gctggagttc ttcgcccacc ctagggggag gctaactgaa
     3121 acacggaagg agacaatacc ggaaggaacc cgcgctatga cggcaataaa aagacagaat
     3181 aaaacgcacg gtgttgggtc gtttgttcat aaacgcgggg ttcggtccca gggctggcac
     3241 tctgtcgata ccccaccgag accccattgg ggccaatacg cccgcgtttc ttccttttcc
     3301 ccaccccacc ccccaagttc gggtgaaggc ccagggctcg cagccaacgt cggggcggca
     3361 ggccctgcca tagcctcagg ttactcatat atactttaga ttgatttaaa acttcatttt
     3421 taatttaaaa ggatctaggt gaagatcctt tttgataatc tcatgaccaa aatcccttaa
     3481 cgtgagtttt cgttccactg agcgtcagac cccgtagaaa agatcaaagg atcttcttga
     3541 gatccttttt ttctgcgcgt aatctgctgc ttgcaaacaa aaaaaccacc gctaccagcg
     3601 gtggtttgtt tgccggatca agagctacca actctttttc cgaaggtaac tggcttcagc
     3661 agagcgcaga taccaaatac tgttcttcta gtgtagccgt agttaggcca ccacttcaag
     3721 aactctgtag caccgcctac atacctcgct ctgctaatcc tgttaccagt ggctgctgcc
     3781 agtggcgata agtcgtgtct taccgggttg gactcaagac gatagttacc ggataaggcg
     3841 cagcggtcgg gctgaacggg gggttcgtgc acacagccca gcttggagcg aacgacctac
     3901 accgaactga gatacctaca gcgtgagcta tgagaaagcg ccacgcttcc cgaagggaga
     3961 aaggcggaca ggtatccggt aagcggcagg gtcggaacag gagagcgcac gagggagctt
     4021 ccagggggaa acgcctggta tctttatagt cctgtcgggt ttcgccacct ctgacttgag
     4081 cgtcgatttt tgtgatgctc gtcagggggg cggagcctat ggaaaaacgc cagcaacgcg
     4141 gcctttttac ggttcctggc cttttgctgg ccttttgctc acatgttctt tcctgcgtta
     4201 tcccctgatt ctgtggataa ccgtattacc gcc
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
