p3XFLAG-CMV-7.1

价格:1700元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

出品公司: SIGMA
载体名称: p3XFLAG-CMV-7.1
质粒类型: 哺乳动物表达载体
高拷贝/低拷贝: 低拷贝
克隆方法: 多克隆位点;限制性内切酶
启动子: CMV
载体大小: 4717 bp
5' 测序引物及序列: CMV Forward:CGCAAATGGGCGGTAGGCGTG
3' 测序引物及序列: --
载体标签: 3XFLAG tag (N-末端)
载体抗性: 氨苄青霉素
筛选标记:
克隆菌株: --
宿主细胞(系): 常用细胞系,如293、Hela等
备注: CMV启动子驱动目的蛋白高水平表达;
FLAG标签含8个氨基酸残基(DYKDDDDK),3XFLAG标签含22个氨基酸残基,
一般位于融合蛋白的外表面,具有高度免疫灵 敏性,便于检测和纯化目的蛋白;
用EK蛋白酶可将3XFLAG标签切除。
产品目录号: E7533
稳定性: 瞬表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

载体图谱质粒图谱和多克隆位点信息

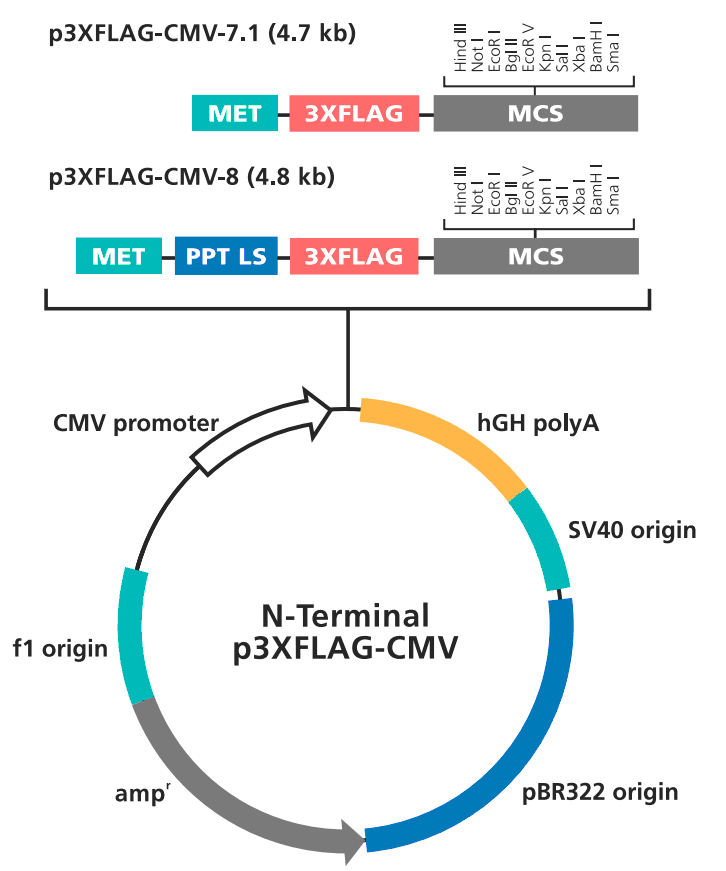

p3XFLAG-CMV-7.1载体图谱



p3XFLAG-CMV-7.1 多克隆位点

载体简介

FLAG和3XFLAG:

A Proven System for Detection and Purification of Proteins The FLAG Expression System is an established way to express, purify and detect recombinant fusion proteins. FLAG and 3xFLAG have proven utility in numerous applications such as Western blotting, immunocytochemistry, immunoprecipitation, flow cytometry, protein purification, and in the study of protein-protein interactions, cell ultrastructure and protein localization. These small hydrophilic tags facilitate superior detection and purification of recombinant fusion proteins when using our highly specific and sensitive ANTI-FLAG antibodies. Ideal Epitope Tags: Small, Hydrophilic and Cleavable The FLAG expression system utilizes a short, hydrophilic 8-amino acid peptide that is fused to the recombinant protein of interest. Because of its hydrophilic nature, the FLAG peptide is likely to be located on the surface of the fusion protein. As a result, the FLAG peptide is easily accessible for cleavage by enterokinase (Ek) and for detection with antibodies. In addition, because of the small size of the FLAG peptide tag, it is not likely to obscure other epitopes, domains, or alter function, secretion, or transport of the fusion protein. The 3xFLAG system is an improvement upon the original system by fusing 3 tandem FLAG epitopes (22 amino acids). Detection of fusion proteins containing 3xFLAG is enhanced up to 200 times more than any other system. Like the original FLAG tag, 3xFLAG is hydrophilic, contains an Ek cleavage site, and is relatively small. Therefore, the risk of altering protein function, blocking other epitopes or decreasing solubility is minimized.

载体简介:

The p3XFLAG-CMV-7.1 Expression Vector is a 4.7 kb derivative of pCMV5 used to establish transient intracellular expression of N-terminal 3XFLAG fusion proteins in mammalian cells. The vector encodes three adjacent FLAG epitopes (Asp-Tyr-Lys-Xaa-Xaa-Asp) upstream of the multiple cloning region. This results in increased detection sensitivity using ANTI-FLAG M2 antibody. The third FLAG epitope includes the enterokinase recognition sequence, allowing cleavage of the 3XFLAG peptide from the purified fusion protein.

The p3XFLAG-CMV-7.1 Expression Vector is a shuttle vector for E. coli and mammalian cells. Efficiency of replication is optimal when using an SV40 T antigenexpressing host.

The p3XFLAG-CMV-7-BAP Control Plasmid is a 6.2 kb derivative of pCMV5 used for transient intracellular expression of N-terminal 3XFLAG bacterial alkaline phosphatase fusion protein in mammalian cells. The vector encodes three adjacent FLAG epitopes (Asp-Tyr-Lys-Xaa-Xaa-Asp) upstream of the multiple cloning region. The third FLAG epitope includes the enterokinase recognition sequence, allowing cleavage of the 3XFLAG peptide from the purified fusion protein.

Principle
The promoter-regulatory region of the human cytomegalovirus drives transcription of FLAG-fusion constructs.

载体序列

<PRE>
p3XFLAG-CMV-7.1

ccattcgccattcaggctgcgcaactgttgggaagggcgatcggtgcgggcctcttcgctattacgccag
ctggcgaaagggggatgtgctgcaaggcgattaagttgggtaacgccagggttttcccagtcacgacgtt
gtaaaacgacggccagtgccaagctgatctatacattgaatcaatattggcaattagccatattagtcat
tggttatatagcataaatcaatattggctattggccattgcatacgttgtatctatatcataatatgtac
atttatattggctcatgtccaatatgaccgccatgttgacattgattattgactagttattaatagtaat
caattacggggtcattagttcatagcccatatatggagttccgcgttacataacttacggtaaatggccc
gcctggctgaccgcccaacgacccccgcccattgacgtcaataatgacgtatgttcccatagtaacgcca
atagggactttccattgacgtcaatgggtggagtatttacggtaaactgcccacttggcagtacatcaag
tgtatcatatgccaagtccgccccctattgacgtcaatgacggtaaatggcccgcctggcattatgccca
gtacatgaccttacgggactttcctacttggcagtacatctacgtattagtcatcgctattaccatggtg
atgcggttttggcagtacaccaatgggcgtggatagcggtttgactcacggggatttccaagtctccacc
ccattgacgtcaatgggagtttgttttggcaccaaaatcaacgggactttccaaaatgtcgtaataaccc
cgccccgttgacgcaaatgggcggtaggcgtgtacggtgggaggtctatataagcagagctcgtttagtg
aaccgtcagaattaaccatggactacaaagaccatgacggtgattataaagatcatgacatcgattacaa
ggatgacgatgacaagcttgcggccgcgaattcatcgatagatctgatatcggtaccagtcgactctaga
ggatcccgggtggcatccctgtgacccctccccagtgcctctcctggccctggaagttgccactccagtg
cccaccagccttgtcctaataaaattaagttgcatcattttgtctgactaggtgtccttctataatatta
tggggtggaggggggtggtatggagcaaggggcaagttgggaagacaacctgtagggcctgcggggtcta
ttgggaaccaagctggagtgcagtggcacaatcttggctcactgcaatctccgcctcctgggttcaagcg
attctcctgcctcagcctcccgagttgttgggattccaggcatgcatgaccaggctcagctaatttttgt
ttttttggtagagacggggtttcaccatattggccaggctggtctccaactcctaatctcaggtgatcta
cccaccttggcctcccaaattgctgggattacaggcgtgaaccactgctcccttccctgtccttctgatt
ttaaaataactataccagcaggaggacgtccagacacagcataggctacctggccatgcccaaccggtgg
gacatttgagttgcttgcttggcactgtcctctcatgcgttgggtccactcagtagatgcctgttgaatt
gggtacgcggccagcttggctgtggaatgtgtgtcagttagggtgtggaaagtccccaggctccccagca
ggcagaagtatgcaaagcatgcatctcaattagtcagcaaccaggtgtggaaagtccccaggctccccag
caggcagaagtatgcaaagcatgcatctcaattagtcagcaaccatagtcccgcccctaactccgcccat
cccgcccctaactccgcccagttccgcccattctccgccccatggctgactaattttttttatttatgca
gaggccgaggccgcctcggcctctgagctattccagaagtagtgaggaggcttttttggaggcctaggct
tttgcaaaaagctcctcgaggaactgaaaaaccagaaagttaattccctatagtgagtcgtattaaattc
gtaatcatgtcatagctgtttcctgtgtgaaattgttatccgctcacaattccacacaacatacgagccg
gaagcataaagtgtaaagcctggggtgcctaatgagtgagctaactcacattaattgcgttgcgctcact
gcccgctttccagtcgggaaacctgtcgtgccagctgcattaatgaatcggccaacgcgcggggagaggc
ggtttgcgtattgggcgctcttccgcttcctcgctcactgactcgctgcgctcggtcgttcggctgcggc
gagcggtatcagctcactcaaaggcggtaatacggttatccacagaatcaggggataacgcaggaaagaa
catgtgagcaaaaggccagcaaaaggccaggaaccgtaaaaaggccgcgttgctggcgtttttccatagg
ctccgcccccctgacgagcatcacaaaaatcgacgctcaagtcagaggtggcgaaacccgacaggactat
aaagataccaggcgtttccccctggaagctccctcgtgcgctctcctgttccgaccctgccgcttaccgg
atacctgtccgcctttctcccttcgggaagcgtggcgctttctcatagctcacgctgtaggtatctcagt
tcggtgtaggtcgttcgctccaagctgggctgtgtgcacgaaccccccgttcagcccgaccgctgcgcct
tatccggtaactatcgtcttgagtccaacccggtaagacacgacttatcgccactggcagcagccactgg
taacaggattagcagagcgaggtatgtaggcggtgctacagagttcttgaagtggtggcctaactacggc
tacactagaagaacagtatttggtatctgcgctctgctgaagccagttaccttcggaaaaagagttggta
gctcttgatccggcaaacaaaccaccgctggtagcggtggtttttttgtttgcaagcagcagattacgcg
cagaaaaaaaggatctcaagaagatcctttgatcttttctacggggtctgacgctcagtggaacgaaaac
tcacgttaagggattttggtcatgagattatcaaaaaggatcttcacctagatccttttaaattaaaaat
gaagttttaaatcaatctaaagtatatatgagtaaacttggtctgacagttaccaatgcttaatcagtga
ggcacctatctcagcgatctgtctatttcgttcatccatagttgcctgactccccgtcgtgtagataact
acgatacgggagggcttaccatctggccccagtgctgcaatgataccgcgagacccacgctcaccggctc
cagatttatcagcaataaaccagccagccggaagggccgagcgcagaagtggtcctgcaactttatccgc
ctccatccagtctattaattgttgccgggaagctagagtaagtagttcgccagttaatagtttgcgcaac
gttgttgccattgctacaggcatcgtggtgtcacgctcgtcgtttggtatggcttcattcagctccggtt
cccaacgatcaaggcgagttacatgatcccccatgttgtgcaaaaaagcggttagctccttcggtcctcc
gatcgttgtcagaagtaagttggccgcagtgttatcactcatggttatggcagcactgcataattctctt
actgtcatgccatccgtaagatgcttttctgtgactggtgagtactcaaccaagtcattctgagaatagt
gtatgcggcgaccgagttgctcttgcccggcgtcaatacgggataataccgcgccacatagcagaacttt
aaaagtgctcatcattggaaaacgttcttcggggcgaaaactctcaaggatcttaccgctgttgagatcc
agttcgatgtaacccactcgtgcacccaactgatcttcagcatcttttactttcaccagcgtttctgggt
gagcaaaaacaggaaggcaaaatgccgcaaaaaagggaataagggcgacacggaaatgttgaatactcat
actcttcctttttcaatattattgaagcatttatcagggttattgtctcatgagcggatacatatttgaa
tgtatttagaaaaataaacaaataggggttccgcgcacatttccccgaaaagtgccacctgacgcgccct
gtagcggcgcattaagcgcggcgggtgtggtggttacgcgcagcgtgaccgctacacttgccagcgccct
agcgcccgctcctttcgctttcttcccttcctttctcgccacgttcgccggctttccccgtcaagctcta
aatcgggggctccctttagggttccgatttagtgctttacggcacctcgaccccaaaaaacttgattagg
gtgatggttcacgtagtgggccatcgccctgatagacggtttttcgccctttgacgttggagtccacgtt
ctttaatagtggactcttgttccaaactggaacaacactcaaccctatctcggtctattcttttgattta
taagggattttgccgatttcggcctattggttaaaaaatgagctgatttaacaaaaatttaacgcgaatt
ttaacaaaatattaacgcttacaattt
</PRE>
