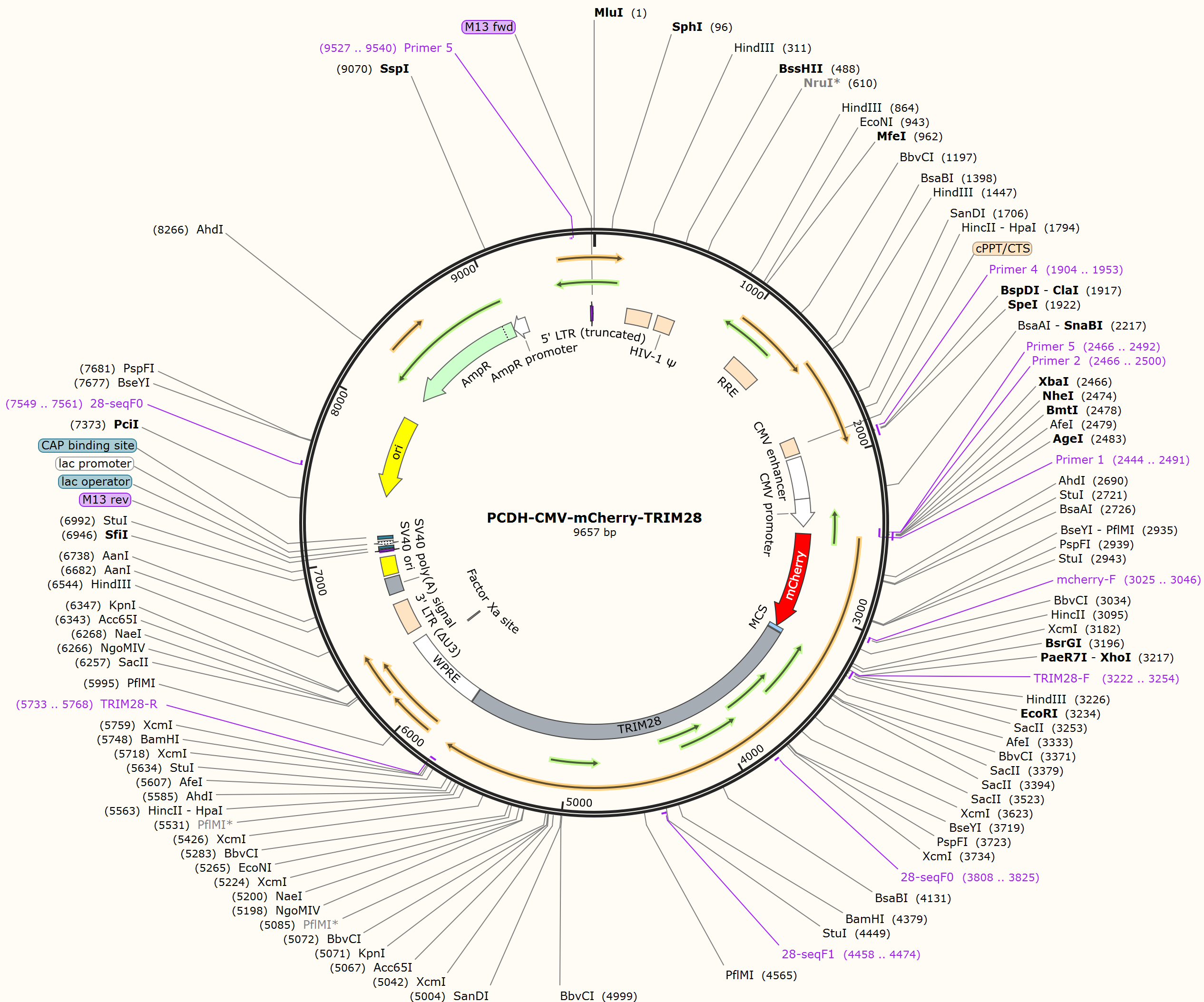

PCDH-CMV-mCherry-TRIM28

LOCUS       PCDH-CMV-mCherry-TRIM28             9657 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 9657)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 7, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..9657
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3222..3254
                     /label=TRIM28-F
     misc_feature    3240..5747
                     /label=TRIM28
     primer_bind     3808..3825
                     /label=28-seqF0
     primer_bind     4458..4474
                     /label=28-seqF1
     primer_bind     complement(5733..5768)
                     /label=TRIM28-R
     misc_feature    5754..6341
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(6225..6236)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             6414..6647
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    6719..6840
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      6859..6994
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(7032..7048)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    7056..7072
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(7080..7110)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    7125..7146
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(7434..8022)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     7549..7561
                     /label=28-seqF0
     CDS             complement(8193..9053)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(9054..9158)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(9527..9540)
                     /label=Primer 5
     primer_bind     9632..9648
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggcggcctc cgcggcggca gcctcggcag cagcggcctc ggccgcctct ggcagcccgg
     3301 gcccgggcga gggctccgct ggcggcgaaa agcgctccac cgccccttcg gccgcagcct
     3361 cggcctctgc ctcagccgcg gcgtcgtcgc ccgcgggggg cggcgccgag gcgctggagc
     3421 tgctggagca ctgcggcgtg tgcagagagc gcctgcgacc cgagagggag ccccgcctgc
     3481 tgccctgttt gcactcggcc tgtagtgcct gcttagggcc cgcggccccc gccgccgcca
     3541 acagctcggg ggacggcggg gcggcgggcg acggcaccgt ggtggactgt cccgtgtgca
     3601 agcaacagtg cttctccaaa gacatcgtgg agaattattt catgcgtgat agtggcagca
     3661 aggctgccac cgacgcccag gatgcgaacc agtgctgcac tagctgtgag gataatgccc
     3721 cagccaccag ctactgtgtg gagtgctcgg agcctctgtg tgagacctgt gtagaggcgc
     3781 accagcgggt gaagtacacc aaggaccata ctgtgcgctc tactgggcca gccaagtctc
     3841 gggatggtga acgtactgtc tattgcaacg tacacaagca tgaacccctt gtgctgtttt
     3901 gtgagagctg tgatactctc acctgccgag actgccagct caatgcccac aaggaccacc
     3961 agtaccagtt cttagaggat gcagtgagga accagcgcaa gctcctggcc tcactggtga
     4021 agcgccttgg ggacaaacat gcaacattgc agaagagcac caaggaggtt cgcagctcaa
     4081 tccgccaggt gtctgacgta cagaagcgtg tgcaagtgga tgtcaagatg gccatcctgc
     4141 agatcatgaa ggagctgaat aagcggggcc gtgtgctggt caatgatgcc cagaaggtga
     4201 ctgaggggca gcaggagcgc ctggagcggc agcactggac catgaccaag atccagaagc
     4261 accaggagca cattctgcgc tttgcctctt gggctctgga gagtgacaac aacacagccc
     4321 ttttgctttc taagaagttg atctacttcc agctgcaccg ggccctcaag atgattgtgg
     4381 atcccgtgga gccacatggc gagatgaagt ttcagtggga cctcaatgcc tggaccaaga
     4441 gtgccgaggc ctttggcaag attgtggcag agcgtcctgg cactaactca acaggccctg
     4501 cacccatggc ccctccaaga gccccagggc ccctgagcaa gcagggctct ggcagcagcc
     4561 agcccatgga ggtgcaggaa ggctatggct ttgggtcagg agatgatccc tactcaagtg
     4621 cagagcccca tgtgtcaggt gtgaaacggt cccgctcagg tgagggcgag gtgagcggcc
     4681 ttatgcgcaa ggtgccacga gtgagccttg aacgcctgga cctggacctc acagctgaca
     4741 gccagccacc cgtcttcaag gtcttcccag gcagtaccac tgaggactac aaccttattg
     4801 ttattgaacg tggcgctgcc gctgcagcta ccggccagcc agggactgcg cctgcaggaa
     4861 cccctggtgc cccacccctg gctggcatgg ccattgtcaa ggaggaggag acggaggctg
     4921 ccattggagc ccctcctact gccactgagg gccctgagac caaacctgtg cttatggctc
     4981 ttgcggaggg tcctggtgct gagggtcccc gcctggcctc acctagtggc agcaccagct
     5041 cagggctgga ggtggtggct cctgagggta cctcagcccc aggtggtggc ccgggaaccc
     5101 tggatgacag tgccaccatt tgccgtgtct gccagaagcc aggcgatctg gttatgtgca
     5161 accagtgtga gttttgtttc cacctggact gtcacctgcc ggccctgcag gatgtaccag
     5221 gggaggagtg gagctgctca ctctgccatg tgctccctga cctgaaggag gaggatggca
     5281 gcctcagcct ggatggtgca gacagcactg gcgtggtggc caagctctca ccagccaacc
     5341 agcggaaatg tgagcgtgta ctgctggccc tattctgtca cgaaccctgc cgccccctgc
     5401 atcagctggc taccgactcc accttctccc tggaccagcc cggtggcacc ctggatctga
     5461 ccctgatccg tgcccgcctc caggagaagt tgtcacctcc ctacagctcc ccacaggagt
     5521 ttgcccagga tgtgggccgc atgttcaagc aattcaacaa gttaactgag gacaaggcag
     5581 acgtgcagtc catcatcggc ctgcagcgct tcttcgagac gcgcatgaac gaggccttcg
     5641 gtgacaccaa gttctctgct gtgctggtgg agcccccgcc gatgagcctg cctggtgctg
     5701 gcctgagttc ccaggagctg tctggtggcc ctggtgatgg cccctgagga tccaatcaac
     5761 ctctggatta caaaatttgt gaaagattga ctggtattct taactatgtt gctcctttta
     5821 cgctatgtgg atacgctgct ttaatgcctt tgtatcatgc tattgcttcc cgtatggctt
     5881 tcattttctc ctccttgtat aaatcctggt tgctgtctct ttatgaggag ttgtggcccg
     5941 ttgtcaggca acgtggcgtg gtgtgcactg tgtttgctga cgcaaccccc actggttggg
     6001 gcattgccac cacctgtcag ctcctttccg ggactttcgc tttccccctc cctattgcca
     6061 cggcggaact catcgccgcc tgccttgccc gctgctggac aggggctcgg ctgttgggca
     6121 ctgacaattc cgtggtgttg tcggggaagc tgacgtcctt tccatggctg ctcgcctgtg
     6181 ttgccacctg gattctgcgc gggacgtcct tctgctacgt cccttcggcc ctcaatccag
     6241 cggaccttcc ttcccgcggc ctgctgccgg ctctgcggcc tcttccgcgt ctccgccttc
     6301 gccctcagac gagtcggatc tccctttggc cgcctccccg ccggtacctt taagaccaat
     6361 gacttacaag gcagctgtag atcttagcca ctttttaaaa gaaaaggggg gactggaagg
     6421 gctaattcac tcccaacgaa aataagatct gctttttgct tgtactgggt ctctctggtt
     6481 agaccagatc tgagcctggg agctctctgg ctaactaggg aacccactgc ttaagcctca
     6541 ataaagcttg ccttgagtgc ttcaagtagt gtgtgcccgt ctgttgtgtg actctggtaa
     6601 ctagagatcc ctcagaccct tttagtcagt gtggaaaatc tctagcagta gtagttcatg
     6661 tcatcttatt attcagtatt tataacttgc aaagaaatga atatcagaga gtgagaggaa
     6721 cttgtttatt gcagcttata atggttacaa ataaagcaat agcatcacaa atttcacaaa
     6781 taaagcattt ttttcactgc attctagttg tggtttgtcc aaactcatca atgtatctta
     6841 tcatgtctgg ctctagctat cccgccccta actccgccca gttccgccca ttctccgccc
     6901 catggctgac taattttttt tatttatgca gaggccgagg ccgcctcggc ctctgagcta
     6961 ttccagaagt agtgaggagg cttttttgga ggcctagact tttgcagaga cggcccaaat
     7021 tcgtaatcat ggtcatagct gtttcctgtg tgaaattgtt atccgctcac aattccacac
     7081 aacatacgag ccggaagcat aaagtgtaaa gcctggggtg cctaatgagt gagctaactc
     7141 acattaattg cgttgcgctc actgcccgct ttccagtcgg gaaacctgtc gtgccagctg
     7201 cattaatgaa tcggccaacg cgcggggaga ggcggtttgc gtattgggcg ctcttccgct
     7261 tcctcgctca ctgactcgct gcgctcggtc gttcggctgc ggcgagcggt atcagctcac
     7321 tcaaaggcgg taatacggtt atccacagaa tcaggggata acgcaggaaa gaacatgtga
     7381 gcaaaaggcc agcaaaaggc caggaaccgt aaaaaggccg cgttgctggc gtttttccat
     7441 aggctccgcc cccctgacga gcatcacaaa aatcgacgct caagtcagag gtggcgaaac
     7501 ccgacaggac tataaagata ccaggcgttt ccccctggaa gctccctcgt gcgctctcct
     7561 gttccgaccc tgccgcttac cggatacctg tccgcctttc tcccttcggg aagcgtggcg
     7621 ctttctcata gctcacgctg taggtatctc agttcggtgt aggtcgttcg ctccaagctg
     7681 ggctgtgtgc acgaaccccc cgttcagccc gaccgctgcg ccttatccgg taactatcgt
     7741 cttgagtcca acccggtaag acacgactta tcgccactgg cagcagccac tggtaacagg
     7801 attagcagag cgaggtatgt aggcggtgct acagagttct tgaagtggtg gcctaactac
     7861 ggctacacta gaaggacagt atttggtatc tgcgctctgc tgaagccagt taccttcgga
     7921 aaaagagttg gtagctcttg atccggcaaa caaaccaccg ctggtagcgg tggttttttt
     7981 gtttgcaagc agcagattac gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt
     8041 tctacggggt ctgacgctca gtggaacgaa aactcacgtt aagggatttt ggtcatgaga
     8101 ttatcaaaaa ggatcttcac ctagatcctt ttaaattaaa aatgaagttt taaatcaatc
     8161 taaagtatat atgagtaaac ttggtctgac agttaccaat gcttaatcag tgaggcacct
     8221 atctcagcga tctgtctatt tcgttcatcc atagttgcct gactccccgt cgtgtagata
     8281 actacgatac gggagggctt accatctggc cccagtgctg caatgatacc gcgagaccca
     8341 cgctcaccgg ctccagattt atcagcaata aaccagccag ccggaagggc cgagcgcaga
     8401 agtggtcctg caactttatc cgcctccatc cagtctatta attgttgccg ggaagctaga
     8461 gtaagtagtt cgccagttaa tagtttgcgc aacgttgttg ccattgctac aggcatcgtg
     8521 gtgtcacgct cgtcgtttgg tatggcttca ttcagctccg gttcccaacg atcaaggcga
     8581 gttacatgat cccccatgtt gtgcaaaaaa gcggttagct ccttcggtcc tccgatcgtt
     8641 gtcagaagta agttggccgc agtgttatca ctcatggtta tggcagcact gcataattct
     8701 cttactgtca tgccatccgt aagatgcttt tctgtgactg gtgagtactc aaccaagtca
     8761 ttctgagaat agtgtatgcg gcgaccgagt tgctcttgcc cggcgtcaat acgggataat
     8821 accgcgccac atagcagaac tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga
     8881 aaactctcaa ggatcttacc gctgttgaga tccagttcga tgtaacccac tcgtgcaccc
     8941 aactgatctt cagcatcttt tactttcacc agcgtttctg ggtgagcaaa aacaggaagg
     9001 caaaatgccg caaaaaaggg aataagggcg acacggaaat gttgaatact catactcttc
     9061 ctttttcaat attattgaag catttatcag ggttattgtc tcatgagcgg atacatattt
     9121 gaatgtattt agaaaaataa acaaataggg gttccgcgca catttccccg aaaagtgcca
     9181 cctgacgtct aagaaaccat tattatcatg acattaacct ataaaaatag gcgtatcacg
     9241 aggccctttc gtctcgcgcg tttcggtgat gacggtgaaa acctctgaca catgcagctc
     9301 ccggagacgg tcacagcttg tctgtaagcg gatgccggga gcagacaagc ccgtcagggc
     9361 gcgtcagcgg gtgttggcgg gtgtcggggc tggcttaact atgcggcatc agagcagatt
     9421 gtactgagag tgcaccatat gcggtgtgaa ataccgcaca gatgcgtaag gagaaaatac
     9481 cgcatcaggc gccattcgcc attcaggctg cgcaactgtt gggaagggcg atcggtgcgg
     9541 gcctcttcgc tattacgcca gctggcgaaa gggggatgtg ctgcaaggcg attaagttgg
     9601 gtaacgccag ggttttccca gtcacgacgt tgtaaaacga cggccagtgc caagctg
//
