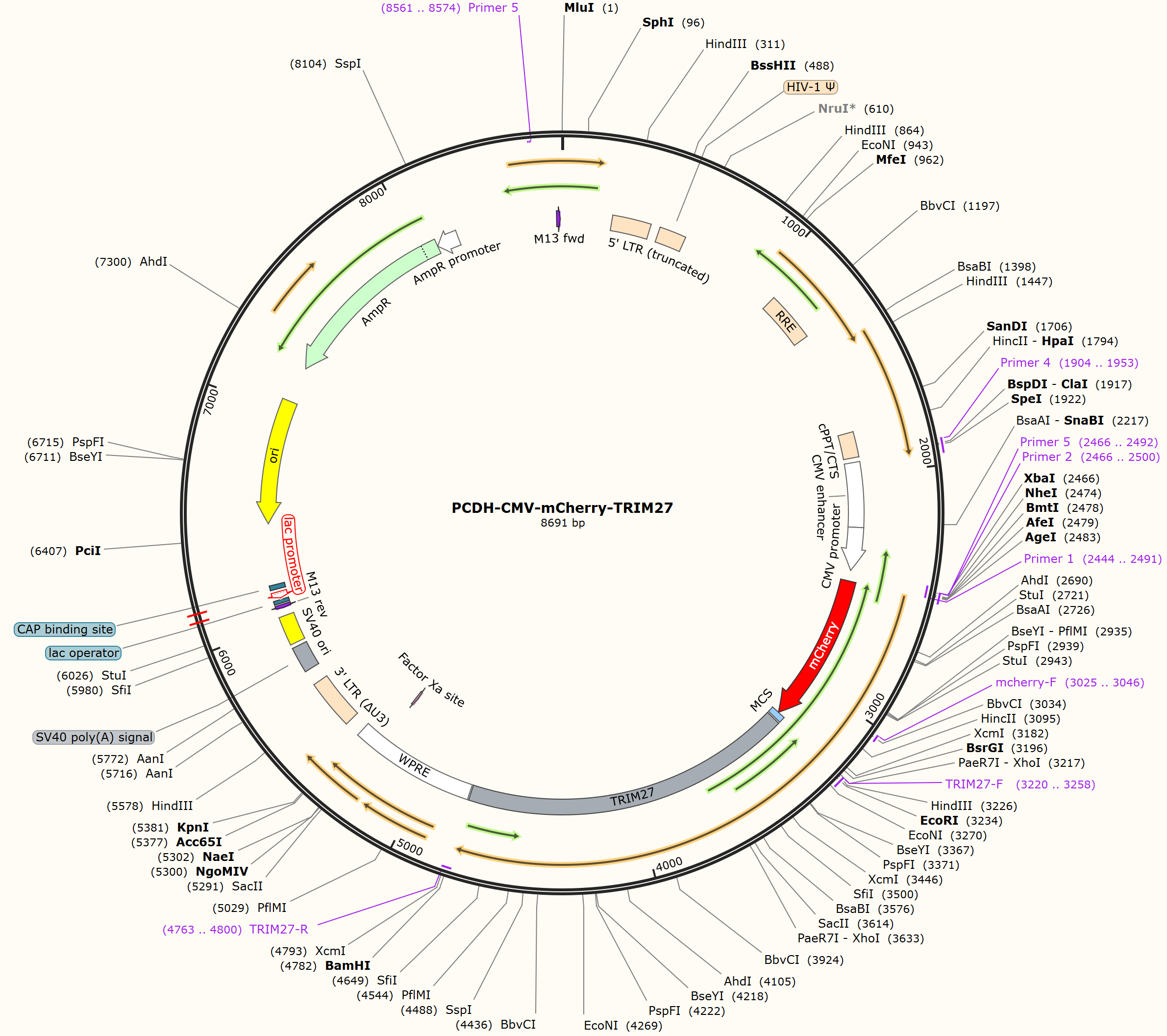

PCDH-CMV-mCherry-TRIM27

LOCUS      PCDH-CMV-mCherry-TRIM27              8691 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8691)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 7, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8691
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3220..3258
                     /label=TRIM27-F
     misc_feature    3240..4781
                     /label=TRIM27
     primer_bind     complement(4763..4800)
                     /label=TRIM27-R
     misc_feature    4788..5375
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5259..5270)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5448..5681
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5753..5874
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5893..6028
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(6066..6082)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6090..6106
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6114..6144)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6159..6180
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6468..7056)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7227..8087)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8088..8192)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8561..8574)
                     /label=Primer 5
     primer_bind     8666..8682
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggcctccgg gagtgtggcc gagtgcctgc agcaggagac cacctgcccc gtgtgcctgc
     3301 agtacttcgc agagcccatg atgctcgact gcggccataa catctgttgc gcgtgcctcg
     3361 cccgctgctg gggcacggca gagactaacg tgtcgtgccc gcagtgccgg gagaccttcc
     3421 cgcagaggca catgcggccc aaccggcacc tggccaacgt gacccaactg gtaaagcagc
     3481 tgcgcaccga gcggccgtcg gggcccggcg gcgagatggg cgtgtgcgag aagcaccgcg
     3541 agcccctgaa gctgtactgc gaggaggacc agatgcccat ctgcgtggtg tgcgaccgct
     3601 cccgcgagca ccgcggccac agcgtgctgc cgctcgagga ggcggtggag ggcttcaagg
     3661 agcaaatcca gaaccagctc gaccatttaa aaagagtgaa agatttaaag aagagacgtc
     3721 gggcccaggg ggaacaggca cgagctgaac tcttgagcct aacccagatg gagagggaga
     3781 agattgtttg ggagtttgag cagctgtatc actccttaaa ggagcatgag tatcgcctcc
     3841 tggcccgcct tgaggagcta gacttggcca tctacaatag catcaatggt gccatcaccc
     3901 agttctcttg caacatctcc cacctcagca gcctgatcgc tcagctagaa gagaagcagc
     3961 agcagcccac cagggagctc ctgcaggaca ttggggacac attgagcagg gctgaaagaa
     4021 tcaggattcc tgaaccttgg atcacacctc cagatttgca agagaaaatc cacatttttg
     4081 cccaaaaatg tctattcttg acggagagtc taaagcagtt cacagaaaaa atgcagtcag
     4141 atatggagaa aatccaagaa ttaagagagg ctcagttata ctcagtggac gtgactctgg
     4201 acccagacac ggcctacccc agcctgatcc tctctgataa tctgcggcaa gtgcggtaca
     4261 gttacctcca acaggacctg cctgacaacc ccgagaggtt caatctgttt ccctgtgtct
     4321 tgggctctcc atgcttcatc gccgggagac attattggga ggtagaggtg ggagataaag
     4381 ccaagtggac cataggtgtc tgtgaagact cagtgtgcag aaaaggtgga gtaacctcag
     4441 ccccccagaa tggattctgg gcagtgtctt tgtggtatgg gaaagaatat tgggctctta
     4501 cctccccaat gactgcccta cccctgcgga ccccgctcca gcgggtgggg attttcttgg
     4561 actatgatgc tggtgaggtc tccttctaca acgtgacaga gaggtgtcac accttcactt
     4621 tctctcatgc taccttttgt gggcctgtcc ggccctactt cagtctgagt tactcgggag
     4681 ggaaaagtgc agctcctctg atcatctgcc ccatgagtgg gatagatggg ttttctggcc
     4741 atgttgggaa tcatggtcat tccatggaga cctccccttg aggatccaat caacctctgg
     4801 attacaaaat ttgtgaaaga ttgactggta ttcttaacta tgttgctcct tttacgctat
     4861 gtggatacgc tgctttaatg cctttgtatc atgctattgc ttcccgtatg gctttcattt
     4921 tctcctcctt gtataaatcc tggttgctgt ctctttatga ggagttgtgg cccgttgtca
     4981 ggcaacgtgg cgtggtgtgc actgtgtttg ctgacgcaac ccccactggt tggggcattg
     5041 ccaccacctg tcagctcctt tccgggactt tcgctttccc cctccctatt gccacggcgg
     5101 aactcatcgc cgcctgcctt gcccgctgct ggacaggggc tcggctgttg ggcactgaca
     5161 attccgtggt gttgtcgggg aagctgacgt cctttccatg gctgctcgcc tgtgttgcca
     5221 cctggattct gcgcgggacg tccttctgct acgtcccttc ggccctcaat ccagcggacc
     5281 ttccttcccg cggcctgctg ccggctctgc ggcctcttcc gcgtctccgc cttcgccctc
     5341 agacgagtcg gatctccctt tggccgcctc cccgccggta cctttaagac caatgactta
     5401 caaggcagct gtagatctta gccacttttt aaaagaaaag gggggactgg aagggctaat
     5461 tcactcccaa cgaaaataag atctgctttt tgcttgtact gggtctctct ggttagacca
     5521 gatctgagcc tgggagctct ctggctaact agggaaccca ctgcttaagc ctcaataaag
     5581 cttgccttga gtgcttcaag tagtgtgtgc ccgtctgttg tgtgactctg gtaactagag
     5641 atccctcaga cccttttagt cagtgtggaa aatctctagc agtagtagtt catgtcatct
     5701 tattattcag tatttataac ttgcaaagaa atgaatatca gagagtgaga ggaacttgtt
     5761 tattgcagct tataatggtt acaaataaag caatagcatc acaaatttca caaataaagc
     5821 atttttttca ctgcattcta gttgtggttt gtccaaactc atcaatgtat cttatcatgt
     5881 ctggctctag ctatcccgcc cctaactccg cccagttccg cccattctcc gccccatggc
     5941 tgactaattt tttttattta tgcagaggcc gaggccgcct cggcctctga gctattccag
     6001 aagtagtgag gaggcttttt tggaggccta gacttttgca gagacggccc aaattcgtaa
     6061 tcatggtcat agctgtttcc tgtgtgaaat tgttatccgc tcacaattcc acacaacata
     6121 cgagccggaa gcataaagtg taaagcctgg ggtgcctaat gagtgagcta actcacatta
     6181 attgcgttgc gctcactgcc cgctttccag tcgggaaacc tgtcgtgcca gctgcattaa
     6241 tgaatcggcc aacgcgcggg gagaggcggt ttgcgtattg ggcgctcttc cgcttcctcg
     6301 ctcactgact cgctgcgctc ggtcgttcgg ctgcggcgag cggtatcagc tcactcaaag
     6361 gcggtaatac ggttatccac agaatcaggg gataacgcag gaaagaacat gtgagcaaaa
     6421 ggccagcaaa aggccaggaa ccgtaaaaag gccgcgttgc tggcgttttt ccataggctc
     6481 cgcccccctg acgagcatca caaaaatcga cgctcaagtc agaggtggcg aaacccgaca
     6541 ggactataaa gataccaggc gtttccccct ggaagctccc tcgtgcgctc tcctgttccg
     6601 accctgccgc ttaccggata cctgtccgcc tttctccctt cgggaagcgt ggcgctttct
     6661 catagctcac gctgtaggta tctcagttcg gtgtaggtcg ttcgctccaa gctgggctgt
     6721 gtgcacgaac cccccgttca gcccgaccgc tgcgccttat ccggtaacta tcgtcttgag
     6781 tccaacccgg taagacacga cttatcgcca ctggcagcag ccactggtaa caggattagc
     6841 agagcgaggt atgtaggcgg tgctacagag ttcttgaagt ggtggcctaa ctacggctac
     6901 actagaagga cagtatttgg tatctgcgct ctgctgaagc cagttacctt cggaaaaaga
     6961 gttggtagct cttgatccgg caaacaaacc accgctggta gcggtggttt ttttgtttgc
     7021 aagcagcaga ttacgcgcag aaaaaaagga tctcaagaag atcctttgat cttttctacg
     7081 gggtctgacg ctcagtggaa cgaaaactca cgttaaggga ttttggtcat gagattatca
     7141 aaaaggatct tcacctagat ccttttaaat taaaaatgaa gttttaaatc aatctaaagt
     7201 atatatgagt aaacttggtc tgacagttac caatgcttaa tcagtgaggc acctatctca
     7261 gcgatctgtc tatttcgttc atccatagtt gcctgactcc ccgtcgtgta gataactacg
     7321 atacgggagg gcttaccatc tggccccagt gctgcaatga taccgcgaga cccacgctca
     7381 ccggctccag atttatcagc aataaaccag ccagccggaa gggccgagcg cagaagtggt
     7441 cctgcaactt tatccgcctc catccagtct attaattgtt gccgggaagc tagagtaagt
     7501 agttcgccag ttaatagttt gcgcaacgtt gttgccattg ctacaggcat cgtggtgtca
     7561 cgctcgtcgt ttggtatggc ttcattcagc tccggttccc aacgatcaag gcgagttaca
     7621 tgatccccca tgttgtgcaa aaaagcggtt agctccttcg gtcctccgat cgttgtcaga
     7681 agtaagttgg ccgcagtgtt atcactcatg gttatggcag cactgcataa ttctcttact
     7741 gtcatgccat ccgtaagatg cttttctgtg actggtgagt actcaaccaa gtcattctga
     7801 gaatagtgta tgcggcgacc gagttgctct tgcccggcgt caatacggga taataccgcg
     7861 ccacatagca gaactttaaa agtgctcatc attggaaaac gttcttcggg gcgaaaactc
     7921 tcaaggatct taccgctgtt gagatccagt tcgatgtaac ccactcgtgc acccaactga
     7981 tcttcagcat cttttacttt caccagcgtt tctgggtgag caaaaacagg aaggcaaaat
     8041 gccgcaaaaa agggaataag ggcgacacgg aaatgttgaa tactcatact cttccttttt
     8101 caatattatt gaagcattta tcagggttat tgtctcatga gcggatacat atttgaatgt
     8161 atttagaaaa ataaacaaat aggggttccg cgcacatttc cccgaaaagt gccacctgac
     8221 gtctaagaaa ccattattat catgacatta acctataaaa ataggcgtat cacgaggccc
     8281 tttcgtctcg cgcgtttcgg tgatgacggt gaaaacctct gacacatgca gctcccggag
     8341 acggtcacag cttgtctgta agcggatgcc gggagcagac aagcccgtca gggcgcgtca
     8401 gcgggtgttg gcgggtgtcg gggctggctt aactatgcgg catcagagca gattgtactg
     8461 agagtgcacc atatgcggtg tgaaataccg cacagatgcg taaggagaaa ataccgcatc
     8521 aggcgccatt cgccattcag gctgcgcaac tgttgggaag ggcgatcggt gcgggcctct
     8581 tcgctattac gccagctggc gaaaggggga tgtgctgcaa ggcgattaag ttgggtaacg
     8641 ccagggtttt cccagtcacg acgttgtaaa acgacggcca gtgccaagct g
//
