pBABEneo载体基本信息

出品人: Bob Weinberg
载体名称: pBABE-neo, pBABEneo, addgene#1767
质粒类型: 逆病毒载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: MSCV
载体大小: 5277 bp
5' 测序引物及序列: pBABE 5' primer 5'CTTTATCCAGCCCTCAC3'
3' 测序引物及序列: pBABE 3' primer 5'ACCCTAACTGACACACATTCC3'
载体标签:
载体抗性: 氨苄青霉素
筛选标记: Neomycin
克隆菌株: DH5α、HB101等
宿主细胞(系): 常规哺乳动物细胞系
备注:
推荐使用逆病毒包装载体:pUMVCpCMV-VSV-G

产品目录号: #1767
稳定性: 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 逆转录病毒

pBABEneo载体质粒图谱和多克隆位点信息

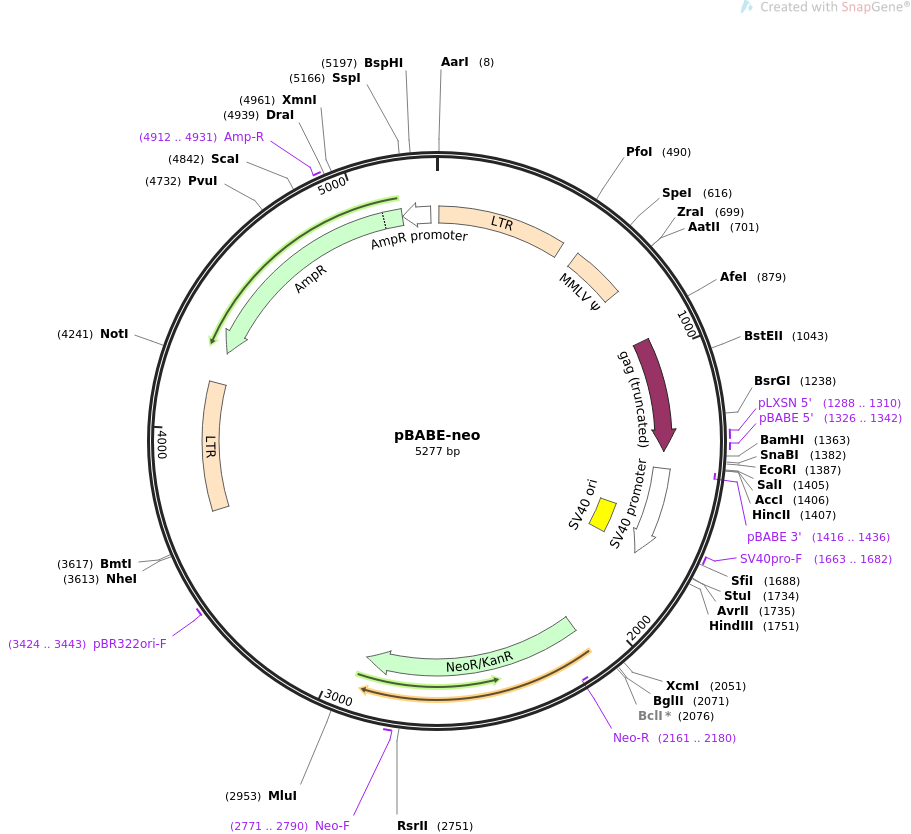

pBABE-neo载体图谱

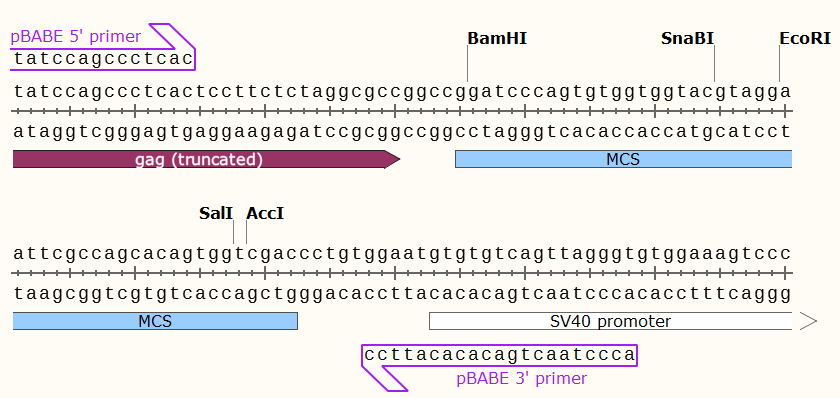

pBABE-neo多克隆位点

pBABEneo载体简介

pBABEneo载体序列

LOCUS       pbabe-neo                5277 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Retroviral vector for cloning and expressing your gene of interest.
            Neomycin selection..
ACCESSION   .
VERSION     .
KEYWORDS    pBABE-neo
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5277)
  AUTHORS   Morgenstern JP, Land H
  TITLE     Advanced mammalian gene transfer: high titre retroviral vectors with
            multiple drug selection markers and a complementary helper-free
            packaging cell line.
  JOURNAL   Nucleic Acids Res. 1990 Jun 25;18(12):3587-96.
  PUBMED    2194165
REFERENCE   2  (bases 1 to 5277)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5277
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     LTR             8..477
                     /note="long terminal repeat from Moloney murine leukemia
                     virus"
     misc_feature    542..741
                     /label=MMLV Psi
                     /note="packaging signal of Moloney murine leukemia virus
                     (MMLV)"
     CDS             942..1358
                     /label=gag (truncated)
                     /note="truncated Moloney murine leukemia virus (MMLV) gag
                     gene lacking the start codon"
     primer_bind     1288..1310
                     /label=pLXSN 5'
                     /note="Murine stem cell virus, forward primer. Also called
                     MSCV"
     primer_bind     1326..1342
                     /label=pBABE 5'
                     /note="Psi packaging signal, forward primer for pBABE
                     vectors"
     primer_bind     complement(1416..1436)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        1421..1750
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      1601..1736
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     1663..1682
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2107..2901
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(2161..2180)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     2771..2790
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     3424..3443
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     LTR             3705..4174
                     /note="long terminal repeat from Moloney murine leukemia
                     virus"
     CDS             complement(4289..5149)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     4912..4931
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5150..5254)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 ctgcagcctg aatatgggcc aaacaggata tctgtggtaa gcagttcctg ccccggctca
       61 gggccaagaa cagatggaac agctgaatat gggccaaaca ggatatctgt ggtaagcagt
      121 tcctgccccg gctcagggcc aagaacagat ggtccccaga tgcggtccag ccctcagcag
      181 tttctagaga accatcagat gtttccaggg tgccccaagg acctgaaatg accctgtgcc
      241 ttatttgaac taaccaatca gttcgcttct cgcttctgtt cgcgcgcttc tgctccccga
      301 gctcaataaa agagcccaca acccctcact cggggcgcca gtcctccgat tgactgagtc
      361 gcccgggtac ccgtgtatcc aataaaccct cttgcagttg catccgactt gtggtctcgc
      421 tgttccttgg gagggtctcc tctgagtgat tgactacccg tcagcggggg tctttcattt
      481 gggggctcgt ccgggatcgg gagacccctg cccagggacc accgacccac caccgggagg
      541 caagctggcc agcaacttat ctgtgtctgt ccgattgtct agtgtctatg actgatttta
      601 tgcgcctgcg tcggtactag ttagctaact agctctgtat ctggcggacc cgtggtggaa
      661 ctgacgagtt ctgaacaccc ggccgcaacc ctgggagacg tcccagggac tttgggggcc
      721 gtttttgtgg cccgacctga ggaagggagt cgatgtggaa tccgaccccg tcaggatatg
      781 tggttctggt aggagacgag aacctaaaac agttcccgcc tccgtctgaa tttttgcttt
      841 cggtttggaa ccgaagccgc gcgtcttgtc tgctgcagcg ctgcagcatc gttctgtgtt
      901 gtctctgtct gactgtgttt ctgtatttgt ctgaaaatta gggccagact gttaccactc
      961 ccttaagttt gaccttaggt cactggaaag atgtcgagcg gatcgctcac aaccagtcgg
     1021 tagatgtcaa gaagagacgt tgggttacct tctgctctgc agaatggcca acctttaacg
     1081 tcggatggcc gcgagacggc acctttaacc gagacctcat cacccaggtt aagatcaagg
     1141 tcttttcacc tggcccgcat ggacacccag accaggtccc ctacatcgtg acctgggaag
     1201 ccttggcttt tgacccccct ccctgggtca agccctttgt acaccctaag cctccgcctc
     1261 ctcttcctcc atccgccccg tctctccccc ttgaacctcc tcgttcgacc ccgcctcgat
     1321 cctcccttta tccagccctc actccttctc taggcgccgg ccggatccca gtgtggtggt
     1381 acgtaggaat tcgccagcac agtggtcgac cctgtggaat gtgtgtcagt tagggtgtgg
     1441 aaagtcccca ggctccccag caggcagaag tatgcaaagc atgcatctca attagtcagc
     1501 aaccaggtgt ggaaagtccc caggctcccc agcaggcaga agtatgcaaa gcatgcatct
     1561 caattagtca gcaaccatag tcccgcccct aactccgccc atcccgcccc taactccgcc
     1621 cagttccgcc cattctccgc cccatggctg actaattttt tttatttatg cagaggccga
     1681 ggccgcctcg gcctctgagc tattccagaa gtagtgagga ggcttttttg gaggcctagg
     1741 cttttgcaaa aagcttcacg ctgccgcaag cactcagggc gcaagggctg ctaaaggaag
     1801 cggaacacgt agaaagccag tccgcagaaa cggtgctgac cccggatgaa tgtcagctac
     1861 tgggctatct ggacaaggga aaacgcaagc gcaaagagaa agcaggtagc ttgcagtggg
     1921 cttacatggc gatagctaga ctgggcggtt ttatggacag caagcgaacc ggaattgcca
     1981 gctggggcgc cctctggtaa ggttgggaag ccctgcaaag taaactggat ggctttcttg
     2041 ccgccaagga tctgatggcg caggggatca agatctgatc aagagacagg atgaggatcg
     2101 tttcgcatga ttgaacaaga tggattgcac gcaggttctc cggccgcttg ggtggagagg
     2161 ctattcggct atgactgggc acaacagaca atcggctgct ctgatgccgc cgtgttccgg
     2221 ctgtcagcgc aggggcgccc ggttcttttt gtcaagaccg acctgtccgg tgccctgaat
     2281 gaactgcagg acgaggcagc gcggctatcg tggctggcca cgacgggcgt tccttgcgca
     2341 gctgtgctcg acgttgtcac tgaagcggga agggactggc tgctattggg cgaagtgccg
     2401 gggcaggatc tcctgtcatc tcaccttgct cctgccgaga aagtatccat catggctgat
     2461 gcaatgcggc ggctgcatac gcttgatccg gctacctgcc cattcgacca ccaagcgaaa
     2521 catcgcatcg agcgagcacg tactcggatg gaagccggtc ttgtcgatca ggatgatctg
     2581 gacgaagagc atcaggggct cgcgccagcc gaactgttcg ccaggctcaa ggcgcgcatg
     2641 cccgacggcg aggatctcgt cgtgacccat ggcgatgcct gcttgccgaa tatcatggtg
     2701 gaaaatggcc gcttttctgg attcatcgac tgtggccggc tgggtgtggc ggaccgctat
     2761 caggacatag cgttggctac ccgtgatatt gctgaagagc ttggcggcga atgggctgac
     2821 cgcttcctcg tgctttacgg tatcgccgct cccgattcgc agcgcatcgc cttctatcgc
     2881 cttcttgacg agttcttctg agcgggactc tggggttcgc atcgatgcat cgatgcggcg
     2941 ggtgtggtgg ttacgcgtaa tctgctgctt gcaaacaaaa aaaccaccgc taccagcggt
     3001 ggtttgtttg ccggatcaag agctaccaac tctttttccg aaggtaactg gcttcagcag
     3061 agcgcagata ccaaatactg ttcttctagt gtagccgtag ttaggccacc acttcaagaa
     3121 ctctgtagca ccgcctacat acctcgctct gctaatcctg ttaccagtgg ctgctgccag
     3181 tggcgataag tcgtgtctta ccgggttgga ctcaagacga tagttaccgg ataaggcgca
     3241 gcggtcgggc tgaacggggg gttcgtgcac acagcccagc ttggagcgaa cgacctacac
     3301 cgaactgaga tacctacagc gtgagctatg agaaagcgcc acgcttcccg aagggagaaa
     3361 ggcggacagg tatccggtaa gcggcagggt cggaacagga gagcgcacga gggagcttcc
     3421 agggggaaac gcctggtatc tttatagtcc tgtcgggttt cgccacctct gacttgagcg
     3481 tcgatttttg tgatgctcgt caggggggcg gagcctatgg aaaaacgcca gcaacgcatc
     3541 gataaaataa aagattttat ttagtctcca gaaaaagggg ggaatgaaag accccacctg
     3601 taggtttggc aagctagctt aagtaacgcc attttgcaag gcatggaaaa atacataact
     3661 gagaatagag aagttcagat caaggtcagg aacagatgga acagctgaat atgggccaaa
     3721 caggatatct gtggtaagca gttcctgccc cggctcaggg ccaagaacag atggaacagc
     3781 tgaatatggg ccaaacagga tatctgtggt aagcagttcc tgccccggct cagggccaag
     3841 aacagatggt ccccagatgc ggtccagccc tcagcagttt ctagagaacc atcagatgtt
     3901 tccagggtgc cccaaggacc tgaaatgacc ctgtgcctta tttgaactaa ccaatcagtt
     3961 cgcttctcgc ttctgttcgc gcgcttctgc tccccgagct caataaaaga gcccacaacc
     4021 cctcactcgg ggcgccagtc ctccgattga ctgagtcgcc cgggtacccg tgtatccaat
     4081 aaaccctctt gcagttgcat ccgacttgtg gtctcgctgt tccttgggag ggtctcctct
     4141 gagtgattga ctacccgtca gcgggggtct ttcacatgca gcatgtatca aaattaattt
     4201 ggtttttttt cttaagtatt tacattaaat ggccatagtg cggccgcaaa tcaatctaaa
     4261 gtatatatga gtaaacttgg tctgacagtt accaatgctt aatcagtgag gcacctatct
     4321 cagcgatctg tctatttcgt tcatccatag ttgcctgact ccccgtcgtg tagataacta
     4381 cgatacggga gggcttacca tctggcccca gtgctgcaat gataccgcga gacccacgct
     4441 caccggctcc agatttatca gcaataaacc agccagccgg aagggccgag cgcagaagtg
     4501 gtcctgcaac tttatccgcc tccatccagt ctattaattg ttgccgggaa gctagagtaa
     4561 gtagttcgcc agttaatagt ttgcgcaacg ttgttgccat tgctacaggc atcgtggtgt
     4621 cacgctcgtc gtttggtatg gcttcattca gctccggttc ccaacgatca aggcgagtta
     4681 catgatcccc catgttgtgc aaaaaagcgg ttagctcctt cggtcctccg atcgttgtca
     4741 gaagtaagtt ggccgcagtg ttatcactca tggttatggc agcactgcat aattctctta
     4801 ctgtcatgcc atccgtaaga tgcttttctg tgactggtga gtactcaacc aagtcattct
     4861 gagaatagtg tatgcggcga ccgagttgct cttgcccggc gtcaatacgg gataataccg
     4921 cgccacatag cagaacttta aaagtgctca tcattggaaa acgttcttcg gggcgaaaac
     4981 tctcaaggat cttaccgctg ttgagatcca gttcgatgta acccactcgt gcacccaact
     5041 gatcttcagc atcttttact ttcaccagcg tttctgggtg agcaaaaaca ggaaggcaaa
     5101 atgccgcaaa aaagggaata agggcgacac ggaaatgttg aatactcata ctcttccttt
     5161 ttcaatatta ttgaagcatt tatcagggtt attgtctcat gagcggatac atatttgaat
     5221 gtatttagaa aaataaacaa ataggggttc cgcgcacatt tccccgaaaa gtgccac
//


pBABEneo载体质粒图谱pdf版和相关资料下载

pBABEneo载体应用举例
