pBBRMCS5载体基本信息

出品公司: --
载体名称: pBBR1MCS-5, pBBR1MCS5, pBBRMCS5
质粒类型: 广宿主蛋白表达或克隆载体质粒,广宿主载体质粒
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: --
载体大小: 4.7 kb
5' 测序引物及序列: M13-F: TGTAAAACGACGGCCAGT
3' 测序引物及序列: M13-R: CAGGAAACAGCTATGAC
载体标签: --
载体抗性: Gentamycin_2.html' target='_blank'>庆大霉素
筛选标记: --
克隆菌株: DH5α 等
宿主细胞(系): 多种微生物物种,是广宿主质粒。
备注: 参考文献:
[1] Kovach ME, Phillips RW, Elzer PH, Roop RM, 2nd, Peterson KM. pBBR1MCS: a broad-host-range cloning vector. BioTechniques 1994;16:800-2.

[2] Kovach ME, Elzer PH, Hill DS, Robertson GT, Farris MA, Roop RM, 2nd, et al. Four new derivatives of the broad-host-range cloning vector pBBR1MCS, carrying different antibiotic-resistance cassettes. Gene 1995;166:175-6.

GenBank sequence:XXU25061
产品目录号: --
稳定性/瞬表达: 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

pBBRMCS5载体质粒图谱和多克隆位点信息

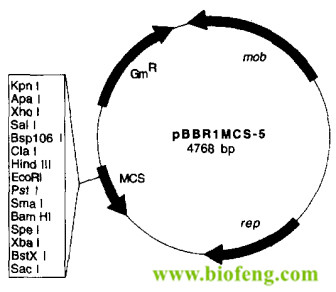

pBBR1MCS-5载体图谱


pBBRMCS5载体图谱


pBBR1MCS5载体图谱

pBBRMCS5载体简介

pBBRMCS5载体序列

LOCUS       pBBR1MCS-5              4768 bp    DNA     linear   SYN 10-JAN-2005
DEFINITION  Cloning vector pBBR1MCS-5 REP, LacZ alpha peptide (lacZ alpha), and
            gentamicin-3-acetyltransferase genes, complete cds.
ACCESSION   U25061
VERSION     U25061.1  GI:833825
KEYWORDS    .
SOURCE      Cloning vector pBBR1MCS-5
  ORGANISM  Cloning vector pBBR1MCS-5
            other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
REFERENCE   1  (bases 1 to 4768)
  AUTHORS   Kovach,M.E., Phillips,R.W., Elzer,P.H., Roop,R.M. II and
            Peterson,K.M.
  TITLE     pBBR1MCS: a broad-host-range cloning vector
  JOURNAL   BioTechniques 16 (5), 800-802 (1994)
   PUBMED   8068328
REFERENCE   2  (bases 1 to 4768)
  AUTHORS   Kovach,M.E., Elzer,P.H., Hill,D.S., Robertson,G.T., Farris,M.A.,
            Roop,R.M. II and Peterson,K.M.
  TITLE     Four new derivatives of the broad-host-range cloning vector
            pBBR1MCS, carrying different antibiotic-resistance cassettes
  JOURNAL   Gene 166 (1), 175-176 (1995)
   PUBMED   8529885
REFERENCE   3  (bases 1 to 4768)
  AUTHORS   Kovach,M.E.
  TITLE     Direct Submission
  JOURNAL   Submitted (13-APR-1995) Michael E. Kovach, Microbiology, Louisiana
            State University, 1501 Kings Highway, Shreveport, LA 71130, USA
FEATURES             Location/Qualifiers
     source          1..4768
                     /organism="Cloning vector pBBR1MCS-5"
                     /mol_type="genomic DNA"
                     /db_xref="taxon:51200"
                     /lab_host="Bordetella bronchiseptica"
     CDS             1793..2455
                     /note="required for plasmid replication"
                     /codon_start=1
                     /transl_table=11
                     /product="REP"
                     /protein_id="AAB06694.1"
                     /db_xref="GI:833826"
     gene            complement(3013..3378)
                     /gene="lacZ alpha"
     CDS             complement(3013..3378)
                     /gene="lacZ alpha"
                     /codon_start=1
                     /transl_table=11
                     /product="LacZ alpha peptide"
                     /protein_id="AAB06695.1"
                     /db_xref="GI:833827"
     CDS             3975..4508
                     /function="resistance to gentamicin"
                     /codon_start=1
                     /transl_table=11
                     /product="gentamicin-3-acetyltransferase"
                     /protein_id="AAB06696.1"
                     /db_xref="GI:833828"
ORIGIN
        1 ctcgggccgt ctcttgggct tgatcggcct tcttgcgcat ctcacgcgct cctgcggcgg
       61 cctgtagggc aggctcatac ccctgccgaa ccgcttttgt cagccggtcg gccacggctt
      121 ccggcgtctc aacgcgcttt gagattccca gcttttcggc caatccctgc ggtgcatagg
      181 cgcgtggctc gaccgcttgc gggctgatgg tgacgtggcc cactggtggc cgctccaggg
      241 cctcgtagaa cgcctgaatg cgcgtgtgac gtgccttgct gccctcgatg ccccgttgca
      301 gccctagatc ggccacagcg gccgcaaacg tggtctggtc gcgggtcatc tgcgctttgt
      361 tgccgatgaa ctccttggcc gacagcctgc cgtcctgcgt cagcggcacc acgaacgcgg
      421 tcatgtgcgg gctggtttcg tcacggtgga tgctggccgt cacgatgcga tccgccccgt
      481 acttgtccgc cagccacttg tgcgccttct cgaagaacgc cgcctgctgt tcttggctgg
      541 ccgacttcca ccattccggg ctggccgtca tgacgtactc gaccgccaac acagcgtcct
      601 tgcgccgctt ctctggcagc aactcgcgca gtcggcccat cgcttcatcg gtgctgctgg
      661 ccgcccagtg ctcgttctct ggcgtcctgc tggcgtcagc gttgggcgtc tcgcgctcgc
      721 ggtaggcgtg cttgagactg gccgccacgt tgcccatttt cgccagcttc ttgcatcgca
      781 tgatcgcgta tgccgccatg cctgcccctc ccttttggtg tccaaccggc tcgacggggg
      841 cagcgcaagg cggtgcctcc ggcgggccac tcaatgcttg agtatactca ctagactttg
      901 cttcgcaaag tcgtgaccgc ctacggcggc tgcggcgccc tacgggcttg ctctccgggc
      961 ttcgccctgc gcggtcgctg cgctcccttg ccagcccgtg gatatgtgga cgatggccgc
     1021 gagcggccac cggctggctc gcttcgctcg gcccgtggac aaccctgctg gacaagctga
     1081 tggacaggct gcgcctgccc acgagcttga ccacagggat tgcccaccgg ctacccagcc
     1141 ttcgaccaca tacccaccgg ctccaactgc gcggcctgcg gccttgcccc atcaattttt
     1201 ttaattttct ctggggaaaa gcctccggcc tgcggcctgc gcgcttcgct tgccggttgg
     1261 acaccaagtg gaaggcgggt caaggctcgc gcagcgaccg cgcagcggct tggccttgac
     1321 gcgcctggaa cgacccaagc ctatgcgagt gggggcagtc gaaggcgaag cccgcccgcc
     1381 tgccccccga gcctcacggc ggcgagtgcg ggggttccaa gggggcagcg ccaccttggg
     1441 caaggccgaa ggccgcgcag tcgatcaaca agccccggag gggccacttt ttgccggagg
     1501 gggagccgcg ccgaaggcgt gggggaaccc cgcaggggtg cccttctttg ggcaccaaag
     1561 aactagatat agggcgaaat gcgaaagact taaaaatcaa caacttaaaa aaggggggta
     1621 cgcaacagct cattgcggca ccccccgcaa tagctcattg cgtaggttaa agaaaatctg
     1681 taattgactg ccacttttac gcaacgcata attgttgtcg cgctgccgaa aagttgcagc
     1741 tgattgcgca tggtgccgca accgtgcggc accctaccgc atggagataa gcatggccac
     1801 gcagtccaga gaaatcggca ttcaagccaa gaacaagccc ggtcactggg tgcaaacgga
     1861 acgcaaagcg catgaggcgt gggccgggct tattgcgagg aaacccacgg cggcaatgct
     1921 gctgcatcac ctcgtggcgc agatgggcca ccagaacgcc gtggtggtca gccagaagac
     1981 actttccaag ctcatcggac gttctttgcg gacggtccaa tacgcagtca aggacttggt
     2041 ggccgagcgc tggatctccg tcgtgaagct caacggcccc ggcaccgtgt cggcctacgt
     2101 ggtcaatgac cgcgtggcgt ggggccagcc ccgcgaccag ttgcgcctgt cggtgttcag
     2161 tgccgccgtg gtggttgatc acgacgacca ggacgaatcg ctgttggggc atggcgacct
     2221 gcgccgcatc ccgaccctgt atccgggcga gcagcaacta ccgaccggcc ccggcgagga
     2281 gccgcccagc cagcccggca ttccgggcat ggaaccagac ctgccagcct tgaccgaaac
     2341 ggaggaatgg gaacggcgcg ggcagcagcg cctgccgatg cccgatgagc cgtgttttct
     2401 ggacgatggc gagccgttgg agccgccgac acgggtcacg ctgccgcgcc ggtagcactt
     2461 gggttgcgca gcaacccgta agtgcgctgt tccagactat cggctgtagc cgcctcgccg
     2521 ccctatacct tgtctgcctc cccgcgttgc gtcgcggtgc atggagccgg gccacctcga
     2581 cctgaatgga agccggcggc acctcgctaa cggattcacc gtttttatca ggctctggga
     2641 ggcagaataa atgatcatat cgtcaattat tacctccacg gggagagcct gagcaaactg
     2701 gcctcaggca tttgagaagc acacggtcac actgcttccg gtagtcaata aaccggtaaa
     2761 ccagcaatag acataagcgg ctatttaacg accctgccct gaaccgacga ccgggtcgaa
     2821 tttgctttcg aatttctgcc attcatccgc ttattatcac ttattcaggc gtagcaccag
     2881 gcgtttaagg gcaccaataa ctgccttaaa aaaattacgc cccgccctgc cactcatcgc
     2941 agtcggccta ttggttaaaa aatgagctga tttaacaaaa atttaacgcg aattttaaca
     3001 aaatattaac gcttacaatt tccattcgcc attcaggctg cgcaactgtt gggaagggcg
     3061 atcggtgcgg gcctcttcgc tattacgcca gctggcgaaa gggggatgtg ctgcaaggcg
     3121 attaagttgg gtaacgccag ggttttccca gtcacgacgt tgtaaaacga cggccagtga
     3181 gcgcgcgtaa tacgactcac tatagggcga attggagctc caccgcggtg gcggccgctc
     3241 tagaactagt ggatcccccg ggctgcagga attcgatatc aagcttatcg ataccgtcga
     3301 cctcgagggg gggcccggta cccagctttt gttcccttta gtgagggtta attgcgcgct
     3361 tggcgtaatc atggtcatag ctgtttcctg tgtgaaattg ttatccgctc acaattccac
     3421 acaacatacg agccggaagc ataaagtgta aagcctgggg tgcctaatga gtgagctaac
     3481 tcacattaat tgcgttgcgc tcactgcccg ctttccagtc gggaaacctg tcgtgccagc
     3541 tgcattaatg aatcggccaa cgcgcgggga gaggcggttt gcgtattggg cgcatgcata
     3601 aaaactgttg taattcatta agcattctgc cgacatggaa gccatcacaa acggcatgat
     3661 gaacctgaat cgccagcggc atcagcacct tgtcgccttg cgtataatat ttgcccatgg
     3721 acgcacaccg tggaaacgga tgaaggcacg aacccagttg acataagcct gttcggttcg
     3781 taaactgtaa tgcaagtagc gtatgcgctc acgcaactgg tccagaacct tgaccgaacg
     3841 cagcggtggt aacggcgcag tggcggtttt catggcttgt tatgactgtt tttttgtaca
     3901 gtctatgcct cgggcatcca agcagcaagc gcgttacgcc gtgggtcgat gtttgatgtt
     3961 atggagcagc aacgatgtta cgcagcagca acgatgttac gcagcagggc agtcgcccta
     4021 aaacaaagtt aggtggctca agtatgggca tcattcgcac atgtaggctc ggccctgacc
     4081 aagtcaaatc catgcgggct gctcttgatc ttttcggtcg tgagttcgga gacgtagcca
     4141 cctactccca acatcagccg gactccgatt acctcgggaa cttgctccgt agtaagacat
     4201 tcatcgcgct tgctgccttc gaccaagaag cggttgttgg cgctctcgcg gcttacgttc
     4261 tgcccaggtt tgagcagccg cgtagtgaga tctatatcta tgatctcgca gtctccggcg
     4321 agcaccggag gcagggcatt gccaccgcgc tcatcaatct cctcaagcat gaggccaacg
     4381 cgcttggtgc ttatgtgatc tacgtgcaag cagattacgg tgacgatccc gcagtggctc
     4441 tctatacaaa gttgggcata cgggaagaag tgatgcactt tgatatcgac ccaagtaccg
     4501 ccacctaaca attcgttcaa gccgagatcg gcttcccggc cgcggagttg ttcggtaaat
     4561 tgtcacaacg ccgccaggtg gcacttttcg gggaaatgtg cgcgcccgcg ttcctgctgg
     4621 cgctgggcct gtttctggcg ctggacttcc cgctgttccg tcagcagctt ttcgcccacg
     4681 gccttgatga tcgcggcggc cttggcctgc atatcccgat tcaacggccc cagggcgtcc
     4741 agaacgggct tcaggcgctc ccgaaggt
//

pBBRMCS5载体质粒图谱pdf版和相关资料下载

pBBRMCS5载体应用举例
