pCambia 2200载体基本信息

出品公司: CAMBIA
载体名称: pCAMBIA2200
质粒类型: 植物载体;农杆菌双元表达载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: lac
载体大小: 8895 bp
5' 测序引物及序列: M13 Reverse:CAGGAAACAGCTATGAC
3' 测序引物及序列: M13/pUC Forward:CCCAGTCACGACGTTGTAAAACG
载体标签: --
载体抗性: 氯霉素Kanamycin.html' target='_blank'>卡那霉素
筛选标记: Neomycin
克隆菌株: HB101等菌株
宿主细胞(系): 植物细胞、农杆菌
备注: --
产品目录号: --
稳定性: 稳表达
组成型/诱导型: 诱导型
病毒/非病毒: 非病毒

pCambia 2200载体质粒图谱和多克隆位点信息

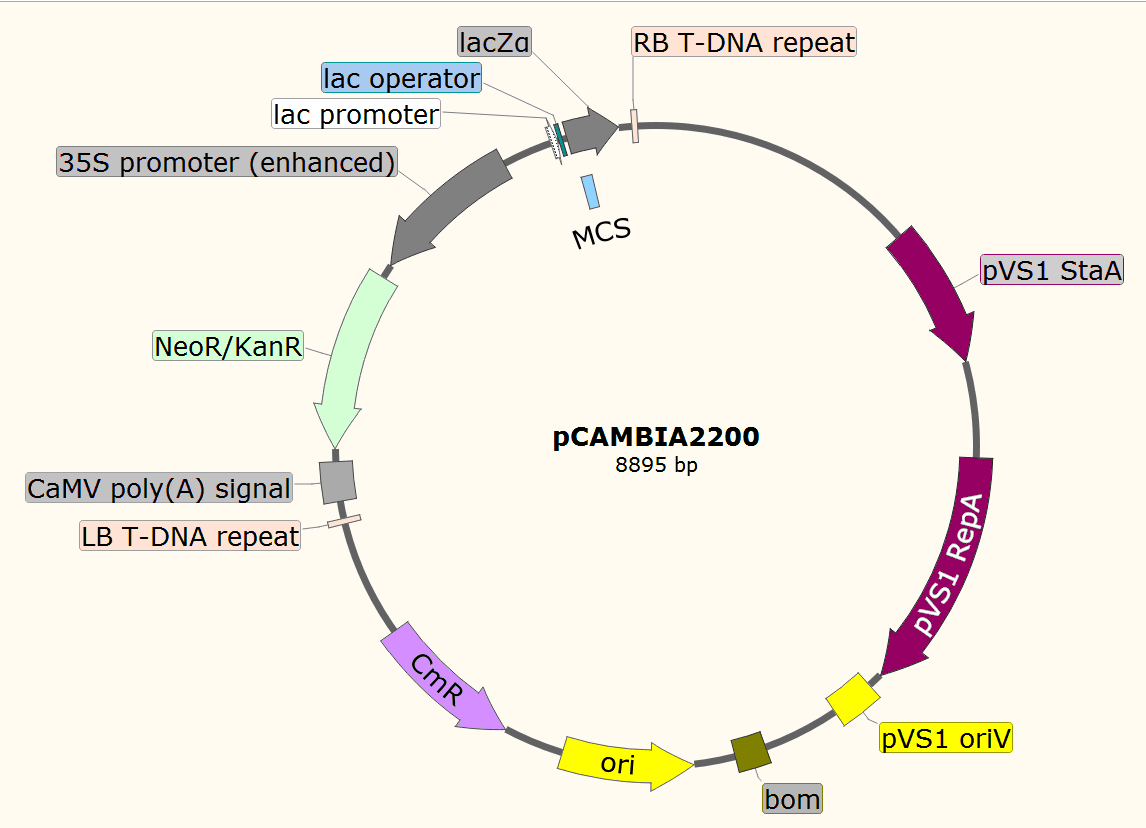

pCAMBIA2200载体图谱

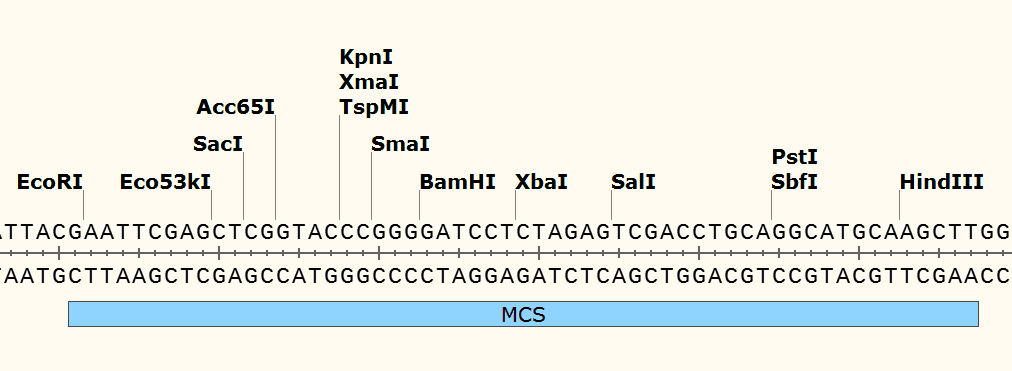

pCAMBIA2200 多克隆位点

pCambia 2200载体简介

pCambia 2200载体序列

LOCUS       pCambia2200           8895 bp ds-DNA    circular SYN 16-四月-2013
DEFINITION  Agrobacterium binary vector for plant transformation, with
            kanamycin- and chloramphenicol-resistance genes.
ACCESSION   AF234313
VERSION     .
KEYWORDS    pCAMBIA2200
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     The GenBank record was corrected by inserting a G at position 2281.
FEATURES             Location/Qualifiers
     source          1..8895
                     /organism="synthetic DNA construct"
                     /lab_host="Plant Cells"
                     /mol_type="other DNA"
     CDS             1219..1848
                     /codon_start=1
                     /product="stability protein from Pseudomonas plasmid pVS1"
                     /label="pVS1 StaA"
     CDS             2277..3350
                     /codon_start=1
                     /product="replication protein from Pseudomonas plasmid
                     pVS1"
                     /label="pVS1 RepA"
                     /label="
                     "
                     /protein_id="
                     "
     misc_feature    3954..4094
                     /label="bom"
                     /label="basis of mobility region from pBR322"
     rep_origin      complement(4280..4868)
                     /direction=LEFT
                     /label="ori"
                     /label="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5139..5798)
                     /codon_start=1
                     /gene="cat"
                     /product="chloramphenicol acetyltransferase"
                     /label="CmR"
                     /label="confers resistance to chloramphenicol"
     misc_feature    6326..6350
                     /label="LB T-DNA repeat"
                     /label="left border repeat from nopaline C58 T-DNA"
     polyA_signal    6428..6602
                     /label="CaMV poly(A) signal"
                     /label="cauliflower mosaic virus polyadenylation signal"
     CDS             complement(6659..7456)
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label="NeoR/KanR"
                     /label="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
     promoter        complement(7519..8196)
                     /label="CaMV 35S promoter (enhanced)"
                     /label="cauliflower mosaic virus 35S promoter with a
                     duplicated enhancer region"
     promoter        8423..8453
                     /label="lac promoter"
                     /label="promoter for the E. coli lac operon"
     protein_bind    8461..8477
                     /bound_moiety="lac repressor encoded by lacI"
                     /label="lac operator"
                     /label="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     8485..8501
                     /label="M13 rev"
                     /label="common sequencing primer, one of multiple similar
                     variants"
     CDS             8497..8730
                     /codon_start=1
                     /gene="lacZ (truncated)"
                     /product="LacZ-alpha fragment of?beta-galactosidase"
                     /label="lacZ-alpha"
                     /protein_id="
                     "
     misc_feature    8511..8567
                     /gene="
                     "
                     /label="MCS"
                     /label="pUC18/19 multiple cloning site"
     primer_bind     complement(8571..8587)
                     /label="M13 fwd"
                     /label="common sequencing primer, one of multiple similar
                     variants"
     misc_feature    8790..8814
                     /label="RB T-DNA repeat"
                     /label="right border repeat from nopaline C58 T-DNA"
ORIGIN
        1 catgccaacc acagggttcc cctcgggatc aaagtacttt gatccaaccc ctccgctgct
       61 atagtgcagt cggcttctga cgttcagtgc agccgtcttc tgaaaacgac atgtcgcaca
      121 agtcctaagt tacgcgacag gctgccgccc tgcccttttc ctggcgtttt cttgtcgcgt
      181 gttttagtcg cataaagtag aatacttgcg actagaaccg gagacattac gccatgaaca
      241 agagcgccgc cgctggcctg ctgggctatg cccgcgtcag caccgacgac caggacttga
      301 ccaaccaacg ggccgaactg cacgcggccg gctgcaccaa gctgttttcc gagaagatca
      361 ccggcaccag gcgcgaccgc ccggagctgg ccaggatgct tgaccaccta cgccctggcg
      421 acgttgtgac agtgaccagg ctagaccgcc tggcccgcag cacccgcgac ctactggaca
      481 ttgccgagcg catccaggag gccggcgcgg gcctgcgtag cctggcagag ccgtgggccg
      541 acaccaccac gccggccggc cgcatggtgt tgaccgtgtt cgccggcatt gccgagttcg
      601 agcgttccct aatcatcgac cgcacccgga gcgggcgcga ggccgccaag gcccgaggcg
      661 tgaagtttgg cccccgccct accctcaccc cggcacagat cgcgcacgcc cgcgagctga
      721 tcgaccagga aggccgcacc gtgaaagagg cggctgcact gcttggcgtg catcgctcga
      781 ccctgtaccg cgcacttgag cgcagcgagg aagtgacgcc caccgaggcc aggcggcgcg
      841 gtgccttccg tgaggacgca ttgaccgagg ccgacgccct ggcggccgcc gagaatgaac
      901 gccaagagga acaagcatga aaccgcacca ggacggccag gacgaaccgt ttttcattac
      961 cgaagagatc gaggcggaga tgatcgcggc cgggtacgtg ttcgagccgc ccgcgcacgt
     1021 ctcaaccgtg cggctgcatg aaatcctggc cggtttgtct gatgccaagc tggcggcctg
     1081 gccggccagc ttggccgctg aagaaaccga gcgccgccgt ctaaaaaggt gatgtgtatt
     1141 tgagtaaaac agcttgcgtc atgcggtcgc tgcgtatatg atgcgatgag taaataaaca
     1201 aatacgcaag gggaacgcat gaaggttatc gctgtactta accagaaagg cgggtcaggc
     1261 aagacgacca tcgcaaccca tctagcccgc gccctgcaac tcgccggggc cgatgttctg
     1321 ttagtcgatt ccgatcccca gggcagtgcc cgcgattggg cggccgtgcg ggaagatcaa
     1381 ccgctaaccg ttgtcggcat cgaccgcccg acgattgacc gcgacgtgaa ggccatcggc
     1441 cggcgcgact tcgtagtgat cgacggagcg ccccaggcgg cggacttggc tgtgtccgcg
     1501 atcaaggcag ccgacttcgt gctgattccg gtgcagccaa gcccttacga catatgggcc
     1561 accgccgacc tggtggagct ggttaagcag cgcattgagg tcacggatgg aaggctacaa
     1621 gcggcctttg tcgtgtcgcg ggcgatcaaa ggcacgcgca tcggcggtga ggttgccgag
     1681 gcgctggccg ggtacgagct gcccattctt gagtcccgta tcacgcagcg cgtgagctac
     1741 ccaggcactg ccgccgccgg cacaaccgtt cttgaatcag aacccgaggg cgacgctgcc
     1801 cgcgaggtcc aggcgctggc cgctgaaatt aaatcaaaac tcatttgagt taatgaggta
     1861 aagagaaaat gagcaaaagc acaaacacgc taagtgccgg ccgtccgagc gcacgcagca
     1921 gcaaggctgc aacgttggcc agcctggcag acacgccagc catgaagcgg gtcaactttc
     1981 agttgccggc ggaggatcac accaagctga agatgtacgc ggtacgccaa ggcaagacca
     2041 ttaccgagct gctatctgaa tacatcgcgc agctaccaga gtaaatgagc aaatgaataa
     2101 atgagtagat gaattttagc ggctaaagga ggcggcatgg aaaatcaaga acaaccaggc
     2161 accgacgccg tggaatgccc catgtgtgga ggaacgggcg gttggccagg cgtaagcggc
     2221 tgggttgtct gccggccctg caatggcact ggaaccccca agcccgagga atcggcgtga
     2281 gcggtcgcaa accatccggc ccggtacaaa tcggcgcggc gctgggtgat gacctggtgg
     2341 agaagttgaa ggccgcgcag gccgcccagc ggcaacgcat cgaggcagaa gcacgccccg
     2401 gtgaatcgtg gcaagcggcc gctgatcgaa tccgcaaaga atcccggcaa ccgccggcag
     2461 ccggtgcgcc gtcgattagg aagccgccca agggcgacga gcaaccagat tttttcgttc
     2521 cgatgctcta tgacgtgggc acccgcgata gtcgcagcat catggacgtg gccgttttcc
     2581 gtctgtcgaa gcgtgaccga cgagctggcg aggtgatccg ctacgagctt ccagacgggc
     2641 acgtagaggt ttccgcaggg ccggccggca tggccagtgt gtgggattac gacctggtac
     2701 tgatggcggt ttcccatcta accgaatcca tgaaccgata ccgggaaggg aagggagaca
     2761 agcccggccg cgtgttccgt ccacacgttg cggacgtact caagttctgc cggcgagccg
     2821 atggcggaaa gcagaaagac gacctggtag aaacctgcat tcggttaaac accacgcacg
     2881 ttgccatgca gcgtacgaag aaggccaaga acggccgcct ggtgacggta tccgagggtg
     2941 aagccttgat tagccgctac aagatcgtaa agagcgaaac cgggcggccg gagtacatcg
     3001 agatcgagct agctgattgg atgtaccgcg agatcacaga aggcaagaac ccggacgtgc
     3061 tgacggttca ccccgattac tttttgatcg atcccggcat cggccgtttt ctctaccgcc
     3121 tggcacgccg cgccgcaggc aaggcagaag ccagatggtt gttcaagacg atctacgaac
     3181 gcagtggcag cgccggagag ttcaagaagt tctgtttcac cgtgcgcaag ctgatcgggt
     3241 caaatgacct gccggagtac gatttgaagg aggaggcggg gcaggctggc ccgatcctag
     3301 tcatgcgcta ccgcaacctg atcgagggcg aagcatccgc cggttcctaa tgtacggagc
     3361 agatgctagg gcaaattgcc ctagcagggg aaaaaggtcg aaaaggtctc tttcctgtgg
     3421 atagcacgta cattgggaac ccaaagccgt acattgggaa ccggaacccg tacattggga
     3481 acccaaagcc gtacattggg aaccggtcac acatgtaagt gactgatata aaagagaaaa
     3541 aaggcgattt ttccgcctaa aactctttaa aacttattaa aactcttaaa acccgcctgg
     3601 cctgtgcata actgtctggc cagcgcacag ccgaagagct gcaaaaagcg cctacccttc
     3661 ggtcgctgcg ctccctacgc cccgccgctt cgcgtcggcc tatcgcggcc gctggccgct
     3721 caaaaatggc tggcctacgg ccaggcaatc taccagggcg cggacaagcc gcgccgtcgc
     3781 cactcgaccg ccggcgccca catcaaggca ccctgcctcg cgcgtttcgg tgatgacggt
     3841 gaaaacctct gacacatgca gctcccggag acggtcacag cttgtctgta agcggatgcc
     3901 gggagcagac aagcccgtca gggcgcgtca gcgggtgttg gcgggtgtcg gggcgcagcc
     3961 atgacccagt cacgtagcga tagcggagtg tatactggct taactatgcg gcatcagagc
     4021 agattgtact gagagtgcac catatgcggt gtgaaatacc gcacagatgc gtaaggagaa
     4081 aataccgcat caggcgctct tccgcttcct cgctcactga ctcgctgcgc tcggtcgttc
     4141 ggctgcggcg agcggtatca gctcactcaa aggcggtaat acggttatcc acagaatcag
     4201 gggataacgc aggaaagaac atgtgagcaa aaggccagca aaaggccagg aaccgtaaaa
     4261 aggccgcgtt gctggcgttt ttccataggc tccgcccccc tgacgagcat cacaaaaatc
     4321 gacgctcaag tcagaggtgg cgaaacccga caggactata aagataccag gcgtttcccc
     4381 ctggaagctc cctcgtgcgc tctcctgttc cgaccctgcc gcttaccgga tacctgtccg
     4441 cctttctccc ttcgggaagc gtggcgcttt ctcatagctc acgctgtagg tatctcagtt
     4501 cggtgtaggt cgttcgctcc aagctgggct gtgtgcacga accccccgtt cagcccgacc
     4561 gctgcgcctt atccggtaac tatcgtcttg agtccaaccc ggtaagacac gacttatcgc
     4621 cactggcagc agccactggt aacaggatta gcagagcgag gtatgtaggc ggtgctacag
     4681 agttcttgaa gtggtggcct aactacggct acactagaag gacagtattt ggtatctgcg
     4741 ctctgctgaa gccagttacc ttcggaaaaa gagttggtag ctcttgatcc ggcaaacaaa
     4801 ccaccgctgg tagcggtggt ttttttgttt gcaagcagca gattacgcgc agaaaaaaag
     4861 gatctcaaga agatcctttg atcttttcta cggggtctga cgctcagtgg aacgaaaact
     4921 cacgttaagg gattttggtc atgcatgata tatctcccaa tttgtgtagg gcttattatg
     4981 cacgcttaaa aataataaaa gcagacttga cctgatagtt tggctgtgag caattatgtg
     5041 cttagtgcat ctaatcgctt gagttaacgc cggcgaagcg gcgtcggctt gaacgaattt
     5101 ctagctagag gatcgcacca ataactgcct taaaaaaatt acgccccgcc ctgccactca
     5161 tcgcagtact gttgtaattc attaagcatt ctgccgacat ggaagccatc acaaacggca
     5221 tgatgaacct gaatcgccag cggcatcagc accttgtcgc cttgcgtata atatttgccc
     5281 attgtgaaaa cgggggcgaa gaagttgtcc atattggcca cgtttaaatc aaaactggtg
     5341 aaactcaccc agggattggc tgagacgaaa aacatattct caataaaccc tttagggaaa
     5401 taggccaggt tttcaccgta acacgccaca tcttgcgaat atatgtgtag aaactgccgg
     5461 aaatcgtcgt ggtattcact ccagagcgat gaaaacgttt cagtttgctc atggaaaacg
     5521 gtgtaacaag ggtgaacact atcccatatc accagctcac cgtctttcat tgccatacgg
     5581 aactccggat gagcattcat caggcgggca agaatgtgaa taaaggccgg ataaaacttg
     5641 tgcttatttt tctttacggt ctttaaaaag gccgtaatat ccagctgaac ggtctggtta
     5701 taggtacatt gagcaactga ctgaaatgcc tcaaaatgtt ctttacgatg ccattgggat
     5761 atatcaacgg tggtatatcc agtgattttt ttctccatga tgtttaactt tgttttaggg
     5821 cgactgccct gctgcgtaac atcgttgctg ctccataaca tcaaacatcg acccacggcg
     5881 taacgcgctt gctgcttgga tgcccgaggc atagactgta ccccaaaaaa acatgtcata
     5941 acaagaagcc atgaaaaccg ccactgcgcc gttaccaccg ctgcgttcgg tcaaggttct
     6001 ggaccagttg cgtgacggca gttacgctac ttgcattaca gcttacgaac cgaacgaggc
     6061 ttatgtccac tgggttcgtg cccgaattga tcacaggcag caacgctctg tcatcgttac
     6121 aatcaacatg ctaccctccg cgagatcatc cgtgtttcaa acccggcagc ttagttgccg
     6181 ttcttccgaa tagcatcggt aacatgagca aagtctgccg ccttacaacg gctctcccgc
     6241 tgacgccgtc ccggactgat gggctgcctg tatcgagtgg tgattttgtg ccgagctgcc
     6301 ggtcggggag ctgttggctg gctggtggca ggatatattg tggtgtaaac aaattgacgc
     6361 ttagacaact taataacaca ttgcggacgt ttttaatgta ctgaattaac gccgaattaa
     6421 ttcgggggat ctggatttta gtactggatt ttggttttag gaattagaaa ttttattgat
     6481 agaagtattt tacaaataca aatacatact aagggtttct tatatgctca acacatgagc
     6541 gaaaccctat aggaacccta attcccttat ctgggaacta ctcacacatt attatggaga
     6601 aactcgagct tgtcgatcga ctctagctag aggatcgatc cgaaccccag agtcccgctc
     6661 agaagaactc gtcaagaagg cgatagaagg cgatgcgctg cgaatcggga gcggcgatac
     6721 cgtaaagcac gaggaagcgg tcagcccatt cgccgccaag ctcttcagca atatcacggg
     6781 tagccaacgc tatgtcctga tagcggtccg ccacacccag ccggccacag tcgatgaatc
     6841 cagaaaagcg gccattttcc accatgatat tcggcaagca ggcatcgcca tgtgtcacga
     6901 cgagatcctc gccgtcgggc atgcgcgcct tgagcctggc gaacagttcg gctggcgcga
     6961 gcccctgatg ctcttcgtcc agatcatcct gatcgacaag accggcttcc atccgagtac
     7021 gtgctcgctc gatgcgatgt ttcgcttggt ggtcgaatgg gcaggtagcc ggatcaagcg
     7081 tatgcagccg ccgcattgca tcagccatga tggatacttt ctcggcagga gcaaggtgag
     7141 atgacaggag atcctgcccc ggcacttcgc ccaatagcag ccagtccctt cccgcttcag
     7201 tgacaacgtc gagcacagct gcgcaaggaa cgcccgtcgt ggccagccac gatagccgcg
     7261 ctgcctcgtc ctggagttca ttcagggcac cggacaggtc ggtcttgaca aaaagaaccg
     7321 ggcgcccctg cgctgacagc cggaacacgg cggcatcaga gcagccgatt gtctgttgtg
     7381 cccagtcata gccgaatagc ctctccaccc aagcggccgg agaacctgcg tgcaatccat
     7441 cttgttcaat ccccatggtc gatcgacaga tctgcgaaag ctcgagagag atagatttgt
     7501 agagagagac tggtgatttc agcgtgtcct ctccaaatga aatgaacttc cttatataga
     7561 ggaaggtctt gcgaaggata gtgggattgt gcgtcatccc ttacgtcagt ggagatatca
     7621 catcaatcca cttgctttga agacgtggtt ggaacgtctt ctttttccac gatgctcctc
     7681 gtgggtgggg gtccatcttt gggaccactg tcggcagagg catcttgaac gatagccttt
     7741 cctttatcgc aatgatggca tttgtaggtg ccaccttcct tttctactgt ccttttgatg
     7801 aagtgacaga tagctgggca atggaatccg aggaggtttc ccgatattac cctttgttga
     7861 aaagtctcaa tagccctttg gtcttctgag actgtatctt tgatattctt ggagtagacg
     7921 agagtgtcgt gctccaccat gttatcacat caatccactt gctttgaaga cgtggttgga
     7981 acgtcttctt tttccacgat gctcctcgtg ggtgggggtc catctttggg accactgtcg
     8041 gcagaggcat cttgaacgat agcctttcct ttatcgcaat gatggcattt gtaggtgcca
     8101 ccttcctttt ctactgtcct tttgatgaag tgacagatag ctgggcaatg gaatccgagg
     8161 aggtttcccg atattaccct ttgttgaaaa gtctcaatag ccctttggtc ttctgagact
     8221 gtatctttga tattcttgga gtagacgaga gtgtcgtgct ccaccatgtt ggcaagctgc
     8281 tctagccaat acgcaaaccg cctctccccg cgcgttggcc gattcattaa tgcagctggc
     8341 acgacaggtt tcccgactgg aaagcgggca gtgagcgcaa cgcaattaat gtgagttagc
     8401 tcactcatta ggcaccccag gctttacact ttatgcttcc ggctcgtatg ttgtgtggaa
     8461 ttgtgagcgg ataacaattt cacacaggaa acagctatga ccatgattac gaattcgagc
     8521 tcggtacccg gggatcctct agagtcgacc tgcaggcatg caagcttggc actggccgtc
     8581 gttttacaac gtcgtgactg ggaaaaccct ggcgttaccc aacttaatcg ccttgcagca
     8641 catccccctt tcgccagctg gcgtaatagc gaagaggccc gcaccgatcg cccttcccaa
     8701 cagttgcgca gcctgaatgg cgaatgctag agcagcttga gcttggatca gattgtcgtt
     8761 tcccgccttc agtttaaact atcagtgttt gacaggatat attggcgggt aaacctaaga
     8821 gaaaagagcg tttattagaa taacggatat ttaaaagggc gtgaaaaggt ttatccgttc
     8881 gtccatttgt atgtg
//

pCambia 2200载体质粒图谱pdf版和相关资料下载

pCambia 2200载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
