pCAMBIA3300

价格:1800元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: CAMBIA
载体名称: pCAMBIA3300
质粒类型: 植物载体;农杆菌双元表达载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: lac
载体大小: 8429 bp
5' 测序引物及序列: M13 Reverse:CAGGAAACAGCTATGAC
3' 测序引物及序列: M13/pUC Forward:CCCAGTCACGACGTTGTAAAACG
载体标签: --
载体抗性: Kanamycin.html' target='_blank'>卡那霉素
筛选标记: 草丁膦(磷丝菌素)phosphinothricin
克隆菌株: HB101等菌株
宿主细胞(系): 植物细胞、农杆菌
备注: --
产品目录号: --
稳定性: 稳表达
组成型/诱导型: 诱导型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

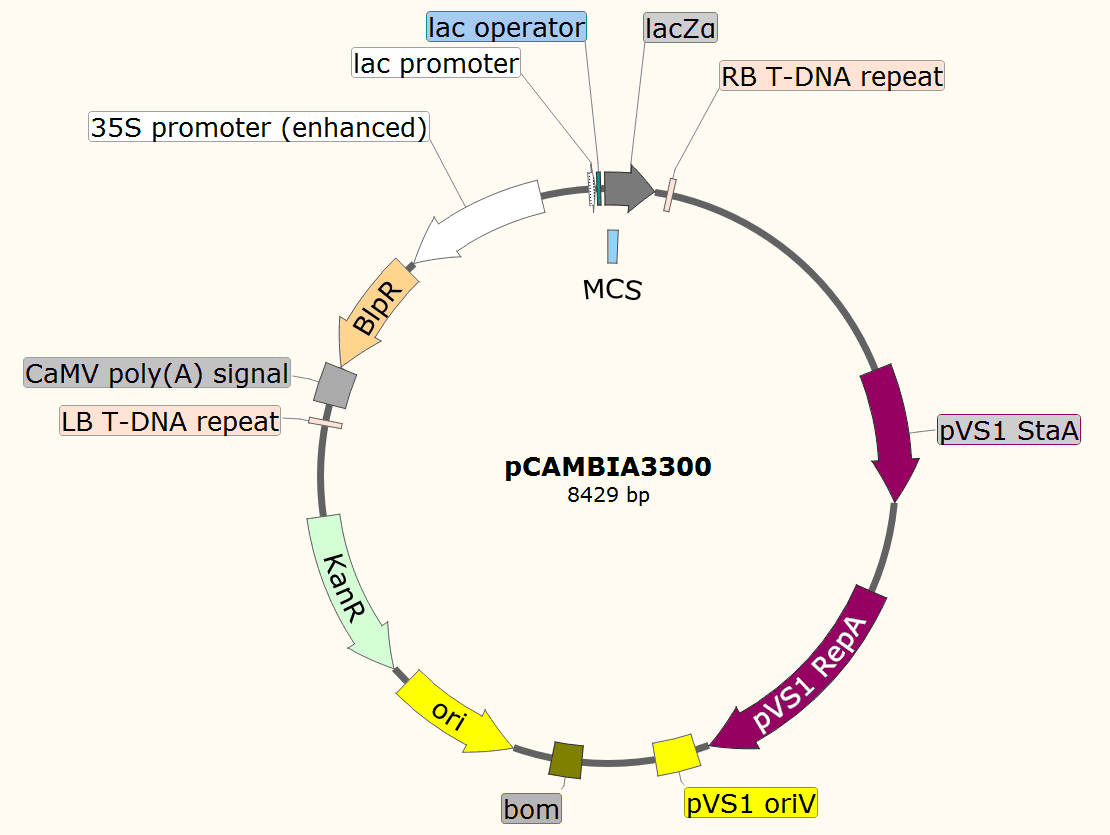

pCAMBIA3300载体图谱



pCAMBIA3300 多克隆位点

载体简介

载体序列

LOCUS       pCAMBIA3300             8429 bp ds-DNA     circular SYN 25-JUL-2016
DEFINITION  Agrobacterium binary vector for plant transformation, with
            bialophos/phosphinothricin resistance and kanamycin resistance
            genes.
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8429)
  AUTHORS   Cambia
  TITLE     Direct Submission
  JOURNAL   Exported Monday, July 25, 2016 from SnapGene Viewer 3.1.4 to Vector
            NTI(R) format
            http://www.snapgene.com
COMMENT     VNTDATE|758505600|
COMMENT     VNTDBDATE|776304000|
COMMENT     VNTNAME|pCAMBIA3300|
COMMENT     VNTAUTHORNAME|Cambia|
FEATURES             Location/Qualifiers
     primer_bind     complement(60..76)
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     misc_feature    279..303
                     /label=RB T-DNA repeat
                     /note="right border repeat from nopaline C58 T-DNA"
     CDS             1603..2232
                     /codon_start=1
                     /product="stability protein from Pseudomonas plasmid pVS1"
                     /label=pVS1 StaA
     CDS             2661..3734
                     /codon_start=1
                     /product="replication protein from Pseudomonas plasmid
                     pVS1"
                     /label=pVS1 RepA
                     /translation="MSGRKPSGPVQIGAALGDDLVEKLKAAQAAQRQRIEAEARPGESW
                     QAAADRIRKESRQPPAAGAPSIRKPPKGDEQPDFFVPMLYDVGTRDSRSIMDVAVFRLS
                     KRDRRAGEVIRYELPDGHVEVSAGPAGMASVWDYDLVLMAVSHLTESMNRYREGKGDKP
                     GRVFRPHVADVLKFCRRADGGKQKDDLVETCIRLNTTHVAMQRTKKAKNGRLVTVSEGE
                     ALISRYKIVKSETGRPEYIEIELADWMYREITEGKNPDVLTVHPDYFLIDPGIGRFLYR
                     LARRAAGKAEARWLFKTIYERSGSAGEFKKFCFTVRKLIGSNDLPEYDLKEEAGQAGPI
                     LVMRYRNLIEGEASAGS"
     rep_origin      3800..3994
                     /label=pVS1 oriV
                     /note="origin of replication for the Pseudomonas plasmid
                     pVS1 (Heeb et al., 2000)"
     misc_feature    4338..4478
                     /label=bom
                     /note="basis of mobility region from pBR322"
     rep_origin      complement(4664..5252)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5339..6133)
                     /codon_start=1
                     /gene="aphA-3"
                     /product="aminoglycoside phosphotransferase"
                     /label=KanR
                     /note="confers resistance to kanamycin"
     misc_feature    6558..6582
                     /label=LB T-DNA repeat
                     /note="left border repeat from nopaline C58 T-DNA"
     polyA_signal    6660..6834
                     /label=CaMV poly(A) signal
                     /note="cauliflower mosaic virus polyadenylation signal"
     CDS             complement(6841..7392)
                     /codon_start=1
                     /gene="Streptomyces hygroscopicus bar"
                     /product="phosphinothricin acetyltransferase草丁膦(磷丝菌素)
                     乙酰转移酶"
                     /label=BlpR
                     /note="confers resistance to bialophos or phosphinothricin"
     promoter        complement(7437..8114)
                     /label=35S promoter (enhanced)
                     /note="CaMV 35S promoter (enhanced)。cauliflower mosaic
                     virus 35S promoter with a duplicated enhancer region"
     promoter        8341..8371
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    8379..8395
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     8403..8419
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     CDS             8415..219
                     /codon_start=1
                     /gene="lacZ (truncated)"
                     /product="LacZ-alpha fragment of beta-galactosidase"
                     /label=lacZ-alpha
     misc_feature    8429..56
                     /label=MCS
                     /note="pUC18/19 multiple cloning site"
ORIGIN
        1 aattcgagct cggtacccgg ggatcctcta gagtcgacct gcaggcatgc aagcttggca
       61 ctggccgtcg ttttacaacg tcgtgactgg gaaaaccctg gcgttaccca acttaatcgc
      121 cttgcagcac atcccccttt cgccagctgg cgtaatagcg aagaggcccg caccgatcgc
      181 ccttcccaac agttgcgcag cctgaatggc gaatgctaga gcagcttgag cttggatcag
      241 attgtcgttt cccgccttca gtttaaacta tcagtgtttg acaggatata ttggcgggta
      301 aacctaagag aaaagagcgt ttattagaat aacggatatt taaaagggcg tgaaaaggtt
      361 tatccgttcg tccatttgta tgtgcatgcc aaccacaggg ttcccctcgg gatcaaagta
      421 ctttgatcca acccctccgc tgctatagtg cagtcggctt ctgacgttca gtgcagccgt
      481 cttctgaaaa cgacatgtcg cacaagtcct aagttacgcg acaggctgcc gccctgccct
      541 tttcctggcg ttttcttgtc gcgtgtttta gtcgcataaa gtagaatact tgcgactaga
      601 accggagaca ttacgccatg aacaagagcg ccgccgctgg cctgctgggc tatgcccgcg
      661 tcagcaccga cgaccaggac ttgaccaacc aacgggccga actgcacgcg gccggctgca
      721 ccaagctgtt ttccgagaag atcaccggca ccaggcgcga ccgcccggag ctggccagga
      781 tgcttgacca cctacgccct ggcgacgttg tgacagtgac caggctagac cgcctggccc
      841 gcagcacccg cgacctactg gacattgccg agcgcatcca ggaggccggc gcgggcctgc
      901 gtagcctggc agagccgtgg gccgacacca ccacgccggc cggccgcatg gtgttgaccg
      961 tgttcgccgg cattgccgag ttcgagcgtt ccctaatcat cgaccgcacc cggagcgggc
     1021 gcgaggccgc caaggcccga ggcgtgaagt ttggcccccg ccctaccctc accccggcac
     1081 agatcgcgca cgcccgcgag ctgatcgacc aggaaggccg caccgtgaaa gaggcggctg
     1141 cactgcttgg cgtgcatcgc tcgaccctgt accgcgcact tgagcgcagc gaggaagtga
     1201 cgcccaccga ggccaggcgg cgcggtgcct tccgtgagga cgcattgacc gaggccgacg
     1261 ccctggcggc cgccgagaat gaacgccaag aggaacaagc atgaaaccgc accaggacgg
     1321 ccaggacgaa ccgtttttca ttaccgaaga gatcgaggcg gagatgatcg cggccgggta
     1381 cgtgttcgag ccgcccgcgc acgtctcaac cgtgcggctg catgaaatcc tggccggttt
     1441 gtctgatgcc aagctggcgg cctggccggc cagcttggcc gctgaagaaa ccgagcgccg
     1501 ccgtctaaaa aggtgatgtg tatttgagta aaacagcttg cgtcatgcgg tcgctgcgta
     1561 tatgatgcga tgagtaaata aacaaatacg caaggggaac gcatgaaggt tatcgctgta
     1621 cttaaccaga aaggcgggtc aggcaagacg accatcgcaa cccatctagc ccgcgccctg
     1681 caactcgccg gggccgatgt tctgttagtc gattccgatc cccagggcag tgcccgcgat
     1741 tgggcggccg tgcgggaaga tcaaccgcta accgttgtcg gcatcgaccg cccgacgatt
     1801 gaccgcgacg tgaaggccat cggccggcgc gacttcgtag tgatcgacgg agcgccccag
     1861 gcggcggact tggctgtgtc cgcgatcaag gcagccgact tcgtgctgat tccggtgcag
     1921 ccaagccctt acgacatatg ggccaccgcc gacctggtgg agctggttaa gcagcgcatt
     1981 gaggtcacgg atggaaggct acaagcggcc tttgtcgtgt cgcgggcgat caaaggcacg
     2041 cgcatcggcg gtgaggttgc cgaggcgctg gccgggtacg agctgcccat tcttgagtcc
     2101 cgtatcacgc agcgcgtgag ctacccaggc actgccgccg ccggcacaac cgttcttgaa
     2161 tcagaacccg agggcgacgc tgcccgcgag gtccaggcgc tggccgctga aattaaatca
     2221 aaactcattt gagttaatga ggtaaagaga aaatgagcaa aagcacaaac acgctaagtg
     2281 ccggccgtcc gagcgcacgc agcagcaagg ctgcaacgtt ggccagcctg gcagacacgc
     2341 cagccatgaa gcgggtcaac tttcagttgc cggcggagga tcacaccaag ctgaagatgt
     2401 acgcggtacg ccaaggcaag accattaccg agctgctatc tgaatacatc gcgcagctac
     2461 cagagtaaat gagcaaatga ataaatgagt agatgaattt tagcggctaa aggaggcggc
     2521 atggaaaatc aagaacaacc aggcaccgac gccgtggaat gccccatgtg tggaggaacg
     2581 ggcggttggc caggcgtaag cggctgggtt gtctgccggc cctgcaatgg cactggaacc
     2641 cccaagcccg aggaatcggc gtgagcggtc gcaaaccatc cggcccggta caaatcggcg
     2701 cggcgctggg tgatgacctg gtggagaagt tgaaggccgc gcaggccgcc cagcggcaac
     2761 gcatcgaggc agaagcacgc cccggtgaat cgtggcaagc ggccgctgat cgaatccgca
     2821 aagaatcccg gcaaccgccg gcagccggtg cgccgtcgat taggaagccg cccaagggcg
     2881 acgagcaacc agattttttc gttccgatgc tctatgacgt gggcacccgc gatagtcgca
     2941 gcatcatgga cgtggccgtt ttccgtctgt cgaagcgtga ccgacgagct ggcgaggtga
     3001 tccgctacga gcttccagac gggcacgtag aggtttccgc agggccggcc ggcatggcca
     3061 gtgtgtggga ttacgacctg gtactgatgg cggtttccca tctaaccgaa tccatgaacc
     3121 gataccggga agggaaggga gacaagcccg gccgcgtgtt ccgtccacac gttgcggacg
     3181 tactcaagtt ctgccggcga gccgatggcg gaaagcagaa agacgacctg gtagaaacct
     3241 gcattcggtt aaacaccacg cacgttgcca tgcagcgtac gaagaaggcc aagaacggcc
     3301 gcctggtgac ggtatccgag ggtgaagcct tgattagccg ctacaagatc gtaaagagcg
     3361 aaaccgggcg gccggagtac atcgagatcg agctagctga ttggatgtac cgcgagatca
     3421 cagaaggcaa gaacccggac gtgctgacgg ttcaccccga ttactttttg atcgatcccg
     3481 gcatcggccg ttttctctac cgcctggcac gccgcgccgc aggcaaggca gaagccagat
     3541 ggttgttcaa gacgatctac gaacgcagtg gcagcgccgg agagttcaag aagttctgtt
     3601 tcaccgtgcg caagctgatc gggtcaaatg acctgccgga gtacgatttg aaggaggagg
     3661 cggggcaggc tggcccgatc ctagtcatgc gctaccgcaa cctgatcgag ggcgaagcat
     3721 ccgccggttc ctaatgtacg gagcagatgc tagggcaaat tgccctagca ggggaaaaag
     3781 gtcgaaaagg tctctttcct gtggatagca cgtacattgg gaacccaaag ccgtacattg
     3841 ggaaccggaa cccgtacatt gggaacccaa agccgtacat tgggaaccgg tcacacatgt
     3901 aagtgactga tataaaagag aaaaaaggcg atttttccgc ctaaaactct ttaaaactta
     3961 ttaaaactct taaaacccgc ctggcctgtg cataactgtc tggccagcgc acagccgaag
     4021 agctgcaaaa agcgcctacc cttcggtcgc tgcgctccct acgccccgcc gcttcgcgtc
     4081 ggcctatcgc ggccgctggc cgctcaaaaa tggctggcct acggccaggc aatctaccag
     4141 ggcgcggaca agccgcgccg tcgccactcg accgccggcg cccacatcaa ggcaccctgc
     4201 ctcgcgcgtt tcggtgatga cggtgaaaac ctctgacaca tgcagctccc ggagacggtc
     4261 acagcttgtc tgtaagcgga tgccgggagc agacaagccc gtcagggcgc gtcagcgggt
     4321 gttggcgggt gtcggggcgc agccatgacc cagtcacgta gcgatagcgg agtgtatact
     4381 ggcttaacta tgcggcatca gagcagattg tactgagagt gcaccatatg cggtgtgaaa
     4441 taccgcacag atgcgtaagg agaaaatacc gcatcaggcg ctcttccgct tcctcgctca
     4501 ctgactcgct gcgctcggtc gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg
     4561 taatacggtt atccacagaa tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc
     4621 agcaaaaggc caggaaccgt aaaaaggccg cgttgctggc gtttttccat aggctccgcc
     4681 cccctgacga gcatcacaaa aatcgacgct caagtcagag gtggcgaaac ccgacaggac
     4741 tataaagata ccaggcgttt ccccctggaa gctccctcgt gcgctctcct gttccgaccc
     4801 tgccgcttac cggatacctg tccgcctttc tcccttcggg aagcgtggcg ctttctcata
     4861 gctcacgctg taggtatctc agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc
     4921 acgaaccccc cgttcagccc gaccgctgcg ccttatccgg taactatcgt cttgagtcca
     4981 acccggtaag acacgactta tcgccactgg cagcagccac tggtaacagg attagcagag
     5041 cgaggtatgt aggcggtgct acagagttct tgaagtggtg gcctaactac ggctacacta
     5101 gaaggacagt atttggtatc tgcgctctgc tgaagccagt taccttcgga aaaagagttg
     5161 gtagctcttg atccggcaaa caaaccaccg ctggtagcgg tggttttttt gtttgcaagc
     5221 agcagattac gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt tctacggggt
     5281 ctgacgctca gtggaacgaa aactcacgtt aagggatttt ggtcatgcat tctaggtact
     5341 aaaacaattc atccagtaaa atataatatt ttattttctc ccaatcaggc ttgatcccca
     5401 gtaagtcaaa aaatagctcg acatactgtt cttccccgat atcctccctg atcgaccgga
     5461 cgcagaaggc aatgtcatac cacttgtccg ccctgccgct tctcccaaga tcaataaagc
     5521 cacttacttt gccatctttc acaaagatgt tgctgtctcc caggtcgccg tgggaaaaga
     5581 caagttcctc ttcgggcttt tccgtcttta aaaaatcata cagctcgcgc ggatctttaa
     5641 atggagtgtc ttcttcccag ttttcgcaat ccacatcggc cagatcgtta ttcagtaagt
     5701 aatccaattc ggctaagcgg ctgtctaagc tattcgtata gggacaatcc gatatgtcga
     5761 tggagtgaaa gagcctgatg cactccgcat acagctcgat aatcttttca gggctttgtt
     5821 catcttcata ctcttccgag caaaggacgc catcggcctc actcatgagc agattgctcc
     5881 agccatcatg ccgttcaaag tgcaggacct ttggaacagg cagctttcct tccagccata
     5941 gcatcatgtc cttttcccgt tccacatcat aggtggtccc tttataccgg ctgtccgtca
     6001 tttttaaata taggttttca ttttctccca ccagcttata taccttagca ggagacattc
     6061 cttccgtatc ttttacgcag cggtattttt cgatcagttt tttcaattcc ggtgatattc
     6121 tcattttagc catttattat ttccttcctc ttttctacag tatttaaaga taccccaaga
     6181 agctaattat aacaagacga actccaattc actgttcctt gcattctaaa accttaaata
     6241 ccagaaaaca gctttttcaa agttgttttc aaagttggcg tataacatag tatcgacgga
     6301 gccgattttg aaaccgcggt gatcacaggc agcaacgctc tgtcatcgtt acaatcaaca
     6361 tgctaccctc cgcgagatca tccgtgtttc aaacccggca gcttagttgc cgttcttccg
     6421 aatagcatcg gtaacatgag caaagtctgc cgccttacaa cggctctccc gctgacgccg
     6481 tcccggactg atgggctgcc tgtatcgagt ggtgattttg tgccgagctg ccggtcgggg
     6541 agctgttggc tggctggtgg caggatatat tgtggtgtaa acaaattgac gcttagacaa
     6601 cttaataaca cattgcggac gtttttaatg tactgaatta acgccgaatt aattcggggg
     6661 atctggattt tagtactgga ttttggtttt aggaattaga aattttattg atagaagtat
     6721 tttacaaata caaatacata ctaagggttt cttatatgct caacacatga gcgaaaccct
     6781 ataggaaccc taattccctt atctgggaac tactcacaca ttattatgga gaaactcgag
     6841 tcaaatctcg gtgacgggca ggaccggacg gggcggtacc ggcaggctga agtccagctg
     6901 ccagaaaccc acgtcatgcc agttcccgtg cttgaagccg gccgcccgca gcatgccgcg
     6961 gggggcatat ccgagcgcct cgtgcatgcg cacgctcggg tcgttgggca gcccgatgac
     7021 agcgaccacg ctcttgaagc cctgtgcctc cagggacttc agcaggtggg tgtagagcgt
     7081 ggagcccagt cccgtccgct ggtggcgggg ggagacgtac acggtcgact cggccgtcca
     7141 gtcgtaggcg ttgcgtgcct tccaggggcc cgcgtaggcg atgccggcga cctcgccgtc
     7201 cacctcggcg acgagccagg gatagcgctc ccgcagacgg acgaggtcgt ccgtccactc
     7261 ctgcggttcc tgcggctcgg tacggaagtt gaccgtgctt gtctcgatgt agtggttgac
     7321 gatggtgcag accgccggca tgtccgcctc ggtggcacgg cggatgtcgg ccgggcgtcg
     7381 ttctgggctc atggtagact cgagagagat agatttgtag agagagactg gtgatttcag
     7441 cgtgtcctct ccaaatgaaa tgaacttcct tatatagagg aaggtcttgc gaaggatagt
     7501 gggattgtgc gtcatccctt acgtcagtgg agatatcaca tcaatccact tgctttgaag
     7561 acgtggttgg aacgtcttct ttttccacga tgctcctcgt gggtgggggt ccatctttgg
     7621 gaccactgtc ggcagaggca tcttgaacga tagcctttcc tttatcgcaa tgatggcatt
     7681 tgtaggtgcc accttccttt tctactgtcc ttttgatgaa gtgacagata gctgggcaat
     7741 ggaatccgag gaggtttccc gatattaccc tttgttgaaa agtctcaata gccctttggt
     7801 cttctgagac tgtatctttg atattcttgg agtagacgag agtgtcgtgc tccaccatgt
     7861 tatcacatca atccacttgc tttgaagacg tggttggaac gtcttctttt tccacgatgc
     7921 tcctcgtggg tgggggtcca tctttgggac cactgtcggc agaggcatct tgaacgatag
     7981 cctttccttt atcgcaatga tggcatttgt aggtgccacc ttccttttct actgtccttt
     8041 tgatgaagtg acagatagct gggcaatgga atccgaggag gtttcccgat attacccttt
     8101 gttgaaaagt ctcaatagcc ctttggtctt ctgagactgt atctttgata ttcttggagt
     8161 agacgagagt gtcgtgctcc accatgttgg caagctgctc tagccaatac gcaaaccgcc
     8221 tctccccgcg cgttggccga ttcattaatg cagctggcac gacaggtttc ccgactggaa
     8281 agcgggcagt gagcgcaacg caattaatgt gagttagctc actcattagg caccccaggc
     8341 tttacacttt atgcttccgg ctcgtatgtt gtgtggaatt gtgagcggat aacaatttca
     8401 cacaggaaac agctatgacc atgattacg
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
