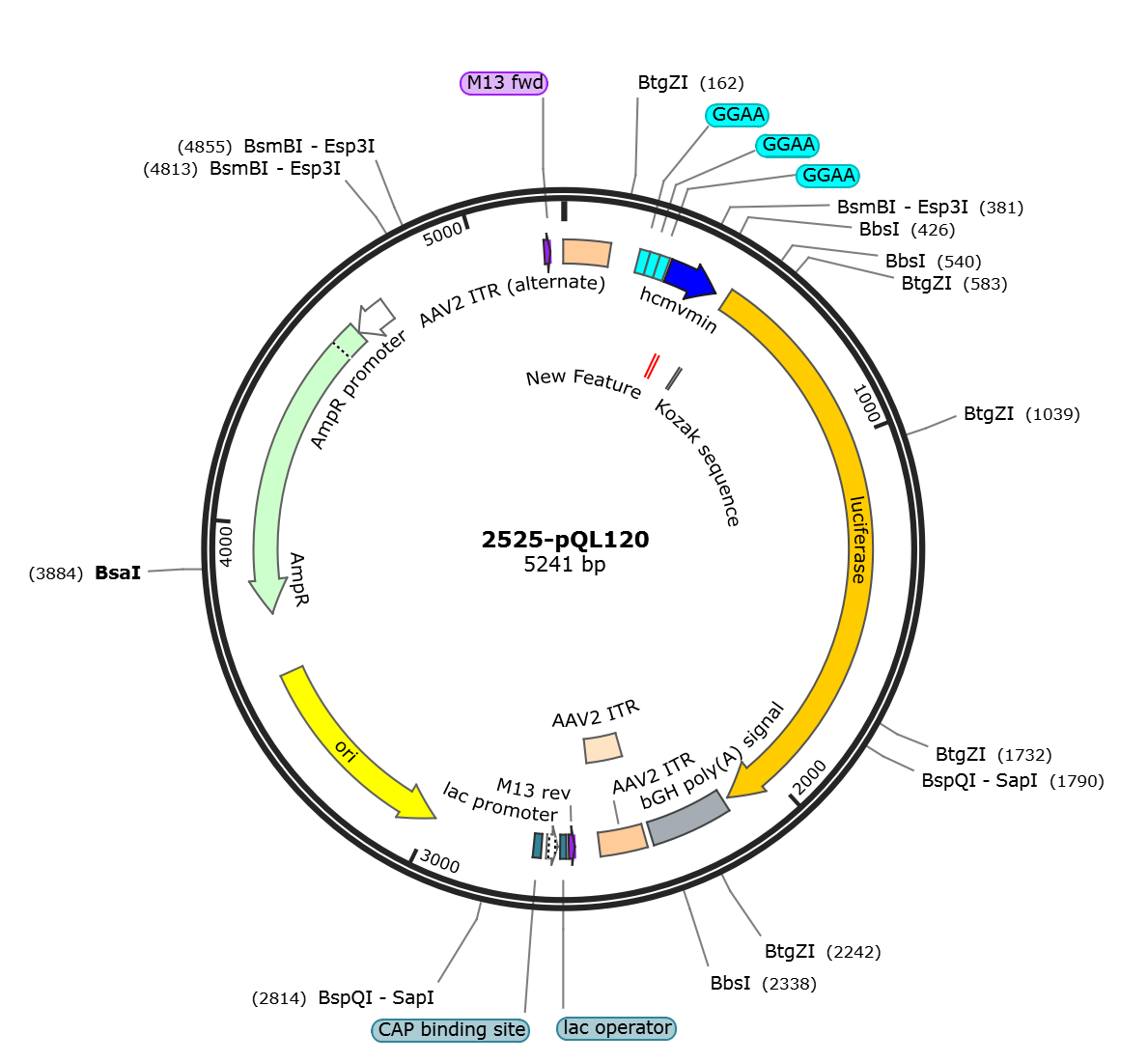

pQL120

LOCUS       pQL120                5241 bp DNA     circular SYN 08-APR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5241)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Jun 22, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5241
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     repeat_region   1..130
                     /label=AAV2 ITR (alternate)
                     /note="Functional equivalent of wild-type AAV2 ITR"
     primer_bind     173..214
                     /label=QL227  98-F
     primer_bind     185..210
                     /label=QL143-F
     misc_feature    211..238
                     /label=GGAA
     misc_feature    239..266
                     /label=GGAA
     misc_feature    267..294
                     /label=GGAA
     misc_feature    301..448
                     /label=hcmvmin
     misc_feature    370..384
                     /label=New Feature
     primer_bind     complement(439..479)
                     /label=QL228 98-R
     primer_bind     440..481
                     /label=QL399 F
     regulatory      476..485
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             482..2134
                     /codon_start=1
                     /product="firefly luciferase"
                     /label=luciferase
                     /note="synthetic luc2 version of the luciferase gene"
                     /translation="MEDAKNIKKGPAPFYPLEDGTAGEQLHKAMKRYALVPGTIAFTDA
                     HIEVDITYAEYFEMSVRLAEAMKRYGLNTNHRIVVCSENSLQFFMPVLGALFIGVAVAP
                     ANDIYNERELLNSMGISQPTVVFVSKKGLQKILNVQKKLPIIQKIIIMDSKTDYQGFQS
                     MYTFVTSHLPPGFNEYDFVPESFDRDKTIALIMNSSGSTGLPKGVALPHRTACVRFSHA
                     RDPIFGNQIIPDTAILSVVPFHHGFGMFTTLGYLICGFRVVLMYRFEEELFLRSLQDYK
                     IQSALLVPTLFSFFAKSTLIDKYDLSNLHEIASGGAPLSKEVGEAVAKRFHLPGIRQGY
                     GLTETTSAILITPEGDDKPGAVGKVVPFFEAKVVDLDTGKTLGVNQRGELCVRGPMIMS
                     GYVNNPEATNALIDKDGWLHSGDIAYWDEDEHFFIVDRLKSLIKYKGYQVAPAELESIL
                     LQHPNIFDAGVAGLPDDDAGELPAAVVVLEHGKTMTEKEIVDYVASQVTTAKKLRGGVV
                     FVDEVPKGLTGKLDARKIREILIKAKKGGKIAV"
     primer_bind     653..671
                     /label=YW232
     primer_bind     complement(866..886)
                     /label=YW233
     primer_bind     1760..1780
                     /label=801
     primer_bind     complement(1768..1789)
                     /label=802
     primer_bind     complement(1832..1841)
                     /label=YW232
     primer_bind     complement(2115..2140)
                     /label=QL400 R
     polyA_signal    2149..2373
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     repeat_region   2391..2531
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     repeat_region   2391..2520
                     /label=AAV2 ITR
     primer_bind     complement(2589..2605)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    2613..2629
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(2637..2667)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    2682..2703
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(2991..3579)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(3750..4610)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(4611..4715)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     5189..5205
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 cctgcaggca gctgcgcgct cgctcgctca ctgaggccgc ccgggcgtcg ggcgaccttt
       61 ggtcgcccgg cctcagtgag cgagcgagcg cgcagagagg gagtggccaa ctccatcact
      121 aggggttcct cgacaattgc atgaaggcga tgtacgggcc agatatacgc gtaatctgct
      181 tagggcggcc gcccagatat acgcgtgtac ggaaggaagg aaggaaggaa ggaaggaagg
      241 aaggaaggaa ggaaggaagg aaggaaggaa ggaaggaagg aaggaaggaa ggaagctagc
      301 tcgagctcgg tacccgggtc gagtaggcgt gtacggtggg aggcctatat aagcagagct
      361 cgtttagtga accgtcagat cgcctggaga cgccatccac gctgttttga cctccataga
      421 agacaccggg accgatccag cctccgcggc cccgaattcg ctagcgctac cggtcgccac
      481 catggaagat gccaaaaaca ttaagaaggg cccagcgcca ttctacccac tcgaagacgg
      541 gaccgccggc gagcagctgc acaaagccat gaagcgctac gccctggtgc ccggcaccat
      601 cgcctttacc gacgcacata tcgaggtgga cattacctac gccgagtact tcgagatgag
      661 cgttcggctg gcagaagcta tgaagcgcta tgggctgaat acaaaccatc ggatcgtggt
      721 gtgcagcgag aatagcttgc agttcttcat gcccgtgttg ggtgccctgt tcatcggtgt
      781 ggctgtggcc ccagctaacg acatctacaa cgagcgcgag ctgctgaaca gcatgggcat
      841 cagccagccc accgtcgtat tcgtgagcaa gaaagggctg caaaagatcc tcaacgtgca
      901 aaagaagcta ccgatcatac aaaagatcat catcatggat agcaagaccg actaccaggg
      961 cttccaaagc atgtacacct tcgtgacttc ccatttgcca cccggcttca acgagtacga
     1021 cttcgtgccc gagagcttcg accgggacaa aaccatcgcc ctgatcatga acagtagtgg
     1081 cagtaccgga ttgcccaagg gcgtagccct accgcaccgc accgcttgtg tccgattcag
     1141 tcatgcccgc gaccccatct tcggcaacca gatcatcccc gacaccgcta tcctcagcgt
     1201 ggtgccattt caccacggct tcggcatgtt caccacgctg ggctacttga tctgcggctt
     1261 tcgggtcgtg ctcatgtacc gcttcgagga ggagctattc ttgcgcagct tgcaagacta
     1321 taagattcaa tctgccctgc tggtgcccac actatttagc ttcttcgcta agagcactct
     1381 catcgacaag tacgacctaa gcaacttgca cgagatcgcc agcggcgggg cgccgctcag
     1441 caaggaggta ggtgaggccg tggccaaacg cttccaccta ccaggcatcc gccagggcta
     1501 cggcctgaca gaaacaacca gcgccattct gatcaccccc gaaggggacg acaagcctgg
     1561 cgcagtaggc aaggtggtgc ccttcttcga ggctaaggtg gtggacttgg acaccggtaa
     1621 gacactgggt gtgaaccagc gcggcgagct gtgcgtccgt ggccccatga tcatgagcgg
     1681 ctacgttaac aaccccgagg ctacaaacgc tctcatcgac aaggacggct ggctgcacag
     1741 cggcgacatc gcctactggg acgaggacga gcacttcttc atcgtggacc ggctgaagag
     1801 cctgatcaaa tacaagggct accaggtagc cccagccgaa ctggagagca tcctgctgca
     1861 acaccccaac atcttcgacg ccggggtcgc cggcctgccc gacgacgatg ccggcgagct
     1921 gcccgccgca gtcgtcgtgc tggaacacgg taaaaccatg accgagaagg agatcgtgga
     1981 ctatgtggcc agccaggtta caaccgccaa gaagctgcgc ggtggtgttg tgttcgtgga
     2041 cgaggtgcct aaaggactga ccggcaagtt ggacgcccgc aagatccgcg agattctcat
     2101 taaggccaag aagggcggca agatcgccgt gtaagaattc tgcctcgact gtgccttcta
     2161 gttgccagcc atctgttgtt tgcccctccc ccgtgccttc cttgaccctg gaaggtgcca
     2221 ctcccactgt cctttcctaa taaaatgagg aaattgcatc gcattgtctg agtaggtgtc
     2281 attctattct ggggggtggg gtggggcagg acagcaaggg ggaggattgg gaagacaata
     2341 gcaggcatgc tggggatgcg gtgggctcta tggggcctcg agcgcgtgtg aggaacccct
     2401 agtgatggag ttggccactc cctctctgcg cgctcgctcg ctcactgagg ccgggcgacc
     2461 aaaggtcgcc cgacgcccgg gctttgcccg ggcggcctca gtgagcgagc gagcgcgcag
     2521 ctgcctgcag gatcggatgc cgggaccgac gagtgcagag gcgtgcaagc gagcttggcg
     2581 taatcatggt catagctgtt tcctgtgtga aattgttatc cgctcacaat tccacacaac
     2641 atacgagccg gaagcataaa gtgtaaagcc tggggtgcct aatgagtgag ctaactcaca
     2701 ttaattgcgt tgcgctcact gcccgctttc cagtcgggaa acctgtcgtg ccagctgcat
     2761 taatgaatcg gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc ttccgcttcc
     2821 tcgctcactg actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc agctcactca
     2881 aaggcggtaa tacggttatc cacagaatca ggggataacg caggaaagaa catgtgagca
     2941 aaaggccagc aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt tttccatagg
     3001 ctccgccccc ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg gcgaaacccg
     3061 acaggactat aaagatacca ggcgtttccc cctggaagct ccctcgtgcg ctctcctgtt
     3121 ccgaccctgc cgcttaccgg atacctgtcc gcctttctcc cttcgggaag cgtggcgctt
     3181 tctcatagct cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc caagctgggc
     3241 tgtgtgcacg aaccccccgt tcagcccgac cgctgcgcct tatccggtaa ctatcgtctt
     3301 gagtccaacc cggtaagaca cgacttatcg ccactggcag cagccactgg taacaggatt
     3361 agcagagcga ggtatgtagg cggtgctaca gagttcttga agtggtggcc taactacggc
     3421 tacactagaa gaacagtatt tggtatctgc gctctgctga agccagttac cttcggaaaa
     3481 agagttggta gctcttgatc cggcaaacaa accaccgctg gtagcggtgg tttttttgtt
     3541 tgcaagcagc agattacgcg cagaaaaaaa ggatctcaag aagatccttt gatcttttct
     3601 acggggtctg acgctcagtg gaacgaaaac tcacgttaag ggattttggt catgagatta
     3661 tcaaaaagga tcttcaccta gatcctttta aattaaaaat gaagttttaa atcaatctaa
     3721 agtatatatg agtaaacttg gtctgacagt taccaatgct taatcagtga ggcacctatc
     3781 tcagcgatct gtctatttcg ttcatccata gttgcctgac tccccgtcgt gtagataact
     3841 acgatacggg agggcttacc atctggcccc agtgctgcaa tgataccgcg agacccacgc
     3901 tcaccggctc cagatttatc agcaataaac cagccagccg gaagggccga gcgcagaagt
     3961 ggtcctgcaa ctttatccgc ctccatccag tctattaatt gttgccggga agctagagta
     4021 agtagttcgc cagttaatag tttgcgcaac gttgttgcca ttgctacagg catcgtggtg
     4081 tcacgctcgt cgtttggtat ggcttcattc agctccggtt cccaacgatc aaggcgagtt
     4141 acatgatccc ccatgttgtg caaaaaagcg gttagctcct tcggtcctcc gatcgttgtc
     4201 agaagtaagt tggccgcagt gttatcactc atggttatgg cagcactgca taattctctt
     4261 actgtcatgc catccgtaag atgcttttct gtgactggtg agtactcaac caagtcattc
     4321 tgagaatagt gtatgcggcg accgagttgc tcttgcccgg cgtcaatacg ggataatacc
     4381 gcgccacata gcagaacttt aaaagtgctc atcattggaa aacgttcttc ggggcgaaaa
     4441 ctctcaagga tcttaccgct gttgagatcc agttcgatgt aacccactcg tgcacccaac
     4501 tgatcttcag catcttttac tttcaccagc gtttctgggt gagcaaaaac aggaaggcaa
     4561 aatgccgcaa aaaagggaat aagggcgaca cggaaatgtt gaatactcat actcttcctt
     4621 tttcaatatt attgaagcat ttatcagggt tattgtctca tgagcggata catatttgaa
     4681 tgtatttaga aaaataaaca aataggggtt ccgcgcacat ttccccgaaa agtgccacct
     4741 gacgtctaag aaaccattat tatcatgaca ttaacctata aaaataggcg tatcacgagg
     4801 ccctttcgtc tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg
     4861 gagacggtca cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg
     4921 tcagcgggtg ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta
     4981 ctgagagtgc accatatgcg gtgtgaaata ccgcacagat gcgtaaggag aaaataccgc
     5041 atcaggcgcc attcgccatt caggctgcgc aactgttggg aagggcgatc ggtgcgggcc
     5101 tcttcgctat tacgccagct ggcgaaaggg ggatgtgctg caaggcgatt aagttgggta
     5161 acgccagggt tttcccagtc acgacgttgt aaaacgacgg ccagtgaatt ggagatcggt
     5221 acttcgcgaa tgcgtcgaga t
//
