pTRE2

价格:850元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pTRE2
质粒类型: 哺乳细胞表达;四环素调控载体
高拷贝/低拷贝: --
启动子: Tet-responsive
克隆方法: 多克隆位点,限制性内切酶
载体大小: 3757bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: --
备注: --
产品目录号: 6241-1
稳定性: 瞬表达
组成型: 诱导型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

pTRE2载体图谱

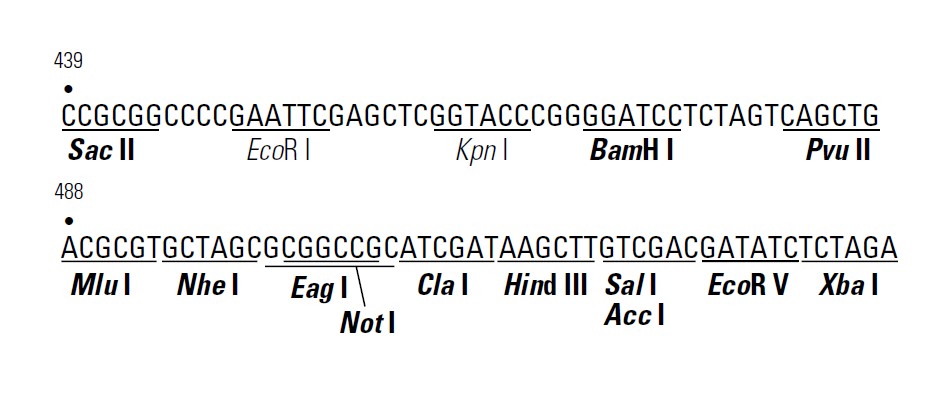

pTRE2多克隆位点

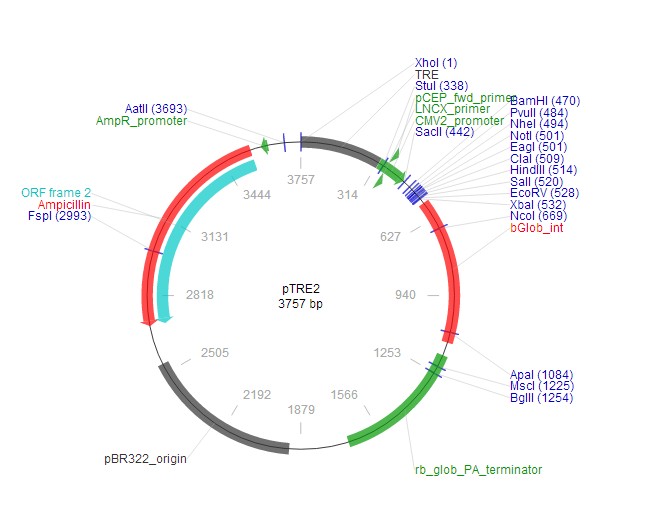

pTRE2载体图谱2



载体简介

载体序列

LOCUS       pTRE2	3757 bp 	DNA	SYN
DEFINITION  pTRE2
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..3757
                     /organism="pTRE2"
                     /mol_type="other DNA"
     misc_feature    1..318
                     /label="TRE"
     promoter        319..438
                     /label="CMV2_promoter"
     misc_feature    350..369
                     /label="pCEP_fwd_primer"
     misc_feature    352..376
                     /label="LNCX_primer"
     misc_feature    553..1125
                     /label="bGlob_int"
     terminator      1177..1690
                     /label="rb_glob_PA_terminator"
     rep_origin      complement(1924..2543)
                     /label="pBR322_origin"
     gene            complement(2698..3558)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(2698..3558)
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(3600..3628)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 CTCGAGTTTA CCACTCCCTA TCAGTGATAG AGAAAAGTGA AAGTCGAGTT TACCACTCCC
   61 TATCAGTGAT AGAGAAAAGT GAAAGTCGAG TTTACCACTC CCTATCAGTG ATAGAGAAAA
  121 GTGAAAGTCG AGTTTACCAC TCCCTATCAG TGATAGAGAA AAGTGAAAGT CGAGTTTACC
  181 ACTCCCTATC AGTGATAGAG AAAAGTGAAA GTCGAGTTTA CCACTCCCTA TCAGTGATAG
  241 AGAAAAGTGA AAGTCGAGTT TACCACTCCC TATCAGTGAT AGAGAAAAGT GAAAGTCGAG
  301 CTCGGTACCC GGGTCGAGTA GGCGTGTACG GTGGGAGGCC TATATAAGCA GAGCTCGTTT
  361 AGTGAACCGT CAGATCGCCT GGAGACGCCA TCCACGCTGT TTTGACCTCC ATAGAAGACA
  421 CCGGGACCGA TCCAGCCTCC GCGGCCCCGA ATTCGAGCTC GGTACCCGGG GATCCTCTAG
  481 TCAGCTGACG CGTGCTAGCG CGGCCGCATC GATAAGCTTG TCGACGATAT CTCTAGAGCT
  541 GAGAACTTCA GGGTGAGTTT GGGGACCCTT GATTGTTCTT TCTTTTTCGC TATTGTAAAA
  601 TTCATGTTAT ATGGAGGGGG CAAAGTTTTC AGGGTGTTGT TTAGAATGGG AAGATGTCCC
  661 TTGTATCACC ATGGACCCTC ATGATAATTT TGTTTCTTTC ACTTTCTACT CTGTTGACAA
  721 CCATTGTCTC CTCTTATTTT CTTTTCATTT TCTGTAACTT TTTTCGTTAA ACTTTAGCTT
  781 GCATTTGTAA CGAATTTTTA AATTCACTTT CGTTTATTTG TCAGATTGTA AGTACTTTCT
  841 CTAATCACTT TTTTTTCAAG GCAATCAGGG TAATTATATT GTACTTCAGC ACAGTTTTAG
  901 AGAACAATTG TTATAATTAA ATGATAAGGT AGAATATTTC TGCATATAAA TTCTGGCTGG
  961 CGTGGAAATA TTCTTATTGG TAGAAACAAC TACATCCTGG TAATCATCCT GCCTTTCTCT
 1021 TTATGGTTAC AATGATATAC ACTGTTTGAG ATGAGGATAA AATACTCTGA GTCCAAACCG
 1081 GGCCCCTCTG CTAACCATGT TCATGCCTTC TTCTTTTTCC TACAGCTCCT GGGCAACGTG
 1141 CTGGTTGTTG TGCTGTCTCA TCATTTTGGC AAAGAATTCA CTCCTCAGGT GCAGGCTGCC
 1201 TATCAGAAGG TGGTGGCTGG TGTGGCCAAT GCCCTGGCTC ACAAATACCA CTGAGATCTT
 1261 TTTCCCTCTG CCAAAAATTA TGGGGACATC ATGAAGCCCC TTGAGCATCT GACTTCTGGG
 1321 TAATAAAGGA AATTTATTTT CATTGCAATA GTGTGTGGGA ATTTTTTGTG TCTCTCACTC
 1381 GGAAGGACAT ATGGGAGGGC AAATCATTTA AAACATCAGA ATGAGTATTT GGTTTAGAGT
 1441 TTGGCAACAT ATGCCATATG CTGGCTGCCA TGAACAAAGG TGGCTATAAA GAGGTCATCA
 1501 GTATATGAAA CAGCCCCCTG CTGTCCATTC CTTATTCCAT AGAAAAGCCT TGACTTGAGG
 1561 TTAGATTTTT TTTATATTTT GTTTTGTGTT ATTTTTTTCT TTAACATCCC TAAAATTTTC
 1621 CTTACATGTT TTACTAGCCA GATTTTTCCT CCTCTCCTGA CTACTCCCAG TCATAGCTGT
 1681 CCCTCTTCTC TTATGAACTC GACTGCATTA ATGAATCGGC CAACGCGCGG GGAGAGGCGG
 1741 TTTGCGTATT GGGCGCTCTT CCGCTTCCTC GCTCACTGAC TCGCTGCGCT CGGTCGTTCG
 1801 GCTGCGGCGA GCGGTATCAG CTCACTCAAA GGCGGTAATA CGGTTATCCA CAGAATCAGG
 1861 GGATAACGCA GGAAAGAACA TGTGAGCAAA AGGCCAGCAA AAGGCCAGGA ACCGTAAAAA
 1921 GGCCGCGTTG CTGGCGTTTT TCCATAGGCT CCGCCCCCCT GACGAGCATC ACAAAAATCG
 1981 ACGCTCAAGT CAGAGGTGGC GAAACCCGAC AGGACTATAA AGATACCAGG CGTTTCCCCC
 2041 TGGAAGCTCC CTCGTGCGCT CTCCTGTTCC GACCCTGCCG CTTACCGGAT ACCTGTCCGC
 2101 CTTTCTCCCT TCGGGAAGCG TGGCGCTTTC TCAATGCTCA CGCTGTAGGT ATCTCAGTTC
 2161 GGTGTAGGTC GTTCGCTCCA AGCTGGGCTG TGTGCACGAA CCCCCCGTTC AGCCCGACCG
 2221 CTGCGCCTTA TCCGGTAACT ATCGTCTTGA GTCCAACCCG GTAAGACACG ACTTATCGCC
 2281 ACTGGCAGCA GCCACTGGTA ACAGGATTAG CAGAGCGAGG TATGTAGGCG GTGCTACAGA
 2341 GTTCTTGAAG TGGTGGCCTA ACTACGGCTA CACTAGAAGG ACAGTATTTG GTATCTGCGC
 2401 TCTGCTGAAG CCAGTTACCT TCGGAAAAAG AGTTGGTAGC TCTTGATCCG GCAAACAAAC
 2461 CACCGCTGGT AGCGGTGGTT TTTTTGTTTG CAAGCAGCAG ATTACGCGCA GAAAAAAAGG
 2521 ATCTCAAGAA GATCCTTTGA TCTTTTCTAC GGGGTCTGAC GCTCAGTGGA ACGAAAACTC
 2581 ACGTTAAGGG ATTTTGGTCA TGAGATTATC AAAAAGGATC TTCACCTAGA TCCTTTTAAA
 2641 TTAAAAATGA AGTTTTAAAT CAATCTAAAG TATATATGAG TAAACTTGGT CTGACAGTTA
 2701 CCAATGCTTA ATCAGTGAGG CACCTATCTC AGCGATCTGT CTATTTCGTT CATCCATAGT
 2761 TGCCTGACTC CCCGTCGTGT AGATAACTAC GATACGGGAG GGCTTACCAT CTGGCCCCAG
 2821 TGCTGCAATG ATACCGCGAG ACCCACGCTC ACCGGCTCCA GATTTATCAG CAATAAACCA
 2881 GCCAGCCGGA AGGGCCGAGC GCAGAAGTGG TCCTGCAACT TTATCCGCCT CCATCCAGTC
 2941 TATTAATTGT TGCCGGGAAG CTAGAGTAAG TAGTTCGCCA GTTAATAGTT TGCGCAACGT
 3001 TGTTGCCATT GCTACAGGCA TCGTGGTGTC ACGCTCGTCG TTTGGTATGG CTTCATTCAG
 3061 CTCCGGTTCC CAACGATCAA GGCGAGTTAC ATGATCCCCC ATGTTGTGCA AAAAAGCGGT
 3121 TAGCTCCTTC GGTCCTCCGA TCGTTGTCAG AAGTAAGTTG GCCGCAGTGT TATCACTCAT
 3181 GGTTATGGCA GCACTGCATA ATTCTCTTAC TGTCATGCCA TCCGTAAGAT GCTTTTCTGT
 3241 GACTGGTGAG TACTCAACCA AGTCATTCTG AGAATAGTGT ATGCGGCGAC CGAGTTGCTC
 3301 TTGCCCGGCG TCAATACGGG ATAATACCGC GCCACATAGC AGAACTTTAA AAGTGCTCAT
 3361 CATTGGAAAA CGTTCTTCGG GGCGAAAACT CTCAAGGATC TTACCGCTGT TGAGATCCAG
 3421 TTCGATGTAA CCCACTCGTG CACCCAACTG ATCTTCAGCA TCTTTTACTT TCACCAGCGT
 3481 TTCTGGGTGA GCAAAAACAG GAAGGCAAAA TGCCGCAAAA AAGGGAATAA GGGCGACACG
 3541 GAAATGTTGA ATACTCATAC TCTTCCTTTT TCAATATTAT TGAAGCATTT ATCAGGGTTA
 3601 TTGTCTCATG AGCGGATACA TATTTGAATG TATTTAGAAA AATAAACAAA TAGGGGTTCC
 3661 GCGCACATTT CCCCGAAAAG TGCCACCTGA CGTCTAAGAA ACCATTATTA TCATGACATT
 3721 AACCTATAAA AATAGGCGTA TCACGAGGCC CTTTCGT
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
