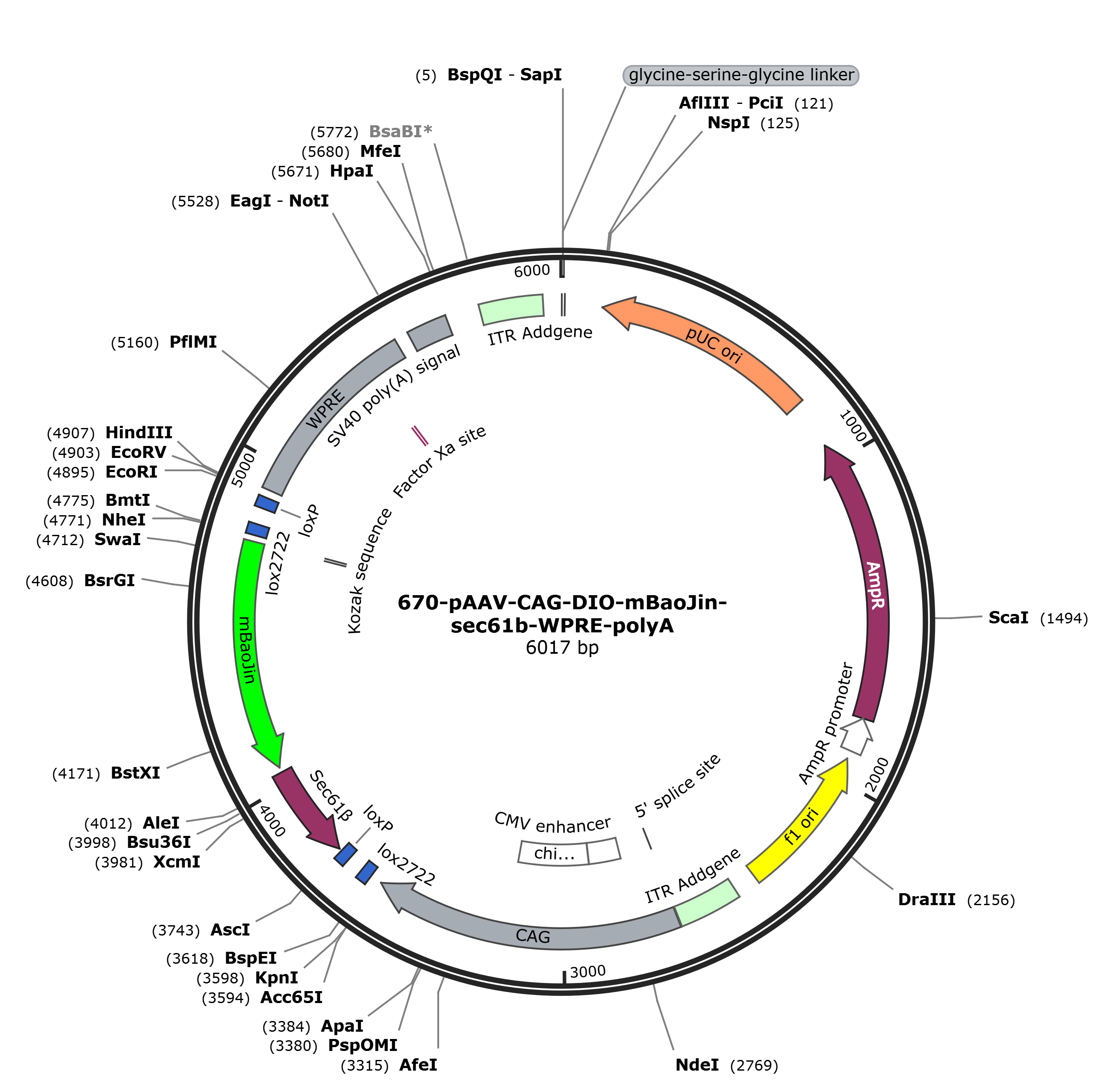

pAAV-CAG-DIO-mBaoJin-sec61b-WPRE-polyA

LOCUS       pAAV-CAG-DIO-mBaoJin-sec61b-WPRE-polyA                6017 bp DNA     circular SYN 16-JAN-2025
DEFINITION  synthetic circular DNA.
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6017)
  AUTHORS   Rui Lin
  TITLE     Direct Submission
  JOURNAL   Exported Apr 30, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6017
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     misc_feature    complement(3..11)
                     /label=glycine-serine-glycine linker
     rep_origin      complement(126..793)
                     /direction=LEFT
                     /label=pUC ori
     CDS             complement(941..1801)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(1802..1906)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      complement(1932..2387)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication;
                     arrowindicates direction of (+) strand synthesis"
     misc_feature    2458..2647
                     /label=ITR Addgene
     misc_feature    2648..2653
                     /label=5' splice site
     misc_feature    2651..3587
                     /label=CAG
     enhancer        2774..2899
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2901..3178
                     /label=chicken beta-actin promoter
     primer_bind     3579..3600
                     /label=0711-PM960-F
     misc_feature    3624..3657
                     /label=lox2722
     misc_feature    3708..3741
                     /label=loxP
     CDS             complement(3750..4040)
                     /codon_start=1
                     /label=Sec61-beta
                     /translation="MPGPTPSGTNVGSSGRSPSKAVAARAAGSTVRQRKNASCGTRSAG
                     RTTSAGTGGMWRFYTEDSPGLKVGPVPVLVMSLLFIASVFMLHIWGKYTRS"
     primer_bind     4048..4077
                     /label=0711-PM960-R
     CDS             complement(4056..4757)
                     /codon_start=1
                     /label=mBaoJin
                     /translation="MVSKGEEENMASTPFKFQLKGTINGKSFTVEGEGEGNSHEGSHKG
                     KYVCTSGKLPMSWAALGTTFGYGMKYYTKYPSGLKNWFREVMPGGFTYDRHIQYKGDGS
                     IHAKHQHFMKNGTYHNIVEFTGQDFKENSPVLTGDMNVSLPNEVPQIPRDDGVECPVTL
                     LYPLLSDKSKYVEAHQYTICKPLHNQPAPDVPYHWIRKQYTQSKDDAEERDHICQSETL
                     EAHLKGMDELYK"
     primer_bind     4083..4107
                     /label=0714-StayBlue-R
     primer_bind     complement(4697..4731)
                     /label=0714-StayBlue-F
     primer_bind     complement(4736..4764)
                     /label=0711-PM960-F
     regulatory      4754..4763
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     misc_feature    4777..4810
                     /label=lox2722
     misc_feature    4861..4894
                     /label=loxP
     misc_feature    4919..5507
                     /label=WPRE
                     /note="woodchuck hepatitis virus
                     posttranscriptionalregulatory element"
     CDS             complement(5390..5401)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    5550..5671
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     misc_feature    5774..5963
                     /label=ITR Addgene
ORIGIN
        1 cttccgcttc ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat
       61 cagctcactc aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga
      121 acatgtgagc aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt
      181 ttttccatag gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt
      241 ggcgaaaccc gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc
      301 gctctcctgt tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa
      361 gcgtggcgct ttctcatagc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct
      421 ccaagctggg ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta
      481 actatcgtct tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg
      541 gtaacaggat tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc
      601 ctaactacgg ctacactaga agaacagtat ttggtatctg cgctctgctg aagccagtta
      661 ccttcggaaa aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtg
      721 gtttttttgt ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa gaagatcctt
      781 tgatcttttc tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg
      841 tcatgagatt atcaaaaagg atcttcacct agatcctttt aaattaaaaa tgaagtttta
      901 aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg
      961 aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga ctccccgtcg
     1021 tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca atgataccgc
     1081 gagacccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc ggaagggccg
     1141 agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat tgttgccggg
     1201 aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc attgctacag
     1261 gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt tcccaacgat
     1321 caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc
     1381 cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg gcagcactgc
     1441 ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt gagtactcaa
     1501 ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac
     1561 gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga aaacgttctt
     1621 cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg taacccactc
     1681 gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg tgagcaaaaa
     1741 caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt tgaatactca
     1801 tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc atgagcggat
     1861 acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca tttccccgaa
     1921 aagtgccacc taaattgtaa gcgttaatat tttgttaaaa ttcgcgttaa atttttgtta
     1981 aatcagctca ttttttaacc aataggccga aatcggcaaa atcccttata aatcaaaaga
     2041 atagaccgag atagggttga gtgttgttcc agtttggaac aagagtccac tattaaagaa
     2101 cgtggactcc aacgtcaaag ggcgaaaaac cgtctatcag ggcgatggcc cactacgtga
     2161 accatcaccc taatcaagtt ttttggggtc gaggtgccgt aaagcactaa atcggaaccc
     2221 taaagggagc ccccgattta gagcttgacg gggaaagccg gcgaacgtgg cgagaaagga
     2281 agggaagaaa gcgaaaggag cgggcgctag ggcgctggca agtgtagcgg tcacgctgcg
     2341 cgtaaccacc acacccgccg cgcttaatgc gccgctacag ggcgcgtccc attcgccatt
     2401 caggctgcgc aactgttggg aagggcgatc ggtgcgggcc tcttcgctat tacgccagct
     2461 gcgcgctcgc tcgctcactg aggccgcccg ggcaaagccc gggcgtcggg cgacctttgg
     2521 tcgcccggcc tcagtgagcg agcgagcgcg cagagaggga gtggccaact ccatcactag
     2581 gggttccttg tagttaatga ttaacccgcc atgctactta tctacgtagc catgctctag
     2641 gaagatcgta ccattgacgt caataatgac gtatgttccc atagtaacgc caatagggac
     2701 tttccattga cgtcaatggg tggagtattt acggtaaact gcccacttgg cagtacatca
     2761 agtgtatcat atgccaagta cgccccctat tgacgtcaat gacggtaaat ggcccgcctg
     2821 gcattatgcc cagtacatga ccttatggga ctttcctact tggcagtaca tctacgtatt
     2881 agtcatcgct attaccatgg tcgaggtgag ccccacgttc tgcttcactc tccccatctc
     2941 ccccccctcc ccacccccaa ttttgtattt atttattttt taattatttt gtgcagcgat
     3001 gggggcgggg gggggggggg ggcgcgcgcc aggcggggcg gggcggggcg aggggcgggg
     3061 cggggcgagg cggagaggtg cggcggcagc caatcagagc ggcgcgctcc gaaagtttcc
     3121 ttttatggcg aggcggcggc ggcggcggcc ctataaaaag cgaagcgcgc ggcgggcggg
     3181 agtcgctgcg acgctgcctt cgccccgtgc cccgctccgc cgccgcctcg cgccgcccgc
     3241 cccggctctg actgaccgcg ttactcccac aggtgagcgg gcgggacggc ccttctcctc
     3301 cgggctgtaa ttagcgcttg gtttaatgac ggcttgtttc ttttctgtgg ctgcgtgaaa
     3361 gccttgaggg gctccgggag ggccctttgt gcggggggag cggctcgggg ctgtccgcgg
     3421 ggggacggct gccttcgggg gggacggggc agggcggggt tcggcttctg gcgtgtgacc
     3481 ggcggctcta gagcctctgc taaccatgtt catgccttct tctttttcct acagctcctg
     3541 ggcaacgtgc tggttattgt gctgtctcat cattttggca aagaattgga tccggtaccg
     3601 gatcctctag agtcgactcc ggaataactt cgtataggat actttatacg aagttatgca
     3661 gaatggtagc tggattgtag ctgctattag caatatgaaa cctcttaata acttcgtata
     3721 gcatacatta tacgaagtta tggcgcgccc tacgaacgag tgtacttgcc ccaaatgtgc
     3781 aacataaata cagaagcgat gaacagaaga ctcataacca atactggaac agggccaact
     3841 ttgagcccag gtgaatcttc tgtgtagaat cgccacatcc ccccggtgcc tgccgaggtt
     3901 gtgcggcctg cactccttgt cccacagctg gcatttttcc tctgccggac agtggatccc
     3961 gccgcccggg cggccactgc tttgctggga gagcgccctg aggatcccac gttagtgcca
     4021 ctgggggtcg gaccaggcat ggtggcgacc ggtggcttat acagctcgtc catgcccttt
     4081 aagtgtgctt cgagagtctc tgattgacag atatgatcgc gttcctcggc atcatctttg
     4141 ctttgtgtgt attgtttacg aatccagtga tatgggacat caggtgctgg ttgattatga
     4201 agaggcttgc agattgtata ttggtgagcc tcgacgtatt ttgatttatc cgataataaa
     4261 ggataaagca aggtcactgg gcattctact ccatcatctc tgggtatttg tgggacttca
     4321 ttcggtaatg agacattcat atctccagtt aagactggac tattttcttt aaaatcctga
     4381 ccggtaaatt ctacaatgtt gtgataagtc ccatttttca taaagtgttg gtgttttgca
     4441 tggatactcc catcgccttt atattgaata tgacgatcgt aggtaaagcc tccgggcatt
     4501 acttcacgaa accagttctt cagtccacta ggatatttgg tataatattt cattccataa
     4561 ccaaaggttg tcccaagtgc tgcccatgac atcggtagtt ttccacttgt acaaacatat
     4621 tttcctttat gagaaccttc atgtgagttc ccttcacctt cgccttcaac ggtaaacgat
     4681 ttgccattga tggttccttt aagttgaaat ttaaatggtg tactagccat gttttcctcc
     4741 tctccctttg agaccatggt ggcgaccggt gctagcataa cttcgtataa agtatcctat
     4801 acgaagttat ttgccttaac ccagaaatta tcactgttat tctttagaat ggtgcaaaga
     4861 ataacttcgt ataatgtatg ctatacgaag ttatgaattc gatatcaagc ttatcgataa
     4921 tcaacctctg gattacaaaa tttgtgaaag attgactggt attcttaact atgttgctcc
     4981 ttttacgcta tgtggatacg ctgctttaat gcctttgtat catgctattg cttcccgtat
     5041 ggctttcatt ttctcctcct tgtataaatc ctggttgctg tctctttatg aggagttgtg
     5101 gcccgttgtc aggcaacgtg gcgtggtgtg cactgtgttt gctgacgcaa cccccactgg
     5161 ttggggcatt gccaccacct gtcagctcct ttccgggact ttcgctttcc ccctccctat
     5221 tgccacggcg gaactcatcg ccgcctgcct tgcccgctgc tggacagggg ctcggctgtt
     5281 gggcactgac aattccgtgg tgttgtcggg gaaatcatcg tcctttcctt ggctgctcgc
     5341 ctgtgttgcc acctggattc tgcgcgggac gtccttctgc tacgtccctt cggccctcaa
     5401 tccagcggac cttccttccc gcggcctgct gccggctctg cggcctcttc cgcgtcttcg
     5461 ccttcgccct cagacgagtc ggatctccct ttgggccgcc tccccgcatc gataccgtcg
     5521 acccgggcgg ccgcttcgag cagacatgat aagatacatt gatgagtttg gacaaaccac
     5581 aactagaatg cagtgaaaaa aatgctttat ttgtgaaatt tgtgatgcta ttgctttatt
     5641 tgtaaccatt ataagctgca ataaacaagt taacaacaac aattgcattc attttatgtt
     5701 tcaggttcag ggggagatgt gggaggtttt ttaaagcaag taaaacctct acaaatgtgg
     5761 taaaatcgat aaggatcttc ctagagcatg gctacgtaga taagtagcat ggcgggttaa
     5821 tcattaacta caaggaaccc ctagtgatgg agttggccac tccctctctg cgcgctcgct
     5881 cgctcactga ggccgggcga ccaaaggtcg cccgacgccc gggctttgcc cgggcggcct
     5941 cagtgagcga gcgagcgcgc agctgcatta atgaatcggc caacgcgcgg ggagaggcgg
     6001 tttgcgtatt gggcgct
//
