pTet-On-Advanced

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pTet-On-Advanced
质粒类型: 四环素调控系统
高拷贝/低拷贝: --
克隆方法: 多克隆位点,限制性内切酶
启动子: CMV
载体大小: 7139 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: 新霉素
克隆菌株: --
宿主细胞(系): --
备注: --
产品目录号: --
稳定性: --
组成型/诱导型: --
病毒/非病毒: --

载体质粒图谱和多克隆位点信息

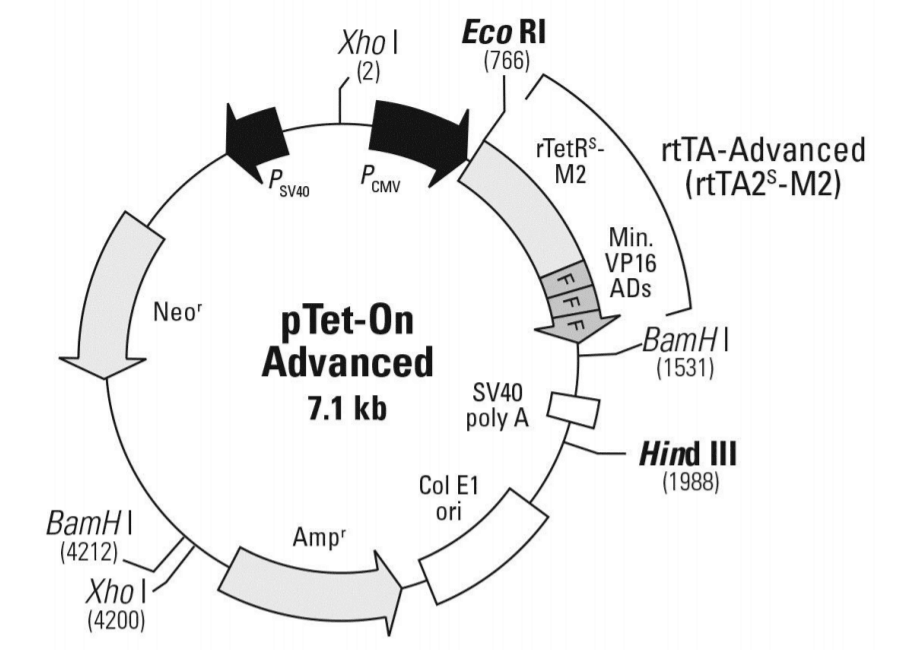

pTet-On-Advanced载体图谱

载体简介

载体序列

LOCUS       pTet-On-Advanced                7139 bp ds-DNA     circular SYN 19-OCT-2017
DEFINITION  Vector for expressing the rtTA-Advanced transactivator in the
            Tet-On(R) Advanced system.
ACCESSION   .
VERSION     .
KEYWORDS    pTet-On-Advanced
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7139)
  AUTHORS   Clontech (TaKaRa)
  TITLE     Direct Submission
  JOURNAL   Exported Monday, February 17, 2020 from SnapGene Viewer 3.1.4
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..7139
                     /organism="synthetic DNA construct"
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
     enhancer        89..468
                     /note="CMV enhancer"
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        469..672
                     /note="CMV promoter"
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             775..1521
                     /codon_start=1
                     /product="improved tetracycline-controlled transactivator"
                     /note="rtTA-Advanced"
                     /note="binds to a Tet-responsive element in the presence
                     but not the absence of doxycycline"
                     /translation="MSRLDKSKVINGALELLNGVGIEGLTTRKLAQKLGVEQPTLYWHV
                     KNKRALLDALPIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLGTR
                     PTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEEQEHQVAKEERETPTT
                     DSMPPLLRQAIELFDRQGAEPAFLFGLELIICGLEKQLKCESGGPADALDDFDLDMLPA
                     DALDDFDLDMLPADALDDFDLDMLPG"
     polyA_signal    1531..1665
                     /note="SV40 poly(A) signal"
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(2385..2973)
                     /direction=LEFT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(3144..4004)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(4005..4109)
                     /gene="bla"
                     /note="AmpR promoter"
     polyA_signal    4222..4356
                     /note="SV40 poly(A) signal"
                     /note="SV40 polyadenylation signal"
     intron          4931..4996
                     /note="small t intron"
                     /note="simian virus 40 (SV40) small t antigen intron"
     CDS             complement(5416..6210)
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /note="NeoR/KanR"
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     promoter        complement(6571..6900)
                     /note="SV40 promoter"
                     /note="SV40 enhancer and early promoter"
     rep_origin      6585..6720
                     /note="SV40 ori"
                     /note="SV40 origin of replication"
ORIGIN
        1 ctcgaggagc ttggcccatt gcatacgttg tatccatatc ataatatgta catttatatt
       61 ggctcatgtc caacattacc gccatgttga cattgattat tgactagtta ttaatagtaa
      121 tcaattacgg ggtcattagt tcatagccca tatatggagt tccgcgttac ataacttacg
      181 gtaaatggcc cgcctggctg accgcccaac gacccccgcc cattgacgtc aataatgacg
      241 tatgttccca tagtaacgcc aatagggact ttccattgac gtcaatgggt ggagtattta
      301 cggtaaactg cccacttggc agtacatcaa gtgtatcata tgccaagtac gccccctatt
      361 gacgtcaatg acggtaaatg gcccgcctgg cattatgccc agtacatgac cttatgggac
      421 tttcctactt ggcagtacat ctacgtatta gtcatcgcta ttaccatggt gatgcggttt
      481 tggcagtaca tcaatgggcg tggatagcgg tttgactcac ggggatttcc aagtctccac
      541 cccattgacg tcaatgggag tttgttttgg caccaaaatc aacgggactt tccaaaatgt
      601 cgtaacaact ccgccccatt gacgcaaatg ggcggtaggc gtgtacggtg ggaggtctat
      661 ataagcagag ctcgtttagt gaaccgtcag atcgcctgga gacgccatcc acgctgtttt
      721 gacctccata gaagacaccg ggaccgatcc agcctccgcg gccccgaatt caccatgtct
      781 agactggaca agagcaaagt cataaacggc gctctggaat tactcaatgg agtcggtatc
      841 gaaggcctga cgacaaggaa actcgctcaa aagctgggag ttgagcagcc taccctgtac
      901 tggcacgtga agaacaagcg ggccctgctc gatgccctgc caatcgagat gctggacagg
      961 catcataccc acttctgccc cctggaaggc gagtcatggc aagactttct gcggaacaac
     1021 gccaagtcat tccgctgtgc tctcctctca catcgcgacg gggctaaagt gcatctcggc
     1081 acccgcccaa cagagaaaca gtacgaaacc ctggaaaatc agctcgcgtt cctgtgtcag
     1141 caaggcttct ccctggagaa cgcactgtac gctctgtccg ccgtgggcca ctttacactg
     1201 ggctgcgtat tggaggaaca ggagcatcaa gtagcaaaag aggaaagaga gacacctacc
     1261 accgattcta tgcccccact tctgagacaa gcaattgagc tgttcgaccg gcagggagcc
     1321 gaacctgcct tccttttcgg cctggaacta atcatatgtg gcctggagaa acagctaaag
     1381 tgcgaaagcg gcgggccggc cgacgccctt gacgattttg acttagacat gctcccagcc
     1441 gatgcccttg acgactttga ccttgatatg ctgcctgctg acgctcttga cgattttgac
     1501 cttgacatgc tccccgggta actaagtaag gatccagaca tgataagata cattgatgag
     1561 tttggacaaa ccacaactag aatgcagtga aaaaaatgct ttatttgtga aatttgtgat
     1621 gctattgctt tatttgtaac cattataagc tgcaataaac aagttaacaa caacaattgc
     1681 attcatttta tgtttcaggt tcagggggag gtgtgggagg ttttttaaag caagtaaaac
     1741 ctctacaaat gtggtatggc tgattatgat cctgcaagcc tcgtcgtcct ggccggacca
     1801 cgctatctgt gcaaggtccc cggccccgga cgcgcgctcc atgagcagag cgcccgccgc
     1861 cgaggcgaag actcgggcgg cgccctgccc gtcccaccag gtcaacaggc ggtaaccggc
     1921 ctcttcatcg ggaatgcgcg cgaccttcag catcgccggc atgtccccct ggcggacggg
     1981 aagtatccag ctcgaccaag cttggcgaga ttttcaggag ctaaggaagc taaaatggag
     2041 aaaaaaatca ctggatatac caccgttgat atatcccaat ggcatcgtaa agaacatttt
     2101 gaggcatttc agtcagttgc tcaatgtacc tataaccaga ccgttcagct gcattaatga
     2161 atcggccaac gcgcggggag aggcggtttg cgtattgggc gctcttccgc ttcctcgctc
     2221 actgactcgc tgcgctcggt cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg
     2281 gtaatacggt tatccacaga atcaggggat aacgcaggaa agaacatgtg agcaaaaggc
     2341 cagcaaaagg ccaggaaccg taaaaaggcc gcgttgctgg cgtttttcca taggctccgc
     2401 ccccctgacg agcatcacaa aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga
     2461 ctataaagat accaggcgtt tccccctgga agctccctcg tgcgctctcc tgttccgacc
     2521 ctgccgctta ccggatacct gtccgccttt ctcccttcgg gaagcgtggc gctttctcat
     2581 agctcacgct gtaggtatct cagttcggtg taggtcgttc gctccaagct gggctgtgtg
     2641 cacgaacccc ccgttcagcc cgaccgctgc gccttatccg gtaactatcg tcttgagtcc
     2701 aacccggtaa gacacgactt atcgccactg gcagcagcca ctggtaacag gattagcaga
     2761 gcgaggtatg taggcggtgc tacagagttc ttgaagtggt ggcctaacta cggctacact
     2821 agaagaacag tatttggtat ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt
     2881 ggtagctctt gatccggcaa acaaaccacc gctggtagcg gtggtttttt tgtttgcaag
     2941 cagcagatta cgcgcagaaa aaaaggatct caagaagatc ctttgatctt ttctacgggg
     3001 tctgacgctc agtggaacga aaactcacgt taagggattt tggtcatgag attatcaaaa
     3061 aggatcttca cctagatcct tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata
     3121 tatgagtaaa cttggtctga cagttaccaa tgcttaatca gtgaggcacc tatctcagcg
     3181 atctgtctat ttcgttcatc catagttgcc tgactccccg tcgtgtagat aactacgata
     3241 cgggagggct taccatctgg ccccagtgct gcaatgatac cgcgagaccc acgctcaccg
     3301 gctccagatt tatcagcaat aaaccagcca gccggaaggg ccgagcgcag aagtggtcct
     3361 gcaactttat ccgcctccat ccagtctatt aattgttgcc gggaagctag agtaagtagt
     3421 tcgccagtta atagtttgcg caacgttgtt gccattgcta caggcatcgt ggtgtcacgc
     3481 tcgtcgtttg gtatggcttc attcagctcc ggttcccaac gatcaaggcg agttacatga
     3541 tcccccatgt tgtgcaaaaa agcggttagc tccttcggtc ctccgatcgt tgtcagaagt
     3601 aagttggccg cagtgttatc actcatggtt atggcagcac tgcataattc tcttactgtc
     3661 atgccatccg taagatgctt ttctgtgact ggtgagtact caaccaagtc attctgagaa
     3721 tagtgtatgc ggcgaccgag ttgctcttgc ccggcgtcaa cacgggataa taccgcgcca
     3781 catagcagaa ctttaaaagt gctcatcatt ggaaaacgtt cttcggggcg aaaactctca
     3841 aggatcttac cgctgttgag atccagttcg atgtaaccca ctcgtgcacc caactgatct
     3901 tcagcatctt ttactttcac cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc
     3961 gcaaaaaagg gaataagggc gacacggaaa tgttgaatac tcatactctt cctttttcaa
     4021 tattattgaa gcatttatca gggttattgt ctcatgagcg gatacatatt tgaatgtatt
     4081 tagaaaaata aacaaatagg ggttccgcgc acatttcccc gaaaagtgcc acctgacgtc
     4141 taagaaacca ttattatcat gacattaacc tataaaaata ggcgtatcac gaggcccttt
     4201 cgtcttcact cgaggtcgag ggatccagac atgataagat acattgatga gtttggacaa
     4261 accacaacta gaatgcagtg aaaaaaatgc tttatttgtg aaatttgtga tgctattgct
     4321 ttatttgtaa ccattataag ctgcaataaa caagttaaca acaacaattg cattcatttt
     4381 atgtttcagg ttcaggggga ggtgtgggag gttttttaaa gcaagtaaaa cctctacaaa
     4441 tgtggtatgg ctgattatga tctctagtca aggcactata catcaaatat tccttattaa
     4501 cccctttaca aattaaaaag ctaaaggtac acaatttttg agcatagtta ttaatagcag
     4561 acactctatg cctgtgtgga gtaagaaaaa acagtatgtt atgattataa ctgttatgcc
     4621 tacttataaa ggttacagaa tatttttcca taattttctt gtatagcagt gcagcttttt
     4681 cctttgtggt gtaaatagca aagcaagcaa gagttctatt actaaacaca gcatgactca
     4741 aaaaacttag caattctgaa ggaaagtcct tggggtcttc tacctttctc ttcttttttg
     4801 gaggagtaga atgttgagag tcagcagtag cctcatcatc actagatggc atttcttctg
     4861 agcaaaacag gttttcctca ttaaaggcat tccaccactg ctcccattca tcagttccat
     4921 aggttggaat ctaaaataca caaacaatta gaatcagtag tttaacacat tatacactta
     4981 aaaattttat atttacctta gagctttaaa tctctgtagg tagtttgtcc aattatgtca
     5041 caccacagaa gtaaggttcc ttcacaaaga tccggaccaa agcggccatc gtgcctcccc
     5101 actcctgcag ttcgggggca tggatgcgcg gatagccgct gctggtttcc tggatgccga
     5161 cggatttgca ctgccggtag aactccgcga ggtcgtccag cctcaggcag cagctgaacc
     5221 aactcgcgag gggatcgagc ccggggtggg cgaagaactc cagcatgaga tccccgcgct
     5281 ggaggatcat ccagccggcg tcccggaaaa cgattccgaa gcccaacctt tcatagaagg
     5341 cggcggtgga atcgaaatct cgtgatggca ggttgggcgt cgcttggtcg gtcatttcga
     5401 accccagagt cccgctcaga agaactcgtc aagaaggcga tagaaggcga tgcgctgcga
     5461 atcgggagcg gcgataccgt aaagcacgag gaagcggtca gcccattcgc cgccaagctc
     5521 ttcagcaata tcacgggtag ccaacgctat gtcctgatag cggtccgcca cacccagccg
     5581 gccacagtcg atgaatccag aaaagcggcc attttccacc atgatattcg gcaagcaggc
     5641 atcgccatgg gtcacgacga gatcctcgcc gtcgggcatg cgcgccttga gcctggcgaa
     5701 cagttcggct ggcgcgagcc cctgatgctc ttcgtccaga tcatcctgat cgacaagacc
     5761 ggcttccatc cgagtacgtg ctcgctcgat gcgatgtttc gcttggtggt cgaatgggca
     5821 ggtagccgga tcaagcgtat gcagccgccg cattgcatca gccatgatgg atactttctc
     5881 ggcaggagca aggtgagatg acaggagatc ctgccccggc acttcgccca atagcagcca
     5941 gtcccttccc gcttcagtga caacgtcgag cacagctgcg caaggaacgc ccgtcgtggc
     6001 cagccacgat agccgcgctg cctcgtcctg cagttcattc agggcaccgg acaggtcggt
     6061 cttgacaaaa agaaccgggc gcccctgcgc tgacagccgg aacacggcgg catcagagca
     6121 gccgattgtc tgttgtgccc agtcatagcc gaatagcctc tccacccaag cggccggaga
     6181 acctgcgtgc aatccatctt gttcaatcat gcgaaacgat cctcatcctg tctcttgatc
     6241 agatcttgat cccctgcgcc atcagatcct tggcggcaag aaagccatcc agtttacttt
     6301 gcagggcttc ccaaccttac cagagggcgc cccagctggc aattccggtt cgcttgctgt
     6361 ccataaaacc gcccagtcta gctatcgcca tgtaagccca ctgcaagcta cctgctttct
     6421 ctttgcgctt gcgttttccc ttgtccagat agcccagtag ctgacattca tccggggtca
     6481 gcaccgtttc tgcggactgg ctttctacgt gttccgcttc ctttagcagc ccttgcgccc
     6541 tgagtgcttg cggcagcgtg aagctagctt tttgcaaaag cctaggcctc caaaaaagcc
     6601 tcctcactac ttctggaata gctcagaggc cgaggcggcc tcggcctctg cataaataaa
     6661 aaaaattagt cagccatggg gcggagaatg ggcggaactg ggcggagtta ggggcgggat
     6721 gggcggagtt aggggcggga ctatggttgc tgactaattg agatgcatgc tttgcatact
     6781 tctgcctgct ggggagcctg gggactttcc acacctggtt gctgactaat tgagatgcat
     6841 gctttgcata cttctgcctg ctggggagcc tggggacttt ccacacccta actgacacac
     6901 attccacagc tgcctcgcgc gtttcggtga tgacggtgaa aacctctgac acatgcagct
     6961 cccggagacg gtcacagctt gtctgtaagc ggatgccggg agcagacaag cccgtcaggg
     7021 cgcgtcagcg ggtgttggcg ggtgtcgggg cgcagccatg acccagtcac gtagcgatag
     7081 cggagtgtat actggcttaa ctatgcggca tcagagcaga ttgtactgag agtgcacct
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
欢迎您的访问和咨询....
