pTA-Luc

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pTA-Luc
质粒类型: 信号通路报告系统载体
高拷贝/低拷贝: --
启动子: --
克隆方法: 多克隆位点,限制性内切酶
载体大小: 4871 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: Ampicillin
筛选标记: --
备注: 荧光报告载体
产品目录号: --
稳定性: 瞬表达
组成型: 低水平或无启动子
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

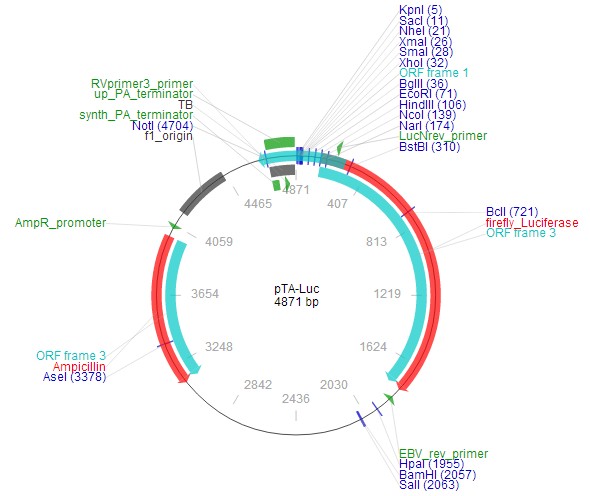

pTA-Luc载体图谱

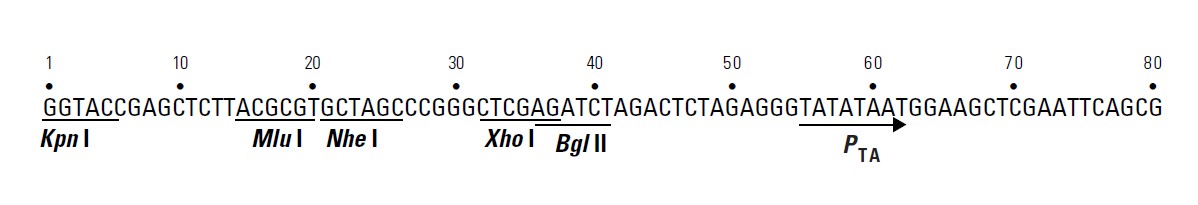

pTA-Luc多克隆位点

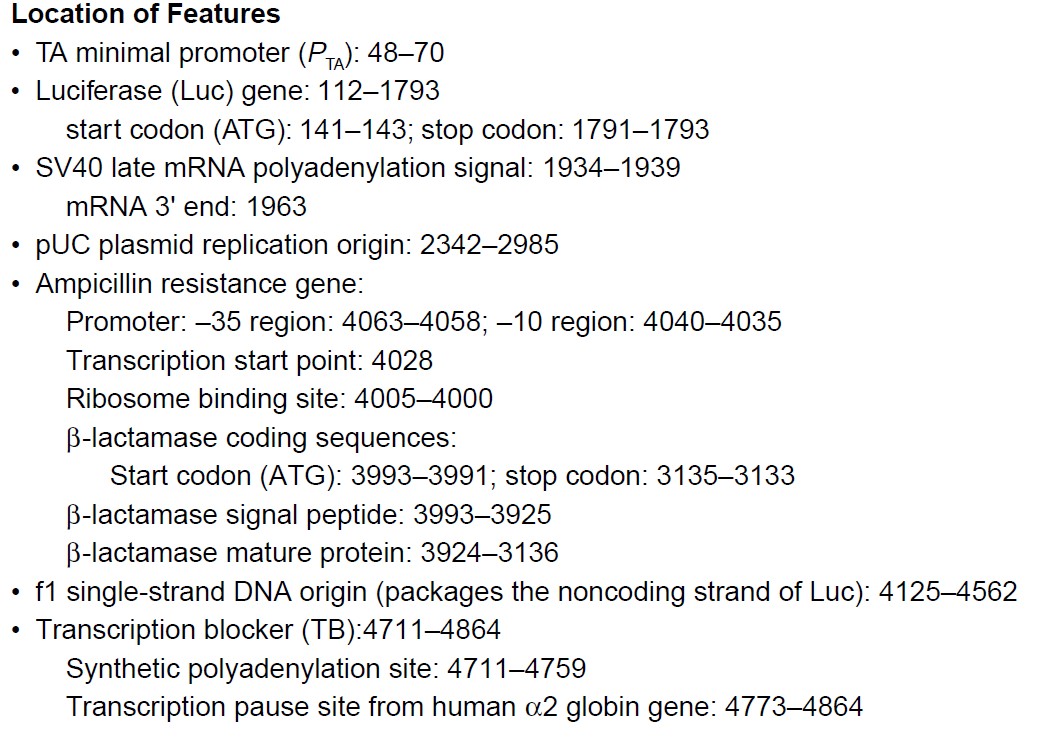

pTA-Luc载体特征

载体简介

pTA-Luc is a member of the MercuryTM product line of signal transduction reporter vectors. This
vector is designed for analyzing enhancer sequences by assaying for expression of the firefly
luciferase (luc) gene from Photinus pyralis (1). In addition, pTA-Luc contains the minimal TA
promoter, the TATA box from the herpes simplex virus thymidine kinase promoter (PTA). Located
downstream of PTA is the luciferase reporter gene. pTA-Luc vector maintains constitutive levels of
luciferase in transformed cells.
The vector backbone also contains a pUC origin of replication, and an ampicillin resistance gene for
propagation and selection in E. coli.

载体序列

LOCUS       pTA-Luc	4871 bp 	DNA	SYN
DEFINITION  pTA-Luc
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..4871
                     /organism="pTA-Luc"
                     /mol_type="other DNA"
     gene            141..1793
                     /label="firefly_Luciferase"
                     /gene="firefly_Luciferase"
     CDS             141..1793
                     /label="ORF frame 3"
                     /translation="MEDAKNIKKGPAPFYPLEDGTAGEQLHKAMKRYALVPGTIAFTD
                     AHIEVDITYAEYFEMSVRLAEAMKRYGLNTNHRIVVCSENSLQFFMPVLGALFIGVAV
                     APANDIYNERELLNSMGISQPTVVFVSKKGLQKILNVQKKLPIIQKIIIMDSKTDYQG
                     FQSMYTFVTSHLPPGFNEYDFVPESFDRDKTIALIMNSSGSTGLPKGVALPHRTACVR
                     FSHARDPIFGNQIIPDTAILSVVPFHHGFGMFTTLGYLICGFRVVLMYRFEEELFLRS
                     LQDYKIQSALLVPTLFSFFAKSTLIDKYDLSNLHEIASGGAPLSKEVGEAVAKRFHLP
                     GIRQGYGLTETTSAILITPEGDDKPGAVGKVVPFFEAKVVDLDTGKTLGVNQRGELCV
                     RGPMIMSGYVNNPEATNALIDKDGWLHSGDIAYWDEDEHFFIVDRLKSLIKYKGYQVA
                     PAELESILLQHPNIFDAGVAGLPDDDAGELPAAVVVLEHGKTMTEKEIVDYVASQVTT
                     AKKLRGGVVFVDEVPKGLTGKLDARKIREILIKAKKGGKIAV*"
     misc_feature    complement(207..225)
                     /label="LucNrev_primer"
                     /translation="MEDAKNIKKGPAPFYPLEDGTAGEQLHKAMKRYALVPGTIAFTD
                     AHIEVDITYAEYFEMSVRLAEAMKRYGLNTNHRIVVCSENSLQFFMPVLGALFIGVAV
                     APANDIYNERELLNSMGISQPTVVFVSKKGLQKILNVQKKLPIIQKIIIMDSKTDYQG
                     FQSMYTFVTSHLPPGFNEYDFVPESFDRDKTIALIMNSSGSTGLPKGVALPHRTACVR
                     FSHARDPIFGNQIIPDTAILSVVPFHHGFGMFTTLGYLICGFRVVLMYRFEEELFLRS
                     LQDYKIQSALLVPTLFSFFAKSTLIDKYDLSNLHEIASGGAPLSKEVGEAVAKRFHLP
                     GIRQGYGLTETTSAILITPEGDDKPGAVGKVVPFFEAKVVDLDTGKTLGVNQRGELCV
                     RGPMIMSGYVNNPEATNALIDKDGWLHSGDIAYWDEDEHFFIVDRLKSLIKYKGYQVA
                     PAELESILLQHPNIFDAGVAGLPDDDAGELPAAVVVLEHGKTMTEKEIVDYVASQVTT
                     AKKLRGGVVFVDEVPKGLTGKLDARKIREILIKAKKGGKIAV*"
     misc_feature    complement(1845..1864)
                     /label="EBV_rev_primer"
                     /translation="MEDAKNIKKGPAPFYPLEDGTAGEQLHKAMKRYALVPGTIAFTD
                     AHIEVDITYAEYFEMSVRLAEAMKRYGLNTNHRIVVCSENSLQFFMPVLGALFIGVAV
                     APANDIYNERELLNSMGISQPTVVFVSKKGLQKILNVQKKLPIIQKIIIMDSKTDYQG
                     FQSMYTFVTSHLPPGFNEYDFVPESFDRDKTIALIMNSSGSTGLPKGVALPHRTACVR
                     FSHARDPIFGNQIIPDTAILSVVPFHHGFGMFTTLGYLICGFRVVLMYRFEEELFLRS
                     LQDYKIQSALLVPTLFSFFAKSTLIDKYDLSNLHEIASGGAPLSKEVGEAVAKRFHLP
                     GIRQGYGLTETTSAILITPEGDDKPGAVGKVVPFFEAKVVDLDTGKTLGVNQRGELCV
                     RGPMIMSGYVNNPEATNALIDKDGWLHSGDIAYWDEDEHFFIVDRLKSLIKYKGYQVA
                     PAELESILLQHPNIFDAGVAGLPDDDAGELPAAVVVLEHGKTMTEKEIVDYVASQVTT
                     AKKLRGGVVFVDEVPKGLTGKLDARKIREILIKAKKGGKIAV*"
     gene            complement(3133..3993)
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MEDAKNIKKGPAPFYPLEDGTAGEQLHKAMKRYALVPGTIAFTD
                     AHIEVDITYAEYFEMSVRLAEAMKRYGLNTNHRIVVCSENSLQFFMPVLGALFIGVAV
                     APANDIYNERELLNSMGISQPTVVFVSKKGLQKILNVQKKLPIIQKIIIMDSKTDYQG
                     FQSMYTFVTSHLPPGFNEYDFVPESFDRDKTIALIMNSSGSTGLPKGVALPHRTACVR
                     FSHARDPIFGNQIIPDTAILSVVPFHHGFGMFTTLGYLICGFRVVLMYRFEEELFLRS
                     LQDYKIQSALLVPTLFSFFAKSTLIDKYDLSNLHEIASGGAPLSKEVGEAVAKRFHLP
                     GIRQGYGLTETTSAILITPEGDDKPGAVGKVVPFFEAKVVDLDTGKTLGVNQRGELCV
                     RGPMIMSGYVNNPEATNALIDKDGWLHSGDIAYWDEDEHFFIVDRLKSLIKYKGYQVA
                     PAELESILLQHPNIFDAGVAGLPDDDAGELPAAVVVLEHGKTMTEKEIVDYVASQVTT
                     AKKLRGGVVFVDEVPKGLTGKLDARKIREILIKAKKGGKIAV*"
     CDS             complement(3133..3993)
                     /label="ORF frame 3"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(4035..4063)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      4142..4448
                     /label="f1_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     CDS             complement(4658..278)
                     /label="ORF frame 1"
                     /translation="MCICKSNCSRNQGVSLHSLMQLLSSGSIFQRIEWRRAFLYVFGV
                     FHGGFTNSTGMPSFLPTVPECQAGIRASIIYPLESRSRARASTRKSSVPIDREMFWHL
                     HLHWGQPILLVCFVSFCFDGERMLVLSIHTKNQHTDVMKIKIFYCGRSKYLPYLNITY
                     LSW*"
     misc_feature    4711..4864
                     /label="TB"
                     /translation="MCICKSNCSRNQGVSLHSLMQLLSSGSIFQRIEWRRAFLYVFGV
                     FHGGFTNSTGMPSFLPTVPECQAGIRASIIYPLESRSRARASTRKSSVPIDREMFWHL
                     HLHWGQPILLVCFVSFCFDGERMLVLSIHTKNQHTDVMKIKIFYCGRSKYLPYLNITY
                     LSW*"
     terminator      4711..4759
                     /label="synth_PA_terminator"
                     /translation="MCICKSNCSRNQGVSLHSLMQLLSSGSIFQRIEWRRAFLYVFGV
                     FHGGFTNSTGMPSFLPTVPECQAGIRASIIYPLESRSRARASTRKSSVPIDREMFWHL
                     HLHWGQPILLVCFVSFCFDGERMLVLSIHTKNQHTDVMKIKIFYCGRSKYLPYLNITY
                     LSW*"
     terminator      4711..4864
                     /label="up_PA_terminator"
                     /translation="MCICKSNCSRNQGVSLHSLMQLLSSGSIFQRIEWRRAFLYVFGV
                     FHGGFTNSTGMPSFLPTVPECQAGIRASIIYPLESRSRARASTRKSSVPIDREMFWHL
                     HLHWGQPILLVCFVSFCFDGERMLVLSIHTKNQHTDVMKIKIFYCGRSKYLPYLNITY
                     LSW*"
     misc_feature    4813..4832
                     /label="RVprimer3_primer"
                     /translation="MCICKSNCSRNQGVSLHSLMQLLSSGSIFQRIEWRRAFLYVFGV
                     FHGGFTNSTGMPSFLPTVPECQAGIRASIIYPLESRSRARASTRKSSVPIDREMFWHL
                     HLHWGQPILLVCFVSFCFDGERMLVLSIHTKNQHTDVMKIKIFYCGRSKYLPYLNITY
                     LSW*"
ORIGIN
    1 GGTACCGAGC TCTTACGCGT GCTAGCCCGG GCTCGAGATC TAGACTCTAG AGGGTATATA
   61 ATGGAAGCTC GAATTCCAGC TTGGCATTCC GGTACTGTTG GTAAAAAGCT TGGCATTCCG
  121 GTACTGTTGG TAAAGCCACC ATGGAAGACG CCAAAAACAT AAAGAAAGGC CCGGCGCCAT
  181 TCTATCCGCT GGAAGATGGA ACCGCTGGAG AGCAACTGCA TAAGGCTATG AAGAGATACG
  241 CCCTGGTTCC TGGAACAATT GCTTTTACAG ATGCACATAT CGAGGTGGAC ATCACTTACG
  301 CTGAGTACTT CGAAATGTCC GTTCGGTTGG CAGAAGCTAT GAAACGATAT GGGCTGAATA
  361 CAAATCACAG AATCGTCGTA TGCAGTGAAA ACTCTCTTCA ATTCTTTATG CCGGTGTTGG
  421 GCGCGTTATT TATCGGAGTT GCAGTTGCGC CCGCGAACGA CATTTATAAT GAACGTGAAT
  481 TGCTCAACAG TATGGGCATT TCGCAGCCTA CCGTGGTGTT CGTTTCCAAA AAGGGGTTGC
  541 AAAAAATTTT GAACGTGCAA AAAAAGCTCC CAATCATCCA AAAAATTATT ATCATGGATT
  601 CTAAAACGGA TTACCAGGGA TTTCAGTCGA TGTACACGTT CGTCACATCT CATCTACCTC
  661 CCGGTTTTAA TGAATACGAT TTTGTGCCAG AGTCCTTCGA TAGGGACAAG ACAATTGCAC
  721 TGATCATGAA CTCCTCTGGA TCTACTGGTC TGCCTAAAGG TGTCGCTCTG CCTCATAGAA
  781 CTGCCTGCGT GAGATTCTCG CATGCCAGAG ATCCTATTTT TGGCAATCAA ATCATTCCGG
  841 ATACTGCGAT TTTAAGTGTT GTTCCATTCC ATCACGGTTT TGGAATGTTT ACTACACTCG
  901 GATATTTGAT ATGTGGATTT CGAGTCGTCT TAATGTATAG ATTTGAAGAA GAGCTGTTTC
  961 TGAGGAGCCT TCAGGATTAC AAGATTCAAA GTGCGCTGCT GGTGCCAACC CTATTCTCCT
 1021 TCTTCGCCAA AAGCACTCTG ATTGACAAAT ACGATTTATC TAATTTACAC GAAATTGCTT
 1081 CTGGTGGCGC TCCCCTCTCT AAGGAAGTCG GGGAAGCGGT TGCCAAGAGG TTCCATCTGC
 1141 CAGGTATCAG GCAAGGATAT GGGCTCACTG AGACTACATC AGCTATTCTG ATTACACCCG
 1201 AGGGGGATGA TAAACCGGGC GCGGTCGGTA AAGTTGTTCC ATTTTTTGAA GCGAAGGTTG
 1261 TGGATCTGGA TACCGGGAAA ACGCTGGGCG TTAATCAAAG AGGCGAACTG TGTGTGAGAG
 1321 GTCCTATGAT TATGTCCGGT TATGTAAACA ATCCGGAAGC GACCAACGCC TTGATTGACA
 1381 AGGATGGATG GCTACATTCT GGAGACATAG CTTACTGGGA CGAAGACGAA CACTTCTTCA
 1441 TCGTTGACCG CCTGAAGTCT CTGATTAAGT ACAAAGGCTA TCAGGTGGCT CCCGCTGAAT
 1501 TGGAATCCAT CTTGCTCCAA CACCCCAACA TCTTCGACGC AGGTGTCGCA GGTCTTCCCG
 1561 ACGATGACGC CGGTGAACTT CCCGCCGCCG TTGTTGTTTT GGAGCACGGA AAGACGATGA
 1621 CGGAAAAAGA GATCGTGGAT TACGTCGCCA GTCAAGTAAC AACCGCGAAA AAGTTGCGCG
 1681 GAGGAGTTGT GTTTGTGGAC GAAGTACCGA AAGGTCTTAC CGGAAAACTC GACGCAAGAA
 1741 AAATCAGAGA GATCCTCATA AAGGCCAAGA AGGGCGGAAA GATCGCCGTG TAATTCTAGA
 1801 GTCGGGGCGG CCGGCCGCTT CGAGCAGACA TGATAAGATA CATTGATGAG TTTGGACAAA
 1861 CCACAACTAG AATGCAGTGA AAAAAATGCT TTATTTGTGA AATTTGTGAT GCTATTGCTT
 1921 TATTTGTAAC CATTATAAGC TGCAATAAAC AAGTTAACAA CAACAATTGC ATTCATTTTA
 1981 TGTTTCAGGT TCAGGGGGAG GTGTGGGAGG TTTTTTAAAG CAAGTAAAAC CTCTACAAAT
 2041 GTGGTAAAAT CGATAAGGAT CCGTCGACCG ATGCCCTTGA GAGCCTTCAA CCCAGTCAGC
 2101 TCCTTCCGGT GGGCGCGGGG CATGACTATC GTCGCCGCAC TTATGACTGT CTTCTTTATC
 2161 ATGCAACTCG TAGGACAGGT GCCGGCAGCG CTCTTCCGCT TCCTCGCTCA CTGACTCGCT
 2221 GCGCTCGGTC GTTCGGCTGC GGCGAGCGGT ATCAGCTCAC TCAAAGGCGG TAATACGGTT
 2281 ATCCACAGAA TCAGGGGATA ACGCAGGAAA GAACATGTGA GCAAAAGGCC AGCAAAAGGC
 2341 CAGGAACCGT AAAAAGGCCG CGTTGCTGGC GTTTTTCCAT AGGCTCCGCC CCCCTGACGA
 2401 GCATCACAAA AATCGACGCT CAAGTCAGAG GTGGCGAAAC CCGACAGGAC TATAAAGATA
 2461 CCAGGCGTTT CCCCCTGGAA GCTCCCTCGT GCGCTCTCCT GTTCCGACCC TGCCGCTTAC
 2521 CGGATACCTG TCCGCCTTTC TCCCTTCGGG AAGCGTGGCG CTTTCTCATA GCTCACGCTG
 2581 TAGGTATCTC AGTTCGGTGT AGGTCGTTCG CTCCAAGCTG GGCTGTGTGC ACGAACCCCC
 2641 CGTTCAGCCC GACCGCTGCG CCTTATCCGG TAACTATCGT CTTGAGTCCA ACCCGGTAAG
 2701 ACACGACTTA TCGCCACTGG CAGCAGCCAC TGGTAACAGG ATTAGCAGAG CGAGGTATGT
 2761 AGGCGGTGCT ACAGAGTTCT TGAAGTGGTG GCCTAACTAC GGCTACACTA GAAGGACAGT
 2821 ATTTGGTATC TGCGCTCTGC TGAAGCCAGT TACCTTCGGA AAAAGAGTTG GTAGCTCTTG
 2881 ATCCGGCAAA CAAACCACCG CTGGTAGCGG TGGTTTTTTT GTTTGCAAGC AGCAGATTAC
 2941 GCGCAGAAAA AAAGGATCTC AAGAAGATCC TTTGATCTTT TCTACGGGGT CTGACGCTCA
 3001 GTGGAACGAA AACTCACGTT AAGGGATTTT GGTCATGAGA TTATCAAAAA GGATCTTCAC
 3061 CTAGATCCTT TTAAATTAAA AATGAAGTTT TAAATCAATC TAAAGTATAT ATGAGTAAAC
 3121 TTGGTCTGAC AGTTACCAAT GCTTAATCAG TGAGGCACCT ATCTCAGCGA TCTGTCTATT
 3181 TCGTTCATCC ATAGTTGCCT GACTCCCCGT CGTGTAGATA ACTACGATAC GGGAGGGCTT
 3241 ACCATCTGGC CCCAGTGCTG CAATGATACC GCGAGACCCA CGCTCACCGG CTCCAGATTT
 3301 ATCAGCAATA AACCAGCCAG CCGGAAGGGC CGAGCGCAGA AGTGGTCCTG CAACTTTATC
 3361 CGCCTCCATC CAGTCTATTA ATTGTTGCCG GGAAGCTAGA GTAAGTAGTT CGCCAGTTAA
 3421 TAGTTTGCGC AACGTTGTTG CCATTGCTAC AGGCATCGTG GTGTCACGCT CGTCGTTTGG
 3481 TATGGCTTCA TTCAGCTCCG GTTCCCAACG ATCAAGGCGA GTTACATGAT CCCCCATGTT
 3541 GTGCAAAAAA GCGGTTAGCT CCTTCGGTCC TCCGATCGTT GTCAGAAGTA AGTTGGCCGC
 3601 AGTGTTATCA CTCATGGTTA TGGCAGCACT GCATAATTCT CTTACTGTCA TGCCATCCGT
 3661 AAGATGCTTT TCTGTGACTG GTGAGTACTC AACCAAGTCA TTCTGAGAAT AGTGTATGCG
 3721 GCGACCGAGT TGCTCTTGCC CGGCGTCAAT ACGGGATAAT ACCGCGCCAC ATAGCAGAAC
 3781 TTTAAAAGTG CTCATCATTG GAAAACGTTC TTCGGGGCGA AAACTCTCAA GGATCTTACC
 3841 GCTGTTGAGA TCCAGTTCGA TGTAACCCAC TCGTGCACCC AACTGATCTT CAGCATCTTT
 3901 TACTTTCACC AGCGTTTCTG GGTGAGCAAA AACAGGAAGG CAAAATGCCG CAAAAAAGGG
 3961 AATAAGGGCG ACACGGAAAT GTTGAATACT CATACTCTTC CTTTTTCAAT ATTATTGAAG
 4021 CATTTATCAG GGTTATTGTC TCATGAGCGG ATACATATTT GAATGTATTT AGAAAAATAA
 4081 ACAAATAGGG GTTCCGCGCA CATTTCCCCG AAAAGTGCCA CCTGACGCGC CCTGTAGCGG
 4141 CGCATTAAGC GCGGCGGGTG TGGTGGTTAC GCGCAGCGTG ACCGCTACAC TTGCCAGCGC
 4201 CCTAGCGCCC GCTCCTTTCG CTTTCTTCCC TTCCTTTCTC GCCACGTTCG CCGGCTTTCC
 4261 CCGTCAAGCT CTAAATCGGG GGCTCCCTTT AGGGTTCCGA TTTAGTGCTT TACGGCACCT
 4321 CGACCCCAAA AAACTTGATT AGGGTGATGG TTCACGTAGT GGGCCATCGC CCTGATAGAC
 4381 GGTTTTTCGC CCTTTGACGT TGGAGTCCAC GTTCTTTAAT AGTGGACTCT TGTTCCAAAC
 4441 TGGAACAACA CTCAACCCTA TCTCGGTCTA TTCTTTTGAT TTATAAGGGA TTTTGCCGAT
 4501 TTCGGCCTAT TGGTTAAAAA ATGAGCTGAT TTAACAAAAA TTTAACGCGA ATTTTAACAA
 4561 AATATTAACG TTTACAATTT CCCATTCGCC ATTCAGGCTG CGCAACTGTT GGGAAGGGCG
 4621 ATCGGTGCGG GCCTCTTCGC TATTACGCCA GCCCAAGCTA CCATGATAAG TAAGTAATAT
 4681 TAAGGTACGG GAGGTACTTG GAGCGGCCGC AATAAAATAT CTTTATTTTC ATTACATCTG
 4741 TGTGTTGGTT TTTTGTGTGA ATCGATAGTA CTAACATACG CTCTCCATCA AAACAAAACG
 4801 AAACAAAACA AACTAGCAAA ATAGGCTGTC CCCAGTGCAA GTGCAGGTGC CAGAACATTT
 4861 CTCTATCGAT A
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
