pHen-1载体基本信息

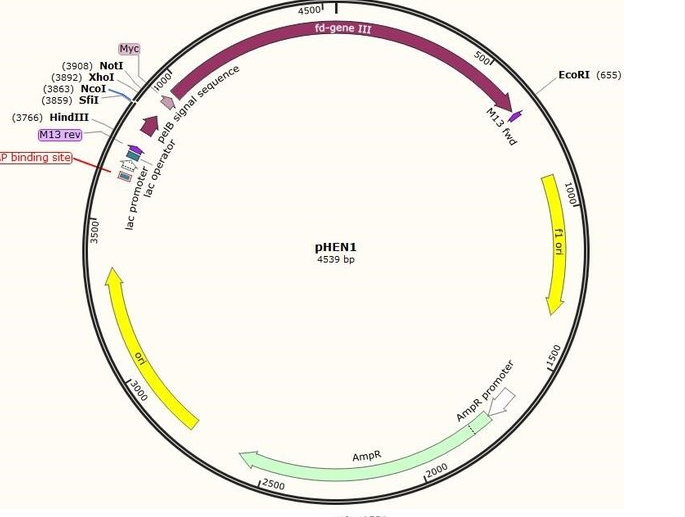

pHen-1载体图谱质粒图谱和多克隆位点信息

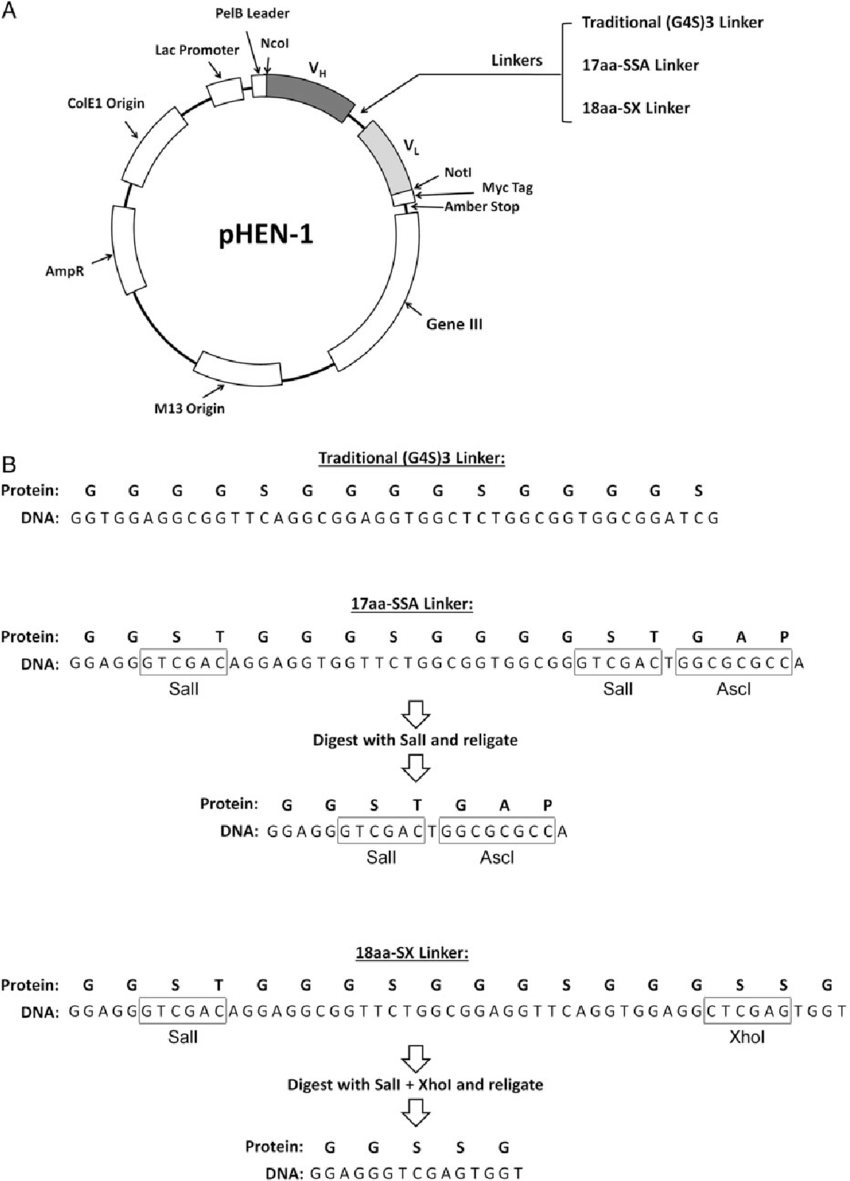

(A) The map of major components of the pHEN1 phagemid vector. VH and VL genes are in the same reading frame with the PelB leader, the linker, the Myc tag, the amber stop codon and the phage minor coat protein gene III. Restriction sites NcoI and NotI can be used for subcloning of the scFv gene.
(B) DNA and protein sequences of the linkers. Additional restriction sites were engineered into the 17aa-SSA linker and 18aa-SX linker for easier linker length reduction and library construction.
pHen-1载体简介
pHen-1载体序列
pHen-1载体图谱质粒图谱pdf版和相关资料下载
pHen-1载体质粒应用举例
