pDsRed2-1

价格:1200元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pDsRed2-1
质粒类型: 无启动子载体;荧光报告载体
高拷贝/低拷贝: --
启动子:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 4107bp
5' 测序引物及序列:  5'-AGCTGGACATCACCTCCCACAACG-3'
3' 测序引物及序列: --
载体标签: 红色荧光蛋白DsRed2
载体抗性: Kanamycin.html' target='_blank'>卡那霉素Kanamycin
筛选标记: 新霉素(Neomycin)
克隆菌株: TOP10, DH5α,HB101
宿主细胞(系): 真核细胞 & 原核细胞
备注: pDsRed2-1载体不含启动子,将待研究的目的启动子插入MCS区,用于研究启动子及顺式转录元件在细胞内的作用水平 。
产品目录号: 632405
稳定性: 稳表达 或 瞬表达
组成型: --
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

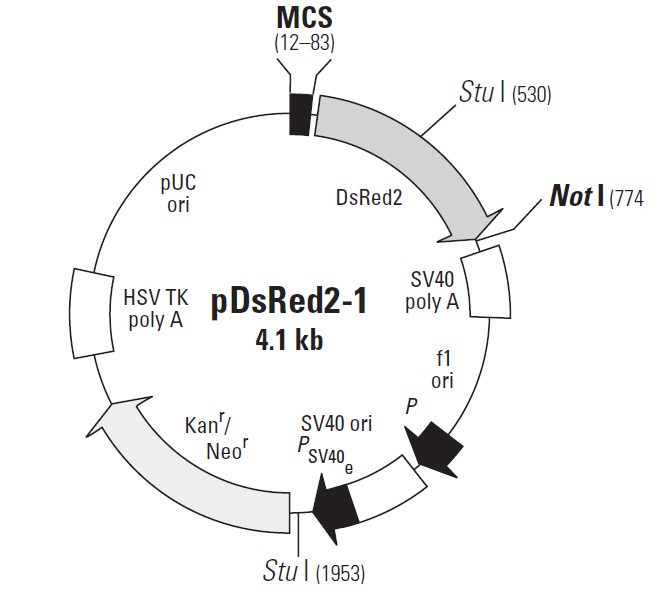

pDsRed2-1载体图谱

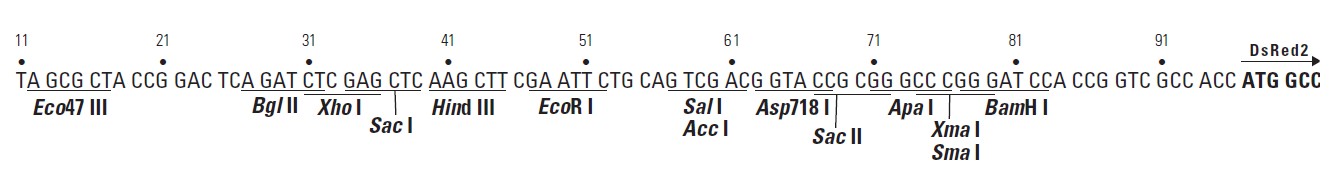

pDsRed2-1多克隆位点

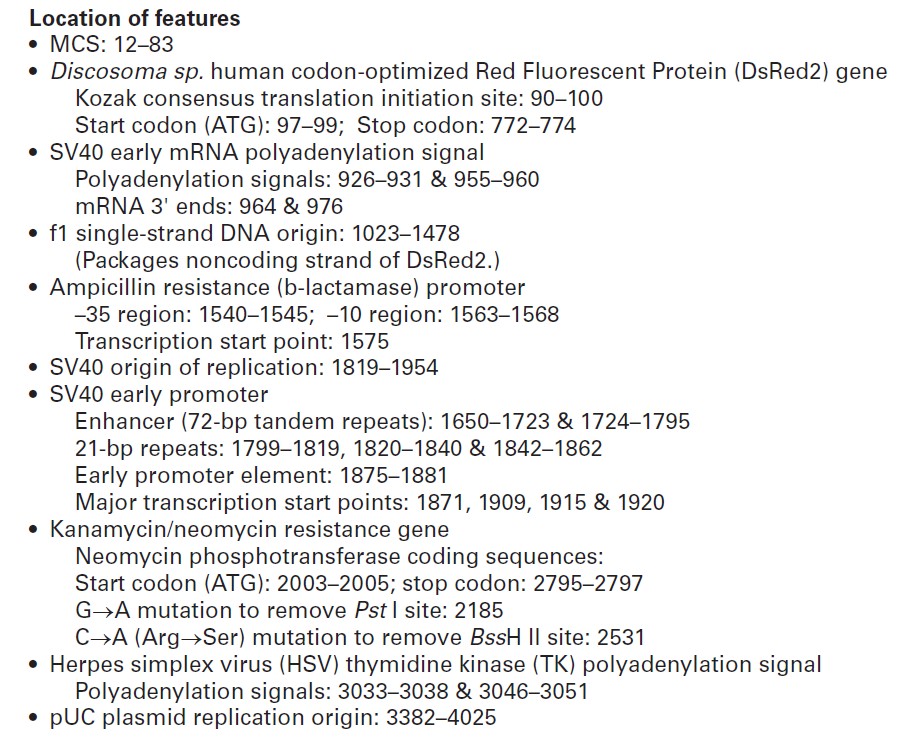

pDsRed2-1载体特征

载体简介

pDsRed2-1载体描述

pDsRed2-1 encodes DsRed2, a DsRed variant engineered for faster maturation and lower non-specific aggregation. Derived from the Discosoma sp. red fluorescent protein (drFP583; 1), DsRed2, like its progenitor DsRed1, contains a series of silent base-pair changes that correspond to human codon-usage preferences for high expression in mammalian cells (2). In addition to these changes, DsRed2 contains six amino acid substitutions: V105A, I161T, and S197A, which result in the more rapid appearance of red fluorescence in transfected cell lines; and R2A, K5E, and K9T, which prevent the protein from aggregating. (DsRed2 may, however, form the same tetrameric structure as DsRed1 [3].) In mammalian cell cultures when DsRed2 is expressed constitutively, red-emitting cells can be detected by fluorescence microscopy within 24 hours of transfection. Large insoluble aggregates of protein, often observed in bacterial and mammalian cell systems expressing DsRed1, are dramatically reduced in cells expressing DsRed2. The faster-maturing, more soluble red fluorescent protein is also well tolerated by host cells; mammalian cell cultures transfected with DsRed2 show no obvious signs of reduced viability—in those cell lines tested, cells expressing DsRed2 display the same morphology (e.g., adherence, light-refraction) and growth characteristics as non-transfected controls.

pDsRed2-1 is a promoterless DsRed2 vector that can be used to monitor transcription from different promoters and promoter/enhancer combinations inserted into the multiple cloning site (MCS). Sequences upstream of DsRed2 have been converted to a Kozak consensus translation initiation site (4) to increase translation efficiency in eukaryotic cells. SV40 polyadenylation signals downstream of the DsRed2 gene direct proper processing of the 3' end of the DsRed2 mRNA. The vector backbone contains an SV40 origin for replication in mammalian cells expressing the SV40 T antigen, a pUC origin of replication for propagation in E. coli, and an f1 origin for single-stranded DNA production. A neomycin-resistance cassette (Neor) allows stably transfected eukaryotic cells to be selected using G418. This cassette consists of the SV40 early promoter, the neomycin/kanamycin resistance gene of Tn5, and polyadenylation signals from the Herpes simplex virus thymidine kinase (HSV TK) gene. A bacterial promoter upstream of the cassette expresses kanamycin resistance in E. coli.

DsRed2 can be used as an in vivo reporter of gene expression. Promoters should be cloned into the pDsRed2-1 MCS upstream from the DsRed2 coding sequence. Without addition of a functional promoter, this vector will not express DsRed2. The recombinant DsRed2 vector can be transfected into mammalian cells using any standard transfection method. If required, stable transfectants can be selected using G418 (5).

pDsRed2-1载体含有以下元件:
 MCS: 12–83
 Discosoma sp. human codon-optimized Red Fluorescent Protein (DsRed2) gene
Kozak consensus translation initiation site: 90–100
Start codon (ATG): 97–99; Stop codon: 772–774
 SV40 early mRNA polyadenylation signal
Polyadenylation signals: 926–931 & 955–960
mRNA 3' ends: 964 & 976
 f1 single-strand DNA origin: 1023–1478
(Packages noncoding strand of DsRed2.)
 Ampicillin resistance (b-lactamase) promoter
–35 region: 1540–1545; –10 region: 1563–1568
Transcription start point: 1575
 SV40 origin of replication: 1819–1954
 SV40 early promoter
Enhancer (72-bp tandem repeats): 1650–1723 & 1724–1795
21-bp repeats: 1799–1819, 1820–1840 & 1842–1862
Early promoter element: 1875–1881
Major transcription start points: 1871, 1909, 1915 & 1920
 Kanamycin/neomycin resistance gene
Neomycin phosphotransferase coding sequences:
Start codon (ATG): 2003–2005; stop codon: 2795–2797
G→A mutation to remove Pst I site: 2185
C→A (Arg→Ser) mutation to remove BssH II site: 2531
 Herpes simplex virus (HSV) thymidine kinase (TK) polyadenylation signal
Polyadenylation signals: 3033–3038 & 3046–3051
 pUC plasmid replication origin: 3382–4025


Propagation in E. Coli
 Suitable host strains: DH5α, HB101 and other general purpose strains. Single-stranded DNA production requires
a host containing an F plasmid such as JM109 or XL1-Blue.
 Selectable marker: plasmid confers resistance to kanamycin (50 μg/ml) to E. coli hosts.
 E. coli replication origin: pUC
 Copy number: ≈500
 Plasmid incompatibility group: pMB1/Col E1

Red Fluorescent Protein (DsRed2)
 Excitation/Emission Maxima: 558 nm / 583 nm

载体序列

LOCUS       pDsRed2-1	4107 bp 	DNA	SYN
DEFINITION  pDsRed2-1
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..4107
                     /organism="pDsRed2-1"
                     /mol_type="other DNA"
     CDS             complement(25..804)
                     /label="ORF frame 1"

     CDS             97..774
                     /label="ORF frame 1"

     gene            100..771
                     /label="DsRed2"
                     /gene="DsRed2"

     misc_feature    complement(277..297)
                     /label="dsRed1_N_primer"

     misc_feature    689..712
                     /label="dsRed1_C_primer"

     misc_feature    986..1005
                     /label="EBV_rev_primer"

     rep_origin      complement(1155..1461)
                     /label="f1_origin"

     promoter        1540..1568
                     /label="AmpR_promoter"

     misc_feature    complement(1634..1654)
                     /label="pBABE_3_primer"

     misc_feature    complement(1640..1855)
                     /label="SV40_enhancer"

     promoter        1652..1920
                     /label="SV40_promoter"

     rep_origin      1819..1896
                     /label="SV40_origin"

     misc_feature    1881..1900
                     /label="SV40pro_F_primer"

     CDS             2003..2797
                     /label="ORF frame 2"

     gene            2006..2794
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"

     CDS             complement(2312..2848)
                     /label="ORF frame 3"

     terminator      2972..3241
                     /label="TK_PA_terminator"

     rep_origin      3389..4008
                     /label="pBR322_origin"

ORIGIN
    1 TAGTTATTAC TAGCGCTACC GGACTCAGAT CTCGAGCTCA AGCTTCGAAT TCTGCAGTCG
   61 ACGGTACCGC GGGCCCGGGA TCCACCGGTC GCCACCATGG CCTCCTCCGA GAACGTCATC
  121 ACCGAGTTCA TGCGCTTCAA GGTGCGCATG GAGGGCACCG TGAACGGCCA CGAGTTCGAG
  181 ATCGAGGGCG AGGGCGAGGG CCGCCCCTAC GAGGGCCACA ACACCGTGAA GCTGAAGGTG
  241 ACCAAGGGCG GCCCCCTGCC CTTCGCCTGG GACATCCTGT CCCCCCAGTT CCAGTACGGC
  301 TCCAAGGTGT ACGTGAAGCA CCCCGCCGAC ATCCCCGACT ACAAGAAGCT GTCCTTCCCC
  361 GAGGGCTTCA AGTGGGAGCG CGTGATGAAC TTCGAGGACG GCGGCGTGGC GACCGTGACC
  421 CAGGACTCCT CCCTGCAGGA CGGCTGCTTC ATCTACAAGG TGAAGTTCAT CGGCGTGAAC
  481 TTCCCCTCCG ACGGCCCCGT GATGCAGAAG AAGACCATGG GCTGGGAGGC CTCCACCGAG
  541 CGCCTGTACC CCCGCGACGG CGTGCTGAAG GGCGAGACCC ACAAGGCCCT GAAGCTGAAG
  601 GACGGCGGCC ACTACCTGGT GGAGTTCAAG TCCATCTACA TGGCCAAGAA GCCCGTGCAG
  661 CTGCCCGGCT ACTACTACGT GGACGCCAAG CTGGACATCA CCTCCCACAA CGAGGACTAC
  721 ACCATCGTGG AGCAGTACGA GCGCACCGAG GGCCGCCACC ACCTGTTCCT GTAGCGGCCG
  781 CGACTCTAGA TCATAATCAG CCATACCACA TTTGTAGAGG TTTTACTTGC TTTAAAAAAC
  841 CTCCCACACC TCCCCCTGAA CCTGAAACAT AAAATGAATG CAATTGTTGT TGTTAACTTG
  901 TTTATTGCAG CTTATAATGG TTACAAATAA AGCAATAGCA TCACAAATTT CACAAATAAA
  961 GCATTTTTTT CACTGCATTC TAGTTGTGGT TTGTCCAAAC TCATCAATGT ATCTTAAGGC
 1021 GTAAATTGTA AGCGTTAATA TTTTGTTAAA ATTCGCGTTA AATTTTTGTT AAATCAGCTC
 1081 ATTTTTTAAC CAATAGGCCG AAATCGGCAA AATCCCTTAT AAATCAAAAG AATAGACCGA
 1141 GATAGGGTTG AGTGTTGTTC CAGTTTGGAA CAAGAGTCCA CTATTAAAGA ACGTGGACTC
 1201 CAACGTCAAA GGGCGAAAAA CCGTCTATCA GGGCGATGGC CCACTACGTG AACCATCACC
 1261 CTAATCAAGT TTTTTGGGGT CGAGGTGCCG TAAAGCACTA AATCGGAACC CTAAAGGGAG
 1321 CCCCCGATTT AGAGCTTGAC GGGGAAAGCC GGCGAACGTG GCGAGAAAGG AAGGGAAGAA
 1381 AGCGAAAGGA GCGGGCGCTA GGGCGCTGGC AAGTGTAGCG GTCACGCTGC GCGTAACCAC
 1441 CACACCCGCC GCGCTTAATG CGCCGCTACA GGGCGCGTCA GGTGGCACTT TTCGGGGAAA
 1501 TGTGCGCGGA ACCCCTATTT GTTTATTTTT CTAAATACAT TCAAATATGT ATCCGCTCAT
 1561 GAGACAATAA CCCTGATAAA TGCTTCAATA ATATTGAAAA AGGAAGAGTC CTGAGGCGGA
 1621 AAGAACCAGC TGTGGAATGT GTGTCAGTTA GGGTGTGGAA AGTCCCCAGG CTCCCCAGCA
 1681 GGCAGAAGTA TGCAAAGCAT GCATCTCAAT TAGTCAGCAA CCAGGTGTGG AAAGTCCCCA
 1741 GGCTCCCCAG CAGGCAGAAG TATGCAAAGC ATGCATCTCA ATTAGTCAGC AACCATAGTC
 1801 CCGCCCCTAA CTCCGCCCAT CCCGCCCCTA ACTCCGCCCA GTTCCGCCCA TTCTCCGCCC
 1861 CATGGCTGAC TAATTTTTTT TATTTATGCA GAGGCCGAGG CCGCCTCGGC CTCTGAGCTA
 1921 TTCCAGAAGT AGTGAGGAGG CTTTTTTGGA GGCCTAGGCT TTTGCAAAGA TCGATCAAGA
 1981 GACAGGATGA GGATCGTTTC GCATGATTGA ACAAGATGGA TTGCACGCAG GTTCTCCGGC
 2041 CGCTTGGGTG GAGAGGCTAT TCGGCTATGA CTGGGCACAA CAGACAATCG GCTGCTCTGA
 2101 TGCCGCCGTG TTCCGGCTGT CAGCGCAGGG GCGCCCGGTT CTTTTTGTCA AGACCGACCT
 2161 GTCCGGTGCC CTGAATGAAC TGCAAGACGA GGCAGCGCGG CTATCGTGGC TGGCCACGAC
 2221 GGGCGTTCCT TGCGCAGCTG TGCTCGACGT TGTCACTGAA GCGGGAAGGG ACTGGCTGCT
 2281 ATTGGGCGAA GTGCCGGGGC AGGATCTCCT GTCATCTCAC CTTGCTCCTG CCGAGAAAGT
 2341 ATCCATCATG GCTGATGCAA TGCGGCGGCT GCATACGCTT GATCCGGCTA CCTGCCCATT
 2401 CGACCACCAA GCGAAACATC GCATCGAGCG AGCACGTACT CGGATGGAAG CCGGTCTTGT
 2461 CGATCAGGAT GATCTGGACG AAGAGCATCA GGGGCTCGCG CCAGCCGAAC TGTTCGCCAG
 2521 GCTCAAGGCG AGCATGCCCG ACGGCGAGGA TCTCGTCGTG ACCCATGGCG ATGCCTGCTT
 2581 GCCGAATATC ATGGTGGAAA ATGGCCGCTT TTCTGGATTC ATCGACTGTG GCCGGCTGGG
 2641 TGTGGCGGAC CGCTATCAGG ACATAGCGTT GGCTACCCGT GATATTGCTG AAGAGCTTGG
 2701 CGGCGAATGG GCTGACCGCT TCCTCGTGCT TTACGGTATC GCCGCTCCCG ATTCGCAGCG
 2761 CATCGCCTTC TATCGCCTTC TTGACGAGTT CTTCTGAGCG GGACTCTGGG GTTCGAAATG
 2821 ACCGACCAAG CGACGCCCAA CCTGCCATCA CGAGATTTCG ATTCCACCGC CGCCTTCTAT
 2881 GAAAGGTTGG GCTTCGGAAT CGTTTTCCGG GACGCCGGCT GGATGATCCT CCAGCGCGGG
 2941 GATCTCATGC TGGAGTTCTT CGCCCACCCT AGGGGGAGGC TAACTGAAAC ACGGAAGGAG
 3001 ACAATACCGG AAGGAACCCG CGCTATGACG GCAATAAAAA GACAGAATAA AACGCACGGT
 3061 GTTGGGTCGT TTGTTCATAA ACGCGGGGTT CGGTCCCAGG GCTGGCACTC TGTCGATACC
 3121 CCACCGAGAC CCCATTGGGG CCAATACGCC CGCGTTTCTT CCTTTTCCCC ACCCCACCCC
 3181 CCAAGTTCGG GTGAAGGCCC AGGGCTCGCA GCCAACGTCG GGGCGGCAGG CCCTGCCATA
 3241 GCCTCAGGTT ACTCATATAT ACTTTAGATT GATTTAAAAC TTCATTTTTA ATTTAAAAGG
 3301 ATCTAGGTGA AGATCCTTTT TGATAATCTC ATGACCAAAA TCCCTTAACG TGAGTTTTCG
 3361 TTCCACTGAG CGTCAGACCC CGTAGAAAAG ATCAAAGGAT CTTCTTGAGA TCCTTTTTTT
 3421 CTGCGCGTAA TCTGCTGCTT GCAAACAAAA AAACCACCGC TACCAGCGGT GGTTTGTTTG
 3481 CCGGATCAAG AGCTACCAAC TCTTTTTCCG AAGGTAACTG GCTTCAGCAG AGCGCAGATA
 3541 CCAAATACTG TCCTTCTAGT GTAGCCGTAG TTAGGCCACC ACTTCAAGAA CTCTGTAGCA
 3601 CCGCCTACAT ACCTCGCTCT GCTAATCCTG TTACCAGTGG CTGCTGCCAG TGGCGATAAG
 3661 TCGTGTCTTA CCGGGTTGGA CTCAAGACGA TAGTTACCGG ATAAGGCGCA GCGGTCGGGC
 3721 TGAACGGGGG GTTCGTGCAC ACAGCCCAGC TTGGAGCGAA CGACCTACAC CGAACTGAGA
 3781 TACCTACAGC GTGAGCTATG AGAAAGCGCC ACGCTTCCCG AAGGGAGAAA GGCGGACAGG
 3841 TATCCGGTAA GCGGCAGGGT CGGAACAGGA GAGCGCACGA GGGAGCTTCC AGGGGGAAAC
 3901 GCCTGGTATC TTTATAGTCC TGTCGGGTTT CGCCACCTCT GACTTGAGCG TCGATTTTTG
 3961 TGATGCTCGT CAGGGGGGCG GAGCCTATGG AAAAACGCCA GCAACGCGGC CTTTTTACGG
 4021 TTCCTGGCCT TTTGCTGGCC TTTTGCTCAC ATGTTCTTTC CTGCGTTATC CCCTGATTCT
 4081 GTGGATAACC GTATTACCGC CATGCAT
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
