pLVX-Tight-Puro

价格:1250元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-Tight-Puro
质粒类型: 慢病毒载体;四环素诱导载体;Tet-On载体
高拷贝/低拷贝: --
启动子: pTight
克隆方法: 多克隆位点,限制性内切酶
载体大小: 7790bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性:  Ampicillian
筛选标记: Puromycin
克隆菌株: Stbl3E.coli
备注: pLVX-Tight-Puro载体是Tet-On系统的应答载体,与之对应的调控载体是pLVX-Tet-On-Advanced
产品目录号: 632162&632163
稳定性: 稳表达
组成型: 诱导型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

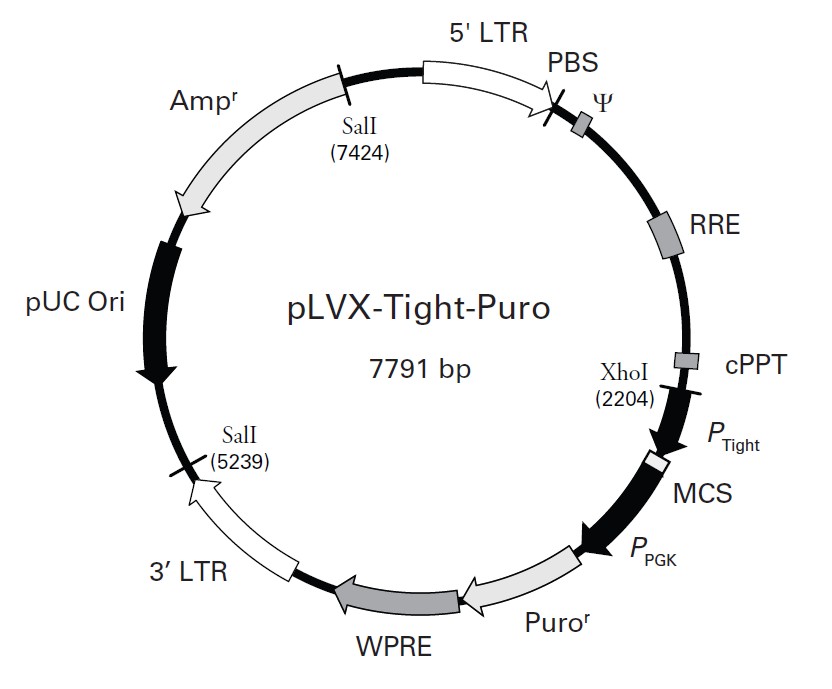

pLVX-Tight-Puro载体图谱

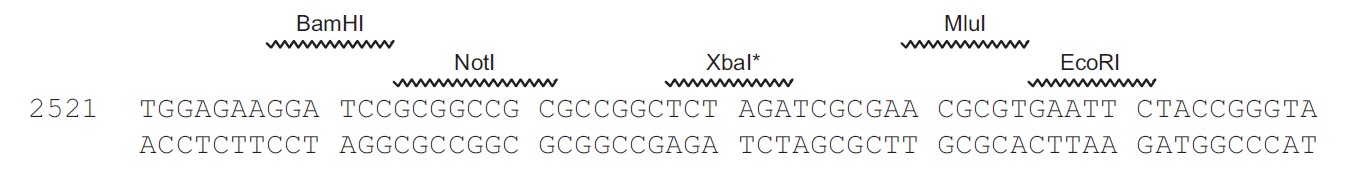

pLVX-Tight-Puro多克隆位点

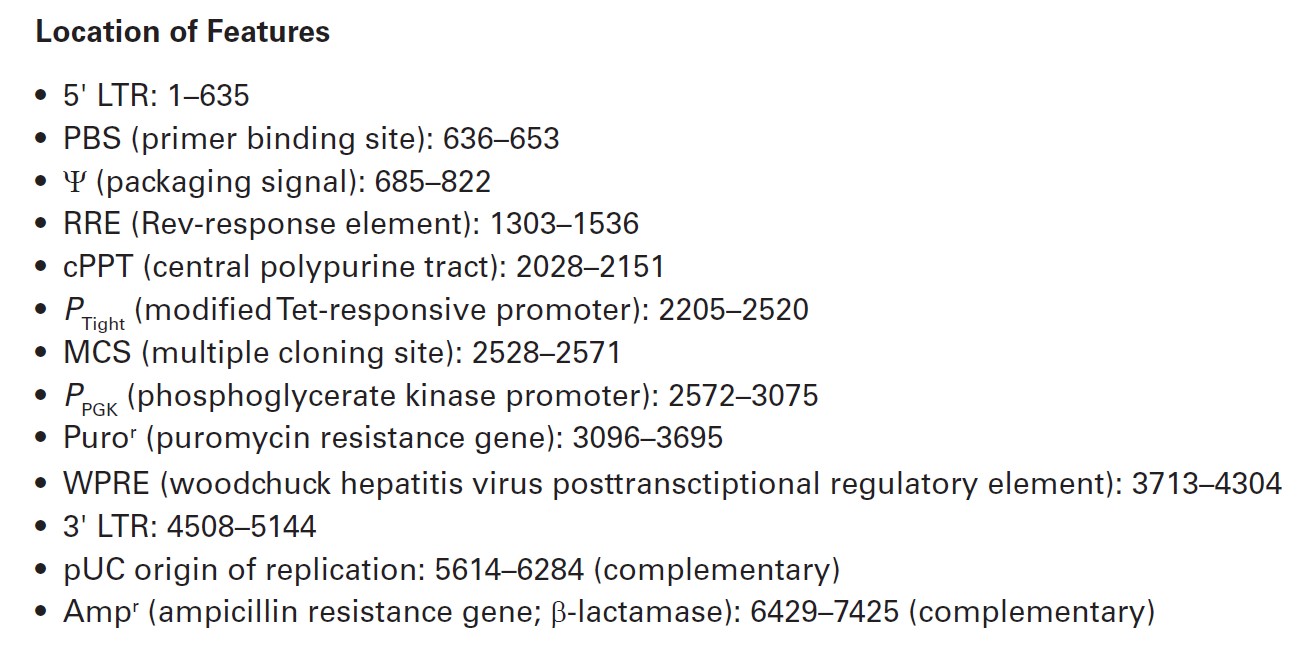

pLVX-Tight-Puro载体特征

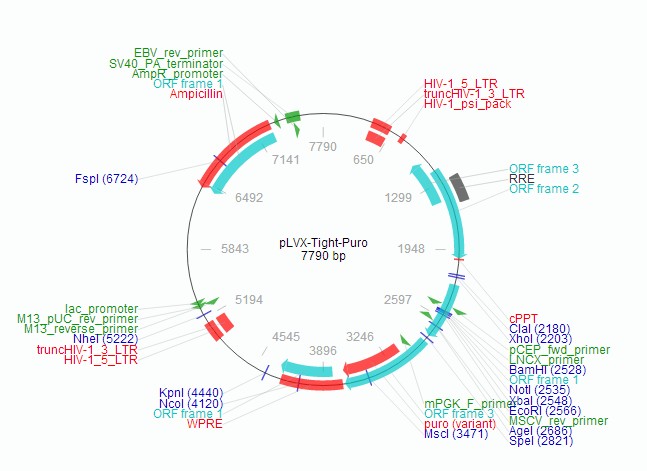

pLVX-Tight-Puro载体图谱2



载体简介

载体序列

LOCUS       pLVX-Tight-Puro	7790 bp 	DNA	SYN
DEFINITION  pLVX-Tight-Puro
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..7790
                     /organism="pLVX-Tight-Puro"
                     /mol_type="other DNA"
     misc_feature    454..634
                     /label="HIV-1_5_LTR"
     misc_feature    454..634
                     /label="truncHIV-1_3_LTR"
     misc_feature    745..789
                     /label="HIV-1_psi_pack"
     CDS             complement(1015..1476)
                     /label="ORF frame 3"

     CDS             1181..2032
                     /label="ORF frame 2"

     misc_feature    1303..1536
                     /label="RRE"

     misc_feature    2031..2046
                     /label="cPPT"

     CDS             2272..2799
                     /label="ORF frame 1"

     misc_feature    2491..2510
                     /label="pCEP_fwd_primer"

     misc_feature    2493..2517
                     /label="LNCX_primer"

     misc_feature    complement(2611..2634)
                     /label="MSCV_rev_primer"

     CDS             2856..3695
                     /label="ORF frame 3"

     misc_feature    3008..3027
                     /label="mPGK_F_primer"

     gene            3096..3695
                     /label="puro (variant)"
                     /gene="puro (variant)"

     misc_feature    3714..4289
                     /label="WPRE"

     CDS             3802..4329
                     /label="ORF frame 1"

     misc_feature    4960..5140
                     /label="HIV-1_5_LTR"

     misc_feature    4960..5140
                     /label="truncHIV-1_3_LTR"

     promoter        complement(5264..5282)
                     /label="M13_reverse_primer"

     misc_feature    complement(5281..5303)
                     /label="M13_pUC_rev_primer"

     promoter        complement(5317..5346)
                     /label="lac_promoter"

     gene            complement(6429..7289)
                     /label="Ampicillin"
                     /gene="Ampicillin"

     CDS             complement(6429..7289)
                     /label="ORF frame 1"

     promoter        complement(7331..7359)
                     /label="AmpR_promoter"

     terminator      7445..7576
                     /label="SV40_PA_terminator"

     misc_feature    7533..7552
                     /label="EBV_rev_primer"

ORIGIN
    1 TGGAAGGGCT AATTCACTCC CAAAGAAGAC AAGATATCCT TGATCTGTGG ATCTACCACA
   61 CACAAGGCTA CTTCCCTGAT TAGCAGAACT ACACACCAGG GCCAGGGGTC AGATATCCAC
  121 TGACCTTTGG ATGGTGCTAC AAGCTAGTAC CAGTTGAGCC AGATAAGGTA GAAGAGGCCA
  181 ATAAAGGAGA GAACACCAGC TTGTTACACC CTGTGAGCCT GCATGGGATG GATGACCCGG
  241 AGAGAGAAGT GTTAGAGTGG AGGTTTGACA GCCGCCTAGC ATTTCATCAC GTGGCCCGAG
  301 AGCTGCATCC GGAGTACTTC AAGAACTGCT GATATCGAGC TTGCTACAAG GGACTTTCCG
  361 CTGGGGACTT TCCAGGGAGG CGTGGCCTGG GCGGGACTGG GGAGTGGCGA GCCCTCAGAT
  421 CCTGCATATA AGCAGCTGCT TTTTGCCTGT ACTGGGTCTC TCTGGTTAGA CCAGATCTGA
  481 GCCTGGGAGC TCTCTGGCTA ACTAGGGAAC CCACTGCTTA AGCCTCAATA AAGCTTGCCT
  541 TGAGTGCTTC AAGTAGTGTG TGCCCGTCTG TTGTGTGACT CTGGTAACTA GAGATCCCTC
  601 AGACCCTTTT AGTCAGTGTG GAAAATCTCT AGCAGTGGCG CCCGAACAGG GACTTGAAAG
  661 CGAAAGGGAA ACCAGAGGAG CTCTCTCGAC GCAGGACTCG GCTTGCTGAA GCGCGCACGG
  721 CAAGAGGCGA GGGGCGGCGA CTGGTGAGTA CGCCAAAAAT TTTGACTAGC GGAGGCTAGA
  781 AGGAGAGAGA TGGGTGCGAG AGCGTCAGTA TTAAGCGGGG GAGAATTAGA TCGCGATGGG
  841 AAAAAATTCG GTTAAGGCCA GGGGGAAAGA AAAAATATAA ATTAAAACAT ATAGTATGGG
  901 CAAGCAGGGA GCTAGAACGA TTCGCAGTTA ATCCTGGCCT GTTAGAAACA TCAGAAGGCT
  961 GTAGACAAAT ACTGGGACAG CTACAACCAT CCCTTCAGAC AGGATCAGAA GAACTTAGAT
 1021 CATTATATAA TACAGTAGCA ACCCTCTATT GTGTGCATCA AAGGATAGAG ATAAAAGACA
 1081 CCAAGGAAGC TTTAGACAAG ATAGAGGAAG AGCAAAACAA AAGTAAGACC ACCGCACAGC
 1141 AAGCGGCCGG CCGCTGATCT TCAGACCTGG AGGAGGAGAT ATGAGGGACA ATTGGAGAAG
 1201 TGAATTATAT AAATATAAAG TAGTAAAAAT TGAACCATTA GGAGTAGCAC CCACCAAGGC
 1261 AAAGAGAAGA GTGGTGCAGA GAGAAAAAAG AGCAGTGGGA ATAGGAGCTT TGTTCCTTGG
 1321 GTTCTTGGGA GCAGCAGGAA GCACTATGGG CGCAGCGTCA ATGACGCTGA CGGTACAGGC
 1381 CAGACAATTA TTGTCTGGTA TAGTGCAGCA GCAGAACAAT TTGCTGAGGG CTATTGAGGC
 1441 GCAACAGCAT CTGTTGCAAC TCACAGTCTG GGGCATCAAG CAGCTCCAGG CAAGAATCCT
 1501 GGCTGTGGAA AGATACCTAA AGGATCAACA GCTCCTGGGG ATTTGGGGTT GCTCTGGAAA
 1561 ACTCATTTGC ACCACTGCTG TGCCTTGGAA TGCTAGTTGG AGTAATAAAT CTCTGGAACA
 1621 GATTTGGAAT CACACGACCT GGATGGAGTG GGACAGAGAA ATTAACAATT ACACAAGCTT
 1681 AATACACTCC TTAATTGAAG AATCGCAAAA CCAGCAAGAA AAGAATGAAC AAGAATTATT
 1741 GGAATTAGAT AAATGGGCAA GTTTGTGGAA TTGGTTTAAC ATAACAAATT GGCTGTGGTA
 1801 TATAAAATTA TTCATAATGA TAGTAGGAGG CTTGGTAGGT TTAAGAATAG TTTTTGCTGT
 1861 ACTTTCTATA GTGAATAGAG TTAGGCAGGG ATATTCACCA TTATCGTTTC AGACCCACCT
 1921 CCCAACCCCG AGGGGACCCG ACAGGCCCGA AGGAATAGAA GAAGAAGGTG GAGAGAGAGA
 1981 CAGAGACAGA TCCATTCGAT TAGTGAACGG ATCTCGACGG TATCGCCTTT AAAAGAAAAG
 2041 GGGGGATTGG GGGGTACAGT GCAGGGGAAA GAATAGTAGA CATAATAGCA ACAGACATAC
 2101 AAACTAAAGA ATTACAAAAA CAAATTACAA AAATTCAAAA TTTTCGGGTT TATTACAGGG
 2161 ACAGCAGAGA TCCAGTTTAT CGATGAGGCC CTTTCGTCTT CACTCGAGTT TACTCCCTAT
 2221 CAGTGATAGA GAACGTATGT CGAGTTTACT CCCTATCAGT GATAGAGAAC GATGTCGAGT
 2281 TTACTCCCTA TCAGTGATAG AGAACGTATG TCGAGTTTAC TCCCTATCAG TGATAGAGAA
 2341 CGTATGTCGA GTTTACTCCC TATCAGTGAT AGAGAACGTA TGTCGAGTTT ATCCCTATCA
 2401 GTGATAGAGA ACGTATGTCG AGTTTACTCC CTATCAGTGA TAGAGAACGT ATGTCGAGGT
 2461 AGGCGTGTAC GGTGGGAGGC CTATATAAGC AGAGCTCGTT TAGTGAACCG TCAGATCGCC
 2521 TGGAGAAGGA TCCGCGGCCG CGCCGGCTCT AGATCGCGAA CGCGTGAATT CTACCGGGTA
 2581 GGGGAGGCGC TTTTCCCAAG GCAGTCTGGA GCATGCGCTT TAGCAGCCCC GCTGGGCACT
 2641 TGGCGCTACA CAAGTGGCCT CTGGCCTCGC ACACATTCCA CATCCACCGG TAGGCGCCAA
 2701 CCGGCTCCGT TCTTTGGTGG CCCCTTCGCG CCACCTTCTA CTCCTCCCCT AGTCAGGAAG
 2761 TTCCCCCCCG CCCCGCAGCT CGCGTCGTGC AGGACGTGAC AAATGGAAGT AGCACGTCTC
 2821 ACTAGTCTCG TGCAGATGGA CAGCACCGCT GAGCAATGGA AGCGGGTAGG CCTTTGGGGC
 2881 AGCGGCCAAT AGCAGCTTTG CTCCTTCGCT TTCTGGGCTC AGAGGCTGGG AAGGGGTGGG
 2941 TCCGGGGGCG GGCTCAGGGG CGGGCTCAGG GGCGGGGCGG GCGCCCGAAG GTCCTCCGGA
 3001 GGCCCGGCAT TCTGCACGCT TCAAAAGCGC ACGTCTGCCG CGCTGTTCTC CTCTTCCTCA
 3061 TCTCCGGGCC TTTCGACCTG CAGCCCAAGC TTACCATGAC CGAGTACAAG CCCACGGTGC
 3121 GCCTCGCCAC CCGCGACGAC GTCCCCAGGG CCGTACGCAC CCTCGCCGCC GCGTTCGCCG
 3181 ACTACCCCGC CACGCGCCAC ACCGTCGATC CGGACCGCCA CATCGAGCGG GTCACCGAGC
 3241 TGCAAGAACT CTTCCTCACG CGCGTCGGGC TCGACATCGG CAAGGTGTGG GTCGCGGACG
 3301 ACGGCGCCGC GGTGGCGGTC TGGACCACGC CGGAGAGCGT CGAAGCGGGG GCGGTGTTCG
 3361 CCGAGATCGG CCCGCGCATG GCCGAGTTGA GCGGTTCCCG GCTGGCCGCG CAGCAACAGA
 3421 TGGAAGGCCT CCTGGCGCCG CACCGGCCCA AGGAGCCCGC GTGGTTCCTG GCCACCGTCG
 3481 GCGTCTCGCC CGACCACCAG GGCAAGGGTC TGGGCAGCGC CGTCGTGCTC CCCGGAGTGG
 3541 AGGCGGCCGA GCGCGCCGGG GTGCCCGCCT TCCTGGAGAC CTCCGCGCCC CGCAACCTCC
 3601 CCTTCTACGA GCGGCTCGGC TTCACCGTCA CCGCCGACGT CGAGGTGCCC GAAGGACCGC
 3661 GCACCTGGTG CATGACCCGC AAGCCCGGTG CCTGACGGGC GCGTCTGGAA CAATCAACCT
 3721 CTGGATTACA AAATTTGTGA AAGATTGACT GGTATTCTTA ACTATGTTGC TCCTTTTACG
 3781 CTATGTGGAT ACGCTGCTTT AATGCCTTTG TATCATGCTA TTGCTTCCCG TATGGCTTTC
 3841 ATTTTCTCCT CCTTGTATAA ATCCTGGTTG CTGTCTCTTT ATGAGGAGTT GTGGCCCGTT
 3901 GTCAGGCAAC GTGGCGTGGT GTGCACTGTG TTTGCTGACG CAACCCCCAC TGGTTGGGGC
 3961 ATTGCCACCA CCTGTCAGCT CCTTTCCGGG ACTTTCGCTT TCCCCCTCCC TATTGCCACG
 4021 GCGGAACTCA TCGCCGCCTG CCTTGCCCGC TGCTGGACAG GGGCTCGGCT GTTGGGCACT
 4081 GACAATTCCG TGGTGTTGTC GGGGAAGCTG ACGTCCTTTC CATGGCTGCT CGCCTGTGTT
 4141 GCCACCTGGA TTCTGCGCGG GACGTCCTTC TGCTACGTCC CTTCGGCCCT CAATCCAGCG
 4201 GACCTTCCTT CCCGCGGCCT GCTGCCGGCT CTGCGGCCTC TTCCGCGTCT TCGCCTTCGC
 4261 CCTCAGACGA GTCGGATCTC CCTTTGGGCC GCCTCCCCGC CTGGAATTAA TTCTGCAGTC
 4321 GAGACCTAGA AAAACATGGA GCAATCACAA GTAGCAATAC AGCAGCTACC AATGCTGATT
 4381 GTGCCTGGCT AGAAGCACAA GAGGAGGAGG AGGTGGGTTT TCCAGTCACA CCTCAGGTAC
 4441 CTTTAAGACC AATGACTTAC AAGGCAGCTG TAGATCTTAG CCACTTTTTA AAAGAAAAGA
 4501 GGGGACTGGA AGGGCTAATT CACTCCCAAC GAAGACAAGA TATCCTTGAT CTGTGGATCT
 4561 ACCACACACA AGGCTACTTC CCTGATTAGC AGAACTACAC ACCAGGGCCA GGGGTCAGAT
 4621 ATCCACTGAC CTTTGGATGG TGCTACAAGC TAGTACCAGT TGAGCCAGAT AAGGTAGAAG
 4681 AGGCCAATAA AGGAGAGAAC ACCAGCTTGT TACACCCTGT GAGCCTGCAT GGGATGGATG
 4741 ACCCGGAGAG AGAAGTGTTA GAGTGGAGGT TTGACAGCCG CCTAGCATTT CATCACGTGG
 4801 CCCGAGAGCT GCATCCGGAG TACTTCAAGA ACTGCTGATA TCGAGCTTGC TACAAGGGAC
 4861 TTTCCGCTGG GGACTTTCCA GGGAGGCGTG GCCTGGGCGG GACTGGGGAG TGGCGAGCCC
 4921 TCAGATCCTG CATATAAGCA GCTGCTTTTT GCCTGTACTG GGTCTCTCTG GTTAGACCAG
 4981 ATCTGAGCCT GGGAGCTCTC TGGCTAACTA GGGAACCCAC TGCTTAAGCC TCAATAAAGC
 5041 TTGCCTTGAG TGCTTCAAGT AGTGTGTGCC CGTCTGTTGT GTGACTCTGG TAACTAGAGA
 5101 TCCCTCAGAC CCTTTTAGTC AGTGTGGAAA ATCTCTAGCA GTAGTAGTTC ATGTCATCTT
 5161 ATTATTCAGT ATTTATAACT TGCAAAGAAA TGAATATCAG AGAGTGAGAG GCCTTGACAT
 5221 TGCTAGCGTT TACCGTCGAC CTCTAGCTAG AGCTTGGCGT AATCATGGTC ATAGCTGTTT
 5281 CCTGTGTGAA ATTGTTATCC GCTCACAATT CCACACAACA TACGAGCCGG AAGCATAAAG
 5341 TGTAAAGCCT GGGGTGCCTA ATGAGTGAGC TAACTCACAT TAATTGCGTT GCGCTCACTG
 5401 CCCGCTTTCC AGTCGGGAAA CCTGTCGTGC CAGCTGCATT AATGAATCGG CCAACGCGCG
 5461 GGGAGAGGCG GTTTGCGTAT TGGGCGCTCT TCCGCTTCCT CGCTCACTGA CTCGCTGCGC
 5521 TCGGTCGTTC GGCTGCGGCG AGCGGTATCA GCTCACTCAA AGGCGGTAAT ACGGTTATCC
 5581 ACAGAATCAG GGGATAACGC AGGAAAGAAC ATGTGAGCAA AAGGCCAGCA AAAGGCCAGG
 5641 AACCGTAAAA AGGCCGCGTT GCTGGCGTTT TTCCATAGGC TCCGCCCCCC TGACGAGCAT
 5701 CACAAAAATC GACGCTCAAG TCAGAGGTGG CGAAACCCGA CAGGACTATA AAGATACCAG
 5761 GCGTTTCCCC CTGGAAGCTC CCTCGTGCGC TCTCCTGTTC CGACCCTGCC GCTTACCGGA
 5821 TACCTGTCCG CCTTTCTCCC TTCGGGAAGC GTGGCGCTTT CTCATAGCTC ACGCTGTAGG
 5881 TATCTCAGTT CGGTGTAGGT CGTTCGCTCC AAGCTGGGCT GTGTGCACGA ACCCCCCGTT
 5941 CAGCCCGACC GCTGCGCCTT ATCCGGTAAC TATCGTCTTG AGTCCAACCC GGTAAGACAC
 6001 GACTTATCGC CACTGGCAGC AGCCACTGGT AACAGGATTA GCAGAGCGAG GTATGTAGGC
 6061 GGTGCTACAG AGTTCTTGAA GTGGTGGCCT AACTACGGCT ACACTAGAAG AACAGTATTT
 6121 GGTATCTGCG CTCTGCTGAA GCCAGTTACC TTCGGAAAAA GAGTTGGTAG CTCTTGATCC
 6181 GGCAAACAAA CCACCGCTGG TAGCGGTGGT TTTTTTGTTT GCAAGCAGCA GATTACGCGC
 6241 AGAAAAAAAG GATCTCAAGA AGATCCTTTG ATCTTTTCTA CGGGGTCTGA CGCTCAGTGG
 6301 AACGAAAACT CACGTTAAGG GATTTTGGTC ATGAGATTAT CAAAAAGGAT CTTCACCTAG
 6361 ATCCTTTTAA ATTAAAAATG AAGTTTTAAA TCAATCTAAA GTATATATGA GTAAACTTGG
 6421 TCTGACAGTT ACCAATGCTT AATCAGTGAG GCACCTATCT CAGCGATCTG TCTATTTCGT
 6481 TCATCCATAG TTGCCTGACT CCCCGTCGTG TAGATAACTA CGATACGGGA GGGCTTACCA
 6541 TCTGGCCCCA GTGCTGCAAT GATACCGCGA GACCCACGCT CACCGGCTCC AGATTTATCA
 6601 GCAATAAACC AGCCAGCCGG AAGGGCCGAG CGCAGAAGTG GTCCTGCAAC TTTATCCGCC
 6661 TCCATCCAGT CTATTAATTG TTGCCGGGAA GCTAGAGTAA GTAGTTCGCC AGTTAATAGT
 6721 TTGCGCAACG TTGTTGCCAT TGCTACAGGC ATCGTGGTGT CACGCTCGTC GTTTGGTATG
 6781 GCTTCATTCA GCTCCGGTTC CCAACGATCA AGGCGAGTTA CATGATCCCC CATGTTGTGC
 6841 AAAAAAGCGG TTAGCTCCTT CGGTCCTCCG ATCGTTGTCA GAAGTAAGTT GGCCGCAGTG
 6901 TTATCACTCA TGGTTATGGC AGCACTGCAT AATTCTCTTA CTGTCATGCC ATCCGTAAGA
 6961 TGCTTTTCTG TGACTGGTGA GTACTCAACC AAGTCATTCT GAGAATAGTG TATGCGGCGA
 7021 CCGAGTTGCT CTTGCCCGGC GTCAATACGG GATAATACCG CGCCACATAG CAGAACTTTA
 7081 AAAGTGCTCA TCATTGGAAA ACGTTCTTCG GGGCGAAAAC TCTCAAGGAT CTTACCGCTG
 7141 TTGAGATCCA GTTCGATGTA ACCCACTCGT GCACCCAACT GATCTTCAGC ATCTTTTACT
 7201 TTCACCAGCG TTTCTGGGTG AGCAAAAACA GGAAGGCAAA ATGCCGCAAA AAAGGGAATA
 7261 AGGGCGACAC GGAAATGTTG AATACTCATA CTCTTCCTTT TTCAATATTA TTGAAGCATT
 7321 TATCAGGGTT ATTGTCTCAT GAGCGGATAC ATATTTGAAT GTATTTAGAA AAATAAACAA
 7381 ATAGGGGTTC CGCGCACATT TCCCCGAAAA GTGCCACCTG ACGTCGACGG ATCGGGAGAT
 7441 CAACTTGTTT ATTGCAGCTT ATAATGGTTA CAAATAAAGC AATAGCATCA CAAATTTCAC
 7501 AAATAAAGCA TTTTTTTCAC TGCATTCTAG TTGTGGTTTG TCCAAACTCA TCAATGTATC
 7561 TTATCATGTC TGGATCAACT GGATAACTCA AGCTAACCAA AATCATCCCA AACTTCCCAC
 7621 CCCATACCCT ATTACCACTG CCAATTACCT GTGGTTTCAT TTACTCTAAA CCTGTGATTC
 7681 CTCTGAATTA TTTTCATTTT AAAGAAATTG TATTTGTTAA ATATGTACTA CAAACTTAGT
 7741 AGTTTTTAAA GAAATTGTAT TTGTTAAATA TGTACTACAA ACTTAGTAGT
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
