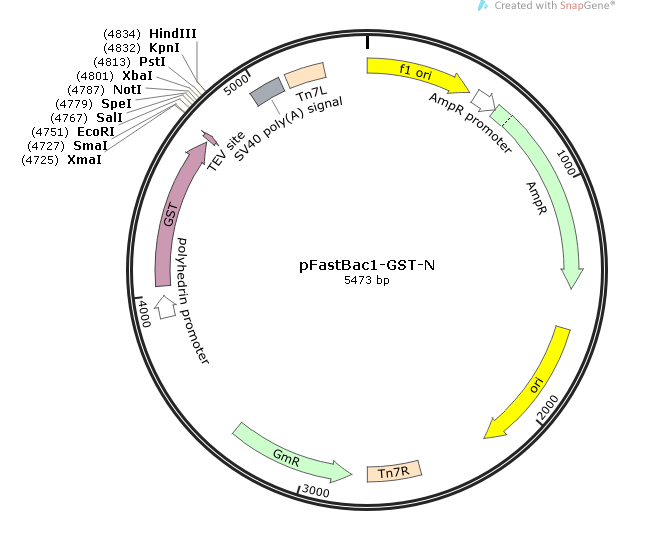

pFastBac1-GST-N

LOCUS       pFastBac1-GST-N                5473 bp DNA     circular SYN 12-JUL-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5473)
  AUTHORS   Biofeng
  TITLE     Direct Submission
  JOURNAL   Exported Jul 12, 2023 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5473
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     rep_origin      2..457
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        484..588
                     /gene="bla"
                     /label=AmpR promoter
     CDS             589..1449
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      1620..2208
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     mobile_element  2511..2735
                     /mobile_element_type="transposon:Tn7"
                     /label=Tn7R
                     /note="mini-Tn7 element (right end of the Tn7 transposon)"
     CDS             complement(2802..3335)
                     /codon_start=1
                     /gene="aacC1"
                     /product="gentamycin acetyltransferase"
                     /label=GmR
                     /note="confers resistance to gentamycin"
                     /translation="MLRSSNDVTQQGSRPKTKLGGSSMGIIRTCRLGPDQVKSMRAALD
                     LFGREFGDVATYSQHQPDSDYLGNLLRSKTFIALAAFDQEAVVGALAAYVLPRFEQPRS
                     EIYIYDLAVSGEHRRQGIATALINLLKHEANALGAYVIYVQADYGDDPAVALYTKLGIR
                     EEVMHFDIDPSTAT"
     promoter        complement(3524..3552)
                     /gene="intI1 (promoter lies within the coding sequence)"
                     /label=Pc promoter
                     /note="class 1 integron promoter"
     promoter        3904..3995
                     /gene="polh from Autographa californica"
                     /label=polyhedrin promoter
                     /note="promoter for the baculovirus polyhedrin gene"
     CDS             4038..4691
                     /codon_start=1
                     /product="glutathione S-transferase from Schistosoma
                     japonicum"
                     /label=GST
                     /translation="MSPILGYWKIKGLVQPTRLLLEYLEEKYEEHLYERDEGDKWRNKK
                     FELGLEFPNLPYYIDGDVKLTQSMAIIRYIADKHNMLGGCPKERAEISMLEGAVLDIRY
                     GVSRIAYSKDFETLKVDFLSKLPEMLKMFEDRLCHKTYLNGDHVTHPDFMLYDALDVVL
                     YMDPMCLDAFPKLVCFKKRIEAIPQIDKYLKSSKYIAWPLQGWQATFGGGDHPPK"
     CDS             4704..4724
                     /codon_start=1
                     /product="tobacco etch virus (TEV) protease recognition and
                     cleavage site"
                     /label=TEV site
                     /translation="ENLYFQS"
     polyA_signal    4963..5097
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     mobile_element  5126..5291
                     /mobile_element_type="transposon:Tn7"
                     /label=Tn7L
                     /note="mini-Tn7 element (left end of the Tn7 transposon)"
ORIGIN
        1 gacgcgccct gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg cagcgtgacc
       61 gctacacttg ccagcgccct agcgcccgct cctttcgctt tcttcccttc ctttctcgcc
      121 acgttcgccg gctttccccg tcaagctcta aatcgggggc tccctttagg gttccgattt
      181 agtgctttac ggcacctcga ccccaaaaaa cttgattagg gtgatggttc acgtagtggg
      241 ccatcgccct gatagacggt ttttcgccct ttgacgttgg agtccacgtt ctttaatagt
      301 ggactcttgt tccaaactgg aacaacactc aaccctatct cggtctattc ttttgattta
      361 taagggattt tgccgatttc ggcctattgg ttaaaaaatg agctgattta acaaaaattt
      421 aacgcgaatt ttaacaaaat attaacgttt acaatttcag gtggcacttt tcggggaaat
      481 gtgcgcggaa cccctatttg tttatttttc taaatacatt caaatatgta tccgctcatg
      541 agacaataac cctgataaat gcttcaataa tattgaaaaa ggaagagtat gagtattcaa
      601 catttccgtg tcgcccttat tccctttttt gcggcatttt gccttcctgt ttttgctcac
      661 ccagaaacgc tggtgaaagt aaaagatgct gaagatcagt tgggtgcacg agtgggttac
      721 atcgaactgg atctcaacag cggtaagatc cttgagagtt ttcgccccga agaacgtttt
      781 ccaatgatga gcacttttaa agttctgcta tgtggcgcgg tattatcccg tattgacgcc
      841 gggcaagagc aactcggtcg ccgcatacac tattctcaga atgacttggt tgagtactca
      901 ccagtcacag aaaagcatct tacggatggc atgacagtaa gagaattatg cagtgctgcc
      961 ataaccatga gtgataacac tgcggccaac ttacttctga caacgatcgg aggaccgaag
     1021 gagctaaccg cttttttgca caacatgggg gatcatgtaa ctcgccttga tcgttgggaa
     1081 ccggagctga atgaagccat accaaacgac gagcgtgaca ccacgatgcc tgtagcaatg
     1141 gcaacaacgt tgcgcaaact attaactggc gaactactta ctctagcttc ccggcaacaa
     1201 ttaatagact ggatggaggc ggataaagtt gcaggaccac ttctgcgctc ggcccttccg
     1261 gctggctggt ttattgctga taaatctgga gccggtgagc gtgggtctcg cggtatcatt
     1321 gcagcactgg ggccagatgg taagccctcc cgtatcgtag ttatctacac gacggggagt
     1381 caggcaacta tggatgaacg aaatagacag atcgctgaga taggtgcctc actgattaag
     1441 cattggtaac tgtcagacca agtttactca tatatacttt agattgattt aaaacttcat
     1501 ttttaattta aaaggatcta ggtgaagatc ctttttgata atctcatgac caaaatccct
     1561 taacgtgagt tttcgttcca ctgagcgtca gaccccgtag aaaagatcaa aggatcttct
     1621 tgagatcctt tttttctgcg cgtaatctgc tgcttgcaaa caaaaaaacc accgctacca
     1681 gcggtggttt gtttgccgga tcaagagcta ccaactcttt ttccgaaggt aactggcttc
     1741 agcagagcgc agataccaaa tactgtcctt ctagtgtagc cgtagttagg ccaccacttc
     1801 aagaactctg tagcaccgcc tacatacctc gctctgctaa tcctgttacc agtggctgct
     1861 gccagtggcg ataagtcgtg tcttaccggg ttggactcaa gacgatagtt accggataag
     1921 gcgcagcggt cgggctgaac ggggggttcg tgcacacagc ccagcttgga gcgaacgacc
     1981 tacaccgaac tgagatacct acagcgtgag cattgagaaa gcgccacgct tcccgaaggg
     2041 agaaaggcgg acaggtatcc ggtaagcggc agggtcggaa caggagagcg cacgagggag
     2101 cttccagggg gaaacgcctg gtatctttat agtcctgtcg ggtttcgcca cctctgactt
     2161 gagcgtcgat ttttgtgatg ctcgtcaggg gggcggagcc tatggaaaaa cgccagcaac
     2221 gcggcctttt tacggttcct ggccttttgc tggccttttg ctcacatgtt ctttcctgcg
     2281 ttatcccctg attctgtgga taaccgtatt accgcctttg agtgagctga taccgctcgc
     2341 cgcagccgaa cgaccgagcg cagcgagtca gtgagcgagg aagcggaaga gcgcctgatg
     2401 cggtattttc tccttacgca tctgtgcggt atttcacacc gcagaccagc cgcgtaacct
     2461 ggcaaaatcg gttacggttg agtaataaat ggatgccctg cgtaagcggg tgtgggcgga
     2521 caataaagtc ttaaactgaa caaaatagat ctaaactatg acaataaagt cttaaactag
     2581 acagaatagt tgtaaactga aatcagtcca gttatgctgt gaaaaagcat actggacttt
     2641 tgttatggct aaagcaaact cttcattttc tgaagtgcaa attgcccgtc gtattaaaga
     2701 ggggcgtggc caagggcatg gtaaagacta tattcgcggc gttgtgacaa tttaccgaac
     2761 aactccgcgg ccgggaagcc gatctcggct tgaacgaatt gttaggtggc ggtacttggg
     2821 tcgatatcaa agtgcatcac ttcttcccgt atgcccaact ttgtatagag agccactgcg
     2881 ggatcgtcac cgtaatctgc ttgcacgtag atcacataag caccaagcgc gttggcctca
     2941 tgcttgagga gattgatgag cgcggtggca atgccctgcc tccggtgctc gccggagact
     3001 gcgagatcat agatatagat ctcactacgc ggctgctcaa acctgggcag aacgtaagcc
     3061 gcgagagcgc caacaaccgc ttcttggtcg aaggcagcaa gcgcgatgaa tgtcttacta
     3121 cggagcaagt tcccgaggta atcggagtcc ggctgatgtt gggagtaggt ggctacgtct
     3181 ccgaactcac gaccgaaaag atcaagagca gcccgcatgg atttgacttg gtcagggccg
     3241 agcctacatg tgcgaatgat gcccatactt gagccaccta actttgtttt agggcgactg
     3301 ccctgctgcg taacatcgtt gctgctgcgt aacatcgttg ctgctccata acatcaaaca
     3361 tcgacccacg gcgtaacgcg cttgctgctt ggatgcccga ggcatagact gtacaaaaaa
     3421 acagtcataa caagccatga aaaccgccac tgcgccgtta ccaccgctgc gttcggtcaa
     3481 ggttctggac cagttgcgtg agcgcatacg ctacttgcat tacagtttac gaaccgaaca
     3541 ggcttatgtc aactgggttc gtgccttcat ccgtttccac ggtgtgcgtc acccggcaac
     3601 cttgggcagc agcgaagtcg aggcatttct gtcctggctg gcgaacgagc gcaaggtttc
     3661 ggtctccacg catcgtcagg cattggcggc cttgctgttc ttctacggca aggtgctgtg
     3721 cacggatctg ccctggcttc aggagatcgg aagacctcgg ccgtcgcggc gcttgccggt
     3781 ggtgctgacc ccggatgaag tggttcgcat cctcggtttt ctggaaggcg agcatcgttt
     3841 gttcgcccag gactctagct atagttctag tggttggcta cgtatactcc ggaatattaa
     3901 tagatcatgg agataattaa aatgataacc atctcgcaaa taaataagta ttttactgtt
     3961 ttcgtaacag ttttgtaata aaaaaaccta taaatattcc ggattattca taccgtccca
     4021 ccatcgggcg cggatccatg tcccctatac taggttattg gaaaattaag ggccttgtgc
     4081 aacccactcg acttcttttg gaatatcttg aagaaaaata tgaagagcat ttgtatgagc
     4141 gcgatgaagg tgataaatgg cgaaacaaaa agtttgaatt gggtttggag tttcccaatc
     4201 ttccttatta tattgatggt gatgttaaat taacacagtc tatggccatc atacgttata
     4261 tagctgacaa gcacaacatg ttgggtggtt gtccaaaaga gcgtgcagag atttcaatgc
     4321 ttgaaggagc ggttttggat attagatacg gtgtttcgag aattgcatat agtaaagact
     4381 ttgaaactct caaagttgat tttcttagca agctacctga aatgctgaaa atgttcgaag
     4441 atcgtttatg tcataaaaca tatttaaatg gtgatcatgt aacccatcct gacttcatgt
     4501 tgtatgacgc tcttgatgtt gttttataca tggacccaat gtgcctggat gcgttcccaa
     4561 aattagtttg ttttaaaaaa cgtattgaag ctatcccaca aattgataag tacttgaaat
     4621 ccagcaagta tatagcatgg cctttgcagg gctggcaagc cacgtttggt ggtggcgacc
     4681 atcctccaaa atcggatgag ctcgagaacc tgtacttcca atcccccggg aatttccggt
     4741 ggtggtggtg gaattcaaag gcctacgtcg acgagctcac tagtcgcggc cgctttcgaa
     4801 tctagagcct gcagtctcga ggcatgcggt accaagcttg tcgagaagta ctagaggatc
     4861 ataatcagcc ataccacatt tgtagaggtt ttacttgctt taaaaaacct cccacacctc
     4921 cccctgaacc tgaaacataa aatgaatgca attgttgttg ttaacttgtt tattgcagct
     4981 tataatggtt acaaataaag caatagcatc acaaatttca caaataaagc atttttttca
     5041 ctgcattcta gttgtggttt gtccaaactc atcaatgtat cttatcatgt ctggatctga
     5101 tcactgcttg agcctaggag atccgaacca gataagtgaa atctagttcc aaactatttt
     5161 gtcattttta attttcgtat tagcttacga cgctacaccc agttcccatc tattttgtca
     5221 ctcttcccta aataatcctt aaaaactcca tttccacccc tcccagttcc caactatttt
     5281 gtccgcccac agcggggcat ttttcttcct gttatgtttt taatcaaaca tcctgccaac
     5341 tccatgtgac aaaccgtcat cttcggctac tttttctctg tcacagaatg aaaatttttc
     5401 tgtcatctct tcgttattaa tgtttgtaat tgactgaata tcaacgctta tttgcagcct
     5461 gaatggcgaa tgg
//
