pCoHygro

价格:1250元

联系方式:I47-825O-882O

买家导航

pCoHygro载体基本信息

出品公司: Invitrogen
载体名称: pCoHygro
质粒类型: 昆虫表达载体;筛选载体
克隆方法: --
启动子: --
载体大小: 4526 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签:
载体抗性: 氨苄青霉素
真核筛选标记: hygromycin
克隆菌株: TOP10;DH5-T1R
宿主细胞(系): 果蝇细胞系S2
备注: pCoHygro载体昆虫载体共转染,建立稳表达细胞系。
产品目录号: K4130-01
瞬表达/稳表达: --
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

pCoHygro载体质粒图谱和多克隆位点信息

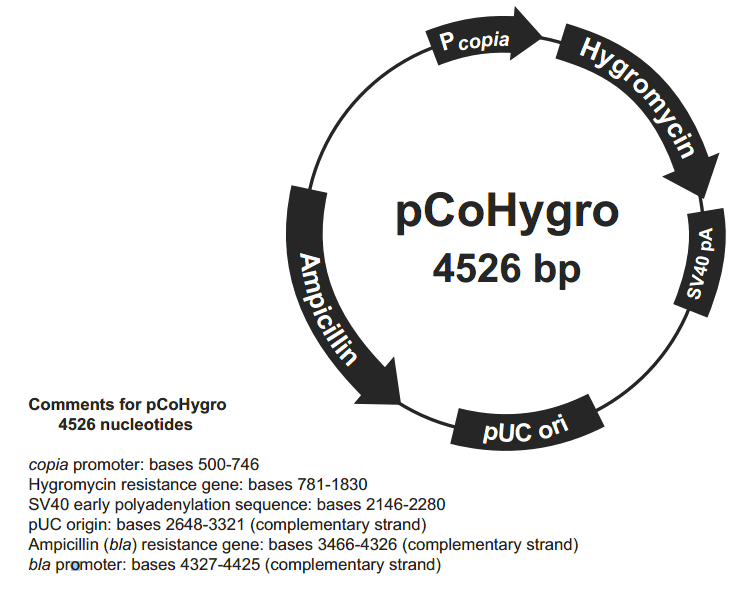

pCoHygro载体图谱

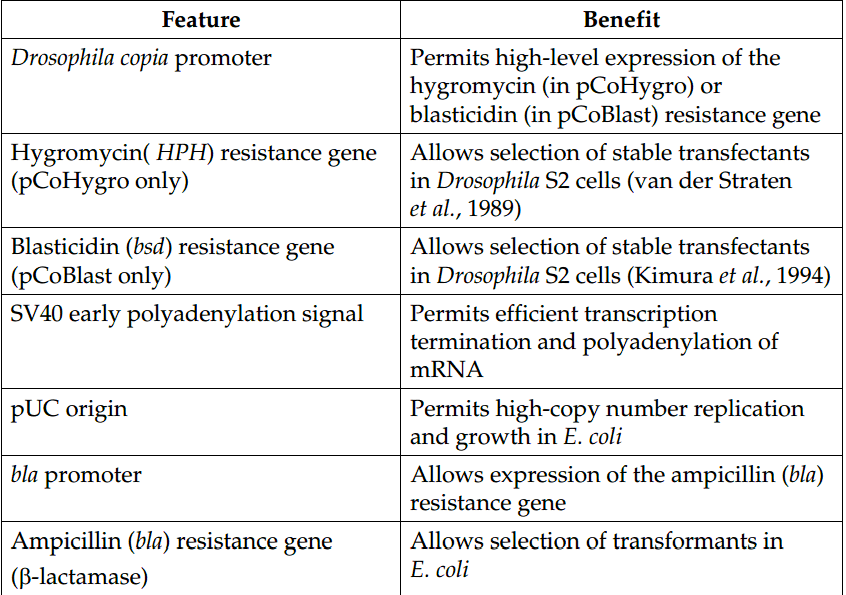

pCoHygro 载体特征

pCoHygro载体简介

pCoHygro载体序列

LOCUS       pCoHygro           4526 bp ds-DNA    circular SYN 07-April-2014
DEFINITION  Selection plasmid for insect cells, with a hygromycin resistance
            gene under control of the copia promoter.
ACCESSION   .
VERSION     .
KEYWORDS    pCoHygro
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..4526
                     /organism="synthetic DNA construct"
                     /lab_host="Insect Cells"
                     /mol_type="other DNA"
     promoter        501..780
                     /label="copia promoter"
                     /label="strong promoter from the Drosophila transposable
                     element copia?(Sinclair et al., 1986)"
     CDS             805..1830
                     /codon_start=1
                     /product="hygromycin B phosphotransferase"
                     /label="HygR"
                     /label="confers resistance to hygromycin"
     polyA_signal    2143..2277
                     /label="SV40 poly(A) signal"
                     /label="SV40 polyadenylation signal"
     rep_origin      complement(2707..3295)
                     /direction=LEFT
                     /label="ori"
                     /label="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(3466..4326)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label="AmpR"
                     /label="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
     promoter        complement(4327..4431)
                     /gene="bla"
                     /label="AmpR promoter"
ORIGIN
        1 tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg gagacggtca
       61 cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg tcagcgggtg
      121 ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta ctgagagtgc
      181 accatatgcg gtgtgaaata ccgcacagat gcgtaaggag aaaataccgc atcaggcgcc
      241 attcgccatt caggctgcgc aactgttggg aagggcgatc ggtgcgggcc tcttcgctat
      301 tacgccagct ggcgaaaggg ggatgtgctg caaggcgatt aagttgggta acgccagggt
      361 tttcccagtc acgacgttgt aaaacgacgg ccagtgccaa gcttgcatgc ctgcaggtcg
      421 actctagagg atccggtgcg tggtggtttc atgcttctgg gaacggcaaa tgggtttagg
      481 attgggaacc cctcatcatc tgttggaata tactattcaa cctacaaaaa taacgttaaa
      541 caacactact ttatatttga tatgaatggc cacacctttt atgccataaa acatattgta
      601 agagaatacc actcttttta ttccttcttt ccttcttgta cgttttttgc tgtgagtagg
      661 tcgtggtgct ggtgttgcag ttgaaataac ttaaaatata aatcataaaa ctcaaacata
      721 aacttgacta tttatttatt tattaagaaa ggaaatataa attataaatt acaacaggtt
      781 atggggatcc ccagcttggc caccatggga aagcctgagc gtaccgcgac gtctgtcgag
      841 aagtttctga tcgaaaagtt cgacagcgtc tccgacctga tgcagctctc ggagggcgaa
      901 gaatctcgtg ctttcagctt cgatgtagga gggcgtggat atgtcctgcg ggtaaatagc
      961 tgcggcgatg gtttctacaa agatcgttat gtttatcggc actttgcatc ggccgcgctc
     1021 ccgattccgg aagtgcttga cattggggaa ttcagcgaga gcctgaccta ttgcatctcc
     1081 cgccgtgcac agggtgtcac gttgcaagac ctgcctgaaa ccgaactgcc cgctgttctg
     1141 cagccggtcg cggaggccat ggatgcgatc gctgcggccg atcttagcca gacgagcggg
     1201 ttcggcccat tcggaccgca aggaatcggt caatacacta catggcgtga tttcatatgc
     1261 gcgattgctg atccccatgt gtatcactgg caaactgtga tggacgacac cgtcagtgcg
     1321 tccgtcgcgc aggctctcga tgagctgatg ctttgggccg aggactgccc cgaagtccgg
     1381 cacctcgtgc acgcggattt cggctccaac aatgtcctga cggacaatgg ccgcataaca
     1441 gcggtcattg actggagcga ggcgatgttc ggggattccc aatacgaggt cgccaacatc
     1501 ttcttctgga ggccgtggtt ggcttgtatg gagcagcaga cgcgctactt cgagcggagg
     1561 catccggagc ttgcaggatc gccgcggctc cgggcgtata tgctccgcat tggtcttgac
     1621 caactctatc agagcttggt tgacggcaat ttcgatgatg cagcttgggc gcagggtcga
     1681 tgcgacgcaa tcgtccgatc cggagccggg actgtcgggc gtacacaaat cgcccgcaga
     1741 agcgcggccg tctggaccga tggctgtgta gaagtactcg ccgatagtgg aaaccgacgc
     1801 cccagcactc gtccgagggc aaaggaatag agtagatgcc gaccgaacaa gagctgattt
     1861 cgagaacgcc tcagccagca actcgcgcga gcctagcaag gcaaatgcga gagaacggcc
     1921 ttacgcttgg tggcacagtt ctcgtccaca gttcgctaag ctcgctcggc tgggtcgcgg
     1981 gagggccggt cgcagtgatt caggcccttc tggattgtgt tggtccccag ggcacgattg
     2041 tcatgcccac gcactcgggt gatctgactg atcccgcaga ttggagatcg ccgcccgtgc
     2101 ctgccgattg ggtgcagatc agcctcgagg ccagctagct tgaacttgtt tattgcagct
     2161 tataatggtt acaaataaag caatagcatc acaaatttca caaataaagc atttttttca
     2221 ctgcattcta gttgtggttt gtccaaactc atcaatgtat cttatcatgt ctggatcggg
     2281 taccgagctc gaattcgtaa tcatgtcata gctgtttcct gtgtgaaatt gttatccgct
     2341 cacaattcca cacaacatac gagccggaag cataaagtgt aaagcctggg gtgcctaatg
     2401 agtgagctaa ctcacattaa ttgcgttgcg ctcactgccc gctttccagt cgggaaacct
     2461 gtcgtgccag ctgcattaat gaatcggcca acgcgcgggg agaggcggtt tgcgtattgg
     2521 gcgctcttcc gcttcctcgc tcactgactc gctgcgctcg gtcgttcggc tgcggcgagc
     2581 ggtatcagct cactcaaagg cggtaatacg gttatccaca gaatcagggg ataacgcagg
     2641 aaagaacatg tgagcaaaag gccagcaaaa ggccaggaac cgtaaaaagg ccgcgttgct
     2701 ggcgtttttc cataggctcc gcccccctga cgagcatcac aaaaatcgac gctcaagtca
     2761 gaggtggcga aacccgacag gactataaag ataccaggcg tttccccctg gaagctccct
     2821 cgtgcgctct cctgttccga ccctgccgct taccggatac ctgtccgcct ttctcccttc
     2881 gggaagcgtg gcgctttctc aatgctcacg ctgtaggtat ctcagttcgg tgtaggtcgt
     2941 tcgctccaag ctgggctgtg tgcacgaacc ccccgttcag cccgaccgct gcgccttatc
     3001 cggtaactat cgtcttgagt ccaacccggt aagacacgac ttatcgccac tggcagcagc
     3061 cactggtaac aggattagca gagcgaggta tgtaggcggt gctacagagt tcttgaagtg
     3121 gtggcctaac tacggctaca ctagaaggac agtatttggt atctgcgctc tgctgaagcc
     3181 agttaccttc ggaaaaagag ttggtagctc ttgatccggc aaacaaacca ccgctggtag
     3241 cggtggtttt tttgtttgca agcagcagat tacgcgcaga aaaaaaggat ctcaagaaga
     3301 tcctttgatc ttttctacgg ggtctgacgc tcagtggaac gaaaactcac gttaagggat
     3361 tttggtcatg agattatcaa aaaggatctt cacctagatc cttttaaatt aaaaatgaag
     3421 ttttaaatca atctaaagta tatatgagta aacttggtct gacagttacc aatgcttaat
     3481 cagtgaggca cctatctcag cgatctgtct atttcgttca tccatagttg cctgactccc
     3541 cgtcgtgtag ataactacga tacgggaggg cttaccatct ggccccagtg ctgcaatgat
     3601 accgcgagac ccacgctcac cggctccaga tttatcagca ataaaccagc cagccggaag
     3661 ggccgagcgc agaagtggtc ctgcaacttt atccgcctcc atccagtcta ttaattgttg
     3721 ccgggaagct agagtaagta gttcgccagt taatagtttg cgcaacgttg ttgccattgc
     3781 tacaggcatc gtggtgtcac gctcgtcgtt tggtatggct tcattcagct ccggttccca
     3841 acgatcaagg cgagttacat gatcccccat gttgtgcaaa aaagcggtta gctccttcgg
     3901 tcctccgatc gttgtcagaa gtaagttggc cgcagtgtta tcactcatgg ttatggcagc
     3961 actgcataat tctcttactg tcatgccatc cgtaagatgc ttttctgtga ctggtgagta
     4021 ctcaaccaag tcattctgag aatagtgtat gcggcgaccg agttgctctt gcccggcgtc
     4081 aatacgggat aataccgcgc cacatagcag aactttaaaa gtgctcatca ttggaaaacg
     4141 ttcttcgggg cgaaaactct caaggatctt accgctgttg agatccagtt cgatgtaacc
     4201 cactcgtgca cccaactgat cttcagcatc ttttactttc accagcgttt ctgggtgagc
     4261 aaaaacagga aggcaaaatg ccgcaaaaaa gggaataagg gcgacacgga aatgttgaat
     4321 actcatactc ttcctttttc aatattattg aagcatttat cagggttatt gtctcatgag
     4381 cggatacata tttgaatgta tttagaaaaa taaacaaata ggggttccgc gcacatttcc
     4441 ccgaaaagtg ccacctgacg tctaagaaac cattattatc atgacattaa cctataaaaa
     4501 taggcgtatc acgaggccct ttcgtc
//

pCoHygro载体质粒图谱pdf版和相关资料下载

pCoHygro载体应用举例
