pAD-GAL4-2.1

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Stratagene(Agilent)
载体名称: pAD-GAL4-2.1
质粒类型: 酵母双杂交载体;酵母噬粒载体
克隆方法: 多克隆位点,限制性内切酶
启动子: ADH1
载体大小: 7653 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签:
载体抗性: 氨苄青霉素Ampicillin
真核筛选标记: LEU2
克隆菌株: XL1-Blue MRF'
表达菌株: YRG-2
备注: 含a beta-gal报告基因。
配套载体为pBD-GAL4-Cam。
产品目录号: #838401-13
组成型/诱导型: 组成型

载体质粒图谱和多克隆位点信息

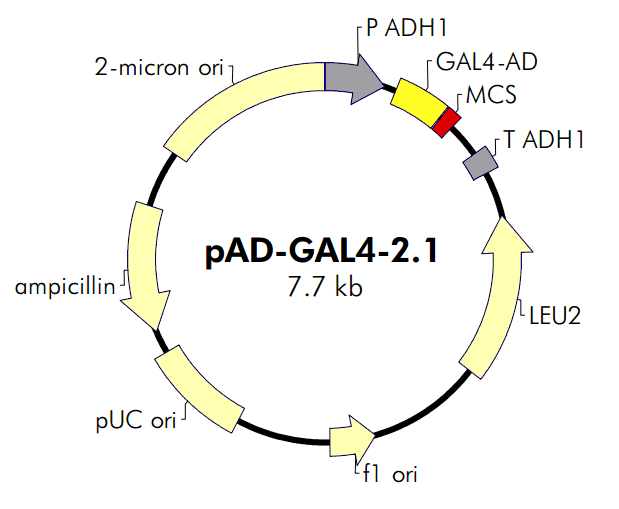

pAD-GAL4-2.1载体图谱

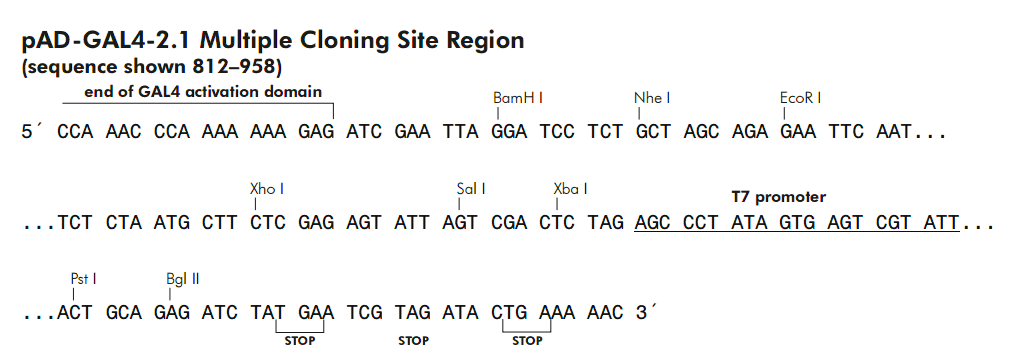

pAD-GAL4-2.1 多克隆位点

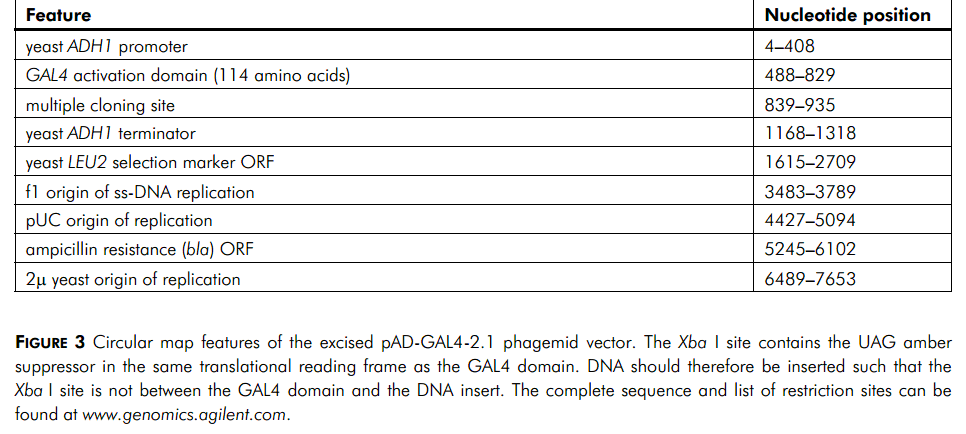

pAD-GAL4-2.1 载体特征

载体简介

酵母双杂交系统

Protein–protein interactions occur in many biological processes including replication, transcription, secretion, signal transduction, and metabolism. A fundamental question in the study of any protein is to identify proteins that interact with a given protein in vivo. Intense research efforts are focused on the identification of these proteins.
The GAL4 two-hybrid phagemid vector system, a eukaryotic
system to detect protein–protein interactions in vivo, provides a method for the rapid identification of genes encoding proteins that interact with a given protein (i.e., a bait protein).1,2 The system is based on the ability to separate eukaryotic transcriptional activators into two separate domains, the DNAbinding domain (BD) and the transcriptional activation domain (AD).
 In theGAL4 two-hybrid phagemid vector system, proteins that interact with the bait protein are identified by generating hybrids of the yeast GAL4 BD and the bait protein (X) and the GAL4 AD and a library of proteins (Y). Neither hybrid protein is capable of initiating specific transcription of reporter genes in yeast in the absence of a specific interaction with the other hybrid protein.
When the hybrid protein X is expressed in yeast, the GAL4 BD binds X to specific DNA sequences in the yeast chromosome defined by the GAL1 or GAL4 upstream activating sequences (UASGAL1 or UASGAL4, respectively), which regulate the expression of a reporter gene. Binding of X to the UAS is not sufficient to initiate transcription of the reporter gene. When Y is expressed in yeast, the AD interacts with other components of the transcription machinery required to initiate transcription of the reporter gene. However, Y alone is not localized to the reporter gene UAS and therefore does not activate transcription of the reporter gene. When a specific interaction between X and Y localizes both the GAL4 BD and GAL4 AD to the reporter gene UAS, transcriptional activation of the reporter gene occurs (Figure 2B). The reporter genes in the GAL4 twohybrid phagemid vector system are β-galactosidase (lacZ) and histidine (HIS3).

双杂交载体pAD-GAL4-2.1和pBD-GAL4-Cam

The pAD-GAL4-2.1 phagemid vector contains a multiple cloning site (MCS) with BamH I, Nhe I, EcoR I, Xho I, Sal I, Xba I, Pst I, and Bgl II restriction sites. The pBD-GAL4-Cam phagemid vector contains an MCS with EcoR I, Srf I, Sma I, Xho I, Sal I, Xba I, and Pst I restriction sites. The unique EcoR I and Xho I cloning sites in the pAD-GAL4-2.1 vector make this vector compatible with the Agilent cDNA Synthesis Kit for the preparation of unidirectional cDNA libraries.
The unique EcoR I and Sal I cloning sites are used for the preparation of cDNA libraries in the pBD-GAL4 Cam phagemid vector because the Xho I site in the MCS is not unique. The unique BamH I, Nhe I, and EcoR I sites at the 5´ end and the Xho I, Sal I, Xba I, and Bgl II sites at the 3´ end of the DNA insert facilitate the transfer of DNA encoding the target protein into commonly used protein expression/purification vectors. Genomic DNA digested with Mbo I, BamH I, or Sau3A I and partially filled-in can be inserted into a partially filled-in Xho I site in the pAD-GAL4-2.1 phagemid vector. The Xba I site in the pAD-GAL4-2.1 and pBD-GAL4-Cam phagemid vectors is not unique and contains the UAG amber suppressor in the same translational reading frame as the GAL4 domain. DNA should therefore be inserted such that the Xba I site is not between the GAL4 domain and the DNA insert.
The pAD-GAL4-2.1 and pBD-GAL4 Cam phagemid vectors contain the pUC origin for replication and an f1 origin for production of single-stranded DNA (ssDNA) in E. coli. Single-stranded DNA can be used for DNA sequencing or site-directed mutagenesis. The pAD-GAL4-2.1 and pBDGAL4-Cam phagemid vectors contain ampicillin-resistance gene [β-lactamase (bla)] and chloramphenicol acetyltransferase genes, respectively, for selection with ampicillin and chloramphenicol in E. coli. The pADGAL4-2.1 and pBD-GAL4 Cam phagemid vectors contain the 2μ origin for replication. For selection in yeast, the pAD-GAL4-2.1 phagemid vector contains the LEU2 gene and the pBD-GAL4 Cam phagemid vector contains the TRP1 gene. The hybrid protein is expressed by the alcohol dehydrogenase 1 (ADH1) promoter (P ADH1) and is terminated by the ADH1 terminator (T ADH1).

载体序列

pAD-GAL4-2.1, 7653 bp                         version 122001

NOTE: The following sequence has been verified for accuracy
at the junctions. The remainder of the sequence has been
obtained from existing data.

   1  GCTTGCATGC AACTTCTTTT CTTTTTTTTT CTTTTCTCTC TCCCCCGTTG
  51  TTGTCTCACC ATATCCGCAA TGACAAAAAA AATGATGGAA GACACTAAAG
 101  GAAAAAATTA ACGACAAAGA CAGCACCAAC AGATGTCGTT GTTCCAGAGC
 151  TGATGAGGGG TATCTTCGAA CACACGAAAC TTTTTCCTTC CTTCATTCAC
 201  GCACACTACT CTCTAATGAG CAACGGTATA CGGCCTTCCT TCCAGTTACT
 251  TGAATTTGAA ATAAAAAAAG TTTGCCGCTT TGCTATCAAG TATAAATAGA
 301  CCTGCAATTA TTAATCTTTT GTTTCCTCGT CATTGTTCTC GTTCCCTTTC
 351  TTCCTTGTTT CTTTTTCTGC ACAATATTTC AAGCTATACC AAGCATACAA
 401  TCAACTCCAA GCTTTGCAAA GATGGATAAA GCGGAATTAA TTCCCGAGCC
 451  TCCAAAAAAG AAGAGAAAGG TCGAATTGGG TACCGCCGCC AATTTTAATC
 501  AAAGTGGGAA TATTGCTGAT AGCTCATTGT CCTTCACTTT CACTAACAGT
 551  AGCAACGGTC CGAACCTCAT AACAACTCAA ACAAATTCTC AAGCGCTTTC
 601  ACAACCAATT GCCTCCTCTA ACGTTCATGA TAACTTCATG AATAATGAAA
 651  TCACGGCTAG TAAAATTGAT GATGGTAATA ATTCAAAACC ACTGTCACCT
 701  GGTTGGACGG ACCAAACTGC GTATAACGCG TTTGGAATCA CTACAGGGAT
 751  GTTTAATACC ACTACAATGG ATGATGTATA TAACTATCTA TTCGATGATG
 801  AAGATACCCC ACCAAACCCA AAAAAAGAGA TCGAATTAGG ATCCTCTGCT
 851  AGCAGAGAAT TCAATTCTCT AATGCTTCTC GAGAGTATTA GTCGACTCTA
 901  GAGCCCTATA GTGAGTCGTA TTACTGCAGA GATCTATGAA TCGTAGATAC
 951  TGAAAAACCC CGCAAGTTCA CTTCAACTGT GCATCGTGCA CCATCTCAAT
1001  TTCTTTCATT TATACATCGT TTTGCCTTCT TTTATGTAAC TATACTCCTC
1051  TAAGTTTCAA TCTTGGCCAT GTAACCTCTG ATCTATAGAA TTTTTTAAAT
1101  GACTAGAATT AATGCCCATC TTTTTTTTGG ACCTAAATTC TTCATGAAAA
1151  TATATTACGA GGGCTTATTC AGAAGCTTTG GACTTCTTCG CCAGAGGTTT
1201  GGTCAAGTCT CCAATCAAGG TTGTCGGCTT GTCTACCTTG CCAGAAATTT
1251  ACGAAAAGAT GGAAAAGGGT CAAATCGTTG GTAGATACGT TGTTGACACT
1301  TCTAAATAAG CGAATTTCTT ATGATTTATG ATTTTTATTA TTAAATAAGT
1351  TATAAAAAAA ATAAGTGTAT ACAAATTTTA AAGTGACTCT TAGGTTTTAA
1401  AACGAAAATT CTTGTTCTTG AGTAACTCTT TCCTGTAGGT CAGGTTGCTT
1451  TCTCAGGTAT AGCATGAGGT CGCTCTTATT GACCACACCT CTACCGGCAT
1501  GCCCGAAATT CCCCTACCCT ATGAACATAT TCCATTTTGT AATTTCGTGT
1551  CGTTTCTATT ATGAATTTCA TTTATAAAGT TTATGTACAA ATATCATAAA
1601  AAAAGAGAAT CTTTTTAAGC AAGGATTTTC TTAACTTCTT CGGCGACAGC
1651  ATCACCGACT TCGGTGGTAC TGTTGGAACC ACCTAAATCA CCAGTTCTGA
1701  TACCTGCATC CAAAACCTTT TTAACTGCAT CTTCAATGGC CTTACCTTCT
1751  TCAGGCAAGT TCAATGACAA TTTCAACATC ATTGCAGCAG ACAAGATAGT
1801  GGCGATAGGG TCAACCTTAT TCTTTGGCAA ATCTGGAGCA GAACCGTGGC
1851  ATGGTTCGTA CAAACCAAAT GCGGTGTTCT TGTCTGGCAA AGAGGCCAAG
1901  GACGCAGATG GCAACAAACC CAAGGAACCT GGGATAACGG AGGCTTCATC
1951  GGAGATGATA TCACCAAACA TGTTGCTGGT GATTATAATA CCATTTAGGT
2001  GGGTTGGGTT CTTAACTAGG ATCATGGCGG CAGAATCAAT CAATTGATGT
2051  TGAACCTTCA ATGTAGGAAA TTCGTTCTTG ATGGTTTCCT CCACAGTTTT
2101  TCTCCATAAT CTTGAAGAGG CCAAAACATT AGCTTTATCC AAGGACCAAA
2151  TAGGCAATGG TGGCTCATGT TGTAGGGCCA TGAAAGCGGC CATTCTTGTG
2201  ATTCTTTGCA CTTCTGGAAC GGTGTATTGT TCACTATCCC AAGCGACACC
2251  ATCACCATCG TCTTCCTTTC TCTTACCAAA GTAAATACCT CCCACTAATT
2301  CTCTGACAAC AACGAAGTCA GTACCTTTAG CAAATTGTGG CTTGATTGGA
2351  GATAAGTCTA AAAGAGAGTC GGATGCAAAG TTACATGGTC TTAAGTTGGC
2401  GTACAATTGA AGTTCTTTAC GGATTTTTAG TAAACCTTGT TCAGGTCTAA
2451  CACTACCTGT ACCCCATTTA GGACCACCCA CAGCACCTAA CAAAACGGCA
2501  TCAACCTTCT TGGAGGCTTC CAGCGCCTCA TCTGGAAGTG GGACACCTGT
2551  AGCATCGATA GCAGCACCAC CAATTAAATG ATTTTCGAAA TCGAACTTGA
2601  CATTGGAACG AACATCAGAA ATAGCTTTAA GAACCTTAAT GGCTTCGGCT
2651  GTGATTTCTT GACCAACGTG GTCACCTGGC AAAACGACGA TCTTCTTAGG
2701  GGCAGACATT AGAATGGTAT ATCCTTGAAA TATATATATA TATTGCTGAA
2751  ATGTAAAAGG TAAGAAAAGT TAGAAAGTAA GACGATTGCT AACCACCTAT
2801  TGGAAAAAAC AATAGGTCCT TAAATAATAT TGTCAACTTC AAGTATTGTG
2851  ATGCAAGCAT TTAGTCATGA ACGCTTCTCT ATTCTATATG AAAAGCCGGT
2901  TCCGGCCTCT CACCTTTCCT TTTTCTCCCA ATTTTTCAGT TGAAAAAGGT
2951  ATATGCGTCA GGCGACCTCT GAAATTAACA AAAAATTTCC AGTCATCGAA
3001  TTTGATTCTG TGCGATAGCG CCCCTGTGTG TTCTCGTTAT GTTGAGGAAA
3051  AAAATAATGG TTGCTAAGAG ATTCGAACTC TTGCATCTTA CGATACCTGA
3101  GTATTCCCAC AGTTGGGGAT CTCGACTCTA GCTAGAGGAT CAATTCGTAA
3151  TCATGGTCAT AGCTGTTTCC TGTGTGAAAT TGTTATCCGC TCACAATTCC
3201  ACACAACATA CGAGCCGGAA GCATAAAGTG TAAAGCCTGG GGTGCCTAAT
3251  GAGTGAGGTA ACTCACATTA ATTGCGTTGC GCTCACTGCC CGCTTTCCAG
3301  TCGGGAAACC TGTCGTGCCA GTTATATGCG GCCGCATAAT TTAGGCGCGT
3351  AAATTGTAAG CGTTAATATT TTGTTAAAAT TCGCGTTAAA TTTTTGTTAA
3401  ATCAGCTCAT TTTTTAACCA ATAGGCCGAA ATCGGCAAAA TCCCTTATAA
3451  ATCAAAAGAA TAGACCGAGA TAGGGTTGAG TGTTGTTCCA GTTTGGAACA
3501  AGAGTCCACT ATTAAAGAAC GTGGACTCCA ACGTCAAAGG GCGAAAAACC
3551  GTCTATCAGG GCGATGGCCC ACTACGTGAA CCATCACCCT AATCAAGTTT
3601  TTTGGGGTCG AGGTGCCGTA AAGCACTAAA TCGGAACCCT AAAGGGAGCC
3651  CCCGATTTAG AGCTTGACGG GGAAAGCCGG CGAACGTGGC GAGAAAGGAA
3701  GGGAAGAAAG CGAAAGGAGC GGGCGCTAGG GCGCTGGCAA GTGTAGCGGT
3751  CACGCTGCGC GTAACCACCA CACCCGCCGC GCTTAATGCG CCGCTACAGG
3801  GCGCGTCAGG TGGCACTTTT CGGGGAAATG TGCGCGGAAC CCCTATTTGT
3851  TTATTTTTCT AAATACATTC AAATATGTAT CCGCTCATGA GACAATAACC
3901  CTGATAAATG CTTCAATAAT ATTGAAAAAG GAAGAGTCCT GAGGCGGAAA
3951  GAACCAGCTG TGGAATGTGT GTCAGTTAGG GTGTGGAAAG TCCCCAGGCT
4001  CCCCAGCAGG CAGAAGTATG CAAAGCATGC ATCTCAATTA GTCAGCAACC
4051  AGGTGTGGAA AGTCCCCAGG CTCCCCAGCA GGCAGAAGTA TGCAAAGCAT
4101  GCATCTCAAT TAGTCAGCAA CCATAGTCCC GCCCCTAACT CCGCCCATCC
4151  CGCCCCTAAC TCCGCCCAGT TCCGCCCATT CTCCGCCCCA TGGCTGACTA
4201  ATTTTTTTTA TTTATGCAGA GGCCGAGGCC GCCTCGGCCA TTACAGCTGG
4251  ATTAATGAAT CGGCCAACGC GCGGGGAGAG GCGGTTTGCG TATTGGGCGC
4301  TCTTCCGCTT CCTCGCTCAC TGACTCGCTG CGCTCGGTCG TTCGGCTGCG
4351  GCGAGCGGTA TCAGCTCACT CAAAGGCGGT AATACGGTTA TCCACAGAAT
4401  CAGGGGATAA CGCAGGAAAG AACATGTGAG CAAAAGGCCA GCAAAAGGCC
4451  AGGAACCGTA AAAAGGCCGC GTTGCTGGCG TTTTTCCATA GGCTCCGCCC
4501  CCCTGACGAG CATCACAAAA ATCGACGCTC AAGTCAGAGG TGGCGAAACC
4551  CGACAGGACT ATAAAGATAC CAGGCGTTTC CCCCTGGAAG CTCCCTCGTG
4601  CGCTCTCCTG TTCCGACCCT GCCGCTTACC GGATACCTGT CCGCCTTTCT
4651  CCCTTCGGGA AGCGTGGCGC TTTCTCATAG CTCACGCTGT AGGTATCTCA
4701  GTTCGGTGTA GGTCGTTCGC TCCAAGCTGG GCTGTGTGCA CGAACCCCCC
4751  GTTCAGCCCG ACCGCTGCGC CTTATCCGGT AACTATCGTC TTGAGTCCAA
4801  CCCGGTAAGA CACGACTTAT CGCCACTGGC AGCAGCCACT GGTAACAGGA
4851  TTAGCAGAGC GAGGTATGTA GGCGGTGCTA CAGAGTTCTT GAAGTGGTGG
4901  CCTAACTACG GCTACACTAG AAGGACAGTA TTTGGTATCT GCGCTCTGCT
4951  GAAGCCAGTT ACCTTCGGAA AAAGAGTTGG TAGCTCTTGA TCCGGCAAAC
5001  AAACCACCGC TGGTAGCGGT GGTTTTTTTG TTTGCAAGCA GCAGATTACG
5051  CGCAGAAAAA AAGGATCTCA AGAAGATCCT TTGATCTTTT CTACGGGGTC
5101  TGACGCTCAG TGGAACGAAA ACTCACGTTA AGGGATTTTG GTCATGAGAT
5151  TATCAAAAAG GATCTTCACC TAGATCCTTT TAAATTAAAA ATGAAGTTTT
5201  AAATCAATCT AAAGTATATA TGAGTAAACT TGGTCTGACA GTTACCAATG
5251  CTTAATCAGT GAGGCACCTA TCTCAGCGAT CTGTCTATTT CGTTCATCCA
5301  TAGTTGCCTG ACTCCCCGTC GTGTAGATAA CTACGATACG GGAGGGCTTA
5351  CCATCTGGCC CCAGTGCTGC AATGATACCG CGAGACCCAC GCTCACCGGC
5401  TCCAGATTTA TCAGCAATAA ACCAGCCAGC CGGAAGGGCC GAGCGCAGAA
5451  GTGGTCCTGC AACTTTATCC GCCTCCATCC AGTCTATTAA TTGTTGCCGG
5501  GAAGCTAGAG TAAGTAGTTC GCCAGTTAAT AGTTTGCGCA ACGTTGTTGC
5551  CATTGCTACA GGCATCGTGG TGTCACGCTC GTCGTTTGGT ATGGCTTCAT
5601  TCAGCTCCGG TTCCCAACGA TCAAGGCGAG TTACATGATC CCCCATGTTG
5651  TGCAAAAAAG CGGTTAGCTC CTTCGGTCCT CCGATCGTTG TCAGAAGTAA
5701  GTTGGCCGCA GTGTTATCAC TCATGGTTAT GGCAGCACTG CATAATTCTC
5751  TTACTGTCAT GCCATCCGTA AGATGCTTTT CTGTGACTGG TGAGTACTCA
5801  ACCAAGTCAT TCTGAGAATA GTGTATGCGG CGACCGAGTT GCTCTTGCCC
5851  GGCGTCAATA CGGGATAATA CCGCGCCACA TAGCAGAACT TTAAAAGTGC
5901  TCATCATTGG AAAACGTTCT TCGGGGCGAA AACTCTCAAG GATCTTACCG
5951  CTGTTGAGAT CCAGTTCGAT GTAACCCACT CGTGCACCCA ACTGATCTTC
6001  AGCATCTTTT ACTTTCACCA GCGTTTCTGG GTGAGCAAAA ACAGGAAGGC
6051  AAAATGCCGC AAAAAAGGGA ATAAGGGCGA CACGGAAATG TTGAATACTC
6101  ATACTCTTCC TTTTTCAATA TTATTGAAGC ATTTATCAGG GTTATTGTCT
6151  CATGAGCGGA TACATATTTG AATGTATTTA GAAAAATAAA CAAATAGGGG
6201  TTCCGCGCAC ATTTCCCCGA AAAGTGCCAC CTGACGTCTA AGAAACCATT
6251  ATTATCATGA CATTAACCTA TAAAAATAGG CGTATCACGA GGCCCTTTCG
6301  TCTCGCGCGT TTCGGTGATG ACGGTGAAAA CCTCTGACAC ATGCAGCTCC
6351  CGGAGACGGT CACAGCTTGT CTGTAAGCGG ATGCCGGGAG CAGACAAGCC
6401  CGTCAGGGCG CGTCAGCGGG TGTTGGCGGG TGTCGGGGCT GGCTTAACTA
6451  TGCGGCATCA GAGCAGATTG TACTGAGAGT GCACCATAAC GCATTTAAGC
6501  ATAAACACGC ACTATGCCGT TCTTCTCATG TATATATATA TACAGGCAAC
6551  ACGCAGATAT AGGTGCGACG TGAACAGTGA GCTGTATGTG CGCAGCTCGC
6601  GTTGCATTTT CGGAAGCGCT CGTTTTCGGA AACGCTTTGA AGTTCCTATT
6651  CCGAAGTTCC TATTCTCTAG CTAGAAAGTA TAGGAACTTC AGAGCGCTTT
6701  TGAAAACCAA AAGCGCTCTG AAGACGCACT TTCAAAAAAC CAAAAACGCA
6751  CCGGACTGTA ACGAGCTACT AAAATATTGC GAATACCGCT TCCACAAACA
6801  TTGCTCAAAA GTATCTCTTT GCTATATATC TCTGTGCTAT ATCCCTATAT
6851  AACCTACCCA TCCACCTTTC GCTCCTTGAA CTTGCATCTA AACTCGACCT
6901  CTACATTTTT TATGTTTATC TCTAGTATTA CTCTTTAGAC AAAAAAATTG
6951  TAGTAAGAAC TATTCATAGA GTGAATCGAA AACAATACGA AAATGTAAAC
7001  ATTTCCTATA CGTAGTATAT AGAGACAAAA TAGAAGAAAC CGTTCATAAT
7051  TTTCTGACCA ATGAAGAATC ATCAACGCTA TCACTTTCTG TTCACAAAGT
7101  ATGCGCAATC CACATCGGTA TAGAATATAA TCGGGGATGC CTTTATCTTG
7151  AAAAAATGCA CCCGCAGCTT CGCTAGTAAT CAGTAAACGC GGGAAGTGGA
7201  GTCAGGCTTT TTTTATGGAA GAGAAAATAG ACACCAAAGT AGCCTTCTTC
7251  TAACCTTAAC GGACCTACAG TGCAAAAAGT TATCAAGAGA CTGCATTATA
7301  GAGCGCACAA AGGAGAAAAA AAGTAATCTA AGATGCTTTG TTAGAAAAAT
7351  AGCGCTCTCG GGATGCATTT TTGTAGAACA AAAAAGAAGT ATAGATTCTT
7401  TGTTGGTAAA ATAGCGCTCT CGCGTTGCAT TTCTGTTCTG TAAAAATGCA
7451  GCTCAGATTC TTTGTTTGAA AAATTAGCGC TCTCGCGTTG CATTTTTGTT
7501  TTACAAAAAT GAAGCACAGA TTCTTCGTTG GTAAAATAGC GCTTTCGCGT
7551  TGCATTTCTG TTCTGTAAAA ATGCAGCTCA GATTCTTTGT TTGAAAAATT
7601  AGCGCTCTCG CGTTGCATTT TTGTTCTACA AAATGAAGCA CAGATGCTTC
7651  GTT

载体质粒图谱pdf版和相关资料下载

载体应用举例
