pTWIN1

价格:850元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: NEB(New England Biolabs)
载体名称: pTWIN1
质粒类型: 原核细胞表达载体
高拷贝/低拷贝: --
启动子: --
克隆方法: 多克隆位点,限制性内切酶
载体大小: 7375bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素(Ampicillin)
筛选标记: --
备注: --
产品目录号: --
稳定性: --
组成型: --
病毒/非病毒: --

载体质粒图谱和多克隆位点信息

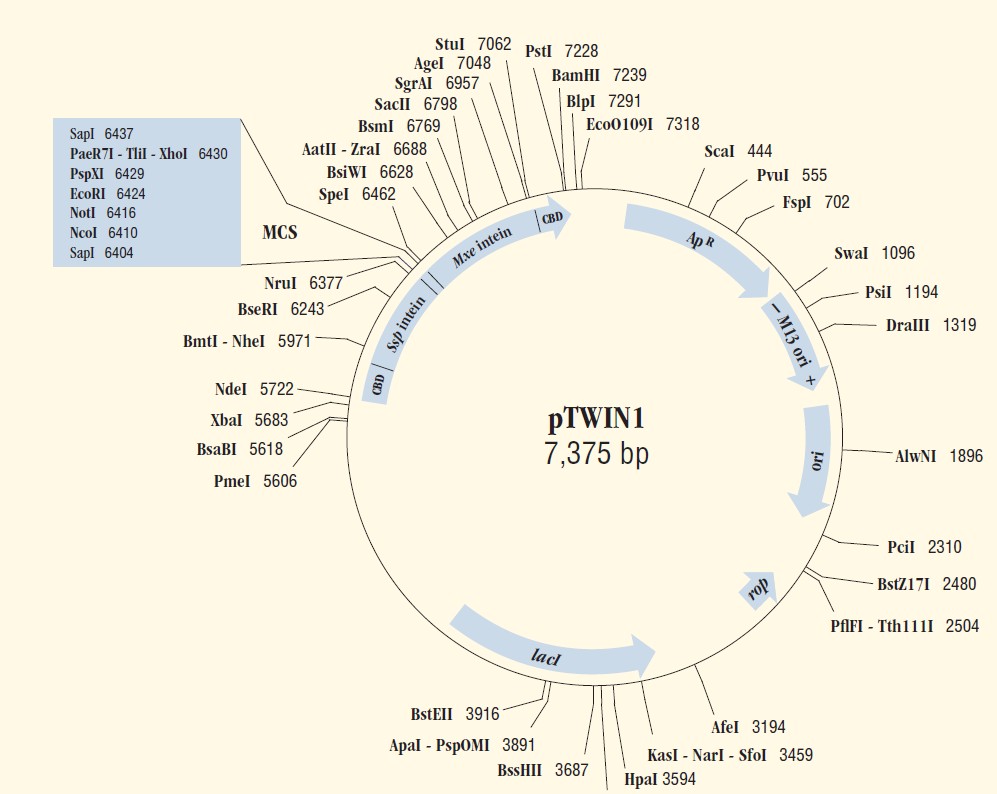

pTWIN1载体图谱

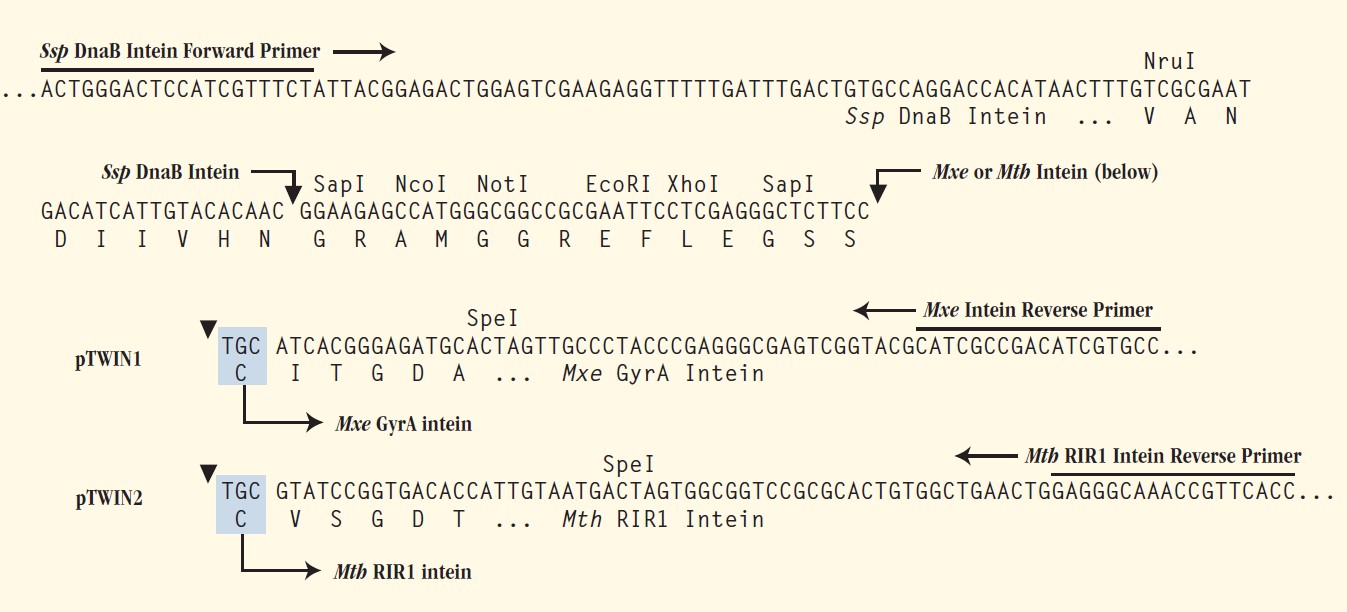

pTWIN1多克隆位点

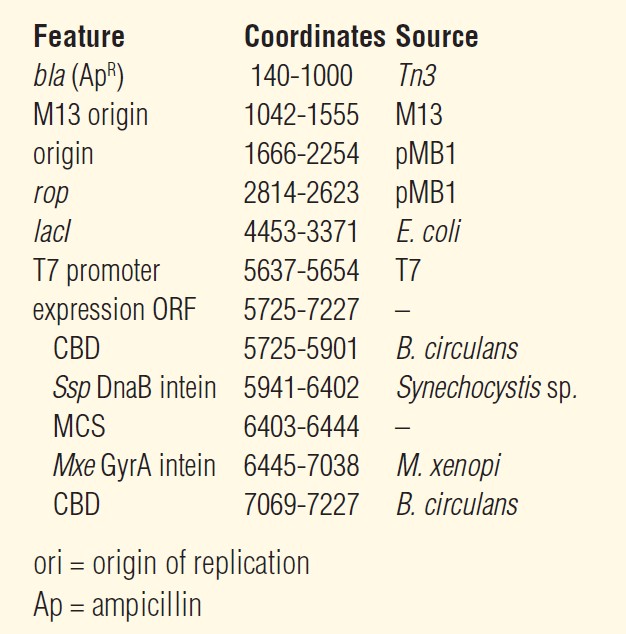

pTWIN1载体特征

载体简介

载体序列

LOCUS       pTWIN1	7375 bp 	DNA	SYN
DEFINITION  pTWIN1
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..7375
                     /organism="pTWIN1"
                     /mol_type="other DNA"
     promoter        70..98
                     /label="AmpR_promoter"
     gene            140..1000
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             140..1000
                     /label="ORF frame 2"

     rep_origin      complement(1232..1538)
                     /label="f1_origin"

     rep_origin      1650..2269
                     /label="pBR322_origin"

     misc_feature    2607..2629
                     /label="pGEX_3_primer"

     misc_feature    complement(2623..2814)
                     /label="ROP"

     CDS             2953..3588
                     /label="ORF frame 1"

     gene            complement(3010..3309)
                     /label="tet (611 - 312)"
                     /gene="tet (611 - 312)"

     misc_feature    complement(3371..4462)
                     /label="lacI"

     CDS             complement(3371..4330)
                     /label="ORF frame 1"

     CDS             complement(4654..5415)
                     /label="ORF frame 2"

     terminator      4687..4730
                     /label="rrnB_T1_terminator"

     terminator      4870..4913
                     /label="rrnB_T1_terminator"

     terminator      5053..5096
                     /label="rrnB_T1_terminator"

     terminator      5236..5279
                     /label="rrnB_T1_terminator"

     terminator      5419..5462
                     /label="rrnB_T1_terminator"

     promoter        5637..5655
                     /label="T7_promoter"

     misc_feature    5655..5682
                     /label="lacO"

     misc_feature    5700..5716
                     /label="T7_transl_en_RBS"

     CDS             5725..7227
                     /label="ORF frame 1"

     terminator      7247..7375
                     /label="T7_terminator"

     misc_feature    complement(7289..7307)
                     /label="T7_Terminal_primer"

ORIGIN
    1 AACTACGTCA GGTGGCACTT TTCGGGGAAA TGTGCGCGGA ACCCCTATTT GTTTATTTTT
   61 CTAAATACAT TCAAATATGT ATCCGCTCAT GAGACAATAA CCCTGATAAA TGCTTCAATA
  121 ATATTGAAAA AGGAAGAGTA TGAGTATTCA ACATTTCCGT GTCGCCCTTA TTCCCTTTTT
  181 TGCGGCATTT TGCCTTCCTG TTTTTGCTCA CCCAGAAACG CTGGTGAAAG TAAAAGATGC
  241 TGAAGATCAG TTGGGTGCAC GAGTGGGTTA CATCGAACTG GATCTCAACA GCGGTAAGAT
  301 CCTTGAGAGT TTTCGCCCCG AAGAACGTTC TCCAATGATG AGCACTTTTA AAGTTCTGCT
  361 ATGTGGCGCG GTATTATCCC GTGTTGACGC CGGGCAAGAG CAACTCGGTC GCCGCATACA
  421 CTATTCTCAG AATGACTTGG TTGAGTACTC ACCAGTCACA GAAAAGCATC TTACGGATGG
  481 CATGACAGTA AGAGAATTAT GCAGTGCTGC CATAACCATG AGTGATAACA CTGCGGCCAA
  541 CTTACTTCTG ACAACGATCG GAGGACCGAA GGAGCTAACC GCTTTTTTGC ACAACATGGG
  601 GGATCATGTA ACTCGCCTTG ATCGTTGGGA ACCGGAGCTG AATGAAGCCA TACCAAACGA
  661 CGAGCGTGAC ACCACGATGC CTGTAGCAAT GGCAACAACG TTGCGCAAAC TATTAACTGG
  721 CGAACTACTT ACTCTAGCTT CCCGGCAACA ATTAATAGAC TGGATGGAGG CGGATAAAGT
  781 TGCAGGACCA CTTCTGCGCT CGGCCCTTCC GGCTGGCTGG TTTATTGCTG ATAAATCTGG
  841 AGCCGGTGAG CGTGGGTCTC GCGGTATCAT TGCAGCACTG GGGCCAGATG GTAAGCCCTC
  901 CCGTATCGTA GTTATCTACA CGACGGGGAG TCAGGCAACT ATGGATGAAC GAAATAGACA
  961 GATCGCTGAG ATAGGTGCCT CACTGATTAA GCATTGGTAA CTGTCAGACC AAGTTTACTC
 1021 ATATATACTT TAGATTGATT TACCCCGGTT GATAATCAGA AAAGCCCCAA AAACAGGAAG
 1081 ATTGTATAAG CAAATATTTA AATTGTAAAC GTTAATATTT TGTTAAAATT CGCGTTAAAT
 1141 TTTTGTTAAA TCAGCTCATT TTTTAACCAA TAGGCCGAAA TCGGCAAAAT CCCTTATAAA
 1201 TCAAAAGAAT AGCCCGAGAT AGGGTTGAGT GTTGTTCCAG TTTGGAACAA GAGTCCACTA
 1261 TTAAAGAACG TGGACTCCAA CGTCAAAGGG CGAAAAACCG TCTATCAGGG CGATGGCCCA
 1321 CTACGTGAAC CATCACCCAA ATCAAGTTTT TTGGGGTCGA GGTGCCGTAA AGCACTAAAT
 1381 CGGAACCCTA AAGGGAGCCC CCGATTTAGA GCTTGACGGG GAAAGCCGGC GAACGTGGCG
 1441 AGAAAGGAAG GGAAGAAAGC GAAAGGAGCG GGCGCTAGGG CGCTGGCAAG TGTAGCGGTC
 1501 ACGCTGCGCG TAACCACCAC ACCCGCCGCG CTTAATGCGC CGCTACAGGG CGCGTAAAAG
 1561 GATCTAGGTG AAGATCCTTT TTGATAATCT CATGACCAAA ATCCCTTAAC GTGAGTTTTC
 1621 GTTCCACTGA GCGTCAGACC CCGTAGAAAA GATCAAAGGA TCTTCTTGAG ATCCTTTTTT
 1681 TCTGCGCGTA ATCTGCTGCT TGCAAACAAA AAAACCACCG CTACCAGCGG TGGTTTGTTT
 1741 GCCGGATCAA GAGCTACCAA CTCTTTTTCC GAAGGTAACT GGCTTCAGCA GAGCGCAGAT
 1801 ACCAAATACT GTCCTTCTAG TGTAGCCGTA GTTAGGCCAC CACTTCAAGA ACTCTGTAGC
 1861 ACCGCCTACA TACCTCGCTC TGCTAATCCT GTTACCAGTG GCTGCTGCCA GTGGCGATAA
 1921 GTCGTGTCTT ACCGGGTTGG ACTCAAGACG ATAGTTACCG GATAAGGCGC AGCGGTCGGG
 1981 CTGAACGGGG GGTTCGTGCA CACAGCCCAG CTTGGAGCGA ACGACCTACA CCGAACTGAG
 2041 ATACCTACAG CGTGAGCTAT GAGAAAGCGC CACGCTTCCC GAAGGGAGAA AGGCGGACAG
 2101 GTATCCGGTA AGCGGCAGGG TCGGAACAGG AGAGCGCACG AGGGAGCTTC CAGGGGGAAA
 2161 CGCCTGGTAT CTTTATAGTC CTGTCGGGTT TCGCCACCTC TGACTTGAGC GTCGATTTTT
 2221 GTGATGCTCG TCAGGGGGGC GGAGCCTATG GAAAAACGCC AGCAACGCGG CCTTTTTACG
 2281 GTTCCTGGCC TTTTGCTGGC CTTTTGCTCA CATGTTCTTT CCTGCGTTAT CCCCTGATTC
 2341 TGTGGATAAC CGTATTACCG CCTTTGAGTG AGCTGATACC GCTCGCCGCA GCCGAACGAC
 2401 CGAGCGCAGC GAGTCAGTGA GCGAGGAAGC TATGGTGCAC TCTCAGTACA ATCTGCTCTG
 2461 ATGCCGCATA GTTAAGCCAG TATACACTCC GCTATCGCTA CGTGACTGGG TCATGGCTGC
 2521 GCCCCGACAC CCGCCAACAC CCGCTGACGC GCCCTGACGG GCTTGTCTGC TCCCGGCATC
 2581 CGCTTACAGA CAAGCTGTGA CCGTCTCCGG GAGCTGCATG TGTCAGAGGT TTTCACCGTC
 2641 ATCACCGAAA CGCGCGAGGC AGCTGCGGTA AAGCTCATCA GCGTGGTCGT GCAGCGATTC
 2701 ACAGATGTCT GCCTGTTCAT CCGCGTCCAG CTCGTTGAGT TTCTCCAGAA GCGTTAATGT
 2761 CTGGCTTCTG ATAAAGCGGG CCATGTTAAG GGCGGTTTTT TCCTGTTTGG TCACTGATGC
 2821 CTCCGTGTAA GGGGGATTTC TGTTCATGGG GGTAATGATA CCGATGAAAC GAGAGAGGAT
 2881 GCTCACGATA CGGGTTACTG ATGATGAACA TGCCCGGTTA CTGGAACGTT GTGAGGGTAA
 2941 ACAACTGGCG GTATGGATGC GGCGGGACCA GAGAAAAATC ACTCAGGGTC AATGCCAGCC
 3001 GAACGCCAGC AAGACGTAGC CCAGCGCGTC GGCCGCCATG CCGGCGATAA TGGCCTGCTT
 3061 CTCGCCGAAA CGTTTGGTGG CGGGACCAGT GACGAAGGCT TGAGCGAGGG CGTGCAAGAT
 3121 TCCGAATACC GCAAGCGACA GGCCGATCAT CGTCGCGCTC CAGCGAAAGC GGTCCTCGCC
 3181 GAAAATGACC CAGAGCGCTG CCGGCACCTG TCCTACGAGT TGCATGATAA AGAAGACAGT
 3241 CATAAGTGCG GCGACGATAG TCATGCCCCG CGCCCACCGG AAGGAGCTGA CTGGGTTGAA
 3301 GGCTCTCAAG GGCATCGGTC GAGATCCCGG TGCCTAATGA GTGAGCTAAC TTACATTAAT
 3361 TGCGTTGCGC TCACTGCCCG CTTTCCAGTC GGGAAACCTG TCGTGCCAGC TGCATTAATG
 3421 AATCGGCCAA CGCGCGGGGA GAGGCGGTTT GCGTATTGGG CGCCAGGGTG GTTTTTCTTT
 3481 TCACCAGTGA GACGGGCAAC AGCTGATTGC CCTTCACCGC CTGGCCCTGA GAGAGTTGCA
 3541 GCAAGCGGTC CACGCTGGTT TGCCCCAGCA GGCGAAAATC CTGTTTGATG GTGGTTAACG
 3601 GCGGGATATA ACATGAGCTG TCTTCGGTAT CGTCGTATCC CACTACCGAG ATATCCGCAC
 3661 CAACGCGCAG CCCGGACTCG GTAATGGCGC GCATTGCGCC CAGCGCCATC TGATCGTTGG
 3721 CAACCAGCAT CGCAGTGGGA ACGATGCCCT CATTCAGCAT TTGCATGGTT TGTTGAAAAC
 3781 CGGACATGGC ACTCCAGTCG CCTTCCCGTT CCGCTATCGG CTGAATTTGA TTGCGAGTGA
 3841 GATATTTATG CCAGCCAGCC AGACGCAGAC GCGCCGAGAC AGAACTTAAT GGGCCCGCTA
 3901 ACAGCGCGAT TTGCTGGTGA CCCAATGCGA CCAGATGCTC CACGCCCAGT CGCGTACCGT
 3961 CTTCATGGGA GAAAATAATA CTGTTGATGG GTGTCTGGTC AGAGACATCA AGAAATAACG
 4021 CCGGAACATT AGTGCAGGCA GCTTCCACAG CAATGGCATC CTGGTCATCC AGCGGATAGT
 4081 TAATGATCAG CCCACTGACG CGTTGCGCGA GAAGATTGTG CACCGCCGCT TTACAGGCTT
 4141 CGACGCCGCT TCGTTCTACC ATCGACACCA CCACGCTGGC ACCCAGTTGA TCGGCGCGAG
 4201 ATTTAATCGC CGCGACAATT TGCGACGGCG CGTGCAGGGC CAGACTGGAG GTGGCAACGC
 4261 CAATCAGCAA CGACTGTTTG CCCGCCAGTT GTTGTGCCAC GCGGTTGGGA ATGTAATTCA
 4321 GCTCCGCCAT CGCCGCTTCC ACTTTTTCCC GCGTTTTCGC AGAAACGTGG CTGGCCTGGT
 4381 TCACCACGCG GGAAACGGTC TGATAAGAGA CACCGGCATA CTCTGCGACA TCGTATAACG
 4441 TTACTGGTTT CACATTCACC ACCCTGAATT GACTCTCTTC CGGGCGCTAT CATGCCATAC
 4501 CGCGAAAGGT TTTGCGCCAT TCGATGGTGT CCGGGATCTC GACGCTCTCC CTTATGCGAC
 4561 TCCTGCATTA GGAAGCAGCC CAGTAGTAGG TTGAGGCCGT TGAGCACCGC CGCCGCAAGG
 4621 AATGGTGCAT GCCGGCATGC CGCCCTTTCG TCTTCAAGAA TTAATTCCCA ATTCCCCAGG
 4681 CATCAAATAA AACGAAAGGC TCAGTCGAAA GACTGGGCCT TTCGTTTTAT CTGTTGTTTG
 4741 TCGGTGAACG CTCTCCTGAG TAGGACAAAT CCGCCGGGAG CGGATTTGAA CGTTGCGAAG
 4801 CAACGGCCCG GAGGGTGGCG GGCAGGACGC CCGCCATAAA CTGCCAGGAA TTAATTCCCC
 4861 AGGCATCAAA TAAAACGAAA GGCTCAGTCG AAAGACTGGG CCTTTCGTTT TATCTGTTGT
 4921 TTGTCGGTGA ACGCTCTCCT GAGTAGGACA AATCCGCCGG GAGCGGATTT GAACGTTGCG
 4981 AAGCAACGGC CCGGAGGGTG GCGGGCAGGA CGCCCGCCAT AAACTGCCAG GAATTAATTC
 5041 CCCAGGCATC AAATAAAACG AAAGGCTCAG TCGAAAGACT GGGCCTTTCG TTTTATCTGT
 5101 TGTTTGTCGG TGAACGCTCT CCTGAGTAGG ACAAATCCGC CGGGAGCGGA TTTGAACGTT
 5161 GCGAAGCAAC GGCCCGGAGG GTGGCGGGCA GGACGCCCGC CATAAACTGC CAGGAATTAA
 5221 TTCCCCAGGC ATCAAATAAA ACGAAAGGCT CAGTCGAAAG ACTGGGCCTT TCGTTTTATC
 5281 TGTTGTTTGT CGGTGAACGC TCTCCTGAGT AGGACAAATC CGCCGGGAGC GGATTTGAAC
 5341 GTTGCGAAGC AACGGCCCGG AGGGTGGCGG GCAGGACGCC CGCCATAAAC TGCCAGGAAT
 5401 TAATTCCCCA GGCATCAAAT AAAACGAAAG GCTCAGTCGA AAGACTGGGC CTTTCGTTTT
 5461 ATCTGTTGTT TGTCGGTGAA CGCTCTCCTG AGTAGGACAA ATCCGCCGGG AGCGGATTTG
 5521 AACGTTGCGA AGCAACGGCC CGGAGGGTGG CGGGCAGGAC GCCCGCCATA AACTGCCAGG
 5581 AATTGGGGAT CGGAATTAAT TCCCGGTTTA AACCGGGGAT CTCGATCCCG CGAAATTAAT
 5641 ACGACTCACT ATAGGGGAAT TGTGAGCGGA TAACAATTCC CCTCTAGAAA TAATTTTGTT
 5701 TAACTTTAAG AAGGAGATAT ACATATGAAA ATCGAAGAAG GTAAACTGAC AAATCCTGGT
 5761 GTATCCGCTT GGCAGGTCAA CACAGCTTAT ACTGCGGGAC AATTGGTCAC ATATAACGGC
 5821 AAGACGTATA AATGTTTGCA GCCCCACACC TCCTTGGCAG GATGGGAACC ATCCAACGTT
 5881 CCTGCCTTGT GGCAGCTTCA AAACAACGGT AACAACGGTC TCGAACTGCG CGAGTCCGGA
 5941 GCTATCTCTG GCGATAGTCT GATCAGCCTG GCTAGCACAG GAAAAAGAGT TTCTATTAAA
 6001 GATTTGTTAG ATGAAAAAGA TTTTGAAATA TGGGCAATTA ATGAACAGAC GATGAAGCTA
 6061 GAATCAGCTA AAGTTAGTCG TGTATTTTGT ACTGGCAAAA AGCTAGTTTA TATTCTAAAA
 6121 ACTCGACTAG GTAGAACTAT CAAGGCAACA GCAAATCATA GATTTTTAAC TATTGATGGT
 6181 TGGAAAAGAT TAGATGAGCT ATCTTTAAAA GAGCATATTG CTCTACCCCG TAAACTAGAA
 6241 AGCTCCTCTT TACAATTGTC ACCAGAAATA GAAAAGTTGT CTCAGAGTGA TATTTACTGG
 6301 GACTCCATCG TTTCTATTAC GGAGACTGGA GTCGAAGAGG TTTTTGATTT GACTGTGCCA
 6361 GGACCACATA ACTTTGTCGC GAATGACATC ATTGTACACA ACGGAAGAGC CATGGGCGGC
 6421 CGCGAATTCC TCGAGGGCTC TTCCTGCATC ACGGGAGATG CACTAGTTGC CCTACCCGAG
 6481 GGCGAGTCGG TACGCATCGC CGACATCGTG CCGGGTGCGC GGCCCAACAG TGACAACGCC
 6541 ATCGACCTGA AAGTCCTTGA CCGGCATGGC AATCCCGTGC TCGCCGACCG GCTGTTCCAC
 6601 TCCGGCGAGC ATCCGGTGTA CACGGTGCGT ACGGTCGAAG GTCTGCGTGT GACGGGCACC
 6661 GCGAACCACC CGTTGTTGTG TTTGGTCGAC GTCGCCGGGG TGCCGACCCT GCTGTGGAAG
 6721 CTGATCGACG AAATCAAGCC GGGCGATTAC GCGGTGATTC AACGCAGCGC ATTCAGCGTC
 6781 GACTGTGCAG GTTTTGCCCG CGGAAAACCC GAATTTGCGC CCACAACCTA CACAGTCGGC
 6841 GTCCCTGGAC TGGTGCGTTT CTTGGAAGCA CACCACCGAG ACCCGGACGC CCAAGCTATC
 6901 GCCGACGAGC TGACCGACGG GCGGTTCTAC TACGCGAAAG TCGCCAGTGT CACCGACGCC
 6961 GGCGTGCAGC CGGTGTATAG CCTTCGTGTC GACACGGCAG ACCACGCGTT TATCACGAAC
 7021 GGGTTCGTCA GCCACGCTAC TGGCCTCACC GGTCTGAACT CAGGCCTCAC GACAAATCCT
 7081 GGTGTATCCG CTTGGCAGGT CAACACAGCT TATACTGCGG GACAATTGGT CACATATAAC
 7141 GGCAAGACGT ATAAATGTTT GCAGCCCCAC ACCTCCTTGG CAGGATGGGA ACCATCCAAC
 7201 GTTCCTGCCT TGTGGCAGCT TCAATGACTG CAGGAAGGGG ATCCGGCTGC TAACAAAGCC
 7261 CGAAAGGAAG CTGAGTTGGC TGCTGCCACC GCTGAGCAAT AACTAGCATA ACCCCTTGGG
 7321 GCCTCTAAAC GGGTCTTGAG GGGTTTTTTG CTGAAAGGAG GAACTATATC CGGAT

//

载体质粒图谱pdf版和相关资料下载

载体应用举例
