pRSET C

价格:800元

联系方式:I47-825O-882O

买家导航

pRSETC载体基本信息

出品公司: Invitrogen
别名: pRSET C, pRSETC, pRSET-C
质粒类型: 大肠杆菌蛋白表达载体
表达水平:
启动子: T7
克隆方法: 多克隆位点,限制性内切酶
载体大小: 2895 bp
5' 测序引物及序列: T7: 5'-TAATACGACTCACTATAGGG-3'
3' 测序引物及序列: T7t: 5'-TGCTAGTTATTGCTCAGCGG-3'
载体标签: N-His, N-EK, N-Xpress
载体抗性: Ampicillin 氨苄
备注:
/
产品目录号: V315-20
稳定性: 瞬时表达 Transient
组成型: 诱导表达
病毒/非病毒: 非病毒

pRSETC载体质粒图谱和多克隆位点信息

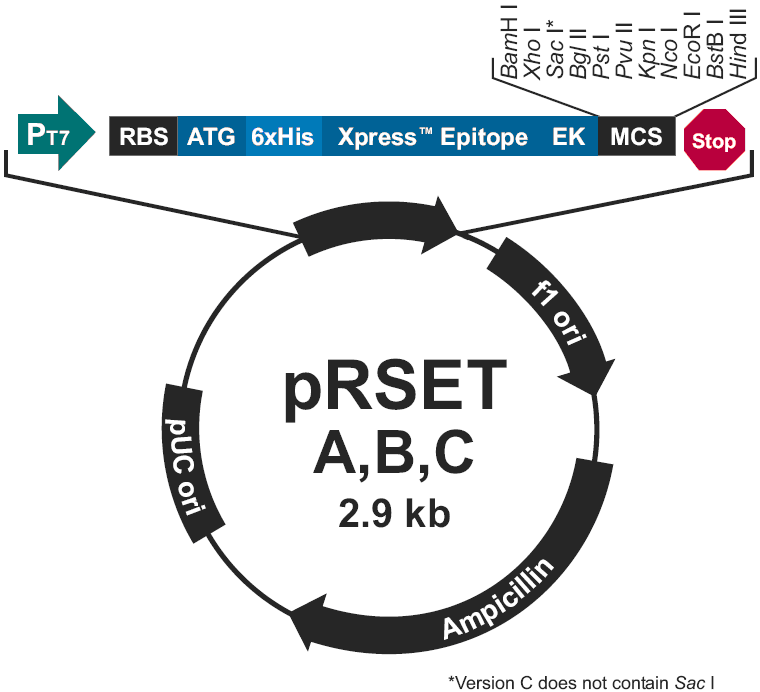

pRSET C载体图谱

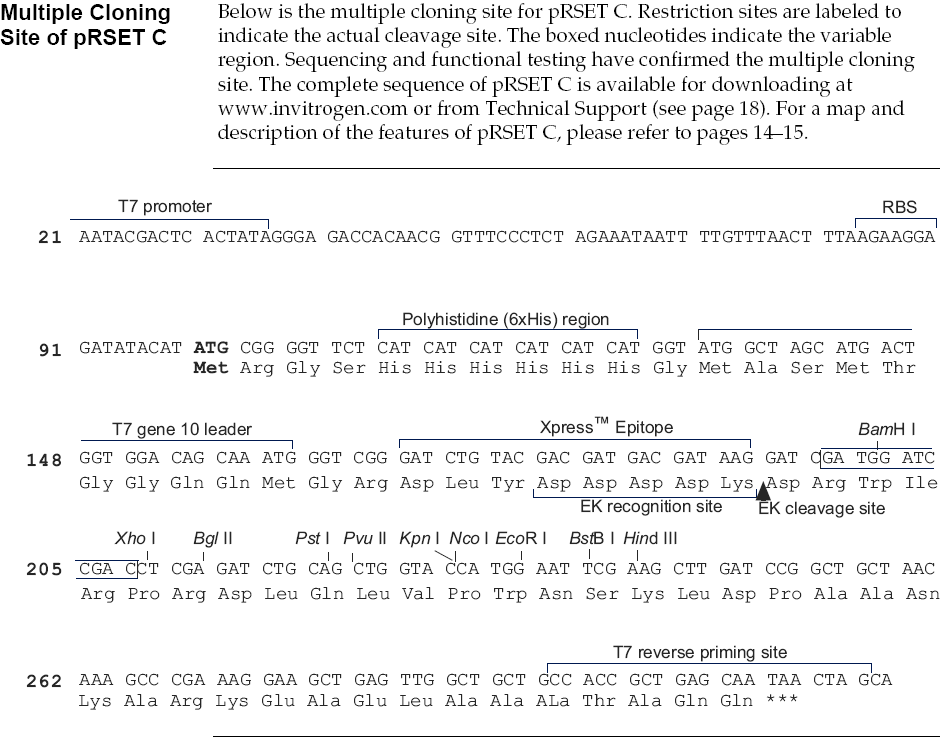

pRSET C多克隆位点

pRSETC载体简介

pRSET C载体是从pUC的载体衍生而来,载体设计的目的是为了在大肠杆菌中高水平的表达和纯化目的克隆基因。pRSETC载体上的T7启动子使得载体高水平表达克隆的基因序列成为可能。

此外,pRSET-C载体的DNA插入片段位于下游侧,并能够上游的蛋白编码框相一致,上游的编码序列表达了一个N-端融合的肽。该序列包括一个ATG翻译起始密 码子,一个6 X His标签,一个来源于噬菌体T7基因10的转录稳定序列,Xpress抗原表位,以及一个肠激酶裂解识别序列。

His 标签允许简单的Ni柱蛋白纯化。肠激酶识别位点位于His标签和重组蛋白之间,可以随后方便的去除重组蛋白的N-端的融合肽。

pRSETC载体序列

LOCUS       pRSET-C	2895 bp 	DNA       circular	SYN
DEFINITION  pRSET-C
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..2895
                     /organism="pRSET-C"
                     /mol_type="other DNA"
     promoter        20..38
                     /label="T7_promoter"
     misc_feature    75..91
                     /label="T7_transl_en_RBS"
     misc_feature    132..150
                     /label="Xpress_fwd_primer"
     misc_feature    133..165
                     /label="T7_leader"
     misc_feature    169..192
                     /label="Xpress_EK"
     terminator      254..382
                     /label="T7_terminator"
     misc_feature    complement(296..314)
                     /label="T7_Terminal_primer"
     rep_origin      471..777
                     /label="f1_origin"
     promoter        970..998
                     /label="AmpR_promoter"
     gene            1040..1900
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             1040..1900
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      2055..2674
                     /label="pBR322_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 GATCTCGATC CCGCGAAATT AATACGACTC ACTATAGGGA GACCACAACG GTTTCCCTCT
   61 AGAAATAATT TTGTTTAACT TTAAGAAGGA GATATACATA TGCGGGGTTC TCATCATCAT
  121 CATCATCATG GTATGGCTAG CATGACTGGT GGACAGCAAA TGGGTCGGGA TCTGTACGAC
  181 GATGACGATA AGGATCGATG GATCCGACCT CGAGATCTGC AGCTGGTACC ATGGAATTCG
  241 AAGCTTGATC CGGCTGCTAA CAAAGCCCGA AAGGAAGCTG AGTTGGCTGC TGCCACCGCT
  301 GAGCAATAAC TAGCATAACC CCTTGGGGCC TCTAAACGGG TCTTGAGGGG TTTTTTGCTG
  361 AAAGGAGGAA CTATATCCGG ATCTGGCGTA ATAGCGAAGA GGCCCGCACC GATCGCCCTT
  421 CCCAACAGTT GCGCAGCCTG AATGGCGAAT GGGACGCGCC CTGTAGCGGC GCATTAAGCG
  481 CGGCGGGTGT GGTGGTTACG CGCAGCGTGA CCGCTACACT TGCCAGCGCC CTAGCGCCCG
  541 CTCCTTTCGC TTTCTTCCCT TCCTTTCTCG CCACGTTCGC CGGCTTTCCC CGTCAAGCTC
  601 TAAATCGGGG GCTCCCTTTA GGGTTCCGAT TTAGTGCTTT ACGGCACCTC GACCCCAAAA
  661 AACTTGATTA GGGTGATGGT TCACGTAGTG GGCCATCGCC CTGATAGACG GTTTTTCGCC
  721 CTTTGACGTT GGAGTCCACG TTCTTTAATA GTGGACTCTT GTTCCAAACT GGAACAACAC
  781 TCAACCCTAT CTCGGTCTAT TCTTTTGATT TATAAGGGAT TTTGCCGATT TCGGCCTATT
  841 GGTTAAAAAA TGAGCTGATT TAACAAAAAT TTAACGCGAA TTTTAACAAA ATATTAACGC
  901 TTACAATTTA GGTGGCACTT TTCGGGGAAA TGTGCGCGGA ACCCCTATTT GTTTATTTTT
  961 CTAAATACAT TCAAATATGT ATCCGCTCAT GAGACAATAA CCCTGATAAA TGCTTCAATA
 1021 ATATTGAAAA AGGAAGAGTA TGAGTATTCA ACATTTCCGT GTCGCCCTTA TTCCCTTTTT
 1081 TGCGGCATTT TGCCTTCCTG TTTTTGCTCA CCCAGAAACG CTGGTGAAAG TAAAAGATGC
 1141 TGAAGATCAG TTGGGTGCAC GAGTGGGTTA CATCGAACTG GATCTCAACA GCGGTAAGAT
 1201 CCTTGAGAGT TTTCGCCCCG AAGAACGTTT TCCAATGATG AGCACTTTTA AAGTTCTGCT
 1261 ATGTGGCGCG GTATTATCCC GTATTGACGC CGGGCAAGAG CAACTCGGTC GCCGCATACA
 1321 CTATTCTCAG AATGACTTGG TTGAGTACTC ACCAGTCACA GAAAAGCATC TTACGGATGG
 1381 CATGACAGTA AGAGAATTAT GCAGTGCTGC CATAACCATG AGTGATAACA CTGCGGCCAA
 1441 CTTACTTCTG ACAACGATCG GAGGACCGAA GGAGCTAACC GCTTTTTTGC ACAACATGGG
 1501 GGATCATGTA ACTCGCCTTG ATCGTTGGGA ACCGGAGCTG AATGAAGCCA TACCAAACGA
 1561 CGAGCGTGAC ACCACGATGC CTGTAGCAAT GGCAACAACG TTGCGCAAAC TATTAACTGG
 1621 CGAACTACTT ACTCTAGCTT CCCGGCAACA ATTAATAGAC TGGATGGAGG CGGATAAAGT
 1681 TGCAGGACCA CTTCTGCGCT CGGCCCTTCC GGCTGGCTGG TTTATTGCTG ATAAATCTGG
 1741 AGCCGGTGAG CGTGGGTCTC GCGGTATCAT TGCAGCACTG GGGCCAGATG GTAAGCCCTC
 1801 CCGTATCGTA GTTATCTACA CGACGGGGAG TCAGGCAACT ATGGATGAAC GAAATAGACA
 1861 GATCGCTGAG ATAGGTGCCT CACTGATTAA GCATTGGTAA CTGTCAGACC AAGTTTACTC
 1921 ATATATACTT TAGATTGATT TAAAACTTCA TTTTTAATTT AAAAGGATCT AGGTGAAGAT
 1981 CCTTTTTGAT AATCTCATGA CCAAAATCCC TTAACGTGAG TTTTCGTTCC ACTGAGCGTC
 2041 AGACCCCGTA GAAAAGATCA AAGGATCTTC TTGAGATCCT TTTTTTCTGC GCGTAATCTG
 2101 CTGCTTGCAA ACAAAAAAAC CACCGCTACC AGCGGTGGTT TGTTTGCCGG ATCAAGAGCT
 2161 ACCAACTCTT TTTCCGAAGG TAACTGGCTT CAGCAGAGCG CAGATACCAA ATACTGTTCT
 2221 TCTAGTGTAG CCGTAGTTAG GCCACCACTT CAAGAACTCT GTAGCACCGC CTACATACCT
 2281 CGCTCTGCTA ATCCTGTTAC CAGTGGCTGC TGCCAGTGGC GATAAGTCGT GTCTTACCGG
 2341 GTTGGACTCA AGACGATAGT TACCGGATAA GGCGCAGCGG TCGGGCTGAA CGGGGGGTTC
 2401 GTGCACACAG CCCAGCTTGG AGCGAACGAC CTACACCGAA CTGAGATACC TACAGCGTGA
 2461 GCTATGAGAA AGCGCCACGC TTCCCGAAGG GAGAAAGGCG GACAGGTATC CGGTAAGCGG
 2521 CAGGGTCGGA ACAGGAGAGC GCACGAGGGA GCTTCCAGGG GGAAACGCCT GGTATCTTTA
 2581 TAGTCCTGTC GGGTTTCGCC ACCTCTGACT TGAGCGTCGA TTTTTGTGAT GCTCGTCAGG
 2641 GGGGCGGAGC CTATGGAAAA ACGCCAGCAA CGCGGCCTTT TTACGGTTCC TGGCCTTTTG
 2701 CTGGCCTTTT GCTCACATGT TCTTTCCTGC GTTATCCCCT GATTCTGTGG ATAACCGTAT
 2761 TACCGCCTTT GAGTGAGCTG ATACCGCTCG CCGCAGCCGA ACGACCGAGC GCAGCGAGTC
 2821 AGTGAGCGAG GAAGCGGAAG AGCGCCCAAT ACGCAAACCG CCTCTCCCCG CGCGTTGGCC
 2881 GATTCATTAA TGCAG
//

pRSETC载体质粒图谱pdf版和相关资料下载

pRSETC载体应用举例
