pGEX-6P-2

价格:800元

联系方式:I47-825O-882O

买家导航

pGEX6P2载体基本信息

出品公司: GE
别名: pGEX-6P-2, pGEX6P2, pGEX 6P 2
质粒类型: 大肠杆菌蛋白表达载体
表达水平: 高拷贝
启动子: Tac
克隆方法: 多克隆位点,限制性内切酶
载体大小: 4985 bp
5' 测序引物及序列: pGEX5':  GGGCTGGCAAGCCACGTTTGGTG
3' 测序引物及序列: pGEX3': CCGGGAGCTGCATGTGTCAGAGG
载体标签: N-GST
载体抗性: Ampicillin 氨苄
备注:
复制子是pMB1
产品目录号: 27-4598-01
稳定性: 瞬时表达 Transient
组成型: 诱导表达
病毒/非病毒: 非病毒

pGEX6P2载体质粒图谱和多克隆位点信息

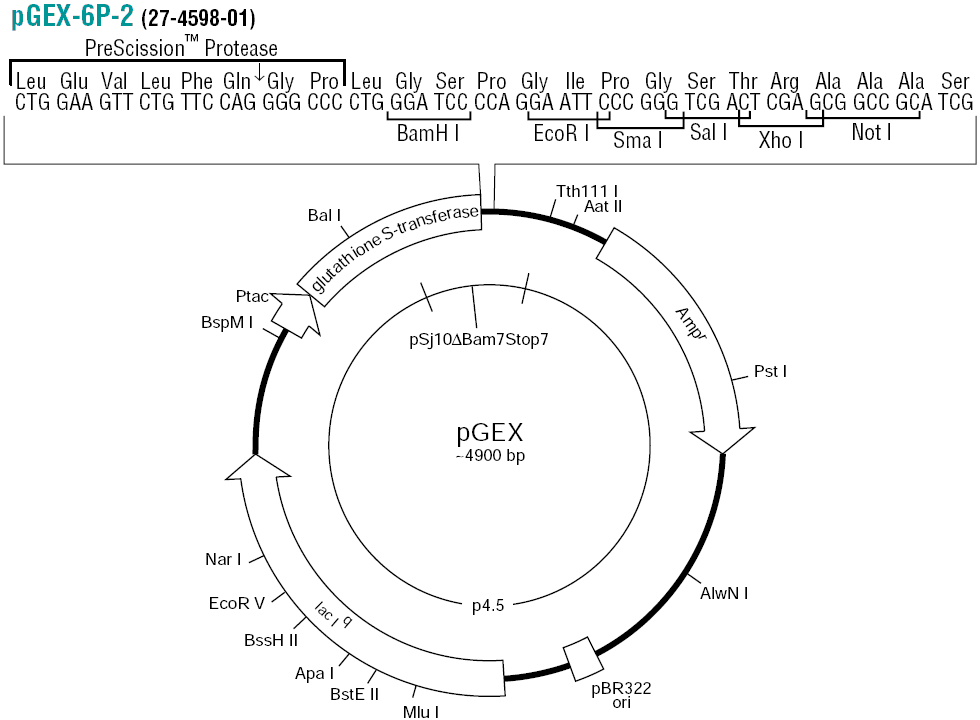

pGEX-6P-2载体图谱和多克隆位点

pGEX6P2载体简介

pGEX6P2载体序列

LOCUS       pGEX-6P-2	4985 bp 	DNA   circular	SYN
DEFINITION  pGEX-6P-2
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..4985
                     /organism="pGEX-6P-2"
                     /mol_type="other DNA"
     promoter        184..212
                     /label="tac_promoter"
     misc_feature    224..246
                     /label="M13_pUC_rev_primer"
     gene            258..993
                     /label="GST"
                     /gene="GST"
     CDS             258..989
                     /label="ORF frame 3"
     misc_feature    918..938
                     /label="precision"
     misc_feature    complement(1035..1057)
                     /label="pGEX_3_primer"
     promoter        1323..1351
                     /label="AmpR_promoter"
     gene            1393..2253
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             1393..2253
                     /label="ORF frame 1"
     rep_origin      2408..3027
                     /label="pBR322_origin"
     misc_feature    3325..4416
                     /label="lacI"
     CDS             3457..4416
                     /label="ORF frame 1"
     promoter        4465..4494
                     /label="lac_promoter"
     misc_feature    4508..4530
                     /label="M13_pUC_rev_primer"
     promoter        4529..4547
                     /label="M13_reverse_primer"
     CDS             4539..81
                     /label="ORF frame 3"
     misc_feature    4556..4711
                     /label="lacZ_a"
     promoter        complement(4559..4575)
                     /label="M13_forward20_primer"
     misc_feature    complement(4568..4590)
                     /label="M13_pUC_fwd_primer"
ORIGIN
    1 ACGTTATCGA CTGCACGGTG CACCAATGCT TCTGGCGTCA GGCAGCCATC GGAAGCTGTG
   61 GTATGGCTGT GCAGGTCGTA AATCACTGCA TAATTCGTGT CGCTCAAGGC GCACTCCCGT
  121 TCTGGATAAT GTTTTTTGCG CCGACATCAT AACGGTTCTG GCAAATATTC TGAAATGAGC
  181 TGTTGACAAT TAATCATCGG CTCGTATAAT GTGTGGAATT GTGAGCGGAT AACAATTTCA
  241 CACAGGAAAC AGTATTCATG TCCCCTATAC TAGGTTATTG GAAAATTAAG GGCCTTGTGC
  301 AACCCACTCG ACTTCTTTTG GAATATCTTG AAGAAAAATA TGAAGAGCAT TTGTATGAGC
  361 GCGATGAAGG TGATAAATGG CGAAACAAAA AGTTTGAATT GGGTTTGGAG TTTCCCAATC
  421 TTCCTTATTA TATTGATGGT GATGTTAAAT TAACACAGTC TATGGCCATC ATACGTTATA
  481 TAGCTGACAA GCACAACATG TTGGGTGGTT GTCCAAAAGA GCGTGCAGAG ATTTCAATGC
  541 TTGAAGGAGC GGTTTTGGAT ATTAGATACG GTGTTTCGAG AATTGCATAT AGTAAAGACT
  601 TTGAAACTCT CAAAGTTGAT TTTCTTAGCA AGCTACCTGA AATGCTGAAA ATGTTCGAAG
  661 ATCGTTTATG TCATAAAACA TATTTAAATG GTGATCATGT AACCCATCCT GACTTCATGT
  721 TGTATGACGC TCTTGATGTT GTTTTATACA TGGACCCAAT GTGCCTGGAT GCGTTCCCAA
  781 AATTAGTTTG TTTTAAAAAA CGTATTGAAG CTATCCCACA AATTGATAAG TACTTGAAAT
  841 CCAGCAAGTA TATAGCATGG CCTTTGCAGG GCTGGCAAGC CACGTTTGGT GGTGGCGACC
  901 ATCCTCCAAA ATCGGATCTG GAAGTTCTGT TCCAGGGGCC CCTGGGATCC CCAGGAATTC
  961 CCGGGTCGAC TCGAGCGGCC GCATCGTGAC TGACTGACGA TCTGCCTCGC GCGTTTCGGT
 1021 GATGACGGTG AAAACCTCTG ACACATGCAG CTCCCGGAGA CGGTCACAGC TTGTCTGTAA
 1081 GCGGATGCCG GGAGCAGACA AGCCCGTCAG GGCGCGTCAG CGGGTGTTGG CGGGTGTCGG
 1141 GGCGCAGCCA TGACCCAGTC ACGTAGCGAT AGCGGAGTGT ATAATTCTTG AAGACGAAAG
 1201 GGCCTCGTGA TACGCCTATT TTTATAGGTT AATGTCATGA TAATAATGGT TTCTTAGACG
 1261 TCAGGTGGCA CTTTTCGGGG AAATGTGCGC GGAACCCCTA TTTGTTTATT TTTCTAAATA
 1321 CATTCAAATA TGTATCCGCT CATGAGACAA TAACCCTGAT AAATGCTTCA ATAATATTGA
 1381 AAAAGGAAGA GTATGAGTAT TCAACATTTC CGTGTCGCCC TTATTCCCTT TTTTGCGGCA
 1441 TTTTGCCTTC CTGTTTTTGC TCACCCAGAA ACGCTGGTGA AAGTAAAAGA TGCTGAAGAT
 1501 CAGTTGGGTG CACGAGTGGG TTACATCGAA CTGGATCTCA ACAGCGGTAA GATCCTTGAG
 1561 AGTTTTCGCC CCGAAGAACG TTTTCCAATG ATGAGCACTT TTAAAGTTCT GCTATGTGGC
 1621 GCGGTATTAT CCCGTGTTGA CGCCGGGCAA GAGCAACTCG GTCGCCGCAT ACACTATTCT
 1681 CAGAATGACT TGGTTGAGTA CTCACCAGTC ACAGAAAAGC ATCTTACGGA TGGCATGACA
 1741 GTAAGAGAAT TATGCAGTGC TGCCATAACC ATGAGTGATA ACACTGCGGC CAACTTACTT
 1801 CTGACAACGA TCGGAGGACC GAAGGAGCTA ACCGCTTTTT TGCACAACAT GGGGGATCAT
 1861 GTAACTCGCC TTGATCGTTG GGAACCGGAG CTGAATGAAG CCATACCAAA CGACGAGCGT
 1921 GACACCACGA TGCCTGCAGC AATGGCAACA ACGTTGCGCA AACTATTAAC TGGCGAACTA
 1981 CTTACTCTAG CTTCCCGGCA ACAATTAATA GACTGGATGG AGGCGGATAA AGTTGCAGGA
 2041 CCACTTCTGC GCTCGGCCCT TCCGGCTGGC TGGTTTATTG CTGATAAATC TGGAGCCGGT
 2101 GAGCGTGGGT CTCGCGGTAT CATTGCAGCA CTGGGGCCAG ATGGTAAGCC CTCCCGTATC
 2161 GTAGTTATCT ACACGACGGG GAGTCAGGCA ACTATGGATG AACGAAATAG ACAGATCGCT
 2221 GAGATAGGTG CCTCACTGAT TAAGCATTGG TAACTGTCAG ACCAAGTTTA CTCATATATA
 2281 CTTTAGATTG ATTTAAAACT TCATTTTTAA TTTAAAAGGA TCTAGGTGAA GATCCTTTTT
 2341 GATAATCTCA TGACCAAAAT CCCTTAACGT GAGTTTTCGT TCCACTGAGC GTCAGACCCC
 2401 GTAGAAAAGA TCAAAGGATC TTCTTGAGAT CCTTTTTTTC TGCGCGTAAT CTGCTGCTTG
 2461 CAAACAAAAA AACCACCGCT ACCAGCGGTG GTTTGTTTGC CGGATCAAGA GCTACCAACT
 2521 CTTTTTCCGA AGGTAACTGG CTTCAGCAGA GCGCAGATAC CAAATACTGT CCTTCTAGTG
 2581 TAGCCGTAGT TAGGCCACCA CTTCAAGAAC TCTGTAGCAC CGCCTACATA CCTCGCTCTG
 2641 CTAATCCTGT TACCAGTGGC TGCTGCCAGT GGCGATAAGT CGTGTCTTAC CGGGTTGGAC
 2701 TCAAGACGAT AGTTACCGGA TAAGGCGCAG CGGTCGGGCT GAACGGGGGG TTCGTGCACA
 2761 CAGCCCAGCT TGGAGCGAAC GACCTACACC GAACTGAGAT ACCTACAGCG TGAGCTATGA
 2821 GAAAGCGCCA CGCTTCCCGA AGGGAGAAAG GCGGACAGGT ATCCGGTAAG CGGCAGGGTC
 2881 GGAACAGGAG AGCGCACGAG GGAGCTTCCA GGGGGAAACG CCTGGTATCT TTATAGTCCT
 2941 GTCGGGTTTC GCCACCTCTG ACTTGAGCGT CGATTTTTGT GATGCTCGTC AGGGGGGCGG
 3001 AGCCTATGGA AAAACGCCAG CAACGCGGCC TTTTTACGGT TCCTGGCCTT TTGCTGGCCT
 3061 TTTGCTCACA TGTTCTTTCC TGCGTTATCC CCTGATTCTG TGGATAACCG TATTACCGCC
 3121 TTTGAGTGAG CTGATACCGC TCGCCGCAGC CGAACGACCG AGCGCAGCGA GTCAGTGAGC
 3181 GAGGAAGCGG AAGAGCGCCT GATGCGGTAT TTTCTCCTTA CGCATCTGTG CGGTATTTCA
 3241 CACCGCATAA ATTCCGACAC CATCGAATGG TGCAAAACCT TTCGCGGTAT GGCATGATAG
 3301 CGCCCGGAAG AGAGTCAATT CAGGGTGGTG AATGTGAAAC CAGTAACGTT ATACGATGTC
 3361 GCAGAGTATG CCGGTGTCTC TTATCAGACC GTTTCCCGCG TGGTGAACCA GGCCAGCCAC
 3421 GTTTCTGCGA AAACGCGGGA AAAAGTGGAA GCGGCGATGG CGGAGCTGAA TTACATTCCC
 3481 AACCGCGTGG CACAACAACT GGCGGGCAAA CAGTCGTTGC TGATTGGCGT TGCCACCTCC
 3541 AGTCTGGCCC TGCACGCGCC GTCGCAAATT GTCGCGGCGA TTAAATCTCG CGCCGATCAA
 3601 CTGGGTGCCA GCGTGGTGGT GTCGATGGTA GAACGAAGCG GCGTCGAAGC CTGTAAAGCG
 3661 GCGGTGCACA ATCTTCTCGC GCAACGCGTC AGTGGGCTGA TCATTAACTA TCCGCTGGAT
 3721 GACCAGGATG CCATTGCTGT GGAAGCTGCC TGCACTAATG TTCCGGCGTT ATTTCTTGAT
 3781 GTCTCTGACC AGACACCCAT CAACAGTATT ATTTTCTCCC ATGAAGACGG TACGCGACTG
 3841 GGCGTGGAGC ATCTGGTCGC ATTGGGTCAC CAGCAAATCG CGCTGTTAGC GGGCCCATTA
 3901 AGTTCTGTCT CGGCGCGTCT GCGTCTGGCT GGCTGGCATA AATATCTCAC TCGCAATCAA
 3961 ATTCAGCCGA TAGCGGAACG GGAAGGCGAC TGGAGTGCCA TGTCCGGTTT TCAACAAACC
 4021 ATGCAAATGC TGAATGAGGG CATCGTTCCC ACTGCGATGC TGGTTGCCAA CGATCAGATG
 4081 GCGCTGGGCG CAATGCGCGC CATTACCGAG TCCGGGCTGC GCGTTGGTGC GGATATCTCG
 4141 GTAGTGGGAT ACGACGATAC CGAAGACAGC TCATGTTATA TCCCGCCGTC AACCACCATC
 4201 AAACAGGATT TTCGCCTGCT GGGGCAAACC AGCGTGGACC GCTTGCTGCA ACTCTCTCAG
 4261 GGCCAGGCGG TGAAGGGCAA TCAGCTGTTG CCCGTCTCAC TGGTGAAAAG AAAAACCACC
 4321 CTGGCGCCCA ATACGCAAAC CGCCTCTCCC CGCGCGTTGG CCGATTCATT AATGCAGCTG
 4381 GCACGACAGG TTTCCCGACT GGAAAGCGGG CAGTGAGCGC AACGCAATTA ATGTGAGTTA
 4441 GCTCACTCAT TAGGCACCCC AGGCTTTACA CTTTATGCTT CCGGCTCGTA TGTTGTGTGG
 4501 AATTGTGAGC GGATAACAAT TTCACACAGG AAACAGCTAT GACCATGATT ACGGATTCAC
 4561 TGGCCGTCGT TTTACAACGT CGTGACTGGG AAAACCCTGG CGTTACCCAA CTTAATCGCC
 4621 TTGCAGCACA TCCCCCTTTC GCCAGCTGGC GTAATAGCGA AGAGGCCCGC ACCGATCGCC
 4681 CTTCCCAACA GTTGCGCAGC CTGAATGGCG AATGGCGCTT TGCCTGGTTT CCGGCACCAG
 4741 AAGCGGTGCC GGAAAGCTGG CTGGAGTGCG ATCTTCCTGA GGCCGATACT GTCGTCGTCC
 4801 CCTCAAACTG GCAGATGCAC GGTTACGATG CGCCCATCTA CACCAACGTA ACCTATCCCA
 4861 TTACGGTCAA TCCGCCGTTT GTTCCCACGG AGAATCCGAC GGGTTGTTAC TCGCTCACAT
 4921 TTAATGTTGA TGAAAGCTGG CTACAGGAAG GCCAGACGCG AATTATTTTT GATGGCGTTG
 4981 GAATT
//

pGEX6P2载体质粒图谱pdf版和相关资料下载

pGEX6P2载体应用举例
