pGEX-5X-3

价格:800元

联系方式:I47-825O-882O

买家导航

pGEX5X3载体基本信息

出品公司: GE
别名: pGEX-5X-3, pGEX5X3, pGEX 5X 3
质粒类型: 大肠杆菌蛋白表达载体
表达水平: 高拷贝
启动子: Tac
克隆方法: 多克隆位点,限制性内切酶
载体大小: 4974 bp
5' 测序引物及序列: pGEX5':  GGGCTGGCAAGCCACGTTTGGTG
3' 测序引物及序列: pGEX3': CCGGGAGCTGCATGTGTCAGAGG
载体标签: N-GST
载体抗性: Ampicillin 氨苄
备注:
复制子是pMB1
产品目录号: 27-4586-01
稳定性: 瞬时表达 Transient
组成型: 诱导表达
病毒/非病毒: 非病毒

pGEX5X3载体质粒图谱和多克隆位点信息

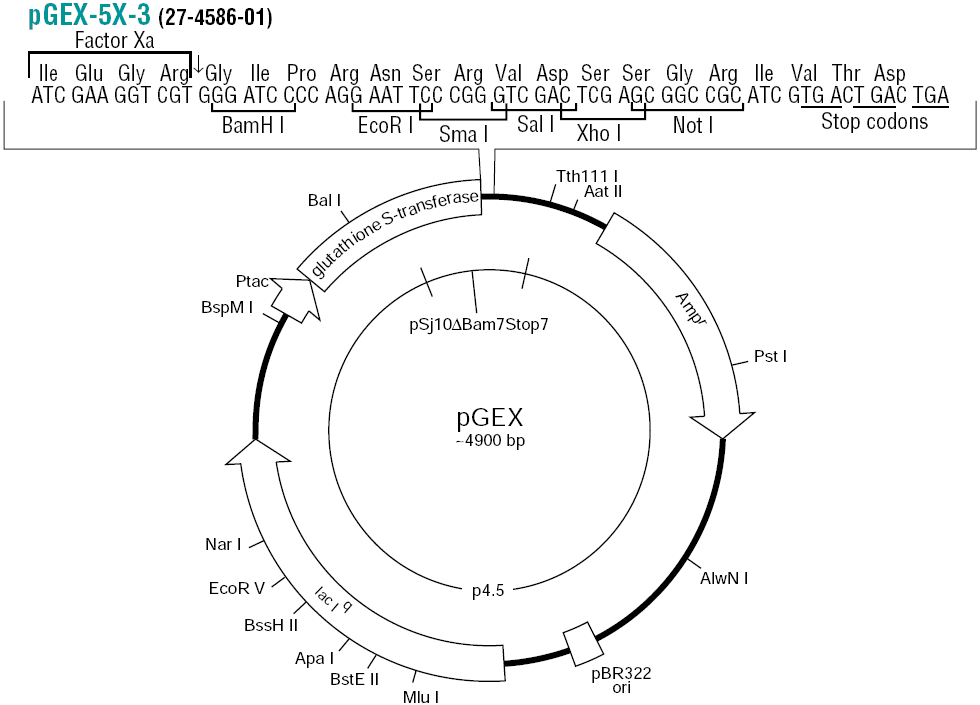

pGEX-5X-3载体图谱和多克隆位点

pGEX5X3载体简介

pGEX5X3载体序列

LOCUS       pGEX-5X-3	4974 bp 	DNA    circular  	SYN
DEFINITION  pGEX-5X-3
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..4974
                     /organism="pGEX-5X-3"
                     /mol_type="other DNA"
     promoter        184..212
                     /label="tac_promoter"
     misc_feature    224..246
                     /label="M13_pUC_rev_primer"
     gene            258..982
                     /label="GST (variant)"
                     /gene="GST (variant)"
     CDS             258..986
                     /label="ORF frame 3"
     misc_feature    complement(1024..1046)
                     /label="pGEX_3_primer"
     promoter        1312..1340
                     /label="AmpR_promoter"
     gene            1382..2242
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             1382..2242
                     /label="ORF frame 2"
     rep_origin      2397..3016
                     /label="pBR322_origin"
     misc_feature    3314..4405
                     /label="lacI"
     CDS             3446..4405
                     /label="ORF frame 2"
     promoter        4454..4483
                     /label="lac_promoter"
     misc_feature    4497..4519
                     /label="M13_pUC_rev_primer"
     promoter        4518..4536
                     /label="M13_reverse_primer"
     CDS             4528..81
                     /label="ORF frame 1"
     misc_feature    4545..4700
                     /label="lacZ_a"
     promoter        complement(4548..4564)
                     /label="M13_forward20_primer"
     misc_feature    complement(4557..4579)
                     /label="M13_pUC_fwd_primer"
ORIGIN
    1 AGCTTATCGA CTGCACGGTG CACCAATGCT TCTGGCGTCA GGCAGCCATC GGAAGCTGTG
   61 GTATGGCTGT GCAGGTCGTA AATCACTGCA TAATTCGTGT CGCTCAAGGC GCACTCCCGT
  121 TCTGGATAAT GTTTTTTGCG CCGACATCAT AACGGTTCTG GCAAATATTC TGAAATGAGC
  181 TGTTGACAAT TAATCATCGG CTCGTATAAT GTGTGGAATT GTGAGCGGAT AACAATTTCA
  241 CACAGGAAAC AGTATTCATG TCCCCTATAC TAGGTTATTG GAAAATTAAG GGCCTTGTGC
  301 AACCCACTCG ACTTCTTTTG GAATATCTTG AAGAAAAATA TGAAGAGCAT TTGTATGAGC
  361 GCGATGAAGG TGATAAATGG CGAAACAAAA AGTTTGAATT GGGTTTGGAG TTTCCCAATC
  421 TTCCTTATTA TATTGATGGT GATGTTAAAT TAACACAGTC TATGGCCATC ATACGTTATA
  481 TAGCTGACAA GCACAACATG TTGGGTGGTT GTCCAAAAGA GCGTGCAGAG ATTTCAATGC
  541 TTGAAGGAGC GGTTTTGGAT ATTAGATACG GTGTTTCGAG AATTGCATAT AGTAAAGACT
  601 TTGAAACTCT CAAAGTTGAT TTTCTTAGCA AGCTACCTGA AATGCTGAAA ATGTTCGAAG
  661 ATCGTTTATG TCATAAAACA TATTTAAATG GTGATCATGT AACCCATCCT GACTTCATGT
  721 TGTATGACGC TCTTGATGTT GTTTTATACA TGGACCCAAT GTGCCTGGAT GCGTTCCCAA
  781 AATTAGTTTG TTTTAAAAAA CGTATTGAAG CTATCCCACA AATTGATAAG TACTTGAAAT
  841 CCAGCAAGTA TATAGCATGG CCTTTGCAGG GCTGGCAAGC CACGTTTGGT GGTGGCGACC
  901 ATCCTCCAAA ATCGGATCTG ATCGAAGGTC GTGGGATCCC CAGGAATTCC CGGGTCGACT
  961 CGAGCGGCCG CATCGTGACT GACTGACGAT CTGCCTCGCG CGTTTCGGTG ATGACGGTGA
 1021 AAACCTCTGA CACATGCAGC TCCCGGAGAC GGTCACAGCT TGTCTGTAAG CGGATGCCGG
 1081 GAGCAGACAA GCCCGTCAGG GCGCGTCAGC GGGTGTTGGC GGGTGTCGGG GCGCAGCCAT
 1141 GACCCAGTCA CGTAGCGATA GCGGAGTGTA TAATTCTTGA AGACGAAAGG GCCTCGTGAT
 1201 ACGCCTATTT TTATAGGTTA ATGTCATGAT AATAATGGTT TCTTAGACGT CAGGTGGCAC
 1261 TTTTCGGGGA AATGTGCGCG GAACCCCTAT TTGTTTATTT TTCTAAATAC ATTCAAATAT
 1321 GTATCCGCTC ATGAGACAAT AACCCTGATA AATGCTTCAA TAATATTGAA AAAGGAAGAG
 1381 TATGAGTATT CAACATTTCC GTGTCGCCCT TATTCCCTTT TTTGCGGCAT TTTGCCTTCC
 1441 TGTTTTTGCT CACCCAGAAA CGCTGGTGAA AGTAAAAGAT GCTGAAGATC AGTTGGGTGC
 1501 ACGAGTGGGT TACATCGAAC TGGATCTCAA CAGCGGTAAG ATCCTTGAGA GTTTTCGCCC
 1561 CGAAGAACGT TTTCCAATGA TGAGCACTTT TAAAGTTCTG CTATGTGGCG CGGTATTATC
 1621 CCGTGTTGAC GCCGGGCAAG AGCAACTCGG TCGCCGCATA CACTATTCTC AGAATGACTT
 1681 GGTTGAGTAC TCACCAGTCA CAGAAAAGCA TCTTACGGAT GGCATGACAG TAAGAGAATT
 1741 ATGCAGTGCT GCCATAACCA TGAGTGATAA CACTGCGGCC AACTTACTTC TGACAACGAT
 1801 CGGAGGACCG AAGGAGCTAA CCGCTTTTTT GCACAACATG GGGGATCATG TAACTCGCCT
 1861 TGATCGTTGG GAACCGGAGC TGAATGAAGC CATACCAAAC GACGAGCGTG ACACCACGAT
 1921 GCCTGCAGCA ATGGCAACAA CGTTGCGCAA ACTATTAACT GGCGAACTAC TTACTCTAGC
 1981 TTCCCGGCAA CAATTAATAG ACTGGATGGA GGCGGATAAA GTTGCAGGAC CACTTCTGCG
 2041 CTCGGCCCTT CCGGCTGGCT GGTTTATTGC TGATAAATCT GGAGCCGGTG AGCGTGGGTC
 2101 TCGCGGTATC ATTGCAGCAC TGGGGCCAGA TGGTAAGCCC TCCCGTATCG TAGTTATCTA
 2161 CACGACGGGG AGTCAGGCAA CTATGGATGA ACGAAATAGA CAGATCGCTG AGATAGGTGC
 2221 CTCACTGATT AAGCATTGGT AACTGTCAGA CCAAGTTTAC TCATATATAC TTTAGATTGA
 2281 TTTAAAACTT CATTTTTAAT TTAAAAGGAT CTAGGTGAAG ATCCTTTTTG ATAATCTCAT
 2341 GACCAAAATC CCTTAACGTG AGTTTTCGTT CCACTGAGCG TCAGACCCCG TAGAAAAGAT
 2401 CAAAGGATCT TCTTGAGATC CTTTTTTTCT GCGCGTAATC TGCTGCTTGC AAACAAAAAA
 2461 ACCACCGCTA CCAGCGGTGG TTTGTTTGCC GGATCAAGAG CTACCAACTC TTTTTCCGAA
 2521 GGTAACTGGC TTCAGCAGAG CGCAGATACC AAATACTGTC CTTCTAGTGT AGCCGTAGTT
 2581 AGGCCACCAC TTCAAGAACT CTGTAGCACC GCCTACATAC CTCGCTCTGC TAATCCTGTT
 2641 ACCAGTGGCT GCTGCCAGTG GCGATAAGTC GTGTCTTACC GGGTTGGACT CAAGACGATA
 2701 GTTACCGGAT AAGGCGCAGC GGTCGGGCTG AACGGGGGGT TCGTGCACAC AGCCCAGCTT
 2761 GGAGCGAACG ACCTACACCG AACTGAGATA CCTACAGCGT GAGCTATGAG AAAGCGCCAC
 2821 GCTTCCCGAA GGGAGAAAGG CGGACAGGTA TCCGGTAAGC GGCAGGGTCG GAACAGGAGA
 2881 GCGCACGAGG GAGCTTCCAG GGGGAAACGC CTGGTATCTT TATAGTCCTG TCGGGTTTCG
 2941 CCACCTCTGA CTTGAGCGTC GATTTTTGTG ATGCTCGTCA GGGGGGCGGA GCCTATGGAA
 3001 AAACGCCAGC AACGCGGCCT TTTTACGGTT CCTGGCCTTT TGCTGGCCTT TTGCTCACAT
 3061 GTTCTTTCCT GCGTTATCCC CTGATTCTGT GGATAACCGT ATTACCGCCT TTGAGTGAGC
 3121 TGATACCGCT CGCCGCAGCC GAACGACCGA GCGCAGCGAG TCAGTGAGCG AGGAAGCGGA
 3181 AGAGCGCCTG ATGCGGTATT TTCTCCTTAC GCATCTGTGC GGTATTTCAC ACCGCATAAA
 3241 TTCCGACACC ATCGAATGGT GCAAAACCTT TCGCGGTATG GCATGATAGC GCCCGGAAGA
 3301 GAGTCAATTC AGGGTGGTGA ATGTGAAACC AGTAACGTTA TACGATGTCG CAGAGTATGC
 3361 CGGTGTCTCT TATCAGACCG TTTCCCGCGT GGTGAACCAG GCCAGCCACG TTTCTGCGAA
 3421 AACGCGGGAA AAAGTGGAAG CGGCGATGGC GGAGCTGAAT TACATTCCCA ACCGCGTGGC
 3481 ACAACAACTG GCGGGCAAAC AGTCGTTGCT GATTGGCGTT GCCACCTCCA GTCTGGCCCT
 3541 GCACGCGCCG TCGCAAATTG TCGCGGCGAT TAAATCTCGC GCCGATCAAC TGGGTGCCAG
 3601 CGTGGTGGTG TCGATGGTAG AACGAAGCGG CGTCGAAGCC TGTAAAGCGG CGGTGCACAA
 3661 TCTTCTCGCG CAACGCGTCA GTGGGCTGAT CATTAACTAT CCGCTGGATG ACCAGGATGC
 3721 CATTGCTGTG GAAGCTGCCT GCACTAATGT TCCGGCGTTA TTTCTTGATG TCTCTGACCA
 3781 GACACCCATC AACAGTATTA TTTTCTCCCA TGAAGACGGT ACGCGACTGG GCGTGGAGCA
 3841 TCTGGTCGCA TTGGGTCACC AGCAAATCGC GCTGTTAGCG GGCCCATTAA GTTCTGTCTC
 3901 GGCGCGTCTG CGTCTGGCTG GCTGGCATAA ATATCTCACT CGCAATCAAA TTCAGCCGAT
 3961 AGCGGAACGG GAAGGCGACT GGAGTGCCAT GTCCGGTTTT CAACAAACCA TGCAAATGCT
 4021 GAATGAGGGC ATCGTTCCCA CTGCGATGCT GGTTGCCAAC GATCAGATGG CGCTGGGCGC
 4081 AATGCGCGCC ATTACCGAGT CCGGGCTGCG CGTTGGTGCG GATATCTCGG TAGTGGGATA
 4141 CGACGATACC GAAGACAGCT CATGTTATAT CCCGCCGTTA ACCACCATCA AACAGGATTT
 4201 TCGCCTGCTG GGGCAAACCA GCGTGGACCG CTTGCTGCAA CTCTCTCAGG GCCAGGCGGT
 4261 GAAGGGCAAT CAGCTGTTGC CCGTCTCACT GGTGAAAAGA AAAACCACCC TGGCGCCCAA
 4321 TACGCAAACC GCCTCTCCCC GCGCGTTGGC CGATTCATTA ATGCAGCTGG CACGACAGGT
 4381 TTCCCGACTG GAAAGCGGGC AGTGAGCGCA ACGCAATTAA TGTGAGTTAG CTCACTCATT
 4441 AGGCACCCCA GGCTTTACAC TTTATGCTTC CGGCTCGTAT GTTGTGTGGA ATTGTGAGCG
 4501 GATAACAATT TCACACAGGA AACAGCTATG ACCATGATTA CGGATTCACT GGCCGTCGTT
 4561 TTACAACGTC GTGACTGGGA AAACCCTGGC GTTACCCAAC TTAATCGCCT TGCAGCACAT
 4621 CCCCCTTTCG CCAGCTGGCG TAATAGCGAA GAGGCCCGCA CCGATCGCCC TTCCCAACAG
 4681 TTGCGCAGCC TGAATGGCGA ATGGCGCTTT GCCTGGTTTC CGGCACCAGA AGCGGTGCCG
 4741 GAAAGCTGGC TGGAGTGCGA TCTTCCTGAG GCCGATACTG TCGTCGTCCC CTCAAACTGG
 4801 CAGATGCACG GTTACGATGC GCCCATCTAC ACCAACGTAA CCTATCCCAT TACGGTCAAT
 4861 CCGCCGTTTG TTCCCACGGA GAATCCGACG GGTTGTTACT CGCTCACATT TAATGTTGAT
 4921 GAAAGCTGGC TACAGGAAGG CCAGACGCGA ATTATTTTTG ATGGCGTTGG AATT

//

pGEX5X3载体质粒图谱pdf版和相关资料下载

pGEX5X3载体应用举例
