pBad/His B

价格:1000元

联系方式:I47-825O-882O

买家导航

pBadHis B载体基本信息

出品公司: Invitrogen
载体名称: pBAD/His B
质粒类型: 大肠杆菌表达载体;诱导表达载体
高拷贝/低拷贝: 低拷贝
克隆方法: 限制性内切酶;多克隆位点
启动子: araBAD
载体大小: 4092 bp
5' 测序引物及序列: pBAD Forward: 5′-ATGCCATAGCATTTTTATCC-3′
3' 测序引物及序列: pBAD Reverse 5′-GATTTAATCTGTATCAGG-3′
载体标签: 6x His Tag(N-端),Xpress Epitope(N-端),EK 切割位点
载体抗性: 氨苄青霉素(Ampicillin)
克隆菌株: TOP10
表达菌株: 推荐LMG194
备注: pBAD/His B载体是阿拉伯糖调控载体;
在无葡萄糖的培养基中,阿拉伯糖正向调控目的基 因的表达;
通过调节阿拉伯糖的浓度水平来优化目的蛋白的可溶性表达;
pBAD/His A,B,C之间仅阅读框不同。
产品目录号: V430-01
稳定性: 稳表达
组成型/诱导型: 诱导型(阿拉伯糖)
病毒/非病毒: 非病毒

pBadHis B载体质粒图谱和多克隆位点信息

pBAD-His 载体图谱

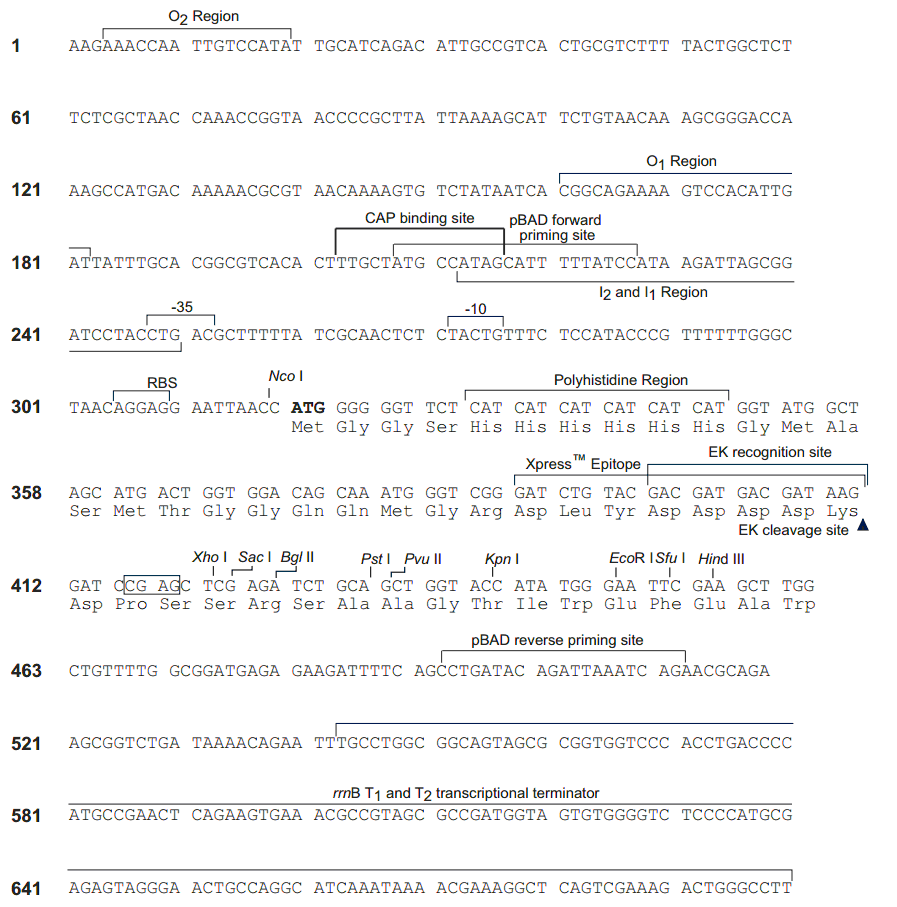

pBAD-His B 多克隆位点

pBAD-His 载体特征1
pBAD-His 载体特征2

pBadHis B载体简介

pBAD/His和PBAD/Myc-His载体质粒是衍生于pBR322载体。载体设计用来在大肠杆菌中进行可调节,剂量依赖性的表达和纯化重组目的蛋 白。使用大肠杆菌araBAD启动子(pBAD)增强了大肠杆菌重组蛋白可溶性表达的水平。pBAD/His和pBAD/Myc His载体上的调节蛋白AraC能够调控pBad启动子。

pBAD/His A,B,C 载体介绍
The pBAD/His Kit provides all of the necessary reagents to express your protein in a tightly regulated fashion.

The vector pBAD/His allows you to express your protein with an N-terminal tag. The vector provides:

 The araBAD promoter for tightly regulated expression
 Translation initiation signals optimized for E. coliexpression
 N-terminal polyhistidine (6xHis) tag for purification with nickel-chelating resin and detection with an Anti-

HisG Antibody
 N-terminal Xpress epitope for detection and analysis with an Anti-Xpress Antibody
 Enterokinase cleavage site for removing the N-terminal tag following purification

Three vectors are provided (A, B, and C). Each has the N-terminal tag in a different reading frame relative to the multiple cloning site to simplify in-frame cloning of your gene.

The pBAD/His and pBAD/Myc-His plasmids are pBR322-derived expression vectors designed for regulated, dose-dependent recombinant protein expression and purification in E. coli. Optimum levels of soluble, recombinant protein are possible using the araBAD promoter (PBAD) from E. coli. The regulatory protein, AraC, is provided on the pBAD/His and pBAD/Myc-His vectors allowing regulation of PBAD.

L-阿拉伯糖调控表达
In the presence of L-arabinose, expression from PBAD is turned on while the absence of L-arabinose produces very low levels of transcription from PBAD (Lee, 1980; Lee et al., 1987). Uninduced levels are repressed even further by growth in the presence of glucose. Glucose reduces the levels of 3′,5′-cyclic AMP, thus lowering expression of the catabolite-repressed PBAD promoter (Miyada et al., 1984). By varying the concentration of L-arabinose, protein expression levels can be optimized to ensure maximum expression of soluble protein. In addition, the tight regulation of PBAD by AraC is useful for expression of potentially toxic or essential genes (Carson et al., 1991; Dalbey and Wickner, 1985; Guzman et al., 1992; Kuhn and Wickner, 1985; Russell et al., 1989; San Millan et al., 1989). For more information on the mechanism of expression and repression of the ara regulon, refer to Schleif, 1992.
pBAD-His A,B,C 使用流程



pBadHis B载体序列

LOCUS       pBAD/His B	4092 bp 	DNA	circular	SYN
DEFINITION  pBAD/His B
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..4092
                     /organism="pBAD/His B"
                     /mol_type="other DNA"
     misc_feature    4..19
                     /label="araO2"
     misc_feature    161..172
                     /label="araO1"
     misc_feature    203..216
                     /label="CAP_BS"
     misc_feature    208..227
                     /label="pBAD_fwd_primer"
     misc_feature    213..251
                     /label="AraI1I2"
     promoter        248..276
                     /label="ARA_promoter"
     misc_feature    351..369
                     /label="Xpress_fwd_primer"
     misc_feature    352..384
                     /label="T7_leader"
     misc_feature    388..411
                     /label="Xpress_EK"
     misc_feature    complement(493..510)
                     /label="pBAD_rev_primer"
     misc_feature    complement(493..510)
                     /label="pTrcHis_rev_primer"
     terminator      543..700
                     /label="rrnB_terminator"
     terminator      666..709
                     /label="rrnB_T1_terminator"
     terminator      841..868
                     /label="rrnB_T2_terminator"
     promoter        909..937
                     /label="AmpR_promoter"
     gene            979..1839
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             979..1839
                     /label="ORF frame 1"

     rep_origin      1994..2613
                     /label="pBR322_origin"

     misc_feature    3010..3032
                     /label="pGEX_3_primer"

     misc_feature    complement(3188..4066)
                     /label="AraC"

     CDS             complement(3188..4075)
                     /label="ORF frame 3"

     CDS             complement(3188..25)
                     /label="ORF frame 3"

ORIGIN
    1 AAGAAACCAA TTGTCCATAT TGCATCAGAC ATTGCCGTCA CTGCGTCTTT TACTGGCTCT
   61 TCTCGCTAAC CAAACCGGTA ACCCCGCTTA TTAAAAGCAT TCTGTAACAA AGCGGGACCA
  121 AAGCCATGAC AAAAACGCGT AACAAAAGTG TCTATAATCA CGGCAGAAAA GTCCACATTG
  181 ATTATTTGCA CGGCGTCACA CTTTGCTATG CCATAGCATT TTTATCCATA AGATTAGCGG
  241 ATCCTACCTG ACGCTTTTTA TCGCAACTCT CTACTGTTTC TCCATACCCG TTTTTTGGGC
  301 TAACAGGAGG AATTAACCAT GGGGGGTTCT CATCATCATC ATCATCATGG TATGGCTAGC
  361 ATGACTGGTG GACAGCAAAT GGGTCGGGAT CTGTACGACG ATGACGATAA GGATCCGAGC
  421 TCGAGATCTG CAGCTGGTAC CATATGGGAA TTCGAAGCTT GGCTGTTTTG GCGGATGAGA
  481 GAAGATTTTC AGCCTGATAC AGATTAAATC AGAACGCAGA AGCGGTCTGA TAAAACAGAA
  541 TTTGCCTGGC GGCAGTAGCG CGGTGGTCCC ACCTGACCCC ATGCCGAACT CAGAAGTGAA
  601 ACGCCGTAGC GCCGATGGTA GTGTGGGGTC TCCCCATGCG AGAGTAGGGA ACTGCCAGGC
  661 ATCAAATAAA ACGAAAGGCT CAGTCGAAAG ACTGGGCCTT TCGTTTTATC TGTTGTTTGT
  721 CGGTGAACGC TCTCCTGAGT AGGACAAATC CGCCGGGAGC GGATTTGAAC GTTGCGAAGC
  781 AACGGCCCGG AGGGTGGCGG GCAGGACGCC CGCCATAAAC TGCCAGGCAT CAAATTAAGC
  841 AGAAGGCCAT CCTGACGGAT GGCCTTTTTG CGTTTCTACA AACTCTTTTG TTTATTTTTC
  901 TAAATACATT CAAATATGTA TCCGCTCATG AGACAATAAC CCTGATAAAT GCTTCAATAA
  961 TATTGAAAAA GGAAGAGTAT GAGTATTCAA CATTTCCGTG TCGCCCTTAT TCCCTTTTTT
 1021 GCGGCATTTT GCCTTCCTGT TTTTGCTCAC CCAGAAACGC TGGTGAAAGT AAAAGATGCT
 1081 GAAGATCAGT TGGGTGCACG AGTGGGTTAC ATCGAACTGG ATCTCAACAG CGGTAAGATC
 1141 CTTGAGAGTT TTCGCCCCGA AGAACGTTTT CCAATGATGA GCACTTTTAA AGTTCTGCTA
 1201 TGTGGCGCGG TATTATCCCG TGTTGACGCC GGGCAAGAGC AACTCGGTCG CCGCATACAC
 1261 TATTCTCAGA ATGACTTGGT TGAGTACTCA CCAGTCACAG AAAAGCATCT TACGGATGGC
 1321 ATGACAGTAA GAGAATTATG CAGTGCTGCC ATAACCATGA GTGATAACAC TGCGGCCAAC
 1381 TTACTTCTGA CAACGATCGG AGGACCGAAG GAGCTAACCG CTTTTTTGCA CAACATGGGG
 1441 GATCATGTAA CTCGCCTTGA TCGTTGGGAA CCGGAGCTGA ATGAAGCCAT ACCAAACGAC
 1501 GAGCGTGACA CCACGATGCC TGTAGCAATG GCAACAACGT TGCGCAAACT ATTAACTGGC
 1561 GAACTACTTA CTCTAGCTTC CCGGCAACAA TTAATAGACT GGATGGAGGC GGATAAAGTT
 1621 GCAGGACCAC TTCTGCGCTC GGCCCTTCCG GCTGGCTGGT TTATTGCTGA TAAATCTGGA
 1681 GCCGGTGAGC GTGGGTCTCG CGGTATCATT GCAGCACTGG GGCCAGATGG TAAGCCCTCC
 1741 CGTATCGTAG TTATCTACAC GACGGGGAGT CAGGCAACTA TGGATGAACG AAATAGACAG
 1801 ATCGCTGAGA TAGGTGCCTC ACTGATTAAG CATTGGTAAC TGTCAGACCA AGTTTACTCA
 1861 TATATACTTT AGATTGATTT AAAACTTCAT TTTTAATTTA AAAGGATCTA GGTGAAGATC
 1921 CTTTTTGATA ATCTCATGAC CAAAATCCCT TAACGTGAGT TTTCGTTCCA CTGAGCGTCA
 1981 GACCCCGTAG AAAAGATCAA AGGATCTTCT TGAGATCCTT TTTTTCTGCG CGTAATCTGC
 2041 TGCTTGCAAA CAAAAAAACC ACCGCTACCA GCGGTGGTTT GTTTGCCGGA TCAAGAGCTA
 2101 CCAACTCTTT TTCCGAAGGT AACTGGCTTC AGCAGAGCGC AGATACCAAA TACTGTCCTT
 2161 CTAGTGTAGC CGTAGTTAGG CCACCACTTC AAGAACTCTG TAGCACCGCC TACATACCTC
 2221 GCTCTGCTAA TCCTGTTACC AGTGGCTGCT GCCAGTGGCG ATAAGTCGTG TCTTACCGGG
 2281 TTGGACTCAA GACGATAGTT ACCGGATAAG GCGCAGCGGT CGGGCTGAAC GGGGGGTTCG
 2341 TGCACACAGC CCAGCTTGGA GCGAACGACC TACACCGAAC TGAGATACCT ACAGCGTGAG
 2401 CTATGAGAAA GCGCCACGCT TCCCGAAGGG AGAAAGGCGG ACAGGTATCC GGTAAGCGGC
 2461 AGGGTCGGAA CAGGAGAGCG CACGAGGGAG CTTCCAGGGG GAAACGCCTG GTATCTTTAT
 2521 AGTCCTGTCG GGTTTCGCCA CCTCTGACTT GAGCGTCGAT TTTTGTGATG CTCGTCAGGG
 2581 GGGCGGAGCC TATGGAAAAA CGCCAGCAAC GCGGCCTTTT TACGGTTCCT GGCCTTTTGC
 2641 TGGCCTTTTG CTCACATGTT CTTTCCTGCG TTATCCCCTG ATTCTGTGGA TAACCGTATT
 2701 ACCGCCTTTG AGTGAGCTGA TACCGCTCGC CGCAGCCGAA CGACCGAGCG CAGCGAGTCA
 2761 GTGAGCGAGG AAGCGGAAGA GCGCCTGATG CGGTATTTTC TCCTTACGCA TCTGTGCGGT
 2821 ATTTCACACC GCATATGGTG CACTCTCAGT ACAATCTGCT CTGATGCCGC ATAGTTAAGC
 2881 CAGTATACAC TCCGCTATCG CTACGTGACT GGGTCATGGC TGCGCCCCGA CACCCGCCAA
 2941 CACCCGCTGA CGCGCCCTGA CGGGCTTGTC TGCTCCCGGC ATCCGCTTAC AGACAAGCTG
 3001 TGACCGTCTC CGGGAGCTGC ATGTGTCAGA GGTTTTCACC GTCATCACCG AAACGCGCGA
 3061 GGCAGCAGAT CAATTCGCGC GCGAAGGCGA AGCGGCATGC ATAATGTGCC TGTCAAATGG
 3121 ACGAAGCAGG GATTCTGCAA ACCCTATGCT ACTCCGTCAA GCCGTCAATT GTCTGATTCG
 3181 TTACCAATTA TGACAACTTG ACGGCTACAT CATTCACTTT TTCTTCACAA CCGGCACGGA
 3241 ACTCGCTCGG GCTGGCCCCG GTGCATTTTT TAAATACCCG CGAGAAATAG AGTTGATCGT
 3301 CAAAACCAAC ATTGCGACCG ACGGTGGCGA TAGGCATCCG GGTGGTGCTC AAAAGCAGCT
 3361 TCGCCTGGCT GATACGTTGG TCCTCGCGCC AGCTTAAGAC GCTAATCCCT AACTGCTGGC
 3421 GGAAAAGATG TGACAGACGC GACGGCGACA AGCAAACATG CTGTGCGACG CTGGCGATAT
 3481 CAAAATTGCT GTCTGCCAGG TGATCGCTGA TGTACTGACA AGCCTCGCGT ACCCGATTAT
 3541 CCATCGGTGG ATGGAGCGAC TCGTTAATCG CTTCCATGCG CCGCAGTAAC AATTGCTCAA
 3601 GCAGATTTAT CGCCAGCAGC TCCGAATAGC GCCCTTCCCC TTGCCCGGCG TTAATGATTT
 3661 GCCCAAACAG GTCGCTGAAA TGCGGCTGGT GCGCTTCATC CGGGCGAAAG AACCCCGTAT
 3721 TGGCAAATAT TGACGGCCAG TTAAGCCATT CATGCCAGTA GGCGCGCGGA CGAAAGTAAA
 3781 CCCACTGGTG ATACCATTCG CGAGCCTCCG GATGACGACC GTAGTGATGA ATCTCTCCTG
 3841 GCGGGAACAG CAAAATATCA CCCGGTCGGC AAACAAATTC TCGTCCCTGA TTTTTCACCA
 3901 CCCCCTGACC GCGAATGGTG AGATTGAGAA TATAACCTTT CATTCCCAGC GGTCGGTCGA
 3961 TAAAAAAATC GAGATAACCG TTGGCCTCAA TCGGCGTTAA ACCCGCCACC AGATGGGCAT
 4021 TAAACGAGTA TCCCGGCAGC AGGGGATCAT TTTGCGCTTC AGCCATACTT TTCATACTCC
 4081 CGCCATTCAG AG
//

pBadHis B载体质粒图谱pdf版和相关资料下载

pBadHis B载体应用举例
