pcDNA6/myc-His A

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Invitrogen
载体名称: pcDNA6/myc-His A
质粒类型: 哺乳动物表达载体;cDNA表达载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: CMV
载体大小: 5126 bp
5' 测序引物及序列: T7 Forward: 5’-TAATACGACTCACTATAGGG-3’
3' 测序引物及序列: BGH Reverse: 5’-TAGAAGGCACAGTCGAGG-3’
载体标签: myc Epitope(C-端);His tag(C-端)
载体抗性: 氨苄青霉素
筛选标记: Blasticidin
克隆菌株: TOP10F´, JM109 ,  INVaF´
宿主细胞(系): 常规细胞系,如293、Hela等
备注: pcDNA6/myc-His A载体是cDNA的表达与克隆载体;
CMV启动子驱动目的基因的过表达;
易于克隆到其它载体中去;
pcDNA6/myc-His A,B,C仅阅读框不同。
产品目录号: V221-20
稳定性: 瞬表达 或 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

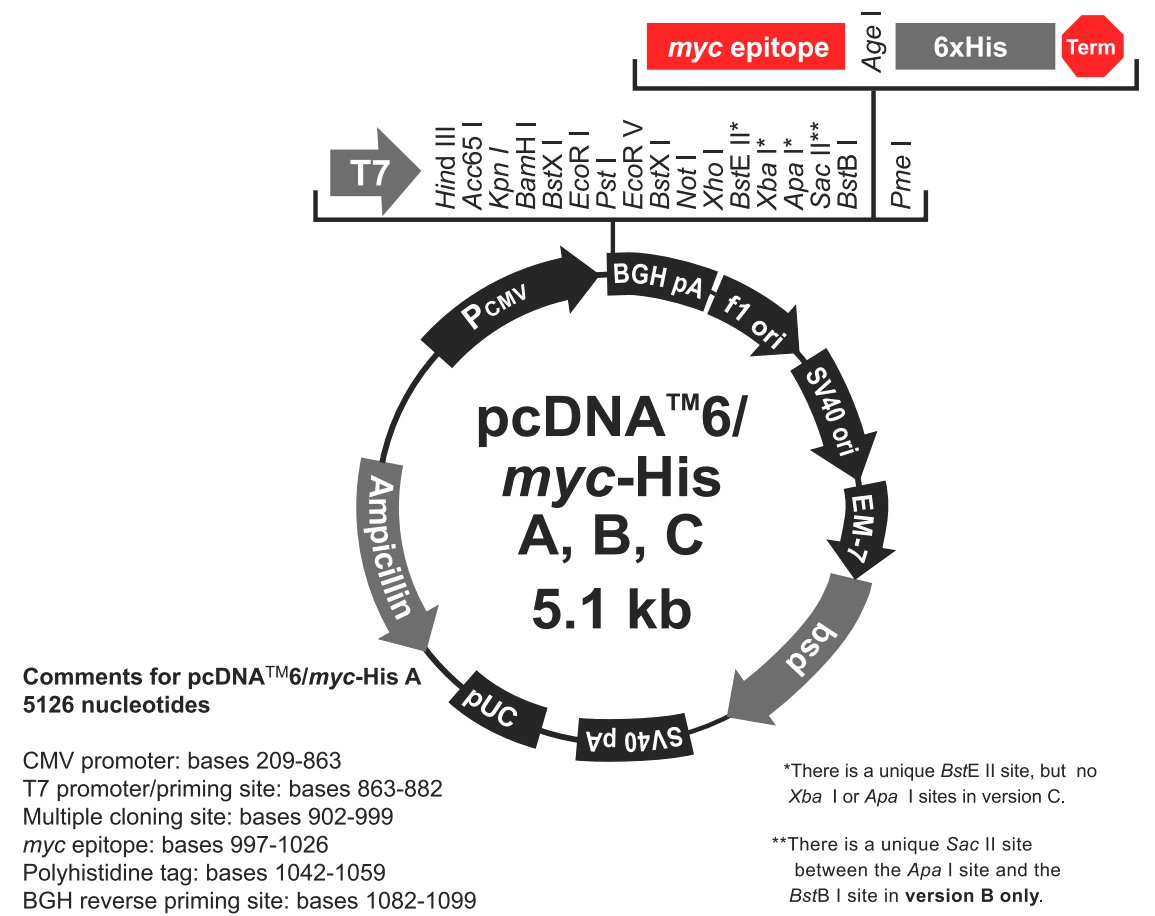

pcDNA6-myc-His A 载体图谱

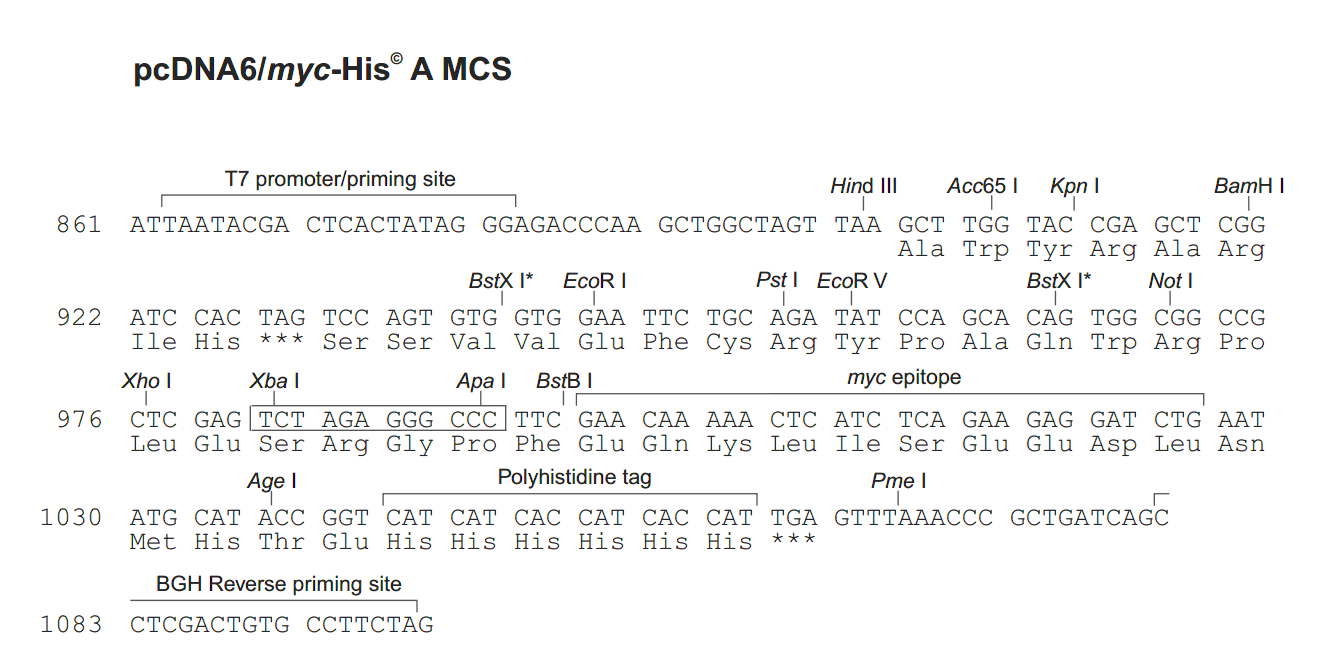

pcDNA6-myc-His A 多克隆位点

pcDNA6-myc-His 载体特征1
pcDNA6-myc-His 载体特征2

载体简介

pcDNA.6/myc-His A, B, and C are 5.1-kb vectors designed for overproduction of recombinant proteins in mammalian cell lines. High-level stable and transient expression can be carried out in most mammalian cells.

pcDNA.6/myc-His载体含有以下元件:

 Human cytomegalovirus immediate-early (CMV) promoter for high-level expression in a wide range of mammalian cells.
 Three reading frames to facilitate in-frame cloning with a C-terminal peptide encoding the myc (c-myc) epitope and a polyhistidine (6xHis) metal-binding tag.
 Blasticidin resistance gene (bsd) for selection of stable cell lines (Kimura et al.,1994).
Episomal replication in cell lines that are latently infected with SV40 or that express the SV40 large T antigen (e.g., COS7).
The control plasmid, pcDNA.6/myc-His/lacZ, is included for use as a positive control for transfection, expression, and detection in the cell line of choice.


实验流程

使用pcDNA6/myc-His 载体克隆和表达目的基因的实验流程如下:
 Consult the multiple cloning sites described on pages 3–5 to determine which vector (A, B, or C) should be used to clone your gene in-frame with the C-terminal myc epitope and the polyhistidine tag. Ligate your insert into the appropriate vector and transform into E. coli. Select transformants on 50–100 μg/ml ampicillin or 50 μg/ml blasticidin.
 Analyze your transformants for the presence of the insert by restriction digestion.
 Select a transformant with the correct restriction pattern and use sequencing to confirm that your gene is cloned in-frame with the C-terminal peptide.
 Transfect your construct into the cell line of choice using your own method of transfection.
  Test for expression of your recombinant gene by western blot analysis or functional assay. For antibodies to the myc epitope or the C-terminal polyhistidine tag, see the next page.
  To purify your recombinant protein, you may use metal-chelating resin such as ProBond. ProBond. resin is available separately.


载体序列

LOCUS       pcDNA6/myc-His A	5126 bp 	DNA	SYN
DEFINITION  pcDNA6/myc-His A
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..5126
                     /organism="pcDNA6/myc-His A"
                     /mol_type="other DNA"
     promoter        236..852
                     /label="CMV_immearly_promoter"
     misc_feature    315..602
                     /label="CAG_enhancer"
     misc_feature    769..789
                     /label="CMV_fwd_primer"
     promoter        863..881
                     /label="T7_promoter"
     misc_feature    complement(1082..1099)
                     /label="BGH_rev_primer"
     terminator      1085..1312
                     /label="bGH_PA_terminator"
     rep_origin      1375..1681
                     /label="f1_origin"
     misc_feature    complement(1795..1815)
                     /label="pBABE_3_primer"
     misc_feature    complement(1801..2016)
                     /label="SV40_enhancer"
     promoter        1813..2081
                     /label="SV40_promoter"
     rep_origin      1980..2057
                     /label="SV40_origin"
     misc_feature    2042..2061
                     /label="SV40pro_F_primer"
     promoter        2175..2242
                     /label="EM7_promoter"
     gene            2243..2641
                     /label="blast"
                     /gene="blast"
     terminator      2802..2921
                     /label="SV40_PA_terminator"
     misc_feature    2890..2909
                     /label="EBV_rev_primer"
     promoter        complement(2965..2983)
                     /label="M13_reverse_primer"
     misc_feature    complement(2982..3004)
                     /label="M13_pUC_rev_primer"
     promoter        complement(3018..3047)
                     /label="lac_promoter"
     gene            complement(4130..4990)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(4130..4990)
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(5032..5060)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 GACGGATCGG GAGATCTCCC GATCCCCTAT GGTGCACTCT CAGTACAATC TGCTCTGATG
   61 CCGCATAGTT AAGCCAGTAT CTGCTCCCTG CTTGTGTGTT GGAGGTCGCT GAGTAGTGCG
  121 CGAGCAAAAT TTAAGCTACA ACAAGGCAAG GCTTGACCGA CAATTGCATG AAGAATCTGC
  181 TTAGGGTTAG GCGTTTTGCG CTGCTTCGCG ATGTACGGGC CAGATATACG CGTTGACATT
  241 GATTATTGAC TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA
  301 TGGAGTTCCG CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC
  361 CCCGCCCATT GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC
  421 ATTGACGTCA ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT
  481 ATCATATGCC AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT
  541 ATGCCCAGTA CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA
  601 TCGCTATTAC CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG
  661 ACTCACGGGG ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC
  721 AAAATCAACG GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG
  781 GTAGGCGTGT ACGGTGGGAG GTCTATATAA GCAGAGCTCT CTGGCTAACT AGAGAACCCA
  841 CTGCTTACTG GCTTATCGAA ATTAATACGA CTCACTATAG GGAGACCCAA GCTGGCTAGT
  901 TAAGCTTGGT ACCGAGCTCG GATCCACTAG TCCAGTGTGG TGGAATTCTG CAGATATCCA
  961 GCACAGTGGC GGCCGCTCGA GTCTAGAGGG CCCTTCGAAC AAAAACTCAT CTCAGAAGAG
 1021 GATCTGAATA TGCATACCGG TCATCATCAC CATCACCATT GAGTTTAAAC CCGCTGATCA
 1081 GCCTCGACTG TGCCTTCTAG TTGCCAGCCA TCTGTTGTTT GCCCCTCCCC CGTGCCTTCC
 1141 TTGACCCTGG AAGGTGCCAC TCCCACTGTC CTTTCCTAAT AAAATGAGGA AATTGCATCG
 1201 CATTGTCTGA GTAGGTGTCA TTCTATTCTG GGGGGTGGGG TGGGGCAGGA CAGCAAGGGG
 1261 GAGGATTGGG AAGACAATAG CAGGCATGCT GGGGATGCGG TGGGCTCTAT GGCTTCTGAG
 1321 GCGGAAAGAA CCAGCTGGGG CTCTAGGGGG TATCCCCACG CGCCCTGTAG CGGCGCATTA
 1381 AGCGCGGCGG GTGTGGTGGT TACGCGCAGC GTGACCGCTA CACTTGCCAG CGCCCTAGCG
 1441 CCCGCTCCTT TCGCTTTCTT CCCTTCCTTT CTCGCCACGT TCGCCGGCTT TCCCCGTCAA
 1501 GCTCTAAATC GGGGGCTCCC TTTAGGGTTC CGATTTAGTG CTTTACGGCA CCTCGACCCC
 1561 AAAAAACTTG ATTAGGGTGA TGGTTCACGT AGTGGGCCAT CGCCCTGATA GACGGTTTTT
 1621 CGCCCTTTGA CGTTGGAGTC CACGTTCTTT AATAGTGGAC TCTTGTTCCA AACTGGAACA
 1681 ACACTCAACC CTATCTCGGT CTATTCTTTT GATTTATAAG GGATTTTGCC GATTTCGGCC
 1741 TATTGGTTAA AAAATGAGCT GATTTAACAA AAATTTAACG CGAATTAATT CTGTGGAATG
 1801 TGTGTCAGTT AGGGTGTGGA AAGTCCCCAG GCTCCCCAGC AGGCAGAAGT ATGCAAAGCA
 1861 TGCATCTCAA TTAGTCAGCA ACCAGGTGTG GAAAGTCCCC AGGCTCCCCA GCAGGCAGAA
 1921 GTATGCAAAG CATGCATCTC AATTAGTCAG CAACCATAGT CCCGCCCCTA ACTCCGCCCA
 1981 TCCCGCCCCT AACTCCGCCC AGTTCCGCCC ATTCTCCGCC CCATGGCTGA CTAATTTTTT
 2041 TTATTTATGC AGAGGCCGAG GCCGCCTCTG CCTCTGAGCT ATTCCAGAAG TAGTGAGGAG
 2101 GCTTTTTTGG AGGCCTAGGC TTTTGCAAAA AGCTCCCGGG AGCTTGTATA TCCATTTTCG
 2161 GATCTGATCA GCACGTGTTG ACAATTAATC ATCGGCATAG TATATCGGCA TAGTATAATA
 2221 CGACAAGGTG AGGAACTAAA CCATGGCCAA GCCTTTGTCT CAAGAAGAAT CCACCCTCAT
 2281 TGAAAGAGCA ACGGCTACAA TCAACAGCAT CCCCATCTCT GAAGACTACA GCGTCGCCAG
 2341 CGCAGCTCTC TCTAGCGACG GCCGCATCTT CACTGGTGTC AATGTATATC ATTTTACTGG
 2401 GGGACCTTGT GCAGAACTCG TGGTGCTGGG CACTGCTGCT GCTGCGGCAG CTGGCAACCT
 2461 GACTTGTATC GTCGCGATCG GAAATGAGAA CAGGGGCATC TTGAGCCCCT GCGGACGGTG
 2521 CCGACAGGTG CTTCTCGATC TGCATCCTGG GATCAAAGCC ATAGTGAAGG ACAGTGATGG
 2581 ACAGCCGACG GCAGTTGGGA TTCGTGAATT GCTGCCCTCT GGTTATGTGT GGGAGGGCTA
 2641 AGCACTTCGT GGCCGAGGAG CAGGACTGAC ACGTGCTACG AGATTTCGAT TCCACCGCCG
 2701 CCTTCTATGA AAGGTTGGGC TTCGGAATCG TTTTCCGGGA CGCCGGCTGG ATGATCCTCC
 2761 AGCGCGGGGA TCTCATGCTG GAGTTCTTCG CCCACCCCAA CTTGTTTATT GCAGCTTATA
 2821 ATGGTTACAA ATAAAGCAAT AGCATCACAA ATTTCACAAA TAAAGCATTT TTTTCACTGC
 2881 ATTCTAGTTG TGGTTTGTCC AAACTCATCA ATGTATCTTA TCATGTCTGT ATACCGTCGA
 2941 CCTCTAGCTA GAGCTTGGCG TAATCATGGT CATAGCTGTT TCCTGTGTGA AATTGTTATC
 3001 CGCTCACAAT TCCACACAAC ATACGAGCCG GAAGCATAAA GTGTAAAGCC TGGGGTGCCT
 3061 AATGAGTGAG CTAACTCACA TTAATTGCGT TGCGCTCACT GCCCGCTTTC CAGTCGGGAA
 3121 ACCTGTCGTG CCAGCTGCAT TAATGAATCG GCCAACGCGC GGGGAGAGGC GGTTTGCGTA
 3181 TTGGGCGCTC TTCCGCTTCC TCGCTCACTG ACTCGCTGCG CTCGGTCGTT CGGCTGCGGC
 3241 GAGCGGTATC AGCTCACTCA AAGGCGGTAA TACGGTTATC CACAGAATCA GGGGATAACG
 3301 CAGGAAAGAA CATGTGAGCA AAAGGCCAGC AAAAGGCCAG GAACCGTAAA AAGGCCGCGT
 3361 TGCTGGCGTT TTTCCATAGG CTCCGCCCCC CTGACGAGCA TCACAAAAAT CGACGCTCAA
 3421 GTCAGAGGTG GCGAAACCCG ACAGGACTAT AAAGATACCA GGCGTTTCCC CCTGGAAGCT
 3481 CCCTCGTGCG CTCTCCTGTT CCGACCCTGC CGCTTACCGG ATACCTGTCC GCCTTTCTCC
 3541 CTTCGGGAAG CGTGGCGCTT TCTCATAGCT CACGCTGTAG GTATCTCAGT TCGGTGTAGG
 3601 TCGTTCGCTC CAAGCTGGGC TGTGTGCACG AACCCCCCGT TCAGCCCGAC CGCTGCGCCT
 3661 TATCCGGTAA CTATCGTCTT GAGTCCAACC CGGTAAGACA CGACTTATCG CCACTGGCAG
 3721 CAGCCACTGG TAACAGGATT AGCAGAGCGA GGTATGTAGG CGGTGCTACA GAGTTCTTGA
 3781 AGTGGTGGCC TAACTACGGC TACACTAGAA GAACAGTATT TGGTATCTGC GCTCTGCTGA
 3841 AGCCAGTTAC CTTCGGAAAA AGAGTTGGTA GCTCTTGATC CGGCAAACAA ACCACCGCTG
 3901 GTAGCGGTGG TTTTTTTGTT TGCAAGCAGC AGATTACGCG CAGAAAAAAA GGATCTCAAG
 3961 AAGATCCTTT GATCTTTTCT ACGGGGTCTG ACGCTCAGTG GAACGAAAAC TCACGTTAAG
 4021 GGATTTTGGT CATGAGATTA TCAAAAAGGA TCTTCACCTA GATCCTTTTA AATTAAAAAT
 4081 GAAGTTTTAA ATCAATCTAA AGTATATATG AGTAAACTTG GTCTGACAGT TACCAATGCT
 4141 TAATCAGTGA GGCACCTATC TCAGCGATCT GTCTATTTCG TTCATCCATA GTTGCCTGAC
 4201 TCCCCGTCGT GTAGATAACT ACGATACGGG AGGGCTTACC ATCTGGCCCC AGTGCTGCAA
 4261 TGATACCGCG AGACCCACGC TCACCGGCTC CAGATTTATC AGCAATAAAC CAGCCAGCCG
 4321 GAAGGGCCGA GCGCAGAAGT GGTCCTGCAA CTTTATCCGC CTCCATCCAG TCTATTAATT
 4381 GTTGCCGGGA AGCTAGAGTA AGTAGTTCGC CAGTTAATAG TTTGCGCAAC GTTGTTGCCA
 4441 TTGCTACAGG CATCGTGGTG TCACGCTCGT CGTTTGGTAT GGCTTCATTC AGCTCCGGTT
 4501 CCCAACGATC AAGGCGAGTT ACATGATCCC CCATGTTGTG CAAAAAAGCG GTTAGCTCCT
 4561 TCGGTCCTCC GATCGTTGTC AGAAGTAAGT TGGCCGCAGT GTTATCACTC ATGGTTATGG
 4621 CAGCACTGCA TAATTCTCTT ACTGTCATGC CATCCGTAAG ATGCTTTTCT GTGACTGGTG
 4681 AGTACTCAAC CAAGTCATTC TGAGAATAGT GTATGCGGCG ACCGAGTTGC TCTTGCCCGG
 4741 CGTCAATACG GGATAATACC GCGCCACATA GCAGAACTTT AAAAGTGCTC ATCATTGGAA
 4801 AACGTTCTTC GGGGCGAAAA CTCTCAAGGA TCTTACCGCT GTTGAGATCC AGTTCGATGT
 4861 AACCCACTCG TGCACCCAAC TGATCTTCAG CATCTTTTAC TTTCACCAGC GTTTCTGGGT
 4921 GAGCAAAAAC AGGAAGGCAA AATGCCGCAA AAAAGGGAAT AAGGGCGACA CGGAAATGTT
 4981 GAATACTCAT ACTCTTCCTT TTTCAATATT ATTGAAGCAT TTATCAGGGT TATTGTCTCA
 5041 TGAGCGGATA CATATTTGAA TGTATTTAGA AAAATAAACA AATAGGGGTT CCGCGCACAT
 5101 TTCCCCGAAA AGTGCCACCT GACGTC
//

载体质粒图谱pdf版和相关资料下载
