pcDNA4/TO/Myc-His B

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Invitrogen
载体名称: pcDNA4/TO/Myc-His B
质粒类型: 哺乳动物表达载体;四环素诱导载体
高拷贝/低拷贝: --
启动子: CMV/TO
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5155bp
5' 测序引物及序列: CMV forward 5’-CGCAAATGGGCGGTAGGCGTG-3’
3' 测序引物及序列: BGH Reverse: 5-TAGAAGGCACAGTCGAGG-3
载体标签: His Tag (6x), Xpress Epitope Tag
载体抗性: 氨苄青霉素
筛选标记: Zeocin
克隆菌株: TOP10F´, DH5aF´, JM109, and INVaF´
宿主细胞(系): T-REx-293 R710-07;
T-REx-HeLa R714-07;
T-REx-U2OS R712-07;
T-REx-Jurkat R722-07
备注: pcDNA4/TO/myc-His B 载体是四环素诱导系统的应答载体,对应的调控载体是pcDNA6/TR;
pcDNA4/TO/myc-His A,B,C的区别仅在多克隆位点处;
产品目录号: V1030-20
稳定性: 稳表达 或 瞬表达
组成型: 诱导型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

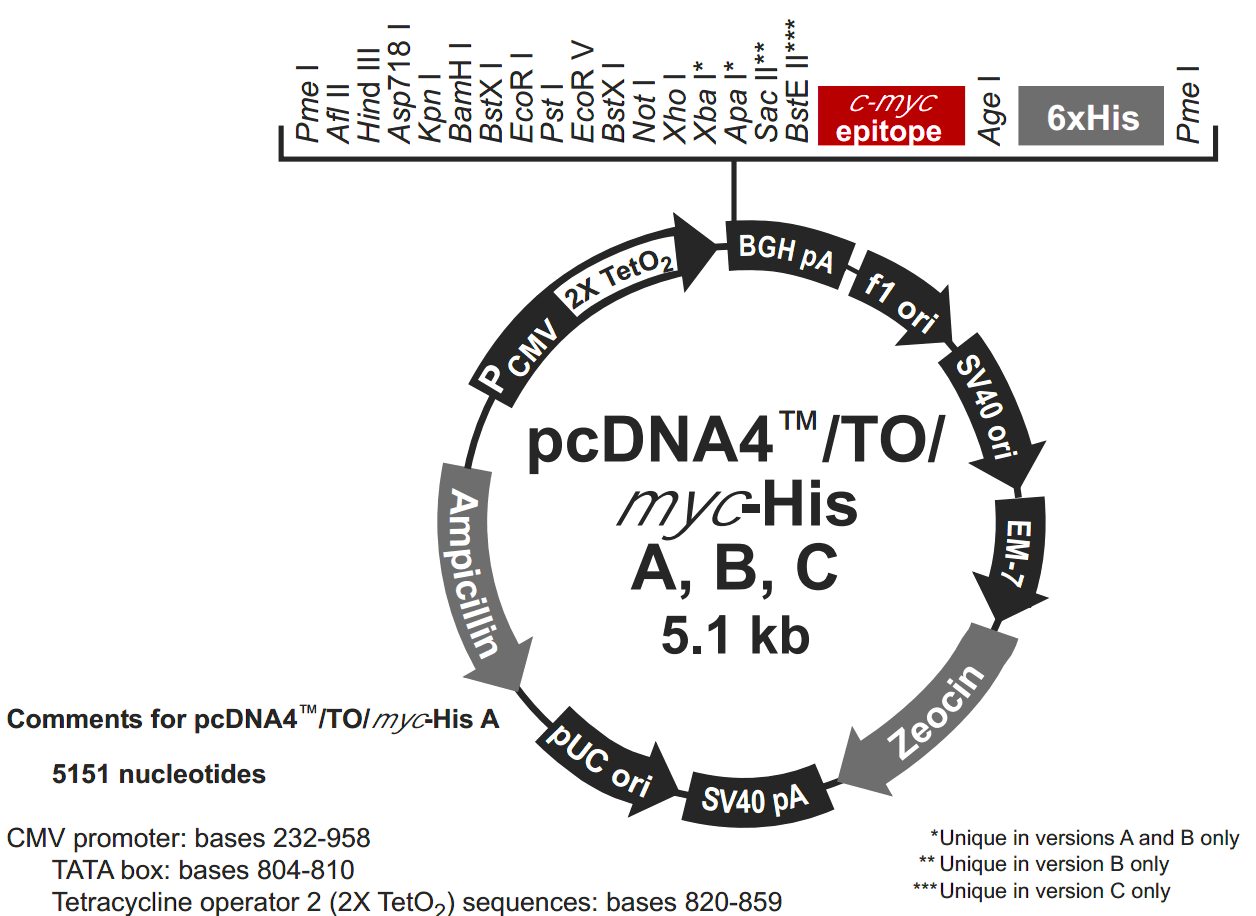

pcDNA4-TO-myc-His B 载体图谱

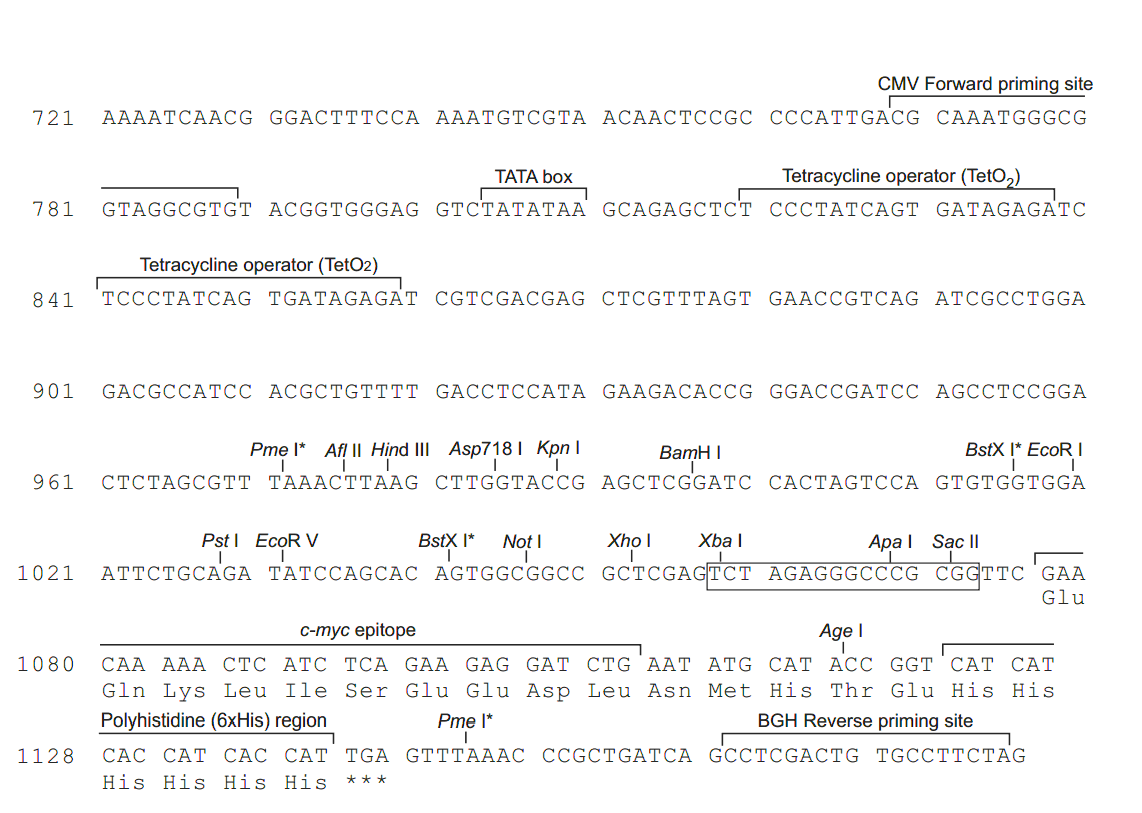

pcDNA4-TO-myc-His B 多克隆位点

pcDNA4-TO-myc-His B 载体特征
pcDNA4-TO-myc-His 载体特征1
pcDNA4-TO-myc-His 载体特征2

载体简介

四环素诱导系统
The T-REx System yields higher levels of induced expression than any other regulated mammalian expression system. It utilizes the complete CMV promoter and adds control elements from the bacterial tetracycline resistance operon to effectively repress and derepress transcription from one of the strongest mammalian promoter sequences known (1,2).

Specific Activation
The T-REx System uses a repressor mechanism that blocks transcription from the powerful CMV promoter in the absence of tetracycline. Because the T-REx System elements do not use viral transactivators, you can achieve high-level expression from the complete CMV promoter without secondary, non-specific activation of host genes.

The T-REx Mechanism
The T-REx transcriptional control elements are illustrated in Figure 1. Two tetracycline operator sequences (TetO2) have been inserted between the TATA box of the CMV promoter and the transcriptional start site. The TetO2 sequence itself has no effect on expression. When the tetracycline repressor protein (TR) is present, it effectively binds the TetO2 sites and blocks transcription initiation. Tetracycline added to the culture medium binds to, and changes the conformation of, the TR protein. This change causes the TR protein to release the TetO2 sites, derepressing transcription from the CMV promoter. The result is high-level expression of the gene of interest (Figure 2). Expression levels can be modulated based on the tetracycline concentration and can be induced to levels that are achieved with constitutive CMV expression vectors.
T-REx is a powerful inducible mammalian expression system that allows you to regulate expression from the complete human cytomegalovirus (CMV) enhancer-promoter. T-RExinducible expression vectors offer the following features:

 Complete CMV enhancer-promoter sequence containing two copies of the tetracycline operator TetO2 sequence for high-level regulated expression
 Zeocin or hygromycin resistance gene for effective selection of stable mammalian cell lines
 Large multiple cloning site to simplify cloning

In addition, pcDNA4/TO/myc-His offers a c-myc epitope for rapid detection of the recombinant protein with an Anti-myc Antibody and a polyhistidine (6xHis) sequence for simple purification of the recombinant protein with nickel-chelating resin and detection with Anti- His(C-term) Antibody.

The regulatory vector, pcDNA6/TR, is provided for high-level expression of the tetracycline repressor (TR) protein. This vector expresses the Blasticidin resistance gene for rapid selection of mammalian cell lines that stably express the TR protein.


载体序列

LOCUS       pcDNA4/TO/Myc-His B	5155 bp 	DNA	SYN
DEFINITION  pcDNA4/TO/Myc-His B
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..5155
                     /organism="pcDNA4/TO/Myc-His B"
                     /mol_type="other DNA"
     promoter        236..812
                     /label="CMV_immearly_promoter"
     misc_feature    315..602
                     /label="CAG_enhancer"
     misc_feature    769..789
                     /label="CMV_fwd_primer"
     promoter        770..893
                     /label="CMV_promoter"
     promoter        782..955
                     /label="CMV2_promoter"
     misc_feature    820..859
                     /label="tetO"
     misc_feature    869..893
                     /label="LNCX_primer"
     misc_feature    complement(1162..1179)
                     /label="BGH_rev_primer"
     terminator      1165..1392
                     /label="bGH_PA_terminator"
     rep_origin      1455..1761
                     /label="f1_origin"
     misc_feature    complement(1875..1895)
                     /label="pBABE_3_primer"
     misc_feature    complement(1881..2097)
                     /label="SV40_enhancer"
     promoter        1893..2162
                     /label="SV40_promoter"
     rep_origin      2061..2138
                     /label="SV40_origin"
     misc_feature    2123..2142
                     /label="SV40pro_F_primer"
     promoter        2256..2323
                     /label="EM7_promoter"
     gene            2324..2695
                     /label="bleo"
                     /gene="bleo"
     misc_feature    2324..2698
                     /label="sh_ble"
     terminator      2831..2950
                     /label="SV40_PA_terminator"
     misc_feature    2919..2938
                     /label="EBV_rev_primer"
     promoter        complement(2994..3012)
                     /label="M13_reverse_primer"
     misc_feature    complement(3011..3033)
                     /label="M13_pUC_rev_primer"
     promoter        complement(3047..3076)
                     /label="lac_promoter"
     rep_origin      complement(3385..4004)
                     /label="pBR322_origin"
     gene            complement(4159..5019)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(4159..5019)
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(5061..5089)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 GACGGATCGG GAGATCTCCC GATCCCCTAT GGTCGACTCT CAGTACAATC TGCTCTGATG
   61 CCGCATAGTT AAGCCAGTAT CTGCTCCCTG CTTGTGTGTT GGAGGTCGCT GAGTAGTGCG
  121 CGAGCAAAAT TTAAGCTACA ACAAGGCAAG GCTTGACCGA CAATTGCATG AAGAATCTGC
  181 TTAGGGTTAG GCGTTTTGCG CTGCTTCGCG ATGTACGGGC CAGATATACG CGTTGACATT
  241 GATTATTGAC TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA
  301 TGGAGTTCCG CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC
  361 CCCGCCCATT GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC
  421 ATTGACGTCA ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT
  481 ATCATATGCC AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT
  541 ATGCCCAGTA CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA
  601 TCGCTATTAC CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG
  661 ACTCACGGGG ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGAACC
  721 AAAATCAACG GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG
  781 GTAGGCGTGT ACGGTGGGAG GTCTATATAA GCAGAGCTCT CCCTATCAGT GATAGAGATC
  841 TCCCTATCAG TGATAGAGAT CGTCGACGAG CTCGTTTAGT GAACCGTCAG ATCGCCTGGA
  901 GACGCCATCC ACGCTGTTTT GACCTCCATA GAAGACACCG GGACCGATCC AGCCTCCGGA
  961 CTCTAGCGTT TAAACTTAAG CTTGGTACCG AGCTCGGATC CACTAGTCCA GTGTGGTGGA
 1021 ATTCTGCAGA TATCCAGCAC AGTGGCGGCC GCTCGAGTCT AGAGGGCCCG CGGTTCGAAC
 1081 AAAAACTCAT CTCAGAAGAG GATCTGAATA TGCATACCGG TCATCATCAC CATCACCATT
 1141 GAGTTTAAAC CCGCTGATCA GCCTCGACTG TGCCTTCTAG TTGCCAGCCA TCTGTTGTTT
 1201 GCCCCTCCCC CGTGCCTTCC TTGACCCTGG AAGGTGCCAC TCCCACTGTC CTTTCCTAAT
 1261 AAAATGAGGA AATTGCATCG CATTGTCTGA GTAGGTGTCA TTCTATTCTG GGGGGTGGGG
 1321 TGGGGCAGGA CAGCAAGGGG GAGGATTGGG AAGACAATAG CAGGCATGCT GGGGATGCGG
 1381 TGGGCTCTAT GGCTTCTGAG GCGGAAAGAA CCAGCTGGGG CTCTAGGGGG TATCCCCACG
 1441 CGCCCTGTAG CGGCGCATTA AGCGCGGCGG GTGTGGTGGT TACGCGCAGC GTGACCGCTA
 1501 CACTTGCCAG CGCCCTAGCG CCCGCTCCTT TCGCTTTCTT CCCTTCCTTT CTCGCCACGT
 1561 TCGCCGGCTT TCCCCGTCAA GCTCTAAATC GGGGCATCCC TTTAGGGTTC CGATTTAGTG
 1621 CTTTACGGCA CCTCGACCCC AAAAAACTTG ATTAGGGTGA TGGTTCACGT AGTGGGCCAT
 1681 CGCCCTGATA GACGGTTTTT CGCCCTTTGA CGTTGGAGTC CACGTTCTTT AATAGTGGAC
 1741 TCTTGTTCCA AACTGGAACA ACACTCAACC CTATCTCGGT CTATTCTTTT GATTTATAAG
 1801 GGATTTTGGG GATTTCGGCC TATTGGTTAA AAAATGAGCT GATTTAACAA AAATTTAACG
 1861 CGAATTAATT CTGTGGAATG TGTGTCAGTT AGGGTGTGGA AAGTCCCCAG GCTCCCCAGG
 1921 CAGGCAGAAG TATGCAAAGC ATGCATCTCA ATTAGTCAGC AACCAGGTGT GGAAAGTCCC
 1981 CAGGCTCCCC AGCAGGCAGA AGTATGCAAA GCATGCATCT CAATTAGTCA GCAACCATAG
 2041 TCCCGCCCCT AACTCCGCCC ATCCCGCCCC TAACTCCGCC CAGTTCCGCC CATTCTCCGC
 2101 CCCATGGCTG ACTAATTTTT TTTATTTATG CAGAGGCCGA GGCCGCCTCT GCCTCTGAGC
 2161 TATTCCAGAA GTAGTGAGGA GGCTTTTTTG GAGGCCTAGG CTTTTGCAAA AAGCTCCCGG
 2221 GAGCTTGTAT ATCCATTTTC GGATCTGATC AGCACGTGTT GACAATTAAT CATCGGCATA
 2281 GTATATCGGC ATAGTATAAT ACGACAAGGT GAGGAACTAA ACCATGGCCA AGTTGACCAG
 2341 TGCCGTTCCG GTGCTCACCG CGCGCGACGT CGCCGGAGCG GTCGAGTTCT GGACCGACCG
 2401 GCTCGGGTTC TCCCGGGACT TCGTGGAGGA CGACTTCGCC GGTGTGGTCC GGGACGACGT
 2461 GACCCTGTTC ATCAGCGCGG TCCAGGACCA GGTGGTGCCG GACAACACCC TGGCCTGGGT
 2521 GTGGGTGCGC GGCCTGGACG AGCTGTACGC CGAGTGGTCG GAGGTCGTGT CCACGAACTT
 2581 CCGGGACGCC TCCGGGCCGG CCATGACCGA GATCGGCGAG CAGCCGTGGG GGCGGGAGTT
 2641 CGCCCTGCGC GACCCGGCCG GCAACTGCGT GCACTTCGTG GCCGAGGAGC AGGACTGACA
 2701 CGTGCTACGA GATTTCGATT CCACCGCCGC CTTCTATGAA AGGTTGGGCT TCGGAATCGT
 2761 TTTCCGGGAC GCCGGCTGGA TGATCCTCCA GCGCGGGGAT CTCATGCTGG AGTTCTTCGC
 2821 CCACCCCAAC TTGTTTATTG CAGCTTATAA TGGTTACAAA TAAAGCAATA GCATCACAAA
 2881 TTTCACAAAT AAAGCATTTT TTTCACTGCA TTCTAGTTGT GGTTTGTCCA AACTCATCAA
 2941 TGTATCTTAT CATGTCTGTA TACCGTCGAC CTCTAGCTAG AGCTTGGCGT AATCATGGTC
 3001 ATAGCTGTTT CCTGTGTGAA ATTGTTATCC GCTCACAATT CCACACAACA TACGAGCCGG
 3061 AAGCATAAAG TGTAAAGCCT GGGGTGCCTA ATGAGTGAGC TAACTCACAT TAATTGCGTT
 3121 GCGCTCACTG CCCGCTTTCC AGTCGGGAAA CCTGTCGTGC CAGCTGCATT AATGAATCGG
 3181 CCAACGCGCG GGGAGAGGCG GTTTGCGTAT TGGGCGCTCT TCCGCTTCCT CGCTCACTGA
 3241 CTCGCTGCGC TCGGTCGTTC GGCTGCGGCG AGCGGTATCA GCTCACTCAA AGGCGGTAAT
 3301 ACGGTTATCC ACAGAATCAG GGGATAACGC AGGAAAGAAC ATGTGAGCAA AAGGCCAGCA
 3361 AAAGGCCAGG AACCGTAAAA AGGCCGCGTT GCTGGCGTTT TTCCATAGGC TCCGCCCCCC
 3421 TGACGAGCAT CACAAAAATC GACGCTCAAG TCAGAGGTGG CGAAACCCGA CAGGACTATA
 3481 AAGATACCAG GCGTTTCCCC CTGGAAGCTC CCTCGTGCGC TCTCCTGTTC CGACCCTGCC
 3541 GCTTACCGGA TACCTGTCCG CCTTTCTCCC TTCGGGAAGC GTGGCGCTTT CTCAATGCTC
 3601 ACGCTGTAGG TATCTCAGTT CGGTGTAGGT CGTTCGCTCC AAGCTGGGCT GTGTGCACGA
 3661 ACCCCCCGTT CAGCCCGACC GCTGCGCCTT ATCCGGTAAC TATCGTCTTG AGTCCAACCC
 3721 GGTAAGACAC GACTTATCGC CACTGGCAGC AGCCACTGGT AACAGGATTA GCAGAGCGAG
 3781 GTATGTAGGC GGTGCTACAG AGTTCTTGAA GTGGTGGCCT AACTACGGCT ACACTAGAAG
 3841 GACAGTATTT GGTATCTGCG CTCTGCTGAA GCCAGTTACC TTCGGAAAAA GAGTTGGTAG
 3901 CTCTTGATCC GGCAAACAAA CCACCGCTGG TAGCGGTGGT TTTTTTGTTT GCAAGCAGCA
 3961 GATTACGCGC AGAAAAAAAG GATCTCAAGA AGATCCTTTG ATCTTTTCTA CGGGGTCTGA
 4021 CGCTCAGTGG AACGAAAACT CACGTTAAGG GATTTTGGTC ATGAGATTAT CAAAAAGGAT
 4081 CTTCACCTAG ATCCTTTTAA ATTAAAAATG AAGTTTTAAA TCAATCTAAA GTATATATGA
 4141 GTAAACTTGG TCTGACAGTT ACCAATGCTT AATCAGTGAG GCACCTATCT CAGCGATCTG
 4201 TCTATTTCGT TCATCCATAG TTGCCTGACT CCCCGTCGTG TAGATAACTA CGATACGGGA
 4261 GGGCTTACCA TCTGGCCCCA GTGCTGCAAT GATACCGCGA GACCCACGCT CACCGGCTCC
 4321 AGATTTATCA GCAATAAACC AGCCAGCCGG AAGGGCCGAG CGCAGAAGTG GTCCTGCAAC
 4381 TTTATCCGCC TCCATCCAGT CTATTAATTG TTGCCGGGAA GCTAGAGTAA GTAGTTCGCC
 4441 AGTTAATAGT TTGCGCAACG TTGTTGCCAT TGCTACAGGC ATCGTGGTGT CACGCTCGTC
 4501 GTTTGGTATG GCTTCATTCA GCTCCGGTTC CCAACGATCA AGGCGAGTTA CATGATCCCC
 4561 CATGTTGTGC AAAAAAGCGG TTAGCTCCTT CGGTCCTCCG ATCGTTGTCA GAAGTAAGTT
 4621 GGCCGCAGTG TTATCACTCA TGGTTATGGC AGCACTGCAT AATTCTCTTA CTGTCATGCC
 4681 ATCCGTAAGA TGCTTTTCTG TGACTGGTGA GTACTCAACC AAGTCATTCT GAGAATAGTG
 4741 TATGCGGCGA CCGAGTTGCT CTTGCCCGGC GTCAATACGG GATAATACCG CGCCACATAG
 4801 CAGAACTTTA AAAGTGCTCA TCATTGGAAA ACGTTCTTCG GGGCGAAAAC TCTCAAGGAT
 4861 CTTACCGCTG TTGAGATCCA GTTCGATGTA ACCCACTCGT GCACCCAACT GATCTTCAGC
 4921 ATCTTTTACT TTCACCAGCG TTTCTGGGTG AGCAAAAACA GGAAGGCAAA ATGCCGCAAA
 4981 AAAGGGAATA AGGGCGACAC GGAAATGTTG AATACTCATA CTCTTCCTTT TTCAATATTA
 5041 TTGAAGCATT TATCAGGGTT ATTGTCTCAT GAGCGGATAC ATATTTGAAT GTATTTAGAA
 5101 AAATAAACAA ATAGGGGTTC CGCGCACATT TCCCCGAAAA GTGCCACCTG ACGTC

//
