pcDNA3.1/His A

价格:1500元

联系方式:I47-825O-882O

买家导航

pcDNA3.1/HisA载体基本信息

出品公司: Invitrogen
载体名称: pcDNA3.1/His A , pcDNA3.1/HisA
质粒类型: 哺乳动物细胞表达载体
启动子: CMV
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5514 bp
5' 测序引物:   pcDNA3.1-F:CTAGAGAACCCACTGCTTAC
3' 测序引物:   pcDNA3.1-R (BGH-R):TAGAAGGCACAGTCGAGG
载体标签: N-His, N-EK
载体抗性: Ampicillin 氨苄
筛选标记: Neomycin (G418)
备注:

产品目录号: V385-20
稳定性: 瞬表达 Transient
组成型: 组成型 Constitutive
病毒/非病毒: 非病毒

pcDNA3.1/HisA载体质粒图谱和多克隆位点信息

pcDNA3.1/His A载体图谱

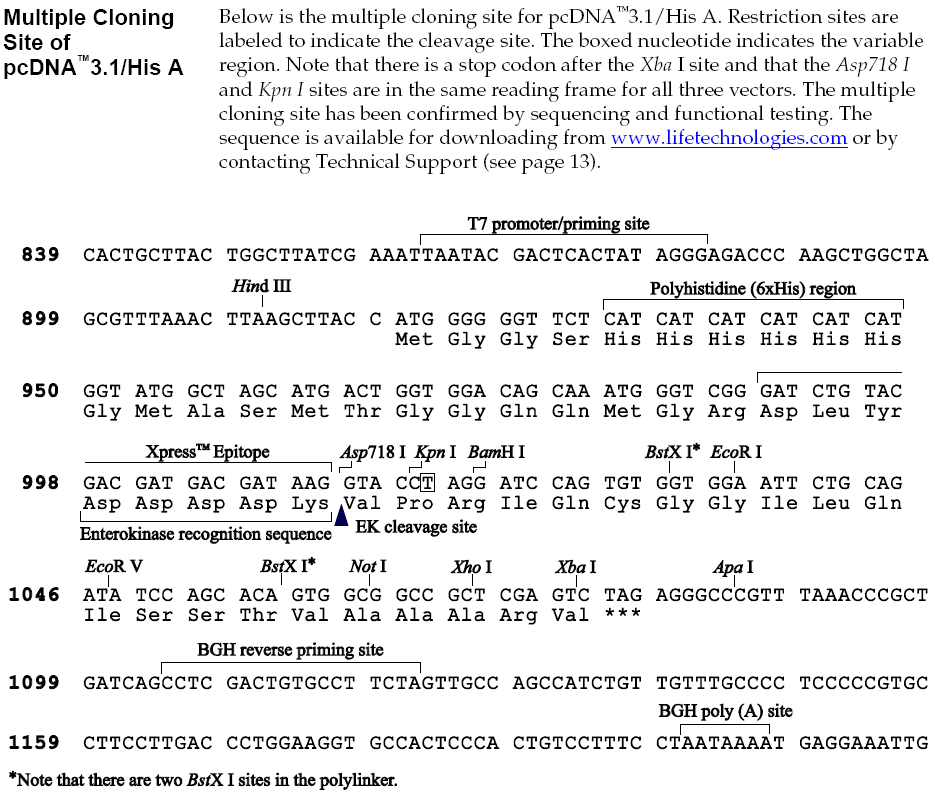

pcDNA3.1/HisA多克隆位点

pcDNA3.1/HisA载体简介

pcDNA3.1/His A, B, and C are 5.5 kb vectors derived from pcDNA3.1 and designed for high-level expression and purification of recombinant proteins in mammalian hosts. The vectors are supplied in three reading frames to facilitate in frame cloning with a polyhistidine metal-binding tag. The human cytomegalovirus (CMV) immediate-early promoter provides high-level expression in a wide range of mammalian cells. In addition, the vector replicates episomally in cell lines that are latently infected with SV40 or that express the SV40 large T antigen (e.g. COS7). High-level stable and non-replicative transient expression can be carried out in most mammalian cells. The control plasmid, pcDNA3.1/His lacZ, is the pcDNA3.1/His B vector with a 3.2 kb fragment containing the β-galactosidase gene cloned in frame with the N-terminal peptide. pcDNA3.1/His lacZ is included for use as a positive control for transfection, expression, and purification in the cell line of choice.

pcDNA3.1/HisA载体序列

LOCUS       pcDNA3.1/His A    5514 bp     DNA    circular    SYN
DEFINITION  pcDNA3.1/His A
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..5514
                     /organism="pcDNA3.1/His A"
                     /mol_type="other DNA"
     promoter        236..852
                     /label="CMV_immearly_promoter"
     misc_feature    315..602
                     /label="CAG_enhancer"
     misc_feature    769..789
                     /label="CMV_fwd_primer"
     promoter        863..881
                     /label="T7_promoter"
     misc_feature    952..970
                     /label="Xpress_fwd_primer"
     misc_feature    953..985
                     /label="T7_leader"
     misc_feature    989..1012
                     /label="Xpress_EK"
     misc_feature    complement(1105..1122)
                     /label="BGH_rev_primer"
     terminator      1108..1335
                     /label="bGH_PA_terminator"
     rep_origin      1398..1704
                     /label="f1_origin"
     misc_feature    complement(1818..1838)
                     /label="pBABE_3_primer"
     misc_feature    complement(1824..2039)
                     /label="SV40_enhancer"
     promoter        1836..2104
                     /label="SV40_promoter"
     rep_origin      2003..2080
                     /label="SV40_origin"
     misc_feature    2065..2084
                     /label="SV40pro_F_primer"
     CDS             2219..3013
                     /label="ORF frame 2"
     gene            2222..3010
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"
     CDS             complement(2528..3064)
                     /label="ORF frame 3"
     terminator      3190..3309
                     /label="SV40_PA_terminator"
     misc_feature    3278..3297
                     /label="EBV_rev_primer"
     promoter        complement(3353..3371)
                     /label="M13_reverse_primer"
     misc_feature    complement(3370..3392)
                     /label="M13_pUC_rev_primer"
     promoter        complement(3406..3435)
                     /label="lac_promoter"
     gene            complement(4518..5378)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(4518..5378)
                     /label="ORF frame 2"
     promoter        complement(5420..5448)
                     /label="AmpR_promoter"
ORIGIN
    1 GACGGATCGG GAGATCTCCC GATCCCCTAT GGTGCACTCT CAGTACAATC TGCTCTGATG
   61 CCGCATAGTT AAGCCAGTAT CTGCTCCCTG CTTGTGTGTT GGAGGTCGCT GAGTAGTGCG
  121 CGAGCAAAAT TTAAGCTACA ACAAGGCAAG GCTTGACCGA CAATTGCATG AAGAATCTGC
  181 TTAGGGTTAG GCGTTTTGCG CTGCTTCGCG ATGTACGGGC CAGATATACG CGTTGACATT
  241 GATTATTGAC TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA
  301 TGGAGTTCCG CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC
  361 CCCGCCCATT GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC
  421 ATTGACGTCA ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT
  481 ATCATATGCC AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT
  541 ATGCCCAGTA CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA
  601 TCGCTATTAC CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG
  661 ACTCACGGGG ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC
  721 AAAATCAACG GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG
  781 GTAGGCGTGT ACGGTGGGAG GTCTATATAA GCAGAGCTCT CTGGCTAACT AGAGAACCCA
  841 CTGCTTACTG GCTTATCGAA ATTAATACGA CTCACTATAG GGAGACCCAA GCTGGCTAGC
  901 GTTTAAACTT AAGCTTACCA TGGGGGGTTC TCATCATCAT CATCATCATG GTATGGCTAG
  961 CATGACTGGT GGACAGCAAA TGGGTCGGGA TCTGTACGAC GATGACGATA AGGTACCTAG
 1021 GATCCAGTGT GGTGGAATTC TGCAGATATC CAGCACAGTG GCGGCCGCTC GAGTCTAGAG
 1081 GGCCCGTTTA AACCCGCTGA TCAGCCTCGA CTGTGCCTTC TAGTTGCCAG CCATCTGTTG
 1141 TTTGCCCCTC CCCCGTGCCT TCCTTGACCC TGGAAGGTGC CACTCCCACT GTCCTTTCCT
 1201 AATAAAATGA GGAAATTGCA TCGCATTGTC TGAGTAGGTG TCATTCTATT CTGGGGGGTG
 1261 GGGTGGGGCA GGACAGCAAG GGGGAGGATT GGGAAGACAA TAGCAGGCAT GCTGGGGATG
 1321 CGGTGGGCTC TATGGCTTCT GAGGCGGAAA GAACCAGCTG GGGCTCTAGG GGGTATCCCC
 1381 ACGCGCCCTG TAGCGGCGCA TTAAGCGCGG CGGGTGTGGT GGTTACGCGC AGCGTGACCG
 1441 CTACACTTGC CAGCGCCCTA GCGCCCGCTC CTTTCGCTTT CTTCCCTTCC TTTCTCGCCA
 1501 CGTTCGCCGG CTTTCCCCGT CAAGCTCTAA ATCGGGGGCT CCCTTTAGGG TTCCGATTTA
 1561 GTGCTTTACG GCACCTCGAC CCCAAAAAAC TTGATTAGGG TGATGGTTCA CGTAGTGGGC
 1621 CATCGCCCTG ATAGACGGTT TTTCGCCCTT TGACGTTGGA GTCCACGTTC TTTAATAGTG
 1681 GACTCTTGTT CCAAACTGGA ACAACACTCA ACCCTATCTC GGTCTATTCT TTTGATTTAT
 1741 AAGGGATTTT GCCGATTTCG GCCTATTGGT TAAAAAATGA GCTGATTTAA CAAAAATTTA
 1801 ACGCGAATTA ATTCTGTGGA ATGTGTGTCA GTTAGGGTGT GGAAAGTCCC CAGGCTCCCC
 1861 AGCAGGCAGA AGTATGCAAA GCATGCATCT CAATTAGTCA GCAACCAGGT GTGGAAAGTC
 1921 CCCAGGCTCC CCAGCAGGCA GAAGTATGCA AAGCATGCAT CTCAATTAGT CAGCAACCAT
 1981 AGTCCCGCCC CTAACTCCGC CCATCCCGCC CCTAACTCCG CCCAGTTCCG CCCATTCTCC
 2041 GCCCCATGGC TGACTAATTT TTTTTATTTA TGCAGAGGCC GAGGCCGCCT CTGCCTCTGA
 2101 GCTATTCCAG AAGTAGTGAG GAGGCTTTTT TGGAGGCCTA GGCTTTTGCA AAAAGCTCCC
 2161 GGGAGCTTGT ATATCCATTT TCGGATCTGA TCAAGAGACA GGATGAGGAT CGTTTCGCAT
 2221 GATTGAACAA GATGGATTGC ACGCAGGTTC TCCGGCCGCT TGGGTGGAGA GGCTATTCGG
 2281 CTATGACTGG GCACAACAGA CAATCGGCTG CTCTGATGCC GCCGTGTTCC GGCTGTCAGC
 2341 GCAGGGGCGC CCGGTTCTTT TTGTCAAGAC CGACCTGTCC GGTGCCCTGA ATGAACTGCA
 2401 GGACGAGGCA GCGCGGCTAT CGTGGCTGGC CACGACGGGC GTTCCTTGCG CAGCTGTGCT
 2461 CGACGTTGTC ACTGAAGCGG GAAGGGACTG GCTGCTATTG GGCGAAGTGC CGGGGCAGGA
 2521 TCTCCTGTCA TCTCACCTTG CTCCTGCCGA GAAAGTATCC ATCATGGCTG ATGCAATGCG
 2581 GCGGCTGCAT ACGCTTGATC CGGCTACCTG CCCATTCGAC CACCAAGCGA AACATCGCAT
 2641 CGAGCGAGCA CGTACTCGGA TGGAAGCCGG TCTTGTCGAT CAGGATGATC TGGACGAAGA
 2701 GCATCAGGGG CTCGCGCCAG CCGAACTGTT CGCCAGGCTC AAGGCGCGCA TGCCCGACGG
 2761 CGAGGATCTC GTCGTGACCC ATGGCGATGC CTGCTTGCCG AATATCATGG TGGAAAATGG
 2821 CCGCTTTTCT GGATTCATCG ACTGTGGCCG GCTGGGTGTG GCGGACCGCT ATCAGGACAT
 2881 AGCGTTGGCT ACCCGTGATA TTGCTGAAGA GCTTGGCGGC GAATGGGCTG ACCGCTTCCT
 2941 CGTGCTTTAC GGTATCGCCG CTCCCGATTC GCAGCGCATC GCCTTCTATC GCCTTCTTGA
 3001 CGAGTTCTTC TGAGCGGGAC TCTGGGGTTC GAAATGACCG ACCAAGCGAC GCCCAACCTG
 3061 CCATCACGAG ATTTCGATTC CACCGCCGCC TTCTATGAAA GGTTGGGCTT CGGAATCGTT
 3121 TTCCGGGACG CCGGCTGGAT GATCCTCCAG CGCGGGGATC TCATGCTGGA GTTCTTCGCC
 3181 CACCCCAACT TGTTTATTGC AGCTTATAAT GGTTACAAAT AAAGCAATAG CATCACAAAT
 3241 TTCACAAATA AAGCATTTTT TTCACTGCAT TCTAGTTGTG GTTTGTCCAA ACTCATCAAT
 3301 GTATCTTATC ATGTCTGTAT ACCGTCGACC TCTAGCTAGA GCTTGGCGTA ATCATGGTCA
 3361 TAGCTGTTTC CTGTGTGAAA TTGTTATCCG CTCACAATTC CACACAACAT ACGAGCCGGA
 3421 AGCATAAAGT GTAAAGCCTG GGGTGCCTAA TGAGTGAGCT AACTCACATT AATTGCGTTG
 3481 CGCTCACTGC CCGCTTTCCA GTCGGGAAAC CTGTCGTGCC AGCTGCATTA ATGAATCGGC
 3541 CAACGCGCGG GGAGAGGCGG TTTGCGTATT GGGCGCTCTT CCGCTTCCTC GCTCACTGAC
 3601 TCGCTGCGCT CGGTCGTTCG GCTGCGGCGA GCGGTATCAG CTCACTCAAA GGCGGTAATA
 3661 CGGTTATCCA CAGAATCAGG GGATAACGCA GGAAAGAACA TGTGAGCAAA AGGCCAGCAA
 3721 AAGGCCAGGA ACCGTAAAAA GGCCGCGTTG CTGGCGTTTT TCCATAGGCT CCGCCCCCCT
 3781 GACGAGCATC ACAAAAATCG ACGCTCAAGT CAGAGGTGGC GAAACCCGAC AGGACTATAA
 3841 AGATACCAGG CGTTTCCCCC TGGAAGCTCC CTCGTGCGCT CTCCTGTTCC GACCCTGCCG
 3901 CTTACCGGAT ACCTGTCCGC CTTTCTCCCT TCGGGAAGCG TGGCGCTTTC TCATAGCTCA
 3961 CGCTGTAGGT ATCTCAGTTC GGTGTAGGTC GTTCGCTCCA AGCTGGGCTG TGTGCACGAA
 4021 CCCCCCGTTC AGCCCGACCG CTGCGCCTTA TCCGGTAACT ATCGTCTTGA GTCCAACCCG
 4081 GTAAGACACG ACTTATCGCC ACTGGCAGCA GCCACTGGTA ACAGGATTAG CAGAGCGAGG
 4141 TATGTAGGCG GTGCTACAGA GTTCTTGAAG TGGTGGCCTA ACTACGGCTA CACTAGAAGA
 4201 ACAGTATTTG GTATCTGCGC TCTGCTGAAG CCAGTTACCT TCGGAAAAAG AGTTGGTAGC
 4261 TCTTGATCCG GCAAACAAAC CACCGCTGGT AGCGGTGGTT TTTTTGTTTG CAAGCAGCAG
 4321 ATTACGCGCA GAAAAAAAGG ATCTCAAGAA GATCCTTTGA TCTTTTCTAC GGGGTCTGAC
 4381 GCTCAGTGGA ACGAAAACTC ACGTTAAGGG ATTTTGGTCA TGAGATTATC AAAAAGGATC
 4441 TTCACCTAGA TCCTTTTAAA TTAAAAATGA AGTTTTAAAT CAATCTAAAG TATATATGAG
 4501 TAAACTTGGT CTGACAGTTA CCAATGCTTA ATCAGTGAGG CACCTATCTC AGCGATCTGT
 4561 CTATTTCGTT CATCCATAGT TGCCTGACTC CCCGTCGTGT AGATAACTAC GATACGGGAG
 4621 GGCTTACCAT CTGGCCCCAG TGCTGCAATG ATACCGCGAG ACCCACGCTC ACCGGCTCCA
 4681 GATTTATCAG CAATAAACCA GCCAGCCGGA AGGGCCGAGC GCAGAAGTGG TCCTGCAACT
 4741 TTATCCGCCT CCATCCAGTC TATTAATTGT TGCCGGGAAG CTAGAGTAAG TAGTTCGCCA
 4801 GTTAATAGTT TGCGCAACGT TGTTGCCATT GCTACAGGCA TCGTGGTGTC ACGCTCGTCG
 4861 TTTGGTATGG CTTCATTCAG CTCCGGTTCC CAACGATCAA GGCGAGTTAC ATGATCCCCC
 4921 ATGTTGTGCA AAAAAGCGGT TAGCTCCTTC GGTCCTCCGA TCGTTGTCAG AAGTAAGTTG
 4981 GCCGCAGTGT TATCACTCAT GGTTATGGCA GCACTGCATA ATTCTCTTAC TGTCATGCCA
 5041 TCCGTAAGAT GCTTTTCTGT GACTGGTGAG TACTCAACCA AGTCATTCTG AGAATAGTGT
 5101 ATGCGGCGAC CGAGTTGCTC TTGCCCGGCG TCAATACGGG ATAATACCGC GCCACATAGC
 5161 AGAACTTTAA AAGTGCTCAT CATTGGAAAA CGTTCTTCGG GGCGAAAACT CTCAAGGATC
 5221 TTACCGCTGT TGAGATCCAG TTCGATGTAA CCCACTCGTG CACCCAACTG ATCTTCAGCA
 5281 TCTTTTACTT TCACCAGCGT TTCTGGGTGA GCAAAAACAG GAAGGCAAAA TGCCGCAAAA
 5341 AAGGGAATAA GGGCGACACG GAAATGTTGA ATACTCATAC TCTTCCTTTT TCAATATTAT
 5401 TGAAGCATTT ATCAGGGTTA TTGTCTCATG AGCGGATACA TATTTGAATG TATTTAGAAA
 5461 AATAAACAAA TAGGGGTTCC GCGCACATTT CCCCGAAAAG TGCCACCTGA CGTC

//

pcDNA3.1/HisA载体质粒图谱pdf版和相关资料下载

pcDNA3.1/HisA载体应用举例
