pRK5-HA

价格:1500元

联系方式:I47-825O-882O

买家导航

pRK5HA载体基本信息

载体名称: pRK5-HA
质粒类型: 哺乳动物细胞载体
高拷贝/低拷贝: --
复制子: pUC
启动子: CMV
载体大小: 4727 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: --
克隆菌株: DH5α 等
宿主细胞(系): --
备注: --
产品目录号: --
稳定性: --
组成型/诱导型: --
病毒/非病毒: --

pRK5HA载体质粒图谱和多克隆位点信息

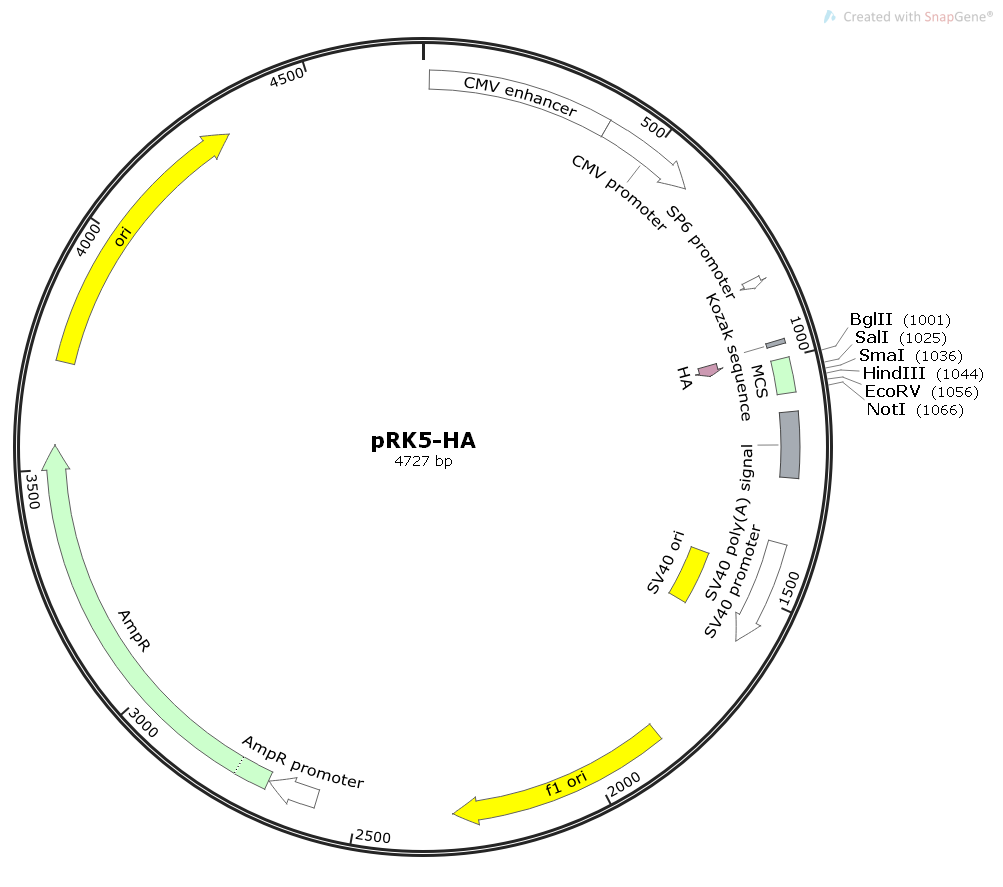

pRK5-HA载体图谱

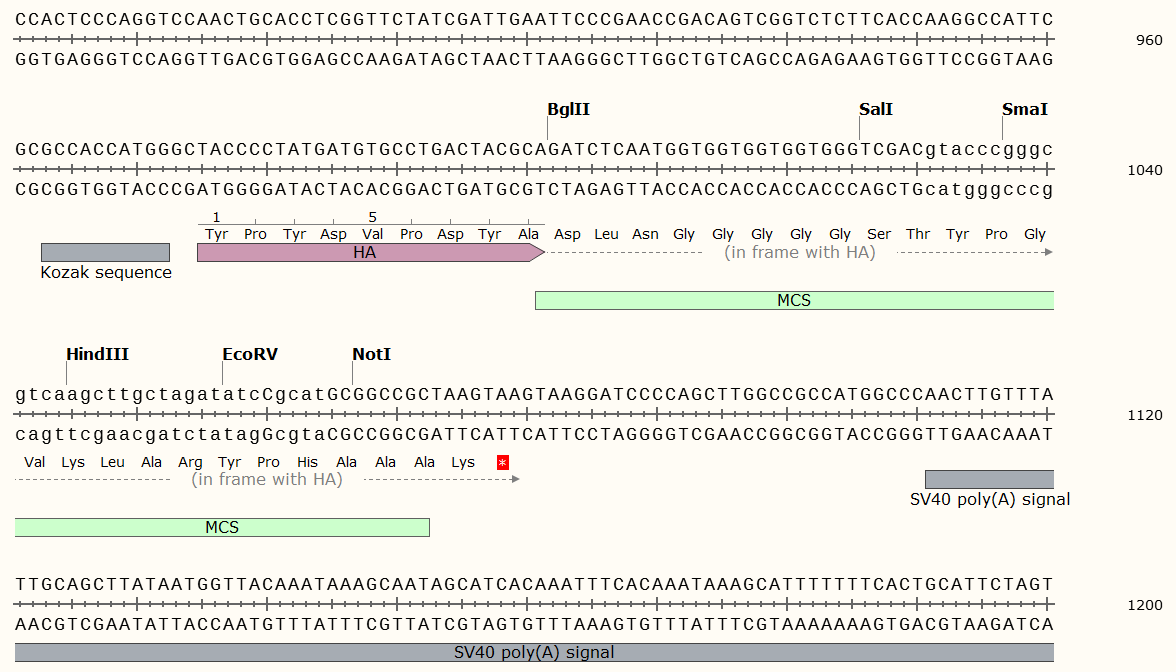

pRK5-HA载体图谱1

pRK5HA载体简介

pRK5HA载体序列

LOCUS       pRK5-HA               4727 bp ds-DNA     circular SYN 20-DEC-2017
DEFINITION  synthetic circular DNA
FEATURES             Location/Qualifiers
     source          1..4727
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        14..393
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        394..597
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        828..846
                     /label=SP6 promoter
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     regulatory      963..972
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             975..1001
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     misc_feature    1001..1072
                     /label=MCS
     polyA_signal    1111..1245
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     promoter        1381..1599
                     /label=SV40 promoter
                     /note="SV40 early promoter"
     rep_origin      1450..1585
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     rep_origin      1848..2303
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2585..2689
                     /gene="bla"
                     /label=AmpR promoter
     CDS             2690..3550
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      3721..4310
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 ttcgagctcg cccgacattg attattgact agttattaat agtaatcaat tacggggtca
       61 ttagttcata gcccatatat ggagttccgc gttacataac ttacggtaaa tggcccgcct
      121 ggctgaccgc ccaacgaccc ccgcccattg acgtcaataa tgacgtatgt tcccatagta
      181 acgccaatag ggactttcca ttgacgtcaa tgggtggagt atttacggta aactgcccac
      241 ttggcagtac atcaagtgta tcatatgcca agtacgcccc ctattgacgt caatgacggt
      301 aaatggcccg cctggcatta tgcccagtac atgaccttat gggactttcc tacttggcag
      361 tacatctacg tattagtcat cgctattacc atggtgatgc ggttttggca gtacatcaat
      421 gggcgtggat agcggtttga ctcacgggga tttccaagtc tccaccccat tgacgtcaat
      481 gggagtttgt tttggcacca aaatcaacgg gactttccaa aatgtcgtaa caactccgcc
      541 ccattgacgc aaatgggcgg taggcgtgta cggtgggagg tctatataag cagagctcgt
      601 ttagtgaacc gtcagatcgc ctggagacgc catccacgct gttttgacct ccatagaaga
      661 caccgggacc gatccagcct ccgcggccgg gaacggtgca ttggaacgcg gattccccgt
      721 gccaagagtg acgtaagtac cgcctataga gtctataggc ccaccccctt ggcttcgtta
      781 gaacgcggct acaattaata cataacctta tgtatcatac acatacgatt taggtgacac
      841 tatagaataa catccacttt gcctttctct ccacaggtgt ccactcccag gtccaactgc
      901 acctcggttc tatcgattga attcccgaac cgacagtcgg tctcttcacc aaggccattc
      961 gcgccaccat gggctacccc tatgatgtgc ctgactacgc agatctcaat ggtggtggtg
     1021 gtgggtcgac gtacccgggc gtcaagcttg ctagatatcc gcatgcggcc gctaagtaag
     1081 taaggatccc cagcttggcc gccatggccc aacttgttta ttgcagctta taatggttac
     1141 aaataaagca atagcatcac aaatttcaca aataaagcat ttttttcact gcattctagt
     1201 tgtggtttgt ccaaactcat caatgtatct tatcatgtct ggatcgggaa ttaattcggc
     1261 gcagcaccat ggcctgaaat aacctctgaa agaggaactt ggttaggtac cttctgaggc
     1321 ggaaagaacc agctgtggaa tgtgtgtcag ttagggtgtg gaaagtcccc aggctcccca
     1381 gcaggcagaa gtatgcaaag catgcatctc aattagtcag caaccatagt cccgccccta
     1441 actccgccca tcccgcccct aactccgccc agttccgccc attctccgcc ccatggctga
     1501 ctaatttttt ttatttatgc agaggccgag gccgcctcgg cctctgagct attccagaag
     1561 tagtgaggag gcttttttgg aggcctaggc ttttgcaaaa agctgttaac agcttggcac
     1621 tggccgtcgt tttacaacgt cgtgactggg aaaaccctgg cgttacccaa cttaatcgcc
     1681 ttgcagcaca tccccctttc gccagctggc gtaatagcga agaggcccgc accgatcgcc
     1741 cttcccaaca gttgcgcagc ctgaatggcg aatggcgcct gatgcggtat tttctcctta
     1801 cgcatctgtg cggtatttca caccgcatac gtcaaagcaa ccatagtacg cgccctgtag
     1861 cggcgcatta agcgcggcgg gtgtggtggt tacgcgcagc gtgaccgcta cacttgccag
     1921 cgccctagcg cccgctcctt tcgctttctt cccttccttt ctcgccacgt tcgccggctt
     1981 tccccgtcaa gctctaaatc gggggctccc tttagggttc cgatttagtg ctttacggca
     2041 cctcgacccc aaaaaacttg atttgggtga tggttcacgt agtgggccat cgccctgata
     2101 gacggttttt cgccctttga cgttggagtc cacgttcttt aatagtggac tcttgttcca
     2161 aactggaaca acactcaacc ctatctcggg ctattctttt aatttataag ggattttgcc
     2221 gatttcggcc tattggttaa aaaatgagct gatttaacaa aaatttaacg cgaattttaa
     2281 caaaatatta acgtttacaa ttttatggtg cactctcagt acaatctgct ctgatgccgc
     2341 atagttaagc cagccccgac acccgccaac acccgctgac gcgccctgac gggcttgtct
     2401 gctcccggca tccgcttaca gacaagctgt gaccgtctcc gggagctgca tgtgtcagag
     2461 gttttcaccg tcatcaccga aacgcgcgag acgaaagggc ctcgtgatac gcctattttt
     2521 ataggttaat gtcatgataa taatggtttc ttagacgtca ggtggcactt ttcggggaaa
     2581 tgtgcgcgga acccctattt gtttattttt ctaaatacat tcaaatatgt atccgctcat
     2641 gagacaataa ccctgataaa tgcttcaata atattgaaaa aggaagagta tgagtattca
     2701 acatttccgt gtcgccctta ttcccttttt tgcggcattt tgccttcctg tttttgctca
     2761 cccagaaacg ctggtgaaag taaaagatgc tgaagatcag ttgggtgcac gagtgggtta
     2821 catcgaactg gatctcaaca gcggtaagat ccttgagagt tttcgccccg aagaacgttt
     2881 tccaatgatg agcactttta aagttctgct atgtggcgcg gtattatccc gtattgacgc
     2941 cgggcaagag caactcggtc gccgcataca ctattctcag aatgacttgg ttgagtactc
     3001 accagtcaca gaaaagcatc ttacggatgg catgacagta agagaattat gcagtgctgc
     3061 cataaccatg agtgataaca ctgcggccaa cttacttctg acaacgatcg gaggaccgaa
     3121 ggagctaacc gcttttttgc acaacatggg ggatcatgta actcgccttg atcgttggga
     3181 accggagctg aatgaagcca taccaaacga cgagcgtgac accacgatgc ctgtagcaat
     3241 ggcaacaacg ttgcgcaaac tattaactgg cgaactactt actctagctt cccggcaaca
     3301 attaatagac tggatggagg cggataaagt tgcaggacca cttctgcgct cggcccttcc
     3361 ggctggctgg tttattgctg ataaatctgg agccggtgag cgtgggtctc gcggtatcat
     3421 tgcagcactg gggccagatg gtaagccctc ccgtatcgta gttatctaca cgacggggag
     3481 tcaggcaact atggatgaac gaaatagaca gatcgctgag ataggtgcct cactgattaa
     3541 gcattggtaa ctgtcagacc aagtttactc atatatactt tagattgatt taaaacttca
     3601 tttttaattt aaaaggatct aggtgaagat cctttttgat aatctcatga ccaaaatccc
     3661 ttaacgtgag ttttcgttcc actgagcgtc agaccccgta gaaaagatca aaggatcttc
     3721 ttgagatcct ttttttctgc gcgtaatctg ctgcttgcaa acaaaaaaac caccgctacc
     3781 agcggtggtt tgtttgccgg atcaagagct accaactctt tttccgaagg taactggctt
     3841 cagcagagcg cagataacca aatactgttc ttctagtgta gccgtagtta ggccaccact
     3901 tcaagaactc tgtagcaccg cctacatacc tcgctctgct aatcctgtta ccagtggctg
     3961 ctgccagtgg cgataagtcg tgtcttaccg ggttggactc aagacgatag ttaccggata
     4021 aggcgcagcg gtcgggctga acggggggtt cgtgcacaca gcccagcttg gagcgaacga
     4081 cctacaccga actgagatac ctacagcgtg agctatgaga aagcgccacg cttcccgaag
     4141 ggagaaaggc ggacaggtat ccggtaagcg gcagggtcgg aacaggagag cgcacgaggg
     4201 agcttccagg gggaaacgcc tggtatcttt atagtcctgt cgggtttcgc cacctctgac
     4261 ttgagcgtcg atttttgtga tgctcgtcag gggggcggag cctatggaaa aacgccagca
     4321 acgcggcctt tttacggttc ctggcctttt gctggccttt tgctcacatg ttctttcctg
     4381 cgttatcccc tgattctgtg gataaccgta ttaccgcctt tgagtgagct gataccgctc
     4441 gccgcagccg aacgaccgag cgcagcgagt cagtgagcga ggaagcggaa gagcgcccaa
     4501 tacgcaaacc gcctctcccc gcgcgttggc cgattcatta atgcagctgg cacgacaggt
     4561 ttcccgactg gaaagcgggc agtgagcgca acgcaattaa tgtgagttag ctcactcatt
     4621 aggcacccca ggctttacac tttatgcttc cggctcgtat gttgtgtgga attgtgagcg
     4681 gataacaatt tcacacagga aacagctatg acatgattac gaattaa
//

pRK5HA载体质粒图谱pdf版和相关资料下载

pRK5HA载体应用举例
