pEGFP-EcoRV

LOCUS       pEGFP-EcoRV                4013 bp ds-DNA     circular SYN 17-FEB-2016
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pEGFP-EcoRV
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4013)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Wednesday, August 31, 2016 from SnapGene Viewer 3.1.4
            http://www.biofeng.com/
FEATURES             Location/Qualifiers
     source          1..4013
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        61..364
                     /note="CMV enhancer"
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /note="CMV promoter"
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"

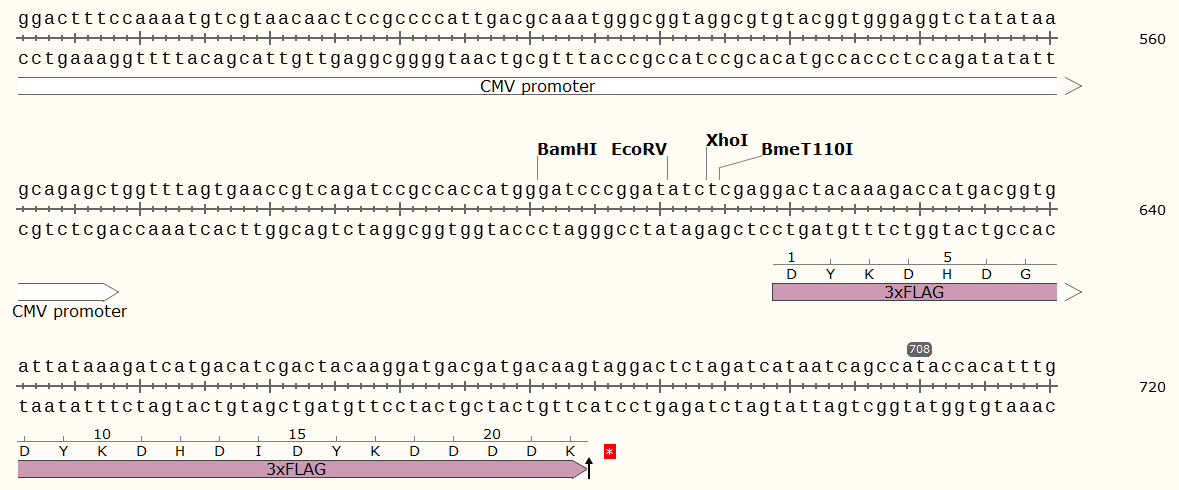

     CDS             619..684
                     /codon_start=1
                     /product="three tandem FLAG(R) epitope tags, followed by an
                     enterokinase cleavage site"
                     /note="3xFLAG"
                     /translation="DYKDHDGDYKDHDIDYKDDDDK"
     polyA_signal    801..922
                     /note="SV40 poly(A) signal"
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(929..1384)
                     /direction=LEFT
                     /note="f1 ori"
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        1411..1515
                     /gene="bla"
                     /note="AmpR promoter"
     promoter        1517..1874
                     /note="SV40 promoter"
                     /note="SV40 enhancer and early promoter"
     rep_origin      1725..1860
                     /note="SV40 ori"
                     /note="SV40 origin of replication"
     CDS             1909..2703
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /note="NeoR/KanR"
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    2935..2982
                     /note="HSV TK poly(A) signal"
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      3311..3899
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gccaccatgg
      601 gatcccggat atctcgagga ctacaaagac catgacggtg attataaaga tcatgacatc
      661 gactacaagg atgacgatga caagtaggac tctagatcat aatcagccat accacatttg
      721 tagaggtttt acttgcttta aaaaacctcc cacacctccc cctgaacctg aaacataaaa
      781 tgaatgcaat tgttgttgtt aacttgttta ttgcagctta taatggttac aaataaagca
      841 atagcatcac aaatttcaca aataaagcat ttttttcact gcattctagt tgtggtttgt
      901 ccaaactcat caatgtatct taaggcgtaa attgtaagcg ttaatatttt gttaaaattc
      961 gcgttaaatt tttgttaaat cagctcattt tttaaccaat aggccgaaat cggcaaaatc
     1021 ccttataaat caaaagaata gaccgagata gggttgagtg ttgttccagt ttggaacaag
     1081 agtccactat taaagaacgt ggactccaac gtcaaagggc gaaaaaccgt ctatcagggc
     1141 gatggcccac tacgtgaacc atcaccctaa tcaagttttt tggggtcgag gtgccgtaaa
     1201 gcactaaatc ggaaccctaa agggagcccc cgatttagag cttgacgggg aaagccggcg
     1261 aacgtggcga gaaaggaagg gaagaaagcg aaaggagcgg gcgctagggc gctggcaagt
     1321 gtagcggtca cgctgcgcgt aaccaccaca cccgccgcgc ttaatgcgcc gctacagggc
     1381 gcgtcaggtg gcacttttcg gggaaatgtg cgcggaaccc ctatttgttt atttttctaa
     1441 atacattcaa atatgtatcc gctcatgaga caataaccct gataaatgct tcaataatat
     1501 tgaaaaagga agagtcctga ggcggaaaga accagctgtg gaatgtgtgt cagttagggt
     1561 gtggaaagtc cccaggctcc ccagcaggca gaagtatgca aagcatgcat ctcaattagt
     1621 cagcaaccag gtgtggaaag tccccaggct ccccagcagg cagaagtatg caaagcatgc
     1681 atctcaatta gtcagcaacc atagtcccgc ccctaactcc gcccatcccg cccctaactc
     1741 cgcccagttc cgcccattct ccgccccatg gctgactaat tttttttatt tatgcagagg
     1801 ccgaggccgc ctcggcctct gagctattcc agaagtagtg aggaggcttt tttggaggcc
     1861 taggcttttg caaagatcga tcaagagaca ggatgaggat cgtttcgcat gattgaacaa
     1921 gatggattgc acgcaggttc tccggccgct tgggtggaga ggctattcgg ctatgactgg
     1981 gcacaacaga caatcggctg ctctgatgcc gccgtgttcc ggctgtcagc gcaggggcgc
     2041 ccggttcttt ttgtcaagac cgacctgtcc ggtgccctga atgaactgca agacgaggca
     2101 gcgcggctat cgtggctggc cacgacgggc gttccttgcg cagctgtgct cgacgttgtc
     2161 actgaagcgg gaagggactg gctgctattg ggcgaagtgc cggggcagga tctcctgtca
     2221 tctcaccttg ctcctgccga gaaagtatcc atcatggctg atgcaatgcg gcggctgcat
     2281 acgcttgatc cggctacctg cccattcgac caccaagcga aacatcgcat cgagcgagca
     2341 cgtactcgga tggaagccgg tcttgtcgat caggatgatc tggacgaaga gcatcagggg
     2401 ctcgcgccag ccgaactgtt cgccaggctc aaggcgagca tgcccgacgg cgaggatctc
     2461 gtcgtgaccc atggcgatgc ctgcttgccg aatatcatgg tggaaaatgg ccgcttttct
     2521 ggattcatcg actgtggccg gctgggtgtg gcggaccgct atcaggacat agcgttggct
     2581 acccgtgata ttgctgaaga gcttggcggc gaatgggctg accgcttcct cgtgctttac
     2641 ggtatcgccg ctcccgattc gcagcgcatc gccttctatc gccttcttga cgagttcttc
     2701 tgagcgggac tctggggttc gaaatgaccg accaagcgac gcccaacctg ccatcacgag
     2761 atttcgattc caccgccgcc ttctatgaaa ggttgggctt cggaatcgtt ttccgggacg
     2821 ccggctggat gatcctccag cgcggggatc tcatgctgga gttcttcgcc caccctaggg
     2881 ggaggctaac tgaaacacgg aaggagacaa taccggaagg aacccgcgct atgacggcaa
     2941 taaaaagaca gaataaaacg cacggtgttg ggtcgtttgt tcataaacgc ggggttcggt
     3001 cccagggctg gcactctgtc gataccccac cgagacccca ttggggccaa tacgcccgcg
     3061 tttcttcctt ttccccaccc caccccccaa gttcgggtga aggcccaggg ctcgcagcca
     3121 acgtcggggc ggcaggccct gccatagcct caggttactc atatatactt tagattgatt
     3181 taaaacttca tttttaattt aaaaggatct aggtgaagat cctttttgat aatctcatga
     3241 ccaaaatccc ttaacgtgag ttttcgttcc actgagcgtc agaccccgta gaaaagatca
     3301 aaggatcttc ttgagatcct ttttttctgc gcgtaatctg ctgcttgcaa acaaaaaaac
     3361 caccgctacc agcggtggtt tgtttgccgg atcaagagct accaactctt tttccgaagg
     3421 taactggctt cagcagagcg cagataccaa atactgtcct tctagtgtag ccgtagttag
     3481 gccaccactt caagaactct gtagcaccgc ctacatacct cgctctgcta atcctgttac
     3541 cagtggctgc tgccagtggc gataagtcgt gtcttaccgg gttggactca agacgatagt
     3601 taccggataa ggcgcagcgg tcgggctgaa cggggggttc gtgcacacag cccagcttgg
     3661 agcgaacgac ctacaccgaa ctgagatacc tacagcgtga gctatgagaa agcgccacgc
     3721 ttcccgaagg gagaaaggcg gacaggtatc cggtaagcgg cagggtcgga acaggagagc
     3781 gcacgaggga gcttccaggg ggaaacgcct ggtatcttta tagtcctgtc gggtttcgcc
     3841 acctctgact tgagcgtcga tttttgtgat gctcgtcagg ggggcggagc ctatggaaaa
     3901 acgccagcaa cgcggccttt ttacggttcc tggccttttg ctggcctttt gctcacatgt
     3961 tctttcctgc gttatcccct gattctgtgg ataaccgtat taccgccatg cat
//
