载体基本信息

出品公司: Stratagene
载体名称: pCMV-Tag 5A ; pCMV-Tag5A
质粒类型: 哺乳动物表达载体
高拷贝/低拷贝: 高拷贝
克隆方法: 多克隆位点;限制性内切酶
启动子: CMV
载体大小: 4322 bp
5' 测序引物及序列: CMV Forward:CGCAAATGGGCGGTAGGCGTG
3' 测序引物及序列: --
载体标签: c-myc tag (C-末端)
载体抗性: 卡那霉素(Kanamycin)
筛选标记: Neomycin
克隆菌株: XL1-Blue
宿主细胞(系): --
备注: c-myc标签含10个氨基酸残基(EQKLISEEDL);
CMV启动子驱动目的蛋白的高水平表达;
pCMV-Tag 5A,B,C的差别仅在于读码框(阅读框)处。
产品目录号: 211175
稳定性: 瞬表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

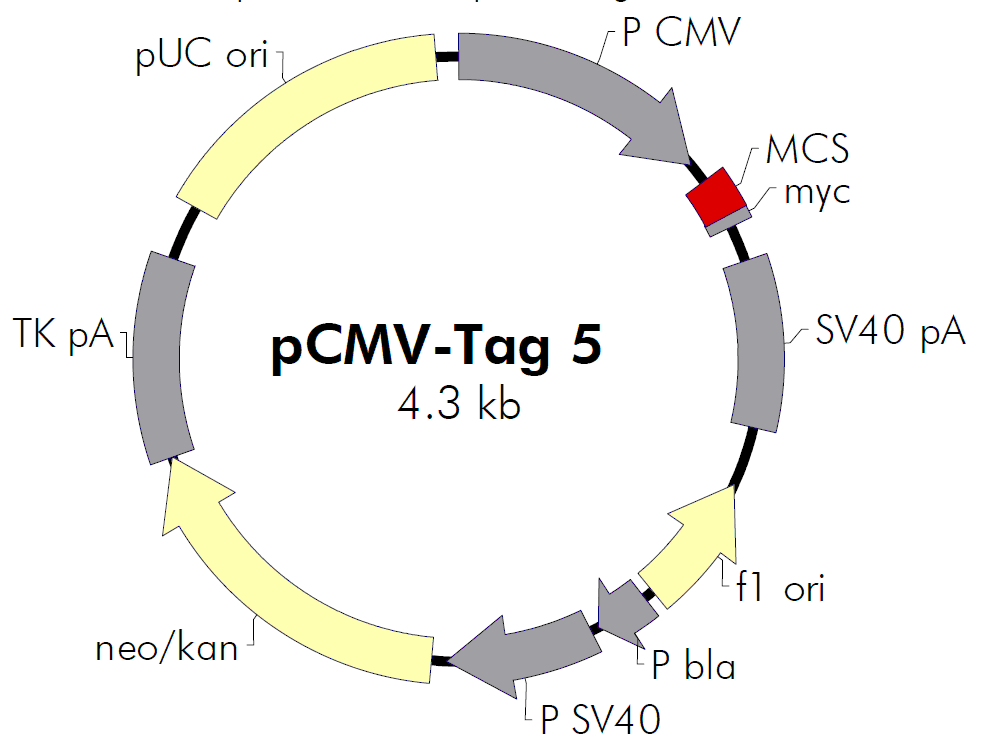

pCMV-Tag 5A载体图谱

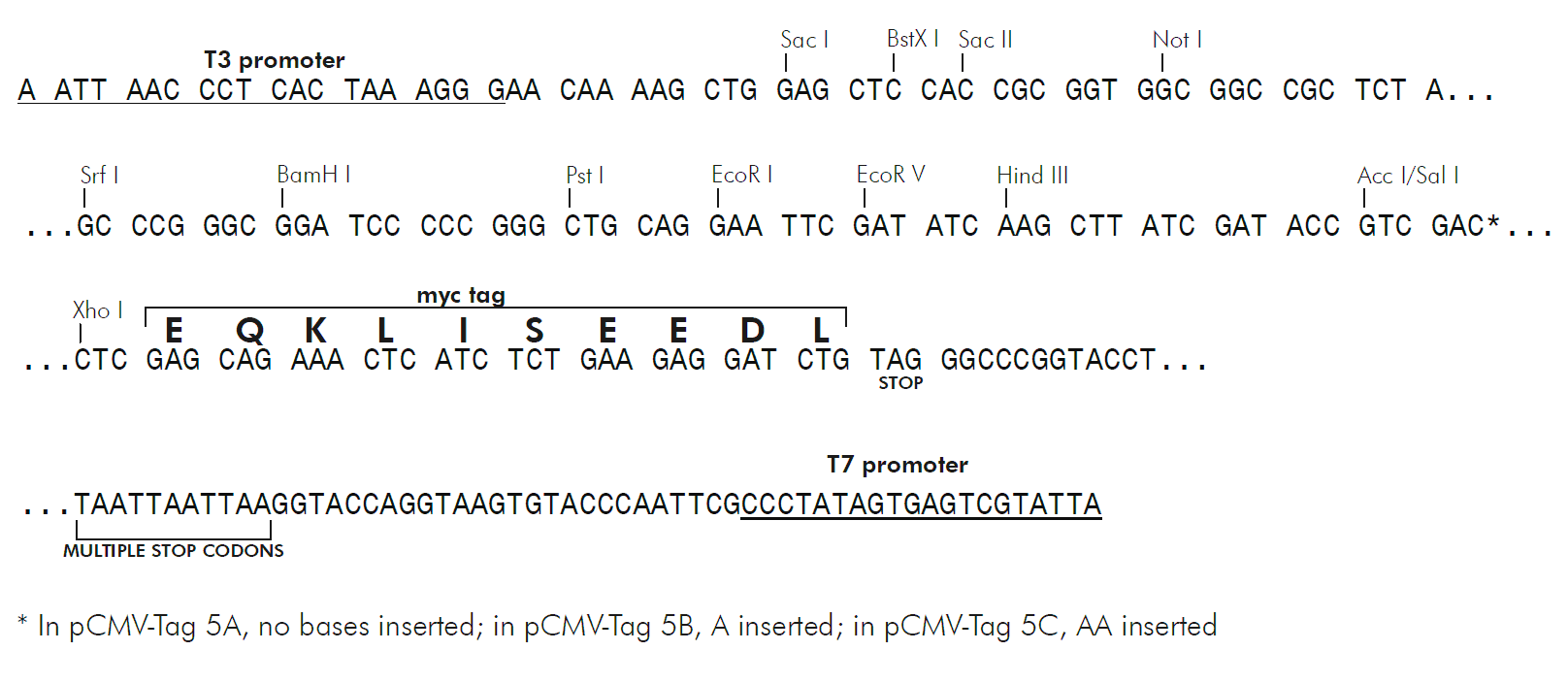

pCMV-Tag 5A 多克隆位点

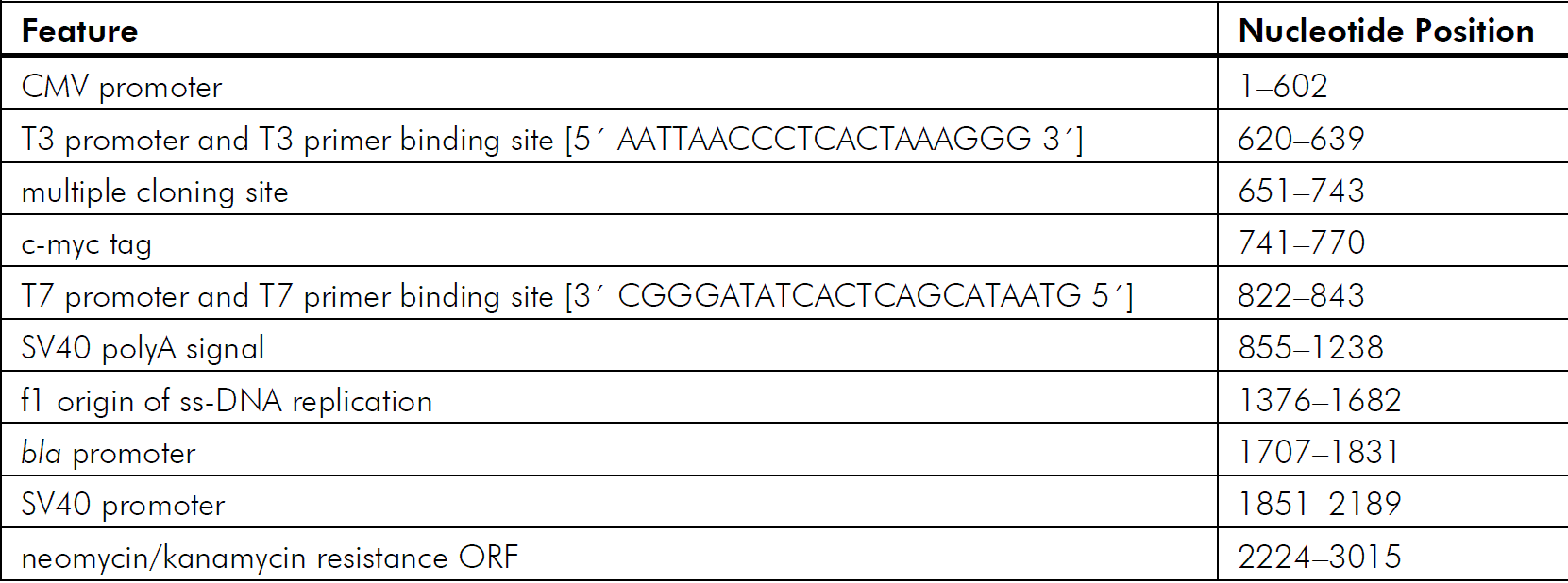

pCMV-Tag 5A 载体特征

载体简介


ADDITIONAL MATERIALS REQUIRED
T4 DNA ligase
Taq DNA polymerase
Taq DNA polymerase buffer
TE buffer
CIAP
Falcon 2059 polypropylene tubes (15-ml)
Water baths (37°C and 42°C)


XL1-Blue Genotype: recA1 endA1 gyrA96 thi-1 hsdR17 supE44 relA1 lac [F′ proAB lacIqZΔM15 Tn10 (Tetr)].
The XL1-Blue cells supplied with the pCMV-Tag vectors are not competent cells. Refer to Hanahan (1983) for a protocol for producing competent cells.

载体序列

LOCUS       pCMV-Tag 5A	4322 bp 	DNA	SYN
DEFINITION  pCMV-Tag 5A
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..4322
                     /organism="pCMV-Tag 5A"
                     /mol_type="other DNA"
     promoter        16..568
                     /label="CMV_immearly_promoter"
     misc_feature    71..358
                     /label="CAG_enhancer"
     misc_feature    525..545
                     /label="CMV_fwd_primer"
     promoter        526..595
                     /label="CMV_promoter"
     promoter        620..639
                     /label="T3_promoter"
     misc_feature    complement(726..742)
                     /label="pBluescriptKS_primer"
     promoter        complement(824..842)
                     /label="T7_promoter"
     misc_feature    899..958
                     /label="SV40_3_splice"
     terminator      1009..1237
                     /label="SV40_PA_terminator"
     misc_feature    1207..1226
                     /label="EBV_rev_primer"
     rep_origin      complement(1376..1682)
                     /label="f1_origin"
     promoter        1761..1789
                     /label="AmpR_promoter"
     misc_feature    complement(1855..1875)
                     /label="pBABE_3_primer"
     misc_feature    complement(1861..2076)
                     /label="SV40_enhancer"
     promoter        1873..2141
                     /label="SV40_promoter"
     rep_origin      2040..2117
                     /label="SV40_origin"
     misc_feature    2102..2121
                     /label="SV40pro_F_primer"
     CDS             2224..3018
                     /label="ORF frame 1"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     gene            2227..3015
                     /label="NeoR/KanR (variant)"
                     /gene="NeoR/KanR (variant)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     CDS             complement(2533..3069)
                     /label="ORF frame 3"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKFFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMFFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     terminator      3193..3462
                     /label="TK_PA_terminator"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKFFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMFFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     rep_origin      3610..4229
                     /label="pBR322_origin"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKFFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMFFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
ORIGIN
    1 ATGCATTAGT TATTAATAGT AATCAATTAC GGGGTCATTA GTTCATAGCC CATATATGGA
   61 GTTCCGCGTT ACATAACTTA CGGTAAATGG CCCGCCTGGC TGACCGCCCA ACGACCCCCG
  121 CCCATTGACG TCAATAATGA CGTATGTTCC CATAGTAACG CCAATAGGGA CTTTCCATTG
  181 ACGTCAATGG GTGGAGTATT TACGGTAAAC TGCCCACTTG GCAGTACATC AAGTGTATCA
  241 TATGCCAAGT ACGCCCCCTA TTGACGTCAA TGACGGTAAA TGGCCCGCCT GGCATTATGC
  301 CCAGTACATG ACCTTATGGG ACTTTCCTAC TTGGCAGTAC ATCTACGTAT TAGTCATCGC
  361 TATTACCATG GTGATGCGGT TTTGGCAGTA CATCAATGGG CGTGGATAGC GGTTTGACTC
  421 ACGGGGATTT CCAAGTCTCC ACCCCATTGA CGTCAATGGG AGTTTGTTTT GGCACCAAAA
  481 TCAACGGGAC TTTCCAAAAT GTCGTAACAA CTCCGCCCCA TTGACGCAAA TGGGCGGTAG
  541 GCGTGTACGG TGGGAGGTCT ATATAAGCAG AGCTGGTTTA GTGAACCGTC AGATCCGCTA
  601 GCGATTACGC CAAGCTCGAA ATTAACCCTC ACTAAAGGGA ACAAAAGCTG GAGCTCCACC
  661 GCGGTGGCGG CCGCTCTAGC CCGGGCGGAT CCCCCGGGCT GCAGGAATTC GATATCAAGC
  721 TTATCGATAC CGTCGACCTC GAGCAGAAAC TCATCTCTGA AGAGGATCTG TAGGGCCCGG
  781 TACCTTAATT AATTAAGGTA CCAGGTAAGT GTACCCAATT CGCCCTATAG TGAGTCGTAT
  841 TACAATTCAC TCGATCGCCC TTCCCAACAG TTGCGCAGCC TGAATGGCGA ATGGAGATCC
  901 AATTTTTAAG TGTATAATGT GTTAAACTAC TGATTCTAAT TGTTTGTGTA TTTTAGATTC
  961 ACAGTCCCAA GGCTCATTTC AGGCCCCTCA GTCCTCACAG TCTGTTCATG ATCATAATCA
 1021 GCCATACCAC ATTTGTAGAG GTTTTACTTG CTTTAAAAAA CCTCCCACAC CTCCCCCTGA
 1081 ACCTGAAACA TAAAATGAAT GCAATTGTTG TTGTTAACTT GTTTATTGCA GCTTATAATG
 1141 GTTACAAATA AAGCAATAGC ATCACAAATT TCACAAATAA AGCATTTTTT TCACTGCATT
 1201 CTAGTTGTGG TTTGTCCAAA CTCATCAATG TATCTTAACG CGTAAATTGT AAGCGTTAAT
 1261 ATTTTGTTAA AATTCGCGTT AAATTTTTGT TAAATCAGCT CATTTTTTAA CCAATAGGCC
 1321 GAAATCGGCA AAATCCCTTA TAAATCAAAA GAATAGACCG AGATAGGGTT GAGTGTTGTT
 1381 CCAGTTTGGA ACAAGAGTCC ACTATTAAAG AACGTGGACT CCAACGTCAA AGGGCGAAAA
 1441 ACCGTCTATC AGGGCGATGG CCCACTACGT GAACCATCAC CCTAATCAAG TTTTTTGGGG
 1501 TCGAGGTGCC GTAAAGCACT AAATCGGAAC CCTAAAGGGA GCCCCCGATT TAGAGCTTGA
 1561 CGGGGAAAGC CGGCGAACGT GGCGAGAAAG GAAGGGAAGA AAGCGAAAGG AGCGGGCGCT
 1621 AGGGCGCTGG CAAGTGTAGC GGTCACGCTG CGCGTAACCA CCACACCCGC CGCGCTTAAT
 1681 GCGCCGCTAC AGGGCGCGTC AGGTGGCACT TTTCGGGGAA ATGTGCGCGG AACCCCTATT
 1741 TGTTTATTTT TCTAAATACA TTCAAATATG TATCCGCTCA TGAGACAATA ACCCTGATAA
 1801 ATGCTTCAAT AATATTGAAA AAGGAAGAAT CCTGAGGCGG AAAGAACCAG CTGTGGAATG
 1861 TGTGTCAGTT AGGGTGTGGA AAGTCCCCAG GCTCCCCAGC AGGCAGAAGT ATGCAAAGCA
 1921 TGCATCTCAA TTAGTCAGCA ACCAGGTGTG GAAAGTCCCC AGGCTCCCCA GCAGGCAGAA
 1981 GTATGCAAAG CATGCATCTC AATTAGTCAG CAACCATAGT CCCGCCCCTA ACTCCGCCCA
 2041 TCCCGCCCCT AACTCCGCCC AGTTCCGCCC ATTCTCCGCC CCATGGCTGA CTAATTTTTT
 2101 TTATTTATGC AGAGGCCGAG GCCGCCTCGG CCTCTGAGCT ATTCCAGAAG TAGTGAGGAG
 2161 GCTTTTTTGG AGGCCTAGGC TTTTGCAAAG ATCGATCAAG AGACAGGATG AGGATCGTTT
 2221 CGCATGATTG AACAAGATGG ATTGCACGCA GGTTCTCCGG CCGCTTGGGT GGAGAGGCTA
 2281 TTCGGCTATG ACTGGGCACA ACAGACAATC GGCTGCTCTG ATGCCGCCGT GTTCCGGCTG
 2341 TCAGCGCAGG GGCGCCCGGT TCTTTTTGTC AAGACCGACC TGTCCGGTGC CCTGAATGAA
 2401 CTGCAAGACG AGGCAGCGCG GCTATCGTGG CTGGCCACGA CGGGCGTTCC TTGCGCAGCT
 2461 GTGCTCGACG TTGTCACTGA AGCGGGAAGG GACTGGCTGC TATTGGGCGA AGTGCCGGGG
 2521 CAGGATCTCC TGTCATCTCA CCTTGCTCCT GCCGAGAAAG TATCCATCAT GGCTGATGCA
 2581 ATGCGGCGGC TGCATACGCT TGATCCGGCT ACCTGCCCAT TCGACCACCA AGCGAAACAT
 2641 CGCATCGAGC GAGCACGTAC TCGGATGGAA GCCGGTCTTG TCGATCAGGA TGATCTGGAC
 2701 GAAGAACATC AGGGGCTCGC GCCAGCCGAA CTGTTCGCCA GGCTCAAGGC GAGCATGCCC
 2761 GACGGCGAGG ATCTCGTCGT GACCCATGGC GATGCCTGCT TGCCGAATAT CATGGTGGAA
 2821 AATGGCCGCT TTTCTGGATT CATCGACTGT GGCCGGCTGG GTGTGGCGGA CCGCTATCAG
 2881 GACATAGCGT TGGCTACCCG TGATATTGCT GAAGAACTTG GCGGCGAATG GGCTGACCGC
 2941 TTCCTCGTGC TTTACGGTAT CGCCGCTCCC GATTCGCAGC GCATCGCCTT CTATCGCCTT
 3001 CTTGACGAGT TCTTCTGAGC GGGACTCTGG GGTTCGAAAT GACCGACCAA GCGACGCCCA
 3061 ACCTGCCATC ACGAGATTTC GATTCCACCG CCGCCTTCTA TGAAAGGTTG GGCTTCGGAA
 3121 TCGTTTTCCG GGACGCCGGC TGGATGATCC TCCAGCGCGG GGATCTCATG CTGGAGTTCT
 3181 TCGCCCACCC TAGGGGGAGG CTAACTGAAA CACGGAAGGA GACAATACCG GAAGGAACCC
 3241 GCGCTATGAC GGCAATAAAA AGACAGAATA AAACGCACGG TGTTGGGTCG TTTGTTCATA
 3301 AACGCGGGGT TCGGTCCCAG GGCTGGCACT CTGTCGATAC CCCACCGAGA CCCCATTGGG
 3361 GCCAATACGC CCGCGTTTCT TCCTTTTCCC CACCCCACCC CCCAAGTTCG GGTGAAGGCC
 3421 CAGGGCTCGC AGCCAACGTC GGGGCGGCAG GCCCTGCCAT AGCCTCAGGT TACTCATATA
 3481 TACTTTAGAT TGATTTAAAA CTTCATTTTT AATTTAAAAG GATCTAGGTG AAGATCCTTT
 3541 TTGATAATCT CATGACCAAA ATCCCTTAAC GTGAGTTTTC GTTCCACTGA GCGTCAGACC
 3601 CCGTAGAAAA GATCAAAGGA TCTTCTTGAG ATCCTTTTTT TCTGCGCGTA ATCTGCTGCT
 3661 TGCAAACAAA AAAACCACCG CTACCAGCGG TGGTTTGTTT GCCGGATCAA GAGCTACCAA
 3721 CTCTTTTTCC GAAGGTAACT GGCTTCAGCA GAGCGCAGAT ACCAAATACT GTCCTTCTAG
 3781 TGTAGCCGTA GTTAGGCCAC CACTTCAAGA ACTCTGTAGC ACCGCCTACA TACCTCGCTC
 3841 TGCTAATCCT GTTACCAGTG GCTGCTGCCA GTGGCGATAA GTCGTGTCTT ACCGGGTTGG
 3901 ACTCAAGACG ATAGTTACCG GATAAGGCGC AGCGGTCGGG CTGAACGGGG GGTTCGTGCA
 3961 CACAGCCCAG CTTGGAGCGA ACGACCTACA CCGAACTGAG ATACCTACAG CGTGAGCTAT
 4021 GAGAAAGCGC CACGCTTCCC GAAGGGAGAA AGGCGGACAG GTATCCGGTA AGCGGCAGGG
 4081 TCGGAACAGG AGAGCGCACG AGGGAGCTTC CAGGGGGAAA CGCCTGGTAT CTTTATAGTC
 4141 CTGTCGGGTT TCGCCACCTC TGACTTGAGC GTCGATTTTT GTGATGCTCG TCAGGGGGGC
 4201 GGAGCCTATG GAAAAACGCC AGCAACGCGG CCTTTTTACG GTTCCTGGCC TTTTGCTGGC
 4261 CTTTTGCTCA CATGTTCTTT CCTGCGTTAT CCCCTGATTC TGTGGATAAC CGTATTACCG
 4321 CC
//
