pCMV-Tag 3C

价格:1250元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Stratagene
载体名称: pCMV-Tag 3C ;pCMV-Tag3C
质粒类型: 哺乳动物表达载体
高拷贝/低拷贝: 高拷贝
克隆方法: 多克隆位点;限制性内切酶
启动子: CMV
载体大小: 4328 bp
5' 测序引物及序列: CMV Forward:CGCAAATGGGCGGTAGGCGTG
3' 测序引物及序列: --
载体标签: c-myc tag (N-末端)
载体抗性: Kanamycin.html' target='_blank'>卡那霉素
筛选标记: Neomycin
克隆菌株: XL1-Blue
宿主细胞(系): --
备注: c-myc标签含10个氨基酸残基(EQKLISEEDL);
CMV启动子驱动目的蛋白的高水平表达;
pCMV-Tag 3C,B,C的差别仅在于读码框(阅读框)处。
产品目录号: 211173
稳定性: 瞬表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

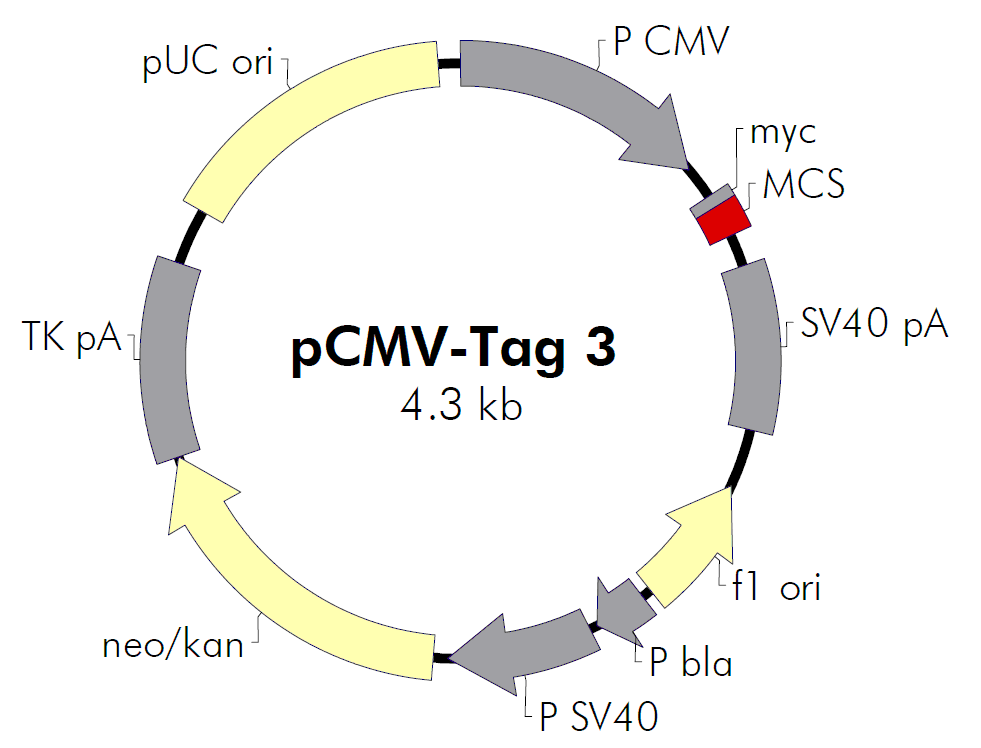

pCMV-Tag 3C载体图谱

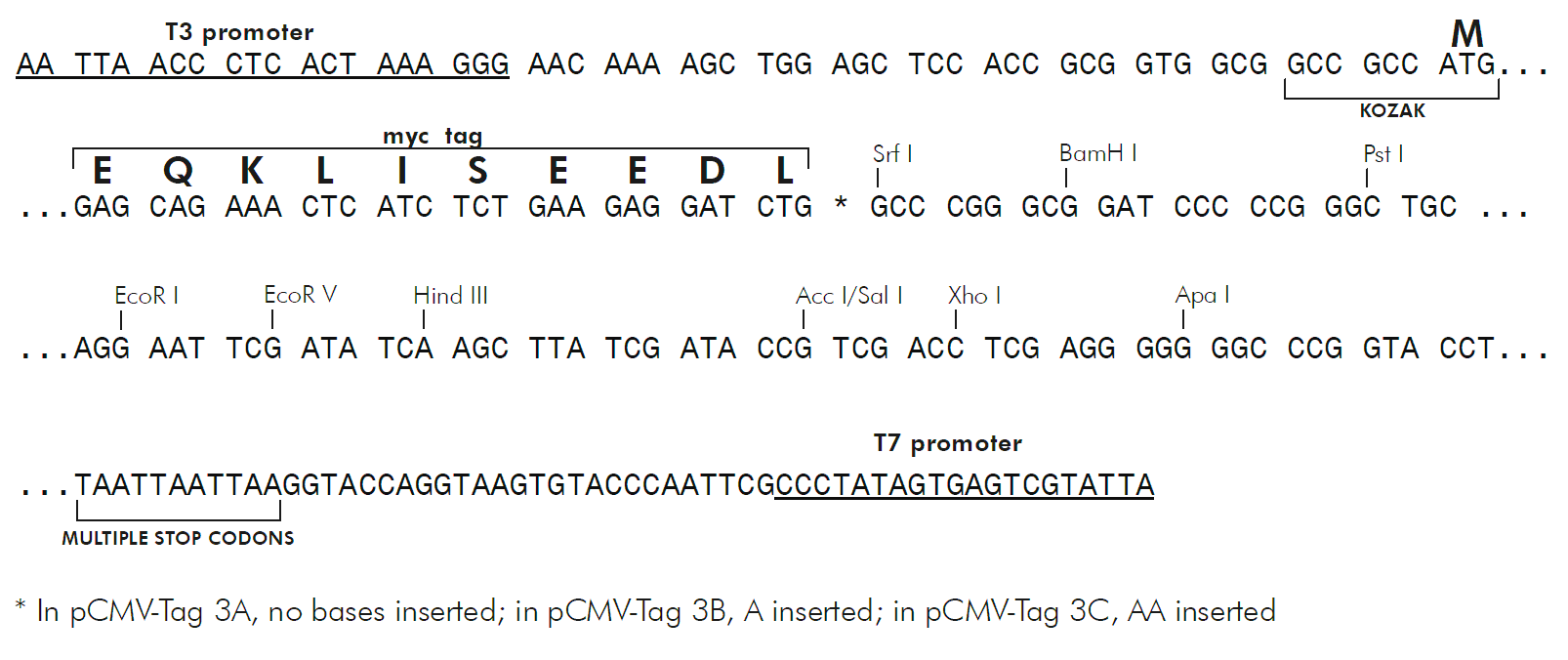

pCMV-Tag 3C 多克隆位点

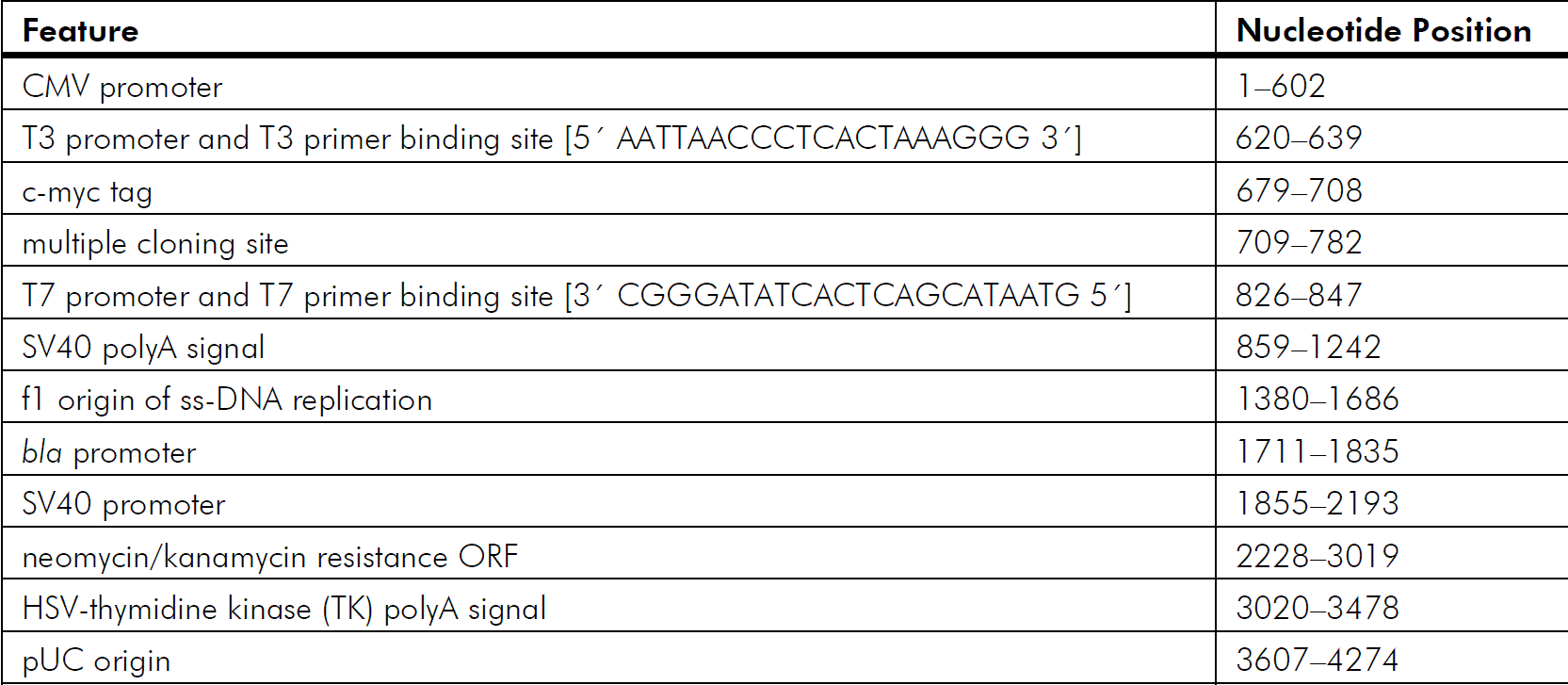

pCMV-Tag 3C 载体特征

载体简介

ADDITIONAL MATERIALS REQUIRED
T4 DNA ligase
Taq DNA polymerase
Taq DNA polymerase buffer
TE buffer
CIAP
Falcon 2059 polypropylene tubes (15-ml)
Water baths (37°C and 42°C)

XL1-Blue Genotype: recA1 endA1 gyrA96 thi-1 hsdR17 supE44 relA1 lac [F′ proAB lacIqZΔM15 Tn10 (Tetr)].
The XL1-Blue cells supplied with the pCMV-Tag vectors are not competent cells. Refer to Hanahan (1983) for a protocol for producing competent cells.

载体序列

LOCUS       pCMV-Tag 3C	4328 bp 	DNA	SYN
DEFINITION  pCMV-Tag 3C
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..4328
                     /organism="pCMV-Tag 3C"
                     /mol_type="other DNA"
     promoter        16..568
                     /label="CMV_immearly_promoter"
     misc_feature    71..358
                     /label="CAG_enhancer"
     misc_feature    525..545
                     /label="CMV_fwd_primer"
     promoter        526..595
                     /label="CMV_promoter"
     promoter        620..639
                     /label="T3_promoter"
     misc_feature    complement(758..774)
                     /label="pBluescriptKS_primer"
     promoter        complement(830..848)
                     /label="T7_promoter"
     misc_feature    905..964
                     /label="SV40_3_splice"
     terminator      1015..1243
                     /label="SV40_PA_terminator"
     misc_feature    1213..1232
                     /label="EBV_rev_primer"
     rep_origin      complement(1382..1688)
                     /label="f1_origin"
     promoter        1767..1795
                     /label="AmpR_promoter"
     misc_feature    complement(1861..1881)
                     /label="pBABE_3_primer"
     misc_feature    complement(1867..2082)
                     /label="SV40_enhancer"
     promoter        1879..2147
                     /label="SV40_promoter"
     rep_origin      2046..2123
                     /label="SV40_origin"
     misc_feature    2108..2127
                     /label="SV40pro_F_primer"
     CDS             2230..3024
                     /label="ORF frame 1"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     gene            2233..3021
                     /label="NeoR/KanR (variant)"
                     /gene="NeoR/KanR (variant)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     CDS             complement(2539..3075)
                     /label="ORF frame 3"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKFFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMFFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     terminator      3199..3468
                     /label="TK_PA_terminator"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKFFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMFFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     rep_origin      3616..4235
                     /label="pBR322_origin"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKFFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMFFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
ORIGIN
    1 ATGCATTAGT TATTAATAGT AATCAATTAC GGGGTCATTA GTTCATAGCC CATATATGGA
   61 GTTCCGCGTT ACATAACTTA CGGTAAATGG CCCGCCTGGC TGACCGCCCA ACGACCCCCG
  121 CCCATTGACG TCAATAATGA CGTATGTTCC CATAGTAACG CCAATAGGGA CTTTCCATTG
  181 ACGTCAATGG GTGGAGTATT TACGGTAAAC TGCCCACTTG GCAGTACATC AAGTGTATCA
  241 TATGCCAAGT ACGCCCCCTA TTGACGTCAA TGACGGTAAA TGGCCCGCCT GGCATTATGC
  301 CCAGTACATG ACCTTATGGG ACTTTCCTAC TTGGCAGTAC ATCTACGTAT TAGTCATCGC
  361 TATTACCATG GTGATGCGGT TTTGGCAGTA CATCAATGGG CGTGGATAGC GGTTTGACTC
  421 ACGGGGATTT CCAAGTCTCC ACCCCATTGA CGTCAATGGG AGTTTGTTTT GGCACCAAAA
  481 TCAACGGGAC TTTCCAAAAT GTCGTAACAA CTCCGCCCCA TTGACGCAAA TGGGCGGTAG
  541 GCGTGTACGG TGGGAGGTCT ATATAAGCAG AGCTGGTTTA GTGAACCGTC AGATCCGCTA
  601 GCGATTACGC CAAGCTCGAA ATTAACCCTC ACTAAAGGGA ACAAAAGCTG GAGCTCCACC
  661 GCGGTGGCGG CCGCCATGGA GCAGAAACTC ATCTCTGAAG AGGATCTGAA GCCCGGGCGG
  721 ATCCCCCGGG CTGCAGGAAT TCGATATCAA GCTTATCGAT ACCGTCGACC TCGAGGGGGG
  781 GCCCGGTACC TTAATTAATT AAGGTACCAG GTAAGTGTAC CCAATTCGCC CTATAGTGAG
  841 TCGTATTACA ATTCACTCGA TCGCCCTTCC CAACAGTTGC GCAGCCTGAA TGGCGAATGG
  901 AGATCCAATT TTTAAGTGTA TAATGTGTTA AACTACTGAT TCTAATTGTT TGTGTATTTT
  961 AGATTCACAG TCCCAAGGCT CATTTCAGGC CCCTCAGTCC TCACAGTCTG TTCATGATCA
 1021 TAATCAGCCA TACCACATTT GTAGAGGTTT TACTTGCTTT AAAAAACCTC CCACACCTCC
 1081 CCCTGAACCT GAAACATAAA ATGAATGCAA TTGTTGTTGT TAACTTGTTT ATTGCAGCTT
 1141 ATAATGGTTA CAAATAAAGC AATAGCATCA CAAATTTCAC AAATAAAGCA TTTTTTTCAC
 1201 TGCATTCTAG TTGTGGTTTG TCCAAACTCA TCAATGTATC TTAACGCGTA AATTGTAAGC
 1261 GTTAATATTT TGTTAAAATT CGCGTTAAAT TTTTGTTAAA TCAGCTCATT TTTTAACCAA
 1321 TAGGCCGAAA TCGGCAAAAT CCCTTATAAA TCAAAAGAAT AGACCGAGAT AGGGTTGAGT
 1381 GTTGTTCCAG TTTGGAACAA GAGTCCACTA TTAAAGAACG TGGACTCCAA CGTCAAAGGG
 1441 CGAAAAACCG TCTATCAGGG CGATGGCCCA CTACGTGAAC CATCACCCTA ATCAAGTTTT
 1501 TTGGGGTCGA GGTGCCGTAA AGCACTAAAT CGGAACCCTA AAGGGAGCCC CCGATTTAGA
 1561 GCTTGACGGG GAAAGCCGGC GAACGTGGCG AGAAAGGAAG GGAAGAAAGC GAAAGGAGCG
 1621 GGCGCTAGGG CGCTGGCAAG TGTAGCGGTC ACGCTGCGCG TAACCACCAC ACCCGCCGCG
 1681 CTTAATGCGC CGCTACAGGG CGCGTCAGGT GGCACTTTTC GGGGAAATGT GCGCGGAACC
 1741 CCTATTTGTT TATTTTTCTA AATACATTCA AATATGTATC CGCTCATGAG ACAATAACCC
 1801 TGATAAATGC TTCAATAATA TTGAAAAAGG AAGAATCCTG AGGCGGAAAG AACCAGCTGT
 1861 GGAATGTGTG TCAGTTAGGG TGTGGAAAGT CCCCAGGCTC CCCAGCAGGC AGAAGTATGC
 1921 AAAGCATGCA TCTCAATTAG TCAGCAACCA GGTGTGGAAA GTCCCCAGGC TCCCCAGCAG
 1981 GCAGAAGTAT GCAAAGCATG CATCTCAATT AGTCAGCAAC CATAGTCCCG CCCCTAACTC
 2041 CGCCCATCCC GCCCCTAACT CCGCCCAGTT CCGCCCATTC TCCGCCCCAT GGCTGACTAA
 2101 TTTTTTTTAT TTATGCAGAG GCCGAGGCCG CCTCGGCCTC TGAGCTATTC CAGAAGTAGT
 2161 GAGGAGGCTT TTTTGGAGGC CTAGGCTTTT GCAAAGATCG ATCAAGAGAC AGGATGAGGA
 2221 TCGTTTCGCA TGATTGAACA AGATGGATTG CACGCAGGTT CTCCGGCCGC TTGGGTGGAG
 2281 AGGCTATTCG GCTATGACTG GGCACAACAG ACAATCGGCT GCTCTGATGC CGCCGTGTTC
 2341 CGGCTGTCAG CGCAGGGGCG CCCGGTTCTT TTTGTCAAGA CCGACCTGTC CGGTGCCCTG
 2401 AATGAACTGC AAGACGAGGC AGCGCGGCTA TCGTGGCTGG CCACGACGGG CGTTCCTTGC
 2461 GCAGCTGTGC TCGACGTTGT CACTGAAGCG GGAAGGGACT GGCTGCTATT GGGCGAAGTG
 2521 CCGGGGCAGG ATCTCCTGTC ATCTCACCTT GCTCCTGCCG AGAAAGTATC CATCATGGCT
 2581 GATGCAATGC GGCGGCTGCA TACGCTTGAT CCGGCTACCT GCCCATTCGA CCACCAAGCG
 2641 AAACATCGCA TCGAGCGAGC ACGTACTCGG ATGGAAGCCG GTCTTGTCGA TCAGGATGAT
 2701 CTGGACGAAG AACATCAGGG GCTCGCGCCA GCCGAACTGT TCGCCAGGCT CAAGGCGAGC
 2761 ATGCCCGACG GCGAGGATCT CGTCGTGACC CATGGCGATG CCTGCTTGCC GAATATCATG
 2821 GTGGAAAATG GCCGCTTTTC TGGATTCATC GACTGTGGCC GGCTGGGTGT GGCGGACCGC
 2881 TATCAGGACA TAGCGTTGGC TACCCGTGAT ATTGCTGAAG AACTTGGCGG CGAATGGGCT
 2941 GACCGCTTCC TCGTGCTTTA CGGTATCGCC GCTCCCGATT CGCAGCGCAT CGCCTTCTAT
 3001 CGCCTTCTTG ACGAGTTCTT CTGAGCGGGA CTCTGGGGTT CGAAATGACC GACCAAGCGA
 3061 CGCCCAACCT GCCATCACGA GATTTCGATT CCACCGCCGC CTTCTATGAA AGGTTGGGCT
 3121 TCGGAATCGT TTTCCGGGAC GCCGGCTGGA TGATCCTCCA GCGCGGGGAT CTCATGCTGG
 3181 AGTTCTTCGC CCACCCTAGG GGGAGGCTAA CTGAAACACG GAAGGAGACA ATACCGGAAG
 3241 GAACCCGCGC TATGACGGCA ATAAAAAGAC AGAATAAAAC GCACGGTGTT GGGTCGTTTG
 3301 TTCATAAACG CGGGGTTCGG TCCCAGGGCT GGCACTCTGT CGATACCCCA CCGAGACCCC
 3361 ATTGGGGCCA ATACGCCCGC GTTTCTTCCT TTTCCCCACC CCACCCCCCA AGTTCGGGTG
 3421 AAGGCCCAGG GCTCGCAGCC AACGTCGGGG CGGCAGGCCC TGCCATAGCC TCAGGTTACT
 3481 CATATATACT TTAGATTGAT TTAAAACTTC ATTTTTAATT TAAAAGGATC TAGGTGAAGA
 3541 TCCTTTTTGA TAATCTCATG ACCAAAATCC CTTAACGTGA GTTTTCGTTC CACTGAGCGT
 3601 CAGACCCCGT AGAAAAGATC AAAGGATCTT CTTGAGATCC TTTTTTTCTG CGCGTAATCT
 3661 GCTGCTTGCA AACAAAAAAA CCACCGCTAC CAGCGGTGGT TTGTTTGCCG GATCAAGAGC
 3721 TACCAACTCT TTTTCCGAAG GTAACTGGCT TCAGCAGAGC GCAGATACCA AATACTGTCC
 3781 TTCTAGTGTA GCCGTAGTTA GGCCACCACT TCAAGAACTC TGTAGCACCG CCTACATACC
 3841 TCGCTCTGCT AATCCTGTTA CCAGTGGCTG CTGCCAGTGG CGATAAGTCG TGTCTTACCG
 3901 GGTTGGACTC AAGACGATAG TTACCGGATA AGGCGCAGCG GTCGGGCTGA ACGGGGGGTT
 3961 CGTGCACACA GCCCAGCTTG GAGCGAACGA CCTACACCGA ACTGAGATAC CTACAGCGTG
 4021 AGCTATGAGA AAGCGCCACG CTTCCCGAAG GGAGAAAGGC GGACAGGTAT CCGGTAAGCG
 4081 GCAGGGTCGG AACAGGAGAG CGCACGAGGG AGCTTCCAGG GGGAAACGCC TGGTATCTTT
 4141 ATAGTCCTGT CGGGTTTCGC CACCTCTGAC TTGAGCGTCG ATTTTTGTGA TGCTCGTCAG
 4201 GGGGGCGGAG CCTATGGAAA AACGCCAGCA ACGCGGCCTT TTTACGGTTC CTGGCCTTTT
 4261 GCTGGCCTTT TGCTCACATG TTCTTTCCTG CGTTATCCCC TGATTCTGTG GATAACCGTA
 4321 TTACCGCC
//
