pAmCyan1-C1

价格:2500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pAmCyan1-C1
质粒类型: 哺乳动物细胞表达载体;荧光报告载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: CMV IE
载体大小: 4701 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: AmCyan1(N-端)
载体抗性: 卡那霉素
筛选标记: 新霉素(Neomycin)
克隆菌株: DH5α, HB101
宿主细胞(系): 常规细胞系,293、CV-1、CHO等
备注: pAmCyan1-C1载体是青色荧光报告载体,表达N端AmCyan1融合蛋白;
AmCyan1是AmCyan的突变体,与AmCyan1相比,编码序列经过了优化,更适合在哺乳动物细胞中的表达;
同时突变了两个氨基酸位点,改变了发光特点。
产品目录号: 632441
稳定性: 瞬表达 或 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

pAmCyan1-C1载体图谱

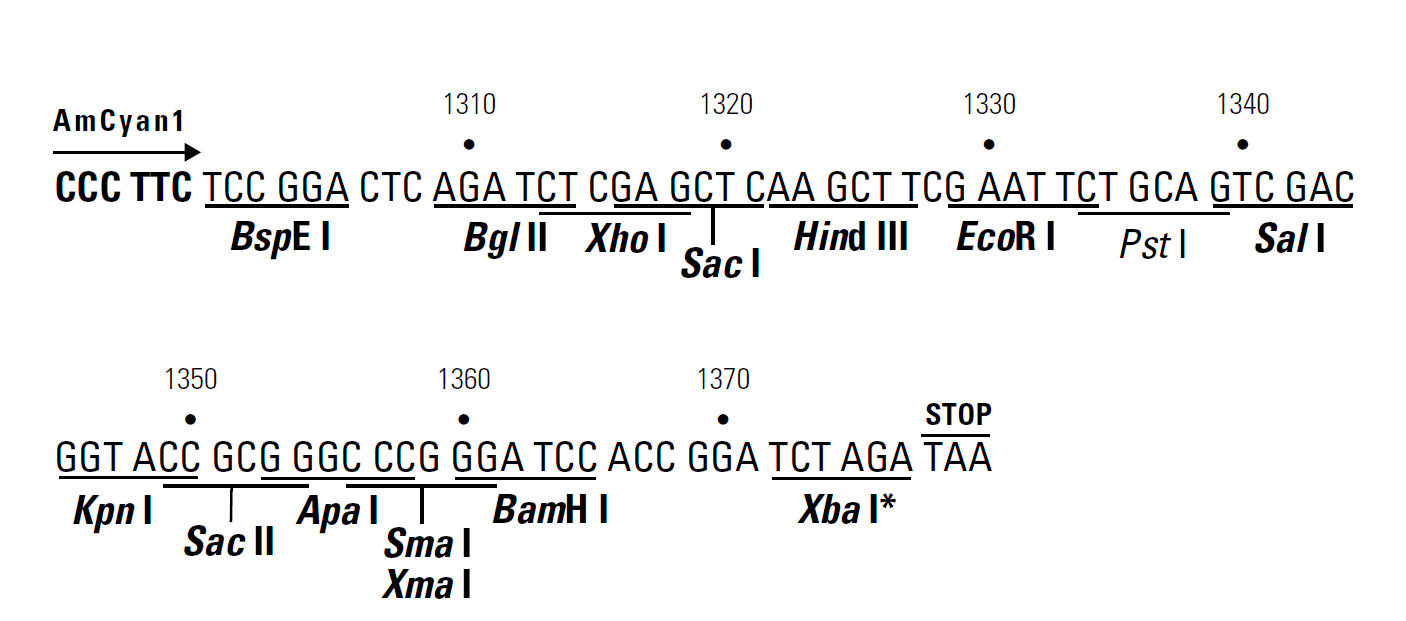

pAmCyan1-C1 多克隆位点

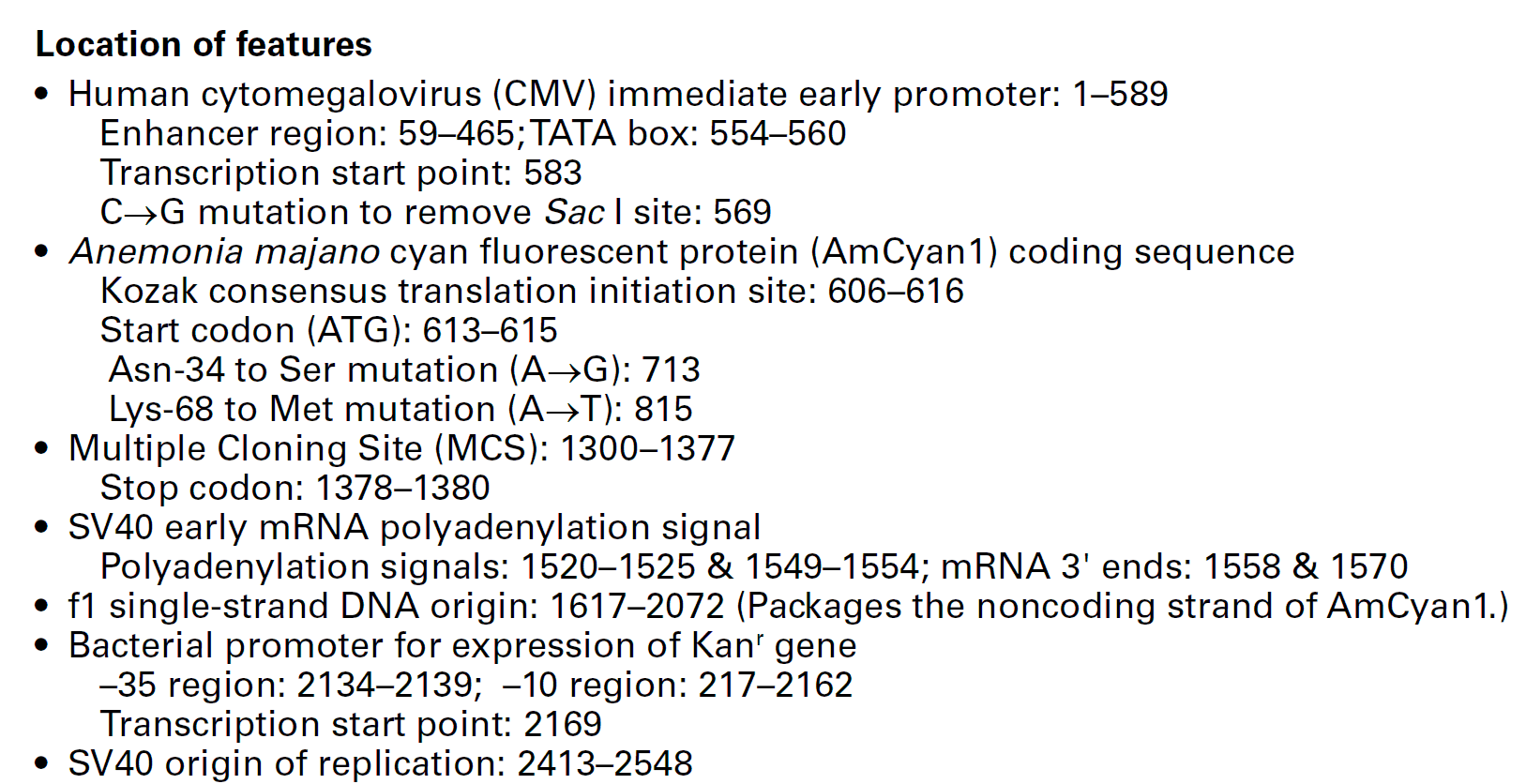

pAmCyan1-C1 载体特征1

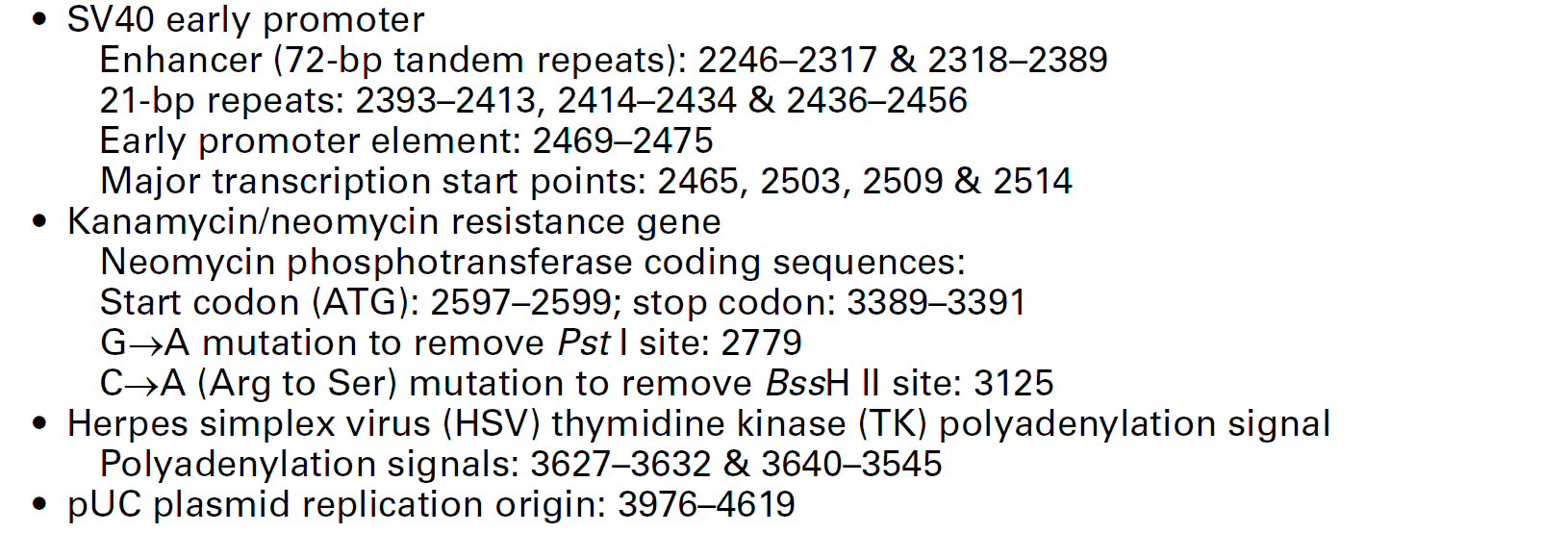

pAmCyan1-C1 载体特征2

载体简介

pAmCyan1-C1载体描述
pAmCyan1-C1 encodes a human codon-optimized variant of wild-type Anemonia majano cyan fluorescent protein, AmCyan1 (1). The AmCyan1 coding sequence contains a series of silent base-pair changes, which correspond to human codon-usage preferences, for optimal expression in mammalian cells (2). Additionally, an upstream sequence—located just 5' to the AmCyan1 start codon—has been converted to a Kozak consensus translation initiation site (3) to further increase the translation efficiency in eukaryotic cells. Two amino acid substitutions (Asn-34 to Ser; Lys-68 to Met) have been made to enhance the emission characteristics of AmCyan1 (excitation maximum = 458 nm; emission maximum = 489 nm).
The multiple cloning site (MCS) in pAmCyan1-C1 is positioned between the AmCyan1 coding sequence and a pair of SV40 polyadenylation signals (SV40 poly A). Thus, genes cloned into the MCS will be expressed as fusions to the C-terminus of AmCyan1 if they are in the same reading frame as AmCyan1 and there are no intervening stop codons. Expression of AmCyan1 is driven by the cytomegalovirus immediate-early promoter (PCMV IE). The SV40 poly A signals downstream of the MCS direct proper processing of the 3' end of AmCyan1 mRNA. The vector backbone contains an SV40 origin (SV40 ori) for replication in mammalian cells that express the SV40 T-antigen, a pUC origin of replication for propagation in E. coli, and an f1 origin for single-stranded DNA production. A neomycin resistance cassette—consisting of the SV40 early promoter (PSV40e), the neomycin/kanamycin resistance gene of Tn5 (Neor/Kanr), and polyadenylation signals from the Herpes simplex virus thymidine kinase (HSV TK poly A) gene—allows stably transfected eukaryotic cells to be selected using G418 (4). A bacterial promoter (P) upstream of this cassette drives expression of the Neor/Kanr gene in E. coli hosts, which can be selected with kanamycin.Fusions to the C terminus of AmCyan1 retain the fluorescent properties of the native protein allowing the localization of the fusion protein in vivo. The target gene should be cloned into pAmCyan1-C1 so that it is in frame with the AmCyan1 coding sequence, with no intervening, in-frame stop codons. The recombinant pAmCyan1-C1 vector can be transfected into mammalian cells using any standard transfection method. If required, stable transformants can be selected using G418. We recommend selecting mammalian cell cultures in 500–1,300 μg/ml G418, depending on the cell line. Be sure to establish a kill curve for each cell line and each lot of G418 to determine the optimal selection concentration. Unmodified (i.e., non-recombinant) pAmCyan1-C1 can also be used simply to express AmCyan1 in a cell line of interest (e.g., as a transfection marker).

Propagation in E. coli
 Suitable host strains: DH5α, HB101, and other general purpose strains. Single-stranded DNA production requires
a host containing an F plasmid such as JM109 or XL1-Blue.
 Selectable marker: plasmid confers resistance to kanamycin (50 μg/ml) to E. coli hosts.
 E. coli replication origin: pUC
 Copy number: ~500
 Plasmid incompatibility group: pMB1/Col E1

载体序列

LOCUS       pAmCyan1-C1	4701 bp 	DNA	SYN
DEFINITION  pAmCyan1-C1
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..4701
                     /organism="pAmCyan1-C1"
                     /mol_type="other DNA"
     promoter        10..562
                     /label="CMV_immearly_promoter"
     misc_feature    65..352
                     /label="CAG_enhancer"
     misc_feature    519..539
                     /label="CMV_fwd_primer"
     promoter        520..589
                     /label="CMV_promoter"
     CDS             complement(598..1398)
                     /label="ORF frame 1"
                     /translation="MADYDQLSRSGGSRARGTVDCRIRSLSSRSESGEGHHGGDVGHG
                     VLGQLHAVAALVQVGSGDAVLHHVVGGHGHGLLGLVGGVELASVVAAALQHQEGGHVA
                     LQDAVAHGHLLEGGVPAGGLLGHHGAVGGEVHAVEGGLVLEAVALQADLPAGGGHAAV
                     LVGEGSLVGHAVGEGLLEVVGHAGGVGGEAAVAVHEHGGQDVEGEGQGAAVGHGHLEG
                     GGLGALVGLAAALALHGEVVAVHAAVHVVGHLHVVADELVGQGHGGDR*"
     CDS             613..1380
                     /label="ORF frame 1"
                     /translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
                     TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
                     DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
                     GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
                     AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
     terminator      1382..1610
                     /label="SV40_PA_terminator"
                     /translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
                     TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
                     DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
                     GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
                     AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
     misc_feature    1580..1599
                     /label="EBV_rev_primer"
                     /translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
                     TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
                     DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
                     GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
                     AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
     rep_origin      complement(1749..2055)
                     /label="f1_origin"
                     /translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
                     TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
                     DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
                     GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
                     AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
     promoter        2134..2162
                     /label="AmpR_promoter"
                     /translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
                     TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
                     DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
                     GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
                     AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
     misc_feature    complement(2228..2248)
                     /label="pBABE_3_primer"
                     /translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
                     TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
                     DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
                     GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
                     AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
     misc_feature    complement(2234..2449)
                     /label="SV40_enhancer"
                     /translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
                     TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
                     DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
                     GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
                     AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
     promoter        2246..2514
                     /label="SV40_promoter"
                     /translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
                     TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
                     DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
                     GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
                     AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
     rep_origin      2413..2490
                     /label="SV40_origin"
                     /translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
                     TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
                     DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
                     GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
                     AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
     misc_feature    2475..2494
                     /label="SV40pro_F_primer"
                     /translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
                     TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
                     DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
                     GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
                     AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
     CDS             2597..3391
                     /label="ORF frame 2"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     gene            2600..3388
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     CDS             complement(2906..3442)
                     /label="ORF frame 3"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     terminator      3566..3835
                     /label="TK_PA_terminator"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     rep_origin      3983..4602
                     /label="pBR322_origin"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
ORIGIN
    1 TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA TGGAGTTCCG
   61 CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC CCCGCCCATT
  121 GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC ATTGACGTCA
  181 ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT ATCATATGCC
  241 AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT ATGCCCAGTA
  301 CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA TCGCTATTAC
  361 CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG ACTCACGGGG
  421 ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC AAAATCAACG
  481 GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG GTAGGCGTGT
  541 ACGGTGGGAG GTCTATATAA GCAGAGCTGG TTTAGTGAAC CGTCAGATCC GCTAGCGCTA
  601 CCGGTCGCCA CCATGGCCCT GTCCAACAAG TTCATCGGCG ACGACATGAA GATGACCTAC
  661 CACATGGACG GCTGCGTGAA CGGCCACTAC TTCACCGTGA AGGGCGAGGG CAGCGGCAAG
  721 CCCTACGAGG GCACCCAGAC CTCCACCTTC AAGGTGACCA TGGCCAACGG CGGCCCCCTG
  781 GCCTTCTCCT TCGACATCCT GTCCACCGTG TTCATGTACG GCAACCGCTG CTTCACCGCC
  841 TACCCCACCA GCATGCCCGA CTACTTCAAG CAGGCCTTCC CCGACGGCAT GTCCTACGAG
  901 AGAACCTTCA CCTACGAGGA CGGCGGCGTG GCCACCGCCA GCTGGGAGAT CAGCCTGAAG
  961 GGCAACTGCT TCGAGCACAA GTCCACCTTC CACGGCGTGA ACTTCCCCGC CGACGGCCCC
 1021 GTGATGGCCA AGAAGACCAC CGGCTGGGAC CCCTCCTTCG AGAAGATGAC CGTGTGCGAC
 1081 GGCATCTTGA AGGGCGACGT GACCGCCTTC CTGATGCTGC AGGGCGGCGG CAACTACAGA
 1141 TGCCAGTTCC ACACCTCCTA CAAGACCAAG AAGCCCGTGA CCATGCCCCC CAACCACGTG
 1201 GTGGAGCACC GCATCGCCAG AACCGACCTG GACAAGGGCG GCAACAGCGT GCAGCTGACC
 1261 GAGCACGCCG TGGCCCACAT CACCTCCGTG GTGCCCTTCT CCGGACTCAG ATCTCGAGCT
 1321 CAAGCTTCGA ATTCTGCAGT CGACGGTACC GCGGGCCCGG GATCCACCGG ATCTAGATAA
 1381 CTGATCATAA TCAGCCATAC CACATTTGTA GAGGTTTTAC TTGCTTTAAA AAACCTCCCA
 1441 CACCTCCCCC TGAACCTGAA ACATAAAATG AATGCAATTG TTGTTGTTAA CTTGTTTATT
 1501 GCAGCTTATA ATGGTTACAA ATAAAGCAAT AGCATCACAA ATTTCACAAA TAAAGCATTT
 1561 TTTTCACTGC ATTCTAGTTG TGGTTTGTCC AAACTCATCA ATGTATCTTA ACGCGTAAAT
 1621 TGTAAGCGTT AATATTTTGT TAAAATTCGC GTTAAATTTT TGTTAAATCA GCTCATTTTT
 1681 TAACCAATAG GCCGAAATCG GCAAAATCCC TTATAAATCA AAAGAATAGA CCGAGATAGG
 1741 GTTGAGTGTT GTTCCAGTTT GGAACAAGAG TCCACTATTA AAGAACGTGG ACTCCAACGT
 1801 CAAAGGGCGA AAAACCGTCT ATCAGGGCGA TGGCCCACTA CGTGAACCAT CACCCTAATC
 1861 AAGTTTTTTG GGGTCGAGGT GCCGTAAAGC ACTAAATCGG AACCCTAAAG GGAGCCCCCG
 1921 ATTTAGAGCT TGACGGGGAA AGCCGGCGAA CGTGGCGAGA AAGGAAGGGA AGAAAGCGAA
 1981 AGGAGCGGGC GCTAGGGCGC TGGCAAGTGT AGCGGTCACG CTGCGCGTAA CCACCACACC
 2041 CGCCGCGCTT AATGCGCCGC TACAGGGCGC GTCAGGTGGC ACTTTTCGGG GAAATGTGCG
 2101 CGGAACCCCT ATTTGTTTAT TTTTCTAAAT ACATTCAAAT ATGTATCCGC TCATGAGACA
 2161 ATAACCCTGA TAAATGCTTC AATAATATTG AAAAAGGAAG AGTCCTGAGG CGGAAAGAAC
 2221 CAGCTGTGGA ATGTGTGTCA GTTAGGGTGT GGAAAGTCCC CAGGCTCCCC AGCAGGCAGA
 2281 AGTATGCAAA GCATGCATCT CAATTAGTCA GCAACCAGGT GTGGAAAGTC CCCAGGCTCC
 2341 CCAGCAGGCA GAAGTATGCA AAGCATGCAT CTCAATTAGT CAGCAACCAT AGTCCCGCCC
 2401 CTAACTCCGC CCATCCCGCC CCTAACTCCG CCCAGTTCCG CCCATTCTCC GCCCCATGGC
 2461 TGACTAATTT TTTTTATTTA TGCAGAGGCC GAGGCCGCCT CGGCCTCTGA GCTATTCCAG
 2521 AAGTAGTGAG GAGGCTTTTT TGGAGGCCTA GGCTTTTGCA AAGATCGATC AAGAGACAGG
 2581 ATGAGGATCG TTTCGCATGA TTGAACAAGA TGGATTGCAC GCAGGTTCTC CGGCCGCTTG
 2641 GGTGGAGAGG CTATTCGGCT ATGACTGGGC ACAACAGACA ATCGGCTGCT CTGATGCCGC
 2701 CGTGTTCCGG CTGTCAGCGC AGGGGCGCCC GGTTCTTTTT GTCAAGACCG ACCTGTCCGG
 2761 TGCCCTGAAT GAACTGCAAG ACGAGGCAGC GCGGCTATCG TGGCTGGCCA CGACGGGCGT
 2821 TCCTTGCGCA GCTGTGCTCG ACGTTGTCAC TGAAGCGGGA AGGGACTGGC TGCTATTGGG
 2881 CGAAGTGCCG GGGCAGGATC TCCTGTCATC TCACCTTGCT CCTGCCGAGA AAGTATCCAT
 2941 CATGGCTGAT GCAATGCGGC GGCTGCATAC GCTTGATCCG GCTACCTGCC CATTCGACCA
 3001 CCAAGCGAAA CATCGCATCG AGCGAGCACG TACTCGGATG GAAGCCGGTC TTGTCGATCA
 3061 GGATGATCTG GACGAAGAGC ATCAGGGGCT CGCGCCAGCC GAACTGTTCG CCAGGCTCAA
 3121 GGCGAGCATG CCCGACGGCG AGGATCTCGT CGTGACCCAT GGCGATGCCT GCTTGCCGAA
 3181 TATCATGGTG GAAAATGGCC GCTTTTCTGG ATTCATCGAC TGTGGCCGGC TGGGTGTGGC
 3241 GGACCGCTAT CAGGACATAG CGTTGGCTAC CCGTGATATT GCTGAAGAGC TTGGCGGCGA
 3301 ATGGGCTGAC CGCTTCCTCG TGCTTTACGG TATCGCCGCT CCCGATTCGC AGCGCATCGC
 3361 CTTCTATCGC CTTCTTGACG AGTTCTTCTG AGCGGGACTC TGGGGTTCGA AATGACCGAC
 3421 CAAGCGACGC CCAACCTGCC ATCACGAGAT TTCGATTCCA CCGCCGCCTT CTATGAAAGG
 3481 TTGGGCTTCG GAATCGTTTT CCGGGACGCC GGCTGGATGA TCCTCCAGCG CGGGGATCTC
 3541 ATGCTGGAGT TCTTCGCCCA CCCTAGGGGG AGGCTAACTG AAACACGGAA GGAGACAATA
 3601 CCGGAAGGAA CCCGCGCTAT GACGGCAATA AAAAGACAGA ATAAAACGCA CGGTGTTGGG
 3661 TCGTTTGTTC ATAAACGCGG GGTTCGGTCC CAGGGCTGGC ACTCTGTCGA TACCCCACCG
 3721 AGACCCCATT GGGGCCAATA CGCCCGCGTT TCTTCCTTTT CCCCACCCCA CCCCCCAAGT
 3781 TCGGGTGAAG GCCCAGGGCT CGCAGCCAAC GTCGGGGCGG CAGGCCCTGC CATAGCCTCA
 3841 GGTTACTCAT ATATACTTTA GATTGATTTA AAACTTCATT TTTAATTTAA AAGGATCTAG
 3901 GTGAAGATCC TTTTTGATAA TCTCATGACC AAAATCCCTT AACGTGAGTT TTCGTTCCAC
 3961 TGAGCGTCAG ACCCCGTAGA AAAGATCAAA GGATCTTCTT GAGATCCTTT TTTTCTGCGC
 4021 GTAATCTGCT GCTTGCAAAC AAAAAAACCA CCGCTACCAG CGGTGGTTTG TTTGCCGGAT
 4081 CAAGAGCTAC CAACTCTTTT TCCGAAGGTA ACTGGCTTCA GCAGAGCGCA GATACCAAAT
 4141 ACTGTCCTTC TAGTGTAGCC GTAGTTAGGC CACCACTTCA AGAACTCTGT AGCACCGCCT
 4201 ACATACCTCG CTCTGCTAAT CCTGTTACCA GTGGCTGCTG CCAGTGGCGA TAAGTCGTGT
 4261 CTTACCGGGT TGGACTCAAG ACGATAGTTA CCGGATAAGG CGCAGCGGTC GGGCTGAACG
 4321 GGGGGTTCGT GCACACAGCC CAGCTTGGAG CGAACGACCT ACACCGAACT GAGATACCTA
 4381 CAGCGTGAGC TATGAGAAAG CGCCACGCTT CCCGAAGGGA GAAAGGCGGA CAGGTATCCG
 4441 GTAAGCGGCA GGGTCGGAAC AGGAGAGCGC ACGAGGGAGC TTCCAGGGGG AAACGCCTGG
 4501 TATCTTTATA GTCCTGTCGG GTTTCGCCAC CTCTGACTTG AGCGTCGATT TTTGTGATGC
 4561 TCGTCAGGGG GGCGGAGCCT ATGGAAAAAC GCCAGCAACG CGGCCTTTTT ACGGTTCCTG
 4621 GCCTTTTGCT GGCCTTTTGC TCACATGTTC TTTCCTGCGT TATCCCCTGA TTCTGTGGAT
 4681 AACCGTATTA CCGCCATGCA T
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
