pACT

价格:800元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司:
Promega
载体名称: pACT
质粒类型: 哺乳动物双杂交系统载体
高拷贝/低拷贝: 高拷贝
启动子: CMV
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5566 bp
5' 测序引物及序列: T7 EEV Forward (引物序列见Invitrogen公司#Q6700)
3' 测序引物及序列: --
载体标签: --
载体抗性: Ampicillin
筛选标记: Neomycin
备注: 对pACT载体测序时不要采用T7引物,而是要采用invitrogen公司合成的T7 EEV引物(货号为#Q6700)
产品目录号: E2440
稳定性: 瞬表达
组成型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

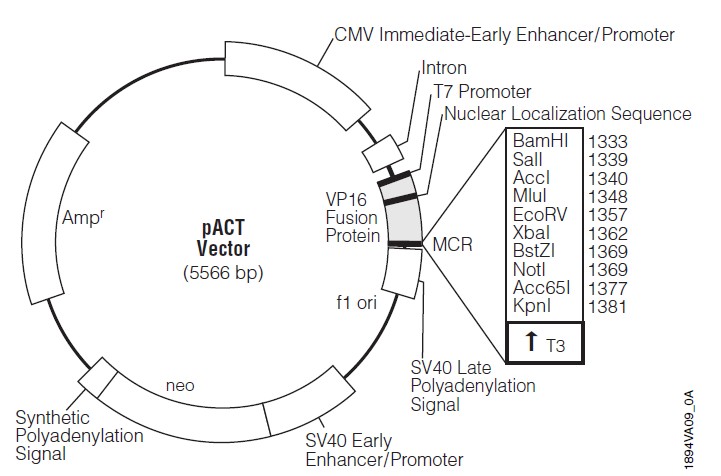

pACT载体图谱

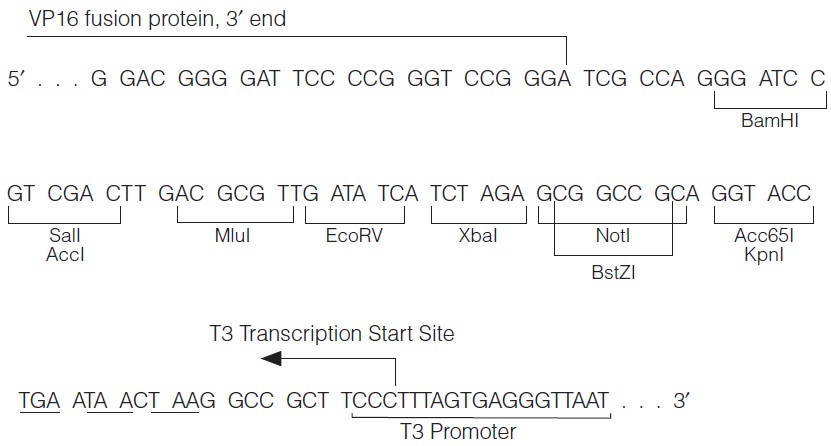

pACT多克隆位点

载体简介

载体序列

LOCUS       pACT	5566 bp 	DNA	SYN
DEFINITION  pACT
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..5566
                     /organism="pACT"
                     /mol_type="other DNA"
     promoter        163..723
                     /label="CMV_immearly_promoter"
     misc_feature    218..505
                     /label="CAG_enhancer"
     promoter        669..750
                     /label="CMV_promoter"
     misc_feature    680..700
                     /label="CMV_fwd_primer"
     misc_feature    724..743
                     /label="pCEP_fwd_primer"
     misc_feature    726..750
                     /label="LNCX_primer"
     misc_feature    890..1022
                     /label="chim_int"
     promoter        1067..1085
                     /label="T7_promoter"
     terminator      complement(1435..1554)
                     /label="SV40_PA_terminator"
     misc_feature    complement(1449..1468)
                     /label="EBV_rev_primer"
     rep_origin      1710..2016
                     /label="f1_origin"
     misc_feature    complement(2186..2206)
                     /label="pBABE_3_primer"
     misc_feature    complement(2192..2407)
                     /label="SV40_enhancer"
     promoter        2204..2472
                     /label="SV40_promoter"
     rep_origin      2371..2448
                     /label="SV40_origin"
     misc_feature    2433..2452
                     /label="SV40pro_F_primer"
     CDS             2571..3365
                     /label="ORF frame 3"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     gene            2574..3362
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     CDS             complement(2880..3416)
                     /label="ORF frame 3"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     terminator      3429..3477
                     /label="synth_PA_terminator"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     misc_feature    3623..3645
                     /label="pGEX_3_primer"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     promoter        3804..3832
                     /label="AmpR_promoter"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     gene            3874..4734
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     CDS             3874..4734
                     /label="ORF frame 1"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      4889..5508
                     /label="pBR322_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 TCAATATTGG CCATTAGCCA TATTATTCAT TGGTTATATA GCATAAATCA ATATTGGCTA
   61 TTGGCCATTG CATACGTTGT ATCTATATCA TAATATGTAC ATTTATATTG GCTCATGTCC
  121 AATATGACCG CCATGTTGGC ATTGATTATT GACTAGTTAT TAATAGTAAT CAATTACGGG
  181 GTCATTAGTT CATAGCCCAT ATATGGAGTT CCGCGTTACA TAACTTACGG TAAATGGCCC
  241 GCCTGGCTGA CCGCCCAACG ACCCCCGCCC ATTGACGTCA ATAATGACGT ATGTTCCCAT
  301 AGTAACGCCA ATAGGGACTT TCCATTGACG TCAATGGGTG GAGTATTTAC GGTAAACTGC
  361 CCACTTGGCA GTACATCAAG TGTATCATAT GCCAAGTCCG CCCCCTATTG ACGTCAATGA
  421 CGGTAAATGG CCCGCCTGGC ATTATGCCCA GTACATGACC TTACGGGACT TTCCTACTTG
  481 GCAGTACATC TACGTATTAG TCATCGCTAT TACCATGGTG ATGCGGTTTT GGCAGTACAC
  541 CAATGGGCGT GGATAGCGGT TTGACTCACG GGGATTTCCA AGTCTCCACC CCATTGACGT
  601 CAATGGGAGT TTGTTTTGGC ACCAAAATCA ACGGGACTTT CCAAAATGTC GTAACAACTG
  661 CGATCGCCCG CCCCGTTGAC GCAAATGGGC GGTAGGCGTG TACGGTGGGA GGTCTATATA
  721 AGCAGAGCTC GTTTAGTGAA CCGTCAGATC ACTAGAAGCT TTATTGCGGT AGTTTATCAC
  781 AGTTAAATTG CTAACGCAGT CAGTGCTTCT GACACAACAG TCTCGAACTT AAGCTGCAGT
  841 GACTCTCTTA AGGTAGCCTT GCAGAAGTTG GTCGTGAGGC ACTGGGCAGG TAAGTATCAA
  901 GGTTACAAGA CAGGTTTAAG GAGACCAATA GAAACTGGGC TTGTCGAGAC AGAGAAGACT
  961 CTTGCGTTTC TGATAGGCAC CTATTGGTCT TACTGACATC CACTTTGCCT TTCTCTCCAC
 1021 AGGTGTCCAC TCCCAGTTCA ATTACAGCTC TTAAGGCTAG AGTACTTAAT ACGACTCACT
 1081 ATAGGCTAGC CAGCTTGAAG CAAGCCTCCT GAAAGATGAA GCTACTGTCT TCTATCGAAC
 1141 AAGCATGCCC AAAAAAGAAG AGAAAGGTAG ATGAATTCCC GGGGATCTCG ACGGCCCCCC
 1201 CGACCGATGT CAGCCTGGGG GACGAGCTCC ACTTAGACGG CGAGGACGTG GCGATGGCGC
 1261 ATGCCGACGC GCTAGACGAT TTCGATCTGG ACATGTTGGG GGACGGGGAT TCCCCGGGTC
 1321 CGGGATCGCC AGGGATCCGT CGACTTGACG CGTTGATATC ATCTAGAGCG GCCGCAGGTA
 1381 CCTGAATAAC TAAGGCCGCT TCCCTTTAGT GAGGGTTAAT GCTTCGAGCA GACATGATAA
 1441 GATACATTGA TGAGTTTGGA CAAACCACAA CTAGAATGCA GTGAAAAAAA TGCTTTATTT
 1501 GTGAAATTTG TGATGCTATT GCTTTATTTG TAACCATTAT AAGCTGCAAT AAACAAGTTA
 1561 ACAACAACAA TTGCATTCAT TTTATGTTTC AGGTTCAGGG GGAGATGTGG GAGGTTTTTT
 1621 AAAGCAAGTA AAACCTCTAC AAATGTGGTA AAATCCGATA AGGATCGATT CCGGAGCCTG
 1681 AATGGCGAAT GGACGCGCCC TGTAGCGGCG CATTAAGCGC GGCGGGTGTG GTGGTTACGC
 1741 GCAGCGTGAC CGCTACACTT GCCAGCGCCC TAGCGCCCGC TCCTTTCGCT TTCTTCCCTT
 1801 CCTTTCTCGC CACGTTCGCC GGCTTTCCCC GTCAAGCTCT AAATCGGGGG CTCCCTTTAG
 1861 GGTTCCGATT TAGTGCTTTA CGGCACCTCG ACCCCAAAAA ACTTGATTAG GGTGATGGTT
 1921 CACGTAGTGG GCCATCGCCC TGATAGACGG TTTTTCGCCC TTTGACGTTG GAGTCCACGT
 1981 TCTTTAATAG TGGACTCTTG TTCCAAACTG GAACAACACT CAACCCTATC TCGGTCTATT
 2041 CTTTTGATTT ATAAGGGATT TTGCCGATTT CGGCCTATTG GTTAAAAAAT GAGCTGATTT
 2101 AACAAAAATT TAACGCGAAT TTTAACAAAA TATTAACGCT TACAATTTCG CCTGTGTACC
 2161 TTCTGAGGCG GAAAGAACCA GCTGTGGAAT GTGTGTCAGT TAGGGTGTGG AAAGTCCCCA
 2221 GGCTCCCCAG CAGGCAGAAG TATGCAAAGC ATGCATCTCA ATTAGTCAGC AACCAGGTGT
 2281 GGAAAGTCCC CAGGCTCCCC AGCAGGCAGA AGTATGCAAA GCATGCATCT CAATTAGTCA
 2341 GCAACCATAG TCCCGCCCCT AACTCCGCCC ATCCCGCCCC TAACTCCGCC CAGTTCCGCC
 2401 CATTCTCCGC CCCATGGCTG ACTAATTTTT TTTATTTATG CAGAGGCCGA GGCCGCCTCG
 2461 GCCTCTGAGC TATTCCAGAA GTAGTGAGGA GGCTTTTTTG GAGGCCTAGG CTTTTGCAAA
 2521 AAGCTTGATT CTTCTGACAC AACAGTCTCG AACTTAAGGC TAGAGCCACC ATGATTGAAC
 2581 AAGATGGATT GCACGCAGGT TCTCCGGCCG CTTGGGTGGA GAGGCTATTC GGCTATGACT
 2641 GGGCACAACA GACAATCGGC TGCTCTGATG CCGCCGTGTT CCGGCTGTCA GCGCAGGGGC
 2701 GCCCGGTTCT TTTTGTCAAG ACCGACCTGT CCGGTGCCCT GAATGAACTG CAGGACGAGG
 2761 CAGCGCGGCT ATCGTGGCTG GCCACGACGG GCGTTCCTTG CGCAGCTGTG CTCGACGTTG
 2821 TCACTGAAGC GGGAAGGGAC TGGCTGCTAT TGGGCGAAGT GCCGGGGCAG GATCTCCTGT
 2881 CATCTCACCT TGCTCCTGCC GAGAAAGTAT CCATCATGGC TGATGCAATG CGGCGGCTGC
 2941 ATACGCTTGA TCCGGCTACC TGCCCATTCG ACCACCAAGC GAAACATCGC ATCGAGCGAG
 3001 CACGTACTCG GATGGAAGCC GGTCTTGTCG ATCAGGATGA TCTGGACGAA GAGCATCAGG
 3061 GGCTCGCGCC AGCCGAACTG TTCGCCAGGC TCAAGGCGCG CATGCCCGAC GGCGAGGATC
 3121 TCGTCGTGAC CCATGGCGAT GCCTGCTTGC CGAATATCAT GGTGGAAAAT GGCCGCTTTT
 3181 CTGGATTCAT CGACTGTGGC CGGCTGGGTG TGGCGGACCG CTATCAGGAC ATAGCGTTGG
 3241 CTACCCGTGA TATTGCTGAA GAGCTTGGCG GCGAATGGGC TGACCGCTTC CTCGTGCTTT
 3301 ACGGTATCGC CGCTCCCGAT TCGCAGCGCA TCGCCTTCTA TCGCCTTCTT GACGAGTTCT
 3361 TCTGAGCGGG ACTCTGGGGT TCGAAATGAC CGACCAAGCG ACGCCCAACC TGCCATCACG
 3421 ATGGCCGCAA TAAAATATCT TTATTTTCAT TACATCTGTG TGTTGGTTTT TTGTGTGAAG
 3481 ATCCGCGTAT GGTGCACTCT CAGTACAATC TGCTCTGATG CCGCATAGTT AAGCCAGCCC
 3541 CGACACCCGC CAACACCCGC TGACGCGCCC TGACGGGCTT GTCTGCTCCC GGCATCCGCT
 3601 TACAGACAAG CTGTGACCGT CTCCGGGAGC TGCATGTGTC AGAGGTTTTC ACCGTCATCA
 3661 CCGAAACGCG CGAGACGAAA GGGCCTCGTG ATACGCCTAT TTTTATAGGT TAATGTCATG
 3721 ATAATAATGG TTTCTTAGAC GTCAGGTGGC ACTTTTCGGG GAAATGTGCG CGGAACCCCT
 3781 ATTTGTTTAT TTTTCTAAAT ACATTCAAAT ATGTATCCGC TCATGAGACA ATAACCCTGA
 3841 TAAATGCTTC AATAATATTG AAAAAGGAAG AGTATGAGTA TTCAACATTT CCGTGTCGCC
 3901 CTTATTCCCT TTTTTGCGGC ATTTTGCCTT CCTGTTTTTG CTCACCCAGA AACGCTGGTG
 3961 AAAGTAAAAG ATGCTGAAGA TCAGTTGGGT GCACGAGTGG GTTACATCGA ACTGGATCTC
 4021 AACAGCGGTA AGATCCTTGA GAGTTTTCGC CCCGAAGAAC GTTTTCCAAT GATGAGCACT
 4081 TTTAAAGTTC TGCTATGTGG CGCGGTATTA TCCCGTATTG ACGCCGGGCA AGAGCAACTC
 4141 GGTCGCCGCA TACACTATTC TCAGAATGAC TTGGTTGAGT ACTCACCAGT CACAGAAAAG
 4201 CATCTTACGG ATGGCATGAC AGTAAGAGAA TTATGCAGTG CTGCCATAAC CATGAGTGAT
 4261 AACACTGCGG CCAACTTACT TCTGACAACG ATCGGAGGAC CGAAGGAGCT AACCGCTTTT
 4321 TTGCACAACA TGGGGGATCA TGTAACTCGC CTTGATCGTT GGGAACCGGA GCTGAATGAA
 4381 GCCATACCAA ACGACGAGCG TGACACCACG ATGCCTGTAG CAATGGCAAC AACGTTGCGC
 4441 AAACTATTAA CTGGCGAACT ACTTACTCTA GCTTCCCGGC AACAATTAAT AGACTGGATG
 4501 GAGGCGGATA AAGTTGCAGG ACCACTTCTG CGCTCGGCCC TTCCGGCTGG CTGGTTTATT
 4561 GCTGATAAAT CTGGAGCCGG TGAGCGTGGG TCTCGCGGTA TCATTGCAGC ACTGGGGCCA
 4621 GATGGTAAGC CCTCCCGTAT CGTAGTTATC TACACGACGG GGAGTCAGGC AACTATGGAT
 4681 GAACGAAATA GACAGATCGC TGAGATAGGT GCCTCACTGA TTAAGCATTG GTAACTGTCA
 4741 GACCAAGTTT ACTCATATAT ACTTTAGATT GATTTAAAAC TTCATTTTTA ATTTAAAAGG
 4801 ATCTAGGTGA AGATCCTTTT TGATAATCTC ATGACCAAAA TCCCTTAACG TGAGTTTTCG
 4861 TTCCACTGAG CGTCAGACCC CGTAGAAAAG ATCAAAGGAT CTTCTTGAGA TCCTTTTTTT
 4921 CTGCGCGTAA TCTGCTGCTT GCAAACAAAA AAACCACCGC TACCAGCGGT GGTTTGTTTG
 4981 CCGGATCAAG AGCTACCAAC TCTTTTTCCG AAGGTAACTG GCTTCAGCAG AGCGCAGATA
 5041 CCAAATACTG TTCTTCTAGT GTAGCCGTAG TTAGGCCACC ACTTCAAGAA CTCTGTAGCA
 5101 CCGCCTACAT ACCTCGCTCT GCTAATCCTG TTACCAGTGG CTGCTGCCAG TGGCGATAAG
 5161 TCGTGTCTTA CCGGGTTGGA CTCAAGACGA TAGTTACCGG ATAAGGCGCA GCGGTCGGGC
 5221 TGAACGGGGG GTTCGTGCAC ACAGCCCAGC TTGGAGCGAA CGACCTACAC CGAACTGAGA
 5281 TACCTACAGC GTGAGCTATG AGAAAGCGCC ACGCTTCCCG AAGGGAGAAA GGCGGACAGG
 5341 TATCCGGTAA GCGGCAGGGT CGGAACAGGA GAGCGCACGA GGGAGCTTCC AGGGGGAAAC
 5401 GCCTGGTATC TTTATAGTCC TGTCGGGTTT CGCCACCTCT GACTTGAGCG TCGATTTTTG
 5461 TGATGCTCGT CAGGGGGGCG GAGCCTATGG AAAAACGCCA GCAACGCGGC CTTTTTACGG
 5521 TTCCTGGCCT TTTGCTGGCC TTTTGCTCAC ATGGCTCGAC AGATCT
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
