pLVX-EF1α-mCherry-C1

价格:1350元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-EF1α-mCherry-C1, pLVX-EF1α-mCherry-C1, pLVX-EF1α-mCherry-C1
质粒类型: 哺乳动物细胞慢病毒表达载体
高拷贝/低拷贝: 高拷贝
启动子: EF1α
克隆方法: 多克隆位点,限制性内切酶
载体大小: 9510 bp
5' 测序引物及序列: EF1a Forward: TCAAGCCTCAGACAGTGGTTC; mCherry-F: CCCCGTAATGCAGAAGAAGA
3' 测序引物及序列: --
载体标签: mCherry
载体抗性: 氨苄青霉素
筛选标记: 嘌呤霉素(Puromycin)
克隆菌株: Stbl3 E.coli
产品目录号: 631985
稳定性: 稳表达
组成型: 组成型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

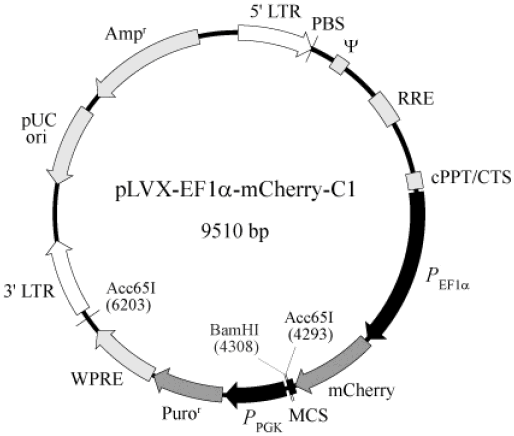

pLVX-EF1α-mCherry-C1载体图谱

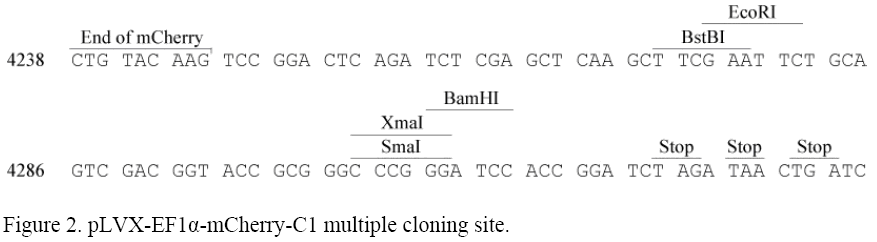

pLVX-EF1α-mCherry-C1多克隆位点

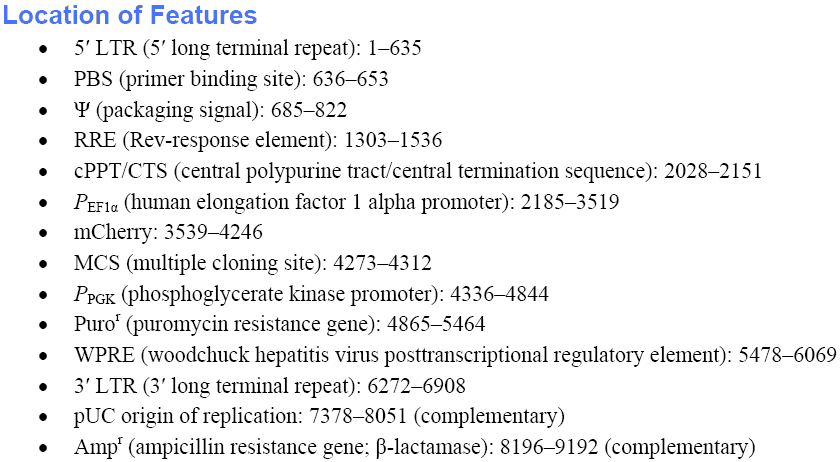

pLVX-EF1α-mCherry-C1载体特征

载体简介

载体序列

LOCUS       pLVX-EF1a-mCherry-C1   9510 bp    DNA   circular            22-MAR-2010
COMMENT     Created by Clontech Laboratories Inc.
COMMENT     Cat. No. 631985
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     LTR             1..635
                     /label=5'\LTR
     misc_feature    685..822
                     /label=Packaging\signal
     misc_feature    5478..6069
                     /label=WPRE
     CDS             complement(8196..9192)
                     /label=Amp(R)
     misc_binding    1303..1536
                     /label=RRE
     misc_binding    636..653
                     /label=PBS
     LTR             6272..6908
                     /label=3'\LTR
     promoter        4336..4844
                     /label=PGK\Promoter
     CDS             4865..5464
                     /label=Puro(R)
     misc_feature    4321..4323
                     /label=Stop
     misc_feature    4325..4327
                     /label=Stop
     CDS             3539..4246
                     /label=mCherry
     misc_feature    2028..2151
                     /label=cPPT/CTS\(DNA\flap)
     rep_origin      complement(7378..8051)
                     /label=pUC\origin
     promoter        2185..3519
                     /label=EF1a\Promoter
     misc_feature    4329..4331
                     /label=Stop
     misc_feature    4273..4312
                     /label=MCS
BASE COUNT     2257 a      2477 c      2616 g      2160 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga attacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgatgagtaa ttcatacaaa aggactcgcc cctgccttgg
     2221 ggaatcccag ggaccgtcgt taaactccca ctaacgtaga acccagagat cgctgcgttc
     2281 ccgccccctc acccgcccgc tctcgtcatc actgaggtgg agaagagcat gcgtgaggct
     2341 ccggtgcccg tcagtgggca gagcgcacat cgcccacagt ccccgagaag ttggggggag
     2401 gggtcggcaa ttgaaccggt gcctagagaa ggtggcgcgg ggtaaactgg gaaagtgatg
     2461 tcgtgtactg gctccgcctt tttcccgagg gtgggggaga accgtatata agtgcagtag
     2521 tcgccgtgaa cgttcttttt cgcaacgggt ttgccgccag aacacaggta agtgccgtgt
     2581 gtggttcccg cgggcctggc ctctttacgg gttatggccc ttgcgtgcct tgaattactt
     2641 ccacgcccct ggctgcagta cgtgattctt gatcccgagc ttcgggttgg aagtgggtgg
     2701 gagagttcga ggccttgcgc ttaaggagcc ccttcgcctc gtgcttgagt tgaggcctgg
     2761 cttgggcgct ggggccgccg cgtgcgaatc tggtggcacc ttcgcgcctg tctcgctgct
     2821 ttcgataagt ctctagccat ttaaaatttt tgatgacctg ctgcgacgct ttttttctgg
     2881 caagatagtc ttgtaaatgc gggccaagat ctgcacactg gtatttcggt ttttggggcc
     2941 gcgggcggcg acggggcccg tgcgtcccag cgcacatgtt cggcgaggcg gggcctgcga
     3001 gcgcggccac cgagaatcgg acgggggtag tctcaagctg gccggcctgc tctggtgcct
     3061 ggcctcgcgc cgccgtgtat cgccccgccc tgggcggcaa ggctggcccg gtcggcacca
     3121 gttgcgtgag cggaaagatg gccgcttccc ggccctgctg cagggagctc aaaatggagg
     3181 acgcggcgct cgggagagcg ggcgggtgag tcacccacac aaaggaaaag ggcctttccg
     3241 tcctcagccg tcgcttcatg tgactccacg gagtaccggg cgccgtccag gcacctcgat
     3301 tagttctcga gcttttggag tacgtcgtct ttaggttggg gggaggggtt ttatgcgatg
     3361 gagtttcccc acactgagtg ggtggagact gaagttaggc cagcttggca cttgatgtaa
     3421 ttctccttgg aatttgccct ttttgagttt ggatcttggt tcattctcaa gcctcagaca
     3481 gtggttcaaa gtttttttct tccatttcag gtgtcgtgag gatctaccgg tcgccaccat
     3541 ggtgagcaag ggcgaggagg ataacatggc catcatcaag gagttcatgc gcttcaaggt
     3601 gcacatggag ggctccgtga acggccacga gttcgagatc gagggcgagg gcgagggccg
     3661 cccctacgag ggcacccaga ccgccaagct gaaggtgacc aagggtggcc ccctgccctt
     3721 cgcctgggac atcctgtccc ctcagttcat gtacggctcc aaggcctacg tgaagcaccc
     3781 cgccgacatc cccgactact tgaagctgtc cttccccgag ggcttcaagt gggagcgcgt
     3841 gatgaacttc gaggacggcg gcgtggtgac cgtgacccag gactcctccc tgcaggacgg
     3901 cgagttcatc tacaaggtga agctgcgcgg caccaacttc ccctccgacg gccccgtaat
     3961 gcagaagaag accatgggct gggaggcctc ctccgagcgg atgtaccccg aggacggcgc
     4021 cctgaagggc gagatcaagc agaggctgaa gctgaaggac ggcggccact acgacgctga
     4081 ggtcaagacc acctacaagg ccaagaagcc cgtgcagctg cccggcgcct acaacgtcaa
     4141 catcaagttg gacatcacct cccacaacga ggactacacc atcgtggaac agtacgaacg
     4201 cgccgagggc cgccactcca ccggcggcat ggacgagctg tacaagtccg gactcagatc
     4261 tcgagctcaa gcttcgaatt ctgcagtcga cggtaccgcg ggcccgggat ccaccggatc
     4321 tagataactg atcataattc taccgggtag gggaggcgct tttcccaagg cagtctggag
     4381 catgcgcttt agcagccccg ctgggcactt ggcgctacac aagtggcctc tggcctcgca
     4441 cacattccac atccaccggt aggcgccaac cggctccgtt ctttggtggc cccttcgcgc
     4501 caccttctac tcctccccta gtcaggaagt tcccccccgc cccgcagctc gcgtcgtgca
     4561 ggacgtgaca aatggaagta gcacgtctca ctagtctcgt gcagatggac agcaccgctg
     4621 agcaatggaa gcgggtaggc ctttggggca gcggccaata gcagctttgc tccttcgctt
     4681 tctgggctca gaggctggga aggggtgggt ccgggggcgg gctcaggggc gggctcaggg
     4741 gcggggcggg cgcccgaagg tcctccggag gcccggcatt ctgcacgctt caaaagcgca
     4801 cgtctgccgc gctgttctcc tcttcctcat ctccgggcct ttcgacctgc agcccaagct
     4861 taccatgacc gagtacaagc ccacggtgcg cctcgccacc cgcgacgacg tccccagggc
     4921 cgtacgcacc ctcgccgccg cgttcgccga ctaccccgcc acgcgccaca ccgtcgatcc
     4981 ggaccgccac atcgagcggg tcaccgagct gcaagaactc ttcctcacgc gcgtcgggct
     5041 cgacatcggc aaggtgtggg tcgcggacga cggcgccgcg gtggcggtct ggaccacgcc
     5101 ggagagcgtc gaagcggggg cggtgttcgc cgagatcggc ccgcgcatgg ccgagttgag
     5161 cggttcccgg ctggccgcgc agcaacagat ggaaggcctc ctggcgccgc accggcccaa
     5221 ggagcccgcg tggttcctgg ccaccgtcgg cgtctcgccc gaccaccagg gcaagggtct
     5281 gggcagcgcc gtcgtgctcc ccggagtgga ggcggccgag cgcgccgggg tgcccgcctt
     5341 cctggagacc tccgcgcccc gcaacctccc cttctacgag cggctcggct tcaccgtcac
     5401 cgccgacgtc gaggtgcccg aaggaccgcg cacctggtgc atgacccgca agcccggtgc
     5461 ctgaccgcgt ctggaacaat caacctctgg attacaaaat ttgtgaaaga ttgactggta
     5521 ttcttaacta tgttgctcct tttacgctat gtggatacgc tgctttaatg cctttgtatc
     5581 atgctattgc ttcccgtatg gctttcattt tctcctcctt gtataaatcc tggttgctgt
     5641 ctctttatga ggagttgtgg cccgttgtca ggcaacgtgg cgtggtgtgc actgtgtttg
     5701 ctgacgcaac ccccactggt tggggcattg ccaccacctg tcagctcctt tccgggactt
     5761 tcgctttccc cctccctatt gccacggcgg aactcatcgc cgcctgcctt gcccgctgct
     5821 ggacaggggc tcggctgttg ggcactgaca attccgtggt gttgtcgggg aagctgacgt
     5881 cctttccatg gctgctcgcc tgtgttgcca cctggattct gcgcgggacg tccttctgct
     5941 acgtcccttc ggccctcaat ccagcggacc ttccttcccg cggcctgctg ccggctctgc
     6001 ggcctcttcc gcgtcttcgc cttcgccctc agacgagtcg gatctccctt tgggccgcct
     6061 ccccgcctgg aattaattct gcagtcgaga cctagaaaaa catggagcaa tcacaagtag
     6121 caatacagca gctaccaatg ctgattgtgc ctggctagaa gcacaagagg aggaggaggt
     6181 gggttttcca gtcacacctc aggtaccttt aagaccaatg acttacaagg cagctgtaga
     6241 tcttagccac tttttaaaag aaaagagggg actggaaggg ctaattcact cccaacgaag
     6301 acaagatatc cttgatctgt ggatctacca cacacaaggc tacttccctg attagcagaa
     6361 ctacacacca gggccagggg tcagatatcc actgaccttt ggatggtgct acaagctagt
     6421 accagttgag ccagataagg tagaagaggc caataaagga gagaacacca gcttgttaca
     6481 ccctgtgagc ctgcatggga tggatgaccc ggagagagaa gtgttagagt ggaggtttga
     6541 cagccgccta gcatttcatc acgtggcccg agagctgcat ccggagtact tcaagaactg
     6601 ctgatatcga gcttgctaca agggactttc cgctggggac tttccaggga ggcgtggcct
     6661 gggcgggact ggggagtggc gagccctcag atcctgcata taagcagctg ctttttgcct
     6721 gtactgggtc tctctggtta gaccagatct gagcctggga gctctctggc taactaggga
     6781 acccactgct taagcctcaa taaagcttgc cttgagtgct tcaagtagtg tgtgcccgtc
     6841 tgttgtgtga ctctggtaac tagagatccc tcagaccctt ttagtcagtg tggaaaatct
     6901 ctagcagtag tagttcatgt catcttatta ttcagtattt ataacttgca aagaaatgaa
     6961 tatcagagag tgagaggcct tgacattgct agcgttttac cgtcgacctc tagctagagc
     7021 ttggcgtaat catggtcata gctgtttcct gtgtgaaatt gttatccgct cacaattcca
     7081 cacaacatac gagccggaag cataaagtgt aaagcctggg gtgcctaatg agtgagctaa
     7141 ctcacattaa ttgcgttgcg ctcactgccc gctttccagt cgggaaacct gtcgtgccag
     7201 ctgcattaat gaatcggcca acgcgcgggg agaggcggtt tgcgtattgg gcgctcttcc
     7261 gcttcctcgc tcactgactc gctgcgctcg gtcgttcggc tgcggcgagc ggtatcagct
     7321 cactcaaagg cggtaatacg gttatccaca gaatcagggg ataacgcagg aaagaacatg
     7381 tgagcaaaag gccagcaaaa ggccaggaac cgtaaaaagg ccgcgttgct ggcgtttttc
     7441 cataggctcc gcccccctga cgagcatcac aaaaatcgac gctcaagtca gaggtggcga
     7501 aacccgacag gactataaag ataccaggcg tttccccctg gaagctccct cgtgcgctct
     7561 cctgttccga ccctgccgct taccggatac ctgtccgcct ttctcccttc gggaagcgtg
     7621 gcgctttctc atagctcacg ctgtaggtat ctcagttcgg tgtaggtcgt tcgctccaag
     7681 ctgggctgtg tgcacgaacc ccccgttcag cccgaccgct gcgccttatc cggtaactat
     7741 cgtcttgagt ccaacccggt aagacacgac ttatcgccac tggcagcagc cactggtaac
     7801 aggattagca gagcgaggta tgtaggcggt gctacagagt tcttgaagtg gtggcctaac
     7861 tacggctaca ctagaagaac agtatttggt atctgcgctc tgctgaagcc agttaccttc
     7921 ggaaaaagag ttggtagctc ttgatccggc aaacaaacca ccgctggtag cggtggtttt
     7981 tttgtttgca agcagcagat tacgcgcaga aaaaaaggat ctcaagaaga tcctttgatc
     8041 ttttctacgg ggtctgacgc tcagtggaac gaaaactcac gttaagggat tttggtcatg
     8101 agattatcaa aaaggatctt cacctagatc cttttaaatt aaaaatgaag ttttaaatca
     8161 atctaaagta tatatgagta aacttggtct gacagttacc aatgcttaat cagtgaggca
     8221 cctatctcag cgatctgtct atttcgttca tccatagttg cctgactccc cgtcgtgtag
     8281 ataactacga tacgggaggg cttaccatct ggccccagtg ctgcaatgat accgcgagac
     8341 ccacgctcac cggctccaga tttatcagca ataaaccagc cagccggaag ggccgagcgc
     8401 agaagtggtc ctgcaacttt atccgcctcc atccagtcta ttaattgttg ccgggaagct
     8461 agagtaagta gttcgccagt taatagtttg cgcaacgttg ttgccattgc tacaggcatc
     8521 gtggtgtcac gctcgtcgtt tggtatggct tcattcagct ccggttccca acgatcaagg
     8581 cgagttacat gatcccccat gttgtgcaaa aaagcggtta gctccttcgg tcctccgatc
     8641 gttgtcagaa gtaagttggc cgcagtgtta tcactcatgg ttatggcagc actgcataat
     8701 tctcttactg tcatgccatc cgtaagatgc ttttctgtga ctggtgagta ctcaaccaag
     8761 tcattctgag aatagtgtat gcggcgaccg agttgctctt gcccggcgtc aatacgggat
     8821 aataccgcgc cacatagcag aactttaaaa gtgctcatca ttggaaaacg ttcttcgggg
     8881 cgaaaactct caaggatctt accgctgttg agatccagtt cgatgtaacc cactcgtgca
     8941 cccaactgat cttcagcatc ttttactttc accagcgttt ctgggtgagc aaaaacagga
     9001 aggcaaaatg ccgcaaaaaa gggaataagg gcgacacgga aatgttgaat actcatactc
     9061 ttcctttttc aatattattg aagcatttat cagggttatt gtctcatgag cggatacata
     9121 tttgaatgta tttagaaaaa taaacaaata ggggttccgc gcacatttcc ccgaaaagtg
     9181 ccacctgacg tcgacggatc gggagatcaa cttgtttatt gcagcttata atggttacaa
     9241 ataaagcaat agcatcacaa atttcacaaa taaagcattt ttttcactgc attctagttg
     9301 tggtttgtcc aaactcatca atgtatctta tcatgtctgg atcaactgga taactcaagc
     9361 taaccaaaat catcccaaac ttcccacccc ataccctatt accactgcca attacctgtg
     9421 gtttcattta ctctaaacct gtgattcctc tgaattattt tcattttaaa gaaattgtat
     9481 ttgttaaata tgtactacaa acttagtagt
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
