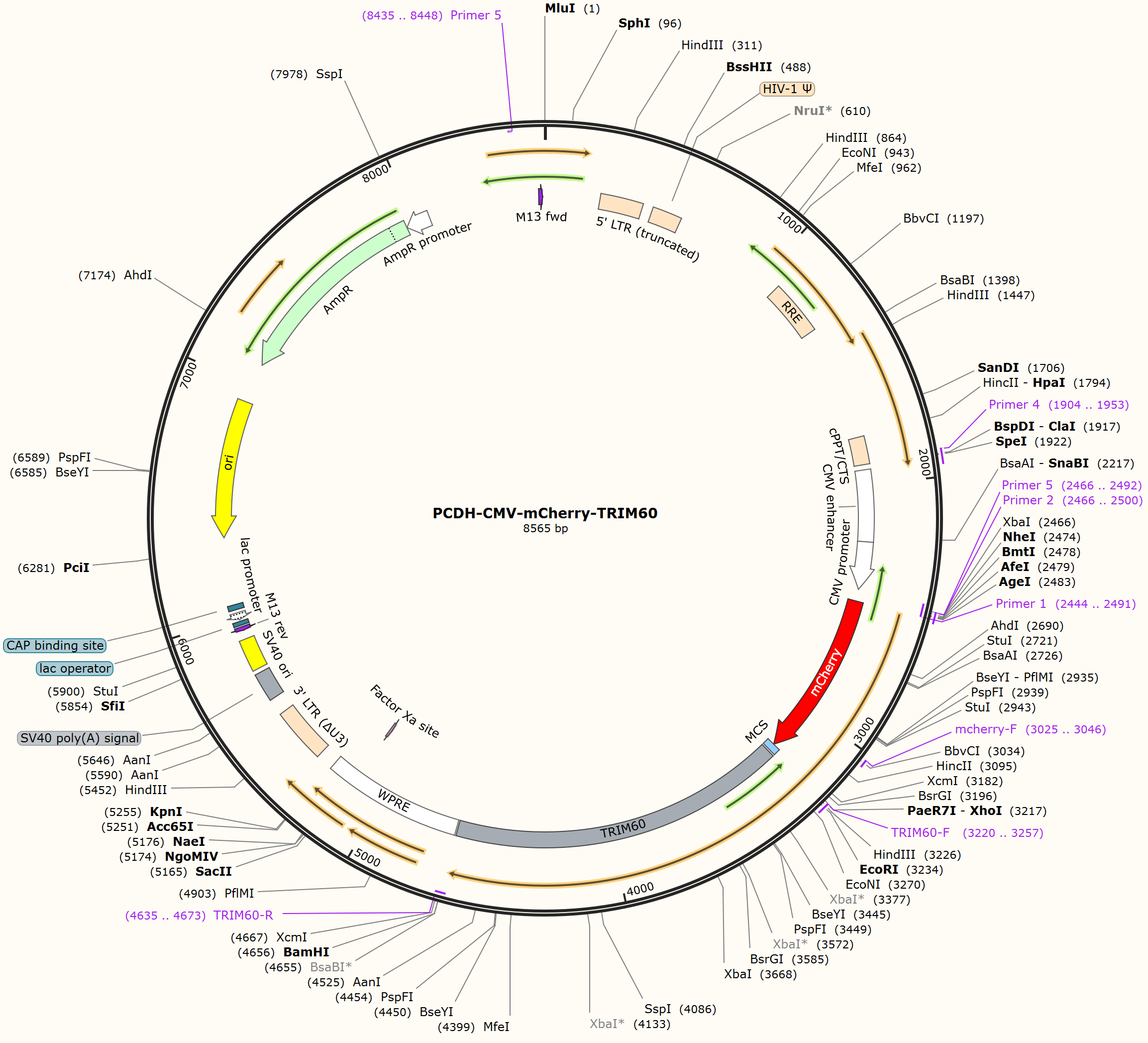

PCDH-CMV-mCherry-TRIM60

LOCUS       PCDH-CMV-mCherry-TRIM60                8565 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8565)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 11, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8565
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3220..3257
                     /label=TRIM60-F
     misc_feature    3240..4655
                     /label=TRIM60
     primer_bind     complement(4635..4673)
                     /label=TRIM60-R
     misc_feature    4662..5249
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5133..5144)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5322..5555
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5627..5748
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5767..5902
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5940..5956)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5964..5980
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5988..6018)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6033..6054
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6342..6930)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7101..7961)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7962..8066)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8435..8448)
                     /label=Primer 5
     primer_bind     8540..8556
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggagtttgt gacagccctg gtgaacctcc aagaggagtc tagctgtccc atctgtctgg
     3301 agtacttgaa agacccagtg accatcaact gtgggcacaa cttctgtcgc tcctgcctca
     3361 gtgtatcctg gaaggatcta gatgatacct ttccctgtcc tgtctgccgt ttttgctttc
     3421 catacaagag cttcaggagg aacccccagc tccgtaattt gactgaaatt gctaaacaac
     3481 tccagattag gaggagcaag agaaagaggc agaaagagaa tgccatgtgt gaaaaacaca
     3541 accagtttct gaccctcttc tgtgttaaag atctagagat cttatgtaca cagtgcagtt
     3601 tctccactaa acaccagaag cactacattt gccctattaa gaaagctgcc tcttatcaca
     3661 gagaaattct agaaggtagc cttgagccct tgaggaataa tatagaacga gttgaaaaag
     3721 tgataattct gcaaggcagc aaatcagtgg agctgaaaaa gaaggtagaa tataagaggg
     3781 aagaaataaa ttctgagttt gagcaaataa gattgttttt acagaatgaa caagagatga
     3841 ttcttaggca gatacaagat gaagagatga acattttagc aaaactaaat gaaaaccttg
     3901 tagaactttc agattatgtt tccacattaa aacatctact gagggaggta gagggcaagt
     3961 ctgtgcagtc aaacctggaa ttactgacac aagctaagag tatgcaccac aagtatcaaa
     4021 acctaaaatg ccctgaactc ttttcattta gattaacaaa atatggtttc agtcttcctc
     4081 ctcaatattc tggcttggac agaattatca agccatttca agtagatgtg attctagatc
     4141 tcaacacagc acatcctcaa cttcttgtct ctgaggatag aaaagctgtg cgatatgaaa
     4201 gaaaaaaacg aaacatttgt tatgacccaa ggagatttta tgtctgccct gctgtcctag
     4261 gctctcagag atttagttct ggccgacatt actgggaagt agaagtggga aacaaaccta
     4321 aatggatatt gggtgtgtgt caagactgtc ttcttaggaa ctggcaggat cagccatcag
     4381 ttctgggcgg attctgggca attgggcgat acatgaagag tggttatgtt gcgtcaggtc
     4441 ctaagacaac ccagcttctg ccagtagtaa aacccagtaa aattggtatt tttctggact
     4501 atgaattggg tgatctttcc ttttataata tgaatgatag gtctattctc tatactttta
     4561 acgattgttt cacagaagcc gtttggcctt atttctatac tggaacagat tccgaacctc
     4621 ttaaaatctg ctcagtatca gattctgaaa gataaggatc caatcaacct ctggattaca
     4681 aaatttgtga aagattgact ggtattctta actatgttgc tccttttacg ctatgtggat
     4741 acgctgcttt aatgcctttg tatcatgcta ttgcttcccg tatggctttc attttctcct
     4801 ccttgtataa atcctggttg ctgtctcttt atgaggagtt gtggcccgtt gtcaggcaac
     4861 gtggcgtggt gtgcactgtg tttgctgacg caacccccac tggttggggc attgccacca
     4921 cctgtcagct cctttccggg actttcgctt tccccctccc tattgccacg gcggaactca
     4981 tcgccgcctg ccttgcccgc tgctggacag gggctcggct gttgggcact gacaattccg
     5041 tggtgttgtc ggggaagctg acgtcctttc catggctgct cgcctgtgtt gccacctgga
     5101 ttctgcgcgg gacgtccttc tgctacgtcc cttcggccct caatccagcg gaccttcctt
     5161 cccgcggcct gctgccggct ctgcggcctc ttccgcgtct ccgccttcgc cctcagacga
     5221 gtcggatctc cctttggccg cctccccgcc ggtaccttta agaccaatga cttacaaggc
     5281 agctgtagat cttagccact ttttaaaaga aaagggggga ctggaagggc taattcactc
     5341 ccaacgaaaa taagatctgc tttttgcttg tactgggtct ctctggttag accagatctg
     5401 agcctgggag ctctctggct aactagggaa cccactgctt aagcctcaat aaagcttgcc
     5461 ttgagtgctt caagtagtgt gtgcccgtct gttgtgtgac tctggtaact agagatccct
     5521 cagacccttt tagtcagtgt ggaaaatctc tagcagtagt agttcatgtc atcttattat
     5581 tcagtattta taacttgcaa agaaatgaat atcagagagt gagaggaact tgtttattgc
     5641 agcttataat ggttacaaat aaagcaatag catcacaaat ttcacaaata aagcattttt
     5701 ttcactgcat tctagttgtg gtttgtccaa actcatcaat gtatcttatc atgtctggct
     5761 ctagctatcc cgcccctaac tccgcccagt tccgcccatt ctccgcccca tggctgacta
     5821 atttttttta tttatgcaga ggccgaggcc gcctcggcct ctgagctatt ccagaagtag
     5881 tgaggaggct tttttggagg cctagacttt tgcagagacg gcccaaattc gtaatcatgg
     5941 tcatagctgt ttcctgtgtg aaattgttat ccgctcacaa ttccacacaa catacgagcc
     6001 ggaagcataa agtgtaaagc ctggggtgcc taatgagtga gctaactcac attaattgcg
     6061 ttgcgctcac tgcccgcttt ccagtcggga aacctgtcgt gccagctgca ttaatgaatc
     6121 ggccaacgcg cggggagagg cggtttgcgt attgggcgct cttccgcttc ctcgctcact
     6181 gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat cagctcactc aaaggcggta
     6241 atacggttat ccacagaatc aggggataac gcaggaaaga acatgtgagc aaaaggccag
     6301 caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt ttttccatag gctccgcccc
     6361 cctgacgagc atcacaaaaa tcgacgctca agtcagaggt ggcgaaaccc gacaggacta
     6421 taaagatacc aggcgtttcc ccctggaagc tccctcgtgc gctctcctgt tccgaccctg
     6481 ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa gcgtggcgct ttctcatagc
     6541 tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct ccaagctggg ctgtgtgcac
     6601 gaaccccccg ttcagcccga ccgctgcgcc ttatccggta actatcgtct tgagtccaac
     6661 ccggtaagac acgacttatc gccactggca gcagccactg gtaacaggat tagcagagcg
     6721 aggtatgtag gcggtgctac agagttcttg aagtggtggc ctaactacgg ctacactaga
     6781 aggacagtat ttggtatctg cgctctgctg aagccagtta ccttcggaaa aagagttggt
     6841 agctcttgat ccggcaaaca aaccaccgct ggtagcggtg gtttttttgt ttgcaagcag
     6901 cagattacgc gcagaaaaaa aggatctcaa gaagatcctt tgatcttttc tacggggtct
     6961 gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg tcatgagatt atcaaaaagg
     7021 atcttcacct agatcctttt aaattaaaaa tgaagtttta aatcaatcta aagtatatat
     7081 gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg aggcacctat ctcagcgatc
     7141 tgtctatttc gttcatccat agttgcctga ctccccgtcg tgtagataac tacgatacgg
     7201 gagggcttac catctggccc cagtgctgca atgataccgc gagacccacg ctcaccggct
     7261 ccagatttat cagcaataaa ccagccagcc ggaagggccg agcgcagaag tggtcctgca
     7321 actttatccg cctccatcca gtctattaat tgttgccggg aagctagagt aagtagttcg
     7381 ccagttaata gtttgcgcaa cgttgttgcc attgctacag gcatcgtggt gtcacgctcg
     7441 tcgtttggta tggcttcatt cagctccggt tcccaacgat caaggcgagt tacatgatcc
     7501 cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc cgatcgttgt cagaagtaag
     7561 ttggccgcag tgttatcact catggttatg gcagcactgc ataattctct tactgtcatg
     7621 ccatccgtaa gatgcttttc tgtgactggt gagtactcaa ccaagtcatt ctgagaatag
     7681 tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac gggataatac cgcgccacat
     7741 agcagaactt taaaagtgct catcattgga aaacgttctt cggggcgaaa actctcaagg
     7801 atcttaccgc tgttgagatc cagttcgatg taacccactc gtgcacccaa ctgatcttca
     7861 gcatctttta ctttcaccag cgtttctggg tgagcaaaaa caggaaggca aaatgccgca
     7921 aaaaagggaa taagggcgac acggaaatgt tgaatactca tactcttcct ttttcaatat
     7981 tattgaagca tttatcaggg ttattgtctc atgagcggat acatatttga atgtatttag
     8041 aaaaataaac aaataggggt tccgcgcaca tttccccgaa aagtgccacc tgacgtctaa
     8101 gaaaccatta ttatcatgac attaacctat aaaaataggc gtatcacgag gccctttcgt
     8161 ctcgcgcgtt tcggtgatga cggtgaaaac ctctgacaca tgcagctccc ggagacggtc
     8221 acagcttgtc tgtaagcgga tgccgggagc agacaagccc gtcagggcgc gtcagcgggt
     8281 gttggcgggt gtcggggctg gcttaactat gcggcatcag agcagattgt actgagagtg
     8341 caccatatgc ggtgtgaaat accgcacaga tgcgtaagga gaaaataccg catcaggcgc
     8401 cattcgccat tcaggctgcg caactgttgg gaagggcgat cggtgcgggc ctcttcgcta
     8461 ttacgccagc tggcgaaagg gggatgtgct gcaaggcgat taagttgggt aacgccaggg
     8521 ttttcccagt cacgacgttg taaaacgacg gccagtgcca agctg
//
