pcDNA4/HisMax B

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Invitrogen
载体名称: pcDNA4/HisMax B
质粒类型: 哺乳动物表达载体;cDNA表达载体
高拷贝/低拷贝: 高拷贝
克隆方法: 多克隆位点,限制性内切酶
启动子: CMV
载体大小: 5259 bp
5' 测序引物及序列: T7 Forward: 5’-TAATACGACTCACTATAGGG-3’
3' 测序引物及序列: BGH Reverse: 5-TAGAAGGCACAGTCGAGG-3
载体标签: His Tag (N-端), Xpress Epitope Tag(N-端)
载体抗性: 氨苄青霉素
筛选标记: Zeocin
克隆菌株: TOP10F′, DH5a
宿主细胞(系): 常规细胞系,如293、Hela等
备注: pcDNA4/HisMax B 载体是哺乳动物表达载体,适用于cDNA的表达与克隆;
QBI SP163增强子,使得目的基因的高水平表达提高了3~5倍;
pcDNA4/HisMax A,B,C的区别仅在于多克隆位点处;
含EK (Enterokinase)切割位点
产品目录号: V864-20
稳定性: 瞬表达 或 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

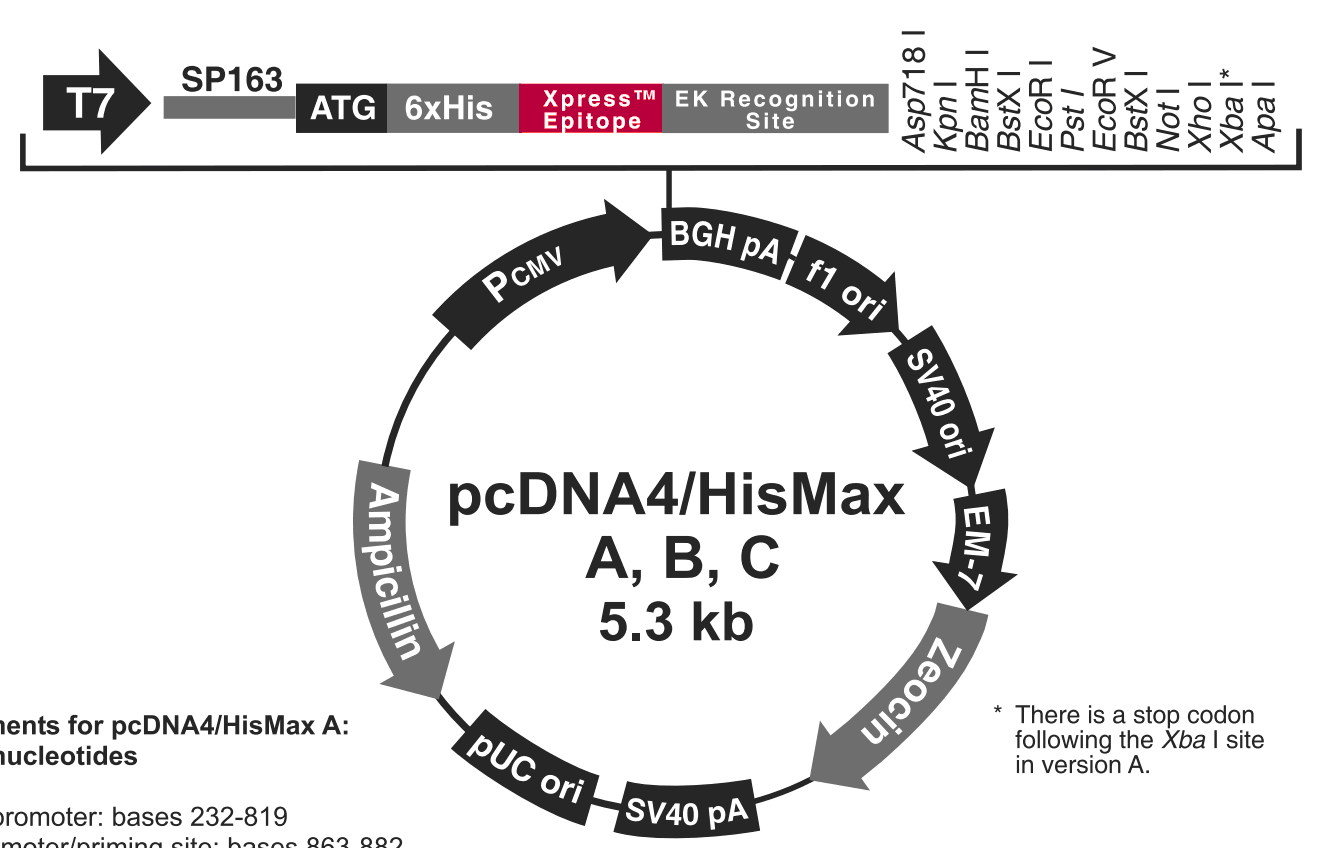

pcDNA4-HisMax B载体图谱

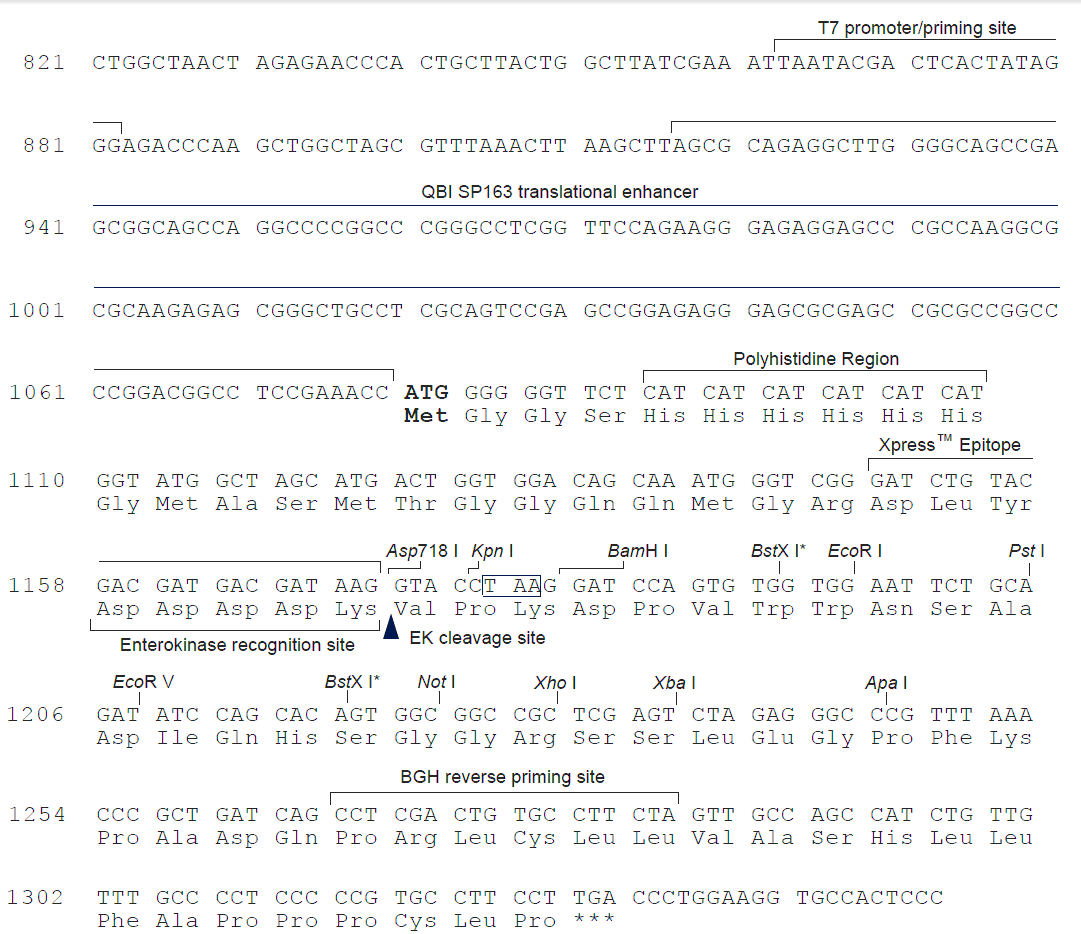

pcDNA4-HisMax B 多克隆位点

pcDNA4-HisMax 载体特征1
pcDNA4-HisMax 载体特征2

载体简介

pcDNA4/HisMax A, B, and C载体介绍:

pcDNA4/HisMax is specifically designed to maximize protein expression in a variety of mammalian cells. The vector contains the QBI SP163 translational enhancer to increase expression levels two- to five-fold above those seen with the promoter alone . In addition to SP163-enhanced expression, pcDNA4/HisMax includes a cleavable N-terminal Xpress tag for rapid detection of recombinant protein with an Anti-Xpress Antibody. pcDNA4/HisMax is available TOPO Cloning-ready for five-minute cloning of Taqamplified PCR products.

pcDNA4/HisMax A, B, and C are 5.3 kb vectors derived from pcDNA4/His and designed for overproduction of recombinant proteins in mammalian cell lines. Features of the vectors allow purification and detection of expressed proteins. High-level stable and transient expression can be carried out in most mammalian cells. The vectors contain the following elements:
 Human cytomegalovirus immediate-early (CMV) promoter for high-level expression in a wide range of mammalian cells
 QBI SP163 translational enhancer for increased levels of recombinant protein expression (Stein et al., 1998) (see page 4 for more information)
 Three reading frames to facilitate in-frame cloning with an N-terminal peptide encoding the Xpress epitope and a polyhistidine metal-binding tag
 Zeocin resistance gene for selection of stable cell lines
 Episomal replication in cell lines that are latently infected with SV40 or that express the SV40 large T antigen (e.g. COS-1, COS-7)
The control plasmid, pcDNA4/HisMax/lacZ, is included for use as a positive control for transfection, expression, and detection in the cell line of choice.

实验流程:

Use the following outline to clone and express your gene of interest in pcDNA4/HisMax.
 Consult the multiple cloning sites described on pages 5-7 to determine which vector (A, B, or C) should be used to clone your gene in frame with the N-terminal Xpress epitope and the polyhistidine tag.
 Ligate your insert into the appropriate vector and transform into E. coli. Select transformants on 50 to 100 μg/ml ampicillin or 25-50 μg/ml Zeocin.
 Analyze your transformants for the presence of insert by restriction digestion.
 Select a transformant with the correct restriction pattern and use sequencing to confirm that your gene is cloned in frame with the N-terminal peptide.
 Transfect your construct into the cell line of choice using your own method of transfection. Generate a stable cell line, if desired.
 Test for expression of your recombinant gene by western blot analysis or functional assay. .
 To purify your recombinant protein, you may use metal-chelating resin such as ProBond. ProBond resin is available separately.

表达目的基因:

We have a wide variety of mammalian expression vectors utilizing the CMV or EF-1α promoter. Vectors are available with the Xpress (N-terminal), c-myc (C-terminal), or V5 (C-terminal) epitope for detection and either the neomycin, blasticidin, or Zeocin resistance genes. All vectors utilize the polyhistidine tag for purification using ProBond resin.

The pcDNA4/HisMax vectors are fusion vectors. To ensure proper expression of your recombinant protein, you must clone your gene in frame with the ATG at base pairs 1080-1082. This will create a fusion with the N-terminal polyhistidine tag, Xpress epitope, and the enterokinase cleavage site. The vector is supplied with the multiple cloning site in three reading frames relative to the N-terminal peptide to facilitate cloning.

If you wish to clone your gene as close as possible to the enterokinase cleavage site, follow the guidelines below:
 Digest pcDNA4/HisMax A, B, or C with Kpn I.
 Create blunt ends with T4 DNA polymerase and dNTPs.
 Clone your blunt-ended insert in frame with the lysine codon (AAG) of the enterokinase recognition site.

载体序列

LOCUS       pcDNA4/His-Max B	5259 bp 	DNA	SYN
DEFINITION  pcDNA4/His-Max B
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..5259
                     /organism="pcDNA4/His-Max B"
                     /mol_type="other DNA"
     promoter        236..852
                     /label="CMV_immearly_promoter"
     misc_feature    315..602
                     /label="CAG_enhancer"
     misc_feature    769..789
                     /label="CMV_fwd_primer"
     promoter        863..881
                     /label="T7_promoter"
     misc_feature    1112..1130
                     /label="Xpress_fwd_primer"
     misc_feature    1113..1145
                     /label="T7_leader"
     misc_feature    1149..1172
                     /label="Xpress_EK"
     misc_feature    complement(1266..1283)
                     /label="BGH_rev_primer"
     terminator      1269..1496
                     /label="bGH_PA_terminator"
     rep_origin      1559..1865
                     /label="f1_origin"
     misc_feature    complement(1979..1999)
                     /label="pBABE_3_primer"
     misc_feature    complement(1985..2201)
                     /label="SV40_enhancer"
     promoter        1997..2266
                     /label="SV40_promoter"
     rep_origin      2165..2242
                     /label="SV40_origin"
     misc_feature    2227..2246
                     /label="SV40pro_F_primer"
     promoter        2360..2427
                     /label="EM7_promoter"
     gene            2428..2799
                     /label="bleo"
                     /gene="bleo"
     misc_feature    2428..2802
                     /label="sh_ble"
     terminator      2935..3054
                     /label="SV40_PA_terminator"
     misc_feature    3023..3042
                     /label="EBV_rev_primer"
     promoter        complement(3098..3116)
                     /label="M13_reverse_primer"
     misc_feature    complement(3115..3137)
                     /label="M13_pUC_rev_primer"
     promoter        complement(3151..3180)
                     /label="lac_promoter"
     rep_origin      complement(3489..4108)
                     /label="pBR322_origin"
     gene            complement(4263..5123)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(4263..5123)
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(5165..5193)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 GACGGATCGG GAGATCTCCC GATCCCCTAT GGTCGACTCT CAGTACAATC TGCTCTGATG
   61 CCGCATAGTT AAGCCAGTAT CTGCTCCCTG CTTGTGTGTT GGAGGTCGCT GAGTAGTGCG
  121 CGAGCAAAAT TTAAGCTACA ACAAGGCAAG GCTTGACCGA CAATTGCATG AAGAATCTGC
  181 TTAGGGTTAG GCGTTTTGCG CTGCTTCGCG ATGTACGGGC CAGATATACG CGTTGACATT
  241 GATTATTGAC TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA
  301 TGGAGTTCCG CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC
  361 CCCGCCCATT GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC
  421 ATTGACGTCA ATGGGTGGAC TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT
  481 ATCATATGCC AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT
  541 ATGCCCAGTA CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA
  601 TCGCTATTAC CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG
  661 ACTCACGGGG ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC
  721 AAAATCAACG GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG
  781 GTAGGCGTGT ACGGTGGGAG GTCTATATAA GCAGAGCTCT CTGGCTAACT AGAGAACCCA
  841 CTGCTTACTG GCTTATCGAA ATTAATACGA CTCACTATAG GGAGACCCAA GCTGGCTAGC
  901 GTTTAAACTT AAGCTTAGCG CAGAGGCTTG GGGCAGCCGA GCGGCAGCCA GGCCCCGGCC
  961 CGGGCCTCGG TTCCAGAAGG GAGAGGAGCC CGCCAAGGCG CGCAAGAGAG CGGGCTGCCT
 1021 CGCAGTCCGA GCCGGAGAGG GAGCGCGAGC CGCGCCGGCC CCGGACGGCC TCCGAAACCA
 1081 TGGGGGGTTC TCATCATCAT CATCATCATG GTATGGCTAG CATGACTGGT GGACAGCAAA
 1141 TGGGTCGGGA TCTGTACGAC GATGACGATA AGGTACCTAA GGATCCAGTG TGGTGGAATT
 1201 CTGCAGATAT CCAGCACAGT GGCGGCCGCT CGAGTCTAGA GGGCCCGTTT AAACCCGCTG
 1261 ATCAGCCTCG ACTGTGCCTT CTAGTTGCCA GCCATCTGTT GTTTGCCCCT CCCCCGTGCC
 1321 TTCCTTGACC CTGGAAGGTG CCACTCCCAC TGTCCTTTCC TAATAAAATG AGGAAATTGC
 1381 ATCGCATTGT CTGAGTAGGT GTCATTCTAT TCTGGGGGGT GGGGTGGGGC AGGACAGCAA
 1441 GGGGGAGGAT TGGGAAGACA ATAGCAGGCA TGCTGGGGAT GCGGTGGGCT CTATGGCTTC
 1501 TGAGGCGGAA AGAACCAGCT GGGGCTCTAG GGGGTATCCC CACGCGCCCT GTAGCGGCGC
 1561 ATTAAGCGCG GCGGGTGTGG TGGTTACGCG CAGCGTGACC GCTACACTTG CCAGCGCCCT
 1621 AGCGCCCGCT CCTTTCGCTT TCTTCCCTTC CTTTCTCGCC ACGTTCGCCG GCTTTCCCCG
 1681 TCAAGCTCTA AATCGGGGCA TCCCTTTAGG GTTCCGATTT AGTGCTTTAC GGCACCTCGA
 1741 CCCCAAAAAA CTTGATTAGG GTGATGGTTC ACGTAGTGGG CCATCGCCCT GATAGACGGT
 1801 TTTTCGCCCT TTGACGTTGG AGTCCACGTT CTTTAATAGT GGACTCTTGT TCCAAACTGG
 1861 AACAACACTC AACCCTATCT CGGTCTATTC TTTTGATTTA TAAGGGATTT TGGGGATTTC
 1921 GGCCTATTGG TTAAAAAATG AGCTGATTTA ACAAAAATTT AACGCGAATT AATTCTGTGG
 1981 AATGTGTGTC AGTTAGGGTG TGGAAAGTCC CCAGGCTCCC CAGGCAGGCA GAAGTATGCA
 2041 AAGCATGCAT CTCAATTAGT CAGCAACCAG GTGTGGAAAG TCCCCAGGCT CCCCAGCAGG
 2101 CAGAAGTATG CAAAGCATGC ATCTCAATTA GTCAGCAACC ATAGTCCCGC CCCTAACTCC
 2161 GCCCATCCCG CCCCTAACTC CGCCCAGTTC CGCCCATTCT CCGCCCCATG GCTGACTAAT
 2221 TTTTTTTATT TATGCAGAGG CCGAGGCCGC CTCTGCCTCT GAGCTATTCC AGAAGTAGTG
 2281 AGGAGGCTTT TTTGGAGGCC TAGGCTTTTG CAAAAAGCTC CCGGGAGCTT GTATATCCAT
 2341 TTTCGGATCT GATCAGCACG TGTTGACAAT TAATCATCGG CATAGTATAT CGGCATAGTA
 2401 TAATACGACA AGGTGAGGAA CTAAACCATG GCCAAGTTGA CCAGTGCCGT TCCGGTGCTC
 2461 ACCGCGCGCG ACGTCGCCGG AGCGGTCGAG TTCTGGACCG ACCGGCTCGG GTTCTCCCGG
 2521 GACTTCGTGG AGGACGACTT CGCCGGTGTG GTCCGGGACG ACGTGACCCT GTTCATCAGC
 2581 GCGGTCCAGG ACCAGGTGGT GCCGGACAAC ACCCTGGCCT GGGTGTGGGT GCGCGGCCTG
 2641 GACGAGCTGT ACGCCGAGTG GTCGGAGGTC GTGTCCACGA ACTTCCGGGA CGCCTCCGGG
 2701 CCGGCCATGA CCGAGATCGG CGAGCAGCCG TGGGGGCGGG AGTTCGCCCT GCGCGACCCG
 2761 GCCGGCAACT GCGTGCACTT CGTGGCCGAG GAGCAGGACT GACACGTGCT ACGAGATTTC
 2821 GATTCCACCG CCGCCTTCTA TGAAAGGTTG GGCTTCGGAA TCGTTTTCCG GGACGCCGGC
 2881 TGGATGATCC TCCAGCGCGG GGATCTCATG CTGGAGTTCT TCGCCCACCC CAACTTGTTT
 2941 ATTGCAGCTT ATAATGGTTA CAAATAAAGC AATAGCATCA CAAATTTCAC AAATAAAGCA
 3001 TTTTTTTCAC TGCATTCTAG TTGTGGTTTG TCCAAACTCA TCAATGTATC TTATCATGTC
 3061 TGTATACCGT CGACCTCTAG CTAGAGCTTG GCGTAATCAT GGTCATAGCT GTTTCCTGTG
 3121 TGAAATTGTT ATCCGCTCAC AATTCCACAC AACATACGAG CCGGAAGCAT AAAGTGTAAA
 3181 GCCTGGGGTG CCTAATGAGT GAGCTAACTC ACATTAATTG CGTTGCGCTC ACTGCCCGCT
 3241 TTCCAGTCGG GAAACCTGTC GTGCCAGCTG CATTAATGAA TCGGCCAACG CGCGGGGAGA
 3301 GGCGGTTTGC GTATTGGGCG CTCTTCCGCT TCCTCGCTCA CTGACTCGCT GCGCTCGGTC
 3361 GTTCGGCTGC GGCGAGCGGT ATCAGCTCAC TCAAAGGCGG TAATACGGTT ATCCACAGAA
 3421 TCAGGGGATA ACGCAGGAAA GAACATGTGA GCAAAAGGCC AGCAAAAGGC CAGGAACCGT
 3481 AAAAAGGCCG CGTTGCTGGC GTTTTTCCAT AGGCTCCGCC CCCCTGACGA GCATCACAAA
 3541 AATCGACGCT CAAGTCAGAG GTGGCGAAAC CCGACAGGAC TATAAAGATA CCAGGCGTTT
 3601 CCCCCTGGAA GCTCCCTCGT GCGCTCTCCT GTTCCGACCC TGCCGCTTAC CGGATACCTG
 3661 TCCGCCTTTC TCCCTTCGGG AAGCGTGGCG CTTTCTCAAT GCTCACGCTG TAGGTATCTC
 3721 AGTTCGGTGT AGGTCGTTCG CTCCAAGCTG GGCTGTGTGC ACGAACCCCC CGTTCAGCCC
 3781 GACCGCTGCG CCTTATCCGG TAACTATCGT CTTGAGTCCA ACCCGGTAAG ACACGACTTA
 3841 TCGCCACTGG CAGCAGCCAC TGGTAACAGG ATTAGCAGAG CGAGGTATGT AGGCGGTGCT
 3901 ACAGAGTTCT TGAAGTGGTG GCCTAACTAC GGCTACACTA GAAGGACAGT ATTTGGTATC
 3961 TGCGCTCTGC TGAAGCCAGT TACCTTCGGA AAAAGAGTTG GTAGCTCTTG ATCCGGCAAA
 4021 CAAACCACCG CTGGTAGCGG TGGTTTTTTT GTTTGCAAGC AGCAGATTAC GCGCAGAAAA
 4081 AAAGGATCTC AAGAAGATCC TTTGATCTTT TCTACGGGGT CTGACGCTCA GTGGAACGAA
 4141 AACTCACGTT AAGGGATTTT GGTCATGAGA TTATCAAAAA GGATCTTCAC CTAGATCCTT
 4201 TTAAATTAAA AATGAAGTTT TAAATCAATC TAAAGTATAT ATGAGTAAAC TTGGTCTGAC
 4261 AGTTACCAAT GCTTAATCAG TGAGGCACCT ATCTCAGCGA TCTGTCTATT TCGTTCATCC
 4321 ATAGTTGCCT GACTCCCCGT CGTGTAGATA ACTACGATAC GGGAGGGCTT ACCATCTGGC
 4381 CCCAGTGCTG CAATGATACC GCGAGACCCA CGCTCACCGG CTCCAGATTT ATCAGCAATA
 4441 AACCAGCCAG CCGGAAGGGC CGAGCGCAGA AGTGGTCCTG CAACTTTATC CGCCTCCATC
 4501 CAGTCTATTA ATTGTTGCCG GGAAGCTAGA GTAAGTAGTT CGCCAGTTAA TAGTTTGCGC
 4561 AACGTTGTTG CCATTGCTAC AGGCATCGTG GTGTCACGCT CGTCGTTTGG TATGGCTTCA
 4621 TTCAGCTCCG GTTCCCAACG ATCAAGGCGA GTTACATGAT CCCCCATGTT GTGCAAAAAA
 4681 GCGGTTAGCT CCTTCGGTCC TCCGATCGTT GTCAGAAGTA AGTTGGCCGC AGTGTTATCA
 4741 CTCATGGTTA TGGCAGCACT GCATAATTCT CTTACTGTCA TGCCATCCGT AAGATGCTTT
 4801 TCTGTGACTG GTGAGTACTC AACCAAGTCA TTCTGAGAAT AGTGTATGCG GCGACCGAGT
 4861 TGCTCTTGCC CGGCGTCAAT ACGGGATAAT ACCGCGCCAC ATAGCAGAAC TTTAAAAGTG
 4921 CTCATCATTG GAAAACGTTC TTCGGGGCGA AAACTCTCAA GGATCTTACC GCTGTTGAGA
 4981 TCCAGTTCGA TGTAACCCAC TCGTGCACCC AACTGATCTT CAGCATCTTT TACTTTCACC
 5041 AGCGTTTCTG GGTGAGCAAA AACAGGAAGG CAAAATGCCG CAAAAAAGGG AATAAGGGCG
 5101 ACACGGAAAT GTTGAATACT CATACTCTTC CTTTTTCAAT ATTATTGAAG CATTTATCAG
 5161 GGTTATTGTC TCATGAGCGG ATACATATTT GAATGTATTT AGAAAAATAA ACAAATAGGG
 5221 GTTCCGCGCA CATTTCCCCG AAAAGTGCCA CCTGACGTC
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
