pRS316

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: ATCC
载体名称: pESC-URA, pESC URA
Gene accession NO. : AF063585
质粒类型: 酿酒酵母蛋白表达载体
表达水平: 高拷贝
诱导方法: 半乳糖
启动子: T7
克隆方法: 多克隆位点,限制性内切酶
载体大小: 4887 bp
5' 测序引物及序列: T7: TAATACGACTCACTATAGGG
3' 测序引物及序列: M13-R: CAGGAAACAGCTATGAC
载体标签: --
载体抗性: 氨苄
筛选标记: URA3
备注: 利用半乳糖诱导,可以同时使两个基因在酿酒酵母中表达。
产品目录号: 77145
稳定性: 稳定 Stable
组成型/诱导型: 诱导型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

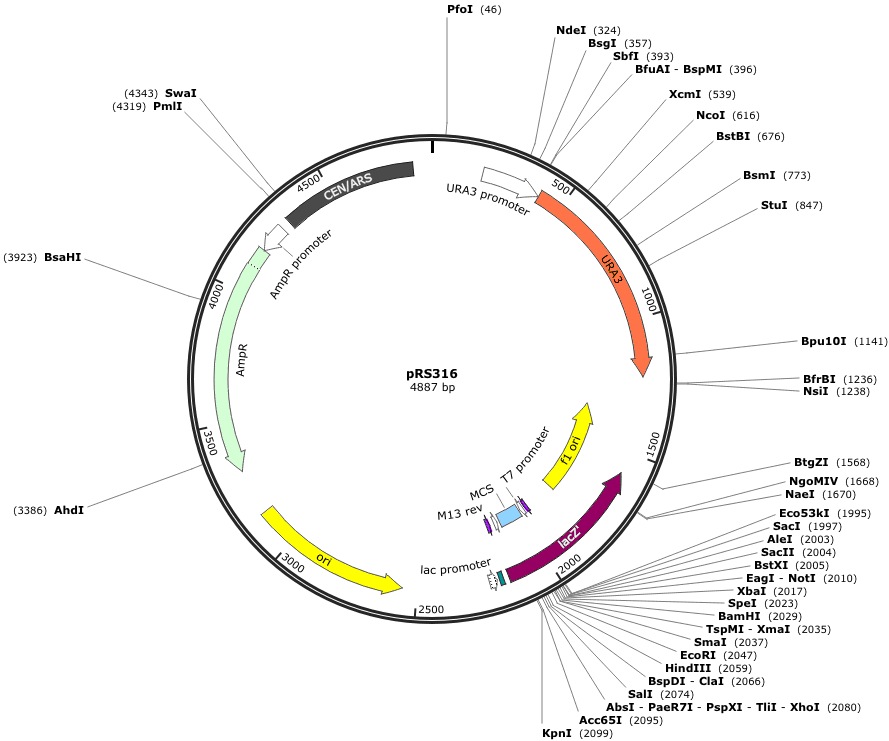

pRS316载体图谱

载体简介

载体序列

LOCUS       pRS316           4887 bp ds-DNA    circular SYN 09-九月-2012
DEFINITION  Yeast centromere vector with URA3 marker.
ACCESSION   U03442
VERSION     .
KEYWORDS    pRS316
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4887)
  AUTHORS   Sikorski RS, Hieter P.
  TITLE     A system of shuttle vectors and yeast host strains designed for
            efficient manipulation of DNA in Saccharomyces cerevisiae.
  JOURNAL   Genetics 1989;122:19-27.
  PUBMED    2659436
REFERENCE   2  (bases 1 to 4887)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported 2013年8月13日 from SnapGene Viewer 1.5.3
            http://www.snapgene.com
COMMENT
FEATURES             Location/Qualifiers
     source          1..4887
                     /organism="synthetic DNA construct"
                     /lab_host="Saccharomyces cerevisiae"
                     /mol_type="other DNA"
     promoter        190..410
                     /gene="S. cerevisiae URA3"
                     /note="URA3 promoter"
                     /note="color: #ffffff; direction: RIGHT"
     CDS             411..1214
                     /codon_start=1
                     /gene="S. cerevisiae URA3"
                     /product="orotidine-5'-phosphate decarboxylase, required
                     for uracil biosynthesis"
                     /note="URA3"
                     /note="yeast auxotrophic marker, counterselectable with
                     5-fluoroorotic acid (5-FOA)"
                     /note="color: #ff7f50"
                     /translation="MSKATYKERAATHPSPVAAKLFNIMHEKQTNLCASLDVRTTKELL
                     ELVEALGPKICLLKTHVDILTDFSMEGTVKPLKALSAKYNFLLFEDRKFADIGNTVKLQ
                     YSAGVYRIAEWADITNAHGVVGPGIVSGLKQAAEEVTKEPRGLLMLAELSCKGSLSTGE
                     YTKGTVDIAKSDKDFVIGFIAQRDMGGRDEGYDWLIMTPGVGLDDKGDALGQQYRTVDD
                     VVSTGSDIIIVGRGLFAKGRDAKVEGERYRKAGWEAYLRRCGQQN"
     rep_origin      complement(1343..1798)
                     /direction=LEFT
                     /note="f1 ori"
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
                     /note="color: #ffff00"
     CDS             complement(1581..2156)
                     /codon_start=1
                     /gene="lacZ?fragment"
                     /product="fragment of?beta-galactosidase"
                     /note="lacZ'"
                     /note="color: #993366"
                     /translation="MTMITPSSELTLTKGNKSWVPGPPSRSTVSISLISNSCSPGDPLV
                     LERPPPRWSSNSPYSESYYNSLAVVLQRRDWENPGVTQLNRLAAHPPFASWRNSEEART
                     DRPSQQLRSLNGEWRDAPCSGALSAAGVVVTRSVTATLASALAPAPFAFFPSFLATFAG
                     FPRQALNRGLPLGFRFSALRHLDPKKLD"
     primer_bind     1943..1959
                     /note="M13 fwd"
                     /note="common sequencing primer, one of multiple similar
                     variants"
                     /note="color: #a020f0; direction: RIGHT"
     promoter        1966..1984
                     /note="T7 promoter"
                     /note="promoter for bacteriophage T7 RNA polymerase"
                     /note="color: #ffffff; direction: RIGHT"
     misc_feature    1993..2100
                     /note="MCS"
                     /note="pBluescript multiple cloning site"
                     /note="color: #99ccff"
     promoter        complement(2113..2131)
                     /note="T3 promoter"
                     /note="promoter for bacteriophage T3 RNA polymerase"
                     /note="color: #ffffff; direction: LEFT"
     primer_bind     complement(2152..2168)
                     /note="M13 rev"
                     /note="common sequencing primer, one of multiple similar
                     variants"
                     /note="color: #a020f0; direction: LEFT"
     protein_bind    2176..2192
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
                     /note="color: #31849b"
     promoter        complement(2200..2230)
                     /note="lac promoter"
                     /note="promoter for the E. coli lac operon"
                     /note="This reverse directional feature has 3 segments:
                     ???1:?2200?..?2206?/?#ffffff?/?-10
                     ???2:?2207?..?2224?/?#ffffff
                     ???3:?2225?..?2230?/?#ffffff?/?-35"
     rep_origin      complement(2554..3142)
                     /direction=LEFT
                     /note="ori"
                     /note="high-copy-number colE1/pMB1/pBR322/pUC origin of
                     replication"
                     /note="color: #ffff00"
     CDS             complement(3313..4173)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /note="This feature has 2 segments:
                     ???1:?3313?..?4104?/?#ccffcc
                     ???2:?4105?..?4173?/?#ccffcc?/?signal?sequence
                     Cleavage site after base 4104"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFFHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(4174..4278)
                     /gene="bla"
                     /note="AmpR promoter"
                     /note="color: #ffffff; direction: LEFT"
     misc_feature    4315..4818
                     /note="CEN/ARS"
                     /note="S. cerevisiae CEN6 centromere fused to an
                     autonomously replicating sequence"
                     /note="color: #454f59"
ORIGIN
        1 tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg gagacggtca
       61 cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg tcagcgggtg
      121 ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta ctgagagtgc
      181 accacgcttt tcaattcaat tcatcatttt ttttttattc ttttttttga tttcggtttc
      241 tttgaaattt ttttgattcg gtaatctccg aacagaagga agaacgaagg aaggagcaca
      301 gacttagatt ggtatatata cgcatatgta gtgttgaaga aacatgaaat tgcccagtat
      361 tcttaaccca actgcacaga acaaaaacct gcaggaaacg aagataaatc atgtcgaaag
      421 ctacatataa ggaacgtgct gctactcatc ctagtcctgt tgctgccaag ctatttaata
      481 tcatgcacga aaagcaaaca aacttgtgtg cttcattgga tgttcgtacc accaaggaat
      541 tactggagtt agttgaagca ttaggtccca aaatttgttt actaaaaaca catgtggata
      601 tcttgactga tttttccatg gagggcacag ttaagccgct aaaggcatta tccgccaagt
      661 acaatttttt actcttcgaa gacagaaaat ttgctgacat tggtaataca gtcaaattgc
      721 agtactctgc gggtgtatac agaatagcag aatgggcaga cattacgaat gcacacggtg
      781 tggtgggccc aggtattgtt agcggtttga agcaggcggc agaagaagta acaaaggaac
      841 ctagaggcct tttgatgtta gcagaattgt catgcaaggg ctccctatct actggagaat
      901 atactaaggg tactgttgac attgcgaaga gcgacaaaga ttttgttatc ggctttattg
      961 ctcaaagaga catgggtgga agagatgaag gttacgattg gttgattatg acacccggtg
     1021 tgggtttaga tgacaaggga gacgcattgg gtcaacagta tagaaccgtg gatgatgtgg
     1081 tctctacagg atctgacatt attattgttg gaagaggact atttgcaaag ggaagggatg
     1141 ctaaggtaga gggtgaacgt tacagaaaag caggctggga agcatatttg agaagatgcg
     1201 gccagcaaaa ctaaaaaact gtattataag taaatgcatg tatactaaac tcacaaatta
     1261 gagcttcaat ttaattatat cagttattac cctgcggtgt gaaataccgc acagatgcgt
     1321 aaggagaaaa taccgcatca ggaaattgta aacgttaata ttttgttaaa attcgcgtta
     1381 aatttttgtt aaatcagctc attttttaac caataggccg aaatcggcaa aatcccttat
     1441 aaatcaaaag aatagaccga gatagggttg agtgttgttc cagtttggaa caagagtcca
     1501 ctattaaaga acgtggactc caacgtcaaa gggcgaaaaa ccgtctatca gggcgatggc
     1561 ccactacgtg aaccatcacc ctaatcaagt tttttggggt cgaggtgccg taaagcacta
     1621 aatcggaacc ctaaagggag cccccgattt agagcttgac ggggaaagcc ggcgaacgtg
     1681 gcgagaaagg aagggaagaa agcgaaagga gcgggcgcta gggcgctggc aagtgtagcg
     1741 gtcacgctgc gcgtaaccac cacacccgcc gcgcttaatg cgccgctaca gggcgcgtcg
     1801 cgccattcgc cattcaggct gcgcaactgt tgggaagggc gatcggtgcg ggcctcttcg
     1861 ctattacgcc agctggcgaa ggggggatgt gctgcaaggc gattaagttg ggtaacgcca
     1921 gggttttccc agtcacgacg ttgtaaaacg acggccagtg aattgtaata cgactcacta
     1981 tagggcgaat tggagctcca ccgcggtggc ggccgctcta gaactagtgg atcccccggg
     2041 ctgcaggaat tcgatatcaa gcttatcgat accgtcgacc tcgagggggg gcccggtacc
     2101 cagcttttgt tccctttagt gagggttaat tccgagcttg gcgtaatcat ggtcatagct
     2161 gtttcctgtg tgaaattgtt atccgctcac aattccacac aacataggag ccggaagcat
     2221 aaagtgtaaa gcctggggtg cctaatgagt gaggtaactc acattaattg cgttgcgctc
     2281 actgcccgct ttccagtcgg gaaacctgtc gtgccagctg cattaatgaa tcggccaacg
     2341 cgcggggaga ggcggtttgc gtattgggcg ctcttccgct tcctcgctca ctgactcgct
     2401 gcgctcggtc gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg taatacggtt
     2461 atccacagaa tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc
     2521 caggaaccgt aaaaaggccg cgttgctggc gtttttccat aggctcggcc cccctgacga
     2581 gcatcacaaa aatcgacgct caagtcagag gtggcgaaac ccgacaggac tataaagata
     2641 ccaggcgttc ccccctggaa gctccctcgt gcgctctcct gttccgaccc tgccgcttac
     2701 cggatacctg tccgcctttc tcccttcggg aagcgtggcg ctttctcaat gctcacgctg
     2761 taggtatctc agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc
     2821 cgttcagccc gaccgctgcg ccttatccgg taactatcgt cttgagtcca acccggtaag
     2881 acacgactta tcgccactgg cagcagccac tggtaacagg attagcagag cgaggtatgt
     2941 aggcggtgct acagagttct tgaagtggtg gcctaactac ggctacacta gaaggacagt
     3001 atttggtatc tgcgctctgc tgaagccagt taccttcgga aaaagagttg gtagctcttg
     3061 atccggcaaa caaaccaccg ctggtagcgg tggttttttt gtttgcaagc agcagattac
     3121 gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt tctacggggt ctgacgctca
     3181 gtggaacgaa aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac
     3241 ctagatcctt ttaaattaaa aatgaagttt taaatcaatc taaagtatat atgagtaaac
     3301 ttggtctgac agttaccaat gcttaatcag tgaggcacct atctcagcga tctgtctatt
     3361 tcgttcatcc atagttgcct gactgcccgt cgtgtagata actacgatac gggagggctt
     3421 accatctggc cccagtgctg caatgatacc gcgagaccca cgctcaccgg ctccagattt
     3481 atcagcaata aaccagccag ccggaagggc cgagcgcaga agtggtcctg caactttatc
     3541 cgcctccatc cagtctatta attgttgccg ggaagctaga gtaagtagtt cgccagttaa
     3601 tagtttgcgc aacgttgttg ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg
     3661 tatggcttca ttcagctccg gttcccaacg atcaaggcga gttacatgat cccccatgtt
     3721 gtgaaaaaaa gcggttagct ccttcggtcc tccgatcgtt gtcagaagta agttggccgc
     3781 agtgttatca ctcatggtta tggcagcact gcataattct cttactgtca tgccatccgt
     3841 aagatgcttt tctgtgactg gtgagtactc aaccaagtca ttctgagaat agtgtatgcg
     3901 gcgaccgagt tgctcttgcc cggcgtcaat acgggataat accgcgccac atagcagaac
     3961 tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga aaactctcaa ggatcttacc
     4021 gctgttgaga tccagttcga tgtaacccac tcgtgcaccc aactgatctt cagcatcttt
     4081 tactttcacc agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg
     4141 aataagggcg acacggaaat gttgaatact catactcttc ctttttcaat attattgaag
     4201 catttatcag ggttattgtc tcatgagcgg atacatattt gaatgtattt agaaaaataa
     4261 acaaataggg gttccgcgca catttccccg aaaagtgcca cctgggtcct tttcatcacg
     4321 tgctataaaa ataattataa tttaaatttt ttaatataaa tatataaatt aaaaatagaa
     4381 agtaaaaaaa gaaattaaag aaaaaatagt ttttgttttc cgaagatgta aaagactcta
     4441 gggggatcgc caacaaatac taccttttat cttgctcttc ctgctctcag gtattaatgc
     4501 cgaattgttt catcttgtct gtgtagaaga ccacacacga aaatcctgtg attttacatt
     4561 ttacttatcg ttaatcgaat gtatatctat ttaatctgct tttcttgtct aataaatata
     4621 tatgtaaagt acgctttttg ttgaaatttt ttaaaccttt gtttattttt ttttcttcat
     4681 tccgtaactc ttctaccttc tttatttact ttctaaaatc caaatacaaa acataaaaat
     4741 aaataaacac agagtaaatt cccaaattat tccatcatta aaagatacga ggcgcgtgta
     4801 agttacaggc aagcgatccg tcctaagaaa ccattattat catgacatta acctataaaa
     4861 ataggcgtat cacgaggccc tttcgtc
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
