pmCherry-1

价格:2500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pmCherry-1
质粒类型: 无启动子载体;荧光报告载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: 无启动子
载体大小: 4140 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: 红色荧光蛋白mCherry(C-端)
载体抗性: Kanamycin.html' target='_blank'>卡那霉素
筛选标记: 新霉素(Neomycin)
克隆菌株: TOP10, DH5α, JM109
宿主细胞(系): 真核细胞
备注: pmCherry-1载体不含启动子,将待研究的目的启动子插入MCS区,
用于研究启动子及顺式转录元件在细胞内的表达水平和活性。
产品目录号: 632525
稳定性: 瞬表达 或 稳表达
组成型/诱导型: --
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

pmCherry-1载体图谱

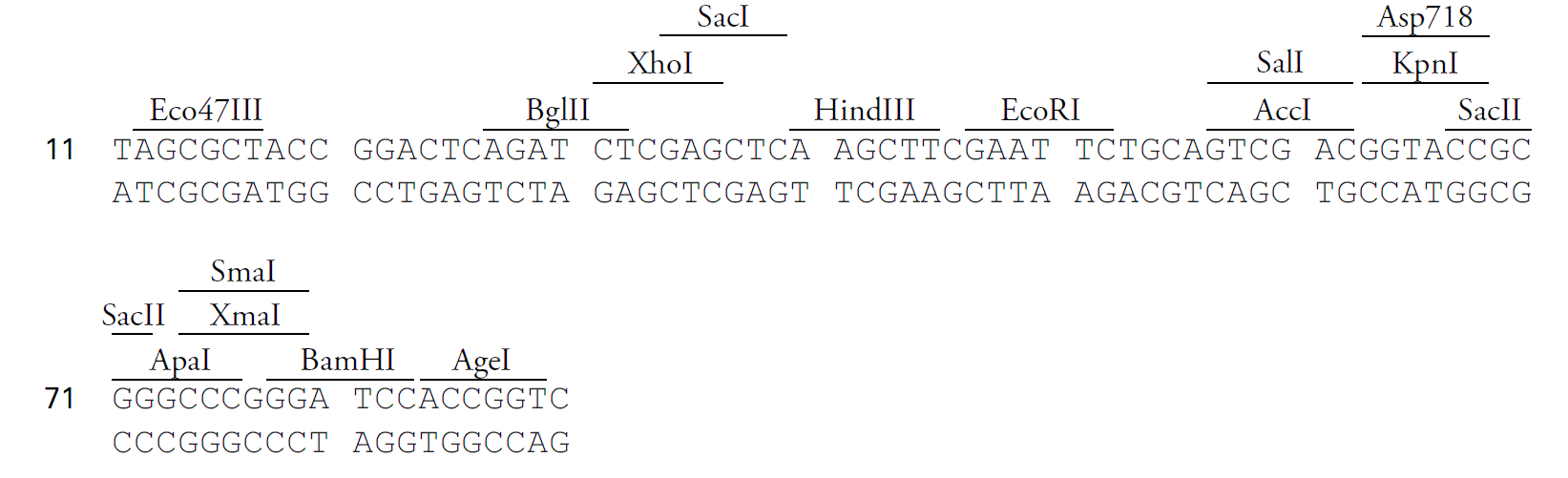

pmCherry-1 多克隆位点

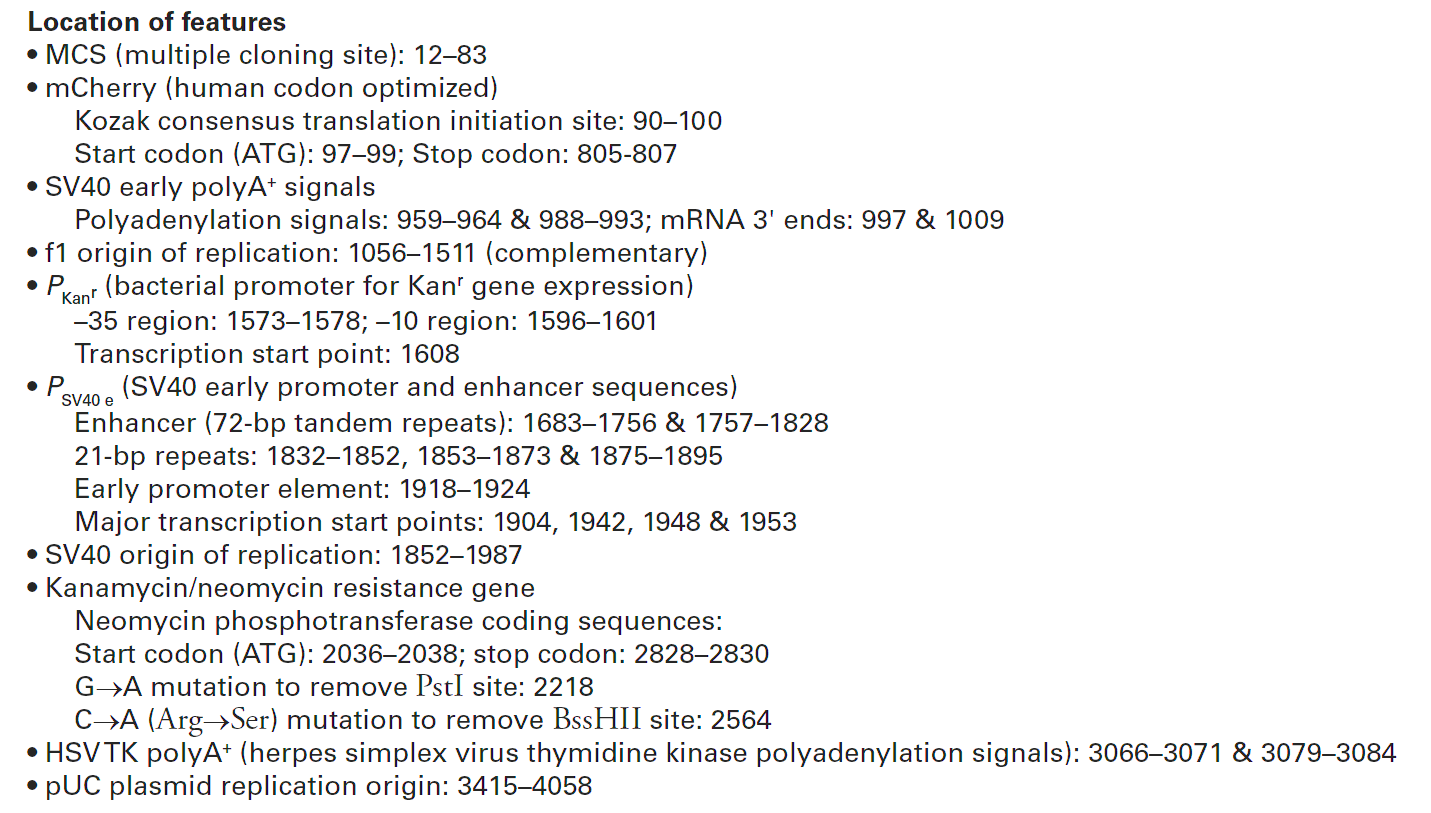

pmCherry-1 载体特征

载体简介

 pmCherry-1载体描述

pmCherry-1 is a reporter vector that allows the functional analysis of promoters and promoter/enhancer combinations cloned into its multiple cloning site (MCS). The vector encodes mCherry, a mutant fluorescent protein derived from the tetrameric Discosoma sp. red fluorescent protein, DsRed (excitation and emission maxima: 587 nm and 610 nm, respectively; 1). The mCherry coding sequence has been human codon-optimized to allow optimal expression after the insertion of a functional promoter into the MCS (2).
SV40 polyadenylation signals downstream of the mCherry gene direct proper processing of the 3' end of the mCherry mRNA. The vector backbone contains an SV40 origin for replication in mammalian cells expressing the SV40 large T antigen, a pUC origin of replication for propagation in E. coli, and an f1 origin for single-stranded DNA production. A neomycin-resistance cassette (Neor) allows stably transfected eukaryotic cells to be selected using G418. This cassette consists of the SV40 early promoter (PSV40 e), the
neomycin/kanamycin resistance gene of Tn5, and polyadenylation signals from the herpes simplex virus thymidine kinase (HSV TK) gene. A bacterial promoter (PKanr) upstream of the cassette allows kanamycin resistance in E. coli.

pmCherry can be used as an in vivo reporter of gene expression. Promoters should be cloned into the pmCherry-1 MCS upstream from the mCherry coding sequence. Without the addition of a functionalpromoter, this vector will not express mCherry. The mCherry vector can be transfected into mammalian cells using any standard method. If required, stable transfectants can be selected using G418 (3).
For Western analysis, either the Living Colors DsRed Polyclonal Antibody (Cat. No. 632496) or the DsRed Monoclonal Antibody (Cat. Nos. 632392 and 632393) can be used to detect the mCherry protein.

pmCherry-1载体特征

MCS (multiple cloning site): 12–83
 mCherry (human codon optimized)
Kozak consensus translation initiation site: 90–100
Start codon (ATG): 97–99; Stop codon: 805-807
 SV40 early polyA+ signals
Polyadenylation signals: 959–964 & 988–993; mRNA 3' ends: 997 & 1009
 f1 origin of replication: 1056–1511 (complementary)
 PKanr (bacterial promoter for Kanr gene expression)
–35 region: 1573–1578; –10 region: 1596–1601
Transcription start point: 1608
 PSV40 e (SV40 early promoter and enhancer sequences)
Enhancer (72-bp tandem repeats): 1683–1756 & 1757–1828
21-bp repeats: 1832–1852, 1853–1873 & 1875–1895
Early promoter element: 1918–1924
Major transcription start points: 1904, 1942, 1948 & 1953
 SV40 origin of replication: 1852–1987
 Kanamycin/neomycin resistance gene
Neomycin phosphotransferase coding sequences:
Start codon (ATG): 2036–2038; stop codon: 2828–2830
G→A mutation to remove PstI site: 2218
C→A (Arg→Ser) mutation to remove BssHII site: 2564
 HSV TK polyA+ (herpes simplex virus thymidine kinase polyadenylation signals): 3066–3071 & 3079–3084
 pUC plasmid replication origin: 3415–4058


质粒的扩增

 Suitable host strains: DH5α, HB101 and other general purpose strains. Single-stranded DNA production
requires a host containing an F plasmid such as JM109 or XL1-Blue.
 Selectable marker: plasmid confers resistance to kanamycin (50 μg/ml) in E. coli hosts.
 E. coli replication origin: pUC
 Copy number: ~500

Excitation and emission maxima of mCherry
 Excitation maximum = 587 nm
 Emission maximum = 610 nm

载体序列

LOCUS       pmCherry-1	4140 bp 	DNA	SYN
DEFINITION  pmCherry-1
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..4140
                     /organism="pmCherry-1"
                     /mol_type="other DNA"
     CDS             complement(25..837)
                     /label="ORF frame 1"
                     /translation="MADYDLESRPLLVQLVHAAGGVAALGAFVLFHDGVVLVVGGDVQ
                     LDVDVVGAGQLHGLLGLVGGLDLSVVVAAVLQLQPLLDLALQGAVLGVHPLGGGLPAH
                     GLLLHYGAVGGEVGAAQLHLVDELAVLQGGVLGHGHHAAVLEVHHALPLEALGEGQLQ
                     VVGDVGGVLHVGLGAVHELRGQDVPGEGQGATLGHLQLGGLGALVGAALALALDLELV
                     AVHGALHVHLEAHELLDDGHVILLALAHHGGDRWIPGPRYRRLQNSKLELEI*"
     CDS             97..807
                     /label="ORF frame 1"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
                     GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
                     NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
                     ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
                     YERAEGRHSTGGMDELYK*"
     gene            100..804
                     /label="mCherry"
                     /gene="mCherry"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
                     GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
                     NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
                     ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
                     YERAEGRHSTGGMDELYK*"
     misc_feature    277..330
                     /label="Q66M (mCherry)"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
                     GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
                     NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
                     ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
                     YERAEGRHSTGGMDELYK*"
     misc_feature    1019..1038
                     /label="EBV_rev_primer"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
                     GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
                     NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
                     ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
                     YERAEGRHSTGGMDELYK*"
     rep_origin      complement(1188..1494)
                     /label="f1_origin"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
                     GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
                     NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
                     ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
                     YERAEGRHSTGGMDELYK*"
     promoter        1573..1601
                     /label="AmpR_promoter"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
                     GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
                     NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
                     ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
                     YERAEGRHSTGGMDELYK*"
     misc_feature    complement(1667..1687)
                     /label="pBABE_3_primer"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
                     GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
                     NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
                     ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
                     YERAEGRHSTGGMDELYK*"
     misc_feature    complement(1673..1888)
                     /label="SV40_enhancer"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
                     GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
                     NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
                     ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
                     YERAEGRHSTGGMDELYK*"
     promoter        1685..1953
                     /label="SV40_promoter"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
                     GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
                     NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
                     ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
                     YERAEGRHSTGGMDELYK*"
     rep_origin      1852..1929
                     /label="SV40_origin"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
                     GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
                     NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
                     ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
                     YERAEGRHSTGGMDELYK*"
     misc_feature    1914..1933
                     /label="SV40pro_F_primer"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
                     GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
                     NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
                     ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
                     YERAEGRHSTGGMDELYK*"
     CDS             2036..2830
                     /label="ORF frame 2"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     gene            2039..2827
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     CDS             complement(2345..2881)
                     /label="ORF frame 3"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     terminator      3005..3274
                     /label="TK_PA_terminator"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     rep_origin      3422..4041
                     /label="pBR322_origin"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
ORIGIN
    1 TAGTTATTAC TAGCGCTACC GGACTCAGAT CTCGAGCTCA AGCTTCGAAT TCTGCAGTCG
   61 ACGGTACCGC GGGCCCGGGA TCCACCGGTC GCCACCATGG TGAGCAAGGG CGAGGAGGAT
  121 AACATGGCCA TCATCAAGGA GTTCATGCGC TTCAAGGTGC ACATGGAGGG CTCCGTGAAC
  181 GGCCACGAGT TCGAGATCGA GGGCGAGGGC GAGGGCCGCC CCTACGAGGG CACCCAGACC
  241 GCCAAGCTGA AGGTGACCAA GGGTGGCCCC CTGCCCTTCG CCTGGGACAT CCTGTCCCCT
  301 CAGTTCATGT ACGGCTCCAA GGCCTACGTG AAGCACCCCG CCGACATCCC CGACTACTTG
  361 AAGCTGTCCT TCCCCGAGGG CTTCAAGTGG GAGCGCGTGA TGAACTTCGA GGACGGCGGC
  421 GTGGTGACCG TGACCCAGGA CTCCTCCCTG CAGGACGGCG AGTTCATCTA CAAGGTGAAG
  481 CTGCGCGGCA CCAACTTCCC CTCCGACGGC CCCGTAATGC AGAAGAAGAC CATGGGCTGG
  541 GAGGCCTCCT CCGAGCGGAT GTACCCCGAG GACGGCGCCC TGAAGGGCGA GATCAAGCAG
  601 AGGCTGAAGC TGAAGGACGG CGGCCACTAC GACGCTGAGG TCAAGACCAC CTACAAGGCC
  661 AAGAAGCCCG TGCAGCTGCC CGGCGCCTAC AACGTCAACA TCAAGTTGGA CATCACCTCC
  721 CACAACGAGG ACTACACCAT CGTGGAACAG TACGAACGCG CCGAGGGCCG CCACTCCACC
  781 GGCGGCATGG ACGAGCTGTA CAAGTAGCGG CCGCGACTCT AGATCATAAT CAGCCATACC
  841 ACATTTGTAG AGGTTTTACT TGCTTTAAAA AACCTCCCAC ACCTCCCCCT GAACCTGAAA
  901 CATAAAATGA ATGCAATTGT TGTTGTTAAC TTGTTTATTG CAGCTTATAA TGGTTACAAA
  961 TAAAGCAATA GCATCACAAA TTTCACAAAT AAAGCATTTT TTTCACTGCA TTCTAGTTGT
 1021 GGTTTGTCCA AACTCATCAA TGTATCTTAA GGCGTAAATT GTAAGCGTTA ATATTTTGTT
 1081 AAAATTCGCG TTAAATTTTT GTTAAATCAG CTCATTTTTT AACCAATAGG CCGAAATCGG
 1141 CAAAATCCCT TATAAATCAA AAGAATAGAC CGAGATAGGG TTGAGTGTTG TTCCAGTTTG
 1201 GAACAAGAGT CCACTATTAA AGAACGTGGA CTCCAACGTC AAAGGGCGAA AAACCGTCTA
 1261 TCAGGGCGAT GGCCCACTAC GTGAACCATC ACCCTAATCA AGTTTTTTGG GGTCGAGGTG
 1321 CCGTAAAGCA CTAAATCGGA ACCCTAAAGG GAGCCCCCGA TTTAGAGCTT GACGGGGAAA
 1381 GCCGGCGAAC GTGGCGAGAA AGGAAGGGAA GAAAGCGAAA GGAGCGGGCG CTAGGGCGCT
 1441 GGCAAGTGTA GCGGTCACGC TGCGCGTAAC CACCACACCC GCCGCGCTTA ATGCGCCGCT
 1501 ACAGGGCGCG TCAGGTGGCA CTTTTCGGGG AAATGTGCGC GGAACCCCTA TTTGTTTATT
 1561 TTTCTAAATA CATTCAAATA TGTATCCGCT CATGAGACAA TAACCCTGAT AAATGCTTCA
 1621 ATAATATTGA AAAAGGAAGA GTCCTGAGGC GGAAAGAACC AGCTGTGGAA TGTGTGTCAG
 1681 TTAGGGTGTG GAAAGTCCCC AGGCTCCCCA GCAGGCAGAA GTATGCAAAG CATGCATCTC
 1741 AATTAGTCAG CAACCAGGTG TGGAAAGTCC CCAGGCTCCC CAGCAGGCAG AAGTATGCAA
 1801 AGCATGCATC TCAATTAGTC AGCAACCATA GTCCCGCCCC TAACTCCGCC CATCCCGCCC
 1861 CTAACTCCGC CCAGTTCCGC CCATTCTCCG CCCCATGGCT GACTAATTTT TTTTATTTAT
 1921 GCAGAGGCCG AGGCCGCCTC GGCCTCTGAG CTATTCCAGA AGTAGTGAGG AGGCTTTTTT
 1981 GGAGGCCTAG GCTTTTGCAA AGATCGATCA AGAGACAGGA TGAGGATCGT TTCGCATGAT
 2041 TGAACAAGAT GGATTGCACG CAGGTTCTCC GGCCGCTTGG GTGGAGAGGC TATTCGGCTA
 2101 TGACTGGGCA CAACAGACAA TCGGCTGCTC TGATGCCGCC GTGTTCCGGC TGTCAGCGCA
 2161 GGGGCGCCCG GTTCTTTTTG TCAAGACCGA CCTGTCCGGT GCCCTGAATG AACTGCAAGA
 2221 CGAGGCAGCG CGGCTATCGT GGCTGGCCAC GACGGGCGTT CCTTGCGCAG CTGTGCTCGA
 2281 CGTTGTCACT GAAGCGGGAA GGGACTGGCT GCTATTGGGC GAAGTGCCGG GGCAGGATCT
 2341 CCTGTCATCT CACCTTGCTC CTGCCGAGAA AGTATCCATC ATGGCTGATG CAATGCGGCG
 2401 GCTGCATACG CTTGATCCGG CTACCTGCCC ATTCGACCAC CAAGCGAAAC ATCGCATCGA
 2461 GCGAGCACGT ACTCGGATGG AAGCCGGTCT TGTCGATCAG GATGATCTGG ACGAAGAGCA
 2521 TCAGGGGCTC GCGCCAGCCG AACTGTTCGC CAGGCTCAAG GCGAGCATGC CCGACGGCGA
 2581 GGATCTCGTC GTGACCCATG GCGATGCCTG CTTGCCGAAT ATCATGGTGG AAAATGGCCG
 2641 CTTTTCTGGA TTCATCGACT GTGGCCGGCT GGGTGTGGCG GACCGCTATC AGGACATAGC
 2701 GTTGGCTACC CGTGATATTG CTGAAGAGCT TGGCGGCGAA TGGGCTGACC GCTTCCTCGT
 2761 GCTTTACGGT ATCGCCGCTC CCGATTCGCA GCGCATCGCC TTCTATCGCC TTCTTGACGA
 2821 GTTCTTCTGA GCGGGACTCT GGGGTTCGAA ATGACCGACC AAGCGACGCC CAACCTGCCA
 2881 TCACGAGATT TCGATTCCAC CGCCGCCTTC TATGAAAGGT TGGGCTTCGG AATCGTTTTC
 2941 CGGGACGCCG GCTGGATGAT CCTCCAGCGC GGGGATCTCA TGCTGGAGTT CTTCGCCCAC
 3001 CCTAGGGGGA GGCTAACTGA AACACGGAAG GAGACAATAC CGGAAGGAAC CCGCGCTATG
 3061 ACGGCAATAA AAAGACAGAA TAAAACGCAC GGTGTTGGGT CGTTTGTTCA TAAACGCGGG
 3121 GTTCGGTCCC AGGGCTGGCA CTCTGTCGAT ACCCCACCGA GACCCCATTG GGGCCAATAC
 3181 GCCCGCGTTT CTTCCTTTTC CCCACCCCAC CCCCCAAGTT CGGGTGAAGG CCCAGGGCTC
 3241 GCAGCCAACG TCGGGGCGGC AGGCCCTGCC ATAGCCTCAG GTTACTCATA TATACTTTAG
 3301 ATTGATTTAA AACTTCATTT TTAATTTAAA AGGATCTAGG TGAAGATCCT TTTTGATAAT
 3361 CTCATGACCA AAATCCCTTA ACGTGAGTTT TCGTTCCACT GAGCGTCAGA CCCCGTAGAA
 3421 AAGATCAAAG GATCTTCTTG AGATCCTTTT TTTCTGCGCG TAATCTGCTG CTTGCAAACA
 3481 AAAAAACCAC CGCTACCAGC GGTGGTTTGT TTGCCGGATC AAGAGCTACC AACTCTTTTT
 3541 CCGAAGGTAA CTGGCTTCAG CAGAGCGCAG ATACCAAATA CTGTTCTTCT AGTGTAGCCG
 3601 TAGTTAGGCC ACCACTTCAA GAACTCTGTA GCACCGCCTA CATACCTCGC TCTGCTAATC
 3661 CTGTTACCAG TGGCTGCTGC CAGTGGCGAT AAGTCGTGTC TTACCGGGTT GGACTCAAGA
 3721 CGATAGTTAC CGGATAAGGC GCAGCGGTCG GGCTGAACGG GGGGTTCGTG CACACAGCCC
 3781 AGCTTGGAGC GAACGACCTA CACCGAACTG AGATACCTAC AGCGTGAGCT ATGAGAAAGC
 3841 GCCACGCTTC CCGAAGGGAG AAAGGCGGAC AGGTATCCGG TAAGCGGCAG GGTCGGAACA
 3901 GGAGAGCGCA CGAGGGAGCT TCCAGGGGGA AACGCCTGGT ATCTTTATAG TCCTGTCGGG
 3961 TTTCGCCACC TCTGACTTGA GCGTCGATTT TTGTGATGCT CGTCAGGGGG GCGGAGCCTA
 4021 TGGAAAAACG CCAGCAACGC GGCCTTTTTA CGGTTCCTGG CCTTTTGCTG GCCTTTTGCT
 4081 CACATGTTCT TTCCTGCGTT ATCCCCTGAT TCTGTGGATA ACCGTATTAC CGCCATGCAT

//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
