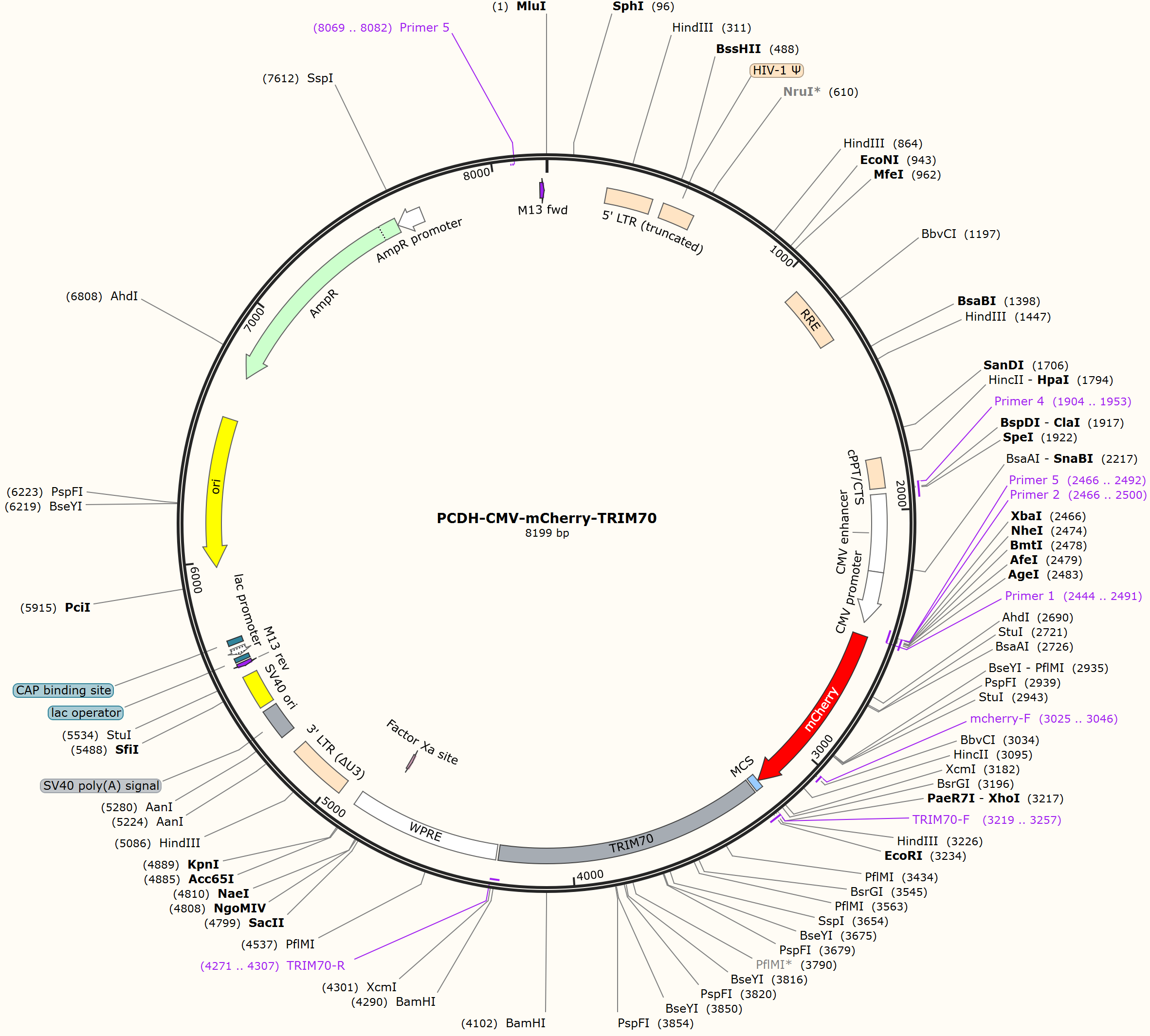

PCDH-CMV-mCherry-TRIM70

LOCUS       PCDH-CMV-mCherry-TRIM70               8199 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8199)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 11, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8199
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3219..3257
                     /label=TRIM70-F
     misc_feature    3240..4286
                     /label=TRIM70
     primer_bind     complement(4271..4307)
                     /label=TRIM70-R
     misc_feature    4296..4883
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(4767..4778)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             4956..5189
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5261..5382
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5401..5536
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5574..5590)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5598..5614
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5622..5652)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5667..5688
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5976..6564)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6735..7595)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7596..7700)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8069..8082)
                     /label=Primer 5
     primer_bind     8174..8190
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tgcagtttgg ggaactcctt gctgctgtga ggaaggccca ggccaatgtg atgctcttct
     3301 tagaggagaa ggagcaagct gcgctgagcc aggccaacgg tatcaaggcc cacctggagt
     3361 acaggagtgc cgagatggag aagagtaagc aggagctgga gacgatggcg gccatcagca
     3421 acactgtcca gttcttggag gagtactgca agtttaagaa cactgaagac atcaccttcc
     3481 ctagtgttta catagggctg aaggataaac tctcgggcat ccgcaaagtt atcacggaat
     3541 ccactgtaca cttaatccag ttgctggaga actataagaa aaagctccag gagttttcca
     3601 aggaagagga gtatgacatc agaactcaag tgtctgccat tgttcagcgc aaatattgga
     3661 cttccaaacc tgagcccagc accagggaac agttcctcca atatgtgcat gacatcacgt
     3721 tcgacccgga cacagcacac aagtatctcc ggctgcagga ggagaaccgc aaggtcacca
     3781 acaccacgcc ctgggagcat ccctacccgg acctccccag caggttcctg cactggcggc
     3841 aggtgctgtc ccagcagagt ctgtacctgc acaggtacta ttttgaggtg gagatcttcg
     3901 gggcaggcac ctatgttggc ctgacctgca aaggcatcga ccagaaaggg gaggagcgca
     3961 gcagttgcat ttccggaaac aacttctcct ggagcctcca atggaacggg aaggagttca
     4021 cggcctggta cagtgacatg gagaccccac tcaaagctgg ccctttctgg aggctcgggg
     4081 tctatattga cttcccagga gggatccttt ccttctatgg cgtagagtat gattccatga
     4141 ctctggttca caagtttgcc tgcaagtttt cagaaccagt ctatgctgcc ttctggcttt
     4201 ccaagaagga aaacgccatc cggattgtag atctgggaga ggaacccgag aagccagcac
     4261 cgtccttggt ggggactgct ccctagtagg gatccaatca acctctggat tacaaaattt
     4321 gtgaaagatt gactggtatt cttaactatg ttgctccttt tacgctatgt ggatacgctg
     4381 ctttaatgcc tttgtatcat gctattgctt cccgtatggc tttcattttc tcctccttgt
     4441 ataaatcctg gttgctgtct ctttatgagg agttgtggcc cgttgtcagg caacgtggcg
     4501 tggtgtgcac tgtgtttgct gacgcaaccc ccactggttg gggcattgcc accacctgtc
     4561 agctcctttc cgggactttc gctttccccc tccctattgc cacggcggaa ctcatcgccg
     4621 cctgccttgc ccgctgctgg acaggggctc ggctgttggg cactgacaat tccgtggtgt
     4681 tgtcggggaa gctgacgtcc tttccatggc tgctcgcctg tgttgccacc tggattctgc
     4741 gcgggacgtc cttctgctac gtcccttcgg ccctcaatcc agcggacctt ccttcccgcg
     4801 gcctgctgcc ggctctgcgg cctcttccgc gtctccgcct tcgccctcag acgagtcgga
     4861 tctccctttg gccgcctccc cgccggtacc tttaagacca atgacttaca aggcagctgt
     4921 agatcttagc cactttttaa aagaaaaggg gggactggaa gggctaattc actcccaacg
     4981 aaaataagat ctgctttttg cttgtactgg gtctctctgg ttagaccaga tctgagcctg
     5041 ggagctctct ggctaactag ggaacccact gcttaagcct caataaagct tgccttgagt
     5101 gcttcaagta gtgtgtgccc gtctgttgtg tgactctggt aactagagat ccctcagacc
     5161 cttttagtca gtgtggaaaa tctctagcag tagtagttca tgtcatctta ttattcagta
     5221 tttataactt gcaaagaaat gaatatcaga gagtgagagg aacttgttta ttgcagctta
     5281 taatggttac aaataaagca atagcatcac aaatttcaca aataaagcat ttttttcact
     5341 gcattctagt tgtggtttgt ccaaactcat caatgtatct tatcatgtct ggctctagct
     5401 atcccgcccc taactccgcc cagttccgcc cattctccgc cccatggctg actaattttt
     5461 tttatttatg cagaggccga ggccgcctcg gcctctgagc tattccagaa gtagtgagga
     5521 ggcttttttg gaggcctaga cttttgcaga gacggcccaa attcgtaatc atggtcatag
     5581 ctgtttcctg tgtgaaattg ttatccgctc acaattccac acaacatacg agccggaagc
     5641 ataaagtgta aagcctgggg tgcctaatga gtgagctaac tcacattaat tgcgttgcgc
     5701 tcactgcccg ctttccagtc gggaaacctg tcgtgccagc tgcattaatg aatcggccaa
     5761 cgcgcgggga gaggcggttt gcgtattggg cgctcttccg cttcctcgct cactgactcg
     5821 ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc actcaaaggc ggtaatacgg
     5881 ttatccacag aatcagggga taacgcagga aagaacatgt gagcaaaagg ccagcaaaag
     5941 gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg cccccctgac
     6001 gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg actataaaga
     6061 taccaggcgt ttccccctgg aagctccctc gtgcgctctc ctgttccgac cctgccgctt
     6121 accggatacc tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca tagctcacgc
     6181 tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt gcacgaaccc
     6241 cccgttcagc ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc caacccggta
     6301 agacacgact tatcgccact ggcagcagcc actggtaaca ggattagcag agcgaggtat
     6361 gtaggcggtg ctacagagtt cttgaagtgg tggcctaact acggctacac tagaaggaca
     6421 gtatttggta tctgcgctct gctgaagcca gttaccttcg gaaaaagagt tggtagctct
     6481 tgatccggca aacaaaccac cgctggtagc ggtggttttt ttgtttgcaa gcagcagatt
     6541 acgcgcagaa aaaaaggatc tcaagaagat cctttgatct tttctacggg gtctgacgct
     6601 cagtggaacg aaaactcacg ttaagggatt ttggtcatga gattatcaaa aaggatcttc
     6661 acctagatcc ttttaaatta aaaatgaagt tttaaatcaa tctaaagtat atatgagtaa
     6721 acttggtctg acagttacca atgcttaatc agtgaggcac ctatctcagc gatctgtcta
     6781 tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga taactacgat acgggagggc
     6841 ttaccatctg gccccagtgc tgcaatgata ccgcgagacc cacgctcacc ggctccagat
     6901 ttatcagcaa taaaccagcc agccggaagg gccgagcgca gaagtggtcc tgcaacttta
     6961 tccgcctcca tccagtctat taattgttgc cgggaagcta gagtaagtag ttcgccagtt
     7021 aatagtttgc gcaacgttgt tgccattgct acaggcatcg tggtgtcacg ctcgtcgttt
     7081 ggtatggctt cattcagctc cggttcccaa cgatcaaggc gagttacatg atcccccatg
     7141 ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg ttgtcagaag taagttggcc
     7201 gcagtgttat cactcatggt tatggcagca ctgcataatt ctcttactgt catgccatcc
     7261 gtaagatgct tttctgtgac tggtgagtac tcaaccaagt cattctgaga atagtgtatg
     7321 cggcgaccga gttgctcttg cccggcgtca atacgggata ataccgcgcc acatagcaga
     7381 actttaaaag tgctcatcat tggaaaacgt tcttcggggc gaaaactctc aaggatctta
     7441 ccgctgttga gatccagttc gatgtaaccc actcgtgcac ccaactgatc ttcagcatct
     7501 tttactttca ccagcgtttc tgggtgagca aaaacaggaa ggcaaaatgc cgcaaaaaag
     7561 ggaataaggg cgacacggaa atgttgaata ctcatactct tcctttttca atattattga
     7621 agcatttatc agggttattg tctcatgagc ggatacatat ttgaatgtat ttagaaaaat
     7681 aaacaaatag gggttccgcg cacatttccc cgaaaagtgc cacctgacgt ctaagaaacc
     7741 attattatca tgacattaac ctataaaaat aggcgtatca cgaggccctt tcgtctcgcg
     7801 cgtttcggtg atgacggtga aaacctctga cacatgcagc tcccggagac ggtcacagct
     7861 tgtctgtaag cggatgccgg gagcagacaa gcccgtcagg gcgcgtcagc gggtgttggc
     7921 gggtgtcggg gctggcttaa ctatgcggca tcagagcaga ttgtactgag agtgcaccat
     7981 atgcggtgtg aaataccgca cagatgcgta aggagaaaat accgcatcag gcgccattcg
     8041 ccattcaggc tgcgcaactg ttgggaaggg cgatcggtgc gggcctcttc gctattacgc
     8101 cagctggcga aagggggatg tgctgcaagg cgattaagtt gggtaacgcc agggttttcc
     8161 cagtcacgac gttgtaaaac gacggccagt gccaagctg
//
