pTXB1

价格:850元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: NEB(New England Biolabs)
载体名称: pTXB1
质粒类型: 原核细胞表达载体
高拷贝/低拷贝: --
启动子: --
克隆方法: 多克隆位点,限制性内切酶
载体大小: 6706bp
5' 测序引物及序列: T7 Fwd
3' 测序引物及序列: --
载体标签:  intein
载体抗性: 氨苄青霉素(Ampicillin)
筛选标记: --
备注: --
产品目录号: N6707
稳定性: --
组成型: --
病毒/非病毒: --

载体质粒图谱和多克隆位点信息

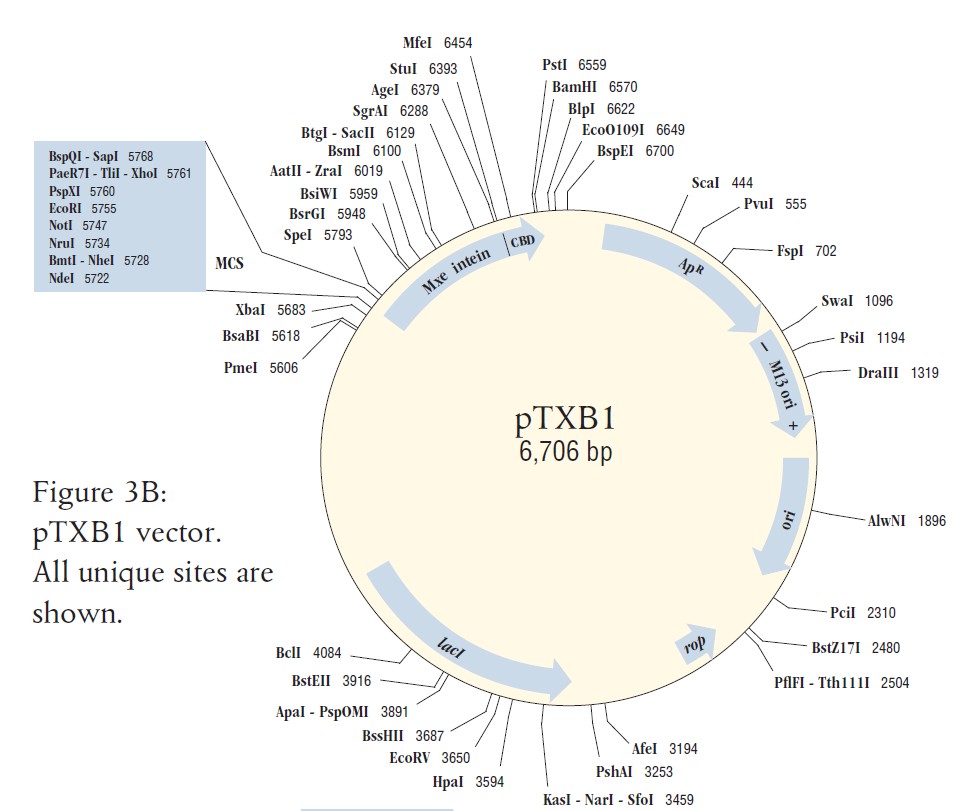

pTXB1载体图谱

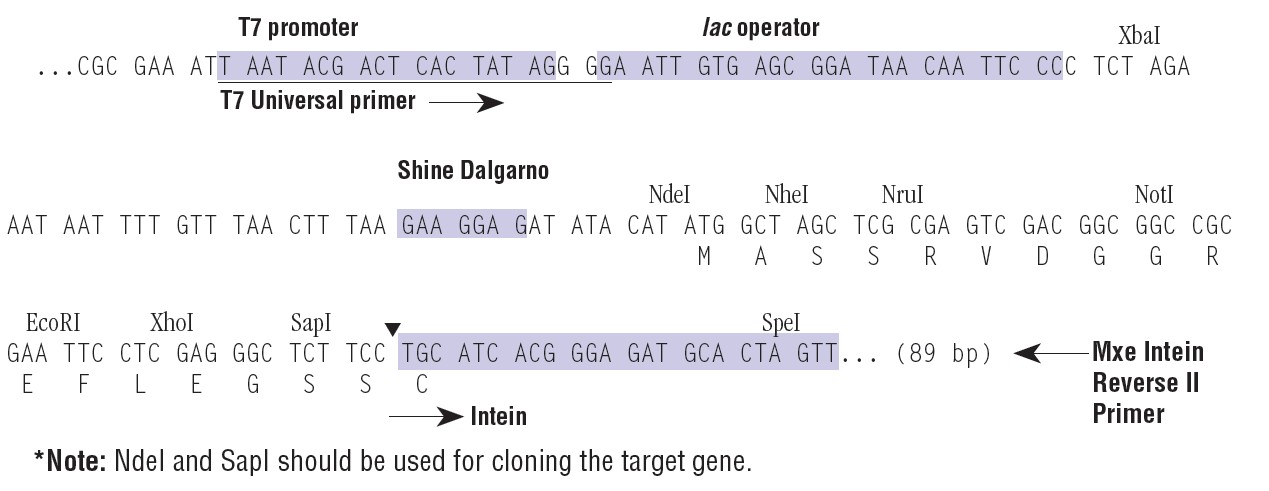

pTXB1多克隆位点

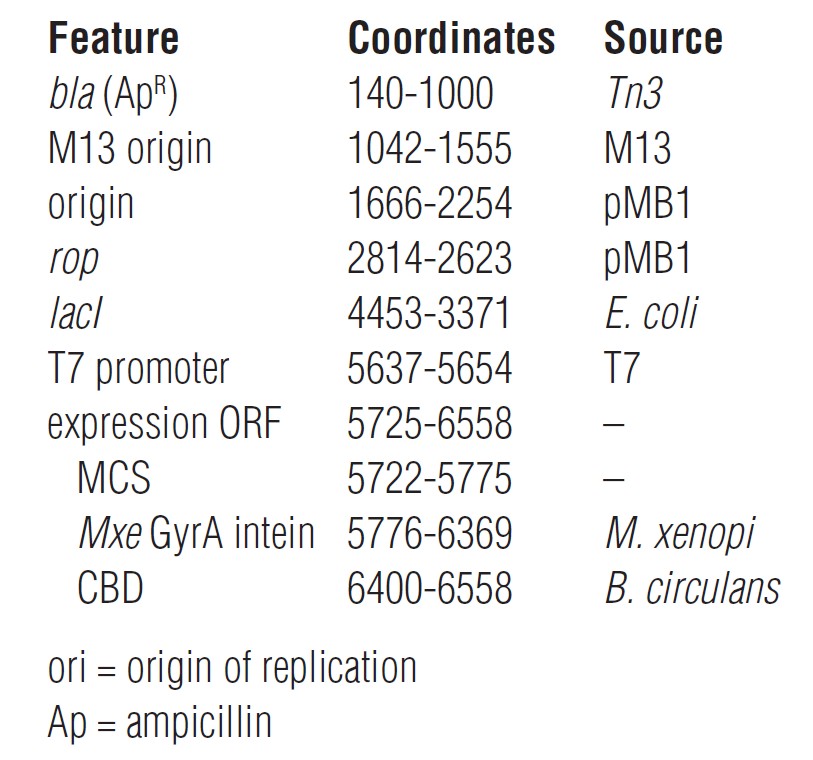

pTXB1载体特征

载体简介

pTXB1 contains a mini-intein from the Mycobacterium xenopi gyrA gene (Mxe GyrA intein; 198 amino acid residues)  that has been modified to undergo thiol-induced cleavage at its N-terminus (3,5). The vector allows for the
purification of a target protein without any extra amino acids by cloning into the NdeI and SapI sites. The target protein is fused at its C-terminus to a self-cleavable intein tag (~28 kDa) that contains the chitin
binding domain (CBD, 6 kDa) allowing for affinity purification of the fusion precursor on a chitin column.

载体序列

      1  AACTACGTCA GGTGGCACTT TTCGGGGAAA TGTGCGCGGA ACCCCTATTT
     51  GTTTATTTTT CTAAATACAT TCAAATATGT ATCCGCTCAT GAGACAATAA
    101  CCCTGATAAA TGCTTCAATA ATATTGAAAA AGGAAGAGTA TGAGTATTCA
    151  ACATTTCCGT GTCGCCCTTA TTCCCTTTTT TGCGGCATTT TGCCTTCCTG
    201  TTTTTGCTCA CCCAGAAACG CTGGTGAAAG TAAAAGATGC TGAAGATCAG
    251  TTGGGTGCAC GAGTGGGTTA CATCGAACTG GATCTCAACA GCGGTAAGAT
    301  CCTTGAGAGT TTTCGCCCCG AAGAACGTTC TCCAATGATG AGCACTTTTA
    351  AAGTTCTGCT ATGTGGCGCG GTATTATCCC GTGTTGACGC CGGGCAAGAG
    401  CAACTCGGTC GCCGCATACA CTATTCTCAG AATGACTTGG TTGAGTACTC
    451  ACCAGTCACA GAAAAGCATC TTACGGATGG CATGACAGTA AGAGAATTAT
    501  GCAGTGCTGC CATAACCATG AGTGATAACA CTGCGGCCAA CTTACTTCTG
    551  ACAACGATCG GAGGACCGAA GGAGCTAACC GCTTTTTTGC ACAACATGGG
    601  GGATCATGTA ACTCGCCTTG ATCGTTGGGA ACCGGAGCTG AATGAAGCCA
    651  TACCAAACGA CGAGCGTGAC ACCACGATGC CTGTAGCAAT GGCAACAACG
    701  TTGCGCAAAC TATTAACTGG CGAACTACTT ACTCTAGCTT CCCGGCAACA
    751  ATTAATAGAC TGGATGGAGG CGGATAAAGT TGCAGGACCA CTTCTGCGCT
    801  CGGCCCTTCC GGCTGGCTGG TTTATTGCTG ATAAATCTGG AGCCGGTGAG
    851  CGTGGGTCTC GCGGTATCAT TGCAGCACTG GGGCCAGATG GTAAGCCCTC
    901  CCGTATCGTA GTTATCTACA CGACGGGGAG TCAGGCAACT ATGGATGAAC
    951  GAAATAGACA GATCGCTGAG ATAGGTGCCT CACTGATTAA GCATTGGTAA
   1001  CTGTCAGACC AAGTTTACTC ATATATACTT TAGATTGATT TACCCCGGTT
   1051  GATAATCAGA AAAGCCCCAA AAACAGGAAG ATTGTATAAG CAAATATTTA
   1101  AATTGTAAAC GTTAATATTT TGTTAAAATT CGCGTTAAAT TTTTGTTAAA
   1151  TCAGCTCATT TTTTAACCAA TAGGCCGAAA TCGGCAAAAT CCCTTATAAA
   1201  TCAAAAGAAT AGCCCGAGAT AGGGTTGAGT GTTGTTCCAG TTTGGAACAA
   1251  GAGTCCACTA TTAAAGAACG TGGACTCCAA CGTCAAAGGG CGAAAAACCG
   1301  TCTATCAGGG CGATGGCCCA CTACGTGAAC CATCACCCAA ATCAAGTTTT
   1351  TTGGGGTCGA GGTGCCGTAA AGCACTAAAT CGGAACCCTA AAGGGAGCCC
   1401  CCGATTTAGA GCTTGACGGG GAAAGCCGGC GAACGTGGCG AGAAAGGAAG
   1451  GGAAGAAAGC GAAAGGAGCG GGCGCTAGGG CGCTGGCAAG TGTAGCGGTC
   1501  ACGCTGCGCG TAACCACCAC ACCCGCCGCG CTTAATGCGC CGCTACAGGG
   1551  CGCGTAAAAG GATCTAGGTG AAGATCCTTT TTGATAATCT CATGACCAAA
   1601  ATCCCTTAAC GTGAGTTTTC GTTCCACTGA GCGTCAGACC CCGTAGAAAA
   1651  GATCAAAGGA TCTTCTTGAG ATCCTTTTTT TCTGCGCGTA ATCTGCTGCT
   1701  TGCAAACAAA AAAACCACCG CTACCAGCGG TGGTTTGTTT GCCGGATCAA
   1751  GAGCTACCAA CTCTTTTTCC GAAGGTAACT GGCTTCAGCA GAGCGCAGAT
   1801  ACCAAATACT GTCCTTCTAG TGTAGCCGTA GTTAGGCCAC CACTTCAAGA
   1851  ACTCTGTAGC ACCGCCTACA TACCTCGCTC TGCTAATCCT GTTACCAGTG
   1901  GCTGCTGCCA GTGGCGATAA GTCGTGTCTT ACCGGGTTGG ACTCAAGACG
   1951  ATAGTTACCG GATAAGGCGC AGCGGTCGGG CTGAACGGGG GGTTCGTGCA
   2001  CACAGCCCAG CTTGGAGCGA ACGACCTACA CCGAACTGAG ATACCTACAG
   2051  CGTGAGCTAT GAGAAAGCGC CACGCTTCCC GAAGGGAGAA AGGCGGACAG
   2101  GTATCCGGTA AGCGGCAGGG TCGGAACAGG AGAGCGCACG AGGGAGCTTC
   2151  CAGGGGGAAA CGCCTGGTAT CTTTATAGTC CTGTCGGGTT TCGCCACCTC
   2201  TGACTTGAGC GTCGATTTTT GTGATGCTCG TCAGGGGGGC GGAGCCTATG
   2251  GAAAAACGCC AGCAACGCGG CCTTTTTACG GTTCCTGGCC TTTTGCTGGC
   2301  CTTTTGCTCA CATGTTCTTT CCTGCGTTAT CCCCTGATTC TGTGGATAAC
   2351  CGTATTACCG CCTTTGAGTG AGCTGATACC GCTCGCCGCA GCCGAACGAC
   2401  CGAGCGCAGC GAGTCAGTGA GCGAGGAAGC TATGGTGCAC TCTCAGTACA
   2451  ATCTGCTCTG ATGCCGCATA GTTAAGCCAG TATACACTCC GCTATCGCTA
   2501  CGTGACTGGG TCATGGCTGC GCCCCGACAC CCGCCAACAC CCGCTGACGC
   2551  GCCCTGACGG GCTTGTCTGC TCCCGGCATC CGCTTACAGA CAAGCTGTGA
   2601  CCGTCTCCGG GAGCTGCATG TGTCAGAGGT TTTCACCGTC ATCACCGAAA
   2651  CGCGCGAGGC AGCTGCGGTA AAGCTCATCA GCGTGGTCGT GCAGCGATTC
   2701  ACAGATGTCT GCCTGTTCAT CCGCGTCCAG CTCGTTGAGT TTCTCCAGAA
   2751  GCGTTAATGT CTGGCTTCTG ATAAAGCGGG CCATGTTAAG GGCGGTTTTT
   2801  TCCTGTTTGG TCACTGATGC CTCCGTGTAA GGGGGATTTC TGTTCATGGG
   2851  GGTAATGATA CCGATGAAAC GAGAGAGGAT GCTCACGATA CGGGTTACTG
   2901  ATGATGAACA TGCCCGGTTA CTGGAACGTT GTGAGGGTAA ACAACTGGCG
   2951  GTATGGATGC GGCGGGACCA GAGAAAAATC ACTCAGGGTC AATGCCAGCC
   3001  GAACGCCAGC AAGACGTAGC CCAGCGCGTC GGCCGCCATG CCGGCGATAA
   3051  TGGCCTGCTT CTCGCCGAAA CGTTTGGTGG CGGGACCAGT GACGAAGGCT
   3101  TGAGCGAGGG CGTGCAAGAT TCCGAATACC GCAAGCGACA GGCCGATCAT
   3151  CGTCGCGCTC CAGCGAAAGC GGTCCTCGCC GAAAATGACC CAGAGCGCTG
   3201  CCGGCACCTG TCCTACGAGT TGCATGATAA AGAAGACAGT CATAAGTGCG
   3251  GCGACGATAG TCATGCCCCG CGCCCACCGG AAGGAGCTGA CTGGGTTGAA
   3301  GGCTCTCAAG GGCATCGGTC GAGATCCCGG TGCCTAATGA GTGAGCTAAC
   3351  TTACATTAAT TGCGTTGCGC TCACTGCCCG CTTTCCAGTC GGGAAACCTG
   3401  TCGTGCCAGC TGCATTAATG AATCGGCCAA CGCGCGGGGA GAGGCGGTTT
   3451  GCGTATTGGG CGCCAGGGTG GTTTTTCTTT TCACCAGTGA GACGGGCAAC
   3501  AGCTGATTGC CCTTCACCGC CTGGCCCTGA GAGAGTTGCA GCAAGCGGTC
   3551  CACGCTGGTT TGCCCCAGCA GGCGAAAATC CTGTTTGATG GTGGTTAACG
   3601  GCGGGATATA ACATGAGCTG TCTTCGGTAT CGTCGTATCC CACTACCGAG
   3651  ATATCCGCAC CAACGCGCAG CCCGGACTCG GTAATGGCGC GCATTGCGCC
   3701  CAGCGCCATC TGATCGTTGG CAACCAGCAT CGCAGTGGGA ACGATGCCCT
   3751  CATTCAGCAT TTGCATGGTT TGTTGAAAAC CGGACATGGC ACTCCAGTCG
   3801  CCTTCCCGTT CCGCTATCGG CTGAATTTGA TTGCGAGTGA GATATTTATG
   3851  CCAGCCAGCC AGACGCAGAC GCGCCGAGAC AGAACTTAAT GGGCCCGCTA
   3901  ACAGCGCGAT TTGCTGGTGA CCCAATGCGA CCAGATGCTC CACGCCCAGT
   3951  CGCGTACCGT CTTCATGGGA GAAAATAATA CTGTTGATGG GTGTCTGGTC
   4001  AGAGACATCA AGAAATAACG CCGGAACATT AGTGCAGGCA GCTTCCACAG
   4051  CAATGGCATC CTGGTCATCC AGCGGATAGT TAATGATCAG CCCACTGACG
   4101  CGTTGCGCGA GAAGATTGTG CACCGCCGCT TTACAGGCTT CGACGCCGCT
   4151  TCGTTCTACC ATCGACACCA CCACGCTGGC ACCCAGTTGA TCGGCGCGAG
   4201  ATTTAATCGC CGCGACAATT TGCGACGGCG CGTGCAGGGC CAGACTGGAG
   4251  GTGGCAACGC CAATCAGCAA CGACTGTTTG CCCGCCAGTT GTTGTGCCAC
   4301  GCGGTTGGGA ATGTAATTCA GCTCCGCCAT CGCCGCTTCC ACTTTTTCCC
   4351  GCGTTTTCGC AGAAACGTGG CTGGCCTGGT TCACCACGCG GGAAACGGTC
   4401  TGATAAGAGA CACCGGCATA CTCTGCGACA TCGTATAACG TTACTGGTTT
   4451  CACATTCACC ACCCTGAATT GACTCTCTTC CGGGCGCTAT CATGCCATAC
   4501  CGCGAAAGGT TTTGCGCCAT TCGATGGTGT CCGGGATCTC GACGCTCTCC
   4551  CTTATGCGAC TCCTGCATTA GGAAGCAGCC CAGTAGTAGG TTGAGGCCGT
   4601  TGAGCACCGC CGCCGCAAGG AATGGTGCAT GCCGGCATGC CGCCCTTTCG
   4651  TCTTCAAGAA TTAATTCCCA ATTCCCCAGG CATCAAATAA AACGAAAGGC
   4701  TCAGTCGAAA GACTGGGCCT TTCGTTTTAT CTGTTGTTTG TCGGTGAACG
   4751  CTCTCCTGAG TAGGACAAAT CCGCCGGGAG CGGATTTGAA CGTTGCGAAG
   4801  CAACGGCCCG GAGGGTGGCG GGCAGGACGC CCGCCATAAA CTGCCAGGAA
   4851  TTAATTCCCC AGGCATCAAA TAAAACGAAA GGCTCAGTCG AAAGACTGGG
   4901  CCTTTCGTTT TATCTGTTGT TTGTCGGTGA ACGCTCTCCT GAGTAGGACA
   4951  AATCCGCCGG GAGCGGATTT GAACGTTGCG AAGCAACGGC CCGGAGGGTG
   5001  GCGGGCAGGA CGCCCGCCAT AAACTGCCAG GAATTAATTC CCCAGGCATC
   5051  AAATAAAACG AAAGGCTCAG TCGAAAGACT GGGCCTTTCG TTTTATCTGT
   5101  TGTTTGTCGG TGAACGCTCT CCTGAGTAGG ACAAATCCGC CGGGAGCGGA
   5151  TTTGAACGTT GCGAAGCAAC GGCCCGGAGG GTGGCGGGCA GGACGCCCGC
   5201  CATAAACTGC CAGGAATTAA TTCCCCAGGC ATCAAATAAA ACGAAAGGCT
   5251  CAGTCGAAAG ACTGGGCCTT TCGTTTTATC TGTTGTTTGT CGGTGAACGC
   5301  TCTCCTGAGT AGGACAAATC CGCCGGGAGC GGATTTGAAC GTTGCGAAGC
   5351  AACGGCCCGG AGGGTGGCGG GCAGGACGCC CGCCATAAAC TGCCAGGAAT
   5401  TAATTCCCCA GGCATCAAAT AAAACGAAAG GCTCAGTCGA AAGACTGGGC
   5451  CTTTCGTTTT ATCTGTTGTT TGTCGGTGAA CGCTCTCCTG AGTAGGACAA
   5501  ATCCGCCGGG AGCGGATTTG AACGTTGCGA AGCAACGGCC CGGAGGGTGG
   5551  CGGGCAGGAC GCCCGCCATA AACTGCCAGG AATTGGGGAT CGGAATTAAT
   5601  TCCCGGTTTA AACCGGGGAT CTCGATCCCG CGAAATTAAT ACGACTCACT
   5651  ATAGGGGAAT TGTGAGCGGA TAACAATTCC CCTCTAGAAA TAATTTTGTT
   5701  TAACTTTAAG AAGGAGATAT ACATATGGCT AGCTCGCGAG TCGACGGCGG
   5751  CCGCGAATTC CTCGAGGGCT CTTCCTGCAT CACGGGAGAT GCACTAGTTG
   5801  CCCTACCCGA GGGCGAGTCG GTACGCATCG CCGACATCGT GCCGGGTGCG
   5851  CGGCCCAACA GTGACAACGC CATCGACCTG AAAGTCCTTG ACCGGCATGG
   5901  CAATCCCGTG CTCGCCGACC GGCTGTTCCA CTCCGGCGAG CATCCGGTGT
   5951  ACACGGTGCG TACGGTCGAA GGTCTGCGTG TGACGGGCAC CGCGAACCAC
   6001  CCGTTGTTGT GTTTGGTCGA CGTCGCCGGG GTGCCGACCC TGCTGTGGAA
   6051  GCTGATCGAC GAAATCAAGC CGGGCGATTA CGCGGTGATT CAACGCAGCG
   6101  CATTCAGCGT CGACTGTGCA GGTTTTGCCC GCGGAAAACC CGAATTTGCG
   6151  CCCACAACCT ACACAGTCGG CGTCCCTGGA CTGGTGCGTT TCTTGGAAGC
   6201  ACACCACCGA GACCCGGACG CCCAAGCTAT CGCCGACGAG CTGACCGACG
   6251  GGCGGTTCTA CTACGCGAAA GTCGCCAGTG TCACCGACGC CGGCGTGCAG
   6301  CCGGTGTATA GCCTTCGTGT CGACACGGCA GACCACGCGT TTATCACGAA
   6351  CGGGTTCGTC AGCCACGCTA CTGGCCTCAC CGGTCTGAAC TCAGGCCTCA
   6401  CGACAAATCC TGGTGTATCC GCTTGGCAGG TCAACACAGC TTATACTGCG
   6451  GGACAATTGG TCACATATAA CGGCAAGACG TATAAATGTT TGCAGCCCCA
   6501  CACCTCCTTG GCAGGATGGG AACCATCCAA CGTTCCTGCC TTGTGGCAGC
   6551  TTCAATGACT GCAGGAAGGG GATCCGGCTG CTAACAAAGC CCGAAAGGAA
   6601  GCTGAGTTGG CTGCTGCCAC CGCTGAGCAA TAACTAGCAT AACCCCTTGG
   6651  GGCCTCTAAA CGGGTCTTGA GGGGTTTTTT GCTGAAAGGA GGAACTATAT
   6701  CCGGAT

载体质粒图谱pdf版和相关资料下载

载体应用举例
