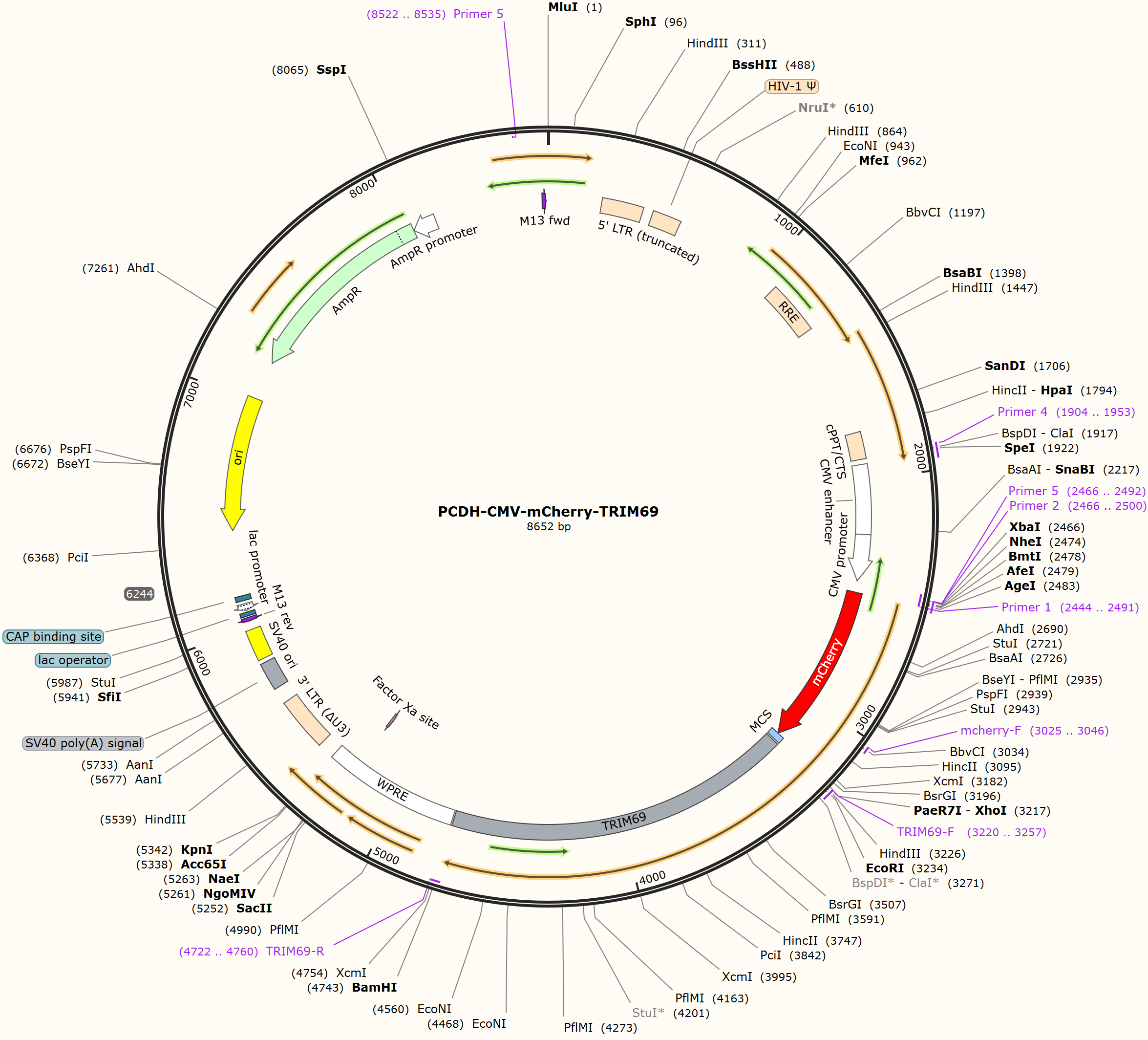

PCDH-CMV-mCherry-TRIM69

LOCUS      PCDH-CMV-mCherry-TRIM69              8652 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8652)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 11, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8652
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3220..3257
                     /label=TRIM69-F
     misc_feature    3240..4742
                     /label=TRIM69
     primer_bind     complement(4722..4760)
                     /label=TRIM69-R
     misc_feature    4749..5336
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5220..5231)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5409..5642
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5714..5835
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5854..5989
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(6027..6043)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6051..6067
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6075..6105)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6120..6141
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6429..7017)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7188..8048)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8049..8153)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8522..8535)
                     /label=Primer 5
     primer_bind     8627..8643
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggaggtatc caccaacccc tcctccaaca tcgatccagg cgactatgtt gaaatgaatg
     3301 attcaatcac ccacctaccc tctaaagtgg tgatacaaga tattactatg gagctacact
     3361 gccctctgtg caatgattgg ttccgagacc cactgatgct aagctgtggc cacaacttct
     3421 gtgaagcctg tatccaagac ttttggaggc tgcaagcaaa ggaaacattc tgtcctgagt
     3481 gtaagatgct atgtcagtat aacaactgta cattcaaccc tgtactggac aagttggtag
     3541 agaagattaa gaagttaccc ttactcaagg gccatccaca gtgcccagag catggagaga
     3601 acctgaaact gttcagtaaa ccagatggga aactgatctg ctttcaatgc aaggatgctc
     3661 ggttgtctgt ggggcagtct aaggagttcc tgcaaatctc tgatgctgtc catttcttca
     3721 cggaggagct tgccatccaa cagggtcaac tggagacaac tctgaaggag cttcagaccc
     3781 tgaggaacat gcagaaggaa gctattgctg ctcacaagga aaacaagcta catctgcagc
     3841 aacatgtgtc catggagttt ctaaagctgc atcagttcct gcacagcaaa gaaaaggaca
     3901 ttttaactga gctccgggaa gaggggaaag ccttgaatga ggagatggag ttgaatctga
     3961 gccagcttca ggagcaatgt ctcttagcca aggatatgtt ggtgagcatt caggcaaaga
     4021 cggaacaaca gaactccttc gactttctca aagacatcac aactctctta catagcttgg
     4081 agcaaggaat gaaggtgctg gcaaccagag agcttatttc cagaaagctg aacctgggcc
     4141 agtacaaagg tcctatccag tacatggtat ggagggaaat gcaggacact ctctgcccag
     4201 gcctgtctcc actaactctg gaccctaaaa cagctcaccc aaatctggtg ctctccaaaa
     4261 gccaaaccag cgtctggcat ggtgacatta agaagataat gcctgatgat cctgagaggt
     4321 ttgactcaag tgtggctgta ctgggctcaa gaggcttcac ctctggaaag tggtactggg
     4381 aagtagaagt agcaaagaag acaaaatgga cagttggagt tgtcagagaa tccatcattc
     4441 ggaagggcag ctgtcctcta actcctgagc aaggattctg gcttttaaga ctaaggaacc
     4501 aaactgatct aaaggctctg gatttgcctt ctttcagtct gacactgact aacaacctcg
     4561 acaaggtggg catatacctg gattatgaag gaggacagtt gtccttctac aatgctaaaa
     4621 ccatgactca catttacacc ttcagtaaca ctttcatgga gaaactttat ccctacttct
     4681 gcccctgcct taatgatggt ggagagaata aagaaccatt gcacatctta catccacagt
     4741 aaggatccaa tcaacctctg gattacaaaa tttgtgaaag attgactggt attcttaact
     4801 atgttgctcc ttttacgcta tgtggatacg ctgctttaat gcctttgtat catgctattg
     4861 cttcccgtat ggctttcatt ttctcctcct tgtataaatc ctggttgctg tctctttatg
     4921 aggagttgtg gcccgttgtc aggcaacgtg gcgtggtgtg cactgtgttt gctgacgcaa
     4981 cccccactgg ttggggcatt gccaccacct gtcagctcct ttccgggact ttcgctttcc
     5041 ccctccctat tgccacggcg gaactcatcg ccgcctgcct tgcccgctgc tggacagggg
     5101 ctcggctgtt gggcactgac aattccgtgg tgttgtcggg gaagctgacg tcctttccat
     5161 ggctgctcgc ctgtgttgcc acctggattc tgcgcgggac gtccttctgc tacgtccctt
     5221 cggccctcaa tccagcggac cttccttccc gcggcctgct gccggctctg cggcctcttc
     5281 cgcgtctccg ccttcgccct cagacgagtc ggatctccct ttggccgcct ccccgccggt
     5341 acctttaaga ccaatgactt acaaggcagc tgtagatctt agccactttt taaaagaaaa
     5401 ggggggactg gaagggctaa ttcactccca acgaaaataa gatctgcttt ttgcttgtac
     5461 tgggtctctc tggttagacc agatctgagc ctgggagctc tctggctaac tagggaaccc
     5521 actgcttaag cctcaataaa gcttgccttg agtgcttcaa gtagtgtgtg cccgtctgtt
     5581 gtgtgactct ggtaactaga gatccctcag acccttttag tcagtgtgga aaatctctag
     5641 cagtagtagt tcatgtcatc ttattattca gtatttataa cttgcaaaga aatgaatatc
     5701 agagagtgag aggaacttgt ttattgcagc ttataatggt tacaaataaa gcaatagcat
     5761 cacaaatttc acaaataaag catttttttc actgcattct agttgtggtt tgtccaaact
     5821 catcaatgta tcttatcatg tctggctcta gctatcccgc ccctaactcc gcccagttcc
     5881 gcccattctc cgccccatgg ctgactaatt ttttttattt atgcagaggc cgaggccgcc
     5941 tcggcctctg agctattcca gaagtagtga ggaggctttt ttggaggcct agacttttgc
     6001 agagacggcc caaattcgta atcatggtca tagctgtttc ctgtgtgaaa ttgttatccg
     6061 ctcacaattc cacacaacat acgagccgga agcataaagt gtaaagcctg gggtgcctaa
     6121 tgagtgagct aactcacatt aattgcgttg cgctcactgc ccgctttcca gtcgggaaac
     6181 ctgtcgtgcc agctgcatta atgaatcggc caacgcgcgg ggagaggcgg tttgcgtatt
     6241 gggcgctctt ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg gctgcggcga
     6301 gcggtatcag ctcactcaaa ggcggtaata cggttatcca cagaatcagg ggataacgca
     6361 ggaaagaaca tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa ggccgcgttg
     6421 ctggcgtttt tccataggct ccgcccccct gacgagcatc acaaaaatcg acgctcaagt
     6481 cagaggtggc gaaacccgac aggactataa agataccagg cgtttccccc tggaagctcc
     6541 ctcgtgcgct ctcctgttcc gaccctgccg cttaccggat acctgtccgc ctttctccct
     6601 tcgggaagcg tggcgctttc tcatagctca cgctgtaggt atctcagttc ggtgtaggtc
     6661 gttcgctcca agctgggctg tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta
     6721 tccggtaact atcgtcttga gtccaacccg gtaagacacg acttatcgcc actggcagca
     6781 gccactggta acaggattag cagagcgagg tatgtaggcg gtgctacaga gttcttgaag
     6841 tggtggccta actacggcta cactagaagg acagtatttg gtatctgcgc tctgctgaag
     6901 ccagttacct tcggaaaaag agttggtagc tcttgatccg gcaaacaaac caccgctggt
     6961 agcggtggtt tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa
     7021 gatcctttga tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg
     7081 attttggtca tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga
     7141 agttttaaat caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta
     7201 atcagtgagg cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc
     7261 cccgtcgtgt agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg
     7321 ataccgcgag acccacgctc accggctcca gatttatcag caataaacca gccagccgga
     7381 agggccgagc gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt
     7441 tgccgggaag ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt
     7501 gctacaggca tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc
     7561 caacgatcaa ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc
     7621 ggtcctccga tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca
     7681 gcactgcata attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag
     7741 tactcaacca agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg
     7801 tcaatacggg ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa
     7861 cgttcttcgg ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa
     7921 cccactcgtg cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga
     7981 gcaaaaacag gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga
     8041 atactcatac tcttcctttt tcaatattat tgaagcattt atcagggtta ttgtctcatg
     8101 agcggataca tatttgaatg tatttagaaa aataaacaaa taggggttcc gcgcacattt
     8161 ccccgaaaag tgccacctga cgtctaagaa accattatta tcatgacatt aacctataaa
     8221 aataggcgta tcacgaggcc ctttcgtctc gcgcgtttcg gtgatgacgg tgaaaacctc
     8281 tgacacatgc agctcccgga gacggtcaca gcttgtctgt aagcggatgc cgggagcaga
     8341 caagcccgtc agggcgcgtc agcgggtgtt ggcgggtgtc ggggctggct taactatgcg
     8401 gcatcagagc agattgtact gagagtgcac catatgcggt gtgaaatacc gcacagatgc
     8461 gtaaggagaa aataccgcat caggcgccat tcgccattca ggctgcgcaa ctgttgggaa
     8521 gggcgatcgg tgcgggcctc ttcgctatta cgccagctgg cgaaaggggg atgtgctgca
     8581 aggcgattaa gttgggtaac gccagggttt tcccagtcac gacgttgtaa aacgacggcc
     8641 agtgccaagc tg
//
