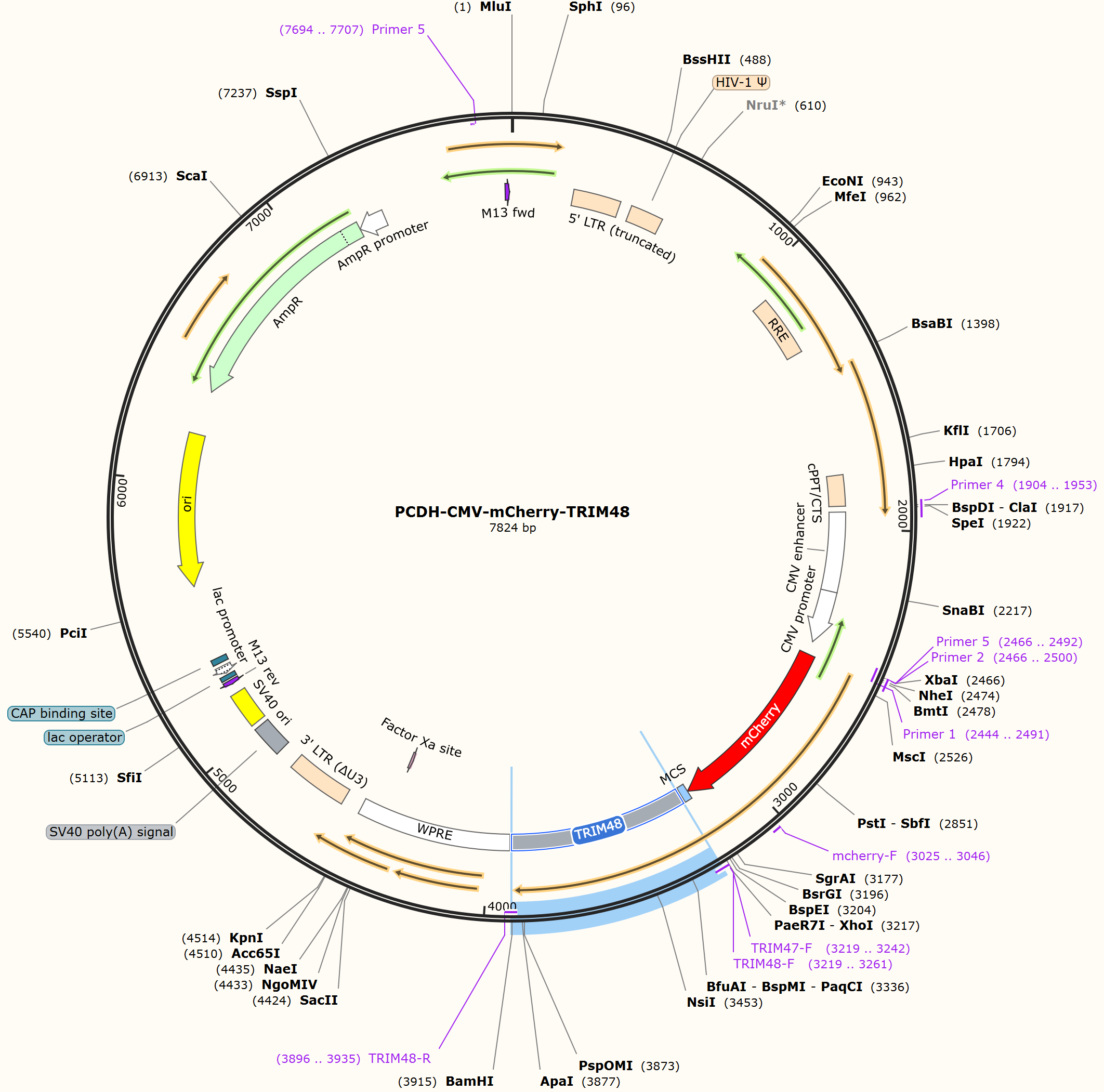

PCDH-CMV-mCherry-TRIM48

LOCUS       PCDH-CMV-mCherry-TRIM48               7824 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7824)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 10, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7824
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3219..3261
                     /label=TRIM48-F
     primer_bind     3219..3242
                     /label=TRIM47-F
     misc_feature    3240..3914
                     /label=TRIM48
     primer_bind     complement(3896..3935)
                     /label=TRIM48-R
     misc_feature    3921..4508
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(4392..4403)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             4581..4814
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    4886..5007
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5026..5161
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5199..5215)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5223..5239
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5247..5277)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5292..5313
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5601..6189)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6360..7220)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7221..7325)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(7694..7707)
                     /label=Primer 5
     primer_bind     7799..7815
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tgtctcgaag aatcattgtg ggaacccttc aaagaaccca gcgaaacatg aattctggaa
     3301 tctcgcaagt cttccagagg gaactcacct gccccatctg catgaactac ttcatagacc
     3361 cggtcaccat agactgtggg cacagctttt gcaggccctg tttctacctc aactggcaag
     3421 acatcccaat tcttactcag tgctttgaat gcataaagac aatacagcag agaaacctca
     3481 aaactaacat tcgattgaag aagatggctt cccttgccag aaaagccagt ctctggctat
     3541 tcctgagctc tgaggagcaa atgtgtggca ttcacaggga gacaaagaag atgttctgtg
     3601 aagtggacag gagcctgctc tgtttgctgt gctccagctc tcaggagcac cggtatcaca
     3661 gacactgtcc cgctgagtgg gctgctgagg aacactggga gaagctttta aagaaaatgc
     3721 agtctttatg ggaaaaagct tgtgaaaatc agagaaacct gaatgtggaa accaccagaa
     3781 tcagccactg gaaggctttt ggagacatat tatacaggag tgagtccgtg ctgctgcaca
     3841 tgccccagcc tctgaatcta gcgctcaggg cagggcccat cactggactg agggacaggc
     3901 tcaaccaatt ctgaggatcc aatcaacctc tggattacaa aatttgtgaa agattgactg
     3961 gtattcttaa ctatgttgct ccttttacgc tatgtggata cgctgcttta atgcctttgt
     4021 atcatgctat tgcttcccgt atggctttca ttttctcctc cttgtataaa tcctggttgc
     4081 tgtctcttta tgaggagttg tggcccgttg tcaggcaacg tggcgtggtg tgcactgtgt
     4141 ttgctgacgc aacccccact ggttggggca ttgccaccac ctgtcagctc ctttccggga
     4201 ctttcgcttt ccccctccct attgccacgg cggaactcat cgccgcctgc cttgcccgct
     4261 gctggacagg ggctcggctg ttgggcactg acaattccgt ggtgttgtcg gggaagctga
     4321 cgtcctttcc atggctgctc gcctgtgttg ccacctggat tctgcgcggg acgtccttct
     4381 gctacgtccc ttcggccctc aatccagcgg accttccttc ccgcggcctg ctgccggctc
     4441 tgcggcctct tccgcgtctc cgccttcgcc ctcagacgag tcggatctcc ctttggccgc
     4501 ctccccgccg gtacctttaa gaccaatgac ttacaaggca gctgtagatc ttagccactt
     4561 tttaaaagaa aaggggggac tggaagggct aattcactcc caacgaaaat aagatctgct
     4621 ttttgcttgt actgggtctc tctggttaga ccagatctga gcctgggagc tctctggcta
     4681 actagggaac ccactgctta agcctcaata aagcttgcct tgagtgcttc aagtagtgtg
     4741 tgcccgtctg ttgtgtgact ctggtaacta gagatccctc agaccctttt agtcagtgtg
     4801 gaaaatctct agcagtagta gttcatgtca tcttattatt cagtatttat aacttgcaaa
     4861 gaaatgaata tcagagagtg agaggaactt gtttattgca gcttataatg gttacaaata
     4921 aagcaatagc atcacaaatt tcacaaataa agcatttttt tcactgcatt ctagttgtgg
     4981 tttgtccaaa ctcatcaatg tatcttatca tgtctggctc tagctatccc gcccctaact
     5041 ccgcccagtt ccgcccattc tccgccccat ggctgactaa ttttttttat ttatgcagag
     5101 gccgaggccg cctcggcctc tgagctattc cagaagtagt gaggaggctt ttttggaggc
     5161 ctagactttt gcagagacgg cccaaattcg taatcatggt catagctgtt tcctgtgtga
     5221 aattgttatc cgctcacaat tccacacaac atacgagccg gaagcataaa gtgtaaagcc
     5281 tggggtgcct aatgagtgag ctaactcaca ttaattgcgt tgcgctcact gcccgctttc
     5341 cagtcgggaa acctgtcgtg ccagctgcat taatgaatcg gccaacgcgc ggggagaggc
     5401 ggtttgcgta ttgggcgctc ttccgcttcc tcgctcactg actcgctgcg ctcggtcgtt
     5461 cggctgcggc gagcggtatc agctcactca aaggcggtaa tacggttatc cacagaatca
     5521 ggggataacg caggaaagaa catgtgagca aaaggccagc aaaaggccag gaaccgtaaa
     5581 aaggccgcgt tgctggcgtt tttccatagg ctccgccccc ctgacgagca tcacaaaaat
     5641 cgacgctcaa gtcagaggtg gcgaaacccg acaggactat aaagatacca ggcgtttccc
     5701 cctggaagct ccctcgtgcg ctctcctgtt ccgaccctgc cgcttaccgg atacctgtcc
     5761 gcctttctcc cttcgggaag cgtggcgctt tctcatagct cacgctgtag gtatctcagt
     5821 tcggtgtagg tcgttcgctc caagctgggc tgtgtgcacg aaccccccgt tcagcccgac
     5881 cgctgcgcct tatccggtaa ctatcgtctt gagtccaacc cggtaagaca cgacttatcg
     5941 ccactggcag cagccactgg taacaggatt agcagagcga ggtatgtagg cggtgctaca
     6001 gagttcttga agtggtggcc taactacggc tacactagaa ggacagtatt tggtatctgc
     6061 gctctgctga agccagttac cttcggaaaa agagttggta gctcttgatc cggcaaacaa
     6121 accaccgctg gtagcggtgg tttttttgtt tgcaagcagc agattacgcg cagaaaaaaa
     6181 ggatctcaag aagatccttt gatcttttct acggggtctg acgctcagtg gaacgaaaac
     6241 tcacgttaag ggattttggt catgagatta tcaaaaagga tcttcaccta gatcctttta
     6301 aattaaaaat gaagttttaa atcaatctaa agtatatatg agtaaacttg gtctgacagt
     6361 taccaatgct taatcagtga ggcacctatc tcagcgatct gtctatttcg ttcatccata
     6421 gttgcctgac tccccgtcgt gtagataact acgatacggg agggcttacc atctggcccc
     6481 agtgctgcaa tgataccgcg agacccacgc tcaccggctc cagatttatc agcaataaac
     6541 cagccagccg gaagggccga gcgcagaagt ggtcctgcaa ctttatccgc ctccatccag
     6601 tctattaatt gttgccggga agctagagta agtagttcgc cagttaatag tttgcgcaac
     6661 gttgttgcca ttgctacagg catcgtggtg tcacgctcgt cgtttggtat ggcttcattc
     6721 agctccggtt cccaacgatc aaggcgagtt acatgatccc ccatgttgtg caaaaaagcg
     6781 gttagctcct tcggtcctcc gatcgttgtc agaagtaagt tggccgcagt gttatcactc
     6841 atggttatgg cagcactgca taattctctt actgtcatgc catccgtaag atgcttttct
     6901 gtgactggtg agtactcaac caagtcattc tgagaatagt gtatgcggcg accgagttgc
     6961 tcttgcccgg cgtcaatacg ggataatacc gcgccacata gcagaacttt aaaagtgctc
     7021 atcattggaa aacgttcttc ggggcgaaaa ctctcaagga tcttaccgct gttgagatcc
     7081 agttcgatgt aacccactcg tgcacccaac tgatcttcag catcttttac tttcaccagc
     7141 gtttctgggt gagcaaaaac aggaaggcaa aatgccgcaa aaaagggaat aagggcgaca
     7201 cggaaatgtt gaatactcat actcttcctt tttcaatatt attgaagcat ttatcagggt
     7261 tattgtctca tgagcggata catatttgaa tgtatttaga aaaataaaca aataggggtt
     7321 ccgcgcacat ttccccgaaa agtgccacct gacgtctaag aaaccattat tatcatgaca
     7381 ttaacctata aaaataggcg tatcacgagg ccctttcgtc tcgcgcgttt cggtgatgac
     7441 ggtgaaaacc tctgacacat gcagctcccg gagacggtca cagcttgtct gtaagcggat
     7501 gccgggagca gacaagcccg tcagggcgcg tcagcgggtg ttggcgggtg tcggggctgg
     7561 cttaactatg cggcatcaga gcagattgta ctgagagtgc accatatgcg gtgtgaaata
     7621 ccgcacagat gcgtaaggag aaaataccgc atcaggcgcc attcgccatt caggctgcgc
     7681 aactgttggg aagggcgatc ggtgcgggcc tcttcgctat tacgccagct ggcgaaaggg
     7741 ggatgtgctg caaggcgatt aagttgggta acgccagggt tttcccagtc acgacgttgt
     7801 aaaacgacgg ccagtgccaa gctg
//
