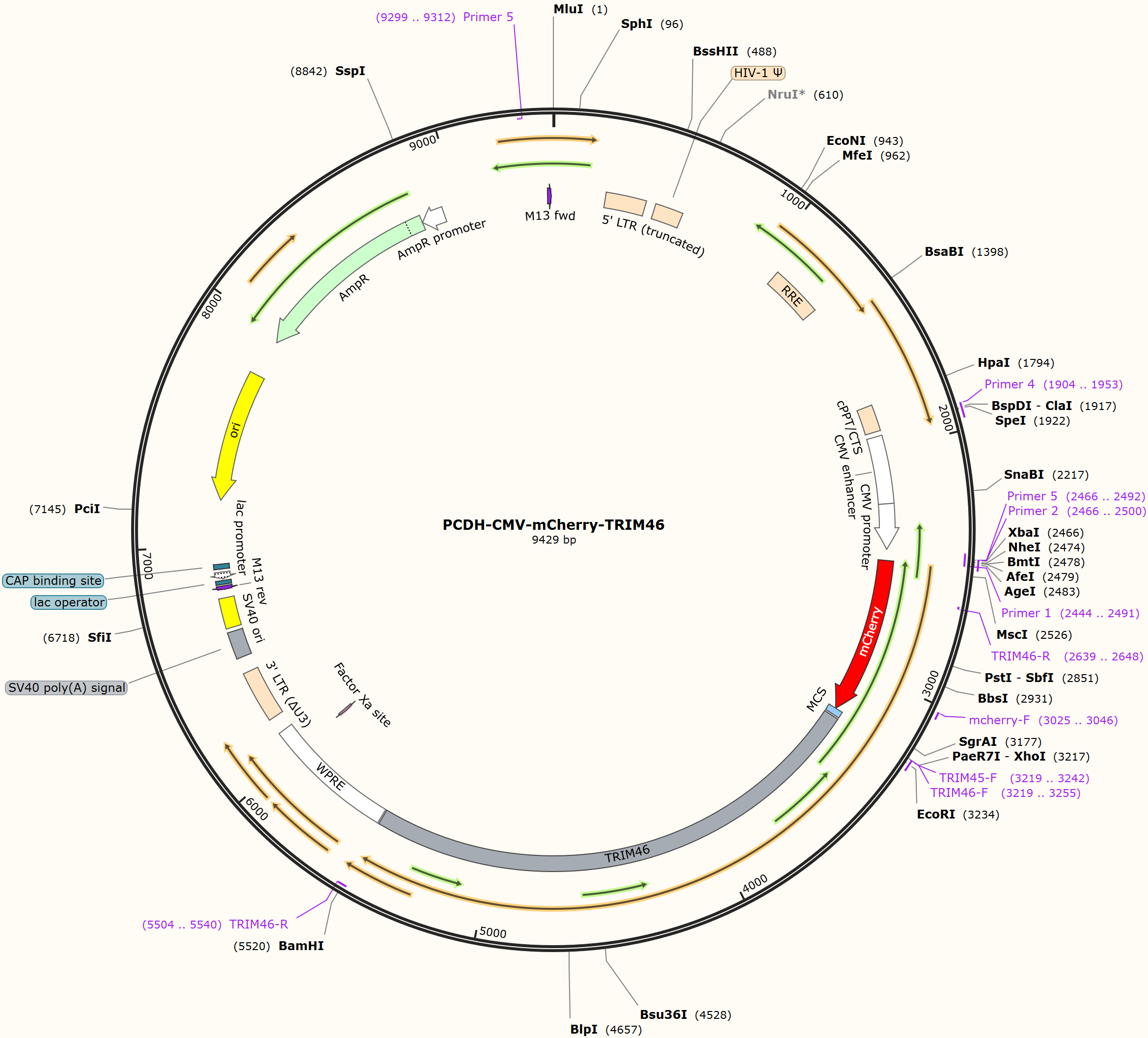

PCDH-CMV-mCherry-TRIM46

LOCUS       PCDH-CMV-mCherry-TRIM46      9429 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 9429)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 10, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..9429
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     complement(2639..2648)
                     /label=TRIM46-R
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3219..3255
                     /label=TRIM46-F
     primer_bind     3219..3242
                     /label=TRIM45-F
     misc_feature    3240..5519
                     /label=TRIM46
     primer_bind     complement(5504..5540)
                     /label=TRIM46-R
     misc_feature    5526..6113
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5997..6008)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             6186..6419
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    6491..6612
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      6631..6766
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(6804..6820)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6828..6844
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6852..6882)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6897..6918
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(7206..7794)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7965..8825)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8826..8930)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(9299..9312)
                     /label=Primer 5
     primer_bind     9404..9420
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggcagaggg tgaggatatg cagaccttca cttccatcat ggacgcactg gtccgcatca
     3301 gtaccagcat gaagaacatg gagaaggaac tgctgtgccc agtgtgtcaa gagatgtaca
     3361 agcagccact ggtgctgccc tgtacccaca acgtgtgcca ggcctgtgcc cgagaggtct
     3421 tgggccagca gggctacata ggacatggtg gggaccccag ctccgagccc acctctcctg
     3481 cctccacccc ttccacccgc agcccccgcc tctcccgcag aactctcccc aagccagacc
     3541 gcctggaccg gctgcttaag tcaggctttg ggacataccc tgggaggaag cgaggtgctt
     3601 tgcaccccca agtgatcatg ttcccgtgcc cagcctgcca aggtgatgtg gagcttgggg
     3661 agcggggtct ggcagggctt ttccggaacc tgaccctgga gcgtgtggtg gagcggtacc
     3721 gccagagtgt gagtgtggga ggtgccatcc tgtgccagtt gtgcaagccc ccaccactag
     3781 aggccaccaa gggctgcaca gagtgccgcg ccaccttctg caatgagtgc ttcaagctct
     3841 tccacccctg gggcacccag aaggcccagc atgagcccac cctgcctacc ctctccttcc
     3901 gacccaaggg ccttatgtgc ccagaccaca aggaagaggt gacccactac tgcaagacat
     3961 gccaacgcct ggtatgtcaa ctctgccggg tgcggcgcac ccacagcggg cacaagatca
     4021 caccagtgct cagtgcctac caggccctca aggacaagct gacaaagagc ctgacataca
     4081 tcctgggaaa ccaggacacg gtacagaccc agatctgtga gctggaggag gccgtgaggc
     4141 acaccgaggt gagtggtcag caggccaagg aggaggtgtc gcagctggtg cgggggctgg
     4201 gggctgtgct ggaggagaag cgggcatcac tgcttcaggc cattgaagaa tgccagcagg
     4261 agcggctggc ccgtctcagc gcccagatcc aggagcaccg gagcctgctg gatggctcag
     4321 gtctggtggg ctatgcccag gaagtactta aggaaacaga ccagccttgc tttgtgcaag
     4381 ccgccaagca gctgcacaac aggattgccc gagccactga agccctccag acattccggc
     4441 cagctgccag ctcctccttc cgccattgcc agctcgacgt gggacgtgag atgaagctgc
     4501 tgacagagct taacttcctg cgagtgcctg aggcccccgt cattgacacc cagcgcacct
     4561 ttgcctatga tcagatcttc ctgtgctggc ggctgccccc ccattcacca cctgcctggc
     4621 actataccgt tgagttccgg cgcacggatg tgcctgctca gccaggcccc acccgctggc
     4681 agcggcggga ggaggtgagg ggcaccagtg ccctgcttga gaaccccgac acgggctctg
     4741 tgtatgtgct gcgtgtccgc ggctgcaaca aggccggcta cggcgaatac agtgaagatg
     4801 tgcacctgca cacgcccccg gcacctgtcc tgcacttctt cctcgatagc cgctggggcg
     4861 caagccgaga gcggctggct atcagcaagg accagcgagc agtacggagt gttccagggc
     4921 tgcccctgct gctggctgct gaccggctgc tgaccggctg ccacctgagt gtggatgtgg
     4981 tcctgggcga cgtggctgtg acccagggcc gcagctactg ggcctgcgcc gtagacccag
     5041 cctcctactt ggtcaaggtg ggcgtcgggc tggagagcaa gcttcaagaa agtttccagg
     5101 gtgcccccga tgtgatcagc cccaggtacg acccggacag cgggcacgac agcggtgccg
     5161 aggatgccac agtggaggcg tcgccaccct tcgctttcct aaccattggc atgggcaaga
     5221 tcctgctggg gtcgggggca agctcaaacg cagggctgac agggagggat ggccccacag
     5281 ccggctgcac agtgcccctg ccaccccgcc tgggcatctg cctggactat gagcggggcc
     5341 gggtttcctt cctggatgct gtttccttcc gtgggctctt ggagtgcccc ctggactgct
     5401 cagggcctgt gtgccctgcc ttttgcttca tcgggggtgg cgcagtacag ctccaggagc
     5461 cagtgggcac taagcctgag aggaaagtca ccattggggg cttcgccaag ctggactgag
     5521 gatccaatca acctctggat tacaaaattt gtgaaagatt gactggtatt cttaactatg
     5581 ttgctccttt tacgctatgt ggatacgctg ctttaatgcc tttgtatcat gctattgctt
     5641 cccgtatggc tttcattttc tcctccttgt ataaatcctg gttgctgtct ctttatgagg
     5701 agttgtggcc cgttgtcagg caacgtggcg tggtgtgcac tgtgtttgct gacgcaaccc
     5761 ccactggttg gggcattgcc accacctgtc agctcctttc cgggactttc gctttccccc
     5821 tccctattgc cacggcggaa ctcatcgccg cctgccttgc ccgctgctgg acaggggctc
     5881 ggctgttggg cactgacaat tccgtggtgt tgtcggggaa gctgacgtcc tttccatggc
     5941 tgctcgcctg tgttgccacc tggattctgc gcgggacgtc cttctgctac gtcccttcgg
     6001 ccctcaatcc agcggacctt ccttcccgcg gcctgctgcc ggctctgcgg cctcttccgc
     6061 gtctccgcct tcgccctcag acgagtcgga tctccctttg gccgcctccc cgccggtacc
     6121 tttaagacca atgacttaca aggcagctgt agatcttagc cactttttaa aagaaaaggg
     6181 gggactggaa gggctaattc actcccaacg aaaataagat ctgctttttg cttgtactgg
     6241 gtctctctgg ttagaccaga tctgagcctg ggagctctct ggctaactag ggaacccact
     6301 gcttaagcct caataaagct tgccttgagt gcttcaagta gtgtgtgccc gtctgttgtg
     6361 tgactctggt aactagagat ccctcagacc cttttagtca gtgtggaaaa tctctagcag
     6421 tagtagttca tgtcatctta ttattcagta tttataactt gcaaagaaat gaatatcaga
     6481 gagtgagagg aacttgttta ttgcagctta taatggttac aaataaagca atagcatcac
     6541 aaatttcaca aataaagcat ttttttcact gcattctagt tgtggtttgt ccaaactcat
     6601 caatgtatct tatcatgtct ggctctagct atcccgcccc taactccgcc cagttccgcc
     6661 cattctccgc cccatggctg actaattttt tttatttatg cagaggccga ggccgcctcg
     6721 gcctctgagc tattccagaa gtagtgagga ggcttttttg gaggcctaga cttttgcaga
     6781 gacggcccaa attcgtaatc atggtcatag ctgtttcctg tgtgaaattg ttatccgctc
     6841 acaattccac acaacatacg agccggaagc ataaagtgta aagcctgggg tgcctaatga
     6901 gtgagctaac tcacattaat tgcgttgcgc tcactgcccg ctttccagtc gggaaacctg
     6961 tcgtgccagc tgcattaatg aatcggccaa cgcgcgggga gaggcggttt gcgtattggg
     7021 cgctcttccg cttcctcgct cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg
     7081 gtatcagctc actcaaaggc ggtaatacgg ttatccacag aatcagggga taacgcagga
     7141 aagaacatgt gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg
     7201 gcgtttttcc ataggctccg cccccctgac gagcatcaca aaaatcgacg ctcaagtcag
     7261 aggtggcgaa acccgacagg actataaaga taccaggcgt ttccccctgg aagctccctc
     7321 gtgcgctctc ctgttccgac cctgccgctt accggatacc tgtccgcctt tctcccttcg
     7381 ggaagcgtgg cgctttctca tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt
     7441 cgctccaagc tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc
     7501 ggtaactatc gtcttgagtc caacccggta agacacgact tatcgccact ggcagcagcc
     7561 actggtaaca ggattagcag agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg
     7621 tggcctaact acggctacac tagaaggaca gtatttggta tctgcgctct gctgaagcca
     7681 gttaccttcg gaaaaagagt tggtagctct tgatccggca aacaaaccac cgctggtagc
     7741 ggtggttttt ttgtttgcaa gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat
     7801 cctttgatct tttctacggg gtctgacgct cagtggaacg aaaactcacg ttaagggatt
     7861 ttggtcatga gattatcaaa aaggatcttc acctagatcc ttttaaatta aaaatgaagt
     7921 tttaaatcaa tctaaagtat atatgagtaa acttggtctg acagttacca atgcttaatc
     7981 agtgaggcac ctatctcagc gatctgtcta tttcgttcat ccatagttgc ctgactcccc
     8041 gtcgtgtaga taactacgat acgggagggc ttaccatctg gccccagtgc tgcaatgata
     8101 ccgcgagacc cacgctcacc ggctccagat ttatcagcaa taaaccagcc agccggaagg
     8161 gccgagcgca gaagtggtcc tgcaacttta tccgcctcca tccagtctat taattgttgc
     8221 cgggaagcta gagtaagtag ttcgccagtt aatagtttgc gcaacgttgt tgccattgct
     8281 acaggcatcg tggtgtcacg ctcgtcgttt ggtatggctt cattcagctc cggttcccaa
     8341 cgatcaaggc gagttacatg atcccccatg ttgtgcaaaa aagcggttag ctccttcggt
     8401 cctccgatcg ttgtcagaag taagttggcc gcagtgttat cactcatggt tatggcagca
     8461 ctgcataatt ctcttactgt catgccatcc gtaagatgct tttctgtgac tggtgagtac
     8521 tcaaccaagt cattctgaga atagtgtatg cggcgaccga gttgctcttg cccggcgtca
     8581 atacgggata ataccgcgcc acatagcaga actttaaaag tgctcatcat tggaaaacgt
     8641 tcttcggggc gaaaactctc aaggatctta ccgctgttga gatccagttc gatgtaaccc
     8701 actcgtgcac ccaactgatc ttcagcatct tttactttca ccagcgtttc tgggtgagca
     8761 aaaacaggaa ggcaaaatgc cgcaaaaaag ggaataaggg cgacacggaa atgttgaata
     8821 ctcatactct tcctttttca atattattga agcatttatc agggttattg tctcatgagc
     8881 ggatacatat ttgaatgtat ttagaaaaat aaacaaatag gggttccgcg cacatttccc
     8941 cgaaaagtgc cacctgacgt ctaagaaacc attattatca tgacattaac ctataaaaat
     9001 aggcgtatca cgaggccctt tcgtctcgcg cgtttcggtg atgacggtga aaacctctga
     9061 cacatgcagc tcccggagac ggtcacagct tgtctgtaag cggatgccgg gagcagacaa
     9121 gcccgtcagg gcgcgtcagc gggtgttggc gggtgtcggg gctggcttaa ctatgcggca
     9181 tcagagcaga ttgtactgag agtgcaccat atgcggtgtg aaataccgca cagatgcgta
     9241 aggagaaaat accgcatcag gcgccattcg ccattcaggc tgcgcaactg ttgggaaggg
     9301 cgatcggtgc gggcctcttc gctattacgc cagctggcga aagggggatg tgctgcaagg
     9361 cgattaagtt gggtaacgcc agggttttcc cagtcacgac gttgtaaaac gacggccagt
     9421 gccaagctg
//
